Pro bike: Taylor Phinney's BMC GF01

Image 1 of 28

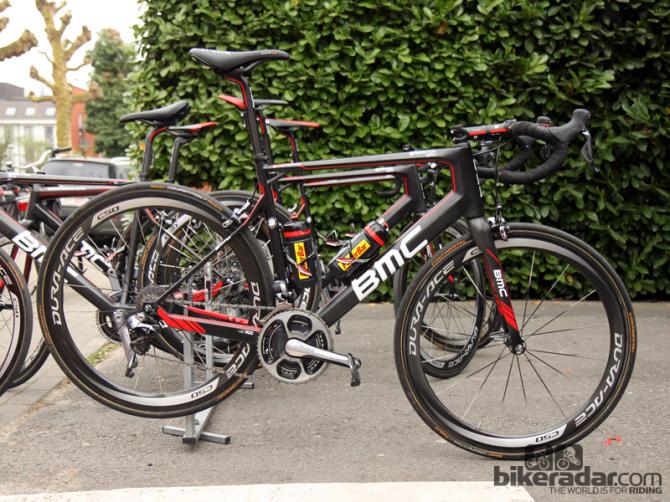

Taylor Phinney (BMC Racing Team) will take another stab at the Ronde van Vlaanderen on the BMC GranFondo GF01

Taylor Phinney (BMC Racing Team) will take another stab at the Ronde van Vlaanderen on the BMC GranFondo GF01
(Image credit: James Huang)
Image 2 of 28

Shimano's new Dura-Ace Di2 9070 wire routing is very neat up front

Shimano's new Dura-Ace Di2 9070 wire routing is very neat up front
(Image credit: James Huang)
Image 3 of 28

The number holder is attached with extra-strength double-sided foam tape to BMC's flexy TCC carbon seatpost

The number holder is attached with extra-strength double-sided foam tape to BMC's flexy TCC carbon seatpost
(Image credit: James Huang)
Image 4 of 28

BMC team mechanics don't bother to attach the Shimano Dura-Ace Di2 wire to the rear brake housing

BMC team mechanics don't bother to attach the Shimano Dura-Ace Di2 wire to the rear brake housing
(Image credit: James Huang)
Image 5 of 28

Shimano's new coated cables require the use of nosed ferrules

Shimano's new coated cables require the use of nosed ferrules
(Image credit: James Huang)
Image 6 of 28

BMC builds an adjustable chain catcher right into the GF01 frame

BMC builds an adjustable chain catcher right into the GF01 frame
(Image credit: James Huang)
Image 7 of 28

The BMC GF01 frame makes good use of the extra real estate provided by the BB86 press-fit bottom bracket shell

The BMC GF01 frame makes good use of the extra real estate provided by the BB86 press-fit bottom bracket shell
(Image credit: James Huang)
Image 8 of 28

Another look at Phinney's fi'zi:k Aliante VSX saddle

Another look at Phinney's fi'zi:k Aliante VSX saddle
(Image credit: James Huang)
Image 9 of 28

These Shimano Dura-Ace PD-9000 SPD-SL pedals have clearly seen some use

These Shimano Dura-Ace PD-9000 SPD-SL pedals have clearly seen some use
(Image credit: James Huang)
Image 10 of 28

Phinney runs his 3T Ergosum Team handlebars relatively level

Phinney runs his 3T Ergosum Team handlebars relatively level
(Image credit: James Huang)
Image 11 of 28

Elite's Sior Mio bottle cages feature small metal clips that actively pull the fiber-reinforced plastic arms together

Elite's Sior Mio bottle cages feature small metal clips that actively pull the fiber-reinforced plastic arms together
(Image credit: James Huang)
Image 12 of 28

Phinney may run his handlebars relatively level but the saddle is definitely tilted notably upward

Phinney may run his handlebars relatively level but the saddle is definitely tilted notably upward
(Image credit: James Huang)
Image 13 of 28

Shimano Dura-Ace WH-9000-C50-TU carbon tubular wheels for Taylor Phinney (BMC Racing Team)

Shimano Dura-Ace WH-9000-C50-TU carbon tubular wheels for Taylor Phinney (BMC Racing Team)
(Image credit: James Huang)
Image 14 of 28

Sprint shift buttons peek out through cutouts in the bar tape

Sprint shift buttons peek out through cutouts in the bar tape
(Image credit: James Huang)
Image 15 of 28

Phinney records his data on an SRM PowerControl 7 computer. It isn't taped in place here but we're guessing it will be come race day

Phinney records his data on an SRM PowerControl 7 computer. It isn't taped in place here but we're guessing it will be come race day
(Image credit: James Huang)
Image 16 of 28

Taylor Phinney (BMC Racing Team) stands at nearly 2m tall and runs quite a lot - but not an extreme amount - of handlebar drop

Taylor Phinney (BMC Racing Team) stands at nearly 2m tall and runs quite a lot - but not an extreme amount - of handlebar drop
(Image credit: James Huang)
Image 17 of 28

BMC's trademark frame shaping is even more pronounced on the GF01 model

BMC's trademark frame shaping is even more pronounced on the GF01 model
(Image credit: James Huang)
Image 18 of 28

Carbon wheels were once rarely seen even at Ronde van Vlaanderen but now they're standard fare. Taylor Phinney (BMC Racing Team) plans on using Shimano's 50mm-deep Dura-Ace carbon tubulars

Carbon wheels were once rarely seen even at Ronde van Vlaanderen but now they're standard fare. Taylor Phinney (BMC Racing Team) plans on using Shimano's 50mm-deep Dura-Ace carbon tubulars
(Image credit: James Huang)
Image 19 of 28

Phinney's (BMC Racing Team) 58cm BMC GF01 is built with a whopping 196mm-long head tube. The stem is slammed atop the headset cap but with a typical -6° angle instead of something more aggressive

Phinney's (BMC Racing Team) 58cm BMC GF01 is built with a whopping 196mm-long head tube. The stem is slammed atop the headset cap but with a typical -6° angle instead of something more aggressive
(Image credit: James Huang)
Image 20 of 28

BMC intentionally builds the rear end of the GF01 with lots of kinks and angles, which the company says act as pivot points to help smooth out rough roads

BMC intentionally builds the rear end of the GF01 with lots of kinks and angles, which the company says act as pivot points to help smooth out rough roads
(Image credit: James Huang)
Image 21 of 28

Does BMC's Tuned Compliance Concept design work? Our experience says yes, at least as long as you're hitting bumps fast and hard, which Phinney is sure to do during both Ronde van Vlaanderen and Paris-Roubaix

Does BMC's Tuned Compliance Concept design work? Our experience says yes, at least as long as you're hitting bumps fast and hard, which Phinney is sure to do during both Ronde van Vlaanderen and Paris-Roubaix
(Image credit: James Huang)
Image 22 of 28

The Di2 internal wire routing is especially tidy on Taylor Phinney's (BMC Racing Team) BMC GranFondo GF01

The Di2 internal wire routing is especially tidy on Taylor Phinney's (BMC Racing Team) BMC GranFondo GF01
(Image credit: James Huang)
Image 23 of 28

Phinney's main race bike was fitted with an SRM power meter on the Friday before Ronde van Vlaanderen

Phinney's main race bike was fitted with an SRM power meter on the Friday before Ronde van Vlaanderen
(Image credit: James Huang)
Image 24 of 28

Phinney opts for 3T's shallow-drop Ergosum Team carbon handlebar, wrapped with two layers of tape

Phinney opts for 3T's shallow-drop Ergosum Team carbon handlebar, wrapped with two layers of tape
(Image credit: James Huang)
Image 25 of 28

Even top riders are moving away from 23mm-wide tire - and not just for the cobbled classics. Phinney will run these 25mm-wide Continental Competition Pro Limited tubulars at 87psi up front and 94psi out back

Even top riders are moving away from 23mm-wide tire - and not just for the cobbled classics. Phinney will run these 25mm-wide Continental Competition Pro Limited tubulars at 87psi up front and 94psi out back
(Image credit: James Huang)
Image 26 of 28

Phinney is using a standard-geometry 58cm BMC GF01 frame for Ronde van Vlaanderen

Phinney is using a standard-geometry 58cm BMC GF01 frame for Ronde van Vlaanderen
(Image credit: James Huang)
Image 27 of 28

Taylor Phinney has selected fi'zi:k's cushy Aliante VSX saddle with its generous levels of padding, flexible carbon fiber shell, and deep central cutout

Taylor Phinney has selected fi'zi:k's cushy Aliante VSX saddle with its generous levels of padding, flexible carbon fiber shell, and deep central cutout
(Image credit: James Huang)
Image 28 of 28

BMC normally recommends that a rider of Taylor Phinney's (BMC Racing Team) height ride a 61cm frame. However, the 58cm size allows for a 24mm-lower front end but requires him to use a 140mm-long stem

BMC normally recommends that a rider of Taylor Phinney's (BMC Racing Team) height ride a 61cm frame. However, the 58cm size allows for a 24mm-lower front end but requires him to use a 140mm-long stem
(Image credit: James Huang)

This article first appeared on Bikeradar

Rising US star Taylor Phinney (BMC Racing Team) will tackle his first Tour of Flanders aboard BMC's GranFondo GF01. Unlike some other companies' dedicated classics bikes, the GF01 doesn't feel particularly cushy when ridden casually. That's just fine in this case as Phinney isn't just out for a Sunday spin. He'll be hitting the cobbles fast and hard, which is exactly what this bike was designed for.

The distinctive-looking GF01 features a number of kinks and bends in its carbon structure that, according to BMC, effectively creates specific regions of flex to help cushion the blow of rough roads. This 'Tuned Compliance Concept' design methodology is most prominent in the flattened, leaf spring-like seat stays but it's also included in the curious bend in the chain stays just ahead of the dropouts and in the fork where it abruptly steps down in girth below the crown.

Further helping matters are the slim 27.2mm seatpost (with lots of exposed shaft), cushy fi'zi:k Aliante VSX saddle, double wrapped 3T Ergosum Team carbon handlebars, and 25mm-wide Continental Competition Pro Limited PTX tubular tires inflated to a relatively soft 87/94psi front/rear.

That said, Phinney's GF01 also has a bit of a two-faced personality as the enormous down tube, monstrous chain stays, extra-wide PF86 bottom bracket shell, flared seat tube, and meaty 1 1/8-to-1 1/2in tapered head tube are remarkably stiff and yield fantastic pedaling efficiency – a critical feature for such power-intensive events as the spring classics.
