Dylan van Baarle's Pinarello Dogma F12 XLight

Image 1 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

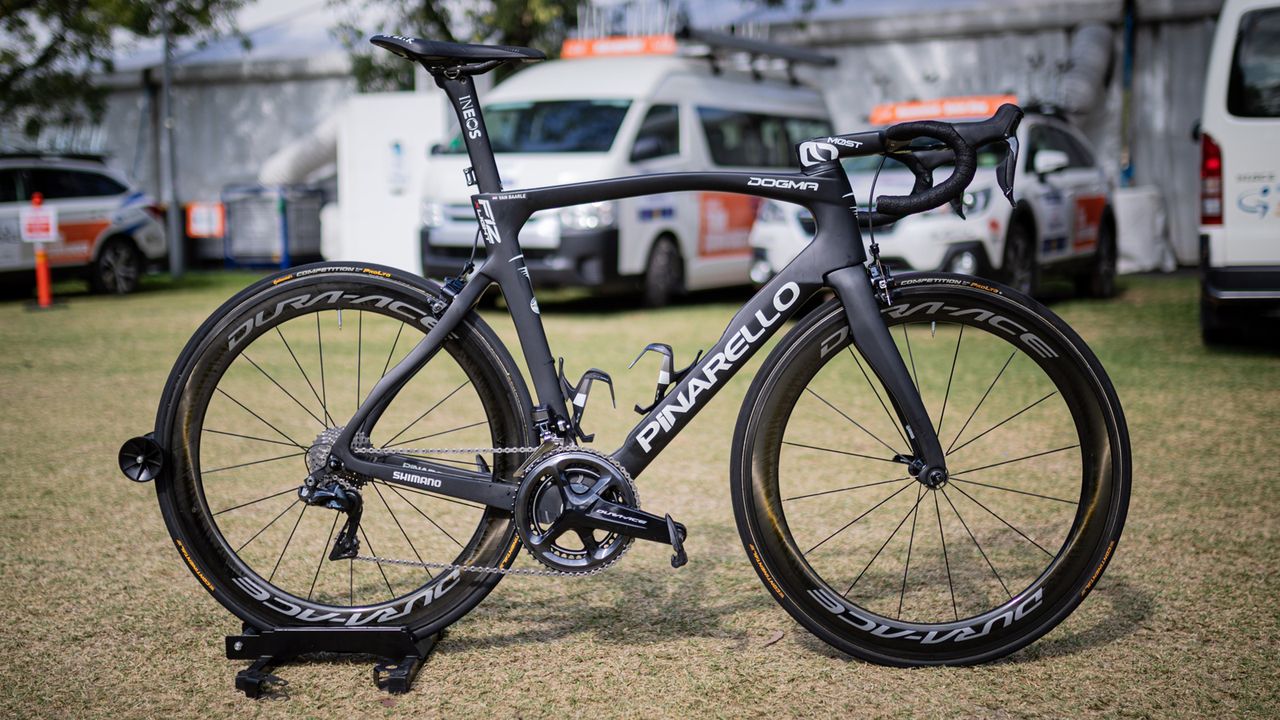

Dylan van Baarle's Pinarello Dogma F12 XLight (Image credit: Colin Levitch)


Image 2 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

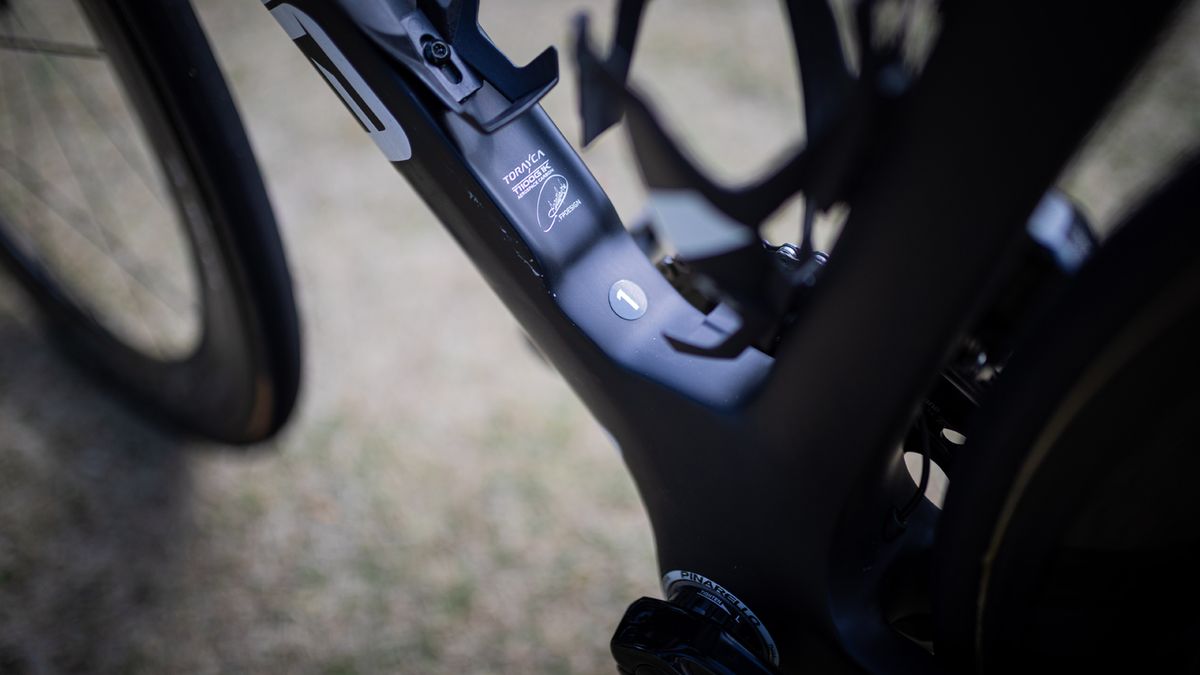

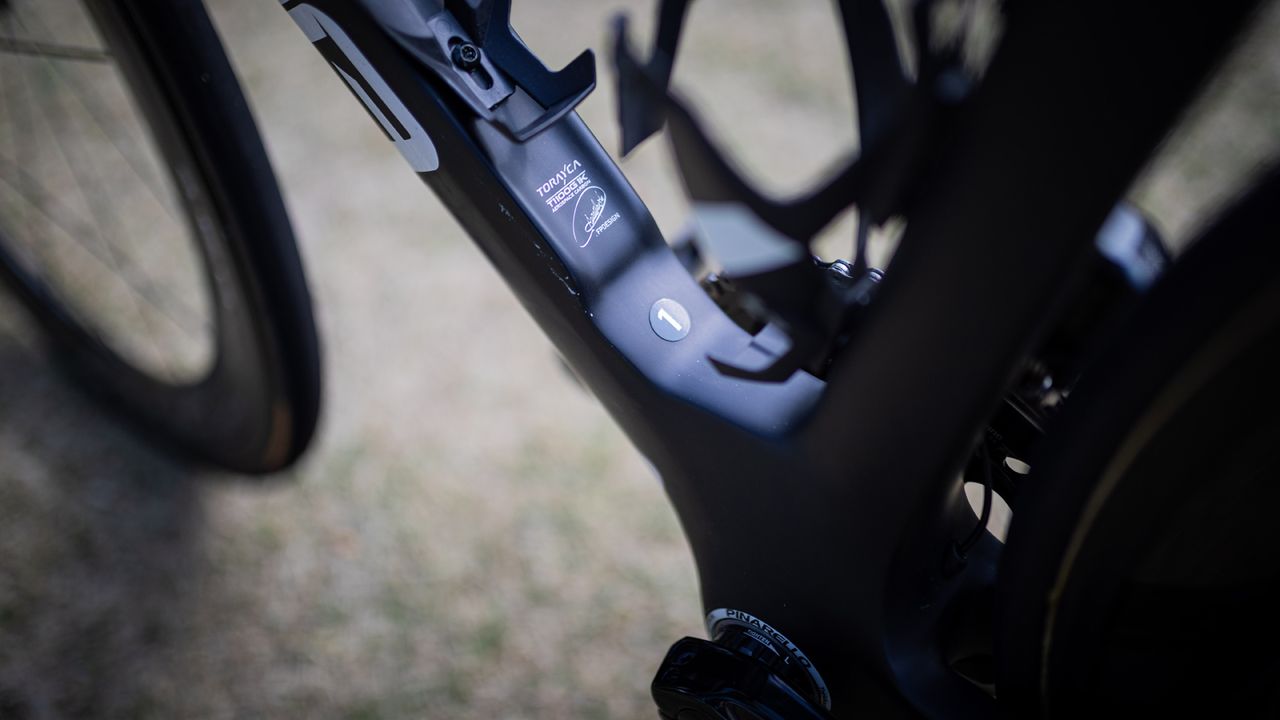

Thanks to the use of Torayca T1100G unidirectional carbon fibre, the XLight saves 60g over the standard Dogma F12 (Image credit: Colin Levitch)
Image 3 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

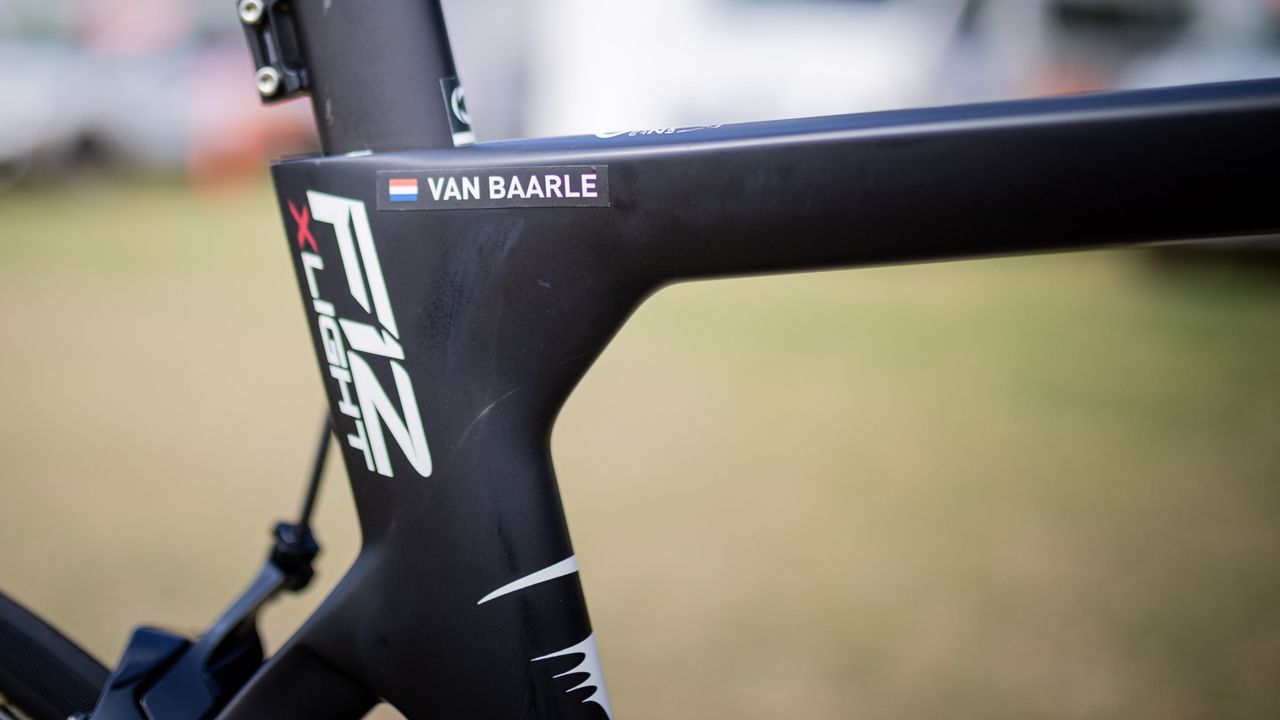

Van Baarle's name adorns the top tube (Image credit: Colin Levitch)
Image 4 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

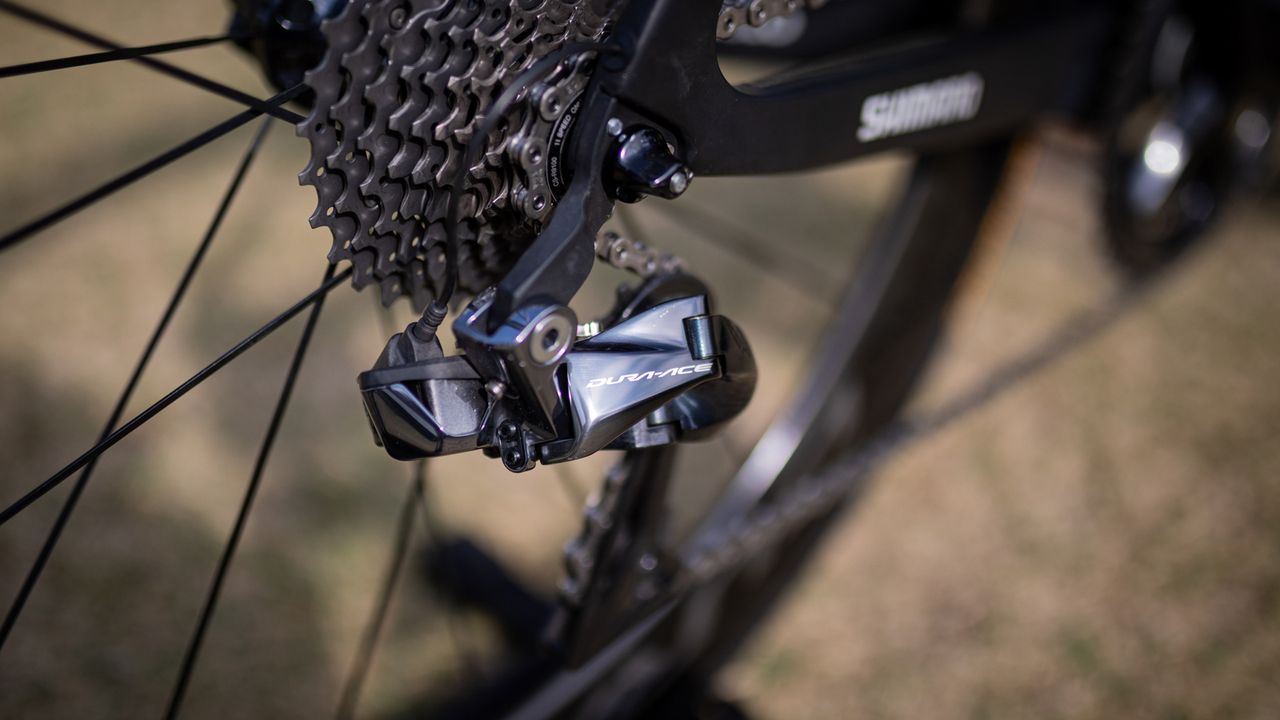

Unsurprisingly at this level, Van Baarle is using Shimano's range-topping Dura-Ace Di2 rear derailleur (Image credit: Colin Levitch)
Image 5 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

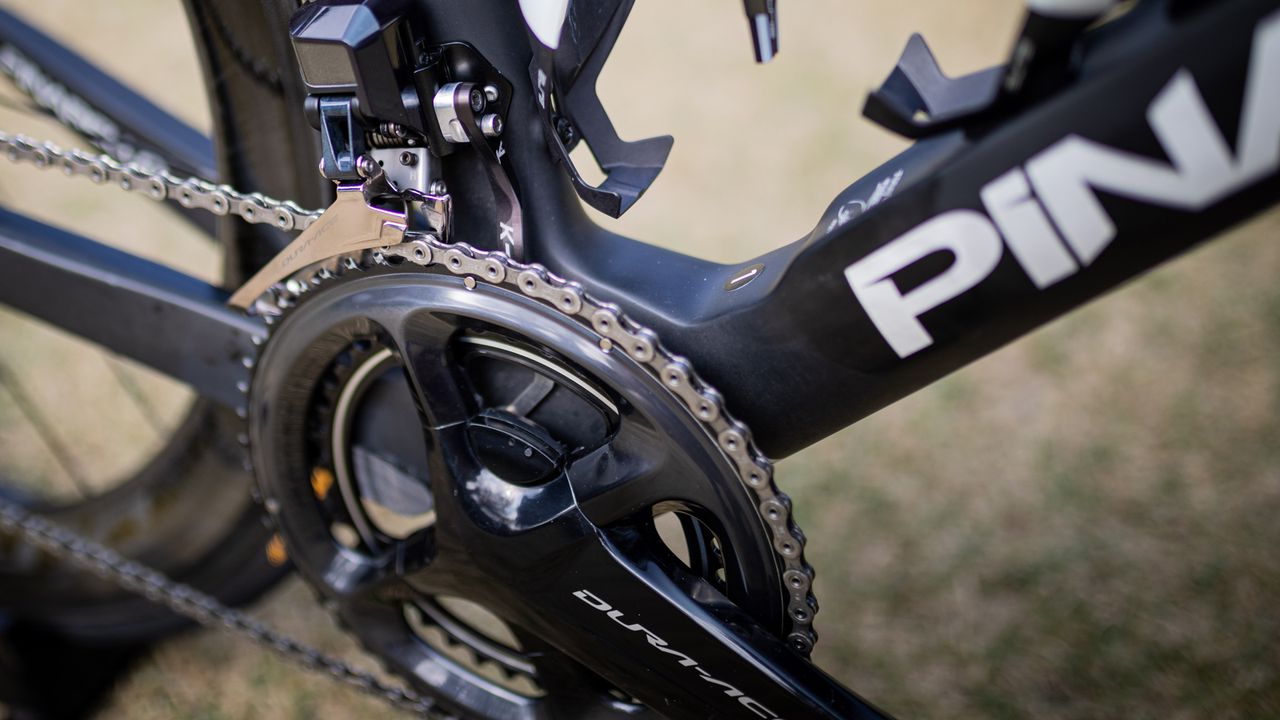

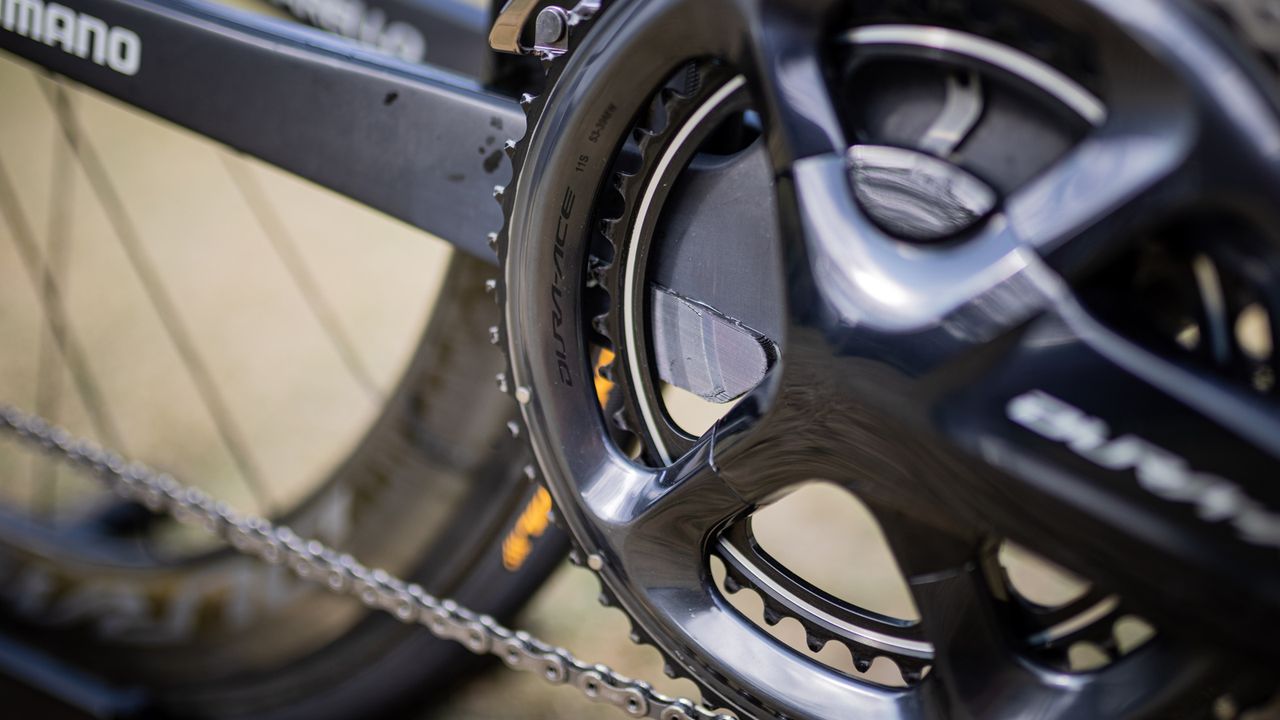

The same range-topping equipment is used for the front mech and chainset (Image credit: Colin Levitch)
Image 6 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

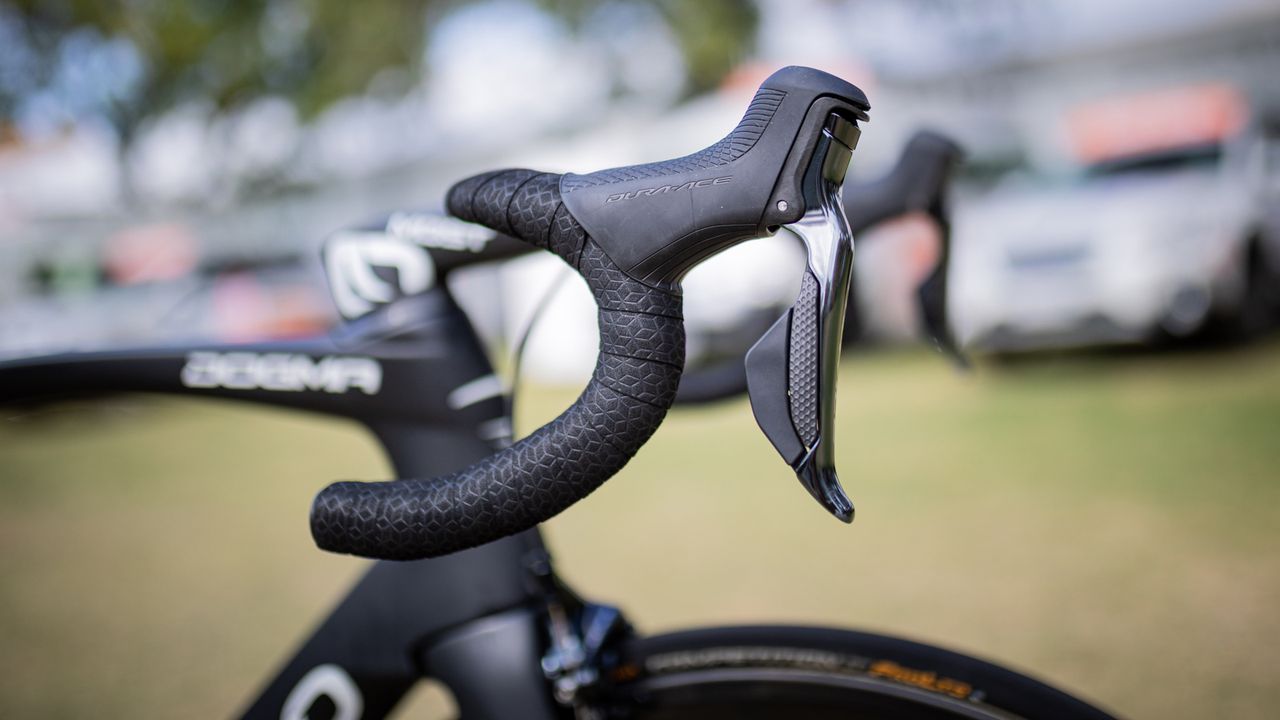

And completing the set, are Shimano's Dura-Ace R9150 shifters (Image credit: Colin Levitch)
Image 7 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

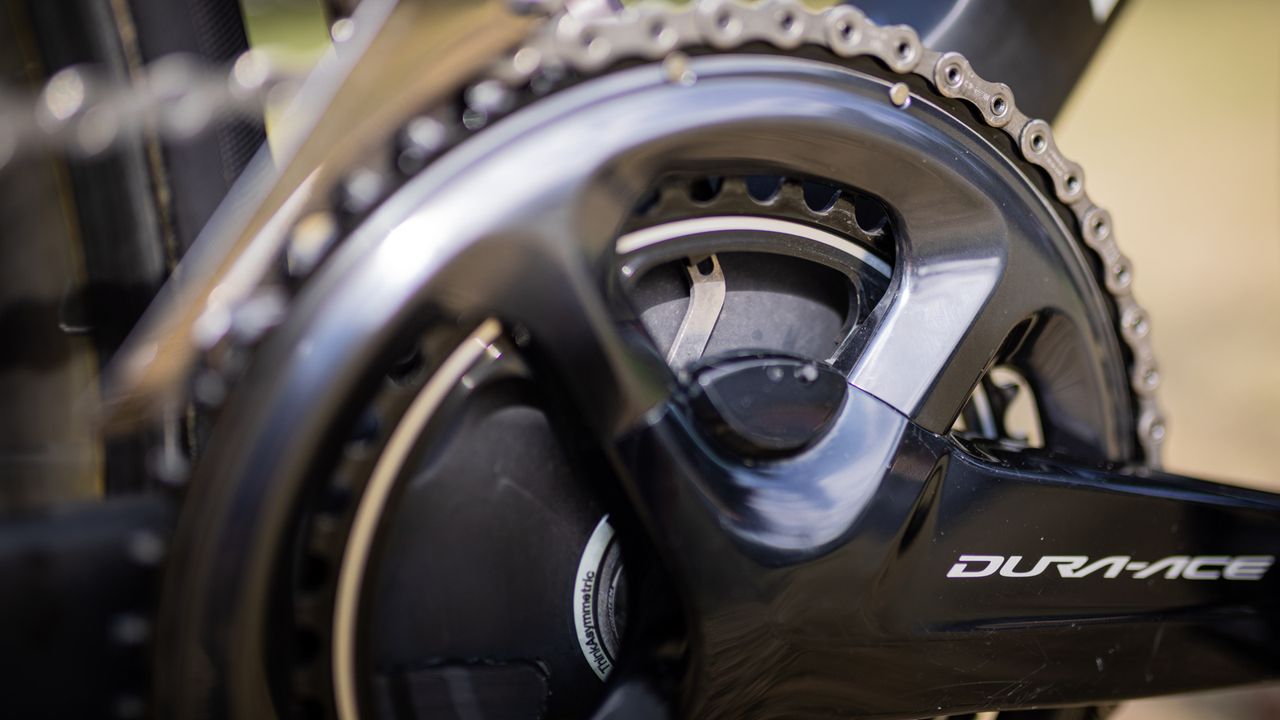

Shimano's integrated power meter requires a carefully positioned magnet to work correctly, and Ineos mechanics have manufactured their own way to keep it in place (Image credit: Colin Levitch)
Image 8 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

Mechanics have also created a home-made chain keeper, which is glued to the frame to ensure riders don't suffer chain suck and chain drop problems (Image credit: Colin Levitch)


Image 9 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

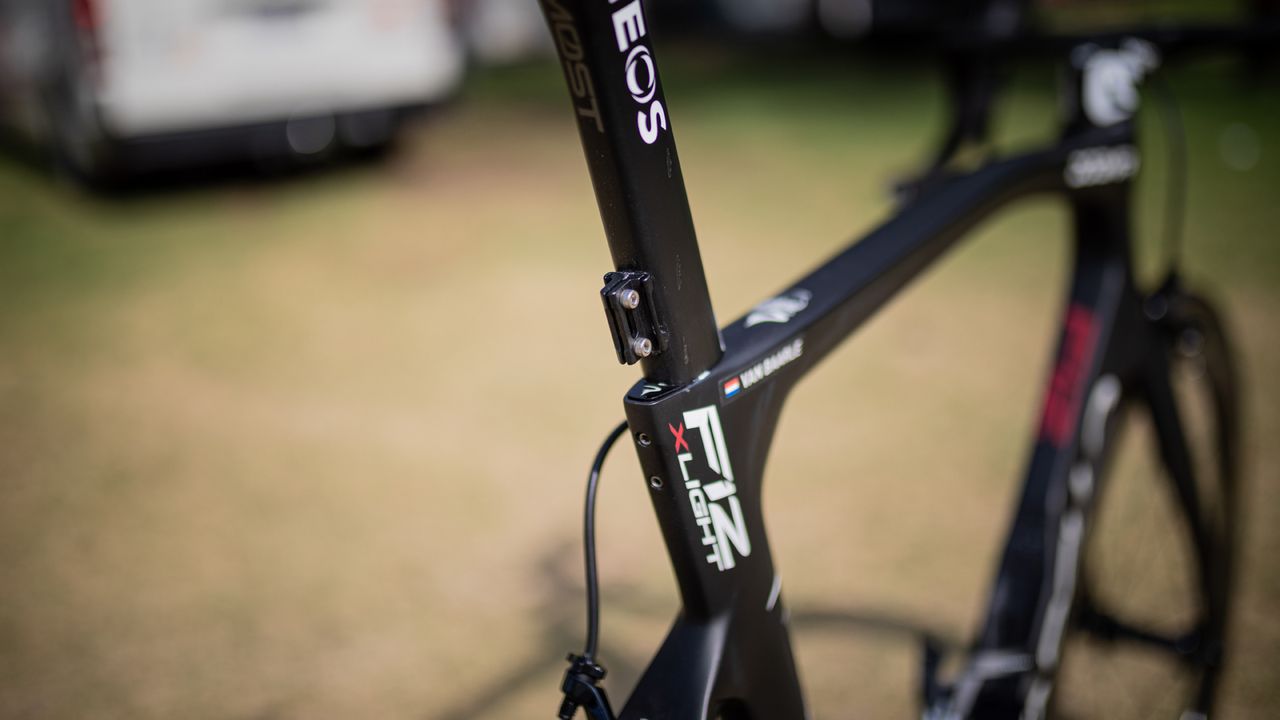

Ineos mechanics have also glued the race number holder to the rear of the seatpost (Image credit: Colin Levitch)
Image 10 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

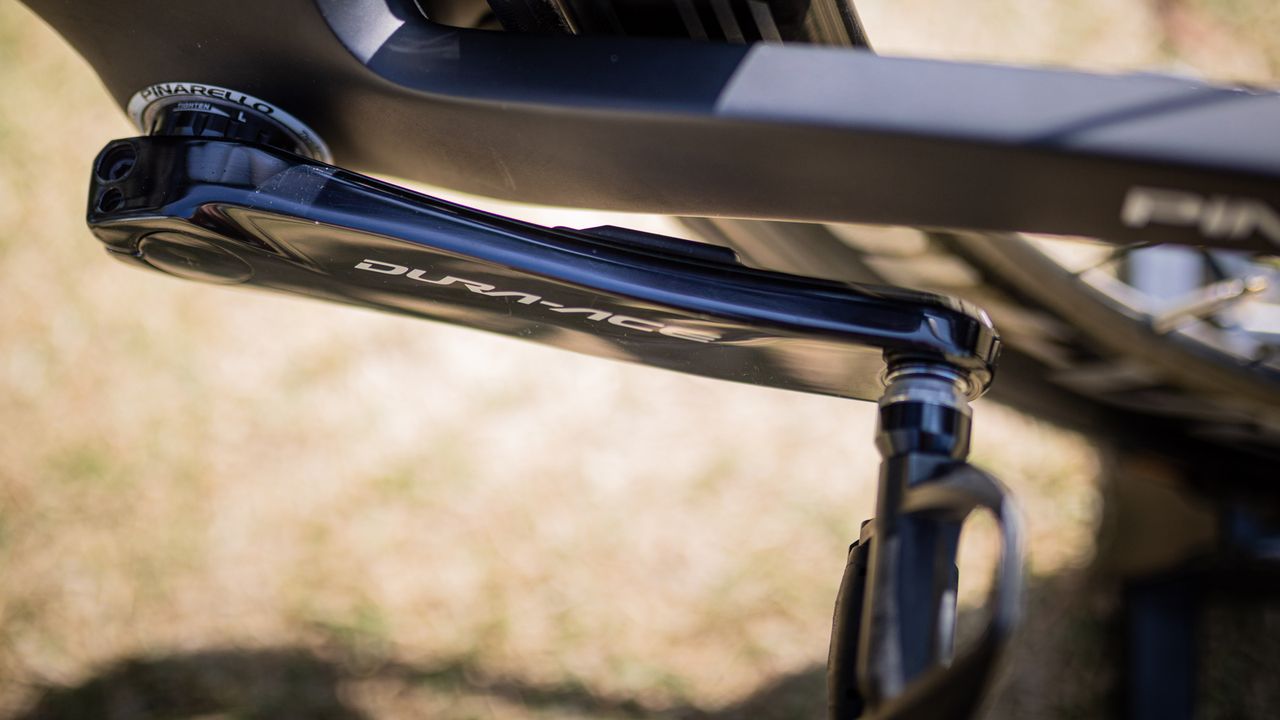

The power meter on Van Baarle's bike is dual-sided (Image credit: Colin Levitch)
Image 11 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

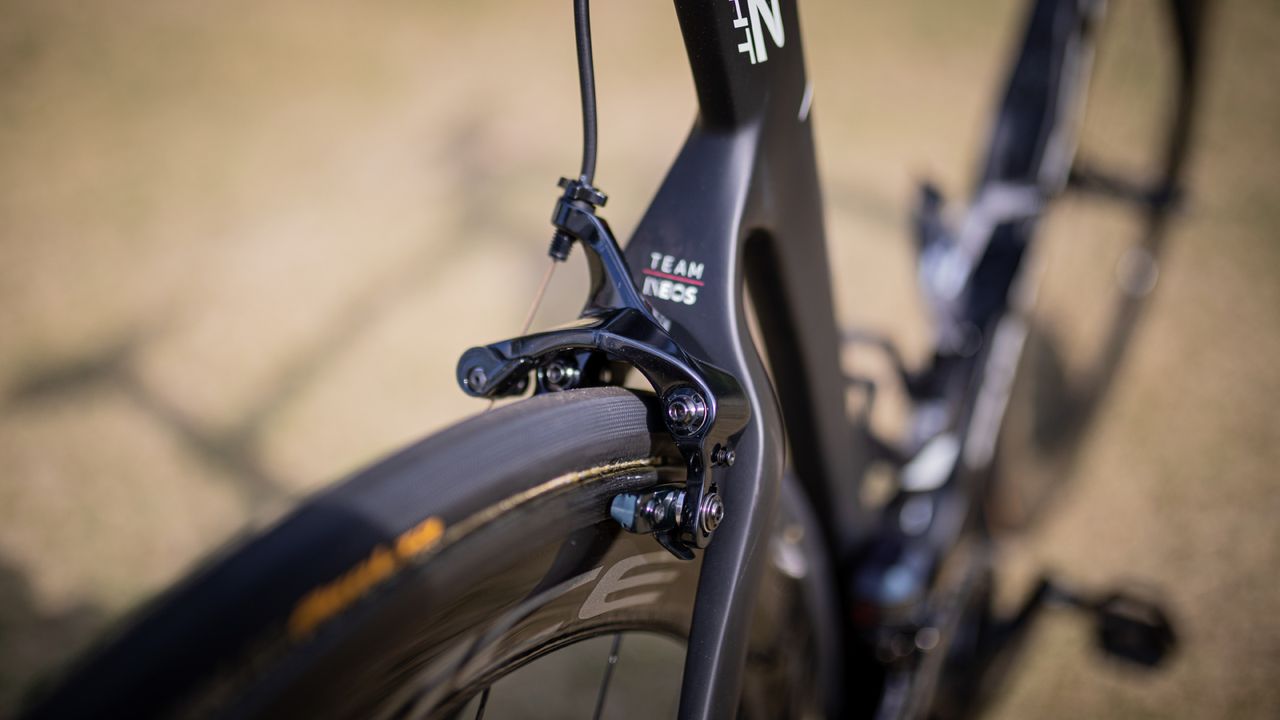

The Dogma F12 uses direct-mount rim brakes, and Shimano's BR-R9110 calipers provide the stopping power (Image credit: Colin Levitch)
Image 12 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

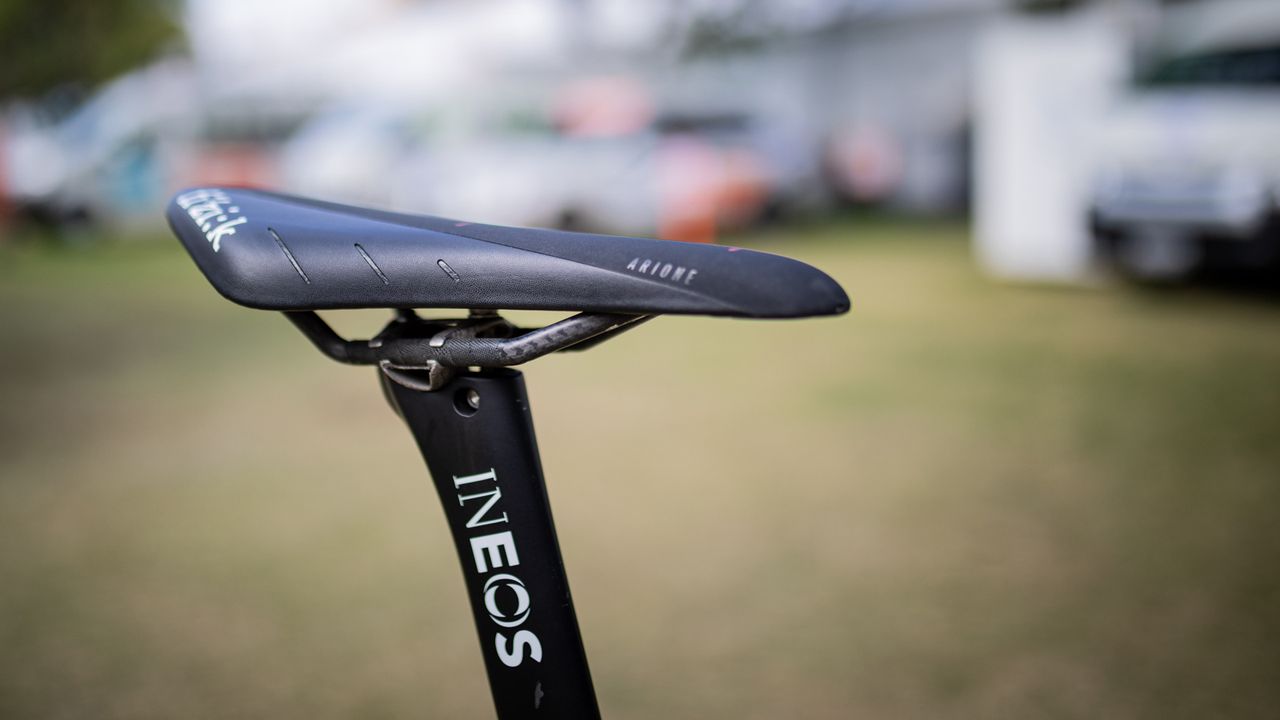

A Fizik Arione saddle is Van Baarle's perch of choice (Image credit: Colin Levitch)
Image 13 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

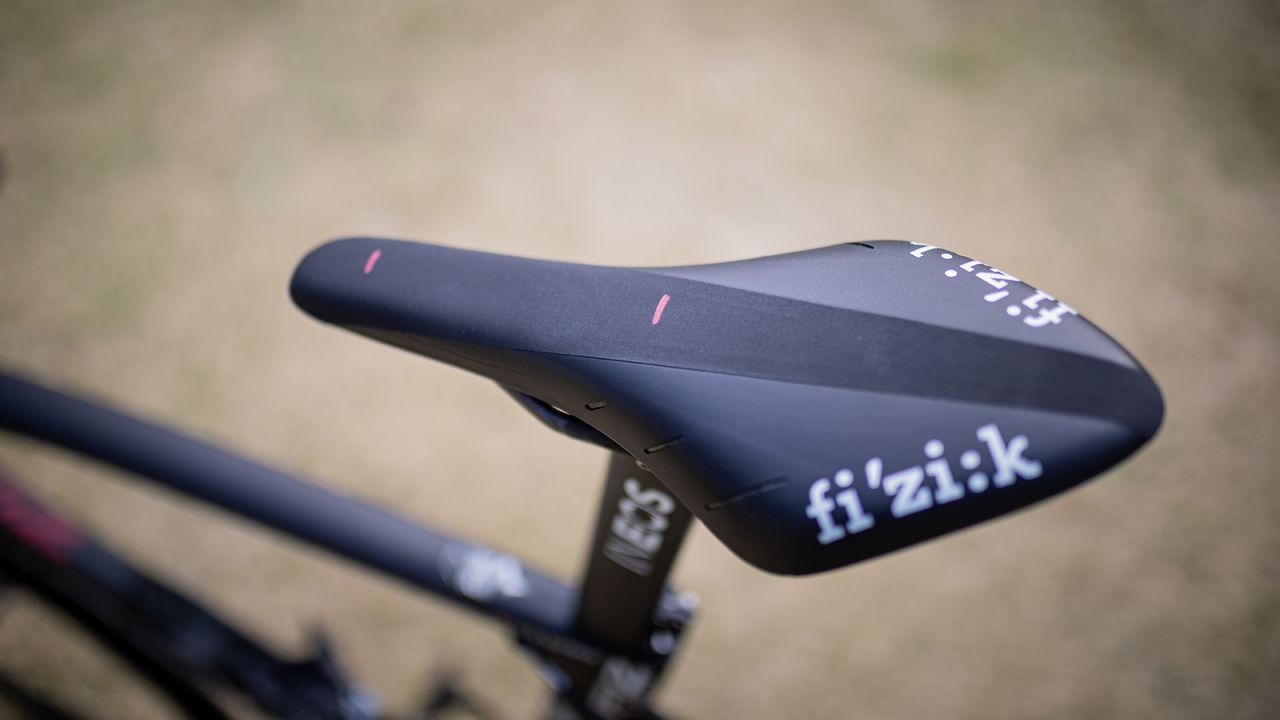

Upon which, mechanics have marked measurement points to make it easier when making adjustments (Image credit: Colin Levitch)
Image 14 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

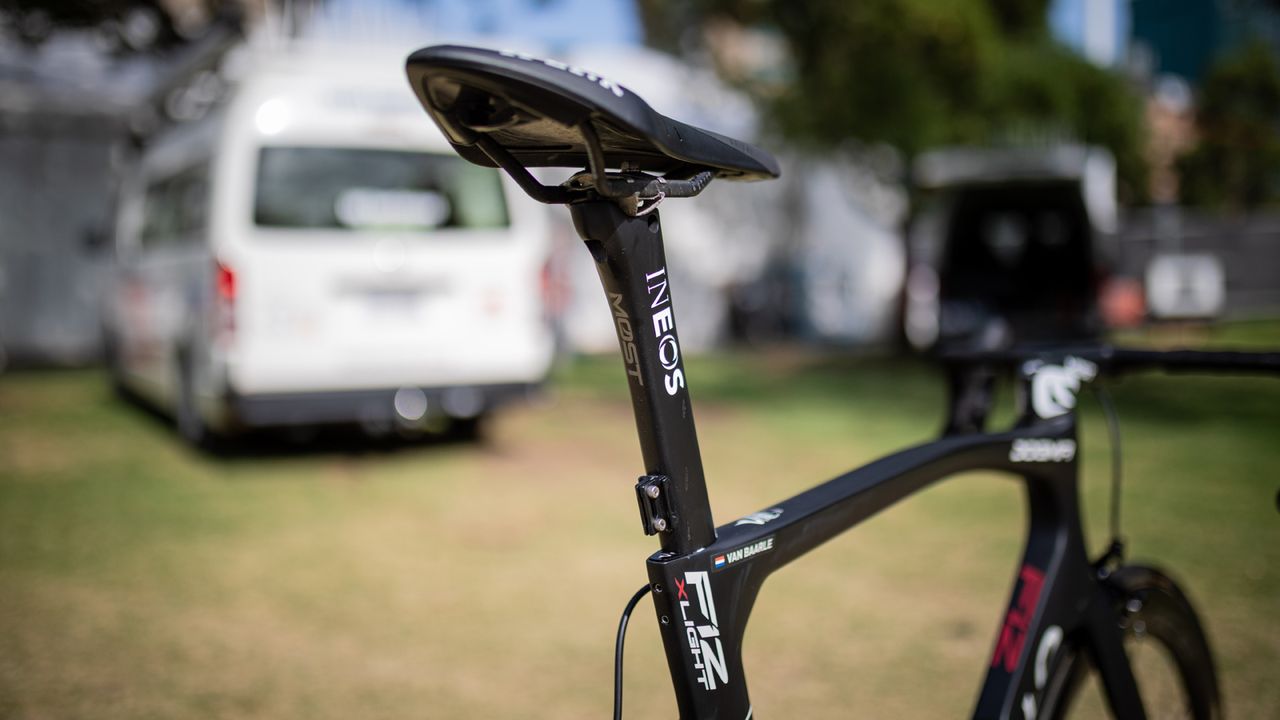

The saddle is placed atop a proprietary Dogma F12 seatpost from Pinarello's component subsidiary Most (Image credit: Colin Levitch)
Image 15 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

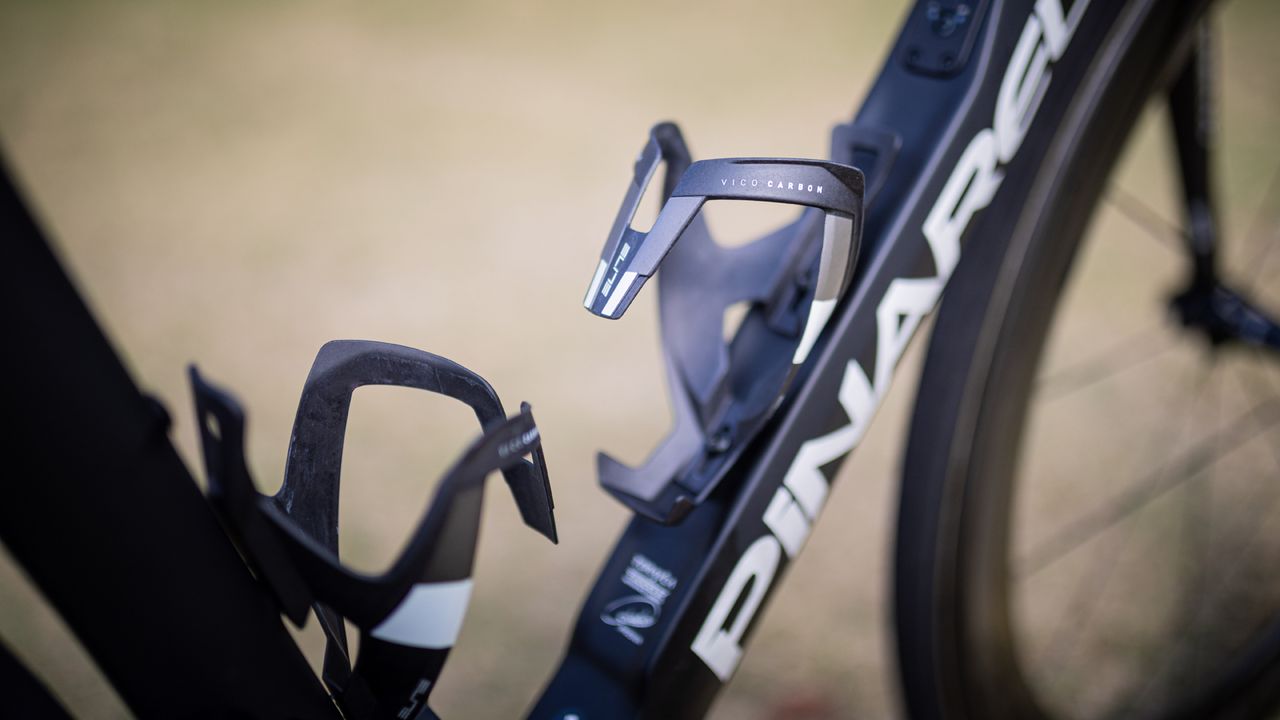

Elite Vico carbon bottle cages weigh in at 23g each (Image credit: Colin Levitch)
Image 16 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

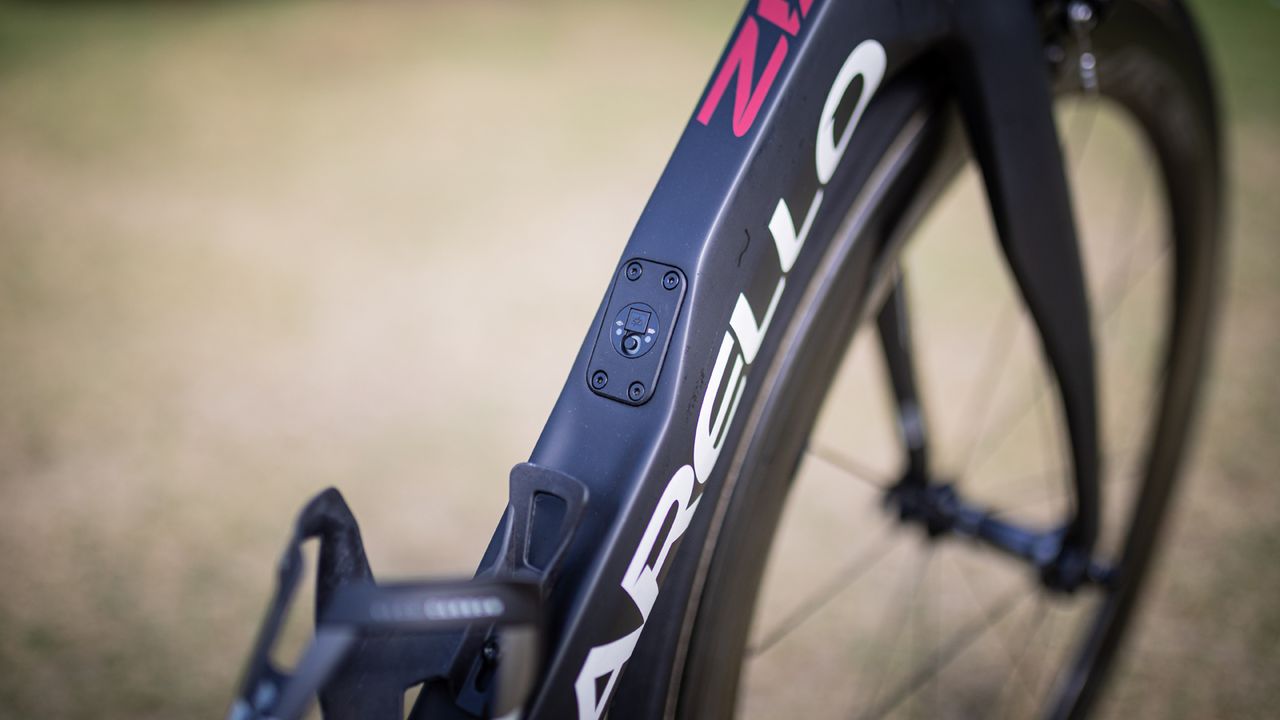

The concave down tube helps aerodynamics, and also houses the Shimano Di2 junction box (Image credit: Colin Levitch)
Image 17 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

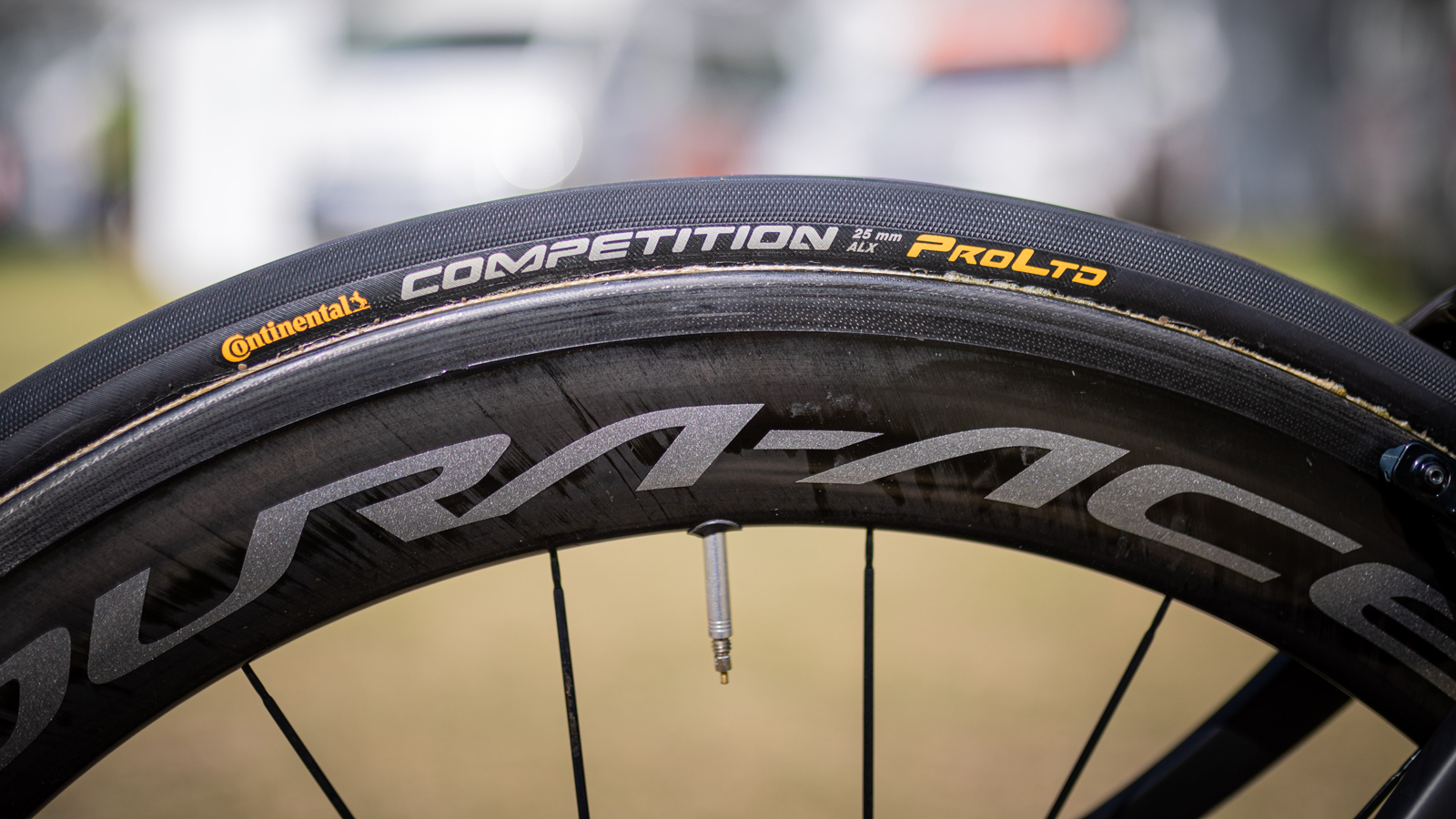

The Continental Competition Pro Ltd tubular tyres measure 25mm in width (Image credit: Colin Levitch)
Image 18 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

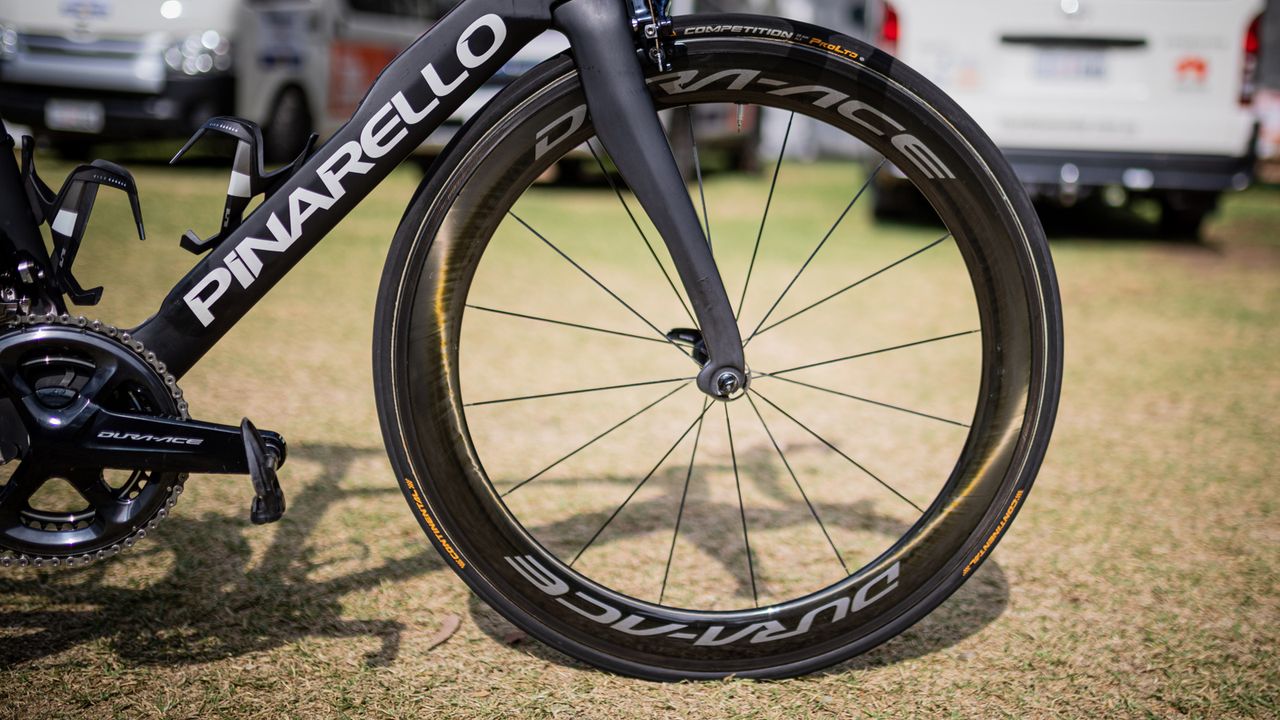

They are wrapped around Shimano's Dura-Ace C60 tubular wheels (Image credit: Colin Levitch)
Image 19 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

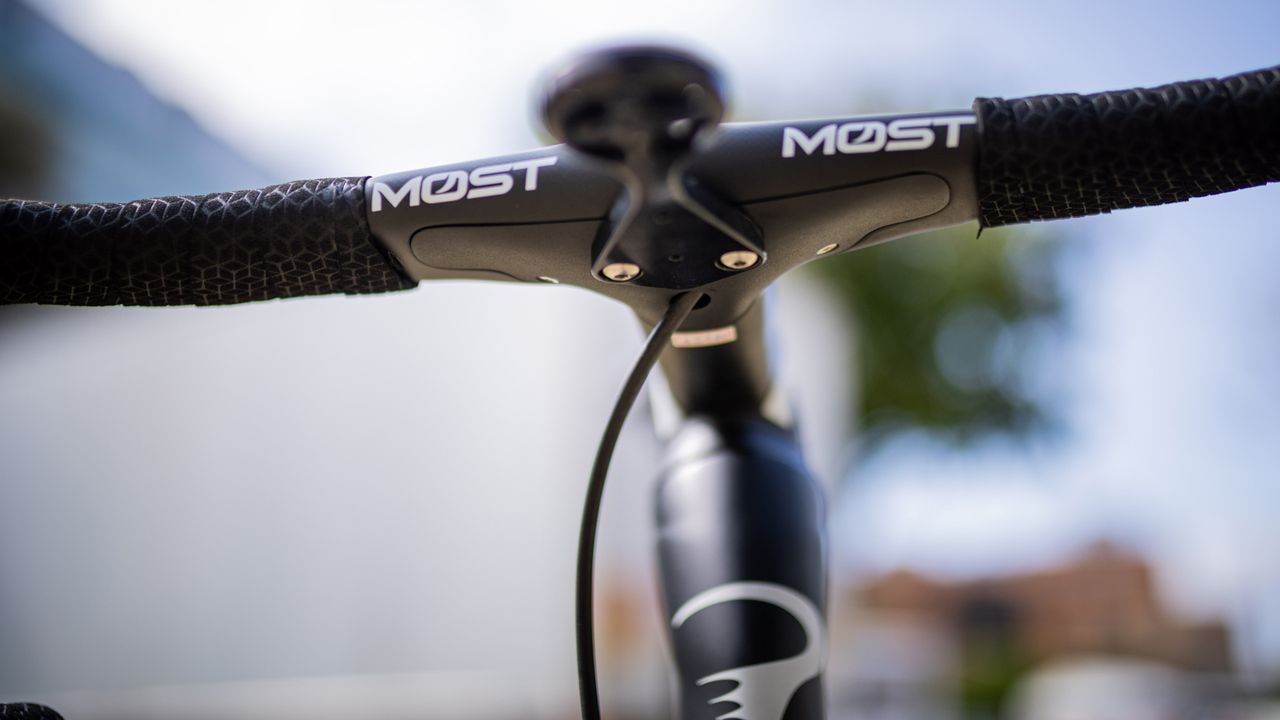

The Most integrated handlebar and stem measures up as 140mm stem length and 40cm bar width (Image credit: Colin Levitch)
Image 20 of 20

Dylan Van Baarl's Pinarello Dogma F12 XLight

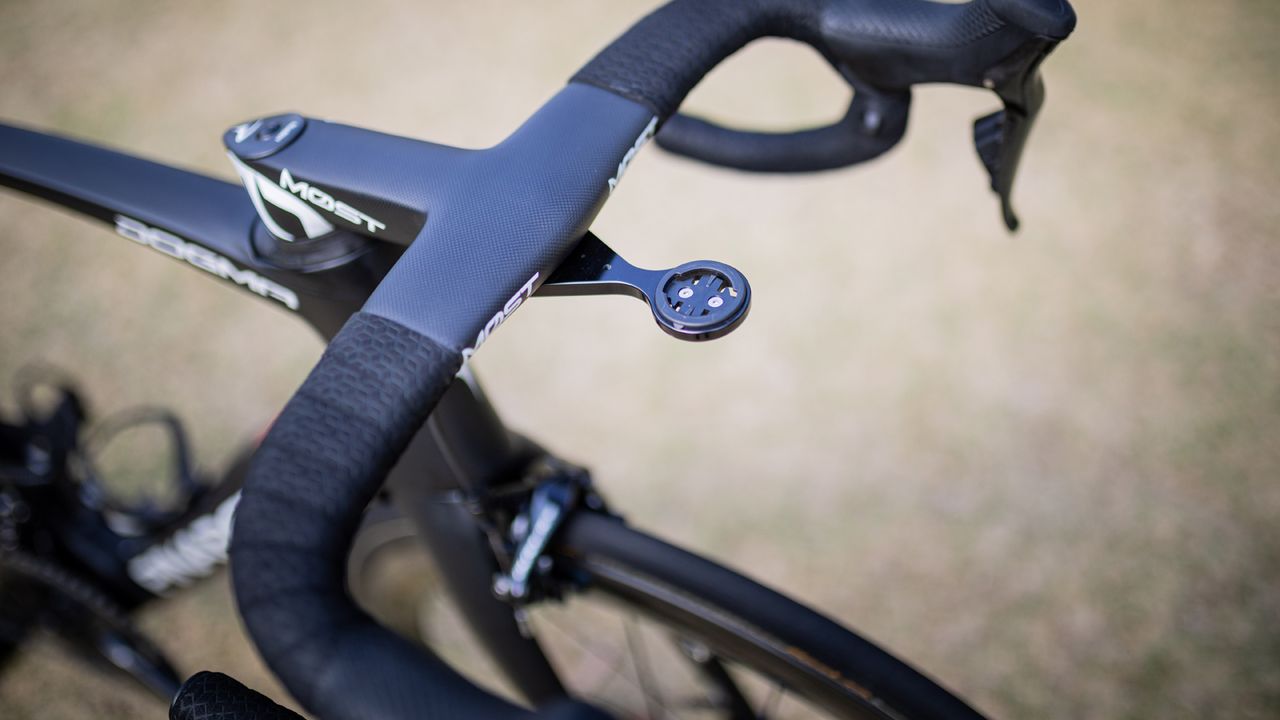

There's an integrated out-front handlebar mount which will house Van Baarle's Garmin computer (Image credit: Colin Levitch)

The season's current state of hiatus has been going on a little longer for Dylan Van Baarle than many of his colleagues in the pro peloton. In fact, his last race day was the Cadel Evans Great Ocean Road Race on the 2nd February.

The Dutchman was due to kick off his classics campaign at the Opening Weekend doubleheader of Omloop Het Nieuwsblad and Kuurne-Brussel-Kuurne at the end of February but had to drop out due to illness.

He also had bad luck in his 2019 spring campaign. During Omloop Het Nieuwsblad, although he finished in 14th place, an earlier crash meant he was then sidelined for weeks with a broken hand. Nonetheless, at just 27 years of age, Van Baarle's palmares is already teeming with achievement, with numerous GC victories, and fourth place at the 2017 Tour of Flanders

We caught up with Van Baarle's Pinarello Dogma F12 XLight at the Tour Down Under. His setup is very similar to his Ineos teammate Rohan Dennis' bike, with a sponsor-supplied Shimano Dura-Ace R9150 groupset, Shimano C60 tubular carbon wheels and a finishing kit from Pinarello's components arm Most.

Team Ineos are one of the few teams yet to make use of disc brakes and, as such, Van Baarle is using Shimano Dura-Ace R9110 direct-mount rim brake calipers.

Click through the gallery above for a closer look at Dylan van Baarle's Pinarello Dogma F12 XLight

Dylan van Baarle's Pinarello Dogma F12 XLight full bike specifications

  • Frameset: Pinarello Dogma F12 XLight, size 56
  • Front brake: Shimano Dura-Ace R9110 Direct Mount Brake Caliper
  • Rear brake: Shimano Dura-Ace R9110 Direct Mount Brake Caliper
  • Brake/shift levers: Shimano Dura-Ace Di2 R9150 Dual Control Lever
  • Front derailleur: Shimano Dura-Ace Di2 R9150
  • Rear derailleur: Shimano Dura-Ace Di2 R9150
  • Cassette: Shimano Dura-Ace, 11-30T
  • Chain: Shimano Dura-Ace
  • Crankset: Shimano Dura-Ace R9100-P w/ dual-sided power meter, 53/39
  • Bottom bracket: Shimano Dura-Ace
  • Wheelset: Shimano Dura-Ace C60 tubular
  • Tyres: Continental Competition Pro LTD tubular, 25mm
  • Handlebars: Most Talon integrated bar and stem, 40cm
  • Bar Tape: Most Superlight
  • Stem: Most Talon integrated bar and stem, 140mm
  • Pedals: Shimano Dura-Ace PD-R9100
  • Saddle: Fizik Arione
  • Seat post: Most carbon
  • Bottle cages: Elite Vico Carbon
  • Computer: Garmin Edge 1030 (not shown)
  • Rider height: 1.8m
  • Seat height (from bottom bracket at centre): 810mm
  • Saddle nose to handlebars (centre): 595mm
  • Bike weight: 7.07kg / 15.61lbs
