Pro bike: Manuel Fumic's Cannondale Scalpel 29er

By:
Sue George, Mountain Bike Editor
Published:
April 22, 2013, 8:43 BST,
Updated:
April 22, 2013, 9:44 BST
Manuel Fumic's Cannondale Scalpel 29er for the Cape Epic. Fumic will only race this bike for the stage race. He races an F29er at all World Cups and other cross-country events

Manuel Fumic's Cannondale Scalpel 29er for the Cape Epic. Fumic will only race this bike for the stage race. He races an F29er at all World Cups and other cross-country events

view thumbnail gallery

This article originally published on BikeRadar

German national champion Fumic, 30, doesn't usually race his Scalpel. Instead, he competes on his hardtail Cannondale F29er for all cross-country events. However, he also doesn't normally race mountain bike stage races, and he knew eight days of riding in South Africa at the Cape Epic mountain bike stage race would take its toll, the effects of which can be mitigated somewhat by full suspension.

"We thought about using the F29er because we use it all year, but we talked with teams who've already done the Cape Epic, and they all said we'd be stupid not to take a full-suspension bike," said Fumic, who partnered with Italian national champion Marco Fontana. "It's no problem to race two or three days on a hardtail, but after that you want the extra comfort."

"Neither Marco nor I had done the Cape Epic before. I did some stage races, but they were only two or three days long – nothing special," said Fumic. "Cape Epic is completely different and it will not be easy for us."

To prepare his body and his equipment for the event, Fumic made some changes over the winter. For the first time, he spent a full two-and-a-half months in South Africa, training:

"I was getting up at 5.30am and riding by 6am during my time in South Africa. I got into the rhythm of that, which is similar to the Cape Epic. Many Europeans have problems with the early starts and the heat at this time of year – they're not used to it. There are no trees you can hide under, no shade.

"I also looked at some stages and was able to ride some of them. The race will be super rough. It was helpful to see what's coming. Otherwise, I would have picked the wrong bike and wrong tires."

Fumic's Scalpel 29 is a stock medium carbon frame painted with the Cannondale Factory Racing team's custom paint job. "I rode the bike all the time I was in South Africa, and it's fast on those kinds of trails," he said.

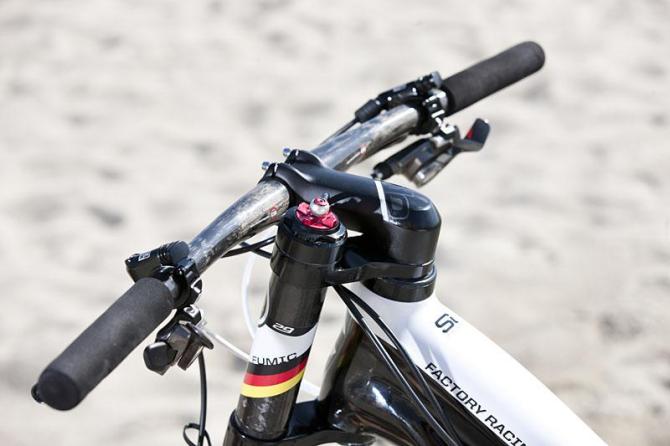

His Scalpel's suspension is provided by a Cannondale Lefty XLR Hybrid fork and RockShox Monarch XX shock. Fumic is currently working with Cannondale engineers to shorten up the travel at the front.

"I'm working on tuning my front suspension, and I want to lower the front end, which means 80mm of travel instead of 90mm, but we're still working on that," he said. "That's the only thing I want to change – I feel like it's a little too high."

The rear shock provides 100mm of travel and both the front and rear suspension can be locked out remotely with handlebar-mounted levers.

The Scalpel is equipped with a full SRAM XX drivetrain, including a 39/26T front chainring setup and an 11-36T rear cassette. The Cannondale SISL2 crankset is per the BB30 standard and includes a custom spider to accommodate the SRAM XX rings. In his normal World Cup setup, Fumic races a SRAM XX1 (1x11) drivetrain.

Avid XX World Cup brake calipers and rotors grace the bike; however, Cannondale engineers added an adaptor that lets Fumic run 140mm diameter rear rotors, because the bike's default is 160mm. He uses the standard 160mm rotors up front.

New for the Cannondale Factory Racing team in 2013 is a partnership with ENVE, who is providing 29 XC rims with DT 240s hubs (the front one is Lefty specific) and DT Aerolite spokes.

FSA provides both his bar (SL-K, 670mm wide with 9 degrees of backsweep and 4 degrees of upsweep) and seatpost (K-Force, 31.6mm diameter, 0-degree setback) and he'll be spending plenty of time on top of the Prologo X8 CPC saddle and holding onto Prologo grips. The team doesn't have a pedal sponsor, and Fumic has chosen to ride Shimano XTR SPDs.

Changing between bikes can be a challenge for some riders, but Fumic says he has no trouble going from the F29 to the Scalpel 29.

"The position and geometry of the Scalpel is not that different to the F29er, and to switch back and forth is not a big deal for me," said Fumic. "For the Cape Epic, the Scalpel is super light and has super travel. It's the same wheels, forks, tires, etcetera, as my other bike."

We weighed the Scalpel at 10.1kg (22.2lb). His mechanic noted that the Schwalbe Racing Ralph 2.1 29er tires with Snakeskin protection are currently set up with tubes, so the bike will be lighter once converted to tubeless; however, the team manager said he expects Fumic to choose 2.25in race tires, and Fumic told us he'll put in extra sealant to cope with the many troublesome thorns along the Cape Epic route.

"I spoke with the Bulls Team, who won the Cape Epic five times and also ride Schwalbe tires, and they gave us some advice," said Fumic, who has clearly been doing his homework before the race.

With all this attention to detail, it might seem as though Fumic is out to win, but instead he and Fontana say they're treating the Cape Epic as a special week of 'spring' training.

"Riding with Marco will be fun. It's not our goal to kill ourselves there, but we'll see," said Fumic. "We want to perform well in one or two stages. We know our strengths and weaknesses but we don't want to ruin our whole season. Maybe after we have a look this year, we can focus on the Cape Epic more next year."

"For us, doing the Cape Epic means a change to our training because, generally now, we train short and intense for World Cup cross-country races. For us, the Cape Epic will be a good experience. We hope to come out of it with good training and good form. It's all about training and working on ourselves."

Fumic and Fontana would finish fifth overall at the Cape Epic, which was won by the team of Christoph Sauser and Jaroslav Kulhavy.

Note the special adaptor attached to the frame and brake caliper. The stock frame is designed to run with a larger rotor

Note the special adaptor attached to the frame and brake caliper. The stock frame is designed to run with a larger rotor

Full Specifications

Complete bike specification

Frame: Cannondale Scalpel 29 (M)
Fork: Cannondale Lefty XLR Hybrid, with remote lockout, 100mm travel
Headset: Cannondale Headshock SI
Stem: Cannondale OPI (One Piece Integration)
Handlebar: FSA K-Force 670mm, 9 degrees backsweep, 4 degrees upsweep
Tape/grips: Prologo
Front brake: Avid XX World Cup, 160mm rotor
Rear brake: Avid XX World Cup, 140mm rotor
Brake levers: Avid XX World Cup
Front derailleur: SRAM XX, direct mount
Rear derailleur: SRAM XX
Shift levers: SRAM XX
Cassette: SRAM XX, 11-36T
Chain: SRAM XX
Crankset: Cannondale SISL2 for BB30 with custom spiders for SRAM XX 39/26T chainrings
Bottom bracket: Cannondale SI, BB30
Pedals: Shimano XTR SPD
Rims: ENVE 29 XC
Front hub: DT Swiss 240s, Lefty specific
Rear hub: DT Swiss 240s
Spokes: DT Aerolite
Tyres: Schwalbe Racing Ralph 2.1 with Snakeskin sidewall (2.25in will likely be raced for Cape Epic)
Saddle: Prologo X8 CPC
Seatpost: FSA K-Force, 31.6mm diameter, 0mm setback
Bottle cages: Cannondale alloy with side access (from right side)

Critical measurements

Rider's height: 1.73m (5ft 8in)
Rider's weight: 68kg (149lb)
Saddle height, from BB (c-t): 695mm
Seat tube length, c-c: 450mm
Tip of saddle nose to c of bars: 542mm
Top tube length: 570mm
Total bicycle weight: 10.1kg (22.2lb)
