Bahrain McLaren to ride disc-only Merida road bikes in 2020

Bahrain McLaren Merida Scultura
Bikes will feature the McLaren's famous Papaya-orange colourway - a racy hue that echoes the team's race-winning ethos (Image credit: Aaron Borrill)

Despite relinquishing its role as title sponsor, Merida has confirmed its commitment as equipment partner to newly formed WorldTour outfit Team Bahrain McLaren for the next three years. Merida first entered the road scene back in 2013 with Lampre-Merida in a bid to grow its road cycling presence, a role it continued when the team transitioned to Bahrain-Merida in 2017.

For the 2020 season, Merida will provide the Bahrain McLaren squad with three bicycle options: the Scultura, Reacto and Time Warp time-trial bike. In a bold move and one which echoes the industry's current rhetoric and thinking philosophy, the brand will supply bikes equipped with disc brakes only.

According to Jürgen Falke, Director of Products and General Manager of Merida Bikes, "Disc-brake-equipped bikes account for 90 per cent of our total sales and soon,  rim-brake bikes will be phased out completely from our product portfolio regardless of what the traditionalists think."

"The proof and science is there and rim-brake bikes just don't possess the same levels of performance as the disc-brake equivalent. Now add rain and bad weather and the gap grows exponentially."

Bahrain McLaren Merida Scultura

Visuals are bolstered by tasteful sponsor garnishings on the top tube and chainstays (Image credit: Aaron Borrill)

New year, new livery

Last season's bikes weren't the ugliest on the WorldTour by any stretch but, for 2020, Merida's presence in the peloton will be bolstered by a McLaren-inspired paint livery.

As a result, the bikes will feature the company's famous Papaya-orange colourway - a racy hue that echoes the team's race-winning ethos. McLaren is one of the most successful and winningest Formula 1 and motorsport firms in the world, so introducing this hallowed colour was a natural step for the title sponsor.

However, in an effort to retain some semblance of the team's previous colour scheme, a strip of red and a good helping of black round off the visuals together with a dollop of cyan on the inner fork and saddle rails. It truly is a beautiful bike, its visual presence bolstered by the maker's name on the downtube and tasteful sponsor garnishings on the top tube and chainstays.

Image 1 of 2

Bahrain McLaren Merida Scultura weight

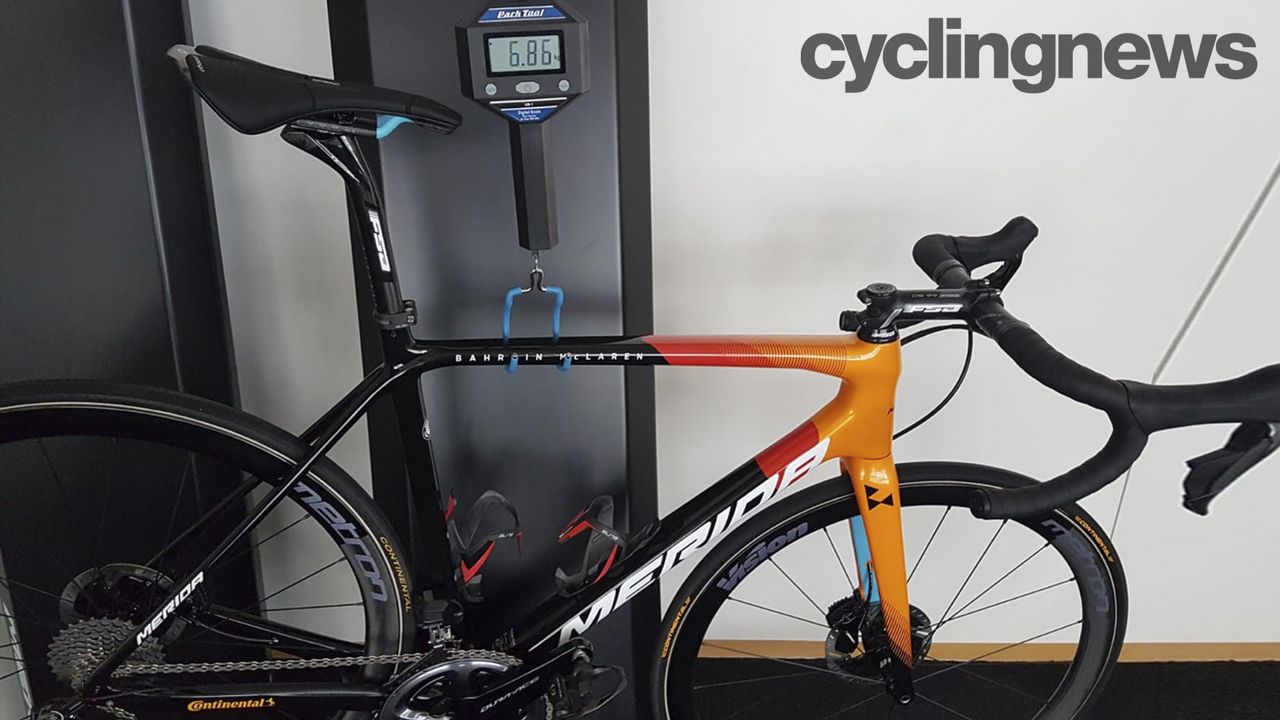

Merida Scultura Disc weighs 6.85kg with pedals (Image credit: Aaron Borrill)
Image 2 of 2

Bahrain McLaren Merida Reacto weight

Merida Reacto Disc has undergone several gram-saving measures that have slashed weight to 7.1kg (Image credit: Aaron Borrill)

Lighter, faster, better

Kerbweight is always going to play a huge factor in the pro peloton - especially when it comes to mountain stages of a Grand Tour - and the stigma surrounding disc-brake-actuated road bikes is naturally still a huge concern for many riders. To temper these concerns and validate Merida's decision for going the disc-brake route, the company spent close to a year experimenting with various carbon fibre layering techniques to not only ensure the lightest possible frameset but also improve its crash resistance across the board.

As it stands a Merida Scultura disc, with pedals and cycling computer, will tip the scales at a UCI-legal 6.8kg. The Reacto disc also underwent a stringent diet where nearly 300g worth of lard was shed by trimming a few grams here and there and swapping out various components - the result is a 7.1kg aero road bike. One of the ways Merida managed to save so much grammage was by ditching the Fulcrum Speed wheels for Vision Metron tubulars.

While Bahrain McLaren will start next year aboard the outgoing third-generation Reacto, an all-new version featuring hidden cables and full integration is pegged for a mid-year introduction and launch. With a rumoured 950g frame, there's no doubt we'll be seeing the Reacto ridden at more of next year's races

Image 1 of 5

Bahrain McLaren Merida Scultura Shimano groupset

Shimano's fabled Dura-Ace R9170 groupset is the foundation around which the Scultura is built (Image credit: Aaron Borrill)
Image 2 of 5

Bahrain McLaren Merida Scultura Vision hubs

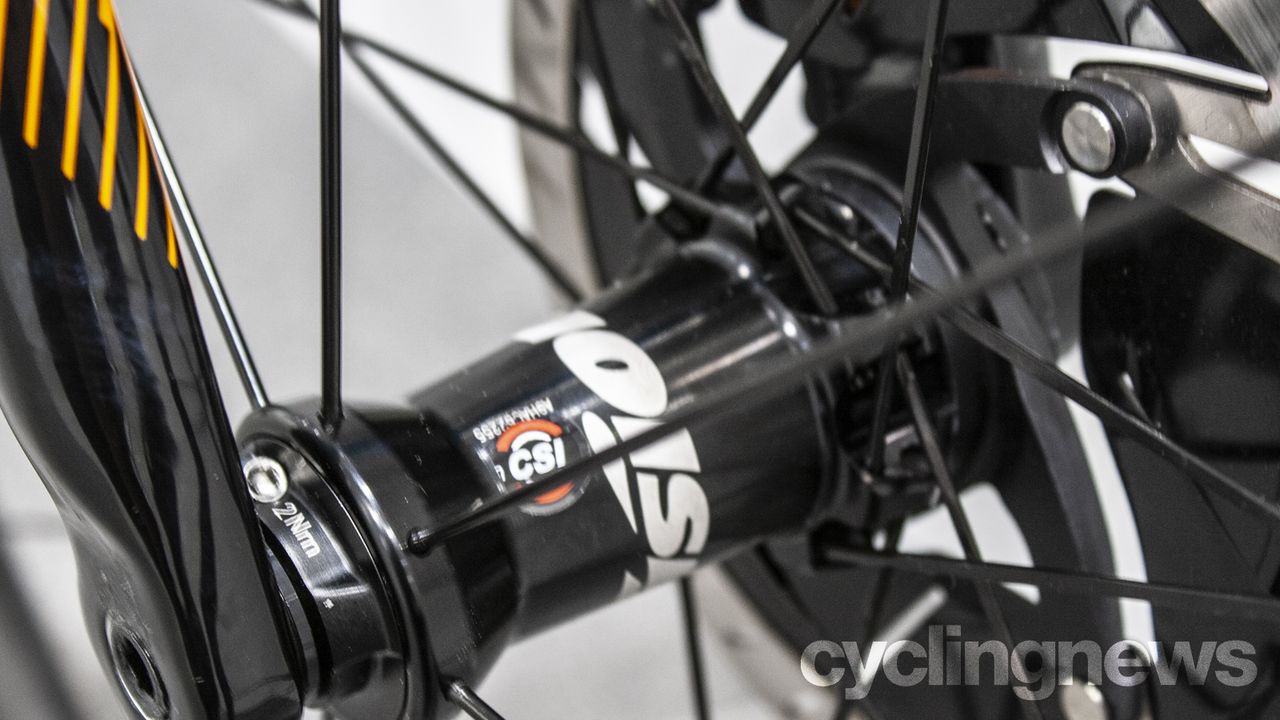

Vision Metron wheels and hubs have considerably helped drop weight and improved on-road performance (Image credit: Aaron Borrill)
Image 3 of 5

Bahrain McLaren Merida Scultu Prologo saddlera

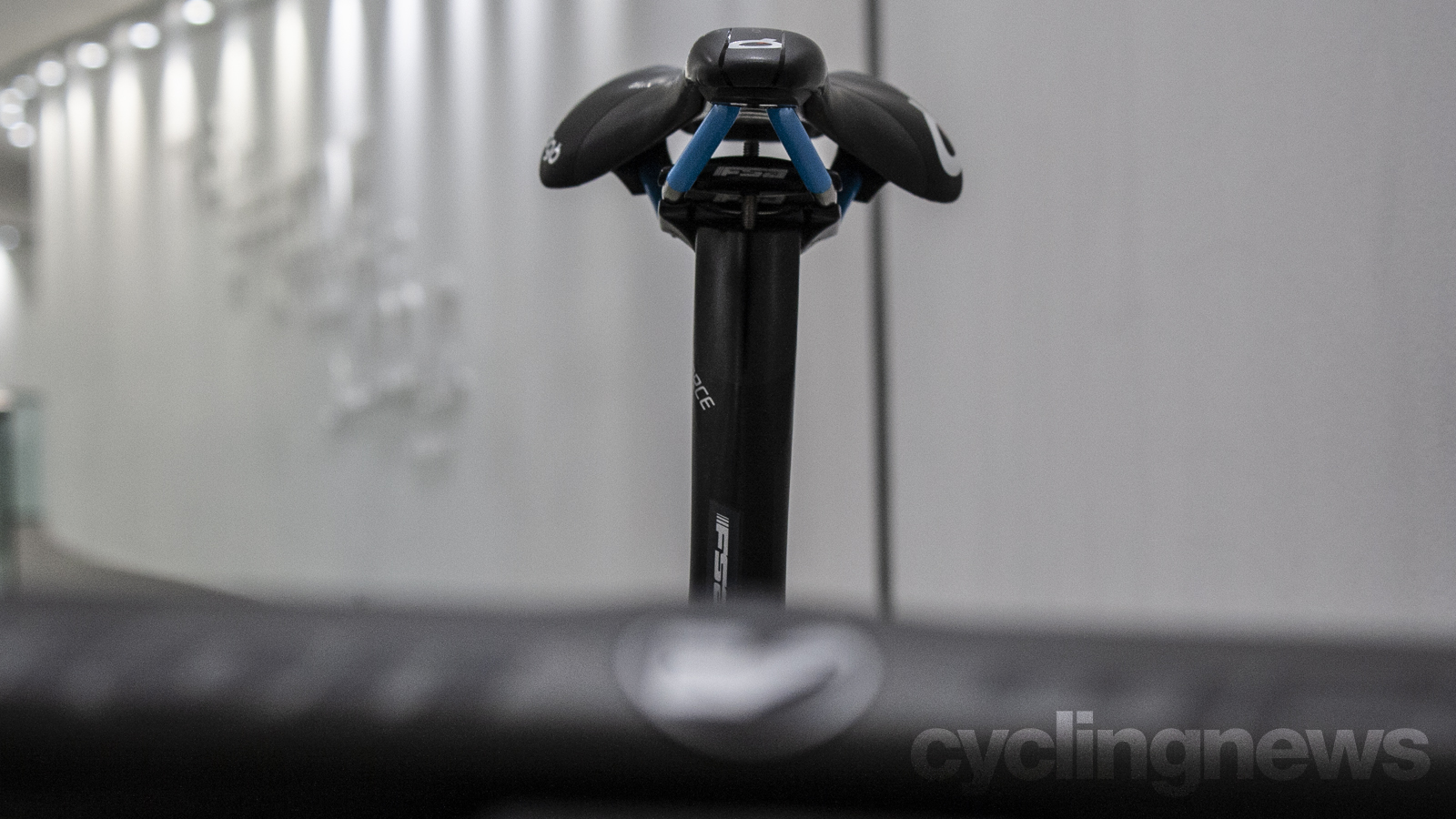

Prologo saddles are used across all three bike options: Scultura, Reacto and Time Warp (Image credit: Aaron Borrill)
Image 4 of 5

Bahrain McLaren Merida Scultura Elite cages

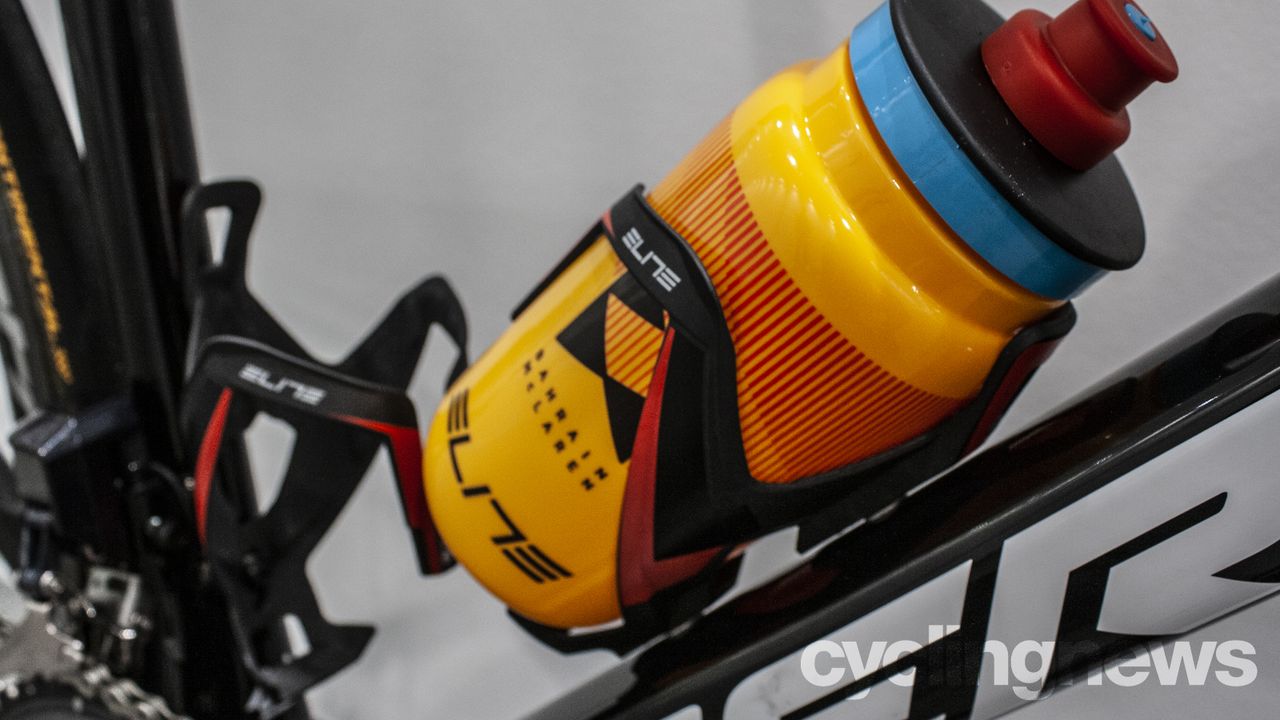

Carbon Elite bottle cages and papaya-orange bidons add another layer of sophistication and visual intensity to the bike package (Image credit: Aaron Borrill)
Image 5 of 5

Bahrain McLaren Vision Metron wheels

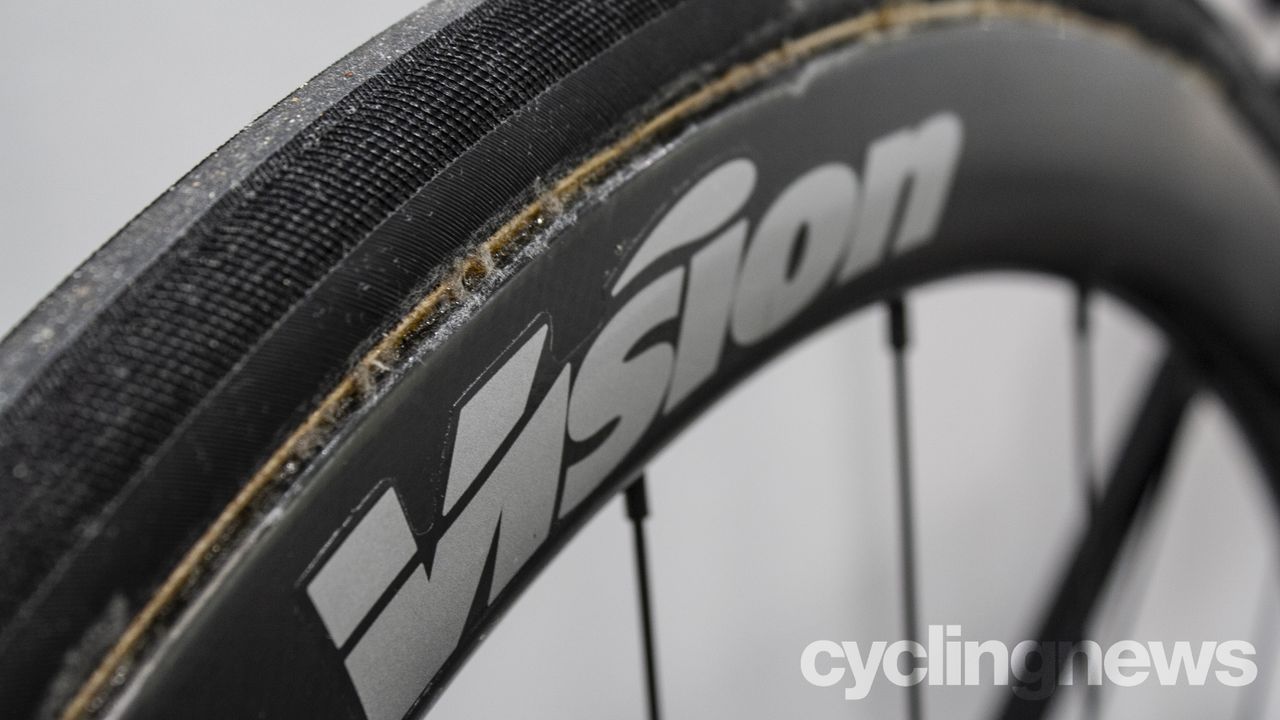

Vision Metron hoops to provide an aerodynamic and weight advantage, likely to be swapped out for various dish profiles depending on parcours (Image credit: Aaron Borrill)

Components and build

Both the Scultura and Reacto disc models will feature full Shimano Dura-Ace R9170 builds. This, depending on the rider, will comprise a 53/39 and 11-32T drivetrain assembly, pedals and hydraulic stoppers. As previously mentioned, Vision provides the team with Metron wheels, which are paired with Continental Competition tubular tyres.

Asked about the possibility of the team running tubeless tyres next year, Falke assured us it is the way forward but weight is still a big concern. "There's no doubt that tubeless tyres are faster and provide better comfort. If you look at Paris-Roubaix, the benefits far outweigh what could possibly go wrong but the way forward would be to convince the riders as it's always going to come down to personal taste and what weighs the least."

The finishing kit includes an FSA K-Force seatpost and Prologo saddle, and a fully integrated cockpit that comes courtesy of Vision's ultra-clean Metron 5D bar/stem system. Prologo bar tape and Elite Leggero Carbon bottle cages complete the build.

Continental Competition ProLTD tubular tyres

While Bahrain McLaren will experiment using Continental GP5000 tubeless tyres at select races, Continental Competition ProLTD tubulars will be used most of the time (Image credit: Aaron Borrill)

Tech spec: Merida Scultura Dura-Ace Disc

Frameset: Merida Scultura Dura-Ace Di2 Disc

Front brake: Shimano Dura-Ace R9170
Rear brake: Shimano Dura-Ace R9170
Brake/shift levers: Shimano Dura-Ace R9170
Front derailleur: Shimano Dura-Ace R9170
Rear derailleur: Shimano Dura-Ace R9170
Cassette: Shimano Dura-Ace 11-32T
Chain: Shimano Dura-Ace R9170
Crankset: Shimano Dura-Ace R9170 chainrings 53/39

Wheelset: Vision Metron 40SL TUB
Tyres: Continental Competition ALX ProLTD, 25mm tubular

Handlebar/stem: Vision Metron 5D integrated
Handlebar tape: Prologo
Pedals: Shimano Dura-Ace R9100
Seat post: FSA K-Force Light

Bottle cages: Elite Leggero Carbon
