Pro bike: Philippe Gilbert's Omega-Pharma Lotto Canyon Aeroad CF

By:
James Huang, technical editor
Published:
January 21, 2011, 11:48 GMT,
Updated:
January 21, 2011, 13:36 GMT

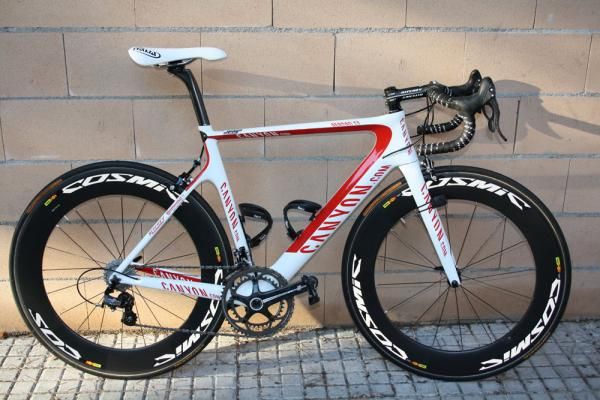

Philippe Gilbert (Omega-Pharma Lotto) has been using Canyon's new Aeroad CF model at the team training camp on the Spanish island of Mallorca.

Philippe Gilbert (Omega-Pharma Lotto) has been using Canyon's new Aeroad CF model at the team training camp on the Spanish island of Mallorca.

view thumbnail gallery

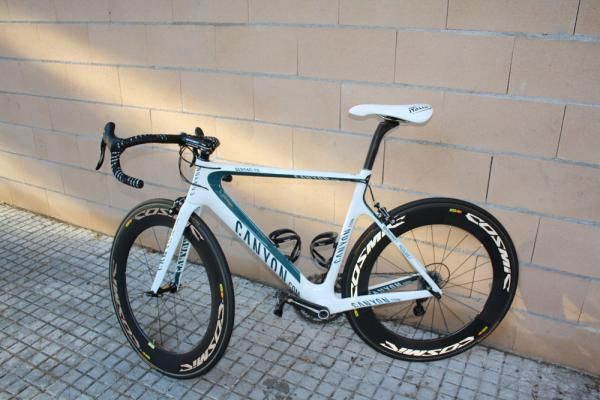

Philippe Gilbert (Omega-Pharma Lotto) will tackle this season's challenges aboard Canyon's latest road model, the Aeroad CF aero. Billed by Canyon as a 'breakaway bike', the Aeroad CF looks to fit the Belgian star's strong suits to a T.

Canyon doesn’t make a big deal of airfoil-shaped tubes or days' worth of wind tunnel testing but has instead concentrated on reducing frontal area and smoothing frame surface transitions relative to the decidedly more massive Ultimate range that Omega-Pharma Lotto has ridden in previous seasons. Everything exposed to the wind has been nipped, tucked, and pinched to reduce aerodynamic drag and Canyon claims frontal area has indeed been reduced by 20 percent.

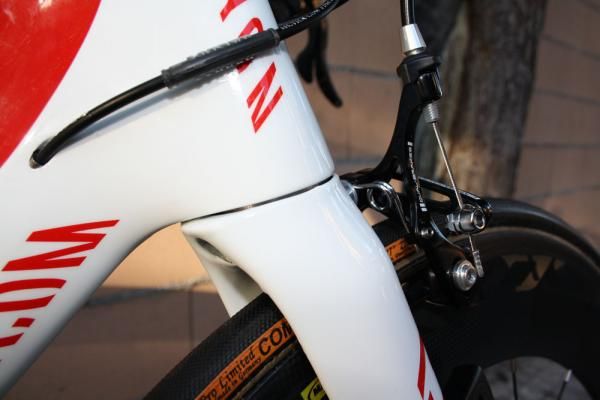

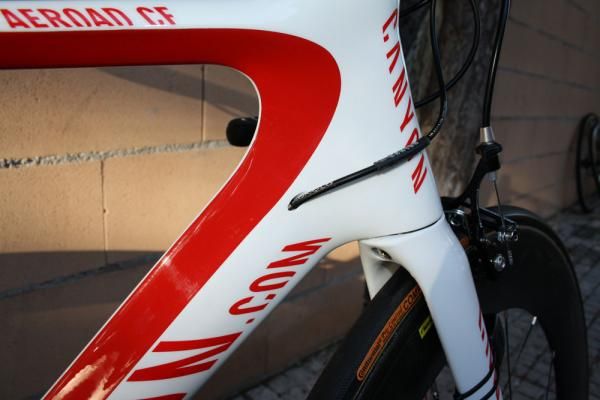

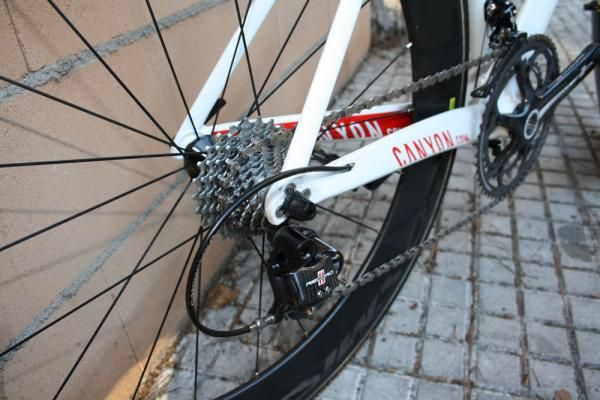

Nominally aero cross sections are featured at the head tube, down tube, seat stays, and fork blades, cables are routed internally throughout, and even Canyon's trademark 1 1/4"-to-1 1/2" front end has been downsized to a slimmer 1 1/8"-to-1 1/4" dimension complete with hourglass profile.

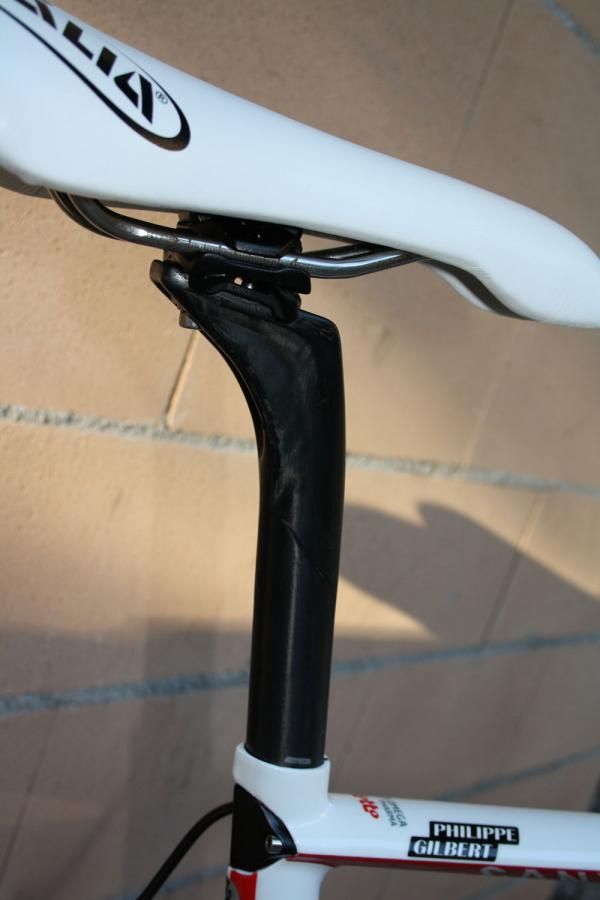

Even so, Canyon has also worked to ensure that Gilbert's new machine still rides well – seeing as how this bike is apt to see a lot of cobbles this year – and it turns out that the Aeroad is even more comfortable than the Ultimate range based on our own test rides. Though it may be faster through the air, the Aeroad is also softer overall with noticeably more flex and give. Additional comfort is provided by the carbon-and-basalt fiber VCLS seatpost.

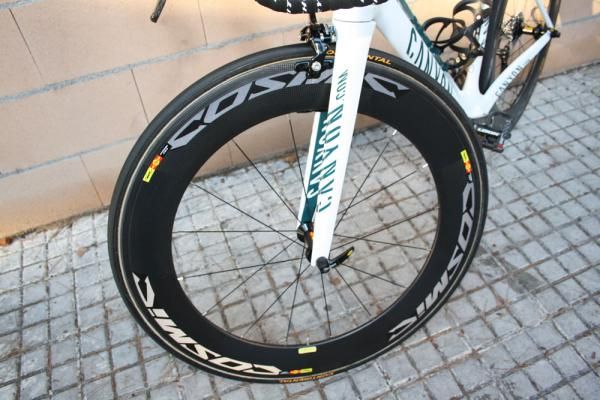

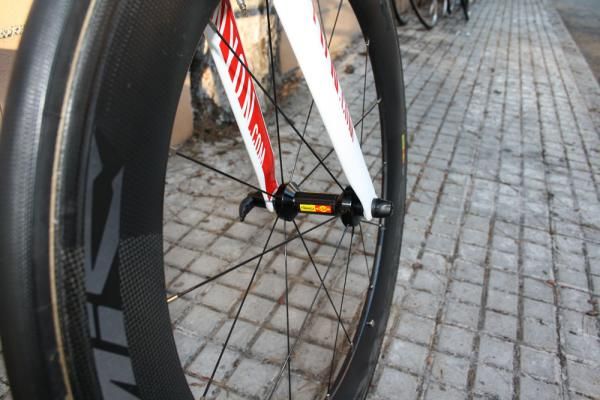

Continuing the aero theme are Mavic's new Cosmic CC80 wheels, featuring aggressive 80mm-deep carbon tubular rims and bladed stainless steel spokes.

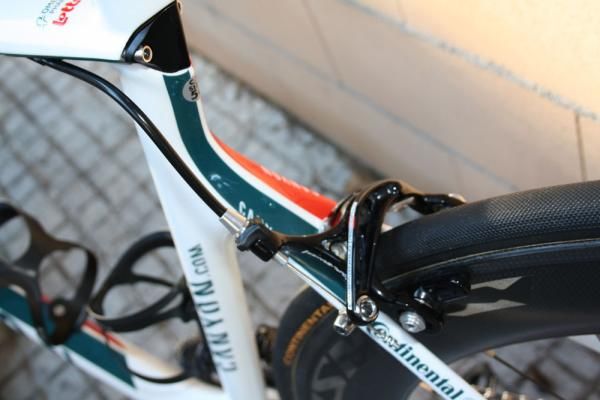

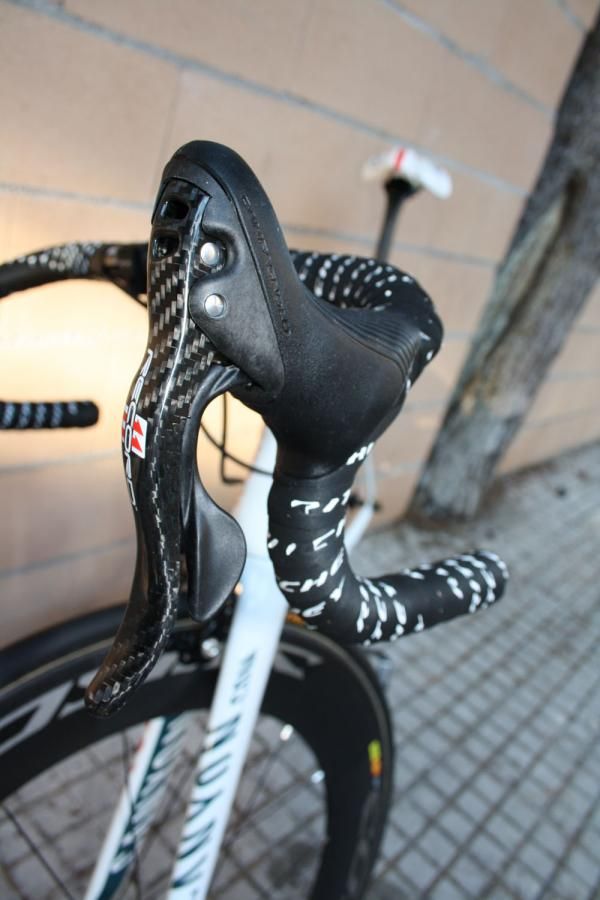

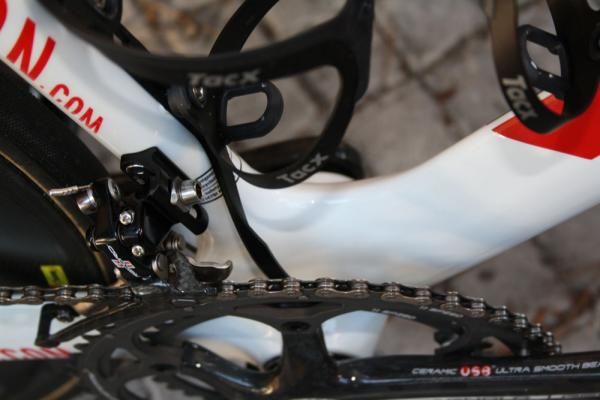

Campagnolo's new Record 11 group isn't billed as aero in any way but recent changes do make an improvement over previous iterations. In addition to being lighter than before, new shift internals offer a more positive and precise-feeling action that's also user tunable, updated chainring profiles and front derailleur cages yield faster shifts, and Campagnolo has reintroduced a dual-pivot variant for the rear brake.

While the company has said it only expected amateur cyclists to opt for the additional rear power, Gilbert's bike is so equipped as well.

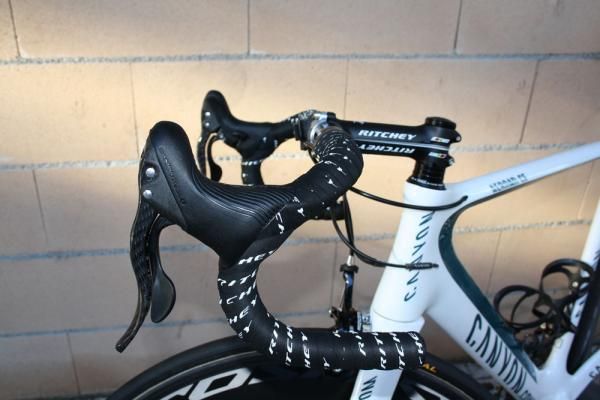

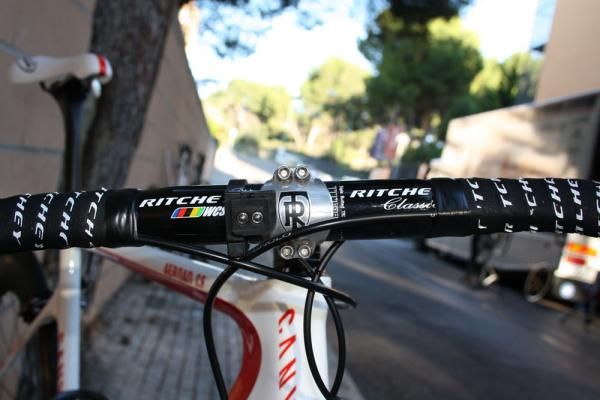

Finishing things off are an alloy Ritchey classic-bend bar and forged stem, a Selle Italia Flite Team Edition saddle, Look KéO Blade pedals, Continental tires, an SRM PowerControl 7 computer (which is presumably paired to an SRM power meter for training), and Tacx cages. Total weight as pictured is 6.90kg (15.21lb).


Full Specifications

Specifications:

Frame: Canyon Aeroad CF, size M

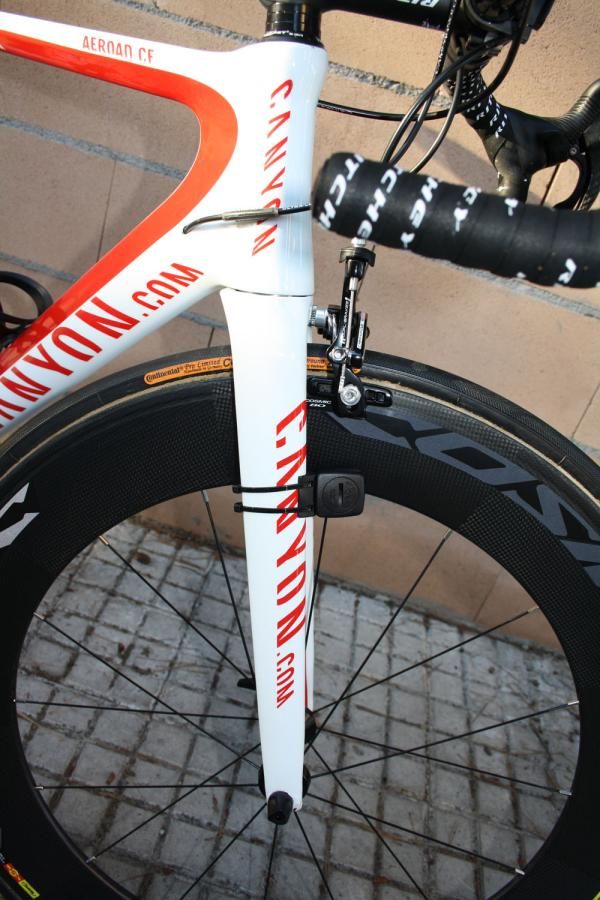

Fork: Canyon Aeroblade SL, 1 1/8"-to-1 1/4" steerer
Headset: Cane Creek

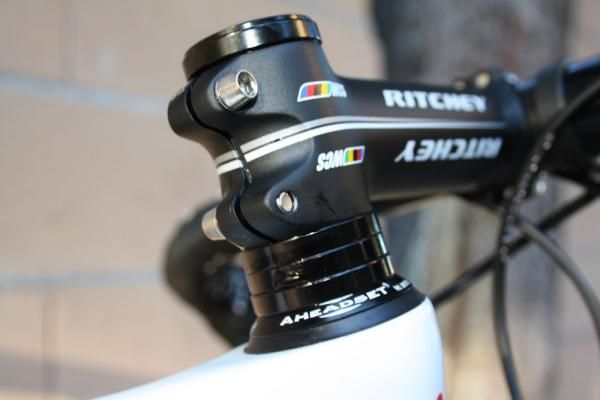

Stem: Ritchey WCS 4-Axis, 12cm x -6° include length in cm, center-to-center
Handlebars: Ritchey WCS Classic, 42cm (c-c) include width in cm, center-to-center
Tape/grips: Ritchey cork
Front brake: Campagnolo Record D-Skeleton, dual pivot
Rear brake: Campagnolo Record D-Skeleton, dual pivot
Brake levers: Campagnolo Record Ergopower Ultra-Shift 11s
Front derailleur: Campagnolo Record 11s

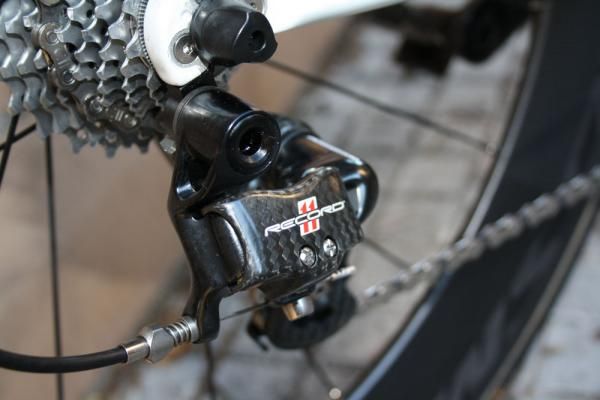

Rear derailleur: Campagnolo Record 11s
Shift levers: Campagnolo Record Ergopower Ultra-Shift 11s
Cassette: Campagnolo Record 11s, 11-25T
Chain: Campagnolo Record 11s

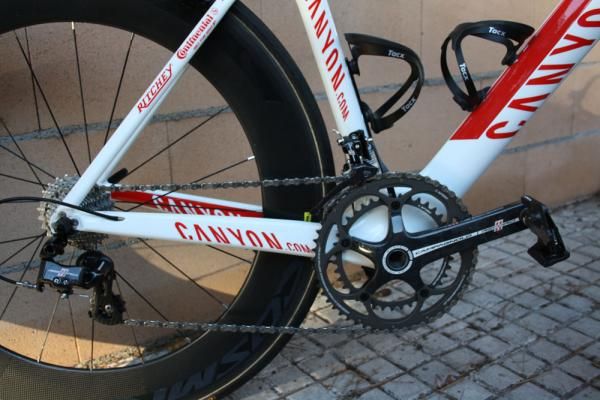

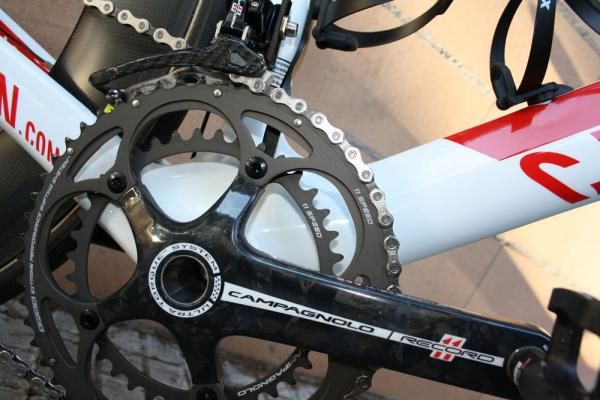

Crankset: Campagnolo Record Ultra-Torque ST 11s, 172.5mm, 53/39T
Bottom bracket: Campagnolo Record Ultra-Torque press-fit

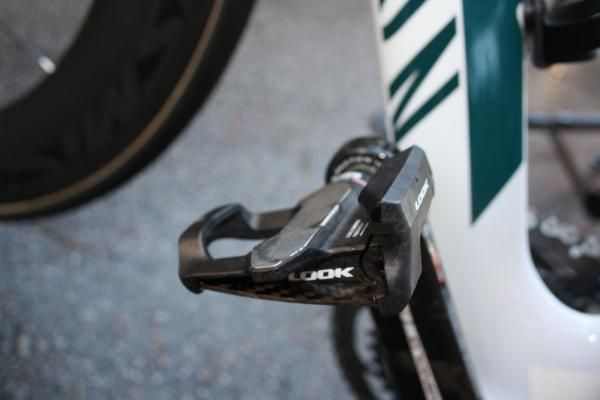

Pedals: Look KéO Blade
Wheelset Mavic Cosmic CC80 tubular

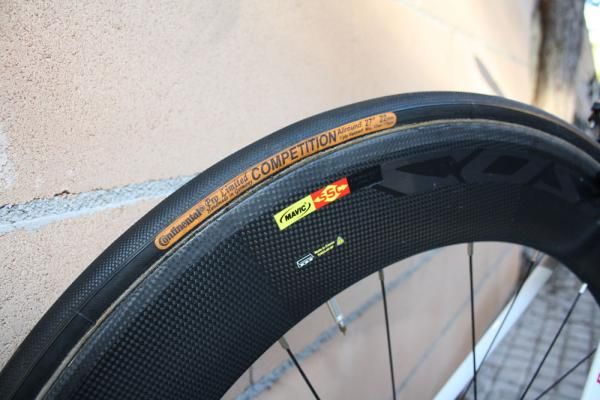

Front tire: Continental Competition Pro Limited Allround tubular, 22mm
Rear tire: Continental Competition Pro Limited Allround tubular, 22mm

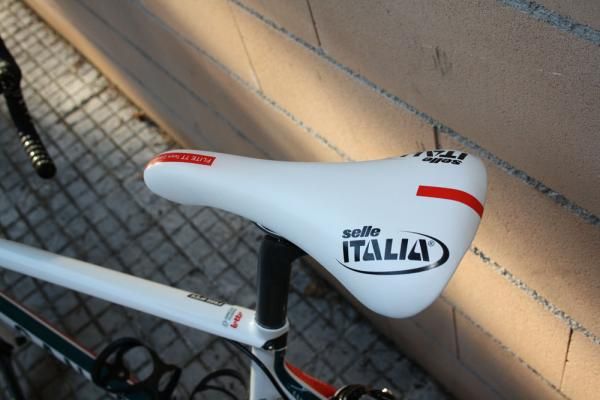

Saddle: Selle Italia Flite TT Team Edition
Seat post: Canyon VCLS Aero Post

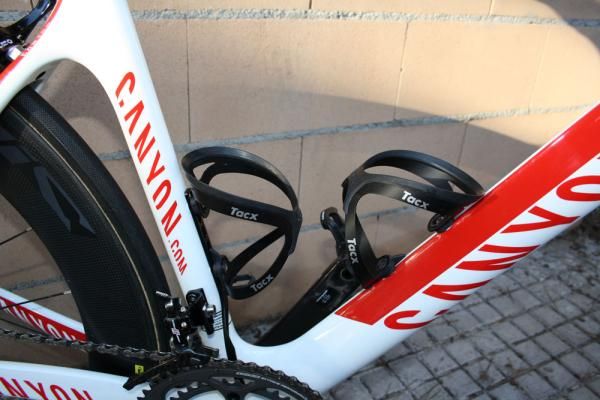

Bottle cages: Tacx Tao
Computer: SRM PowerControl 7

Critical measurements:

Rider's height: 1.79 (5' 10")
Rider's weight: 72kg (159lb)
Seat tube length: c-t 531mm
Saddle height, from BB: (c-t) 760mm
Saddle setback: 80mm
Tip of saddle nose to C of bars (next to stem): 581mm
C of front wheel to top of bars (next to stem): 543mm
Head tube length: 150mm
Top tube length: 560mm (horizontal)
Total bicycle weight: 6.90kg (15.21lb)
