Richie Porte's Trek Emonda – Gallery

Image 1 of 20

Richie Porte Pro Bike

Porte will be riding a Trek Emonda for the Tour Down Under. (Image credit: Colin Levitch)

Porte will be riding a Trek Emonda for the Tour Down Under.

Image 2 of 20

Richie Porte Tour Down Under

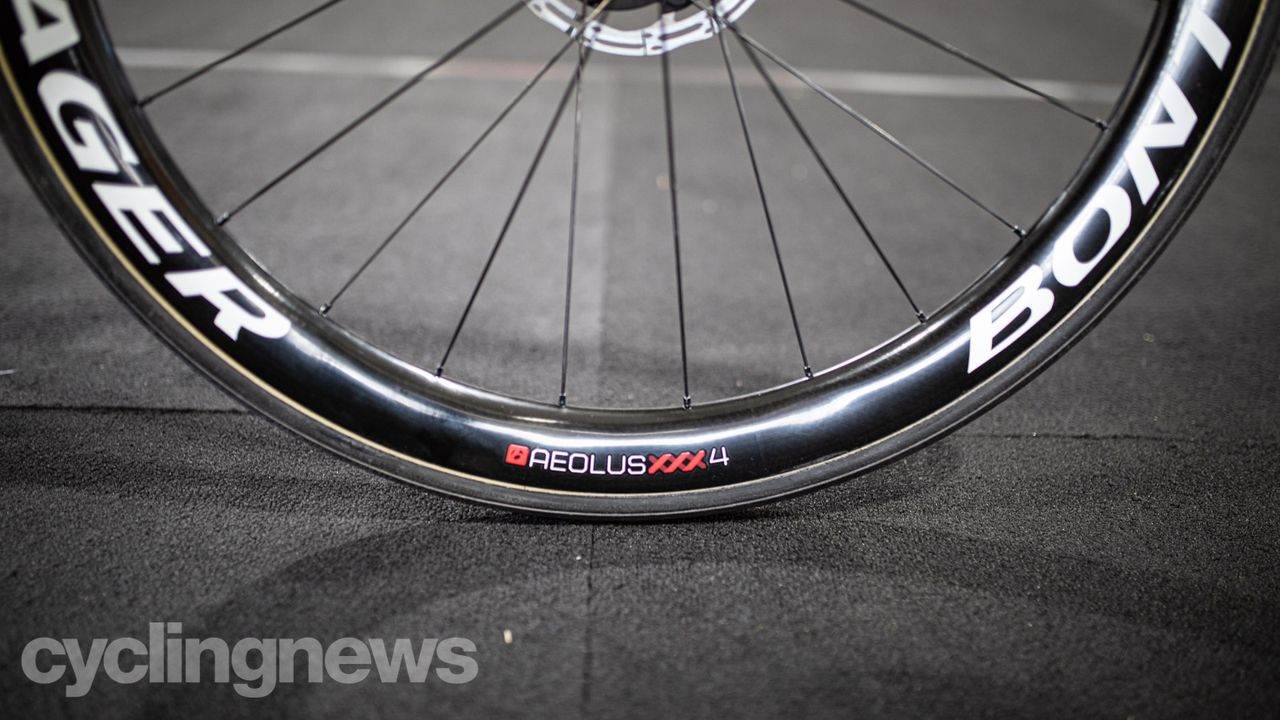

Ahead of the race, Porte's bike is fitted with Bontrager Aeolus XXX4 hoops, but we'd expect to see something shallower for Willunga Hill (Image credit: Colin Levitch)

Ahead of the race, Porte's bike is fitted with Bontrager Aeolus XXX4 hoops, but we'd expect to see something shallower for Willunga Hill

Image 3 of 20

Richie Porte Pro Bike

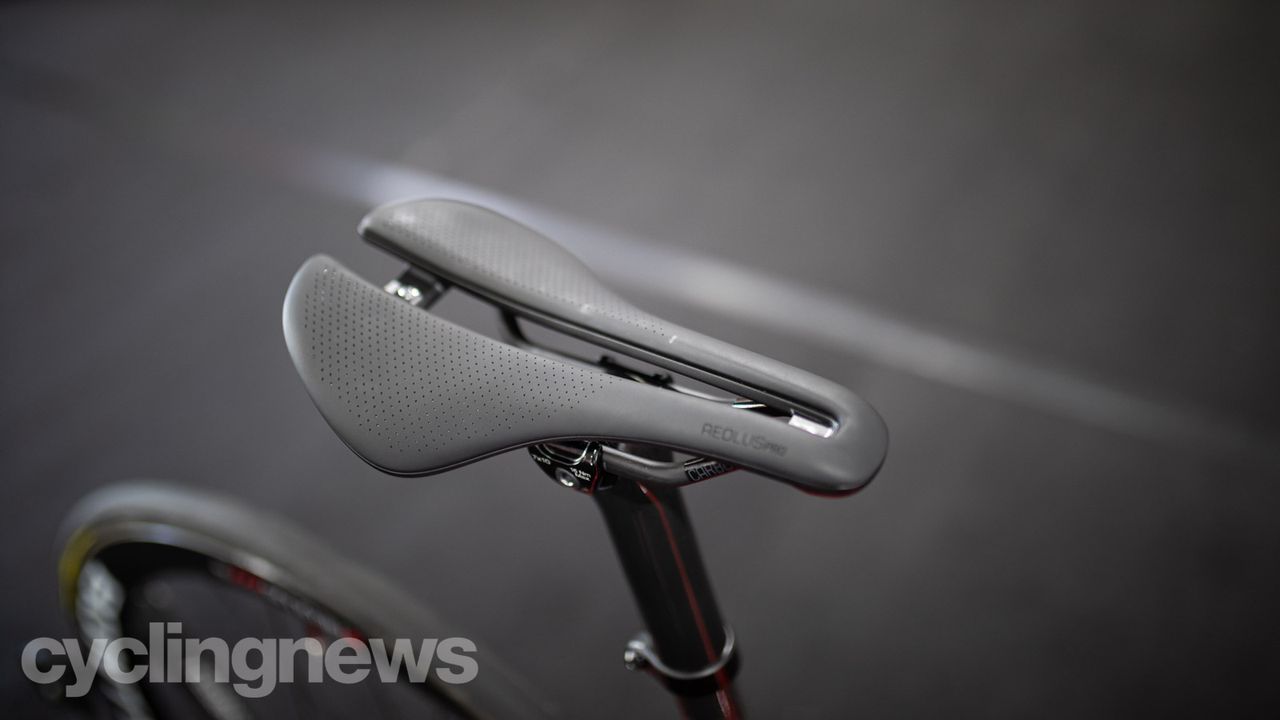

Porte is riding the relatively new Bontrager Aeolus Pro saddle (Image credit: Colin Levitch)

Porte is riding the relatively new Bontrager Aeolus Pro saddle

Image 4 of 20

Richie Porte Pro Bike

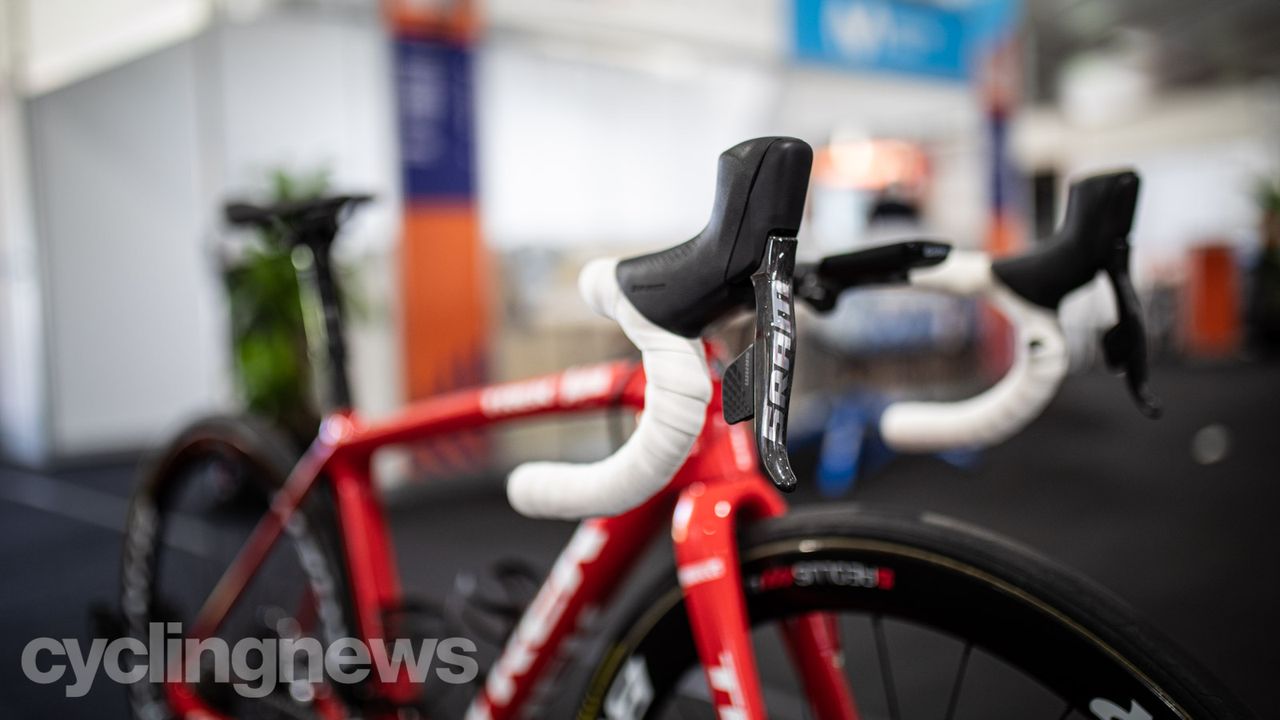

Trek Segafredo is running SRAM eTap AXS (Image credit: Colin Levitch)

Trek Segafredo is running SRAM eTap AXS

Image 5 of 20

Richie Porte Pro Bike

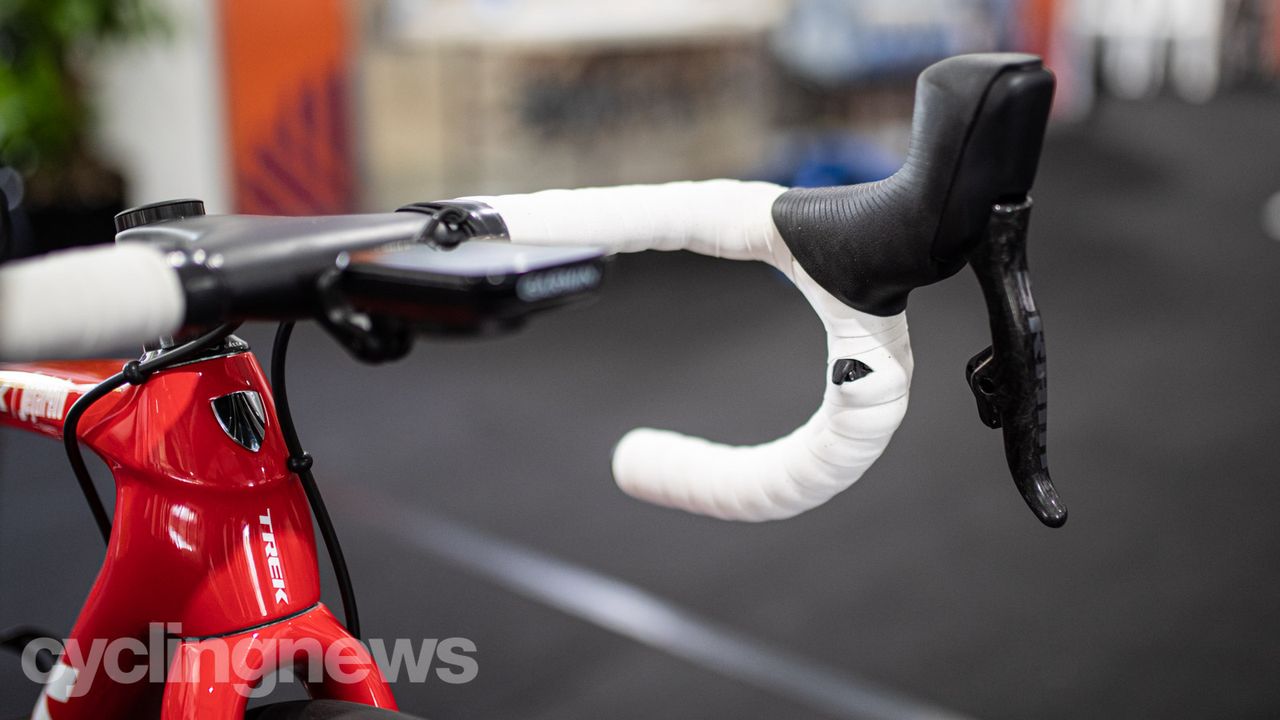

Porte has wired up Shimano sprint shifters to his SRAM groupset (Image credit: Colin Levitch)

Porte is using sprint shifters on his drops

Image 6 of 20

Richie Porte Pro Bike

The number plate holder on the Emonda looks a bit like a tail when it's not holding anything (Image credit: Colin Levitch)

The number plate holder on the Emonda looks a bit like a tail when it's not holding anything

Image 7 of 20

Richie Porte Pro Bike

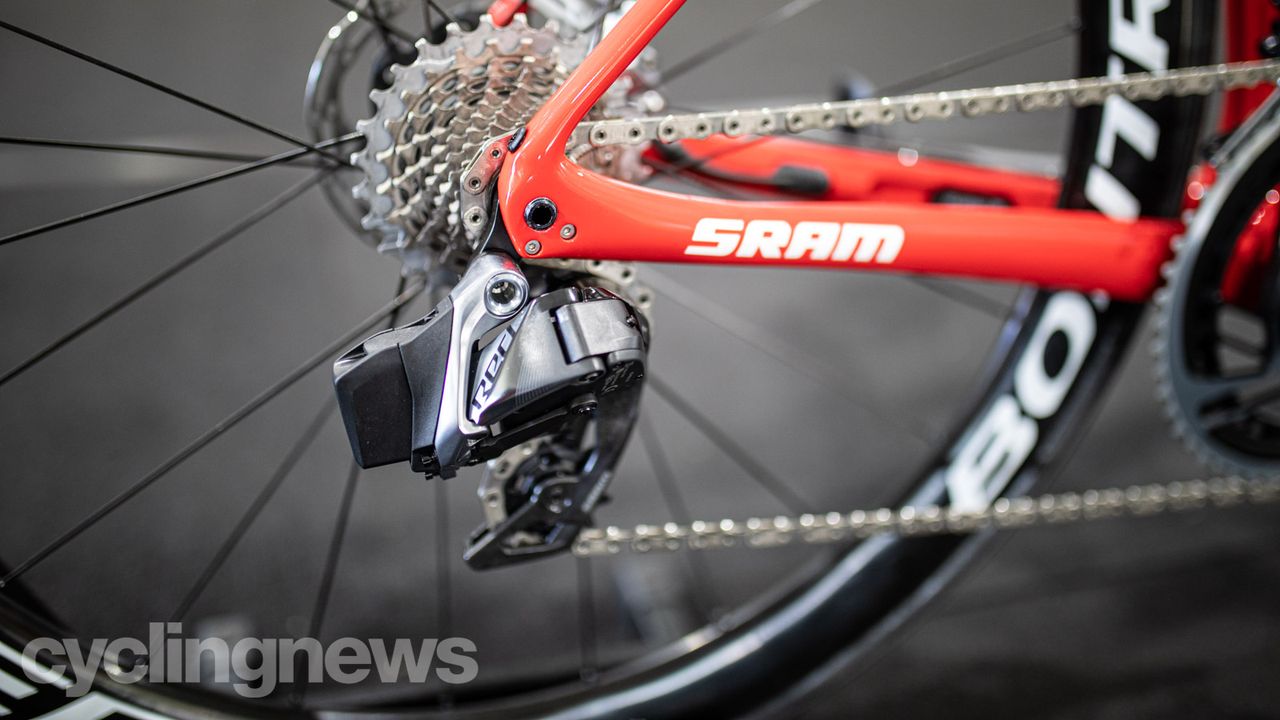

No wires or cables to be found on the drive side with Red eTap AXS (Image credit: Colin Levitch)

No wires or cables to be found on the drive side with Red eTap AXS

Image 8 of 20

Richie Porte Pro Bike

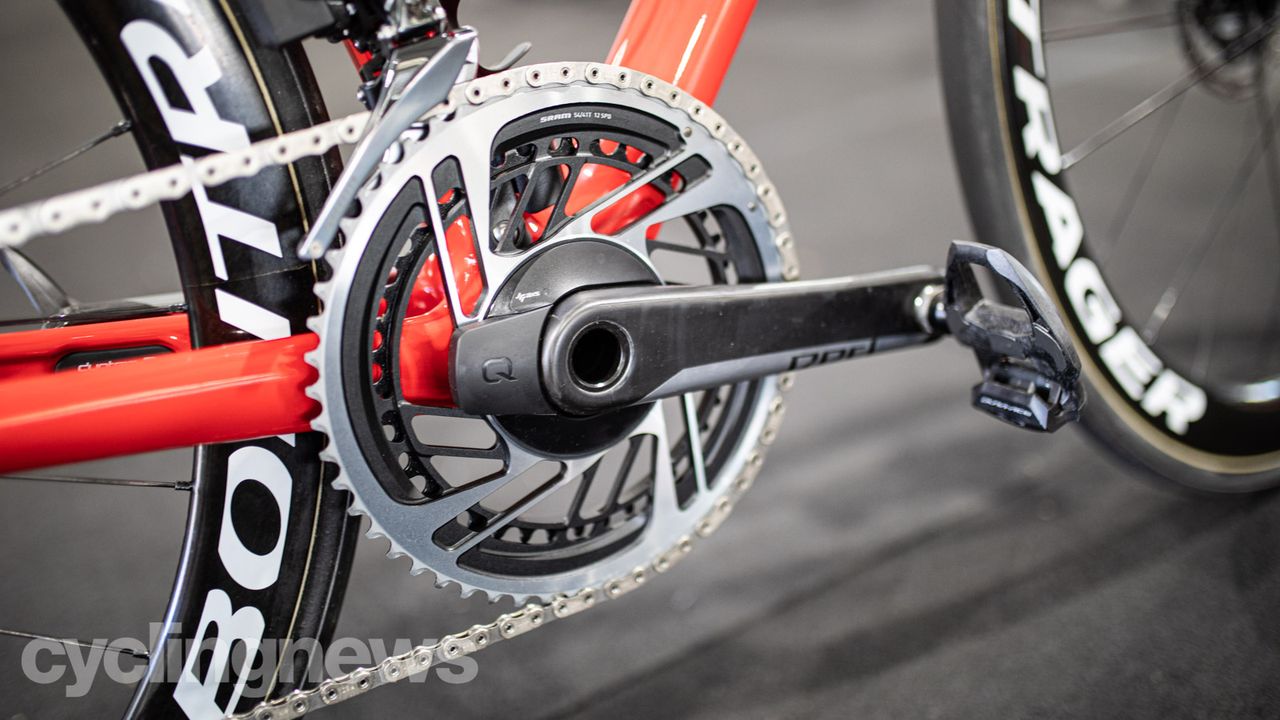

Porte's bike sees SRAM's one piece chainrings, and the integrated Quarq powermenter (Image credit: Colin Levitch)

Porte's bike sees SRAM's one piece chainrings, and the integrated Quarq powermenter

Image 9 of 20

Richie Porte Pro Bike

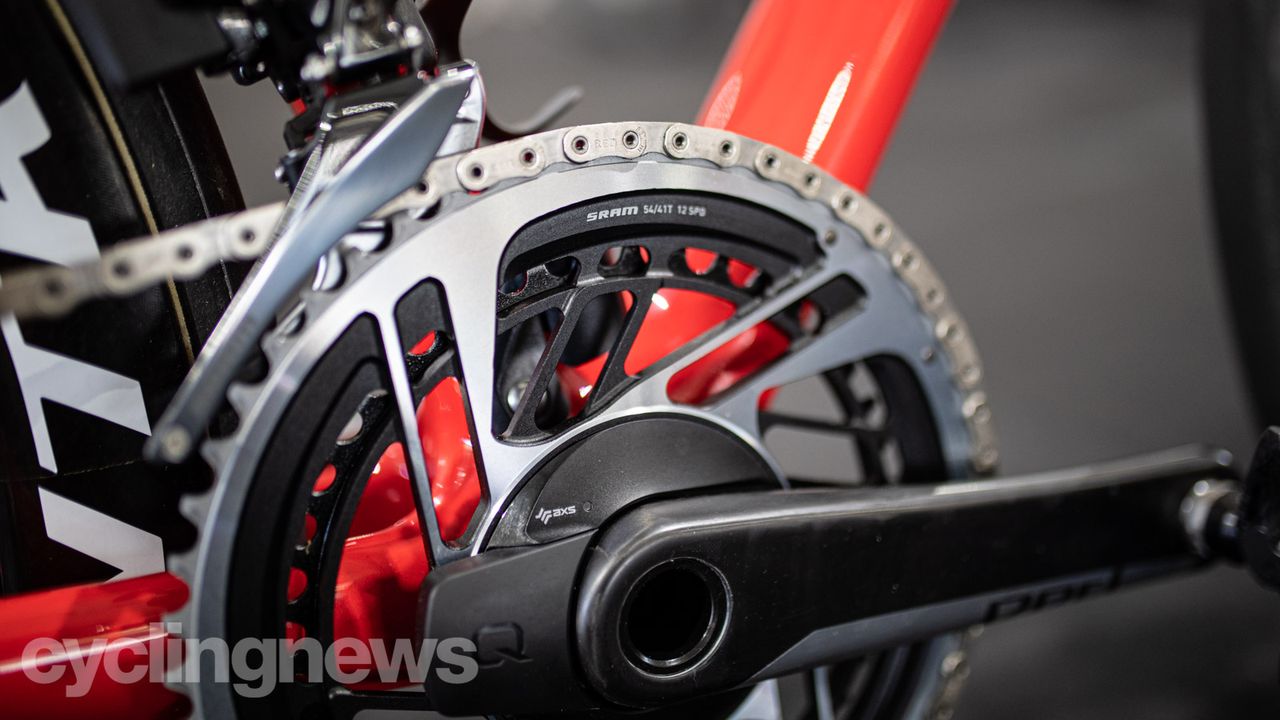

According to the markings on Porte's chainrings he's pushing a 54/41t setup — seems big for a climber (Image credit: Colin Levitch)

According to the markings on Porte's chainrings he's pushing a 54/41t setup  — seems big for a climber

Image 10 of 20

Richie Porte Pro Bike

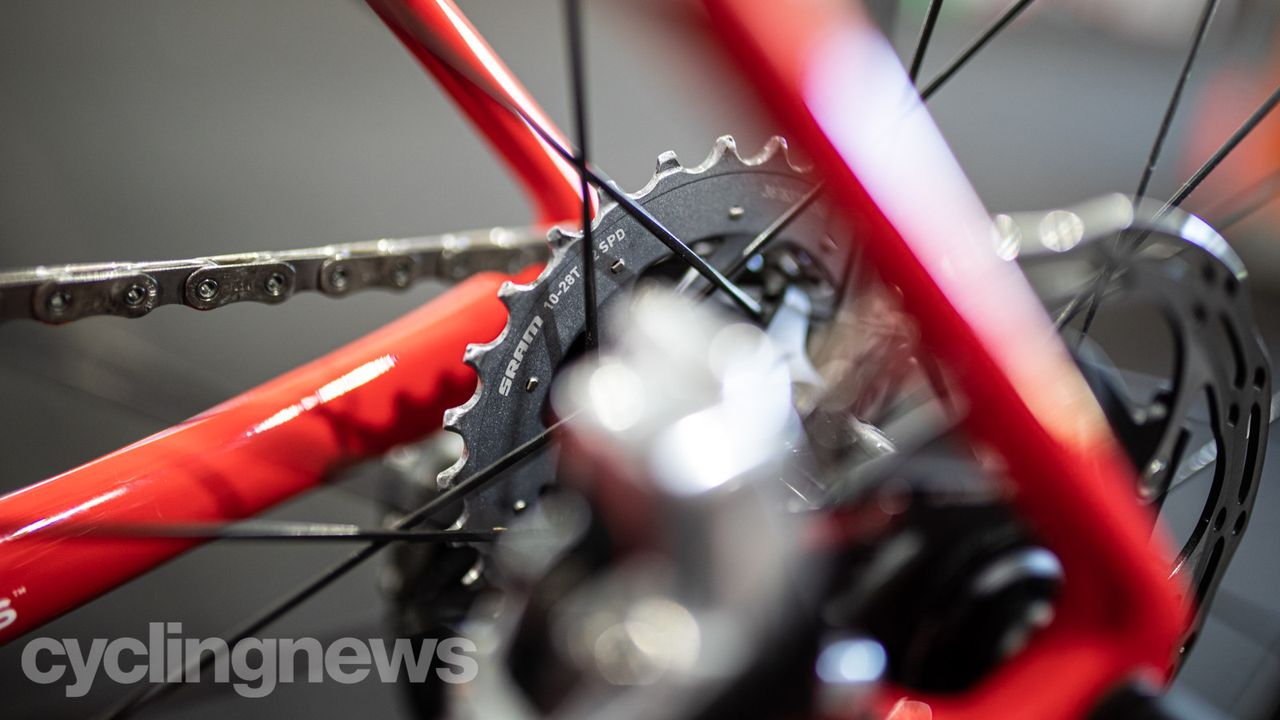

At the back Porte's bike has a 10-28t 12-speed cassette (Image credit: Colin Levitch)

At the back Porte's bike has a 10-28t 12-speed cassette

Image 11 of 20

Richie Porte Pro Bike

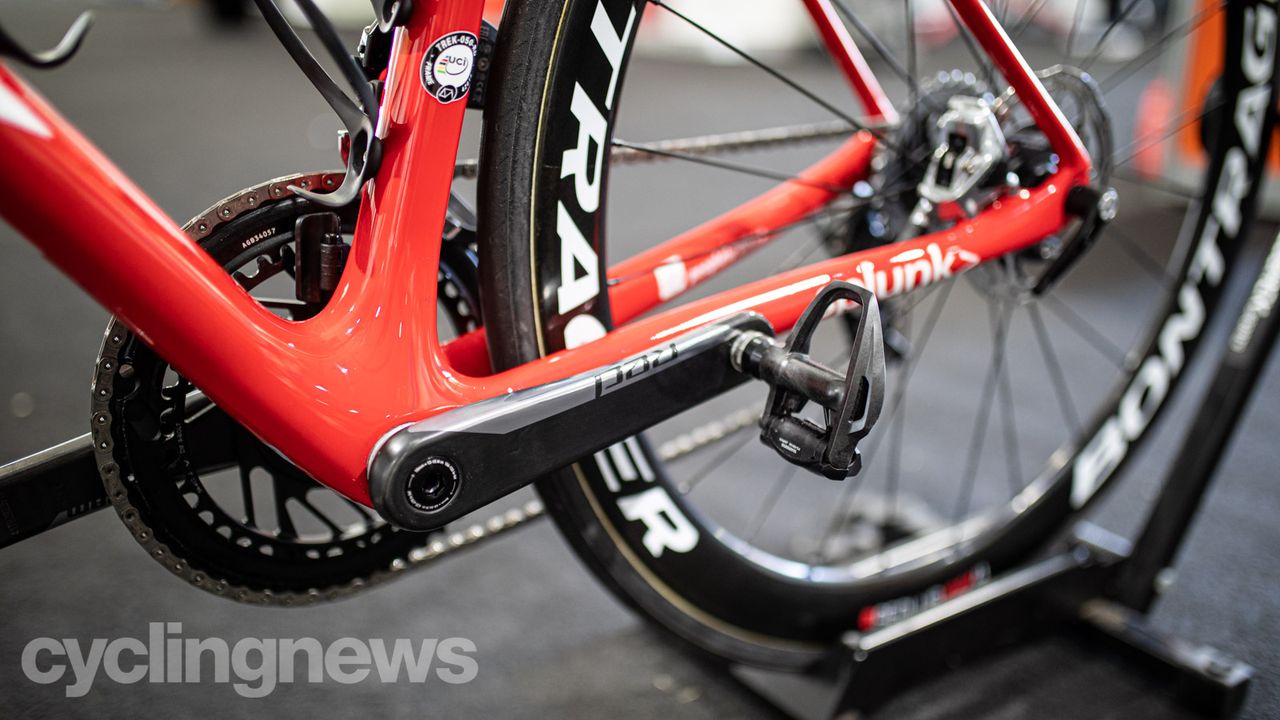

Porte is spinning Shimano Dura-Ace pedals (Image credit: Colin Levitch)

Porte is spinning Shimano Dura-Ace pedals

Image 12 of 20

Richie Porte Pro Bike

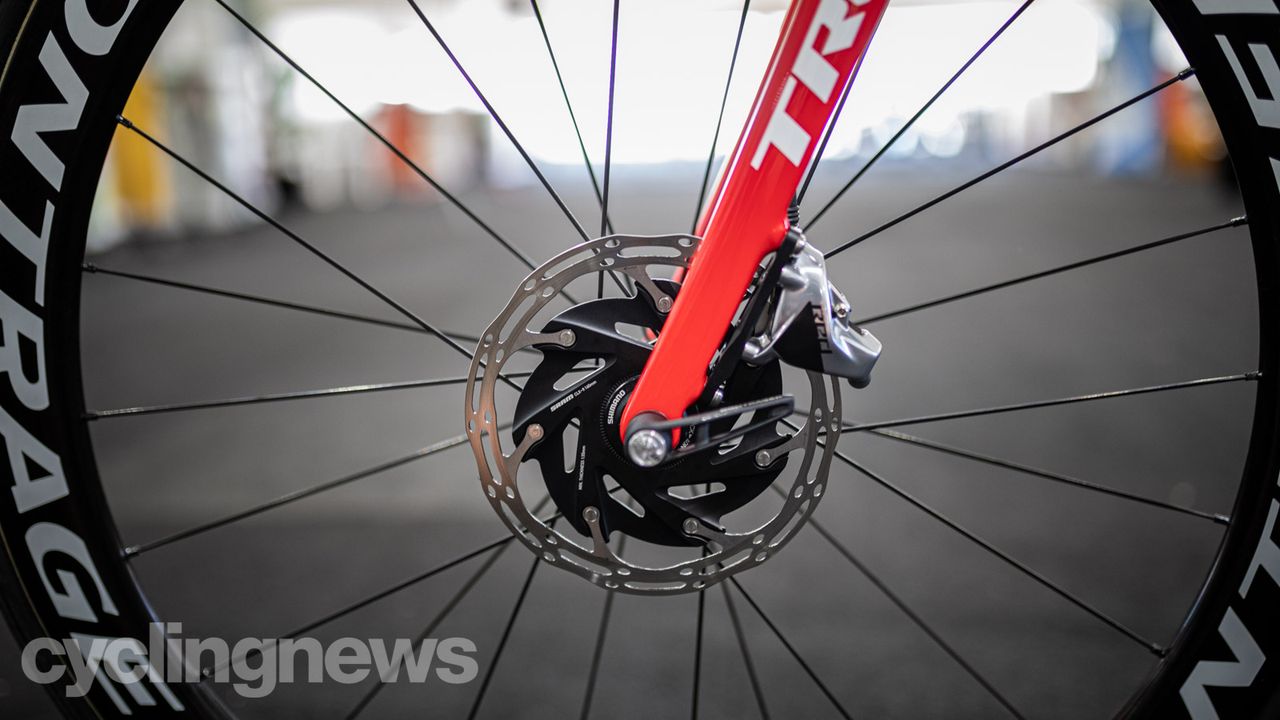

At the front, the Tasmanian's race bike sees a 160mm rotor, which is pretty standard (Image credit: Colin Levitch)

At the front, the Tasmanian's race bike sees a 160mm rotor, which is pretty standard

Image 13 of 20

Richie Porte Pro Bike

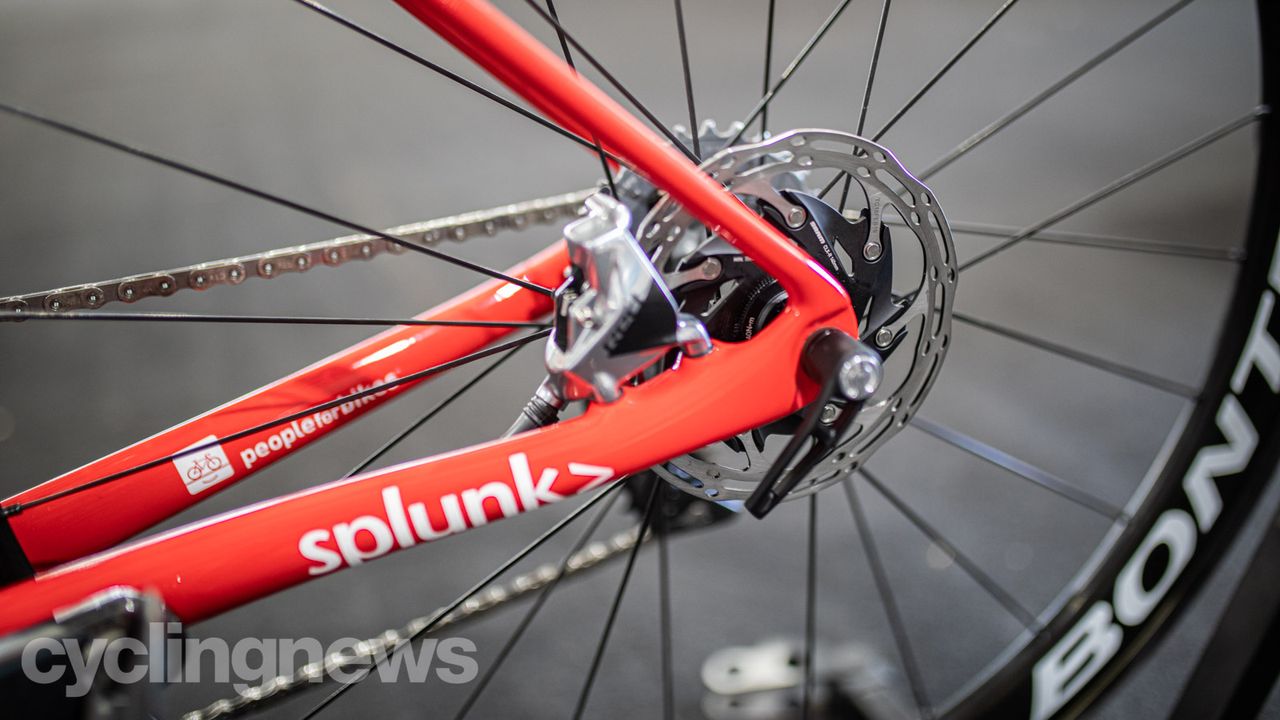

And at the back, there is a smaller and lighter 140mm disc (Image credit: Colin Levitch)

And at the back, there is a smaller and lighter 140mm disc

Image 14 of 20

Richie Porte Pro Bike

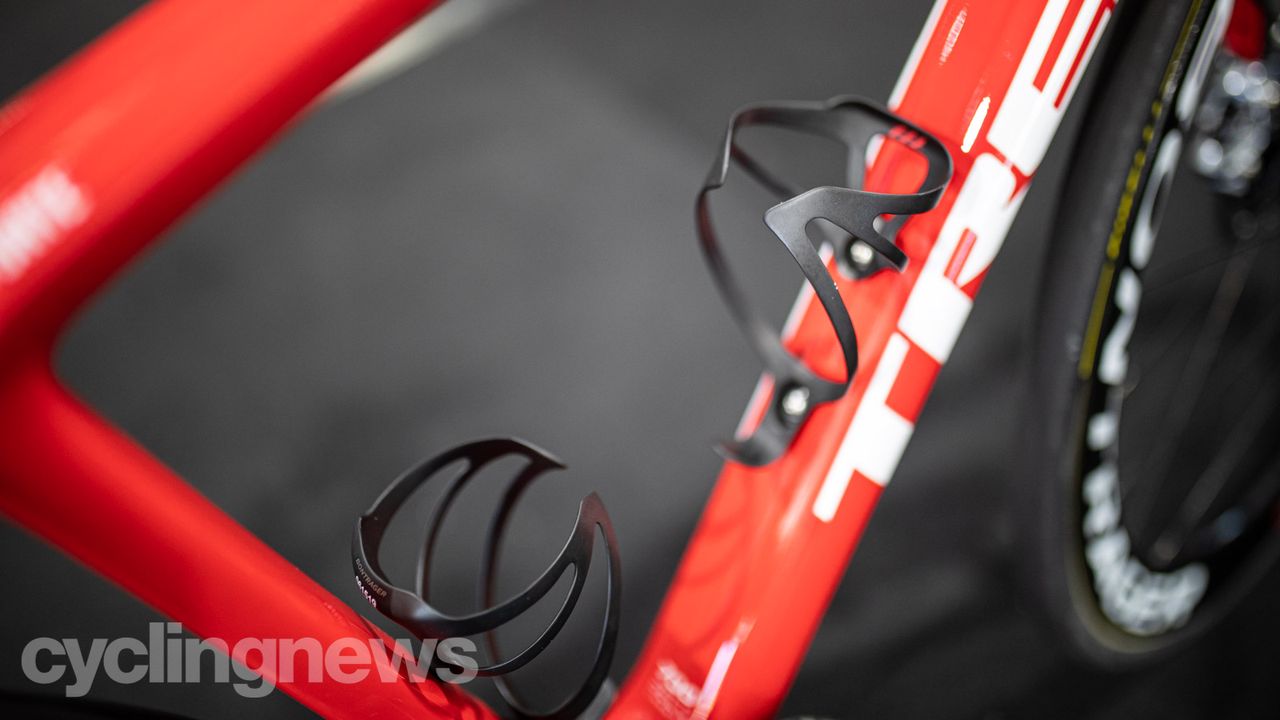

Bontrager's XXX cages keep Porte's drinks in tow (Image credit: Colin Levitch)

Bontrager's XXX cages keep Porte's drinks in tow

Image 15 of 20

Richie Porte Pro Bike

With SRAM eTap AXS not requiring any shift cables, the only thing that needs to be routed to the back of the bike is the rear brake hose (Image credit: Colin Levitch)

With SRAM eTap AXS not requiring any shift cables, the only thing that needs to be routed to the back of the bike is the rear brake hose

Image 16 of 20

Richie Porte Pro Bike

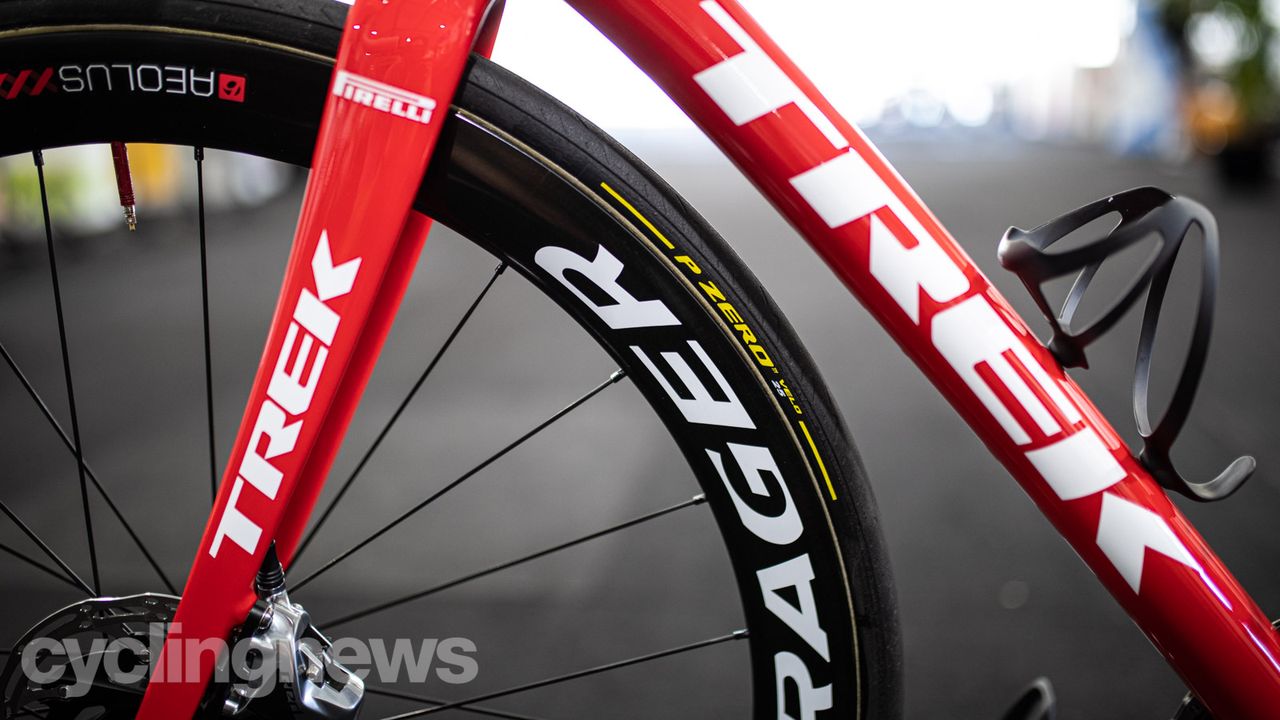

Porte's Bontrager wheels are finished with 25c P-Zero Velo rubber (Image credit: Colin Levitch)

Porte's Bontrager wheels are finished with 25c P-Zero Velo rubber

Image 17 of 20

Richie Porte Pro Bike

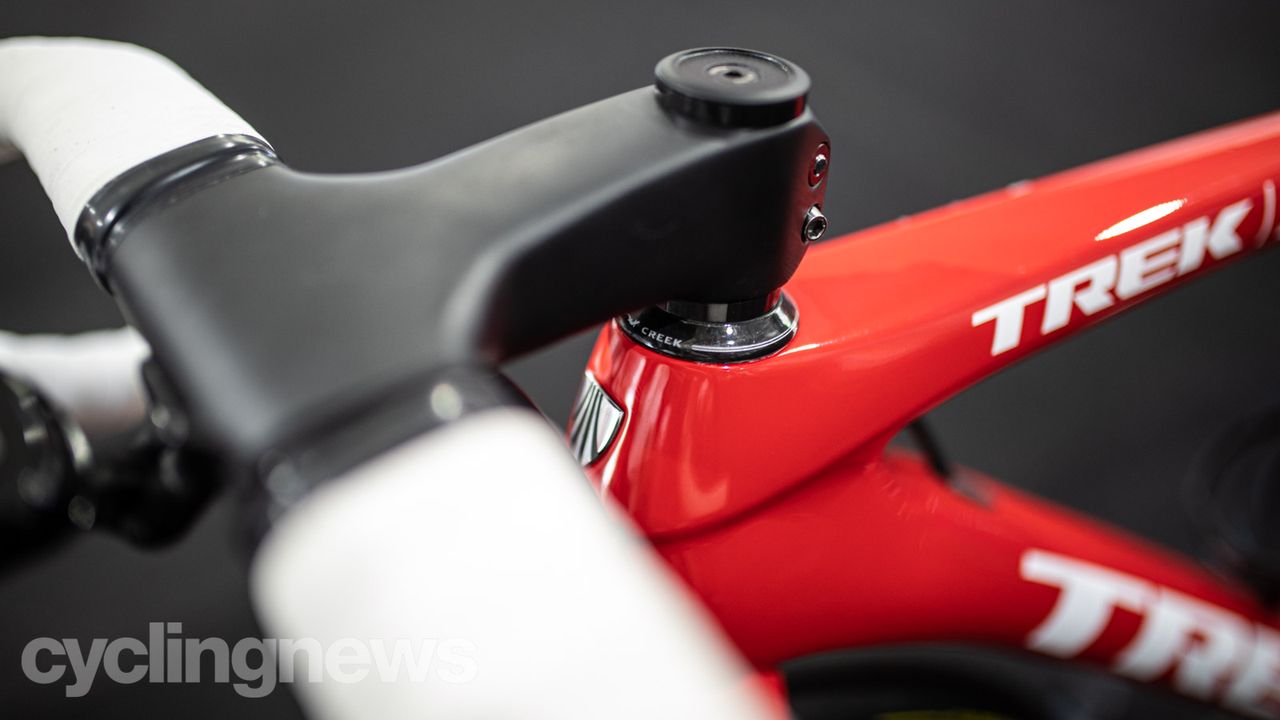

Trek Segafredo appear to be using Cane Creek headsets, or the top caps at least (Image credit: Colin Levitch)

Trek Segafredo appear to be using Cane Creek headsets, or the top caps at least

Image 18 of 20

Richie Porte Pro Bike

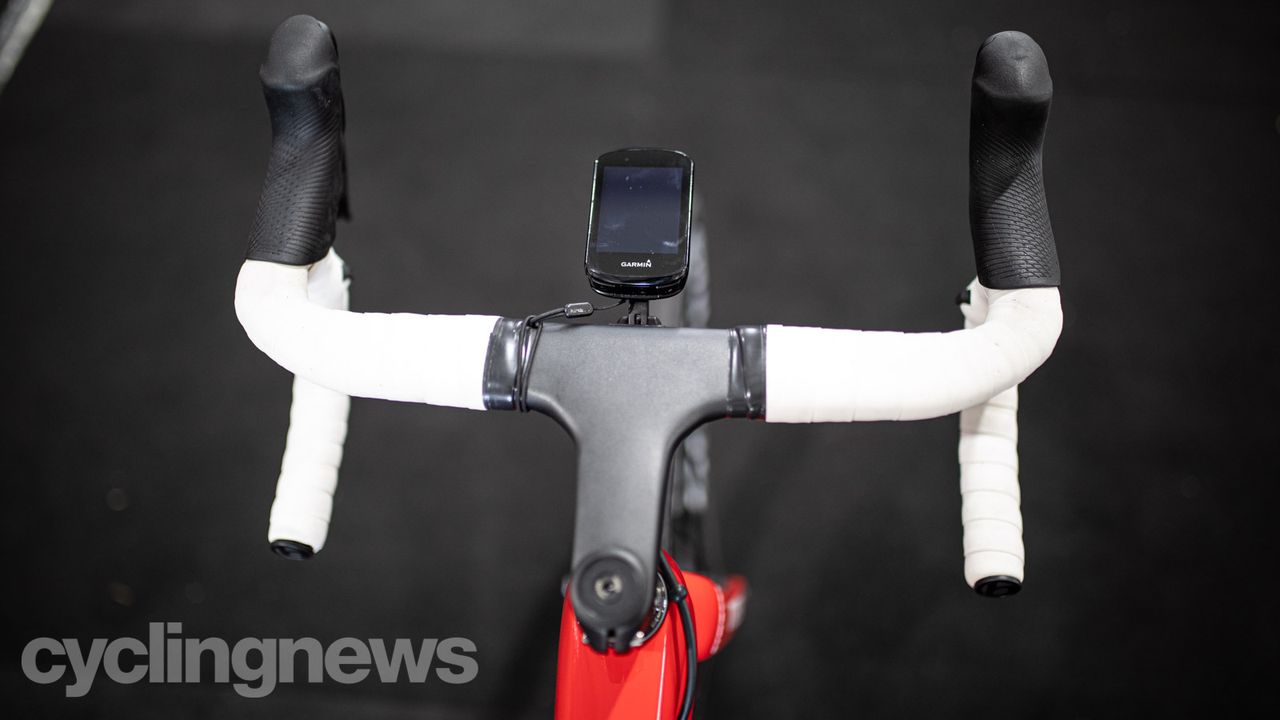

Trek's one-piece bar and stem combo is much less of a headache for mechanics when you don't have to run gear cables and housing (Image credit: Colin Levitch)

Trek's one-piece bar and stem combo is much less of a headache for mechanics when you don't have to run gear cables and housing

Image 19 of 20

Richie Porte Pro Bike

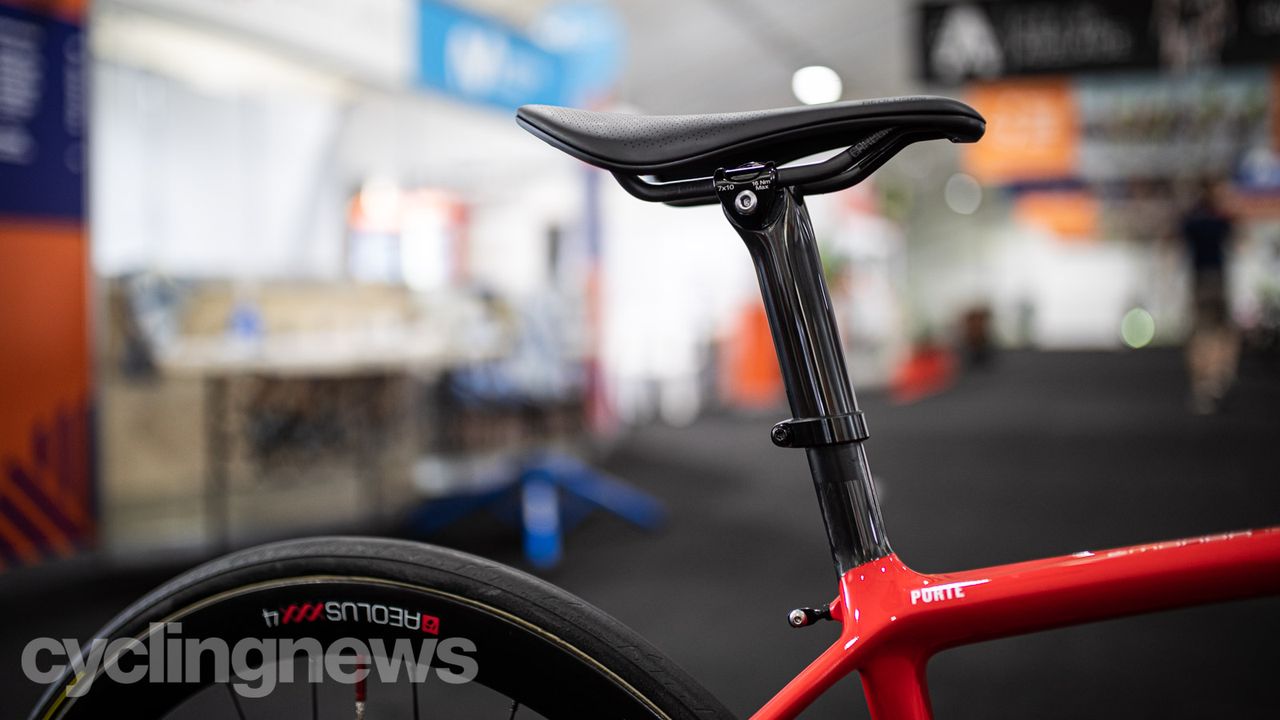

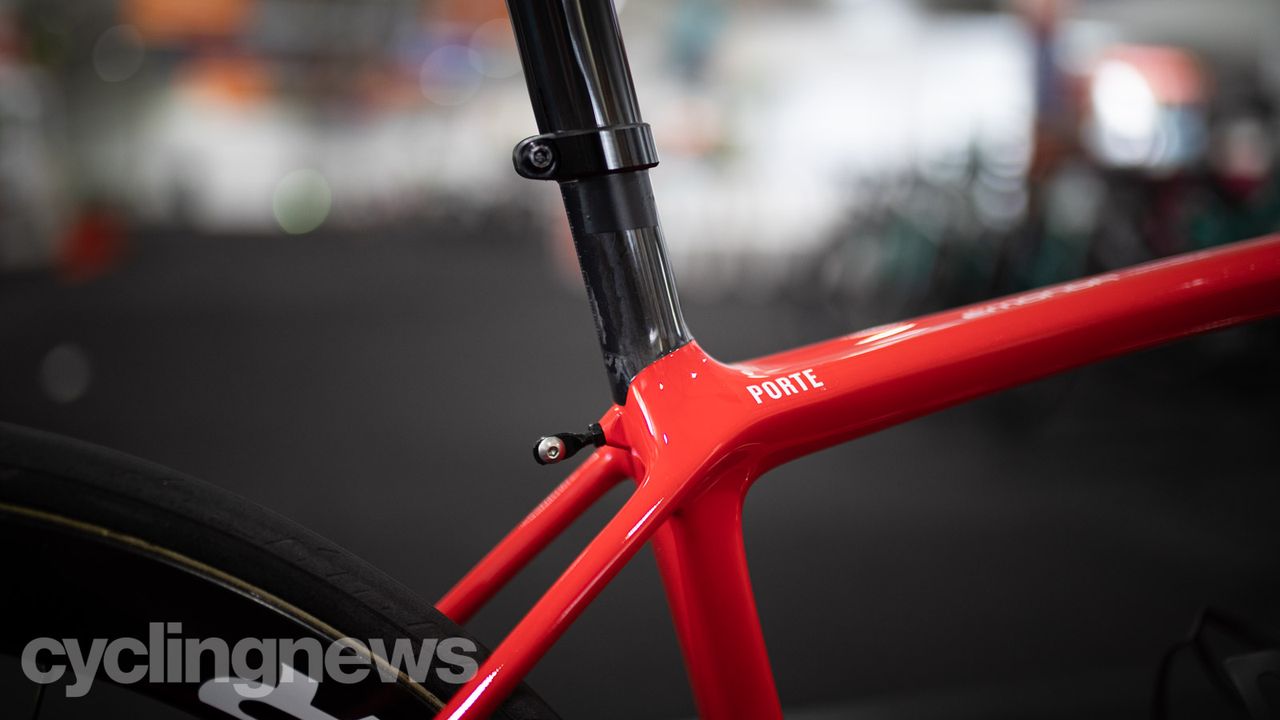

The Emonda uses an integrated seatmast instead of a traditional seat post (Image credit: Colin Levitch)

The Emonda uses an integrated seatmast instead of a traditional seat post

Image 20 of 20

Richie Porte Pro Bike

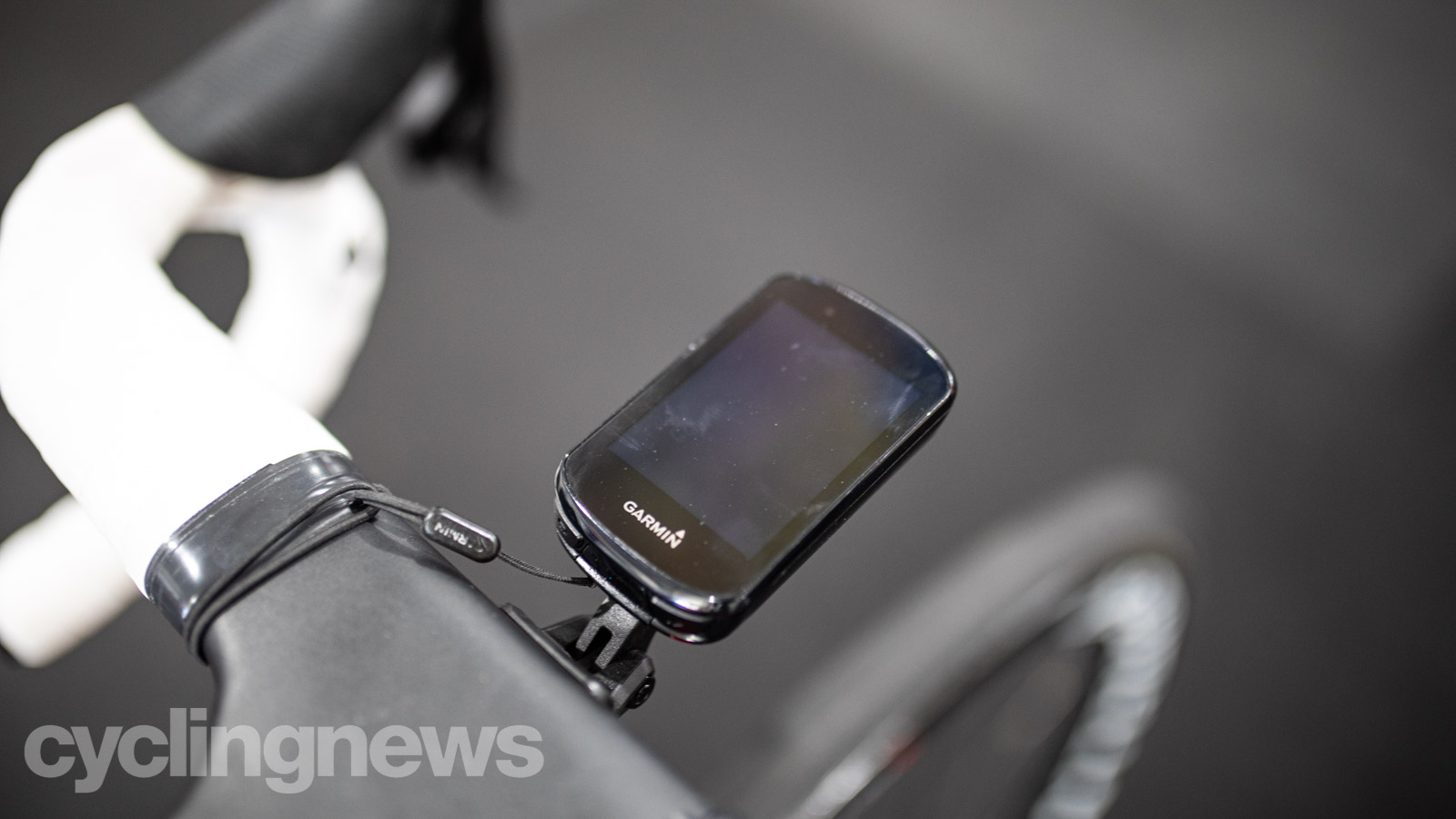

Porte is running a Garmin Edge 830 (Image credit: Colin Levitch)

Porte is running a Garmin Edge 830

Richie Porte has ridden his way onto the podium at every Tour Down Under since 2014, but he has only managed to clinch the overall classification once in that time. For the 2020 edition, with newly crowned Mads Pedersen riding in support, the Tasmanian will surely be one to watch.

Now in his second season with Trek-Segafredo, Porte is riding a size 50cm Trek Emonda in Adelaide. Complete with a full SRAM Red eTap AXS drivetrain, the Aussie is pushing 54/41t chainrings at the front and a 10-28t 12-Speed cassette at the rear — though this will likely change on race day.

Trek's ruby red Emonda climbing race bikes have been disc only for a few years now, and Porte's stoppers are hydraulic with a 160mm rotor at the front and a smaller, lighter 140mm disc on the rear.

Porte's cockpit consists of the single-piece Bontrager XXX bar and stem combo usually found on the Madone, and sees sprint shifters on the drops.

In its current configuration, the Australian's bike is rolling on the mid-depth Aeolus 4 XXX wheels finished in 25c Pirelli P-Zero tubular, though we expect to see Porte rolling on the lower profile, Aeolus XXX 2 lightweight wheels for Willunga Hill on Stage 6. Although Bontrager Aeolus wheels are available in a TLR guise, there's no hint that Porte will be using tubeless tyres at this year's Tour Down Under. Tipping our scales at 7.04kg, there is a bit of wiggle room to lighten up the Trek-Segafredo team leader's bike for the climbing stages.

Click through the gallery above for a closer look at Richie Porte's Trek Emonda.

Richie Porte’s Trek Emonda full bike specifications

Frameset: Trek Emonda Disc

Front brake: SRAM Red HRD

Rear brake: SRAM Red HRD

Brake/shift levers: SRAM Red eTap AXS

Front derailleur: SRAM Red eTap AXS

Rear derailleur: SRAM Red eTap AXS

Cassette: SRAM RED  XG 1290 10-28T

Chain: SRAM RED

Crankset: SRAM Red AXS with Qark  2x12 SRM, 54/41t

Bottom bracket: Cane Creek

Wheelset:  Bontrager Aeolus XXX 4

Tyres: Pirelli P-Zero Velo 25c

Handlebars: Bontrager XXX Integrated

Handlebar tape: Bontrager Gel Cork

Stem: Bontrager XXX Integrated

Pedals: Shimano Dura-Ace

Saddle: Bontrager Aeolus Pro

Seat post: Trek Madone Seat Mast

Bottle cages: Bontrager XXX Water Bottle Cage

Computer: Garmin Edge 830

Rider height: 1.72m

Seat height (from bottom bracket at centre): 675mm

Saddle nose to handlebars (at stem): 530mm

Weight: 7.04kg
