Alex Howes' Cannondale SuperX gravel race bike

Image 1 of 12

Alex Howes Cannondale SuperX

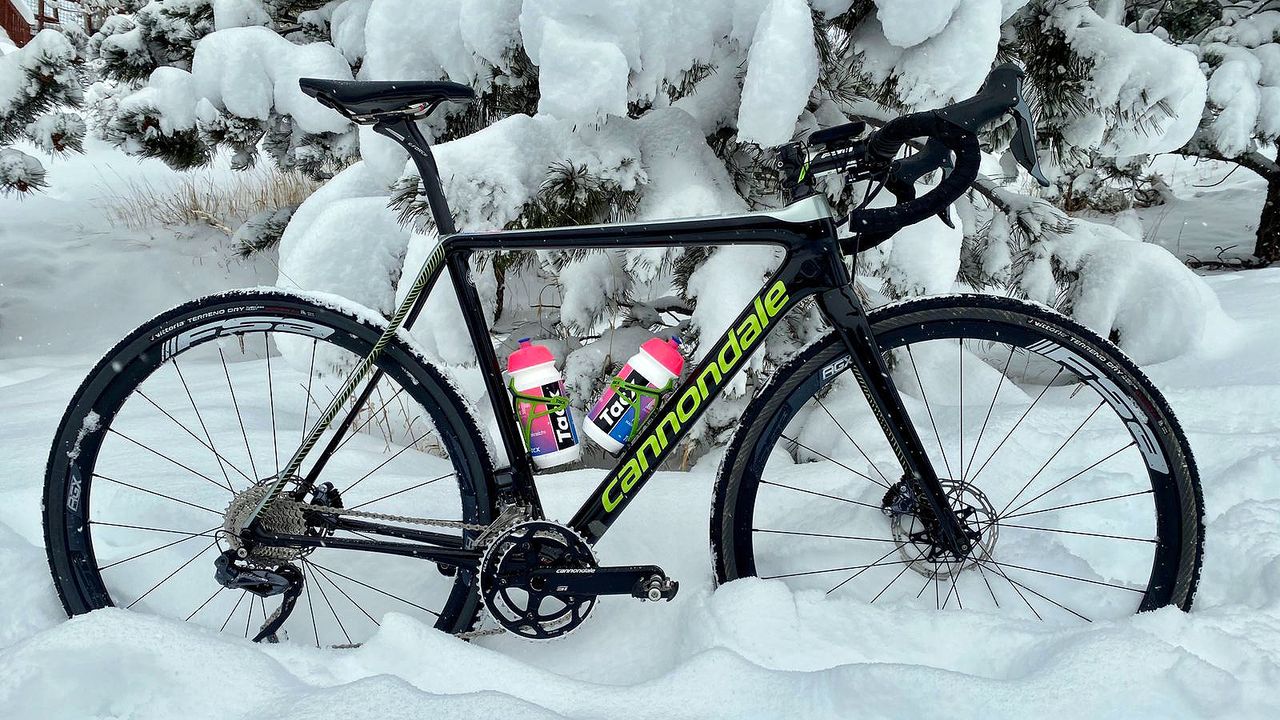

Alex Howes' Cannondale SuperX bike for Old Man Winter Rally (Image credit: Alex Howes)
Image 2 of 12

Alex Howes Cannondale SuperX

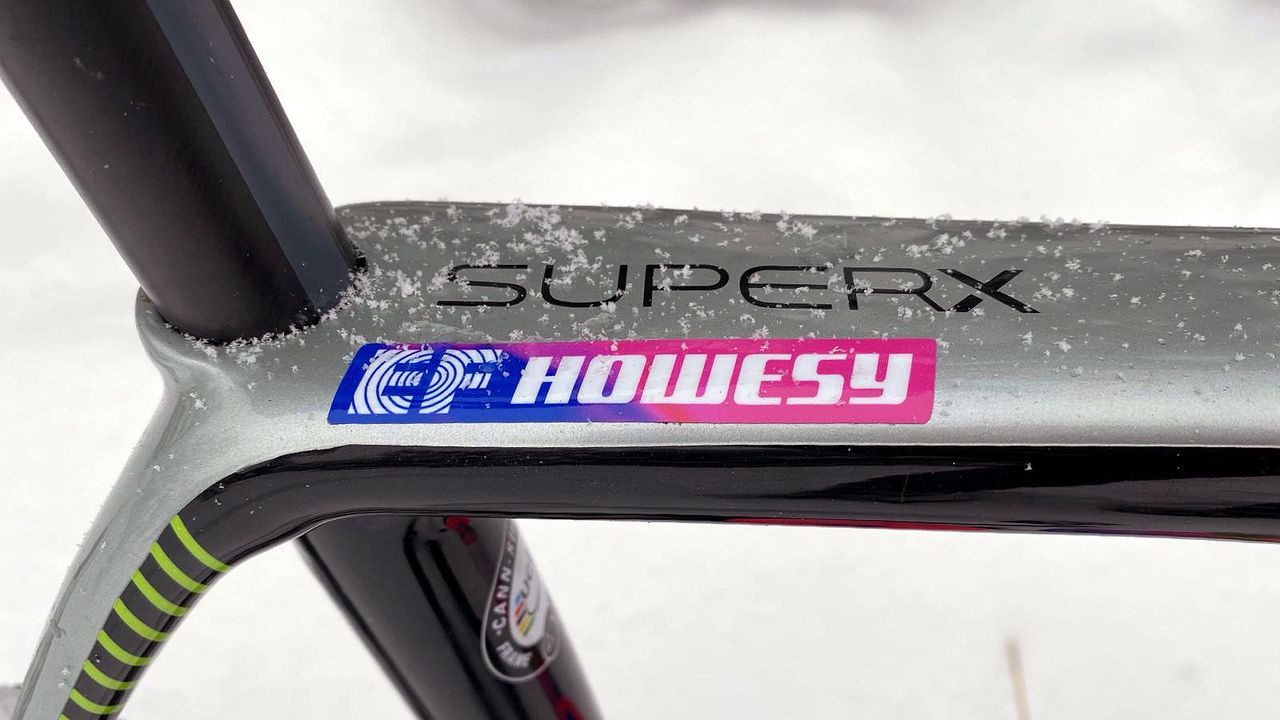

'Howesy' sticker adorns the top tube (Image credit: Alex Howes)
Image 3 of 12

Alex Howes Cannondale SuperX

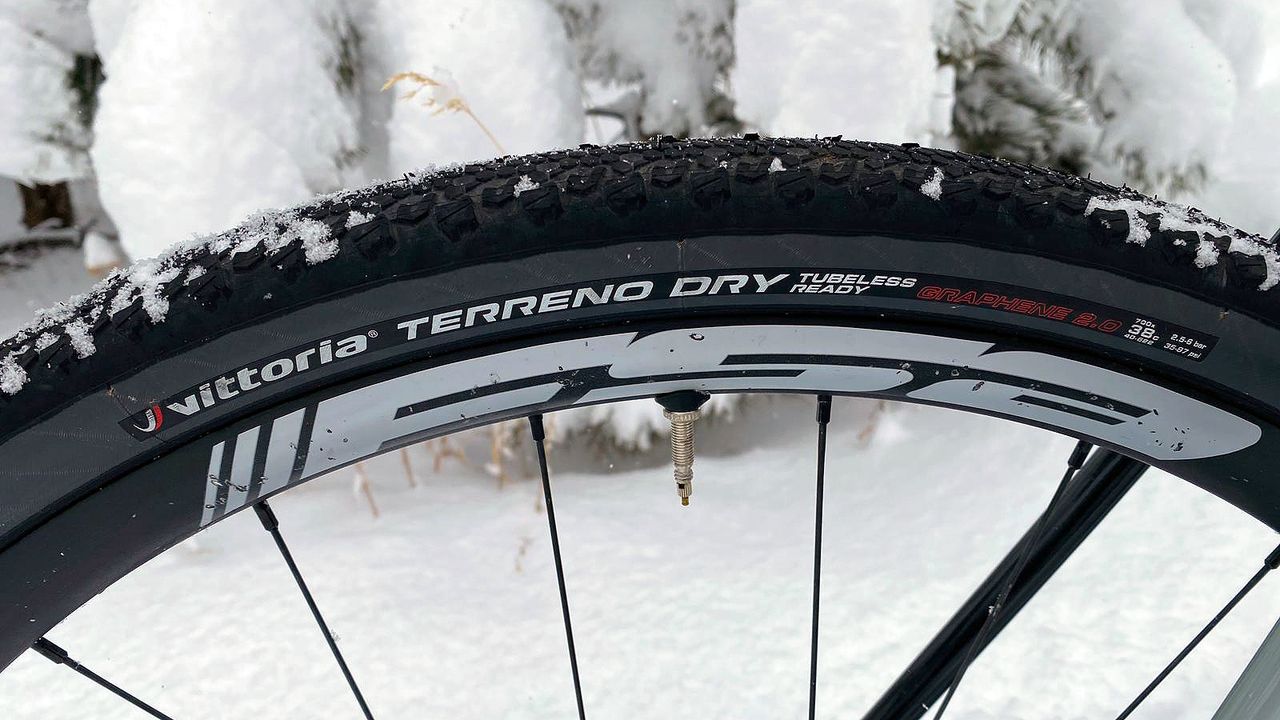

Dry tyres for anything but dry conditions, Howes confirmed he was considering swapping them out (Image credit: Alex Howes)
Image 4 of 12

Alex Howes Cannondale SuperX

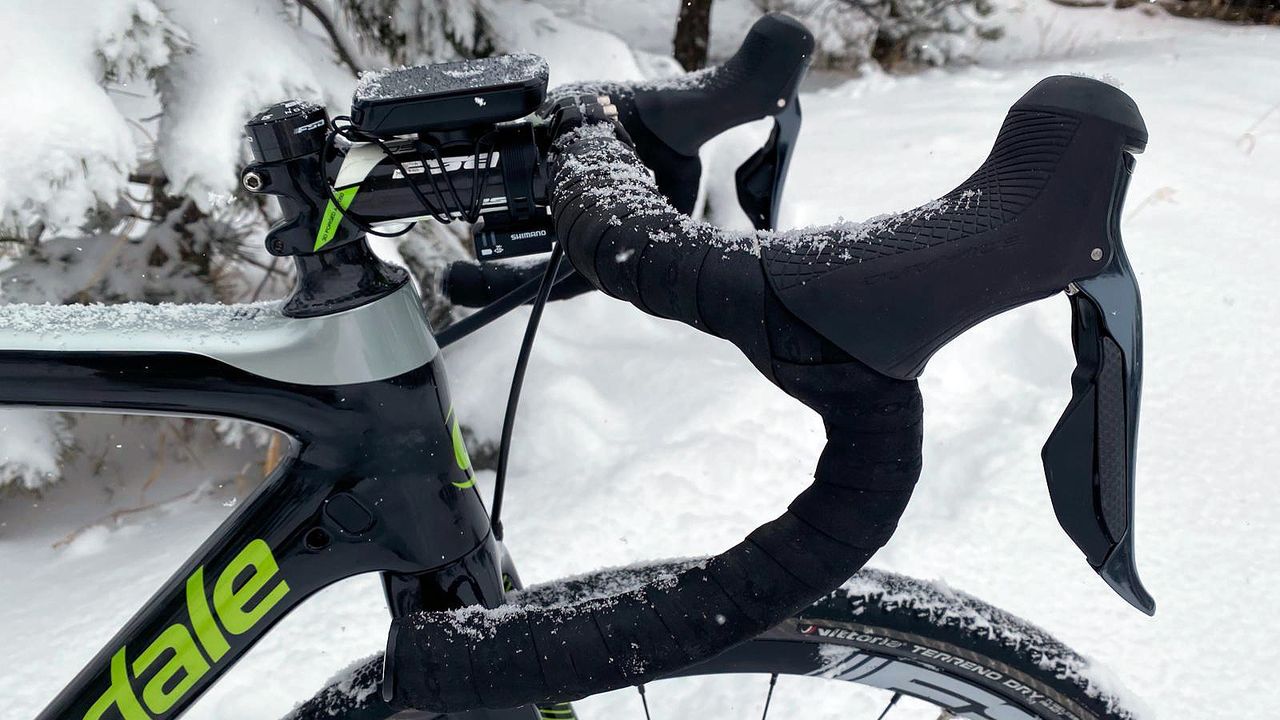

Shimano Dura-Ace R9170 Di2 levers provide the shifting and braking (Image credit: Alex Howes)
Image 5 of 12

Alex Howes Cannondale SuperX

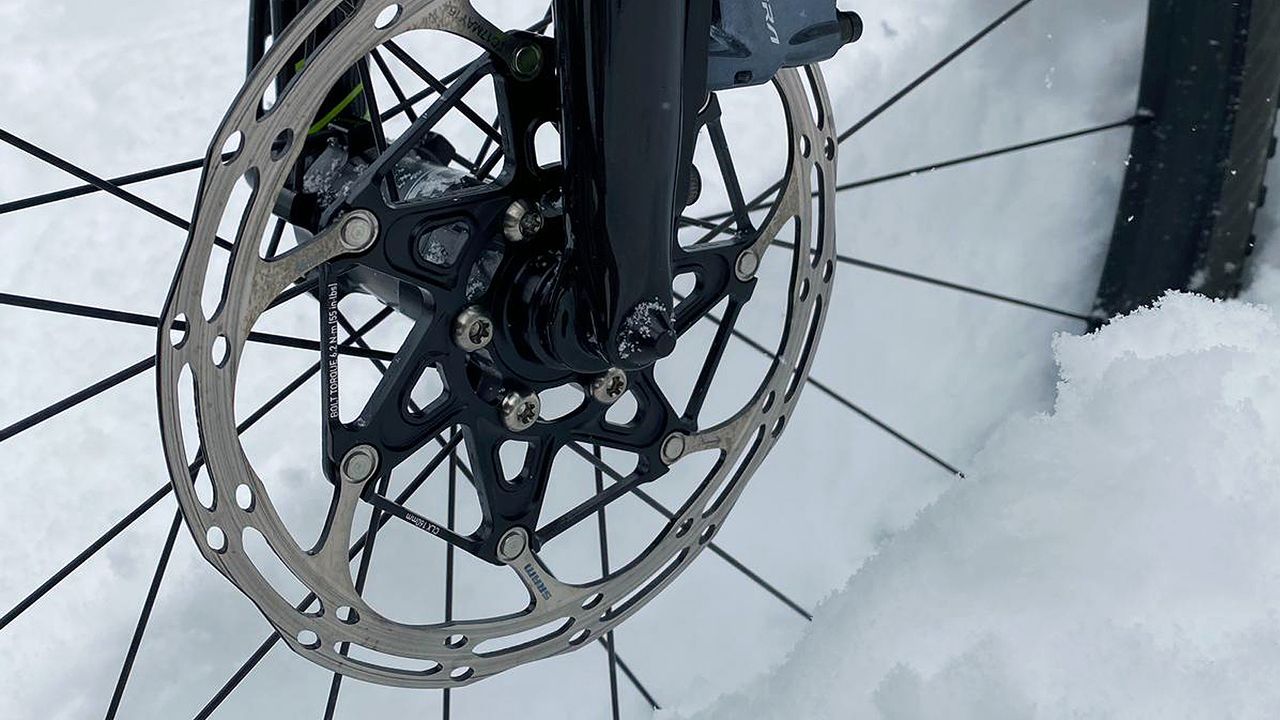

However, the Shimano brakes are paired with SRAM rotors (Image credit: Alex Howes)
Image 6 of 12

Alex Howes Cannondale SuperX

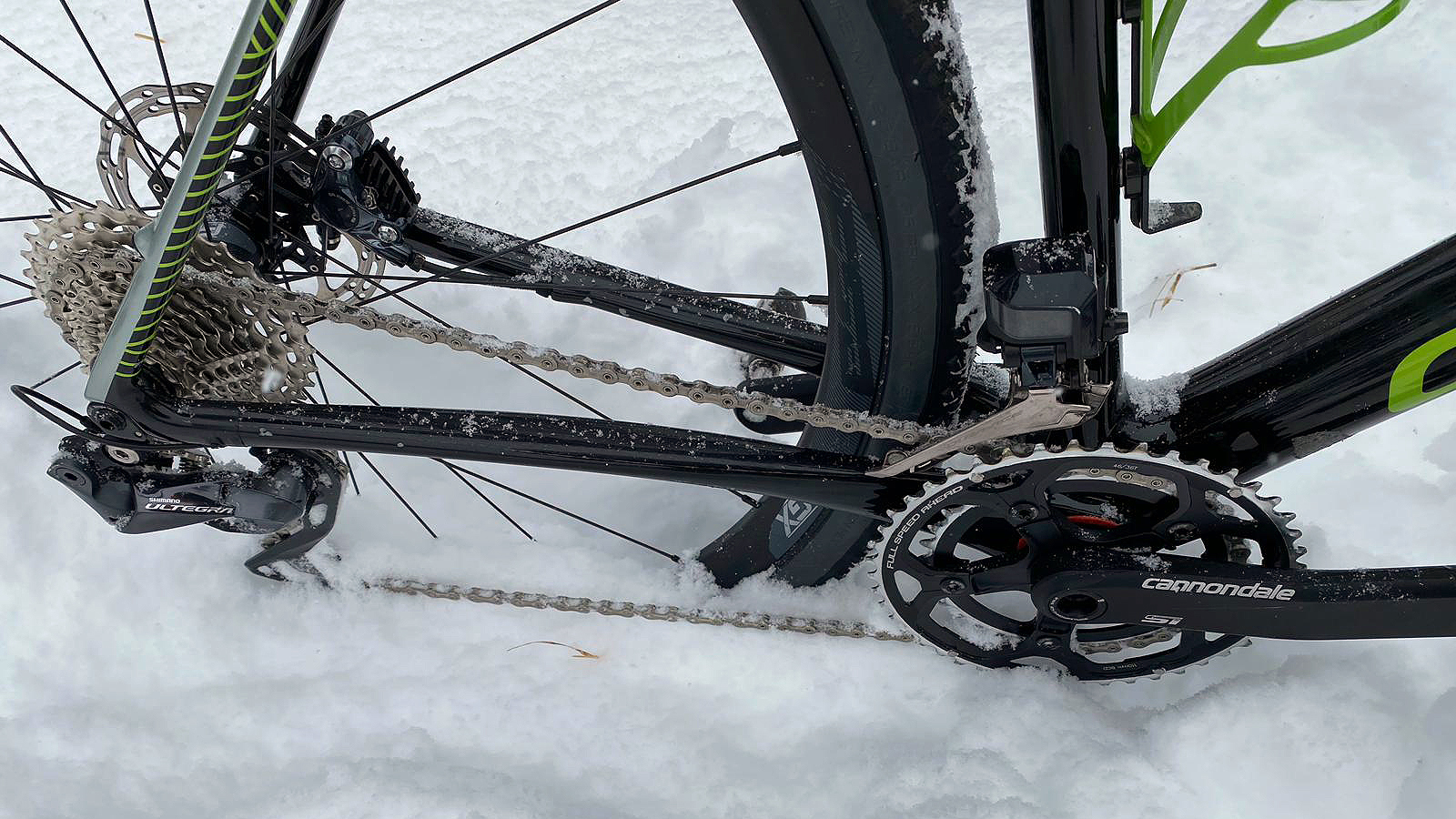

Besides the crank and chainrings, the rest of the groupset comes from Shimano (Image credit: Alex Howes)
Image 7 of 12

Alex Howes Cannondale SuperX

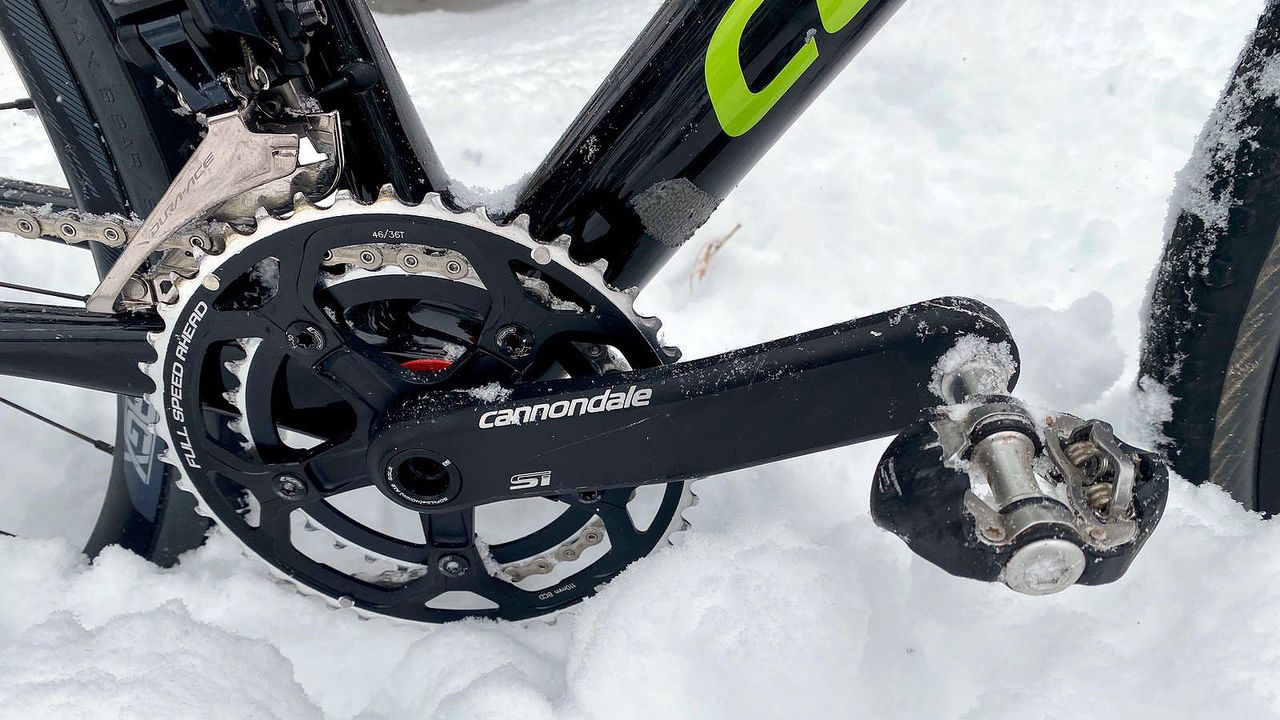

Howes: "It says 46/36 but there’s really a 34 hidden in there" (Image credit: Alex Howes)
Image 8 of 12

Alex Howes Cannondale SuperX

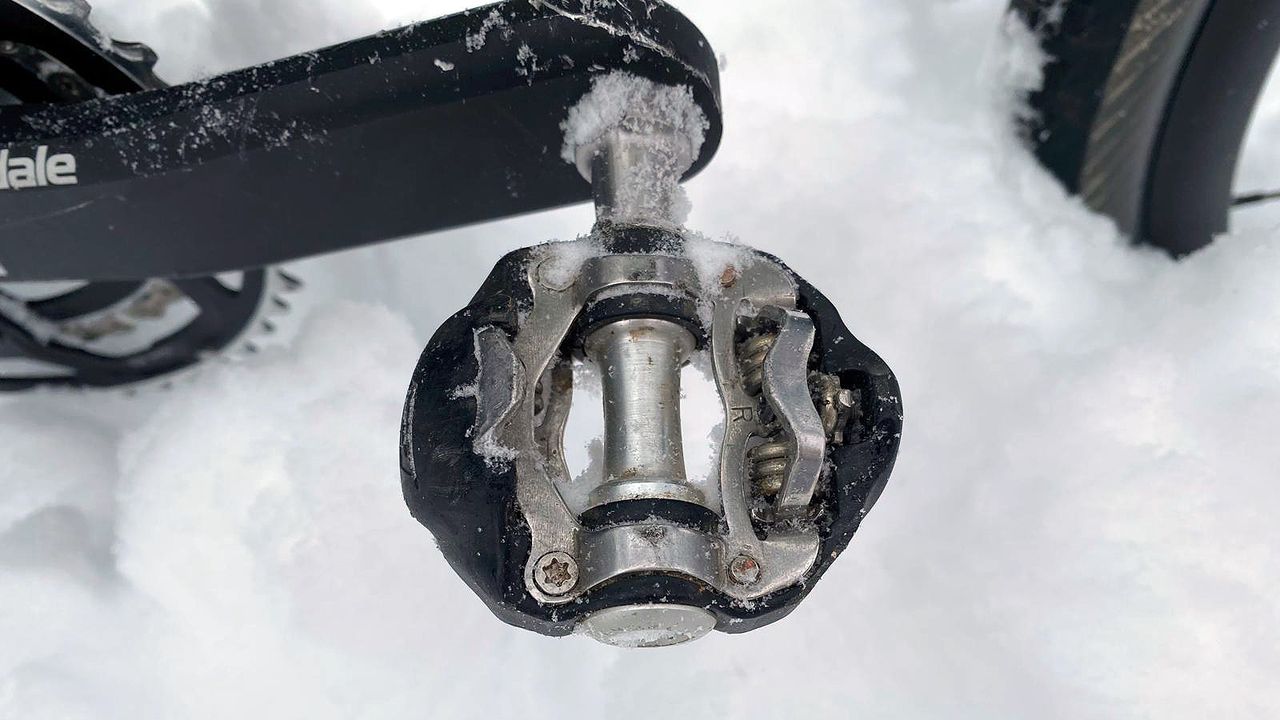

Howes: "These pedals are great for gravel racing because I can be locked in with zero float with great power transfer yet I’m still able to hop off and run through mud and snow without worrying about clipping back in" (Image credit: Alex Howes)
Image 9 of 12

Alex Howes Cannondale SuperX

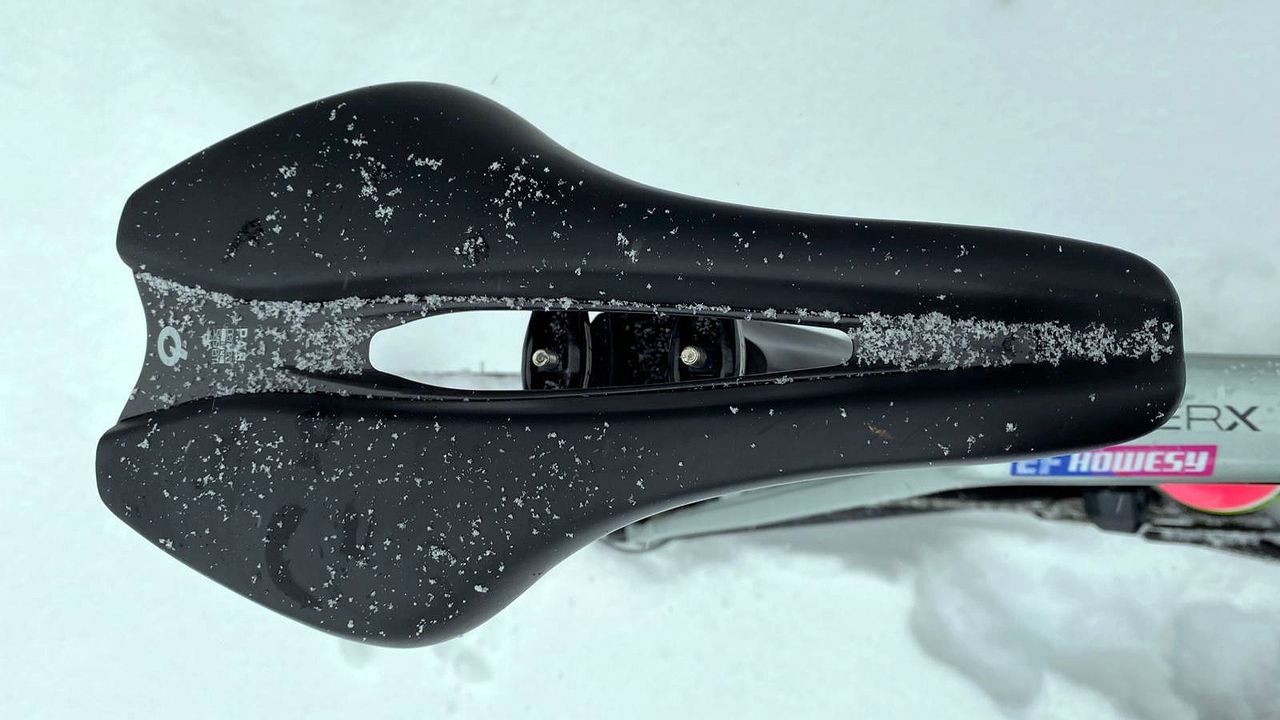

Howes is using the Prologo Dimension Tri saddle, and claimed it's the most comfortable saddle he's ever ridden (Image credit: Alex Howes)
Image 10 of 12

Alex Howes Cannondale SuperX

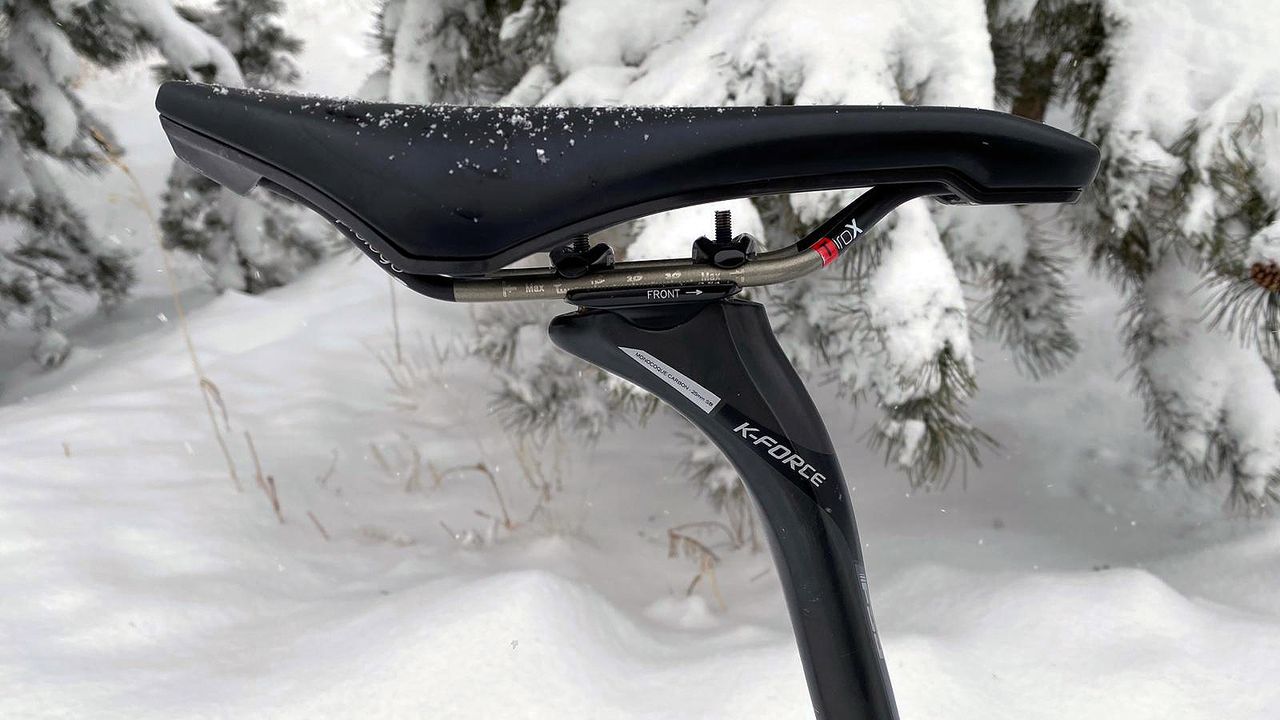

It's perched atop an FSA K-Force carbon post which has 25mm of setback (Image credit: Alex Howes)
Image 11 of 12

Alex Howes Cannondale SuperX

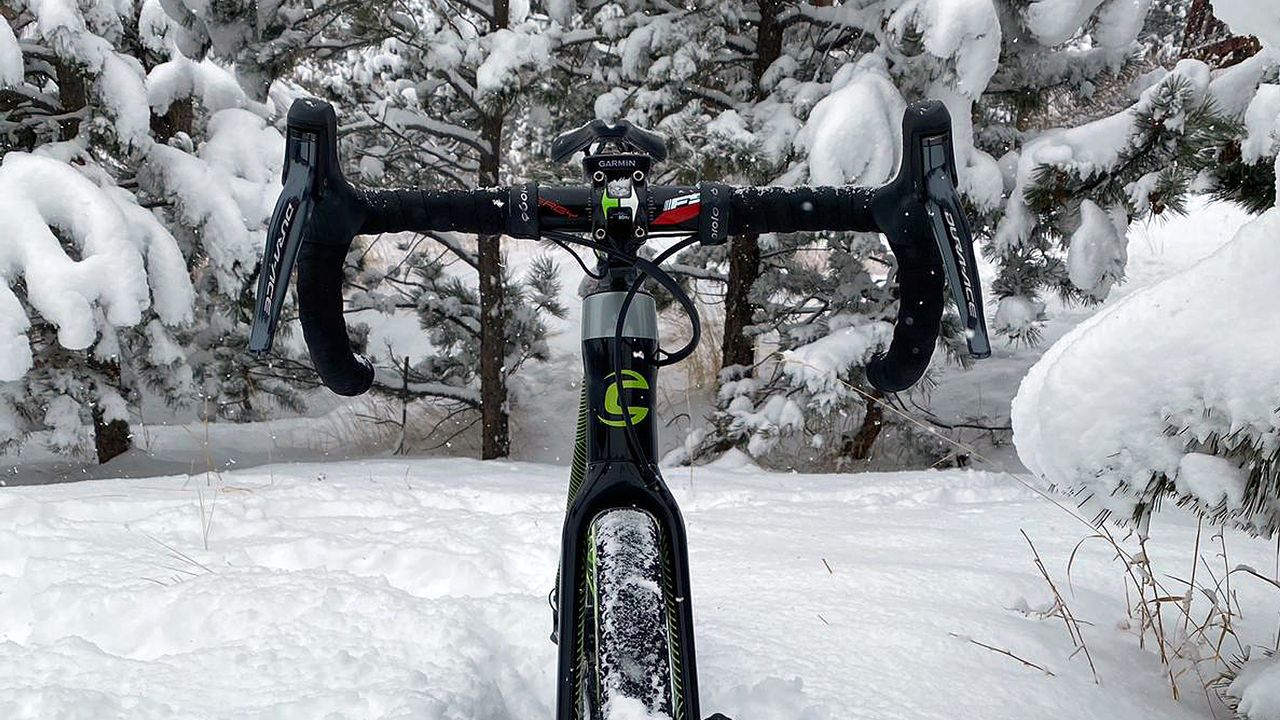

The front of Howes' snow-covered SuperX sees Prologo bar tape wrapped around FSA Energy aluminium bars (Image credit: Alex Howes)
Image 12 of 12

Alex Howes Cannondale SuperX

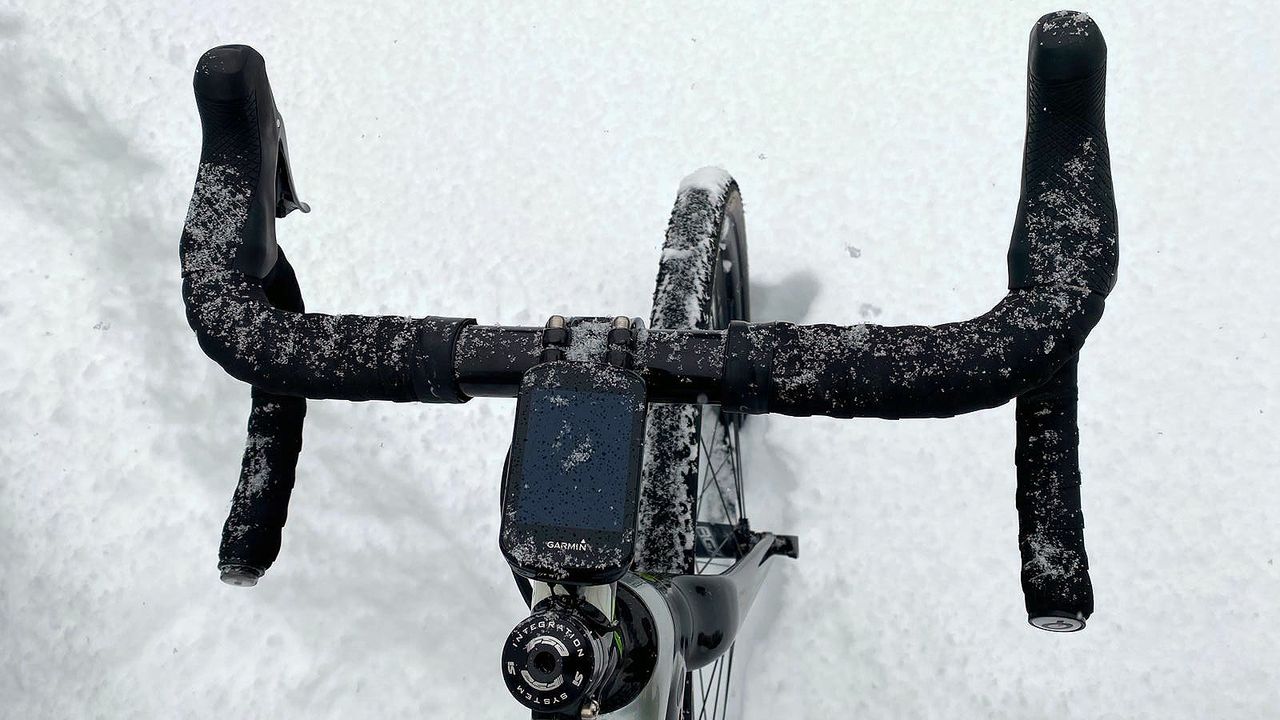

Howes: "I love the Garmin Edge 830. It has full maps and navigational capabilities crucial for the gravel races. Yet it’s compact and relatively light weight" (Image credit: Alex Howes)

This weekend, Alex Howes lined up in his first gravel race of the 2020 season, taking on Old Man Winter Rally, a 100km off-road winter epic based in Colorado.

Further blurring the lines in the cyclo-cross vs gravel debate, Howes took to the start line of the snow-covered gravel race aboard Cannondale's race-ready cyclo-cross bike, the SuperX, which features a carbon fibre frame specced with FSA AGX gravel wheels and Vittoria Terreno Dry gravel tyres - although, given the expected weather at the time of shooting, Howes stated he "might be switching to the Terreno Mix, depending on how the roads look".

The weather was the big talking point of the day, and it soon put an end to Howes' prospects, with the Old Man Winter Rally being abandoned due to heavy snow a mere 30 minutes after it began, with US Road Race champion Howes taking to Instagram to jokingly request an Uber, before his compatriot - and off-road rival - Peter Stetina added "old man winter won this one".

Howes' bike is specced largely with FSA components, by virtue of EF Education First's sponsorship agreement with the brand.

Howes told Cyclingnews: "FSA supplies the rings up front paired to a set of 172.5 Cannondale Si cranks. It says 46/36 but there’s really a 34 hidden in there. With the larger tires, a 34/46 measures out like a 36/48. Having the smaller gears is pretty crucial up here at altitude where the engine room is always strapped for power."

The Cycling computer of choice is the Garmin Edge 830, about which Howes added: "I love the Garmin Edge 830. It has full maps and navigational capabilities crucial for the gravel races. Yet it’s compact and relatively lightweight."

Like EF-Education First's road bikes, such as Lachlan Morton's Cannondale SuperSix Evo that we recently photographed, Howes' gears come courtesy of Shimano's Dura-Ace Di2 shifters paired with an Ultegra Di2 rear derailleur, and Dura-Ace up-front. However when it comes to braking, Howes' has opted for Shimano Ultegra calipers paired with SRAM rotors.

As part of the EF Education First alternative calendar, Howes (and newly bald Lachlan Morton) are expected to continue racing off-road throughout 2020, and while this week's race saw Howes on a SuperX, both riders have been known to use the Cannondale Topstone gravel bike, as well as the brand's range of mountain bikes - we'll do our best to get galleries of them all.

Click through the gallery above for a closer look at Alex Howes' Cannondale SuperX

Alex Howes' Cannondale SuperX full bike specifications

Frameset: Cannondale SuperX

Front brake: Shimano Ultegra R8070 Hydraulic Disc caliper

Rear brake: Shimano Ultegra R8070 Hydraulic Disc caliper

Brake/shift levers: Shimano Dura-Ace Di2 R9170 Hydraulic Disc Brake Dual Control Lever

Front derailleur: Shimano Dura-Ace Di2 R9150

Rear derailleur: Shimano Ultegra Di2 R8050

Cassette: Shimano Ultegra R8000 11-34T

Chain: Shimano Dura-Ace

Crankset: Cannondale SI aluminium crankset (172.5mm) with 46/34 FSA chainrings

Bottom bracket: Shimano Dura-Ace

Wheelset: FSA AGX

Bar Tape: Prologo

Tyres: Vittoria Terreno Dry / Vittoria Terreno Mix, 38mm

Handlebars: FSA Energy

Stem: FSA 3D Forged Aluminium

Saddle: Prologo Dimension Tri

Seat post: FSA K-Force Carbon

Bottle cages: Tacx Ciro

Rider height: 1.8m

Bike Weight: 19.2lbs / 8.71kg
