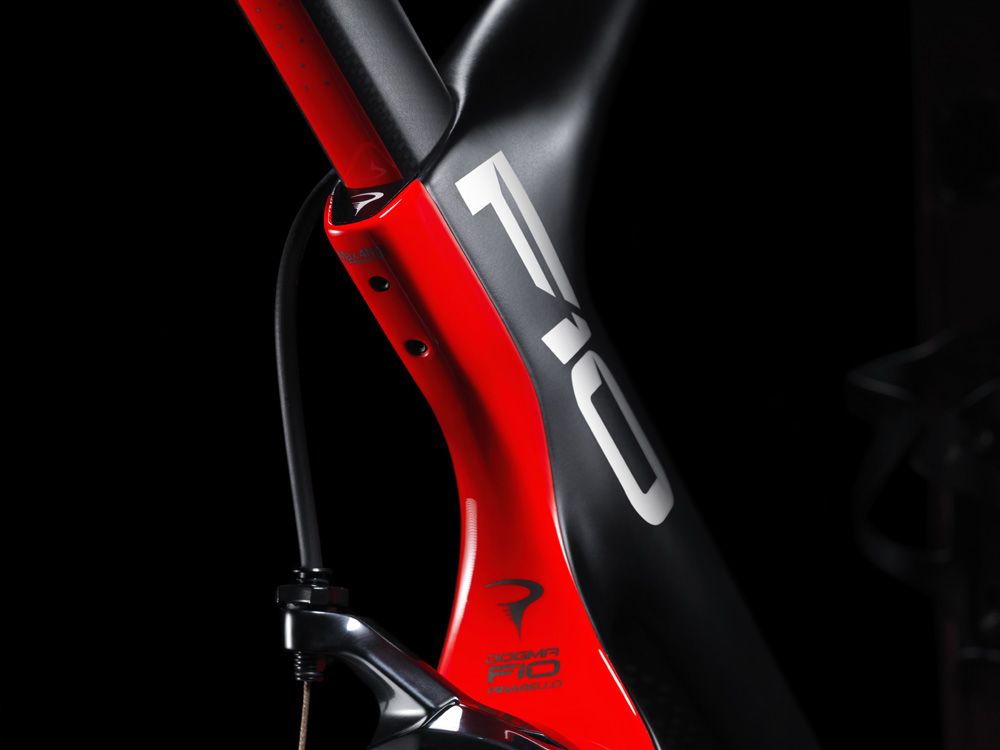

The view from the back

The view from the back
(Image credit: Pinarello)
Image 2 of 52

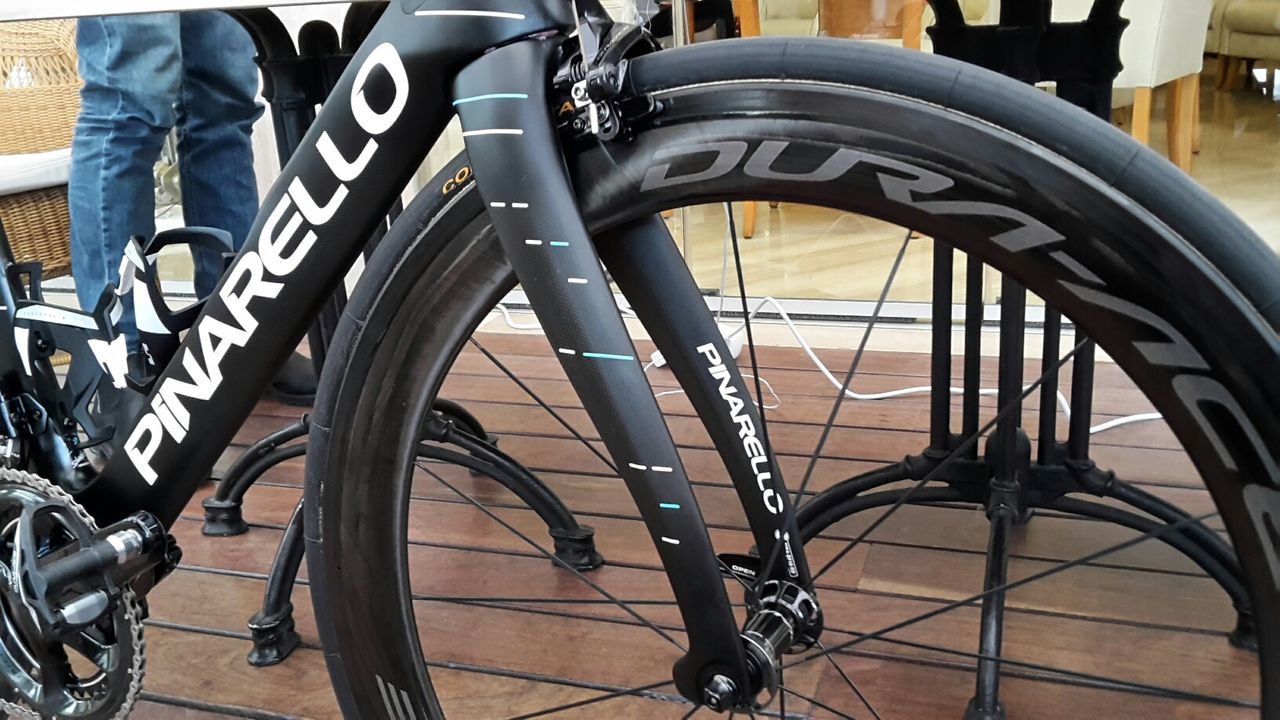

The front fork of the Team Sky Pinarello Dogma F10

The front fork of the Team Sky Pinarello Dogma F10
(Image credit: Sadhbh O'Shea)
Image 3 of 52

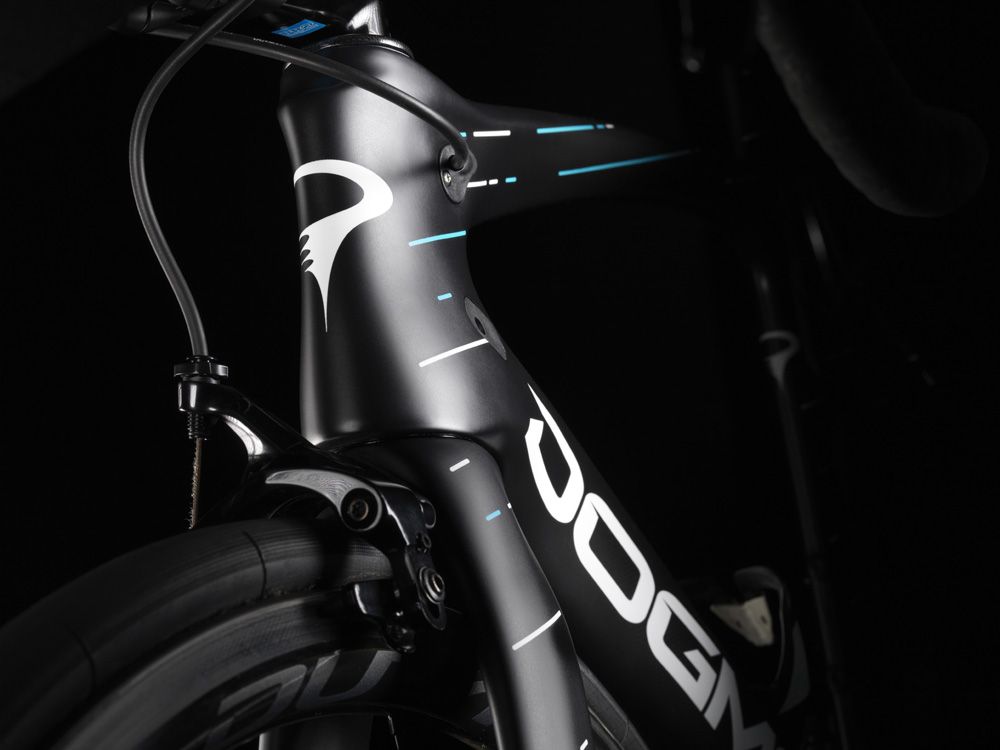

The head tube of the Team Sky F10

The head tube of the Team Sky F10
(Image credit: Pinarello)
Image 4 of 52

Team Sky showed of their new Pinarello Dogma F10 bikes at their training camp in Mallorca

Team Sky showed of their new Pinarello Dogma F10 bikes at their training camp in Mallorca
(Image credit: Sadhbh O'Shea)
Image 5 of 52

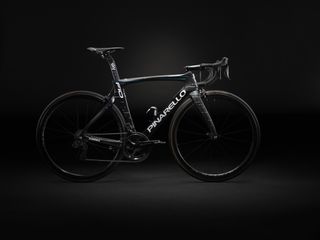

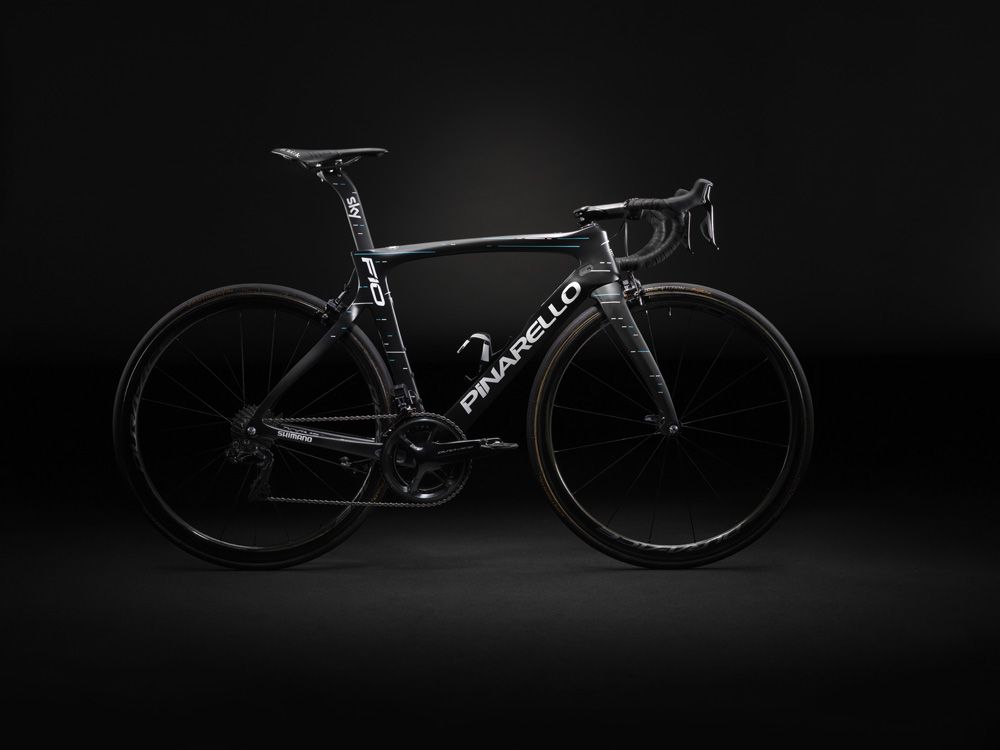

The Team Sky Pinarello Dogma F10

The Team Sky Pinarello Dogma F10
(Image credit: Pinarello)
Image 6 of 52

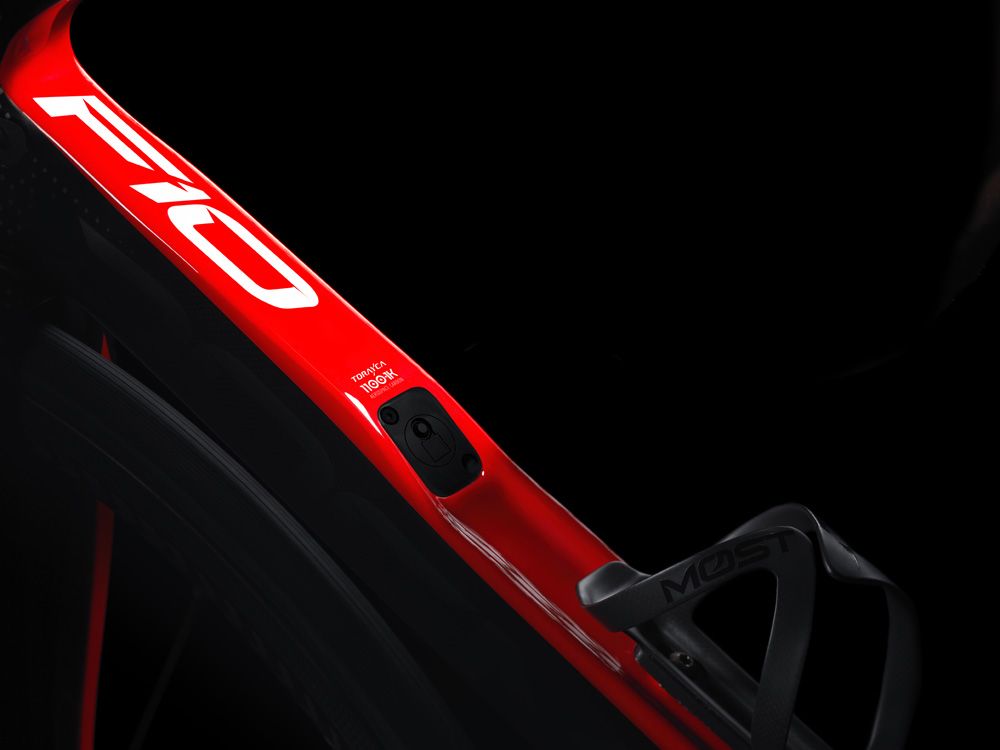

The down tube battery area

The down tube battery area
(Image credit: Pinarello)
Image 7 of 52

The E-link battery point

The E-link battery point
(Image credit: Pinarello)
Image 8 of 52

The front end of the F10

The front end of the F10
(Image credit: Pinarello)
Image 9 of 52

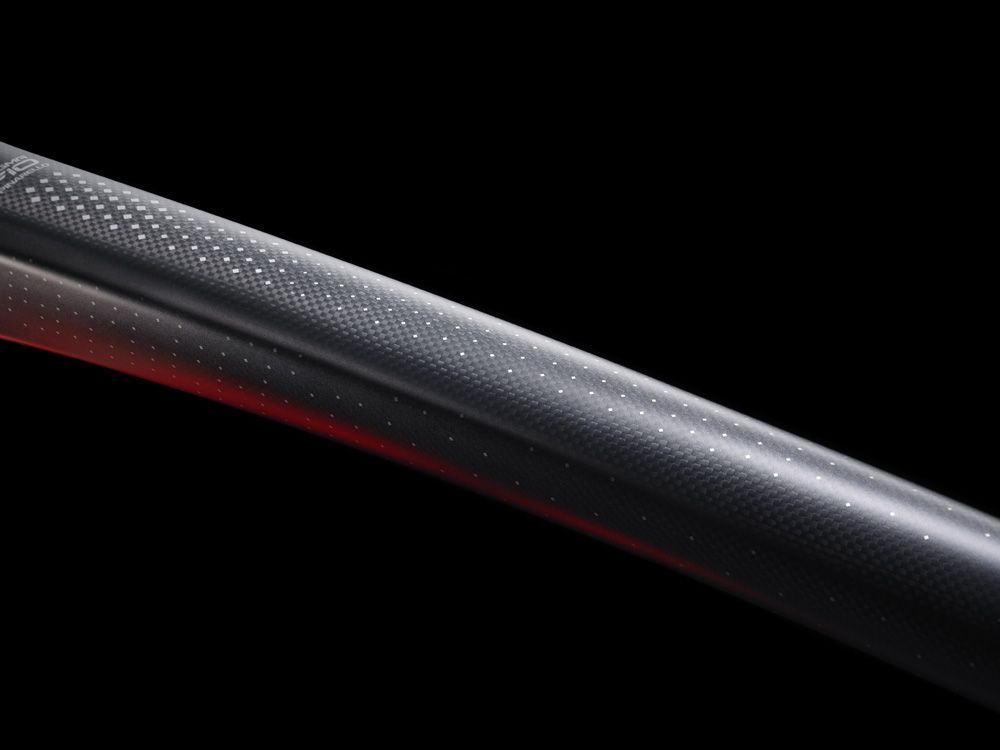

The finish on the top tube

The finish on the top tube
(Image credit: Pinarello)
Image 10 of 52

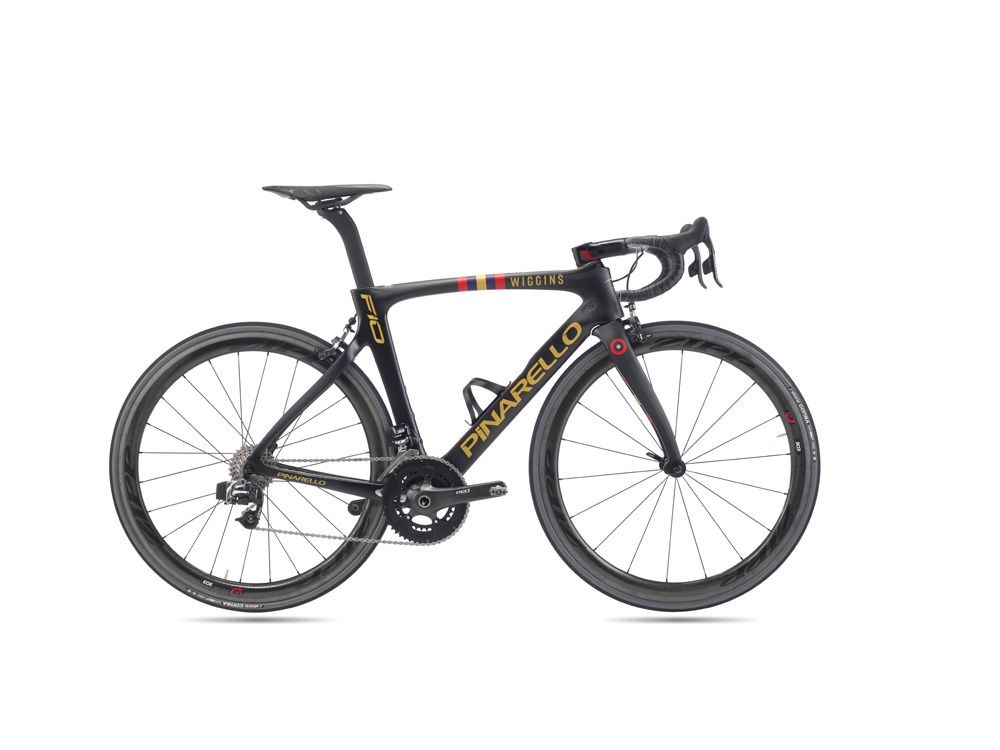

The Wiggins Dogma F10

The Wiggins Dogma F10
(Image credit: Pinarello)
Image 11 of 52

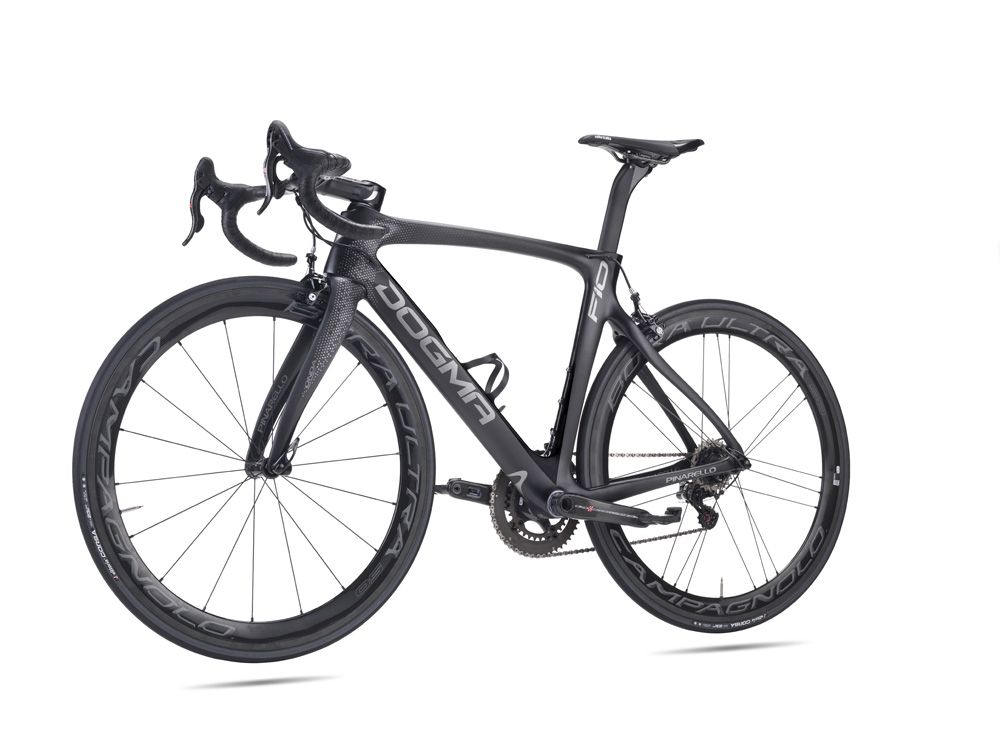

The black on black F10

The black on black F10
(Image credit: Pinarello)
Image 12 of 52

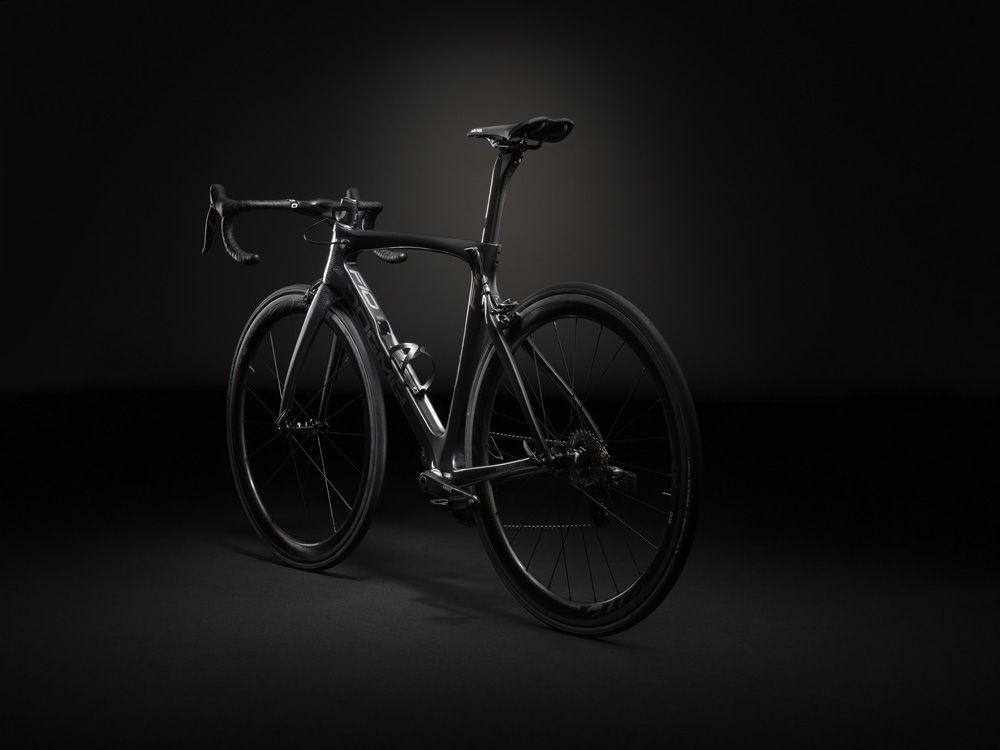

A view from the back

A view from the back
(Image credit: Pinarello)
Image 13 of 52

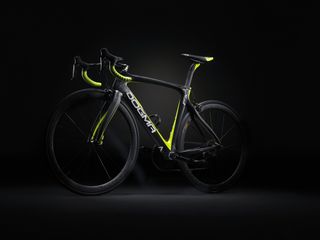

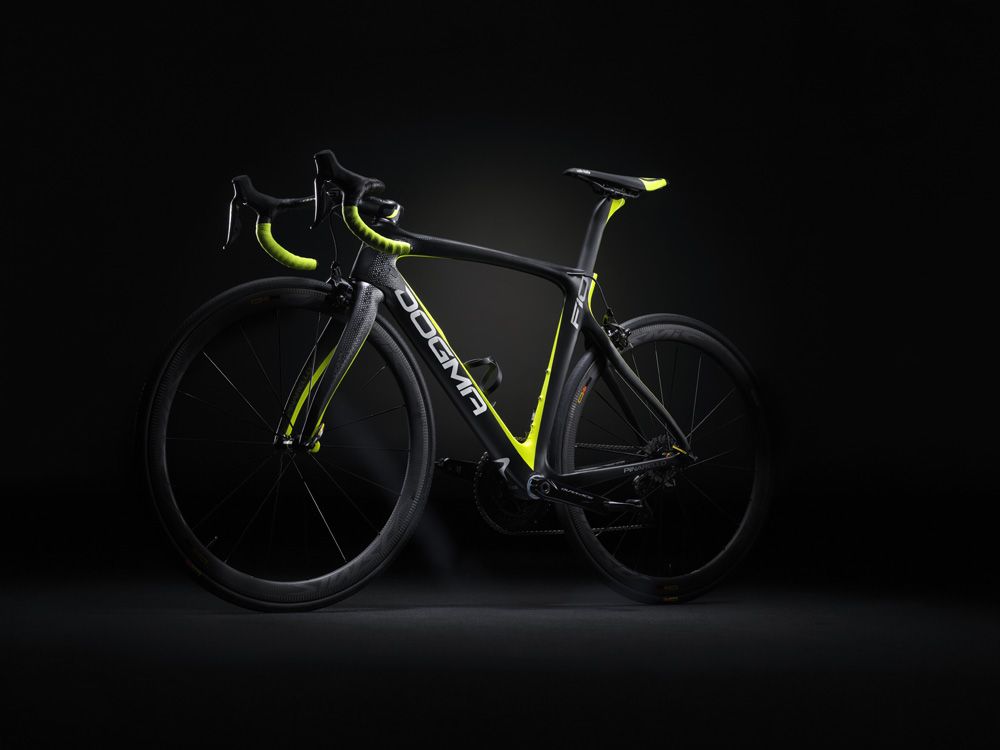

The yellow Sulphur finish

The yellow Sulphur finish
(Image credit: Pinarello)
Image 14 of 52

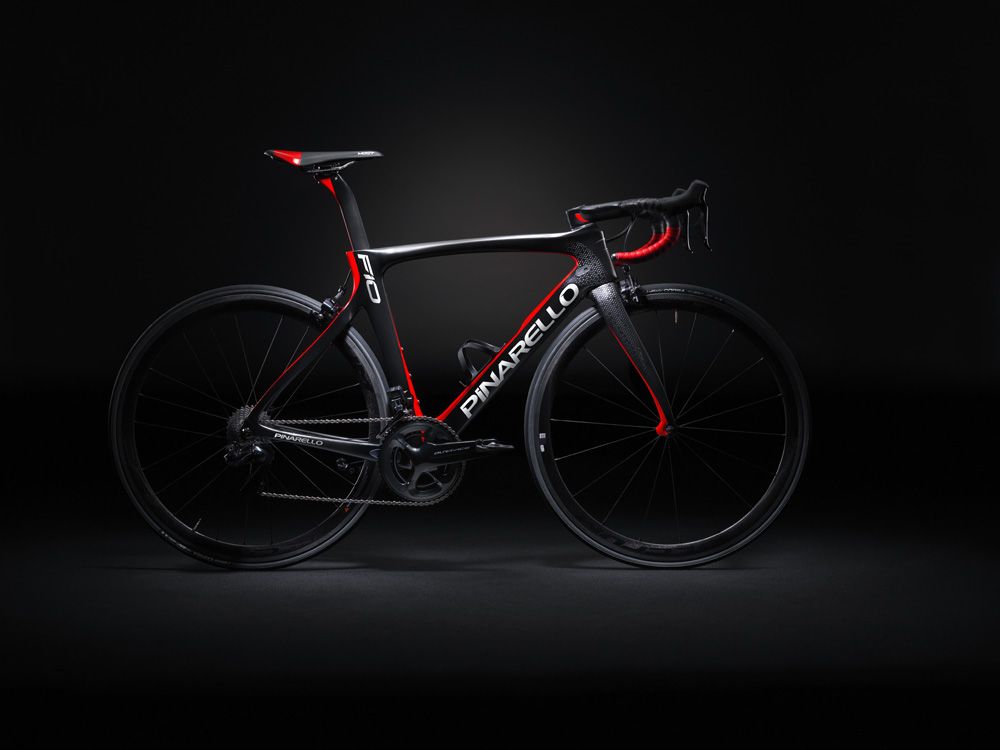

The Pinarello Dogma F10

The Pinarello Dogma F10
(Image credit: Pinarello)
Image 15 of 52

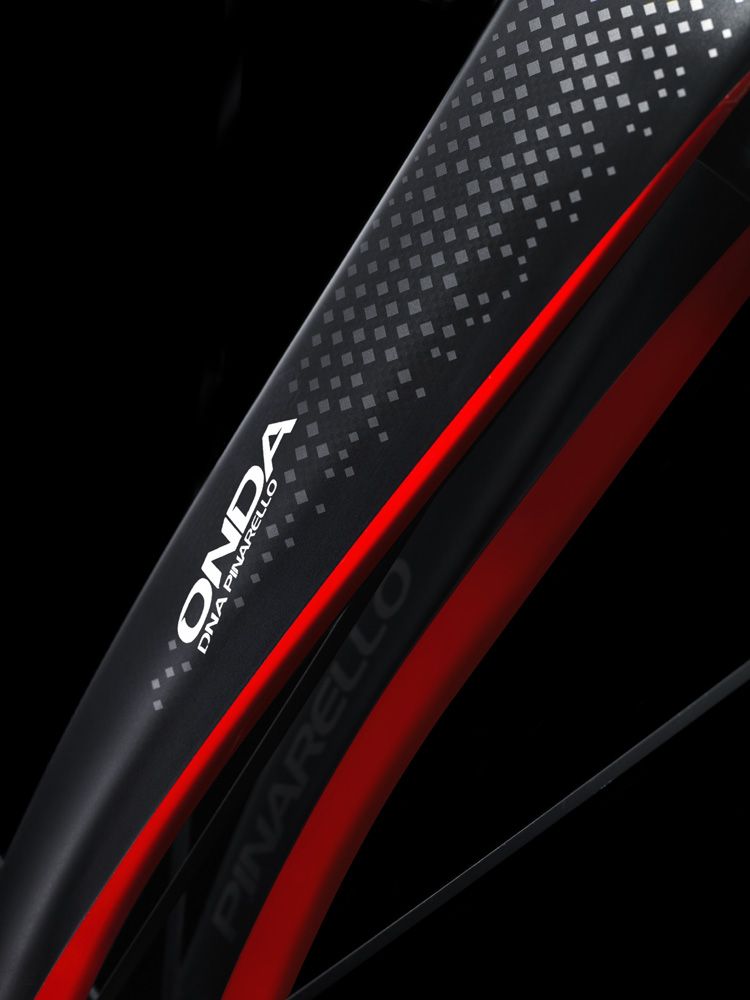

The Oonda forks

The Oonda forks
(Image credit: Pinarello)
Image 16 of 52

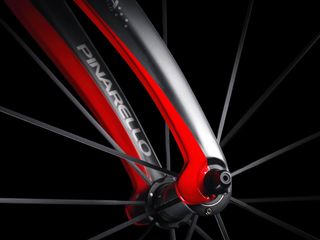

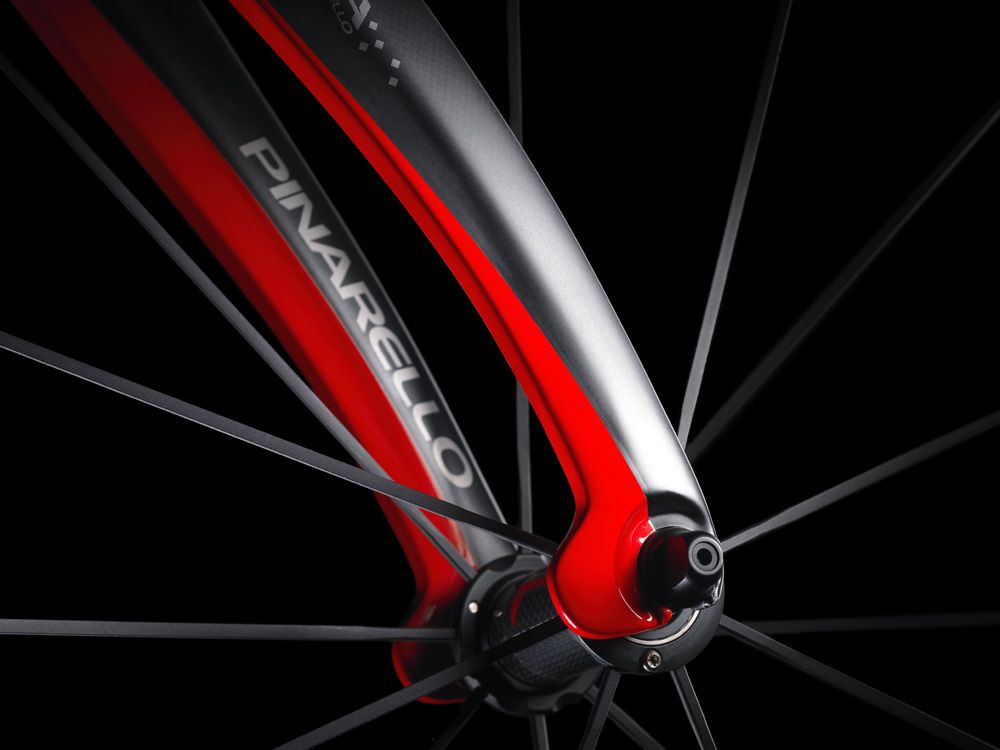

The fork flaps

The fork flaps
(Image credit: Pinarello)
Image 17 of 52

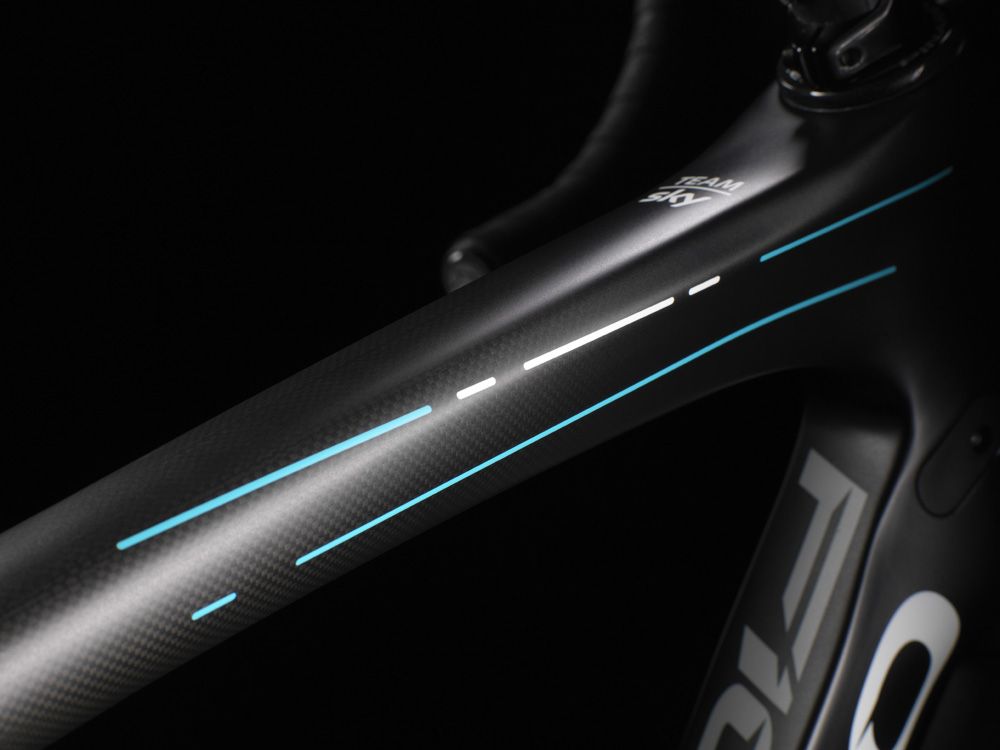

The Team Sky F10 is decorated with the team's lines

The Team Sky F10 is decorated with the team's lines
(Image credit: Pinarello)
Image 18 of 52

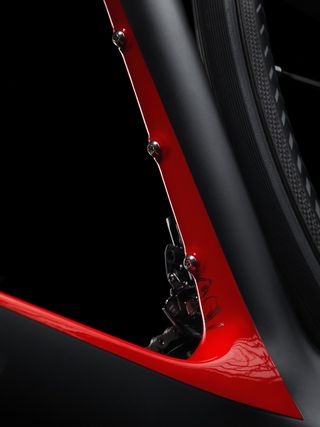

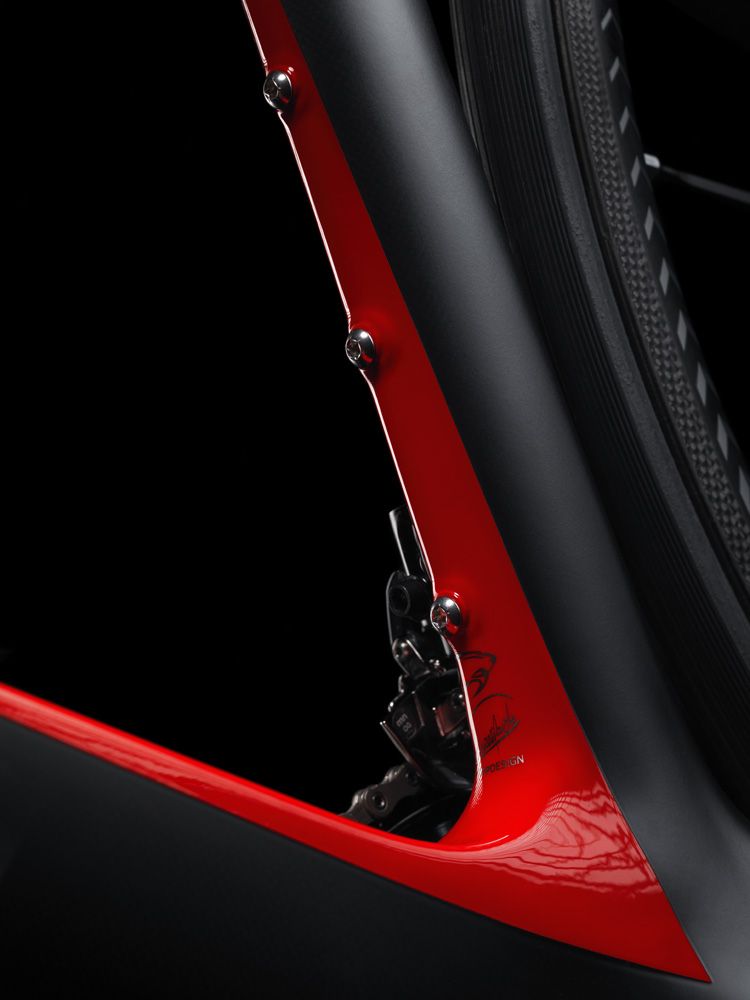

The triple bottle bolts on the seat tube

The triple bottle bolts on the seat tube
(Image credit: Pinarello)
Image 19 of 52

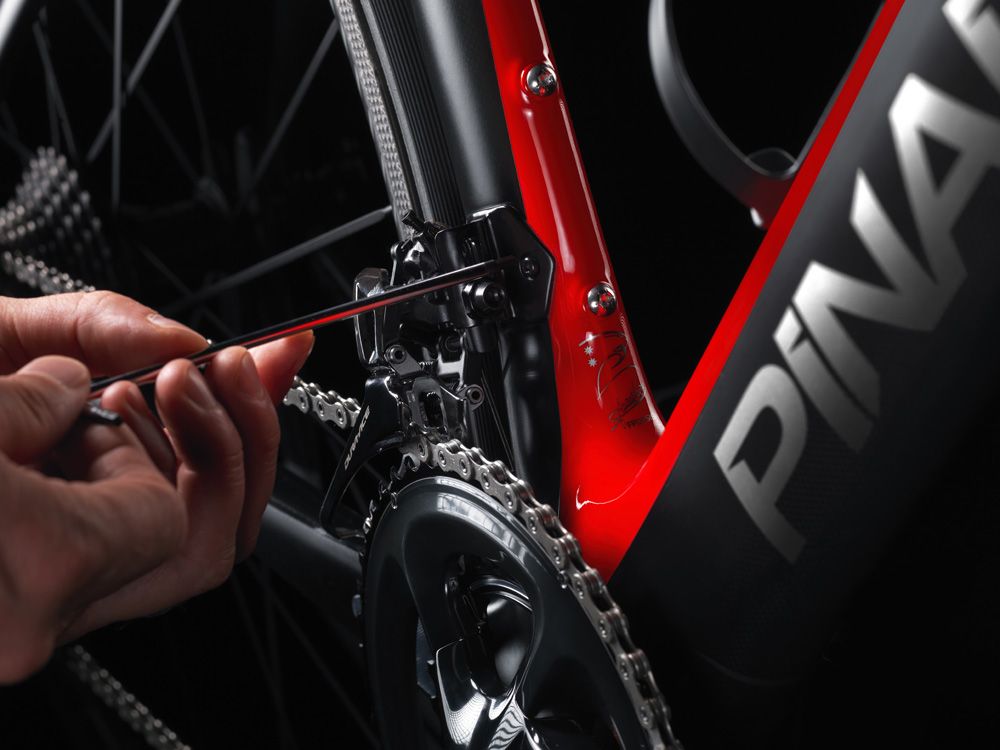

The front hanger can be removed

The front hanger can be removed
(Image credit: Pinarello)
Image 20 of 52

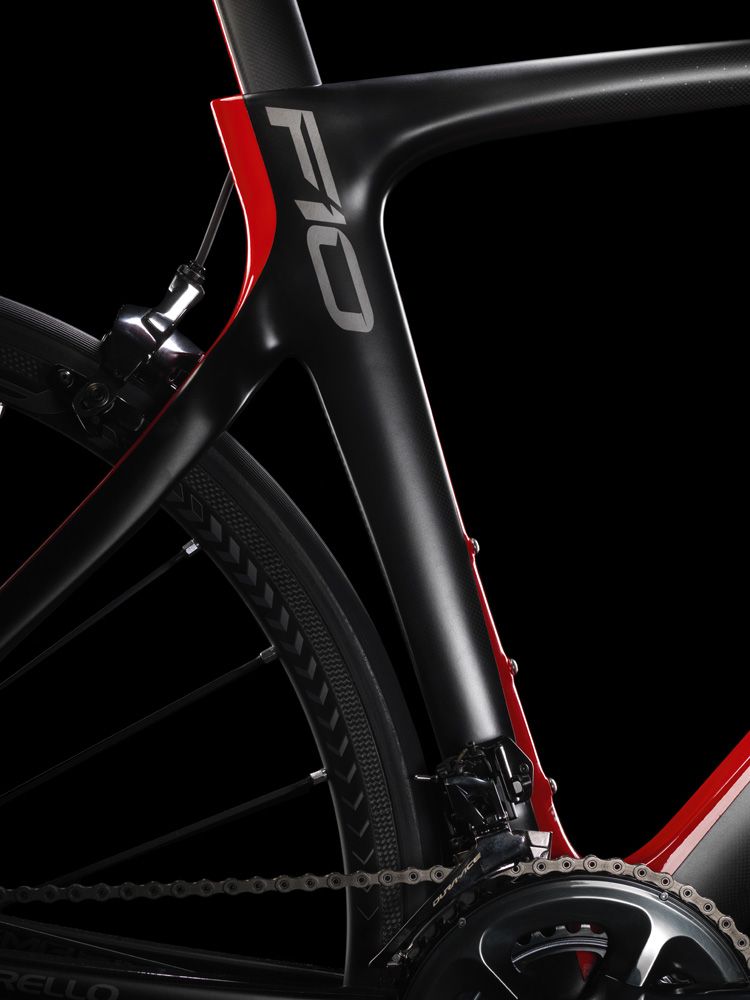

The down tube of the F10

The down tube of the F10
(Image credit: Pinarello)
Image 21 of 52

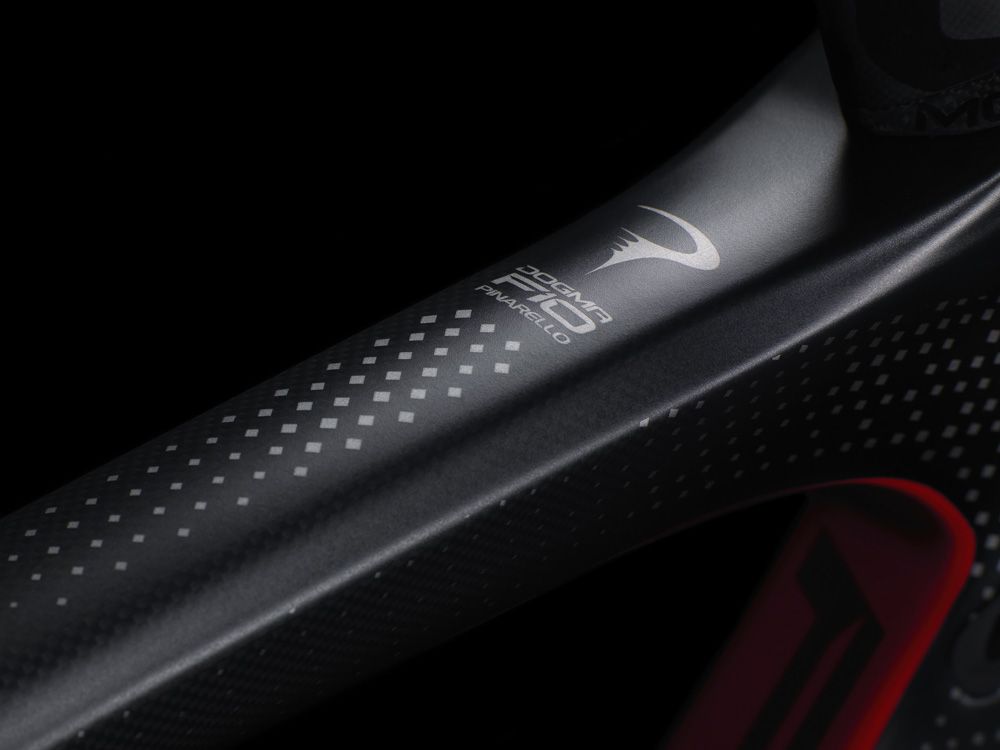

Pinarello Dogma, it says it on the top tube

Pinarello Dogma, it says it on the top tube
(Image credit: Pinarello)
Image 22 of 52

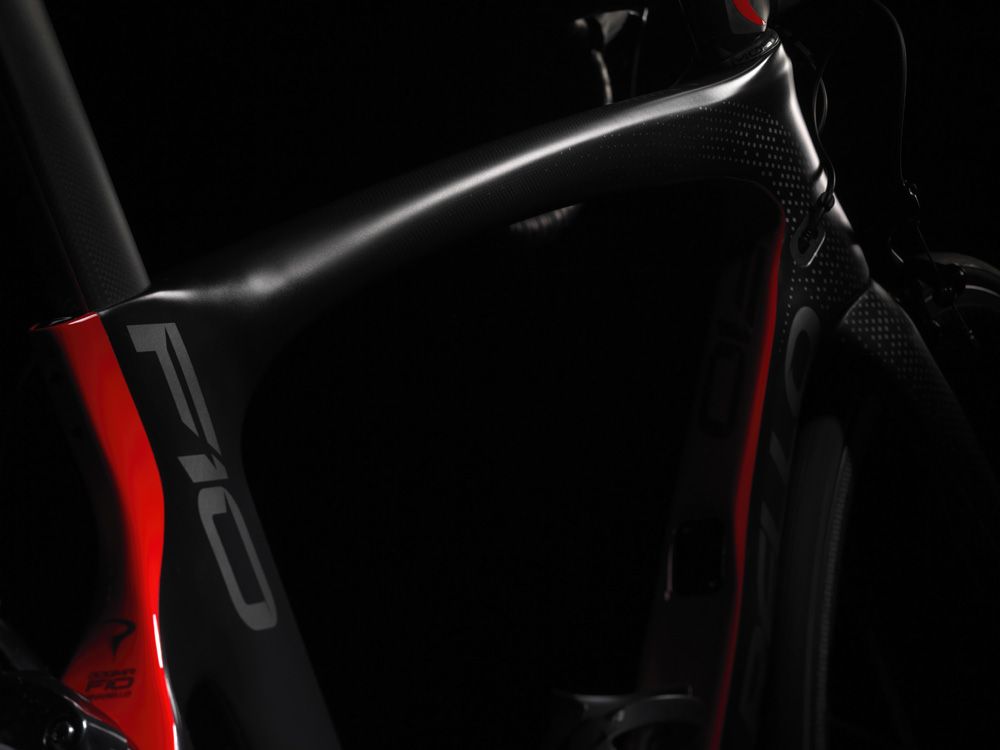

The tube shapes are similar to the F8

The tube shapes are similar to the F8
(Image credit: Pinarello)
Image 23 of 52

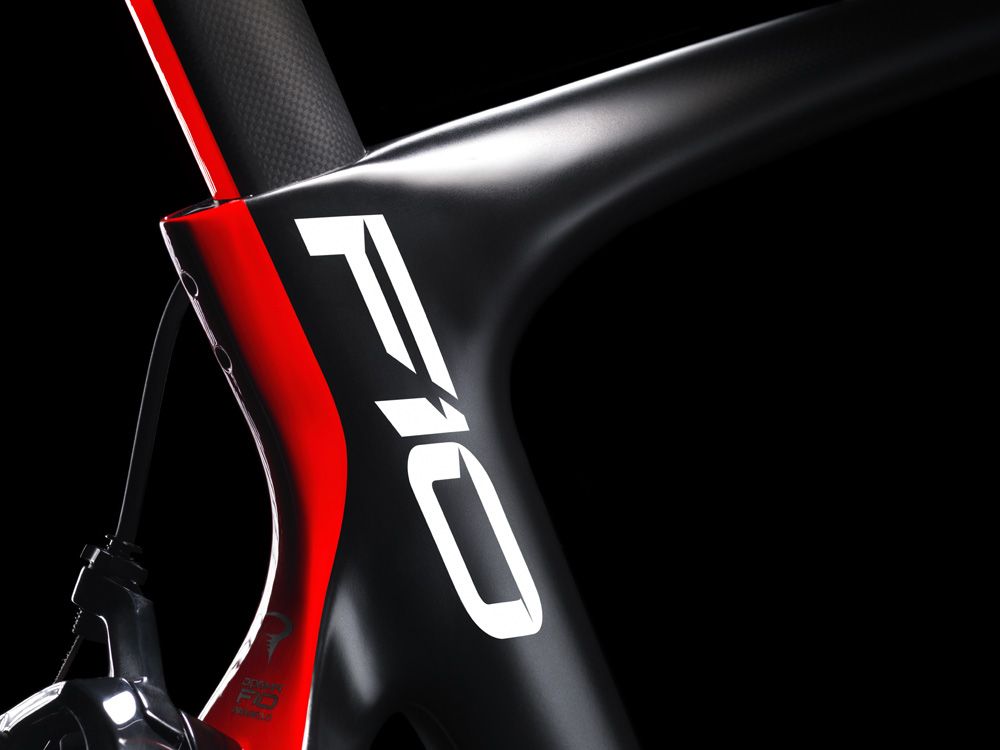

F10 is the new top of the range for Pinarello

F10 is the new top of the range for Pinarello
(Image credit: Pinarello)
Image 24 of 52

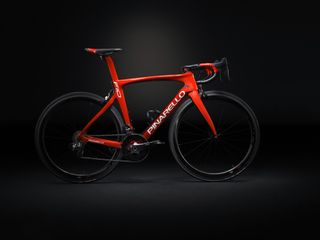

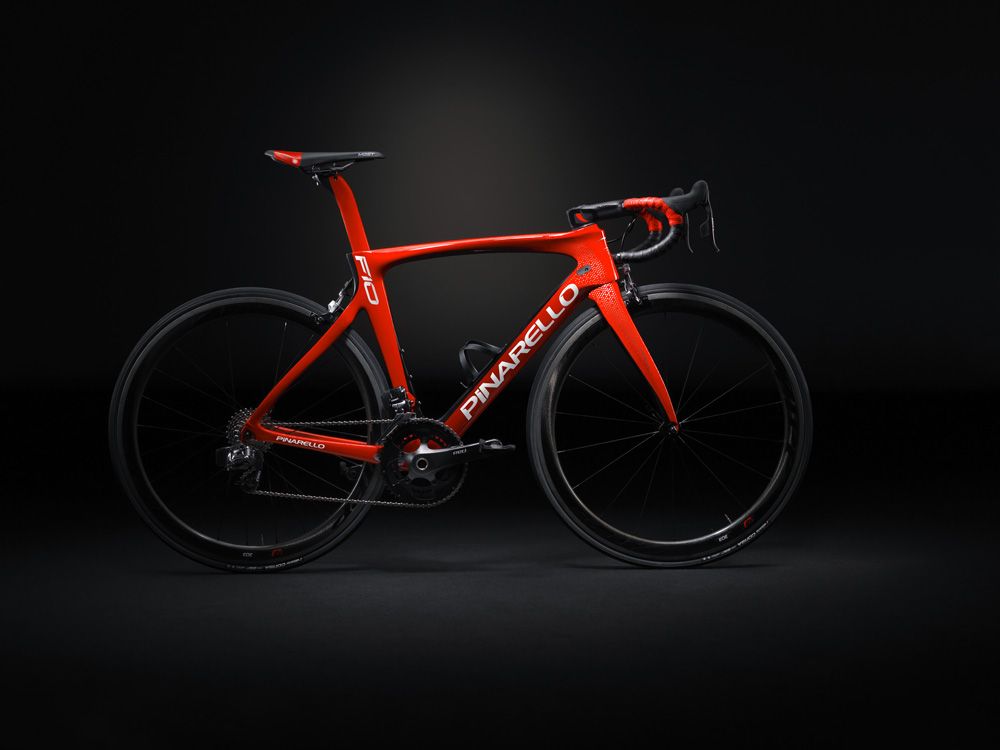

The red Magma F10

The red Magma F10
(Image credit: Pinarello)
Image 25 of 52

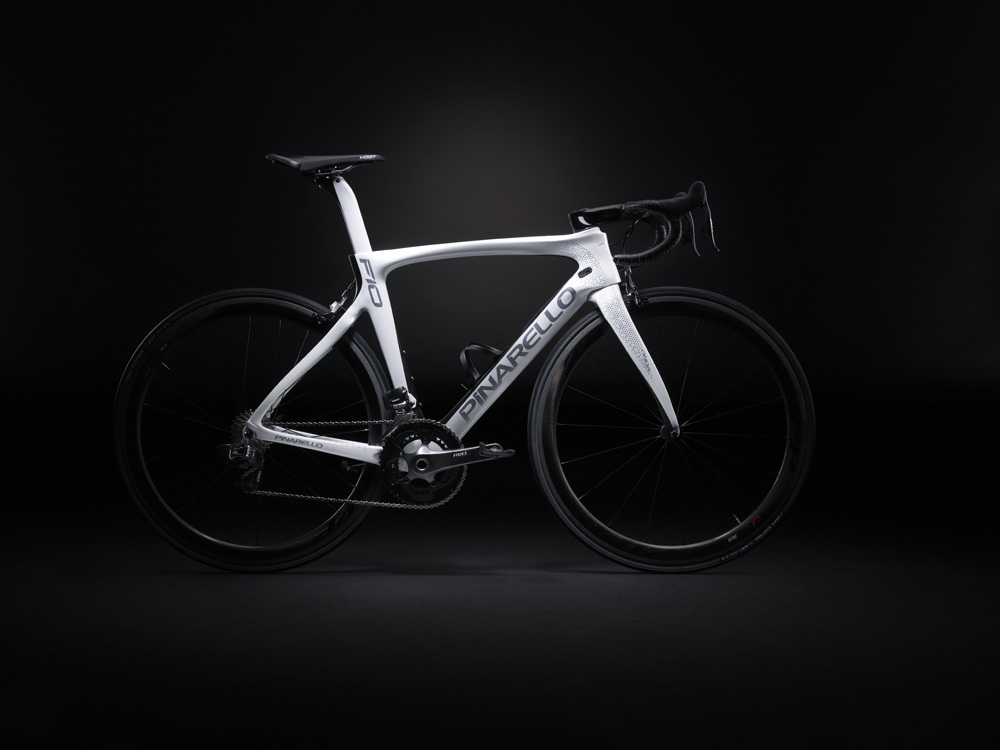

The all white F10

The all white F10
(Image credit: Pinarello)
Image 26 of 52

A shot from the test ride

A shot from the test ride
(Image credit: Pinarello)
Image 27 of 52

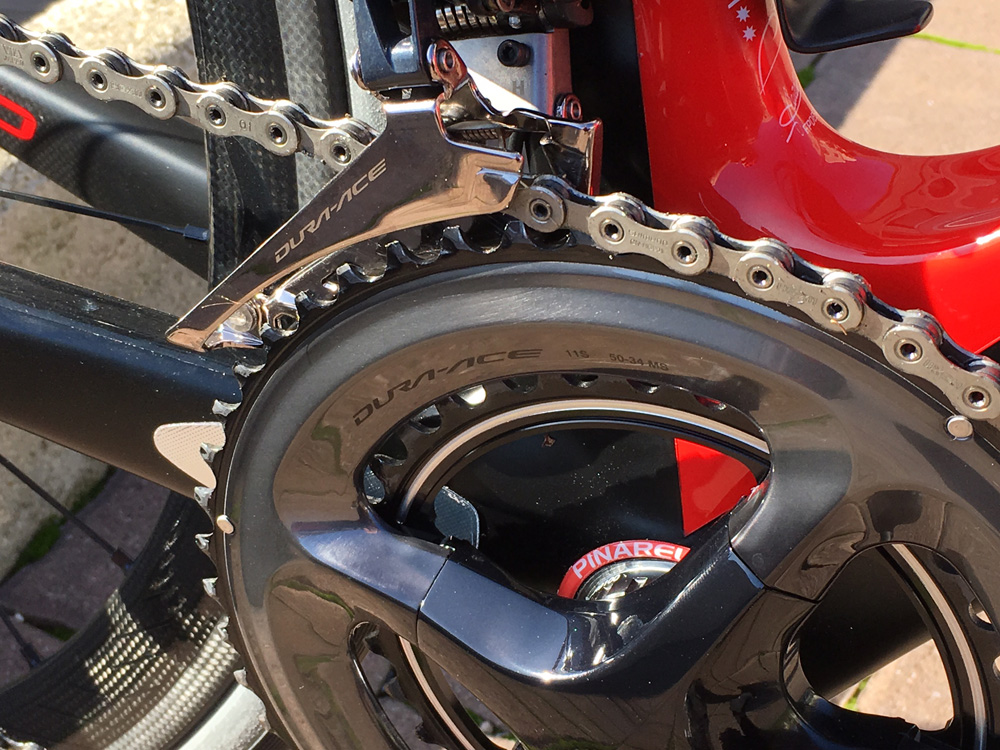

A close-up of the Shimano Dura-Ace chainrings

A close-up of the Shimano Dura-Ace chainrings
(Image credit: Stephen Farrand)
Image 28 of 52

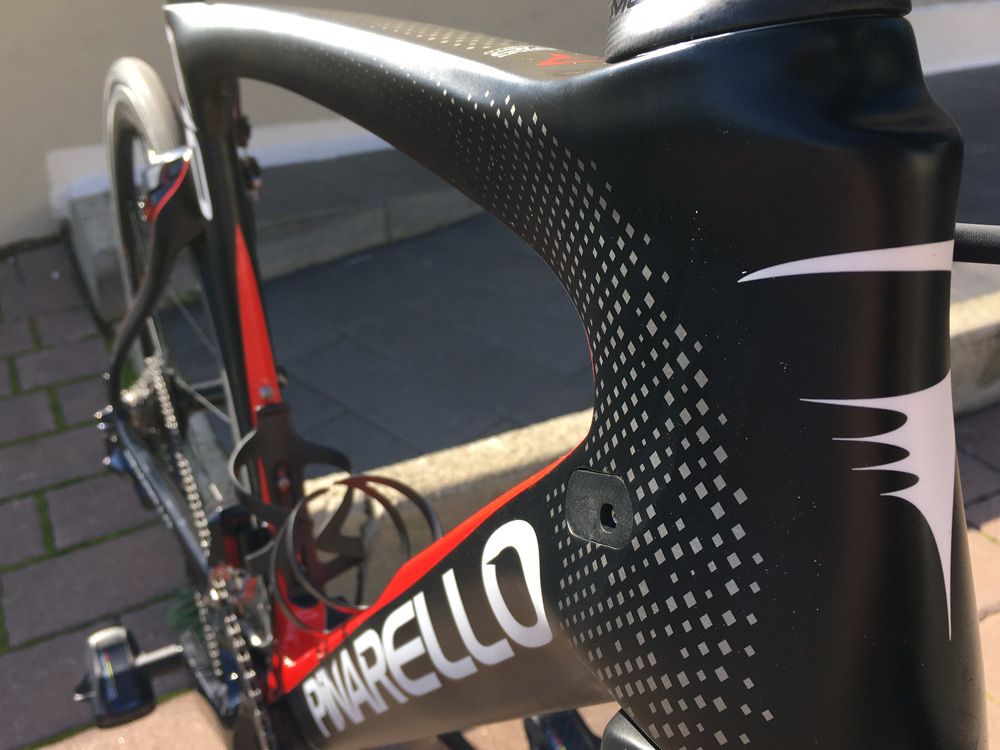

The Dogma F10 still has lots of curved tubes

The Dogma F10 still has lots of curved tubes
(Image credit: Stephen Farrand)
Image 29 of 52

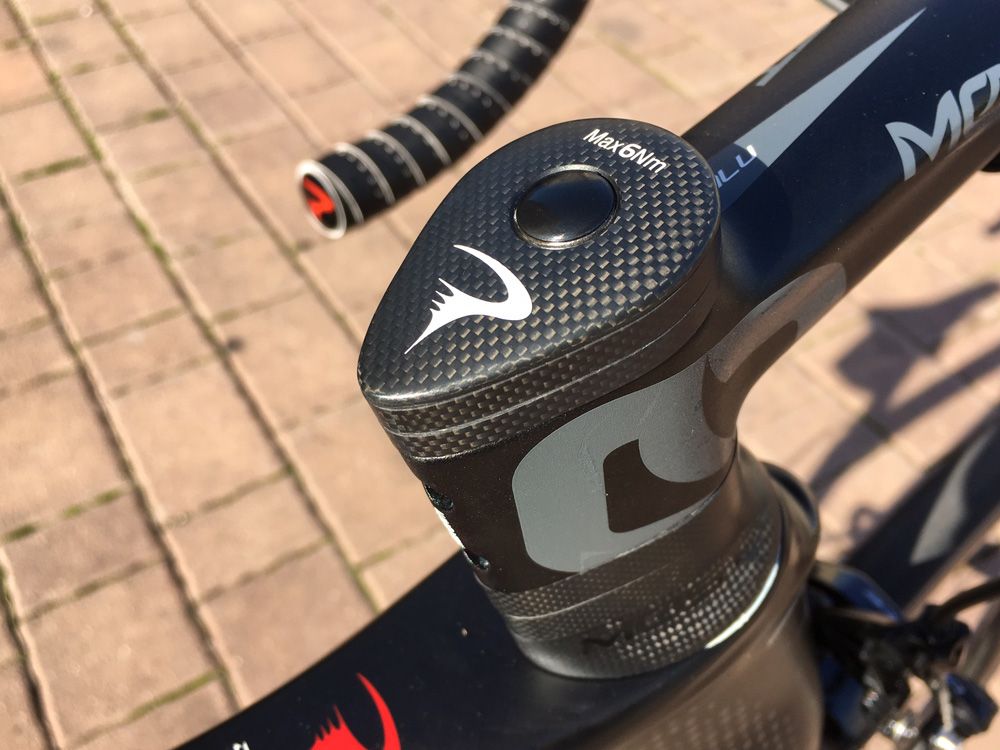

The aero shaped Most headset

The aero shaped Most headset
(Image credit: Stephen Farrand)
Image 30 of 52

The tube shapes help the aerodynamics of the F10

The tube shapes help the aerodynamics of the F10
(Image credit: Stephen Farrand)
Image 31 of 52

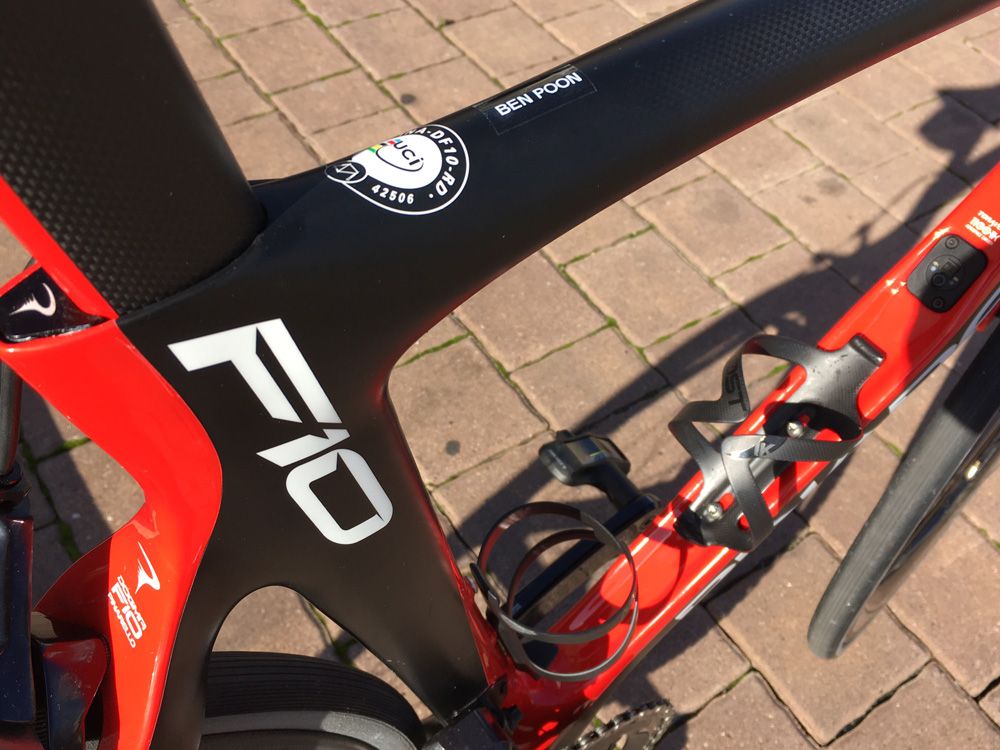

The F10 stands out

The F10 stands out
(Image credit: Stephen Farrand)
Image 32 of 52

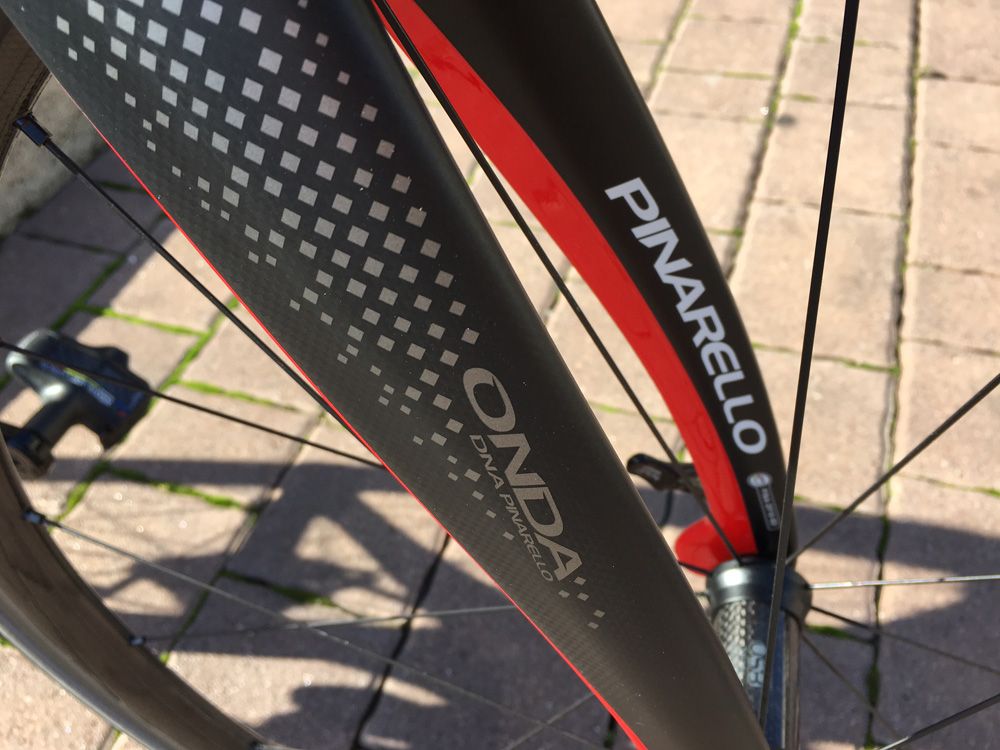

The Onda forks

The Onda forks
(Image credit: Stephen Farrand)
Image 33 of 52

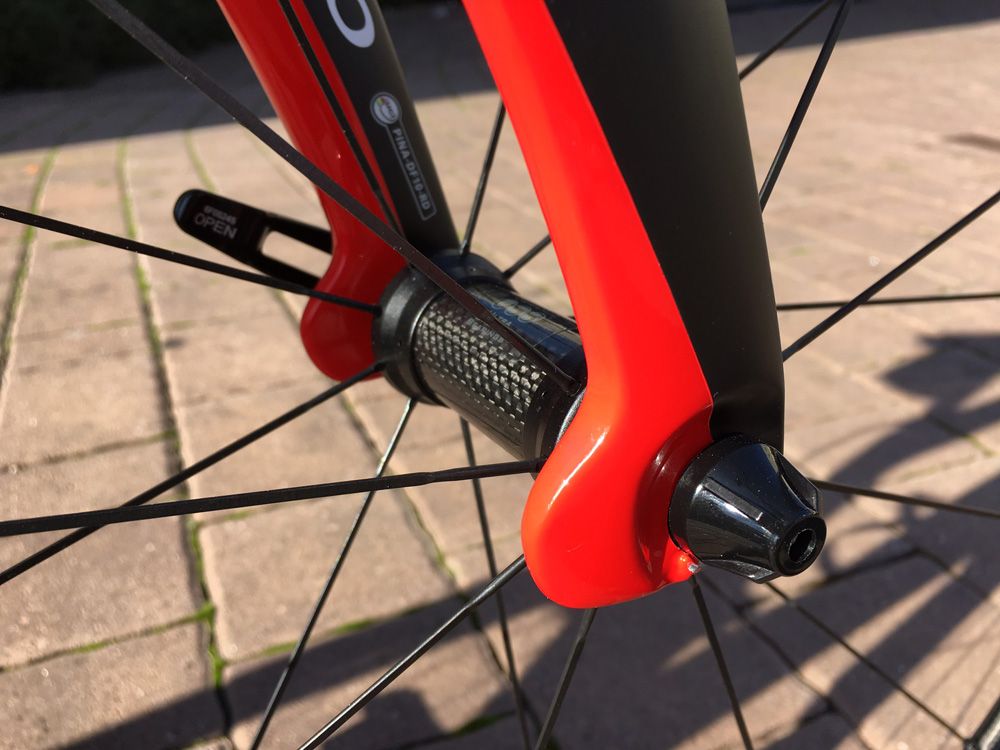

The new fork flaps inspired by the Bollide time trial bike

The new fork flaps inspired by the Bollide time trial bike
(Image credit: Stephen Farrand)
Image 34 of 52

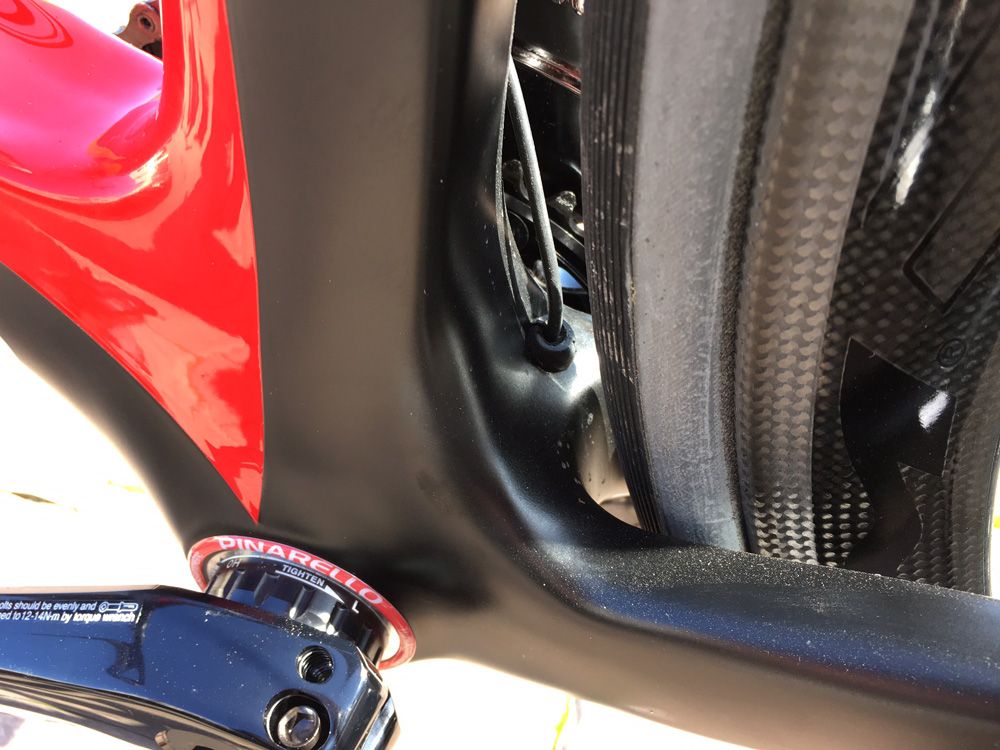

Behind the bottom bracket

Behind the bottom bracket
(Image credit: Stephen Farrand)
Image 35 of 52

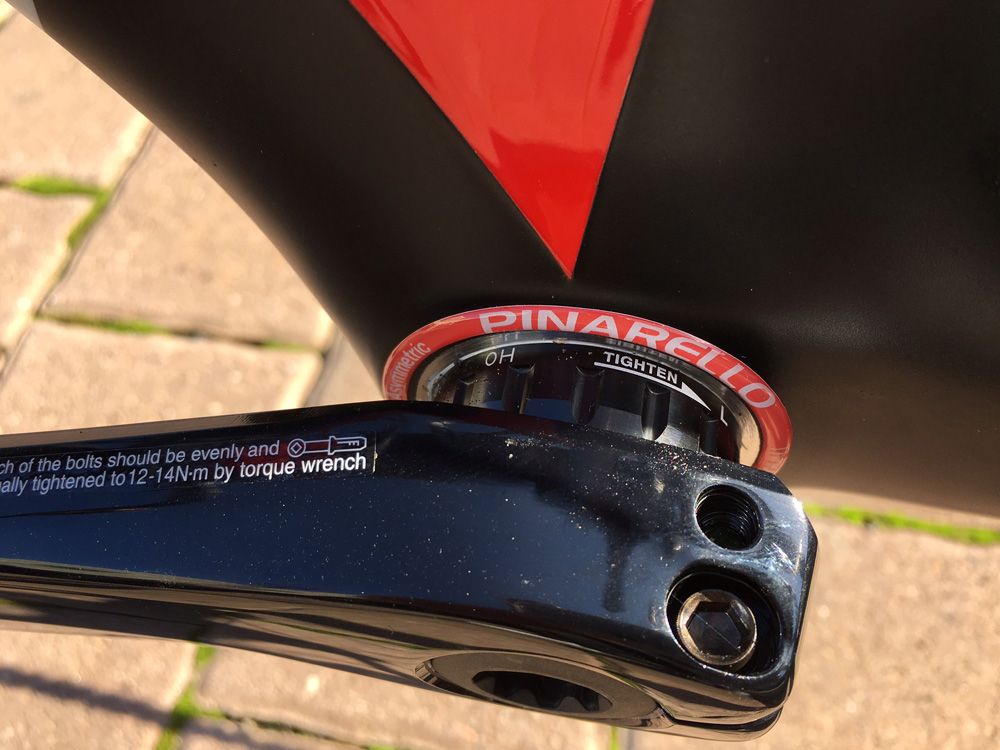

The Dogma uses a threaded bottom bracket

The Dogma uses a threaded bottom bracket
(Image credit: Stephen Farrand)
Image 36 of 52

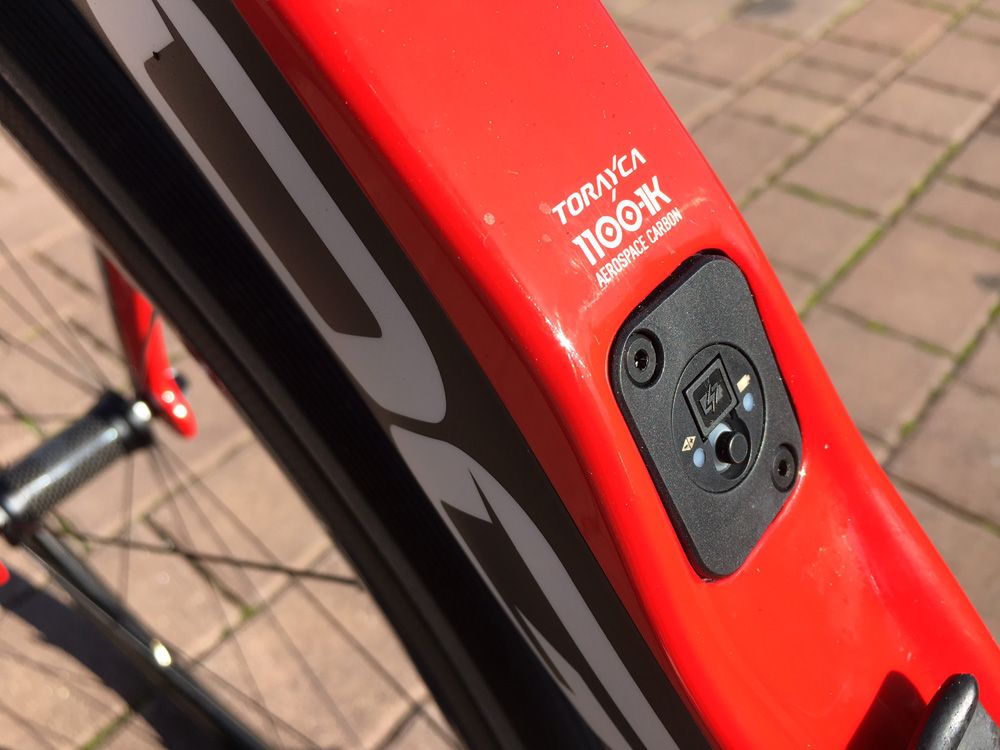

The entry point for the hidden Dura-Ace battery

The entry point for the hidden Dura-Ace battery
(Image credit: Stephen Farrand)
Image 37 of 52

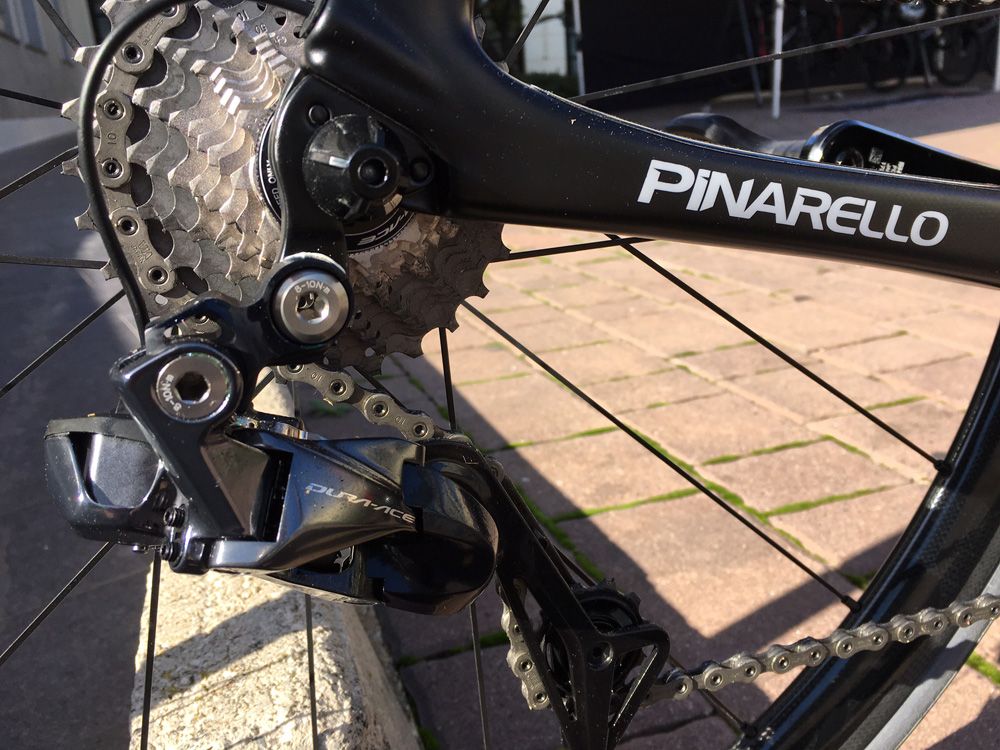

The new Dura-Ace rear gear

The new Dura-Ace rear gear
(Image credit: Stephen Farrand)
Image 38 of 52

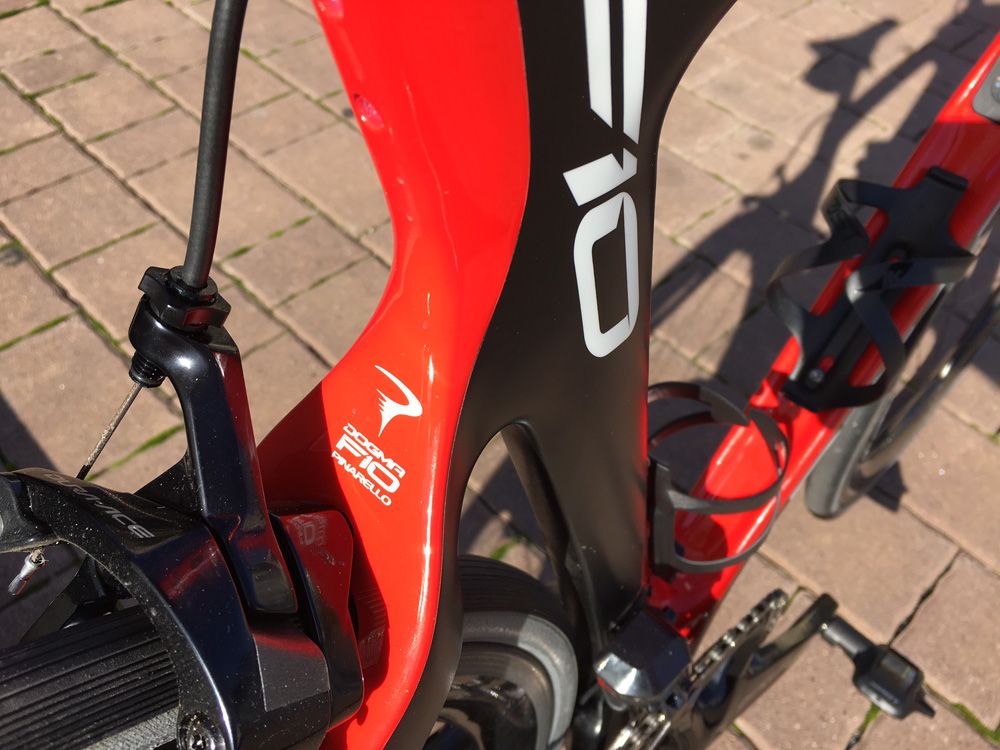

The curves of the rear triangle

The curves of the rear triangle
(Image credit: Stephen Farrand)
Image 39 of 52

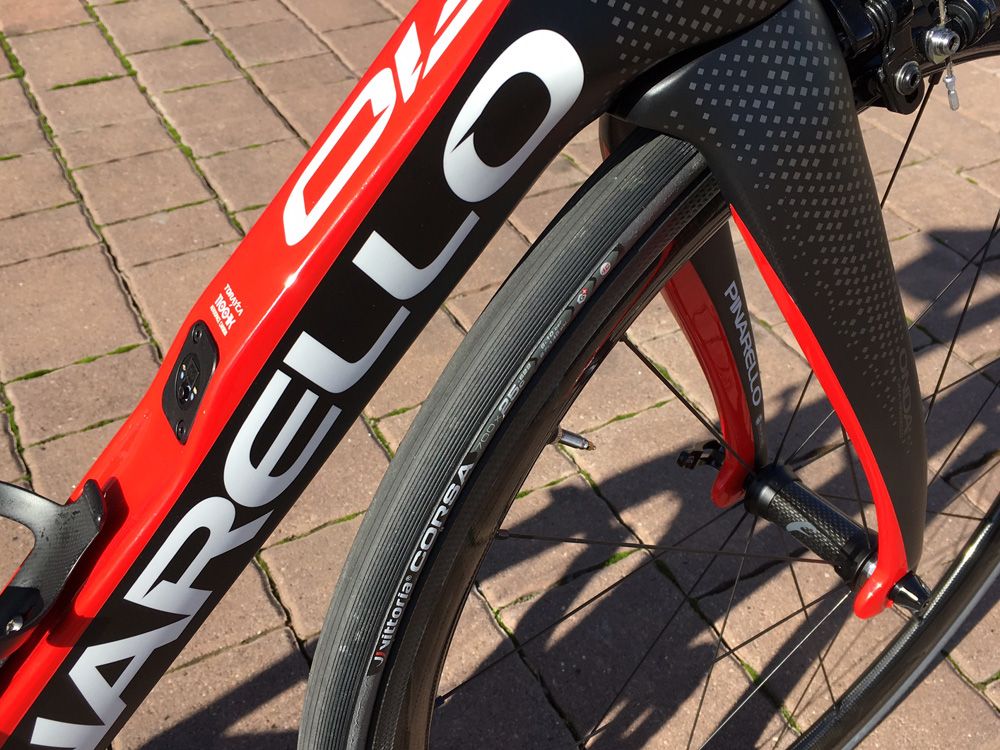

The new concave shape of the down tube

The new concave shape of the down tube
(Image credit: Stephen Farrand)
Image 40 of 52

Close up with the F10 out on the road

Close up with the F10 out on the road
(Image credit: Pinarello)
Image 41 of 52

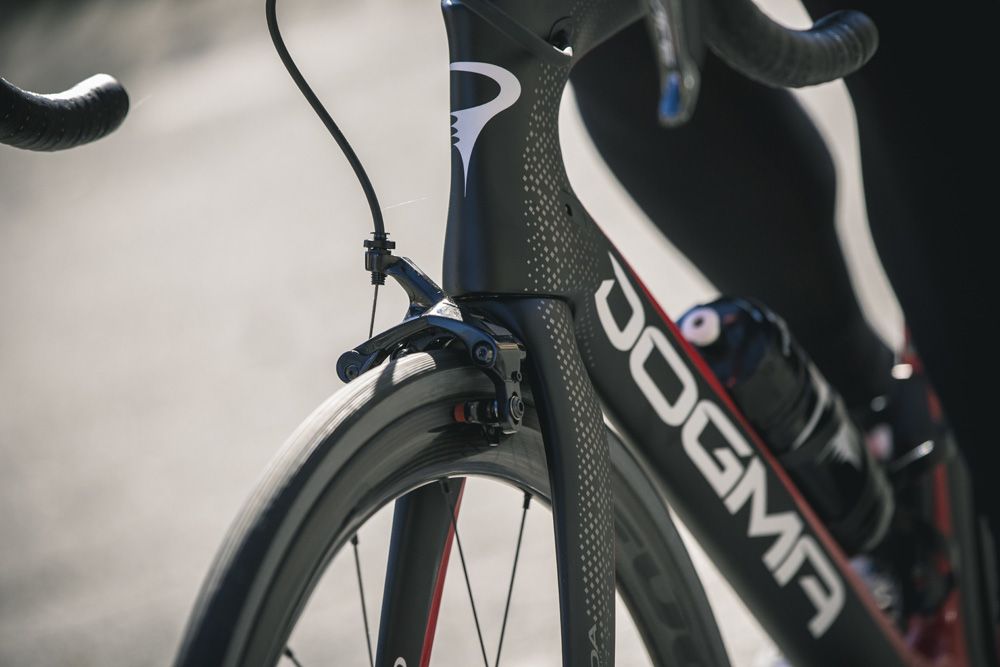

The front end

The front end
(Image credit: Pinarello)
Image 42 of 52

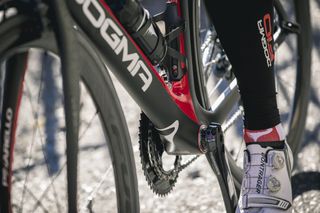

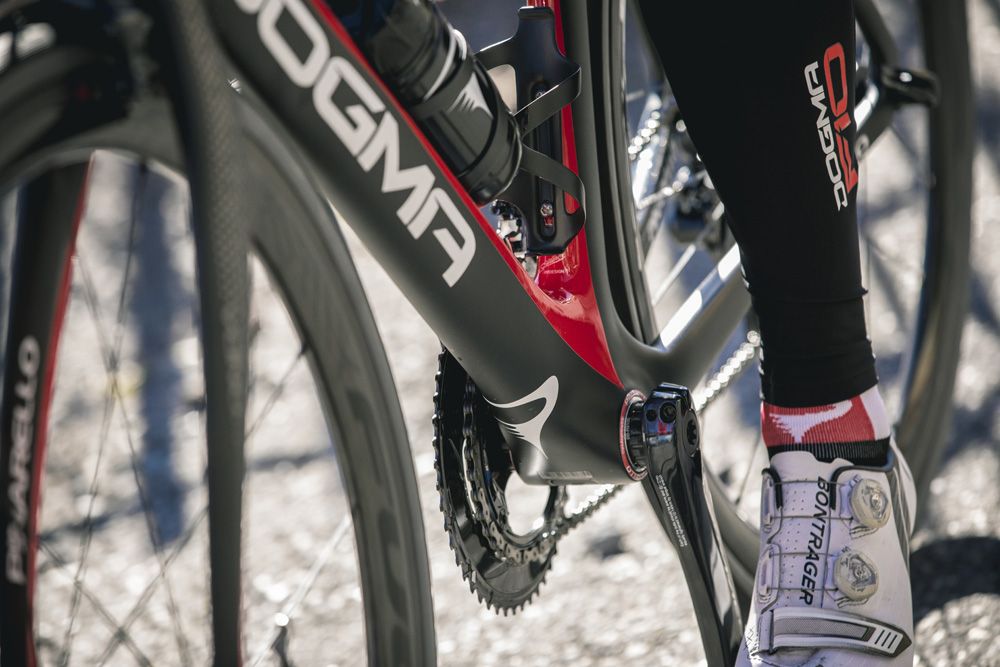

A look at the bottom bracket area

A look at the bottom bracket area
(Image credit: Pinarello)
Image 43 of 52

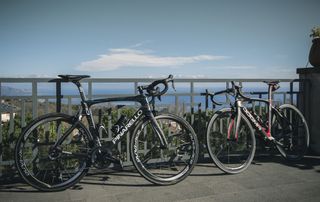

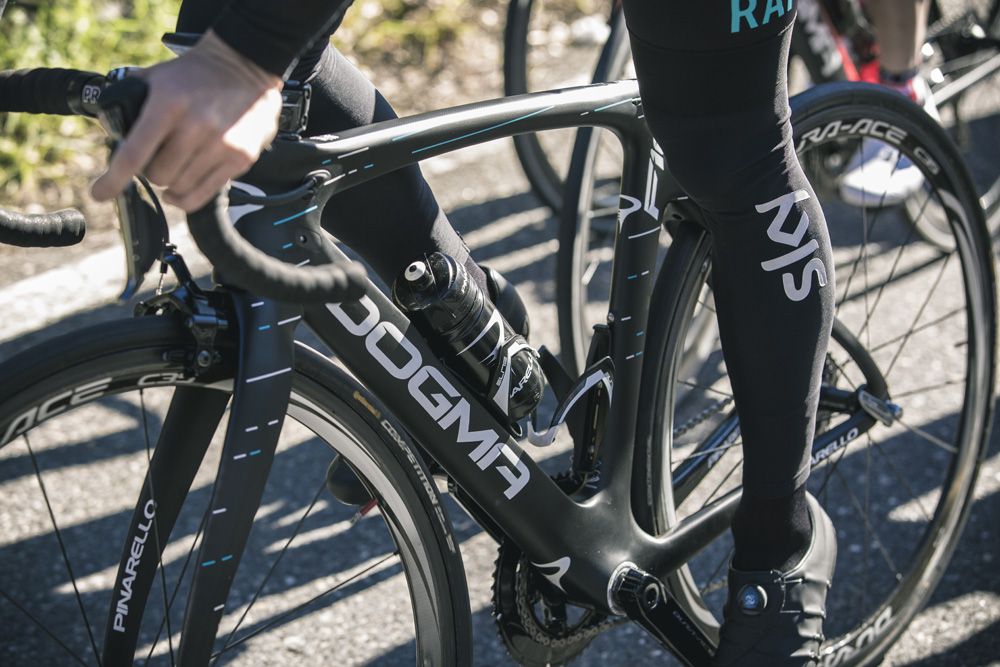

The Team Sky F10

The Team Sky F10
(Image credit: Pinarello)
Image 44 of 52

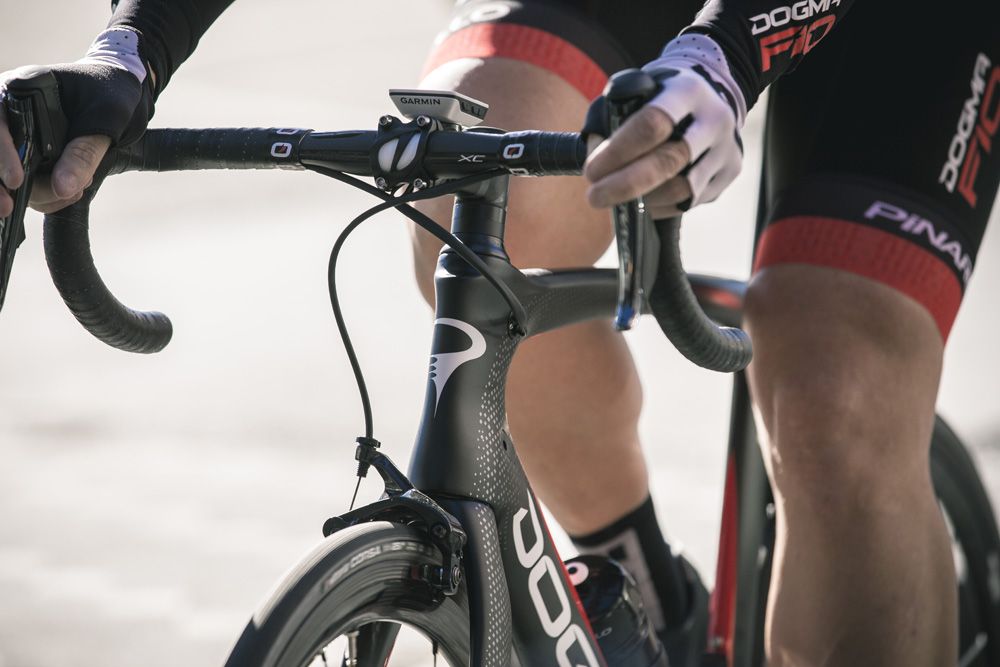

The F10 still has the Pinarello curves

The F10 still has the Pinarello curves
(Image credit: Pinarello)
Image 45 of 52

Fausto Pinarello leads the F10 presentation ride

Fausto Pinarello leads the F10 presentation ride
(Image credit: Pinarello)
Image 46 of 52

The sun was out

The sun was out
(Image credit: Pinarello)
Image 47 of 52

The Team Sky F10

The Team Sky F10
(Image credit: Pinarello)
Image 48 of 52

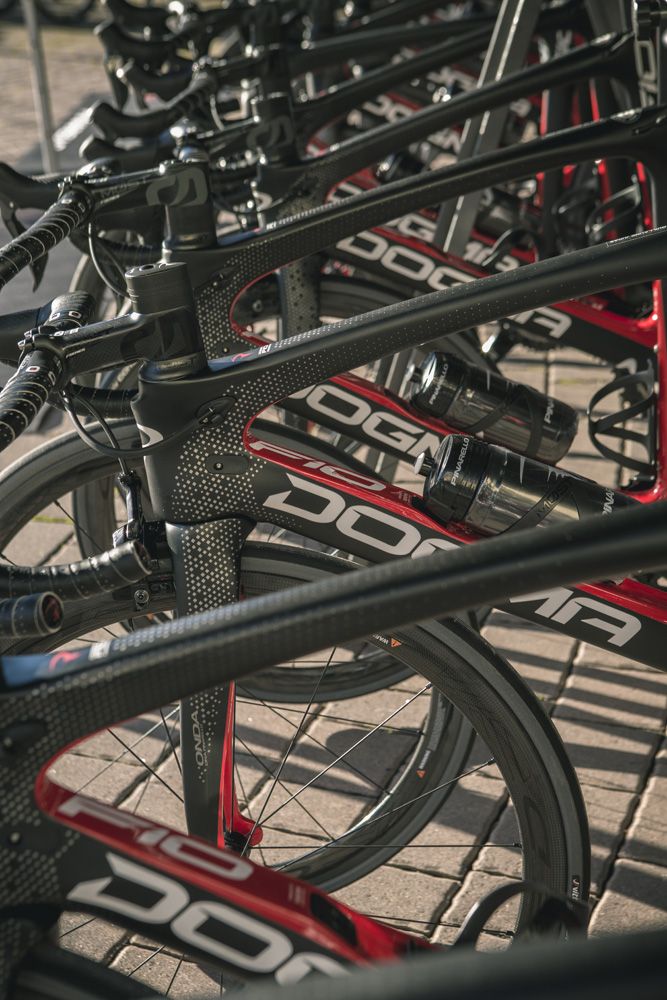

The new F10 bike await their testers

The new F10 bike await their testers
(Image credit: Pinarello)
Image 49 of 52

The Pinarello Dogma F10

The Pinarello Dogma F10
(Image credit: Stephen Farrand)
Image 50 of 52

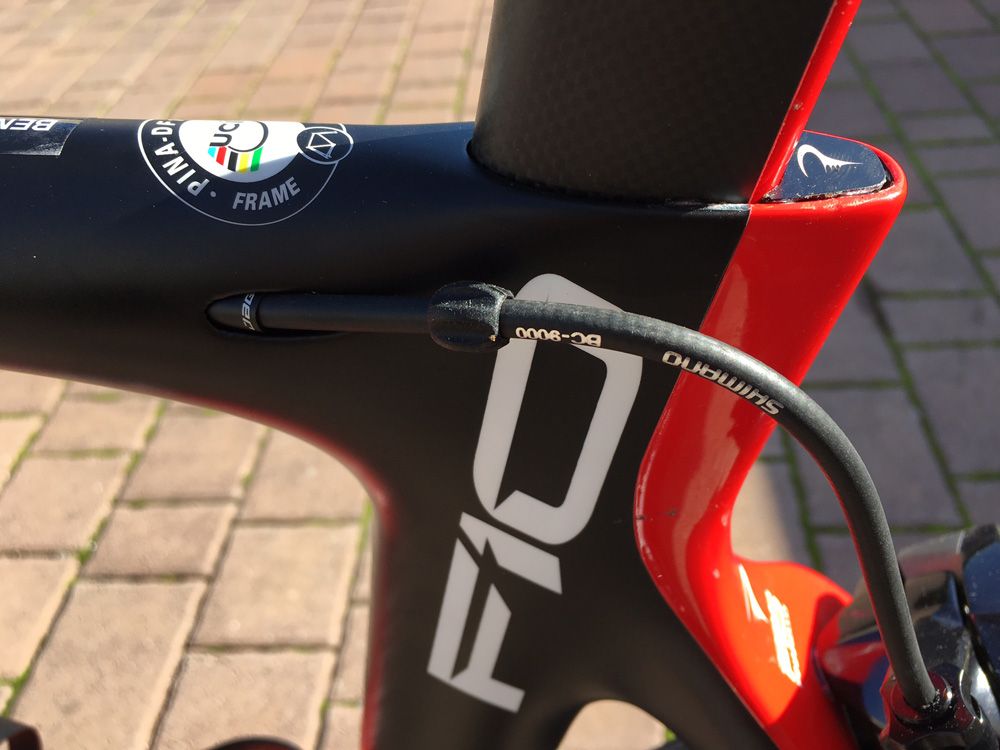

The rear brake cables and the UCI logo

The rear brake cables and the UCI logo
(Image credit: Stephen Farrand)
Image 51 of 52

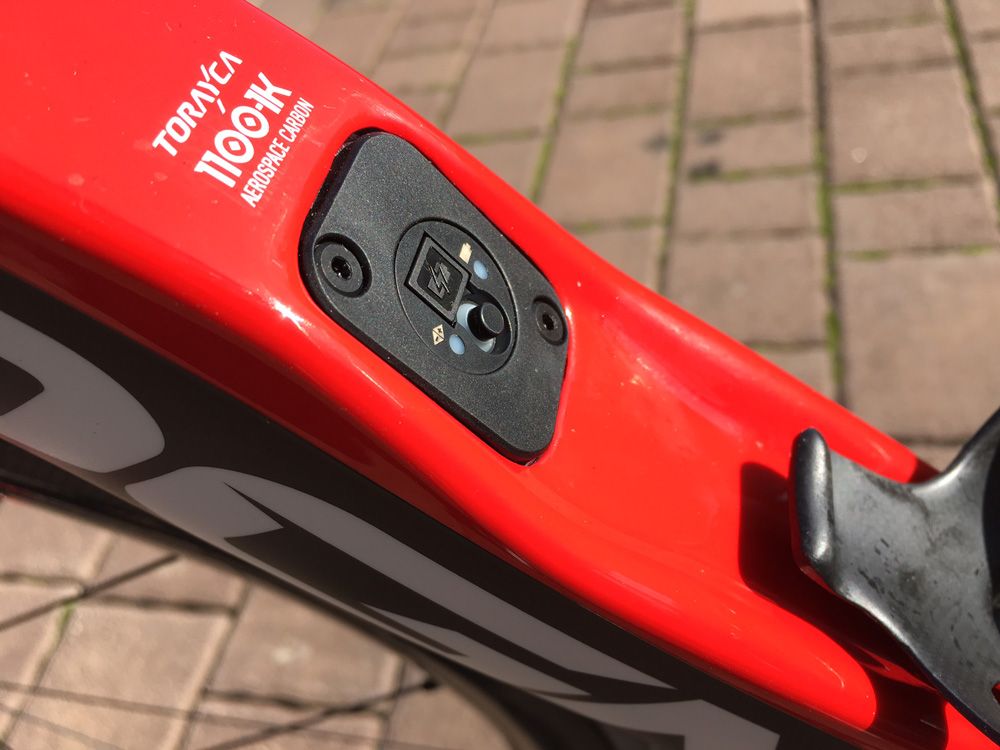

The E-link battery point on the down tube

The E-link battery point on the down tube
(Image credit: Stephen Farrand)
Image 52 of 52

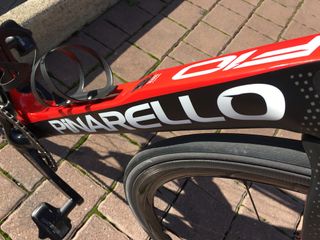

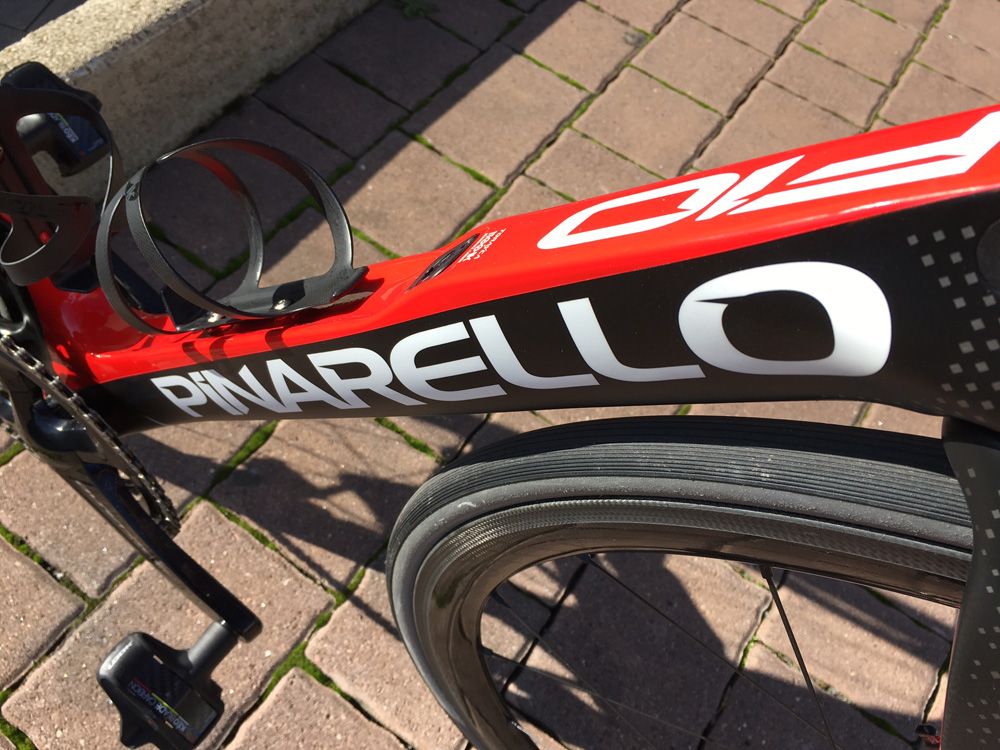

The concave down tube helps aerodynamics

The concave down tube helps aerodynamics
(Image credit: Stephen Farrand)

Pinarello has revealed its new Dogma F10 frame that will be used by Team Sky for the 2017 season, with riders using the new bike at the Tour Down Under in Australia and at Team Sky’s training camp in Mallorca.

Pinarello has used its influence in the bike industry to also secure some of the very first Shimano 9150 Dura-Ace Di2 groupset, and so the Team Sky riders will begin the 2017 season the newest technology. Team Wiggins will also ride Pinarello again in 2017, with the Continental development team bike equipped with SRAM components.

Pinarello presented the Dogma F10 to a select group of media, including Cyclingnews, at a special event on the slopes of Mount Etna in Sicily in December, a few weeks before Chris Froome visited the area to film a video and test the bike himself. His sighting sparked rumours in Italy that he could be planning to ride the Giro d’Italia, but he was more interested in the bike he will use when he targets a fourth victory at the Tour de France.

Pinarello usually reveals its new products during the Giro d’Italia when the race passes near its Treviso headquarters in late May, showing off the bikes that will be available later that year. The Dogma F8 was revealed in May 2014, but Fausto Pinarello wanted to do things differently this time and, inspired by Apple product launches, Pinarello aligned their new bike launch with the new road racing season and Team Sky’s debut in Australia. In the meanwhile, they did everything they could to keep the new bike a secret.

The Dogma F10 is available immediately and will be in the shops within days. Most of the first 500 bikes, many equipped with Shimano 9150 Dura-Ace Di2, have already been shipped to Pinarello dealers around the world. The Dogma F10 was quietly added to the UCI list of approved frames and forks on January 9, meaning it is ready to race.

"We're relatively small compared to some of the giant brands, so the best way to beat our rivals is to be fast and flexible,” Fausto Pinarello said proudly at the presentation. "In the time they produce one model, we can do three and so constantly update our design and technology."

An evolution rather than a revolution

The Dogma F8 is the best-selling bike in Pinarello’s history and will still be available going forward but the Dogma F10 is now the top of the range road bike. There is no Dogma F9, with the Dogma F8 Disc filling the gap in the range. Cyclingnews understands there will be no Dogma F10 disc brake model, at least in 2017, with Pinarello still firm believers in caliper brakes.

The Dogma F10 is considered an evolution rather than a revolution, with some clever design changes to the F8 inspired by the Pinarello Bolide time trial bike, the specially developed Bollide HR track bike used by Bradley Wiggins to a set a new Hour Record and the bikes created to help Elia Viviani win a gold medal on the track at the Rio Olympics. Input from Team Sky has also played a key part, with Pinarello pointing out that their bikes have won more than 90 major races in the last three years. Team Sky recently extended their agreement with Pinarello until 2020.

During the presentation, the Pinarello engineers explained that their goal was to maintain the famous Pinarello handling, while increasing stiffness, reducing weight and aerodynamic drag. The white paper Pinarello issued for the Dogma F10 claims it is 6.3% lighter and 7% stiffer, with a 53cm raw (unfinished) frame weighing 820g.

The curved frame tube shapes look very similar to the Dogma F8 but have been redesigned using computational fluid dynamics (CFD) and Finite Element Analysis (FEA) to ensure aerodynamics and strength in combination with the athlete in motion. Final shaping was made thanks to 3D printed samples and traditional sandpaper, with Pinarello insisting that final aesthetics come before any tiny gains in aerodynamics.

Much of the reduction in drag of the Dogma F10 comes from the concave rear of the down tube first created for the Bollide models. Combined with a snugly-fitting smaller bottle, the concave tube shape helps reduce drag by a claimed 12.6% around the down tube area. The seat tube of the Dogma F10 also has three bottle cage bolts, with the lower option also helping to reduce drag and allowing for an oversized bottle for summer.

Other aerodynamic touches include the adoption of the fork flap shape behind the dropouts. These are smaller than on the Hour Record bike but Pinarello consider it a Team Sky-style "marginal gain" thanks to a reduction in drag for the fork. The fork is again bowed for better aerodynamics and so the flaps are arguably a way of distinguishing between an F8 and F10. If you can afford a Pinarello F10 you probably want people to recognise it.

Pinarello again use Torayca T1100 1K carbon fibre for much of the Dogma F10 frame and fork. They believe it is the best on the market and a Torayca logo is another badge of honour on the down tube. The Dogma F10 has carbon fibre dropouts, removable front and rear derailleur hangers, an Italian threaded bottom bracket and the Think 2 system that allows the same frame to be fitted with mechanical or electronic gears.

Pinarello believe in their asymmetric design and have edged the Dogma F10’s centre a further 2mm out towards the crankset side of the frame to counteract the forces on the chain and gears, thus providing a stiffer and more balanced bike. Pinarello tests their frames and fork to ISO 4210 standards in their in-house lab and is how they obtained the 7% increase in stiffness.

The geometry of the frame remains the same as the Dogma F8, with 13 different sizes available between 42 and 62cm, with one-centimetre increases in the middle of the range. It comes in eight colour ways including the most popular black on black, a black and gold Wiggins edition, and the new Team Sky design decorated with thin white and blue lines that signify the team’s major success.

Designed for the new Shimano Dura-Ace Di2

The Dogma F10 frame is designed specifically for the latest version of Shimano Dura-Ace Di2 electronic gears, which is scheduled to go on sale in February.

After years of hanging the junction box under the stem, the combination of the new Shimano Dura-Ace and the Dogma F10 means it all disappears into the down tube, with the so-called E-Link allowing a simple plug-in position for recharging and updating the system. It is a solution that one or two other new frames brands also include but one that should have come much sooner. Unfortunately, it means that older versions of Dura-Ace cannot be accommodated in the same space in the down tube. However, the battery and control can also be hidden in the handlebars.

A first ride

Cyclingnews rode the new Pinarello Dogma F10 with CEO Fausto Pinarello and Team Sky riders Elia Viviani and Gianni Moscon. First ride impressions as we tried and failed to stay on their wheels were of a high-end race bike with superb performance.

The roads around Mount Etna include some rough surfaces and long cobbled sections made from the black lava stone. The Dogma F10 allows for 25mm tyres and they were needed to soak up some of the bumping and banging that the frames passes onto the rider in exchange for transmitting the power to the road.

The Shimano Dura-Ace Di2 zipped quietly from gear to gear despite thick gloves making it occasionally difficult to get a great feel of the paddle gear levers. The chunky head section of the lever makes for great one finger braking and the stiffer calipers never left me wishing for disc brakes.

Despite my size the Dogma F10 never let me down on the twisting descents and accelerated quickly when I got out of the saddle and pushed for more speed.

The performance of the Dogma F10 fitted with the new Shimano Dura-Ace Di2 is far too great to fully understand and appreciate on a single two-hour ride, leaving me envious of Team Sky and whoever else gets to ride one in 2017.
