Anton Cooper (Cannondale Factory Racing) is racing onboard a size small Cannondale F29 for 2013 World cup and other cross countries
Custom racing rig for small rider
This article originally published on BikeRadar
When Anton Cooper was entertaining offers from teams for the 2013 season, he was concerned about making sure he'd sign for one with a bike that would fit him. Cannondale Factory Racing promised to take care of him. They don't make the carbon F29 in a small size, but for the junior world champion they were willing to make a special bike.
"Basically, I wasn't quite fitting on the medium bike – the reach was a little long," said Cooper, who is 1.64m tall (5ft 4in). "I discussed with [team manager] Daniel [Hespeler] if I could possibly get a small one made up and get that front end a bit lower. I never actually hopped on the medium, but I worked out from the measurements that the medium wasn't going to fit."
Cannondale sent him an alloy framed, small F29 as soon as he was on the team, and Cooper confirmed the sizing so they could move forward with a custom carbon frame.
However, even with the small size, the Lefty XLR Hybrid was going to put the front end too high with stock stems, so the next step was a custom stem. Leonardi Racing CNC-machined a Cannondale model per its One Piece Integration (OPI) technology, but with a negative 20-degree rise. Stock stems only go down to a negative 15-degree rise.
"Getting the bike low enough is an issue with the Lefty, and it's cool to be a part of a solution working around that," said Cooper, whose fork is adjusted to have 70mm of travel. "It's an amazing fork."
The standard amount of travel on a production Lefty XLR Hybrid is 100mm, but Cooper doesn't need more than 70mm for modern World Cup cross-country racing, especially given his size. The lesser amount of travel is another way Cooper gets lower and into a more aggressive racing position.
Cooper is happy with the lengths Cannondale have gone to accommodate his stature. "I was assured that something could be done and they stuck to their word and delivered the bike ahead of time."
The first-year U23 racer won the elite national title in New Zealand in February, on a bike similar to this one.
"I didn't ride this exact bike at the New Zealand championships. I had a bike like this, but it didn't obviously have the NZ national champion's colors. It had the team colors. I got this after I won the title. Now I can ride it – it's cool. It was a big surprise to come into the service course and see it. It's so special."
Custom stem and small frame size aside, Cooper runs a SRAM XX1 drivetrain with a 36-tooth chainring and 10-42T rear cassette. Avid World Cup brakes handle stopping duties (160mm rotor up front, 140mm in the rear).

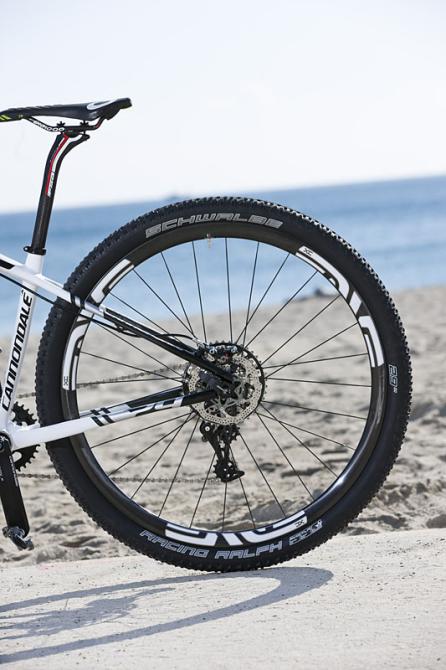

ENVE provide their 29 XC wheelset with DT Swiss 240s hubs (left-specific up front) and DT Aerolite spokes. Cooper will race Schwalbe Racing Ralph 2.1 tires with snakeskin sidewall reinforcement.
He's also running an FSA SL-K 600mm bar with 9-degree backsweep and 4-degree upsweep. A Prologo X0 CPC seat, in custom Cannondale team colours, is mounted to an FSA K-Force (27.2mm diameter) seatpost with 25mm setback. Prologo also handle the grips.
Note the special graphics for the New Zealand national champion
Complete bike specifications
Frame: Cannondale F29 with team paint job
Size: Small (custom geometry; small carbon frames not available for production)
Rear shock: None
Fork: Cannondale Lefty XLR Hybrid, 70mm travel, remote Rockshox lockout
Headset: Cannondale Headshock SI
Stem: Custom-made by Leonardi Racing (-20 degree rise) with Cannondale One Piece Integration technology
Handlebars: FSA SL-K 600mm, 9 degrees backsweep, 4 degrees upsweep
Front brake: Avid XX World Cup, 160mm rotor
Rear brake: Avid XX World Cup, 140mm rotor
Brake levers: Avid XX World Cup
Front derailleur: None
Rear derailleur: SRAM XX1
Shift levers: SRAM XX1 (rear only, no front lever)
Cassette: SRAM XX1, 10-42T
Chain: SRAM XX1
Crankset: Cannondale SISL2
Bottom bracket: Cannondale SI, BB30
Pedals: Shimano SPD XTR
Wheelset: See Rims/Front Hubs/Spokes
Rims: Enve XC29
Front hub: DT Swiss 240S, Lefty-specific
Rear hub: DT Swiss 240S
Spokes: DT Aerolite
Front tire: Schwalbe Racing Ralph 2.1 with Snakeskin sidewall
Rear tire: Schwalbe Racing Ralph 2.1 with Snakeskin sidewall
Saddle: Prologo X0 CPC, Custom Cannondale color
Seat post: FSA K-Force 27.2mm diameter, 25mm setback
Bottle cages: Cannondale Alloy
Rider's height: 1.64m (5'5")
Rider's weight: 60kg (132lb)
Seat tube length, c-c: 330
Seat tube length, c-t: 390
Saddle height, from BB (c-t): 665
Tip of saddle nose to C of bars: 520
C of front wheel to top of bars: 630
Top tube length: 575 (actual)
Total bicycle weight: 8.55kg (18.84lb)
