New Specialized Tarmac spotted at Criterium du Dauphine

Image 1 of 17

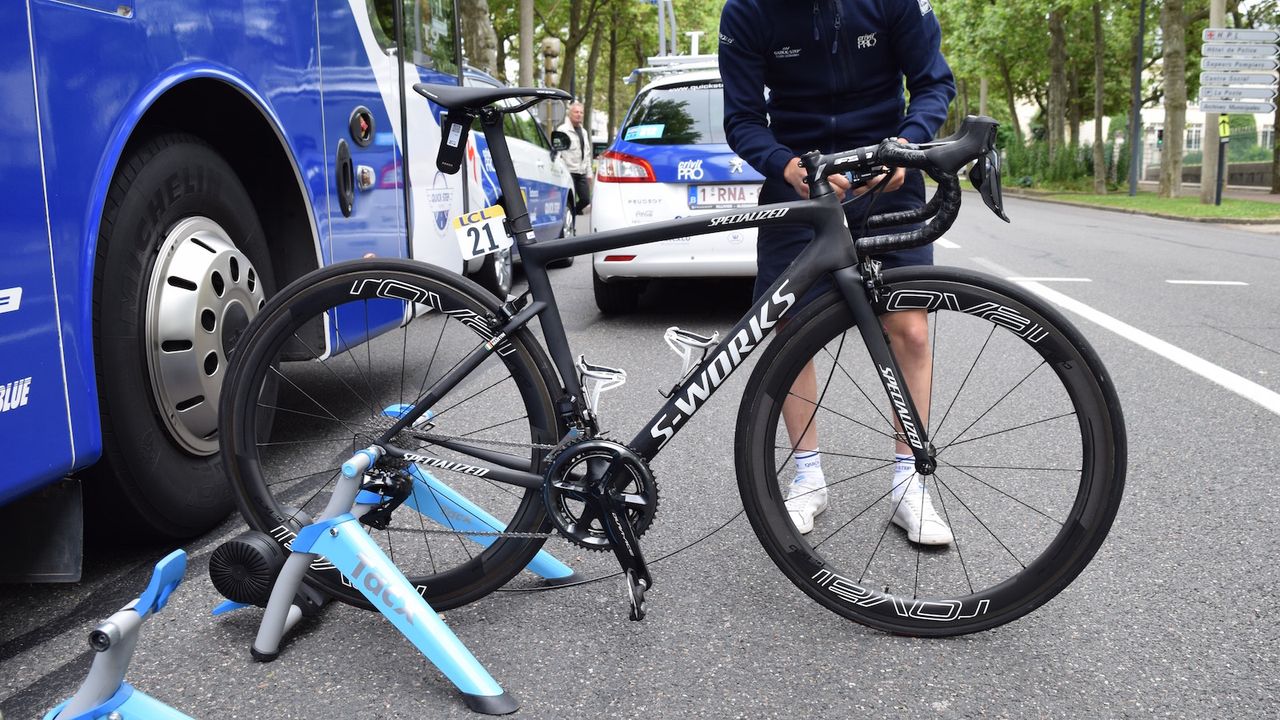

Is this the new Specialized Tarmac?

Is this the new Specialized Tarmac?
(Image credit: Josh Evans / Immediate Media)
Image 2 of 17

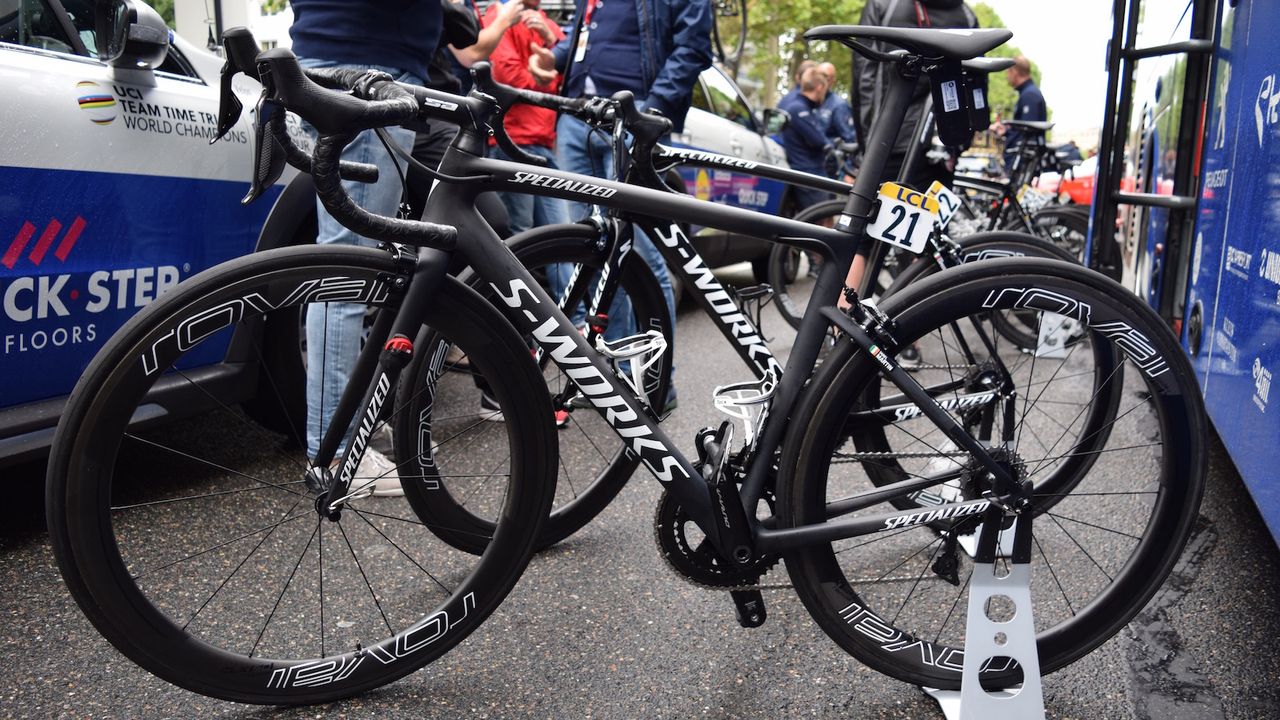

A look at the non-drive side of the new Specialized Tarmac

A look at the non-drive side of the new Specialized Tarmac
(Image credit: Josh Evans / Immediate Media)
Image 3 of 17

Dan Martin warms down on the bike following stage 1 of the race

Dan Martin warms down on the bike following stage 1 of the race
(Image credit: Josh Evans / Immediate Media)
Image 4 of 17

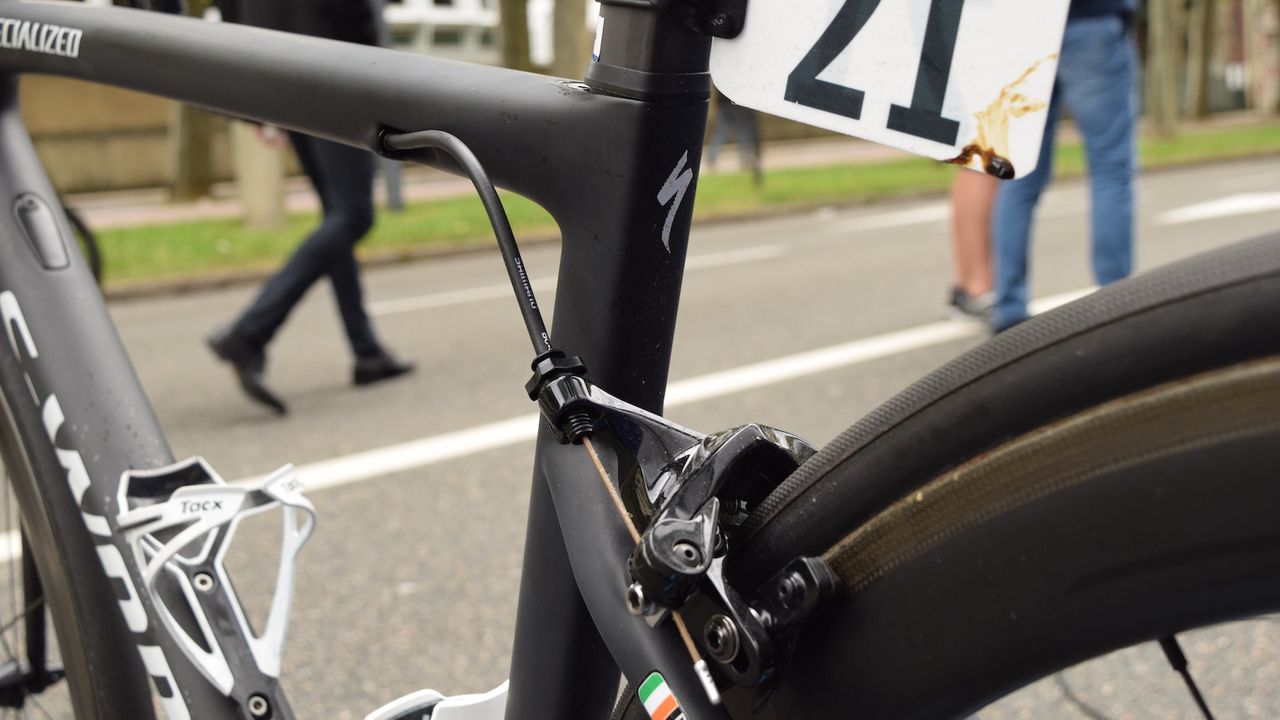

Internal cable routing for the rear brake is especially neat

Internal cable routing for the rear brake is especially neat
(Image credit: Josh Evans / Immediate Media)
Image 5 of 17

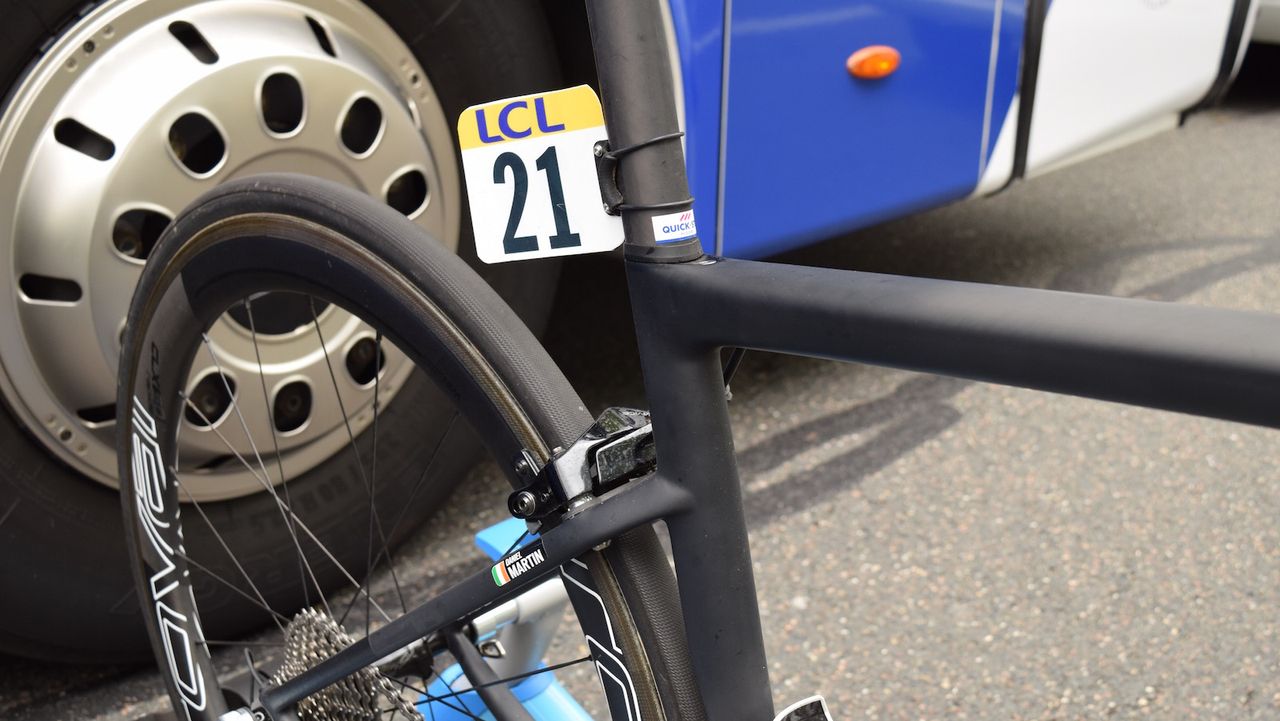

A clean design and sharp angles

A clean design and sharp angles
(Image credit: Josh Evans / Immediate Media)
Image 6 of 17

The head tube features an hour glass profile

The head tube features an hour glass profile
(Image credit: Josh Evans / Immediate Media)
Image 7 of 17

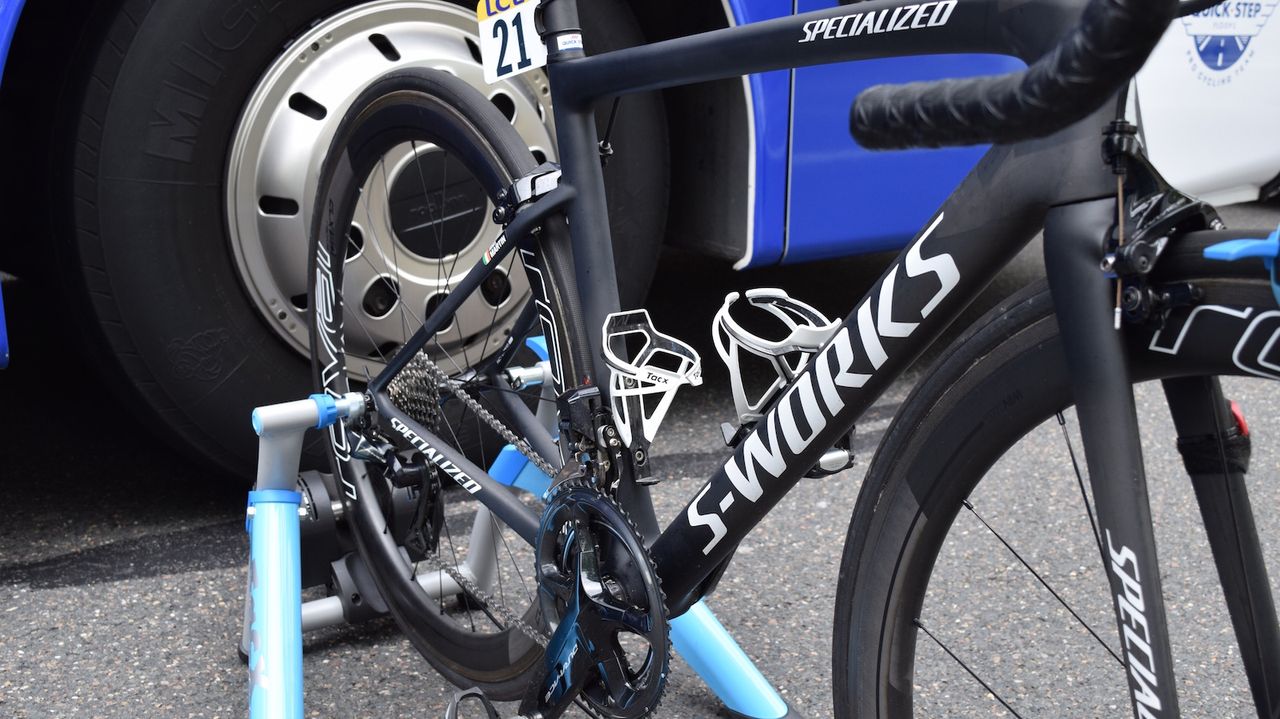

A matt carbon finish on the Specialized

A matt carbon finish on the Specialized
(Image credit: Josh Evans / Immediate Media)
Image 8 of 17

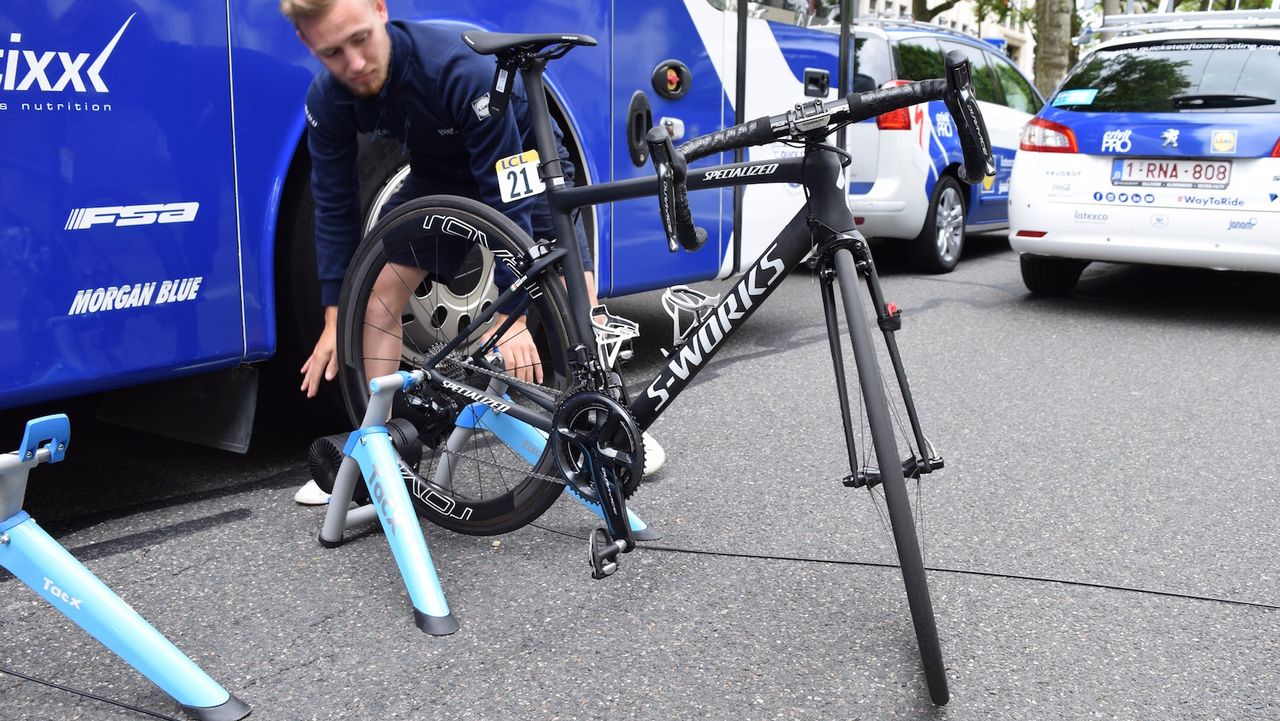

A downward sloping top tube results in lots of seat post for the Irishman

A downward sloping top tube results in lots of seat post for the Irishman
(Image credit: Josh Evans / Immediate Media)
Image 9 of 17

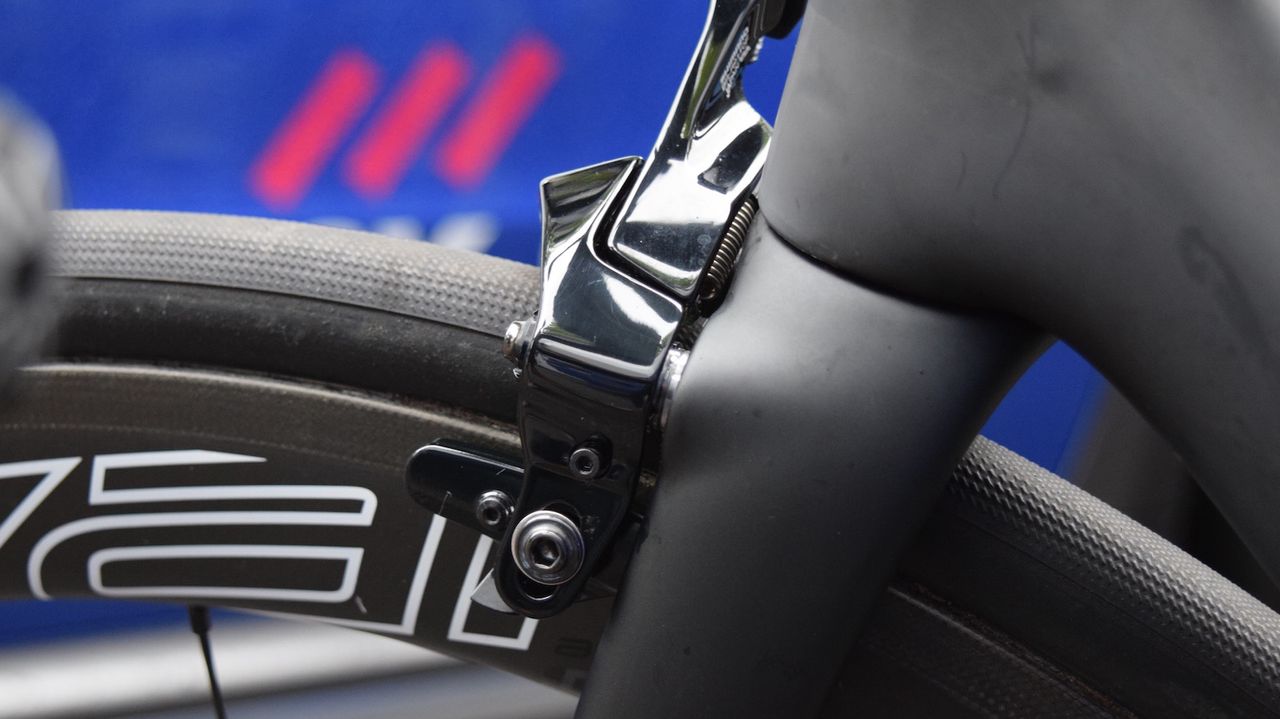

The Tarmac's fork has been designed specifically with the direct mount front brakes in mind

The Tarmac's fork has been designed specifically with the direct mount front brakes in mind
(Image credit: Josh Evans / Immediate Media)
Image 10 of 17

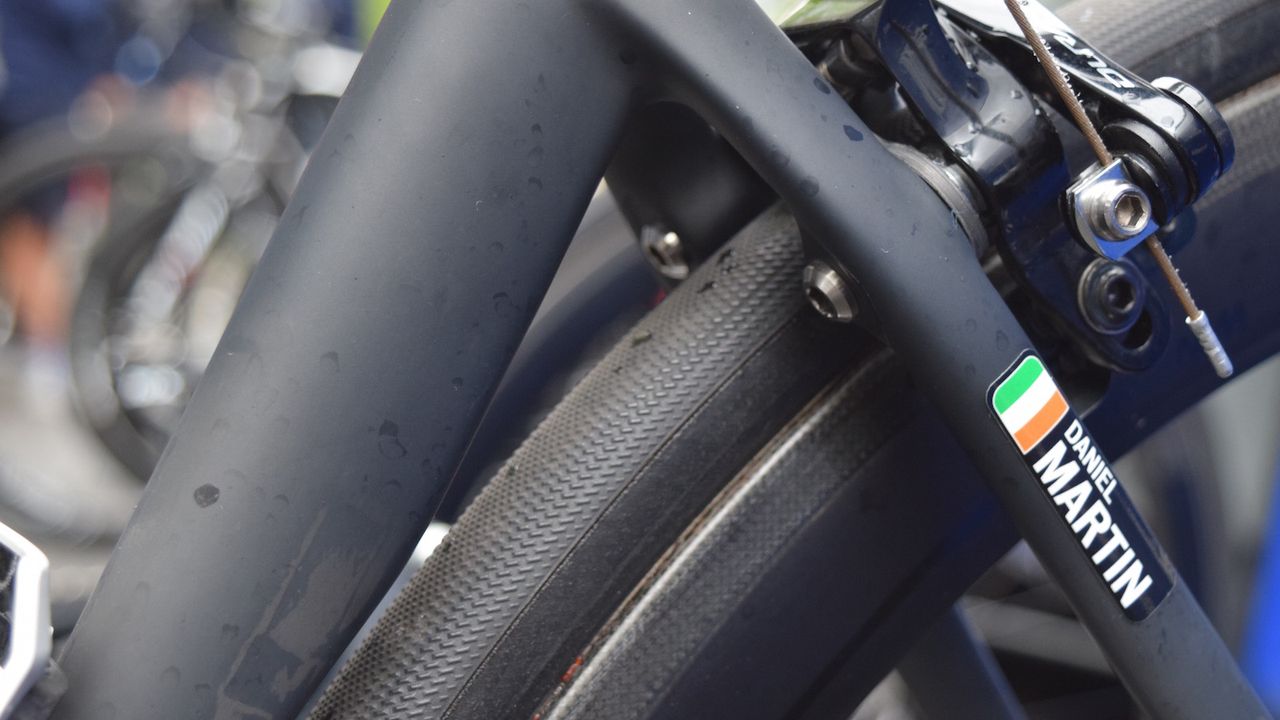

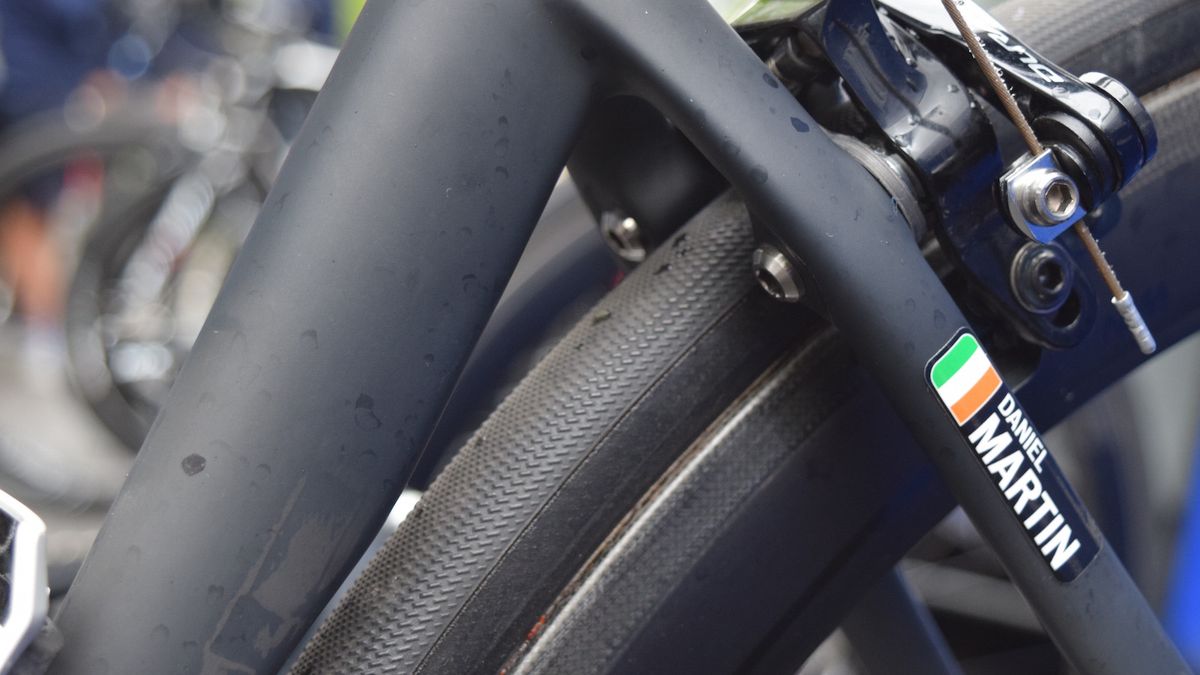

Clearances are tight and it is clear why the seat tube has a concave section

Clearances are tight and it is clear why the seat tube has a concave section
(Image credit: Josh Evans / Immediate Media)
Image 11 of 17

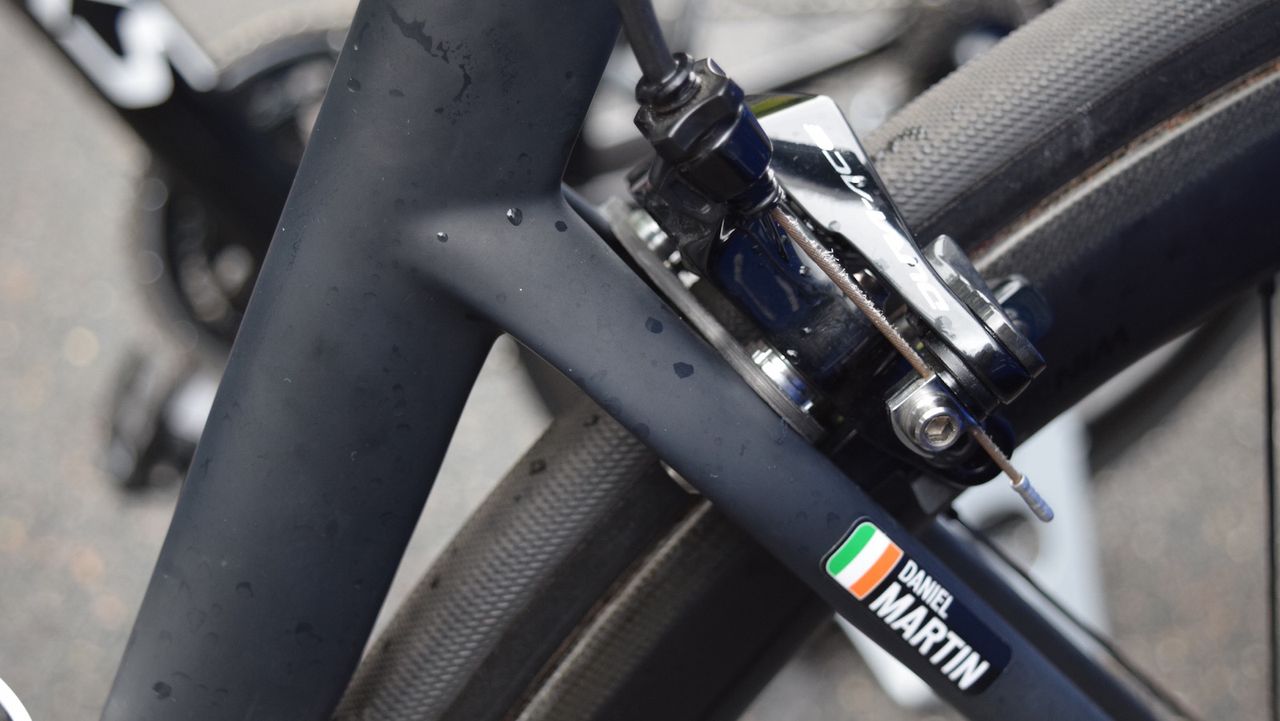

Direct mount rear brakes on the new frame

Direct mount rear brakes on the new frame
(Image credit: Josh Evans / Immediate Media)
Image 12 of 17

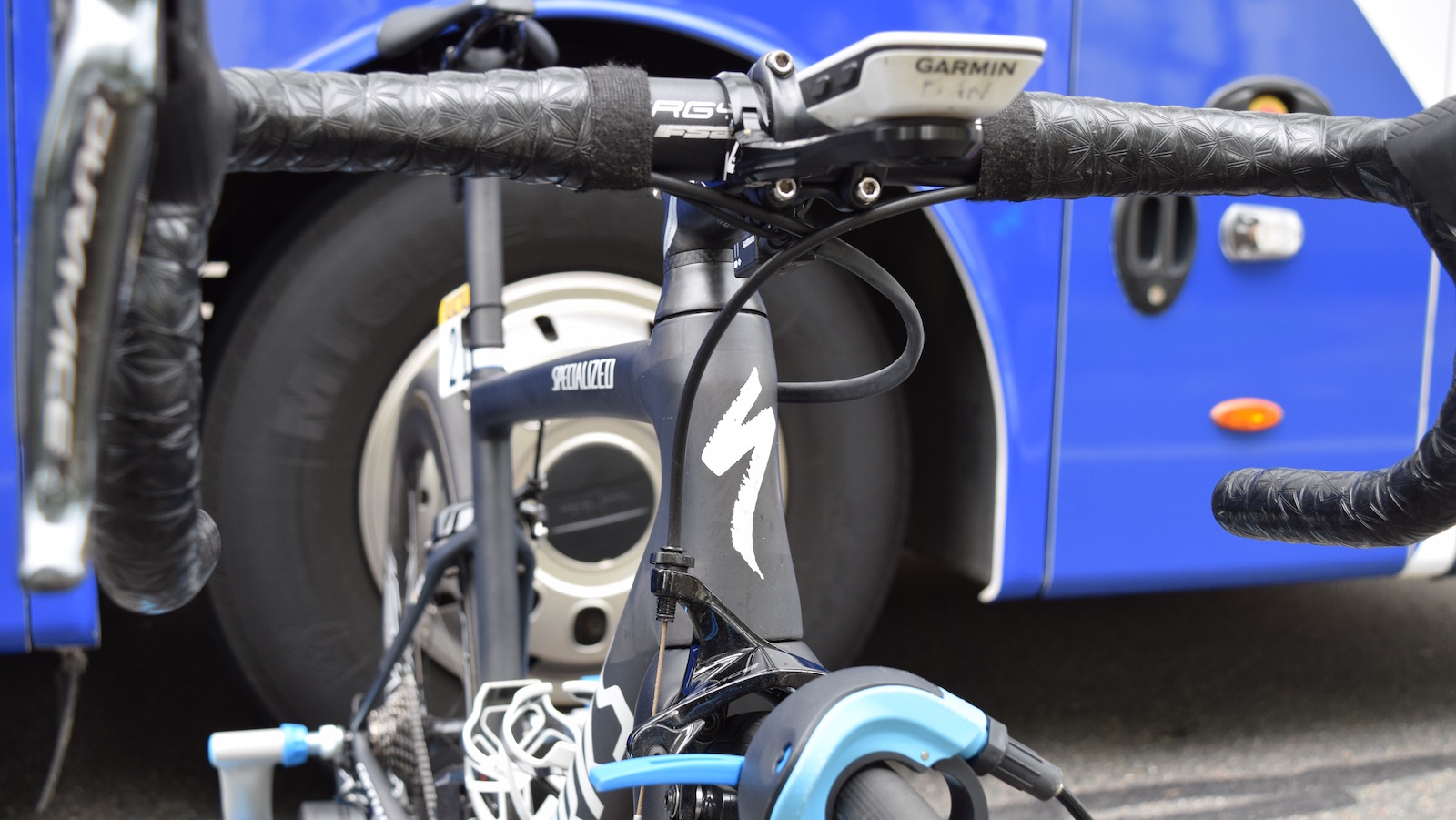

A sharp front end will keep the bike agile and responsive

A sharp front end will keep the bike agile and responsive
(Image credit: Josh Evans / Immediate Media)
Image 13 of 17

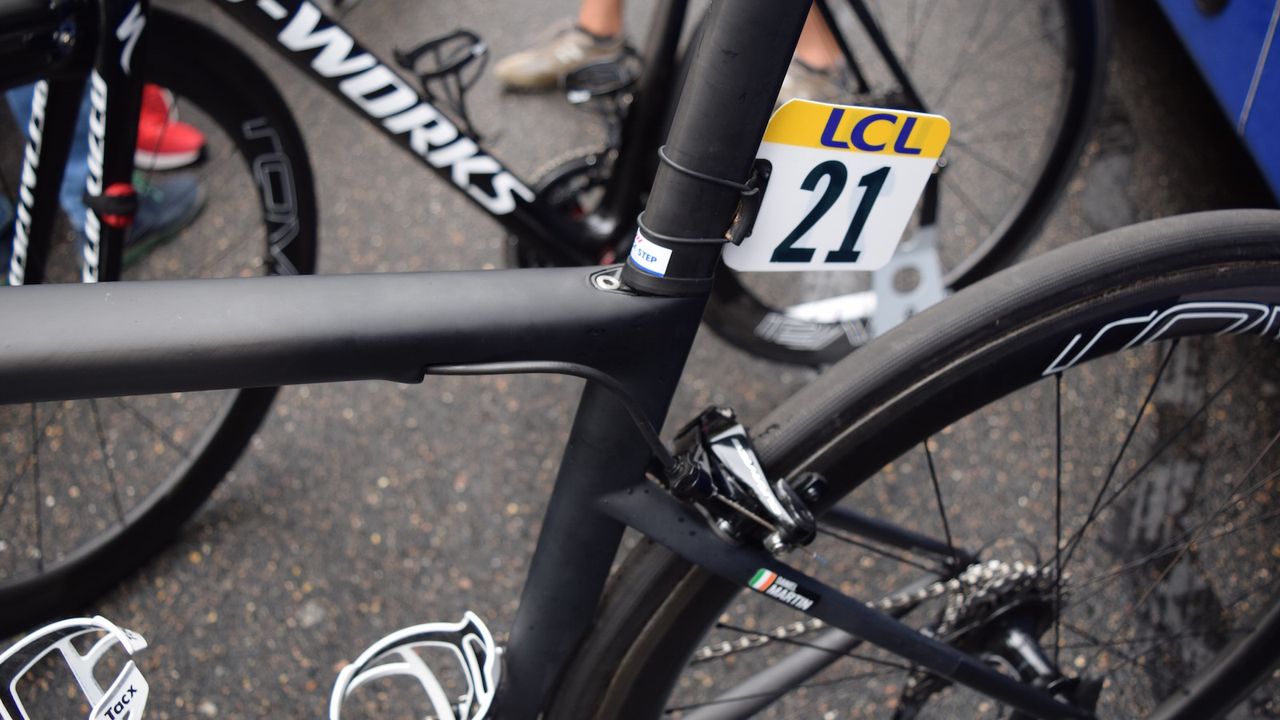

The seat post clamp is positioned on the top tube and is likely a wedge system

The seat post clamp is positioned on the top tube and is likely a wedge system
(Image credit: Josh Evans / Immediate Media)
Image 14 of 17

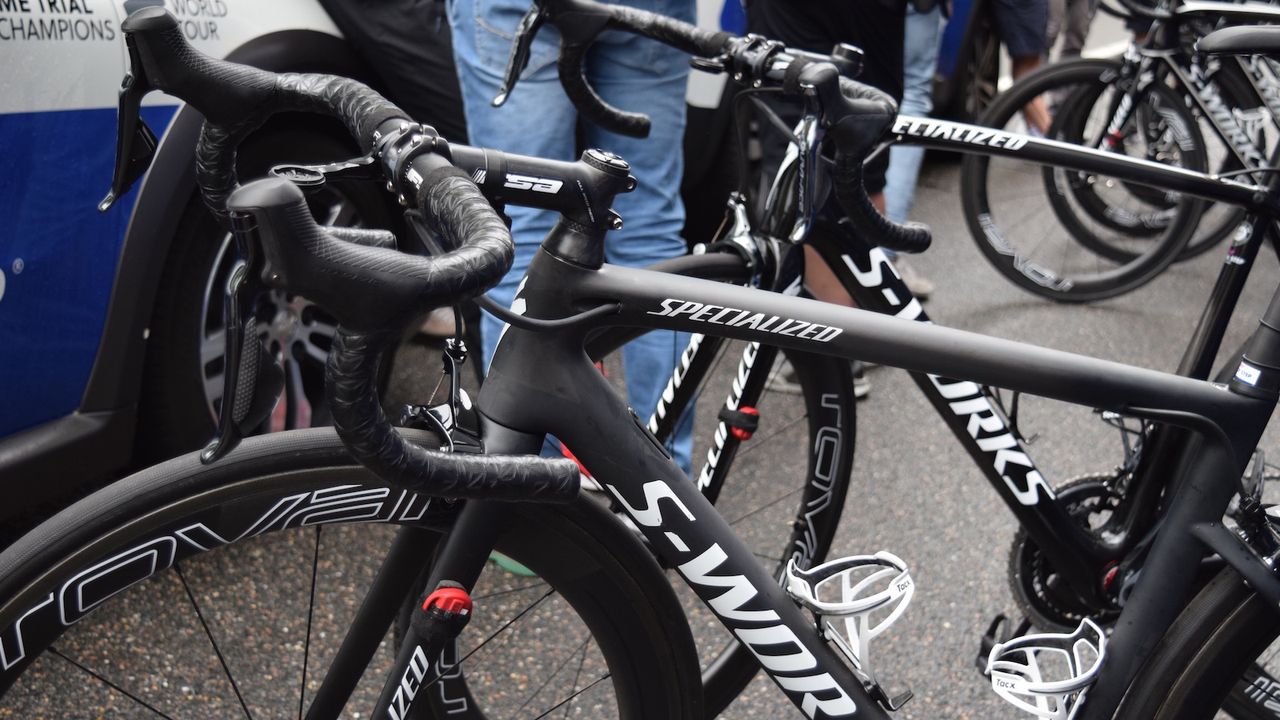

The bike was finished with a FSA cockpit

The bike was finished with a FSA cockpit
(Image credit: Josh Evans / Immediate Media)
Image 15 of 17

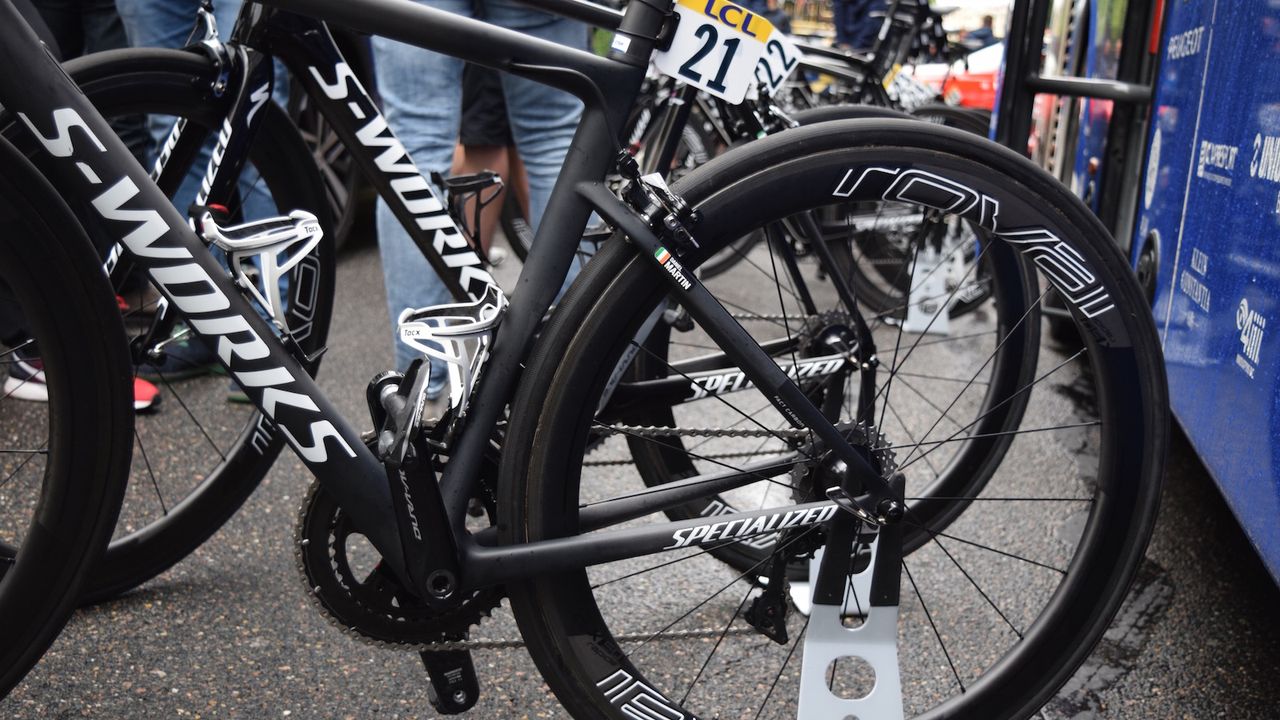

A smaller rear triangle will contribute to a stiffer rear end

A smaller rear triangle will contribute to a stiffer rear end
(Image credit: Josh Evans / Immediate Media)
Image 16 of 17

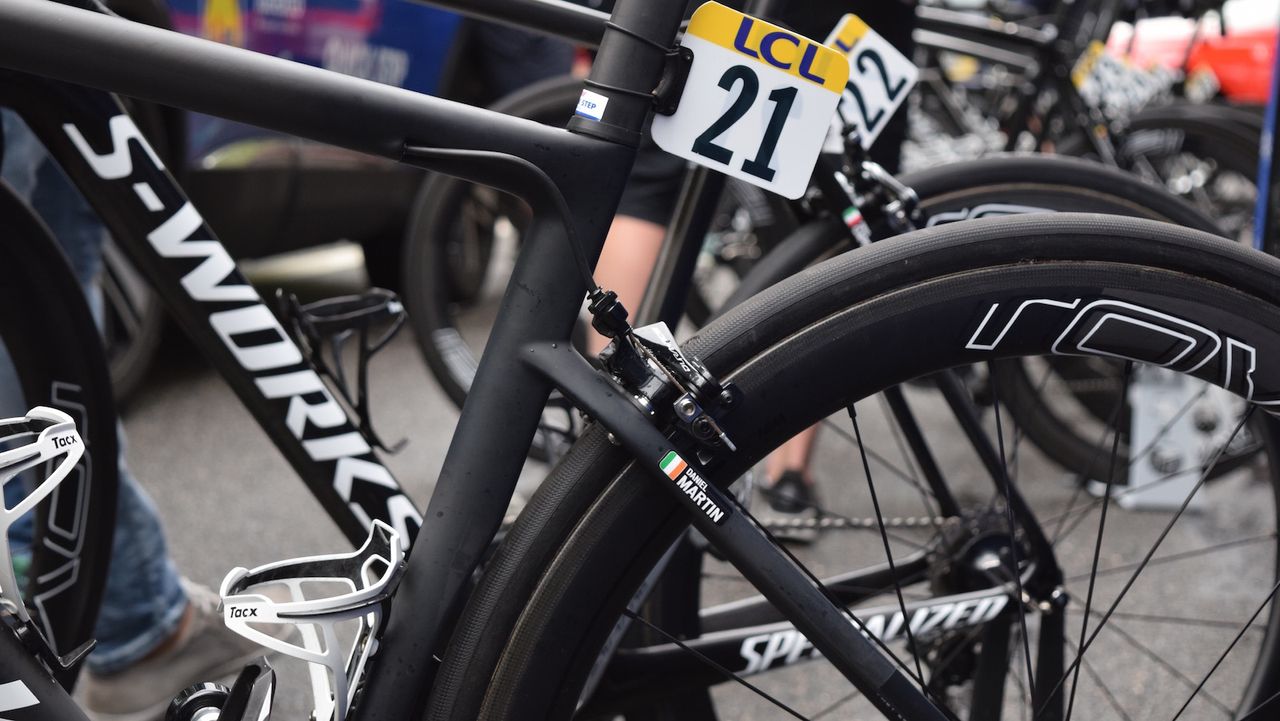

The seat stays are positioned much lower than previous Tarmacs

The seat stays are positioned much lower than previous Tarmacs
(Image credit: Josh Evans / Immediate Media)
Image 17 of 17

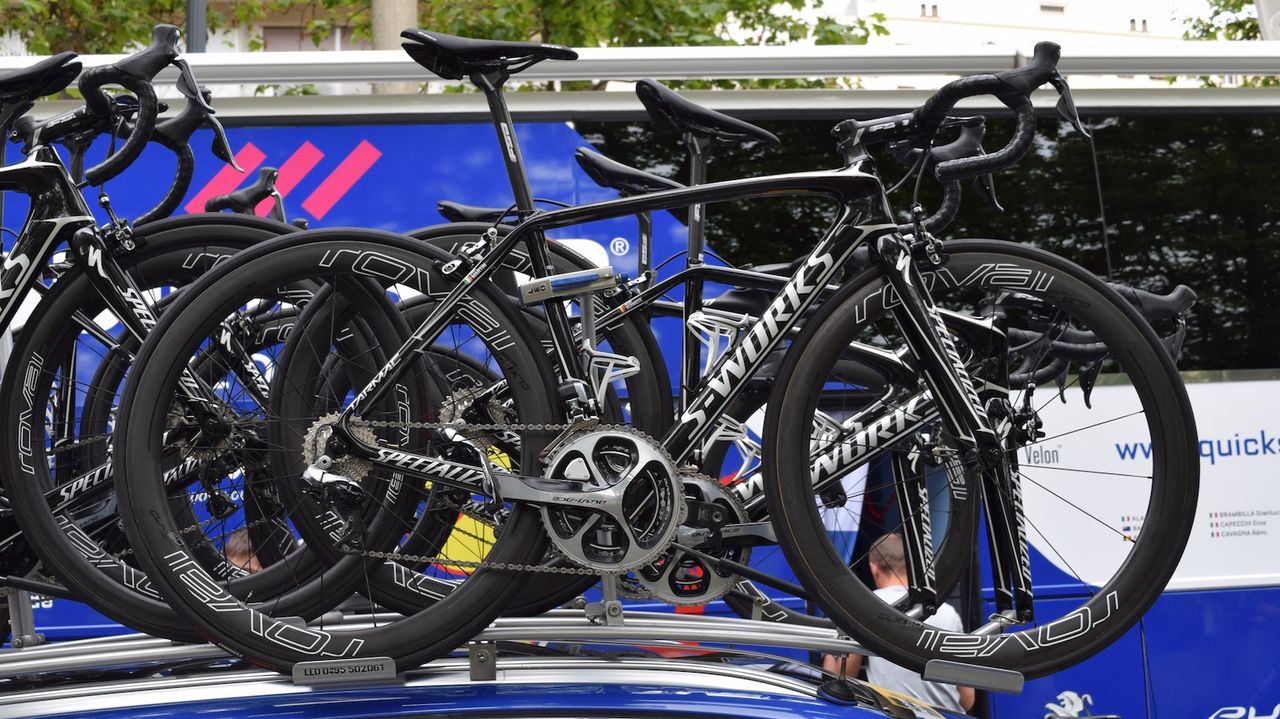

Dan Martin's spare bike is the existing Specialized Tarmac

Dan Martin's spare bike is the existing Specialized Tarmac
(Image credit: Josh Evans / Immediate Media)

Dan Martin (Quick-Step Floors) is riding the Criterium du Dauphine aboard the as unreleased and unannounced Specialized Tarmac. The new frameset is vastly different from its predecessor and takes design features from both the existing Tarmac and aerodynamic Specialized Venge model.

Cyclingnews expects the Tarmac to be launched officially at the Tour de France next month alongside the latest Emonda from Trek. BMC also launched an updated Teammachine SLR01 earlier this week, whilst Team Sky began the 2017 season on the Pinarello Dogma F10.

Specialized have had three new frames approved by the UCI in 2017. Tom Boonen and his teammates used a rim brake Roubaix frameset during the cobbled Classics, although it is unclear if Specialized will produce this version of the frameset for general sale. In April of this year, Specialized submitted two further applications to the UCI, the Tarmac SL6 and the Tarmac 18 Disc.

It is likely that Dan Martin's frame is the Tarmac SL6 and could be available to buy for the 2018 season, alongside the disc version of the frameset.

Specialized, for obvious reasons, chose to keep their response limited when contacted, "Specialized relies on feedback from professional athletes in developing and testing advanced pre-production products in real-world applications. Thanks to this top-level feedback some of these products, or elements of their designs, eventually show up in future retail product offerings. We call this Project Black."

Under UCI rules, all frames, forks and wheels must be approved for competition in the interests of safety and fair competition. The evidence therefore points to Martin's bike being the latest Tarmac frameset.

The frameset has a more compact rear triangle than the existing Tarmac, as well as featuring bladed seat stay tubes that bear a resemblance to the Specialized Venge model. The seat stays are also located much lower on the seat tube than the current Tarmac, where the seat stays join the main triangle at the seat cluster.

Direct mount brakes are located front and rear and Martin's bike has a full Shimano Dura-Ace 9150 groupset.

The seat tube of the frame has a concaved lower section to allow tyre clearance, whilst the upper section is relatively short and intersects with the seat tube before a large amount of seat post is on display. Many professional riders opt for this setup of smaller frames with longer stems and more seat post creating a stiffer frameset and better power transfer.

The seat post is constructed with a 'D' profile, which is seen on a variety of manufacturers' high-end frames, but has not yet been seen on Tarmac.

A raw matt finish is unlikely to be the final design of the frame, although the contrasting white decals match both the Roval wheelset and Shimano groupset catch the eye.

Alongside the Specialized frameset and Shimano groupset, Martin's bike is equipped with Roval CLX 50 wheels, S-Works Turbo 26mm tubular tyres, Supacaz handlebar tape and a FSA cockpit.

Click or swipe through the gallery above for a detailed look at the new Specialized frameset.
