New Specialized aero bike spotted at Criterium du Dauphine

Image 1 of 26

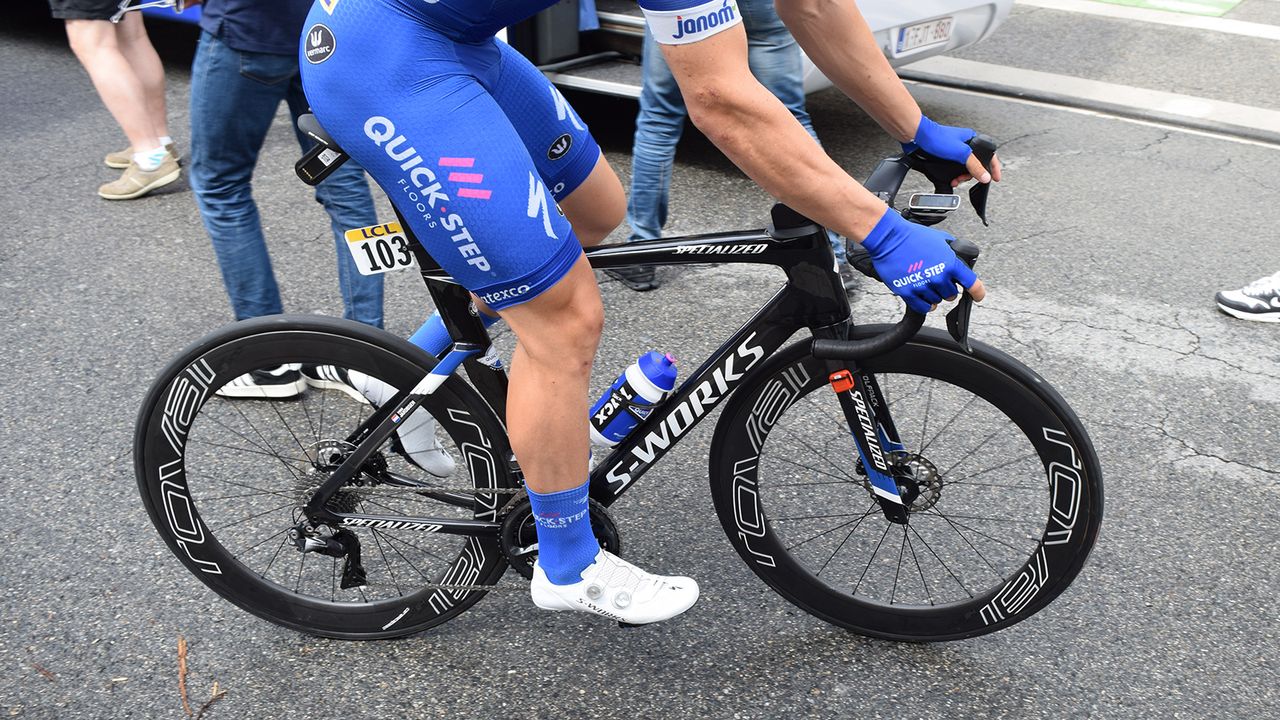

Jakobsen rolls to the start of stage one on the new aero bike

Jakobsen rolls to the start of stage one on the new aero bike
(Image credit: Josh Evans/Immediate Media)
Image 2 of 26

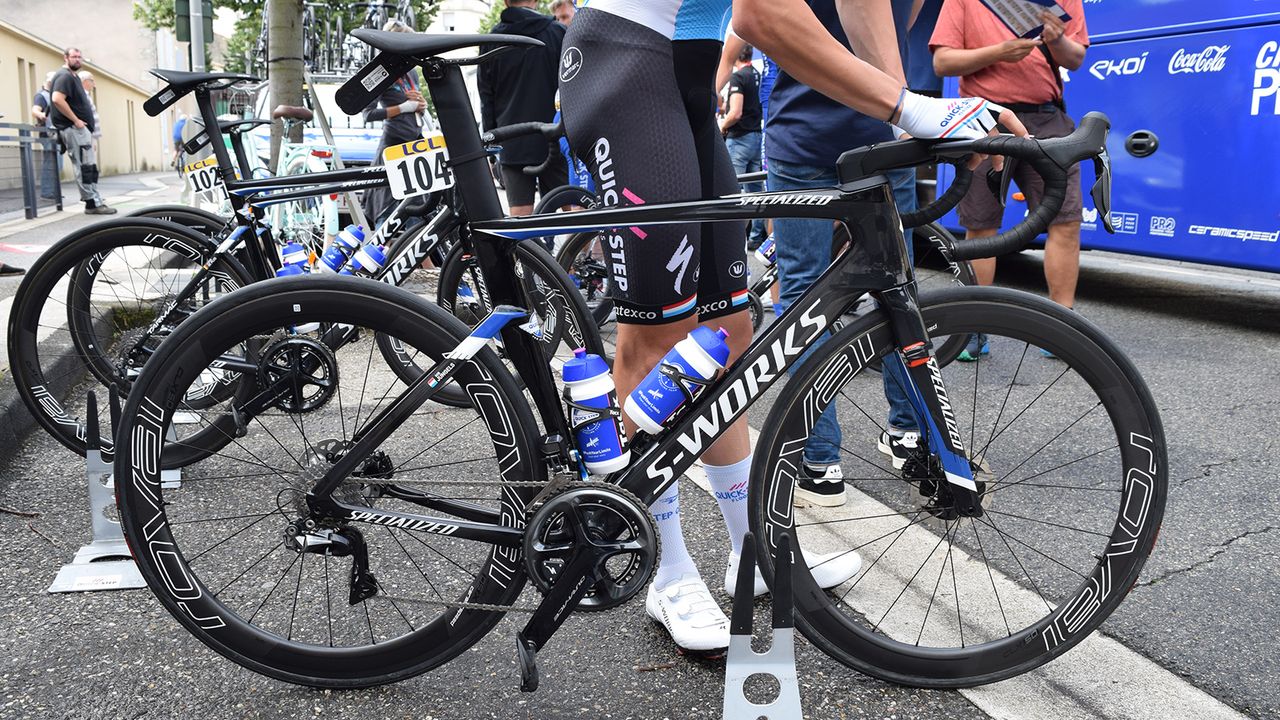

Could this be the new Specialized Venge?

Could this be the new Specialized Venge?
(Image credit: Josh Evans/Immediate Media)
Image 3 of 26

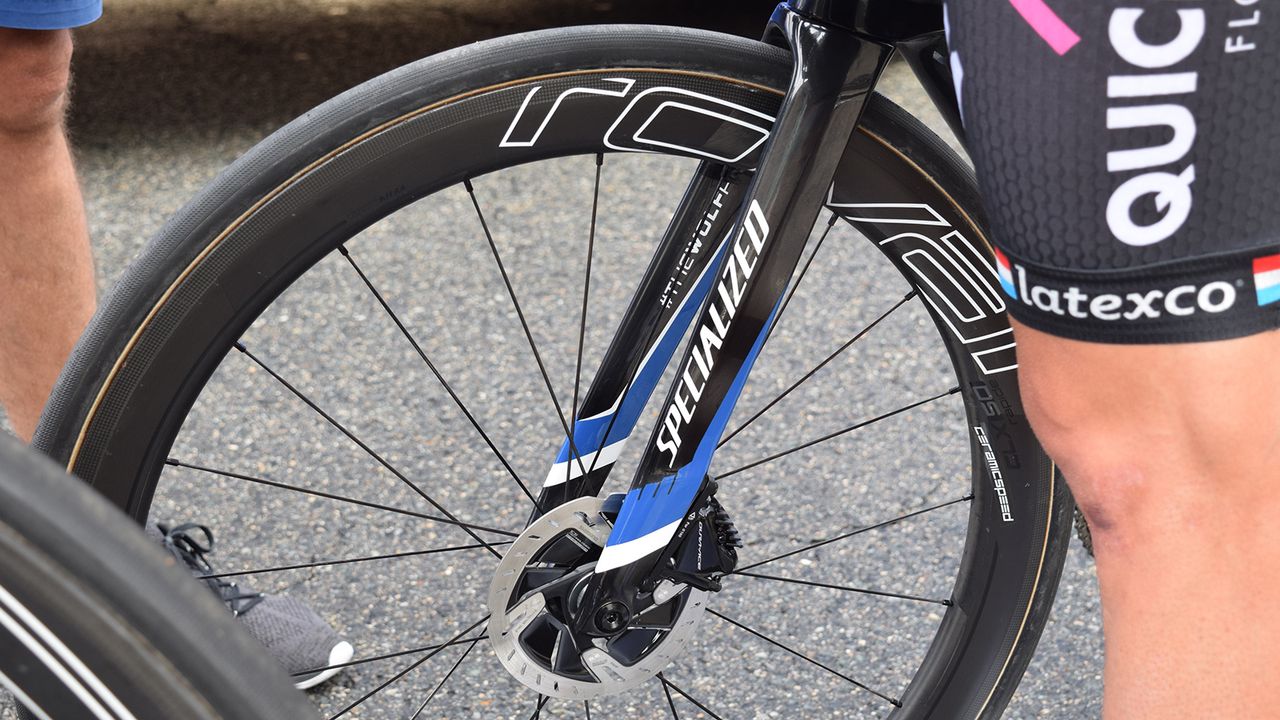

Jungels' bike ran Shimano Dura-Ace disc rotors at the front and non-series rotors at the rear

Jungels' bike ran Shimano Dura-Ace disc rotors at the front and non-series rotors at the rear
(Image credit: Josh Evans/Immediate Media)
Image 4 of 26

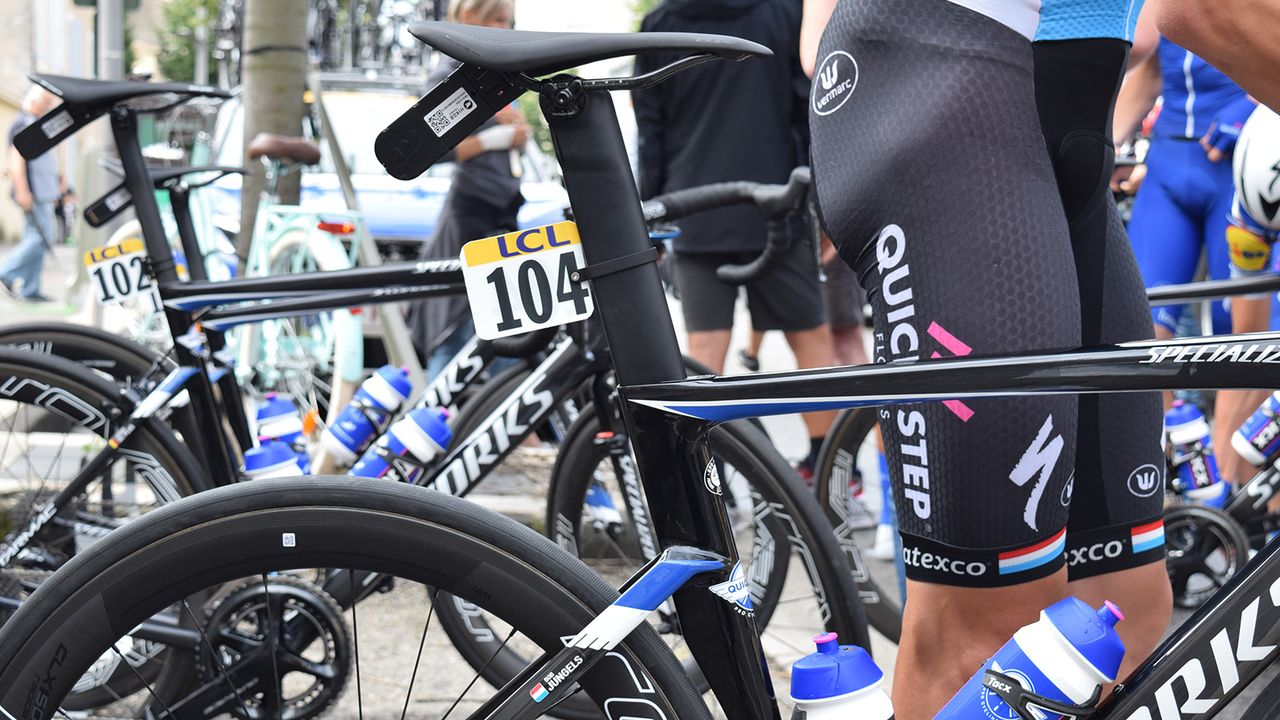

The top tube appears to slope less than the current Venge

The top tube appears to slope less than the current Venge
(Image credit: Josh Evans/Immediate Media)
Image 5 of 26

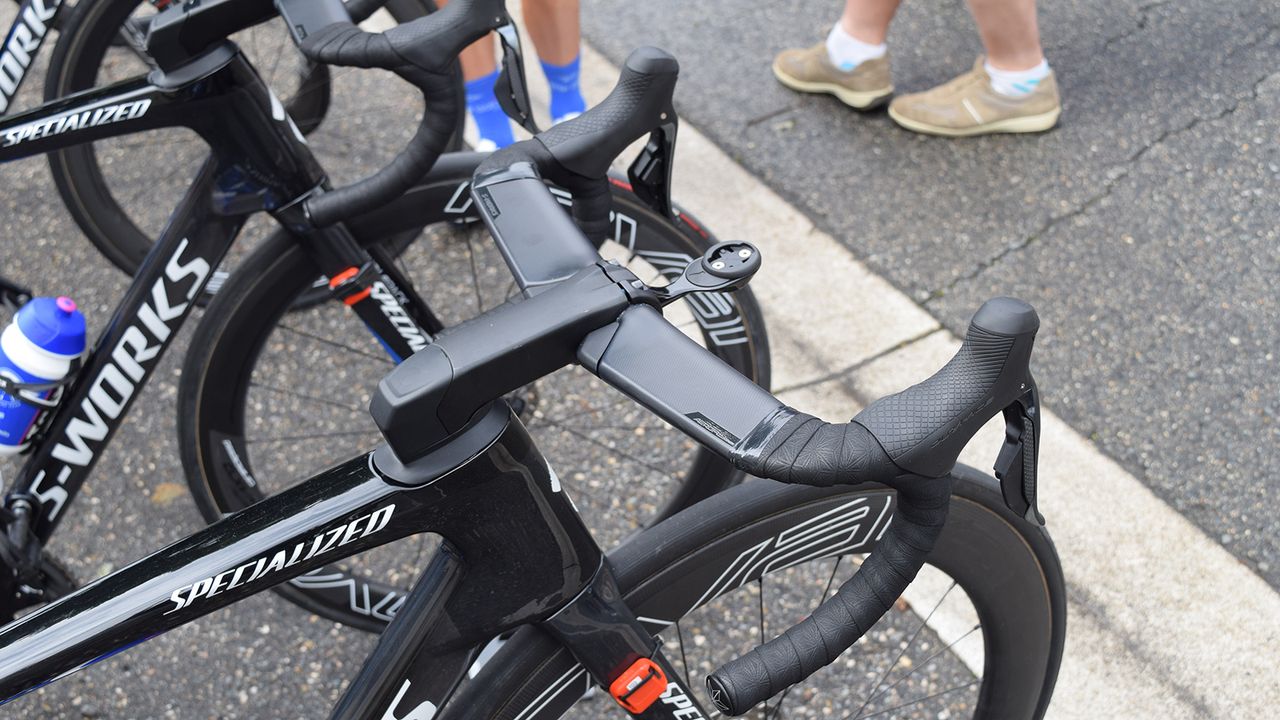

Jakobsen and Jungels had a slightly different stem cap setup to the two Bora-Hansgrohe bikes

Jakobsen and Jungels had a slightly different stem cap setup to the two Bora-Hansgrohe bikes
(Image credit: Josh Evans/Immediate Media)
Image 6 of 26

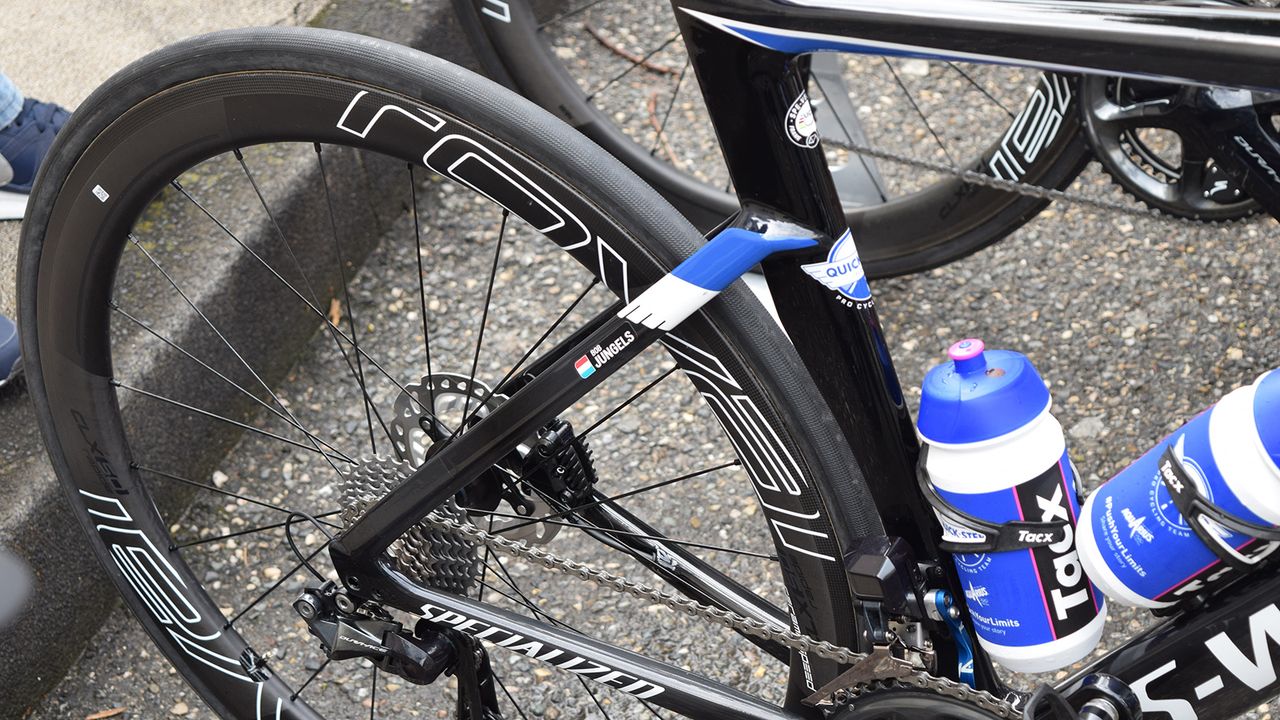

The chainstays on the new frame are slightly deeper than the current Venge, but retains a similar aero design with seatstays that come away from the seat tube

The chainstays on the new frame are slightly deeper than the current Venge, but retains a similar aero design with seatstays that come away from the seat tube
(Image credit: Josh Evans/Immediate Media)
Image 7 of 26

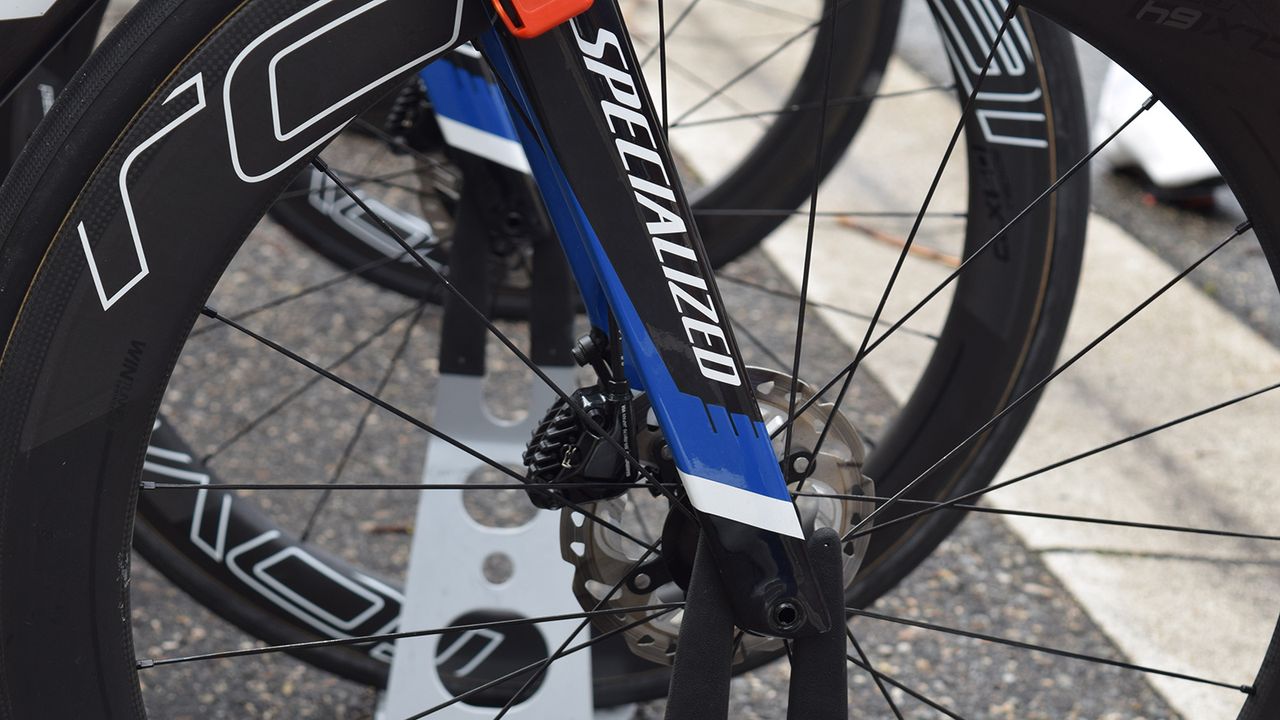

The thru-axle fork looks wider than the current Venge and has a square-taper at the bottom, perhaps taken from the latest fork design on the S-Works Shiv TT bike

The thru-axle fork looks wider than the current Venge and has a square-taper at the bottom, perhaps taken from the latest fork design on the S-Works Shiv TT bike
(Image credit: Josh Evans/Immediate Media)
Image 8 of 26

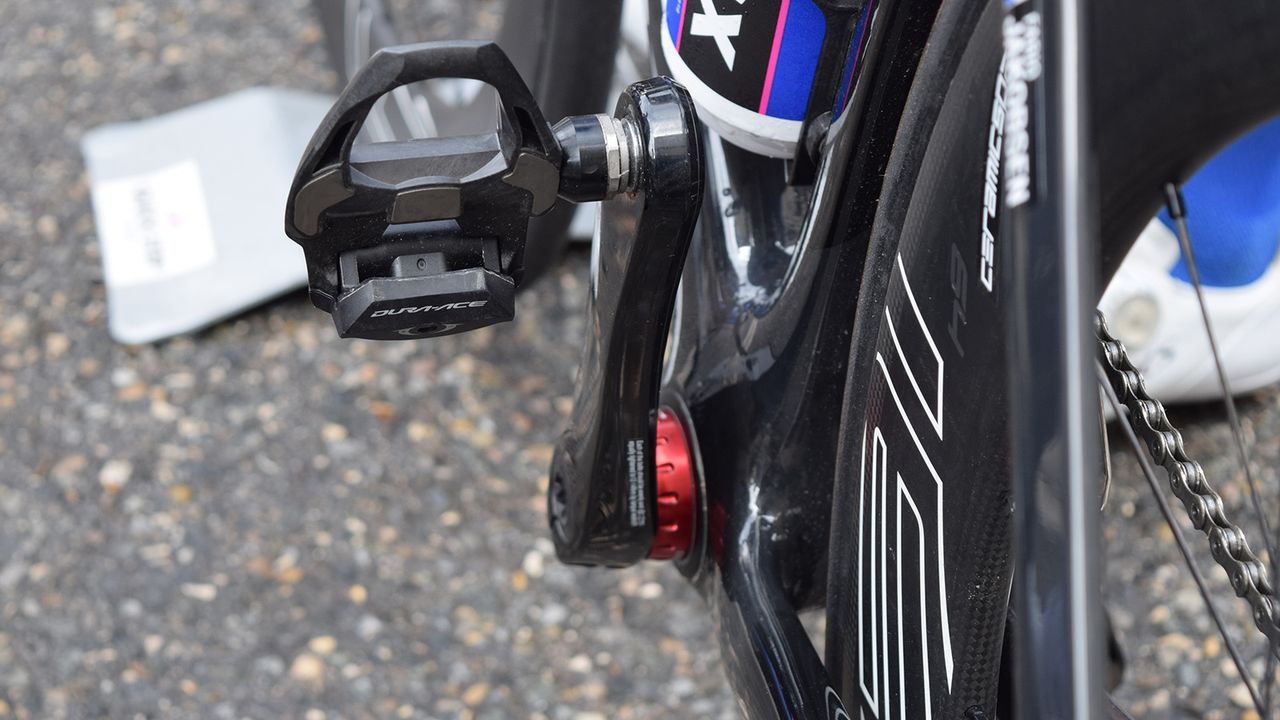

The bottom bracket is a CeramicSpeed BB30 system

The bottom bracket is a CeramicSpeed BB30 system
(Image credit: Josh Evans/Immediate Media)
Image 9 of 26

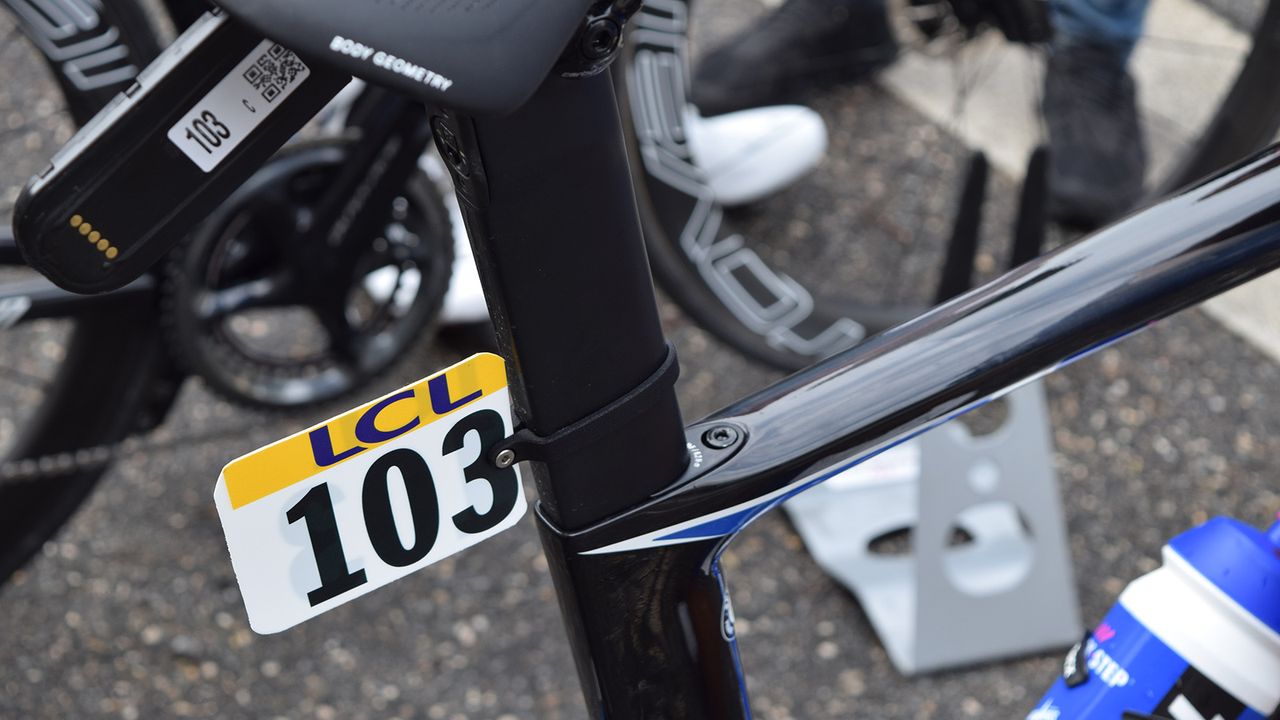

A wedge-system looks to secure the seat post in a similar way to the latest Specialized Tarmac SL6

A wedge-system looks to secure the seat post in a similar way to the latest Specialized Tarmac SL6
(Image credit: Josh Evans/Immediate Media)
Image 10 of 26

Fabio Jakobsen and Bob Jungels were the two Quick-Step Floors riders on the new bikes

Fabio Jakobsen and Bob Jungels were the two Quick-Step Floors riders on the new bikes
(Image credit: Josh Evans/Immediate Media)
Image 11 of 26

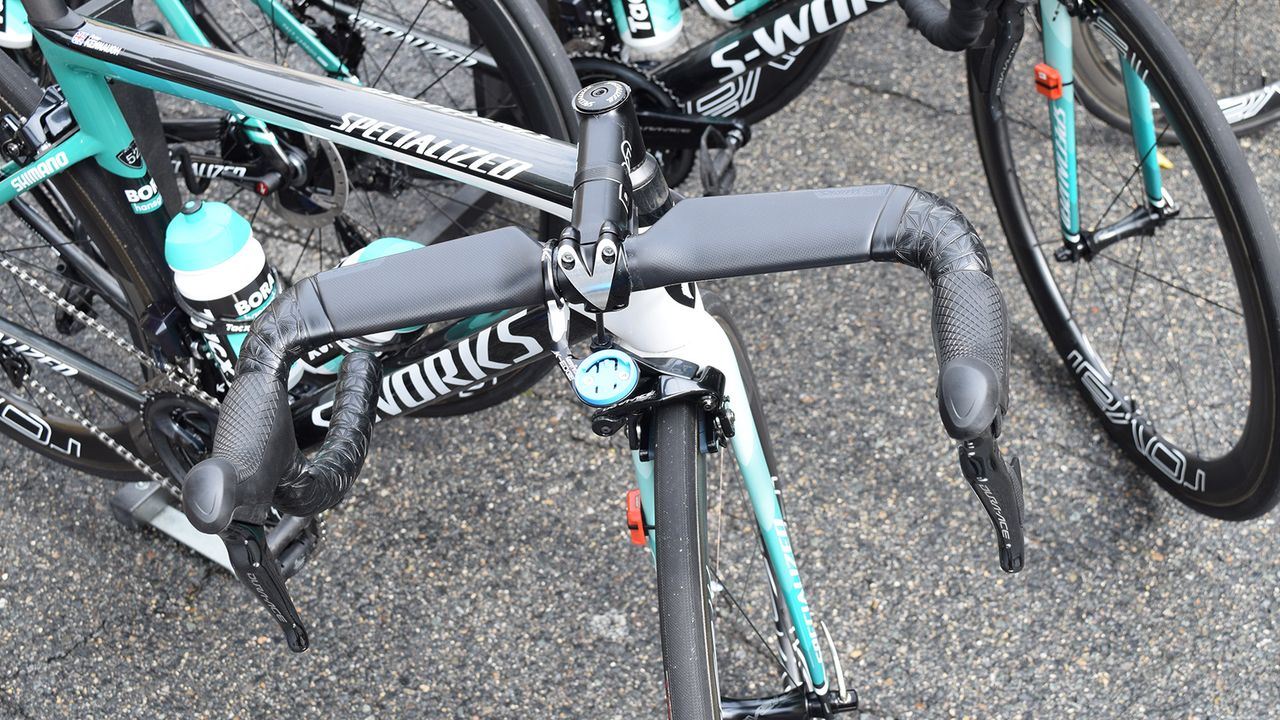

Peter Kennaugh appeared to be running the Aerofly handlebars on his Tarmac, suggesting they are compatible with a regular stem setup

Peter Kennaugh appeared to be running the Aerofly handlebars on his Tarmac, suggesting they are compatible with a regular stem setup
(Image credit: Josh Evans/Immediate Media)
Image 12 of 26

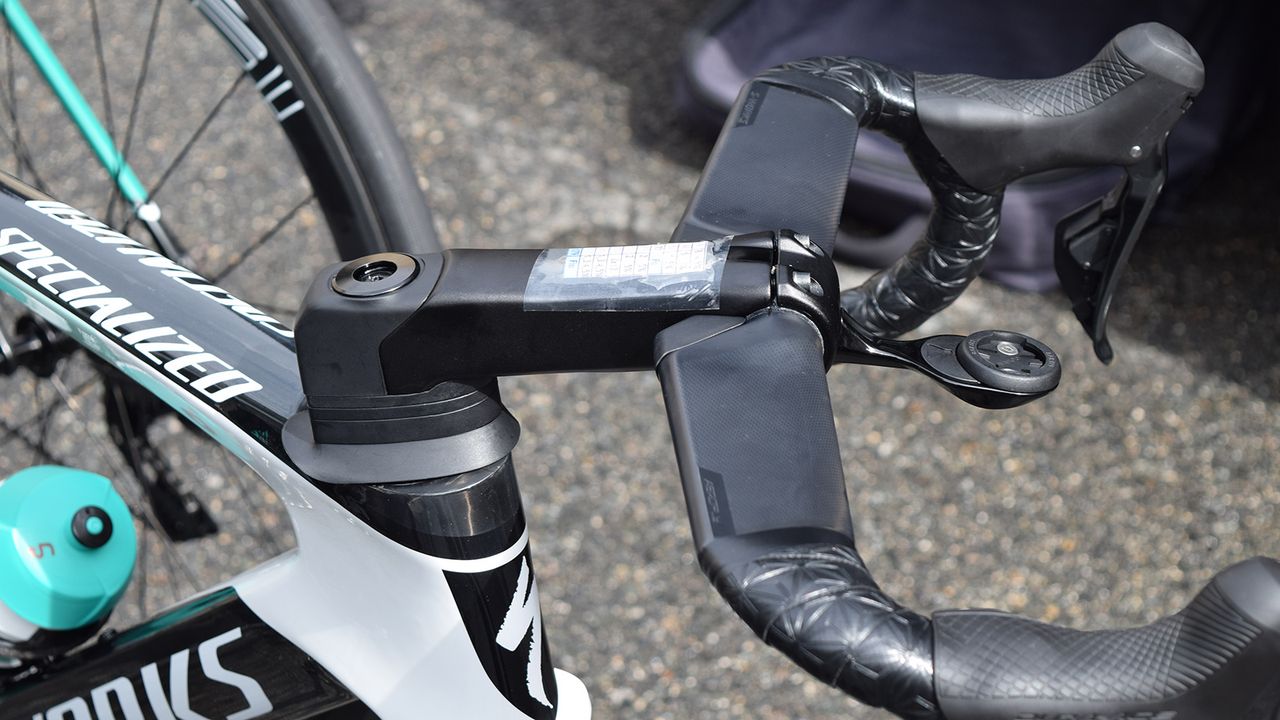

As with the previous Venge, the frame looks to have a proprietary stem system

As with the previous Venge, the frame looks to have a proprietary stem system
(Image credit: Josh Evans/Immediate Media)
Image 13 of 26

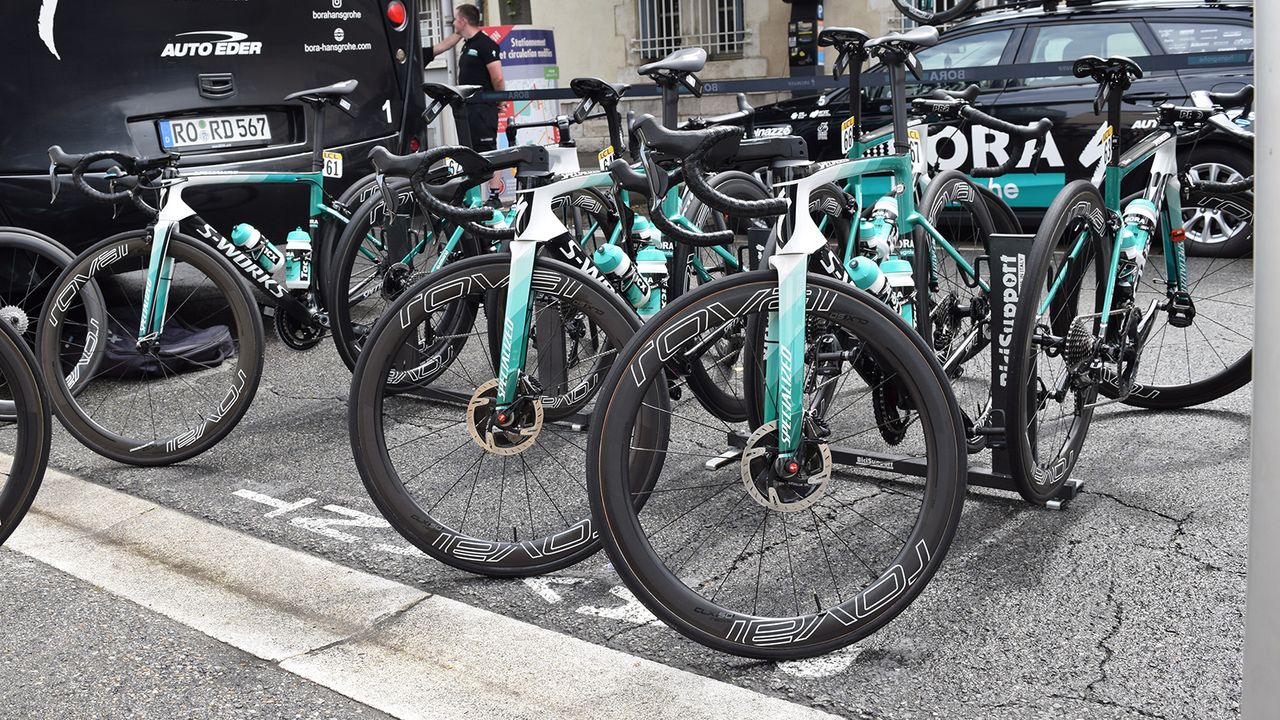

Rudi Selig and Lukas Postlberger looked to be on the new bikes for Bora-Hansgrohe

Rudi Selig and Lukas Postlberger looked to be on the new bikes for Bora-Hansgrohe
(Image credit: Josh Evans/Immediate Media)
Image 14 of 26

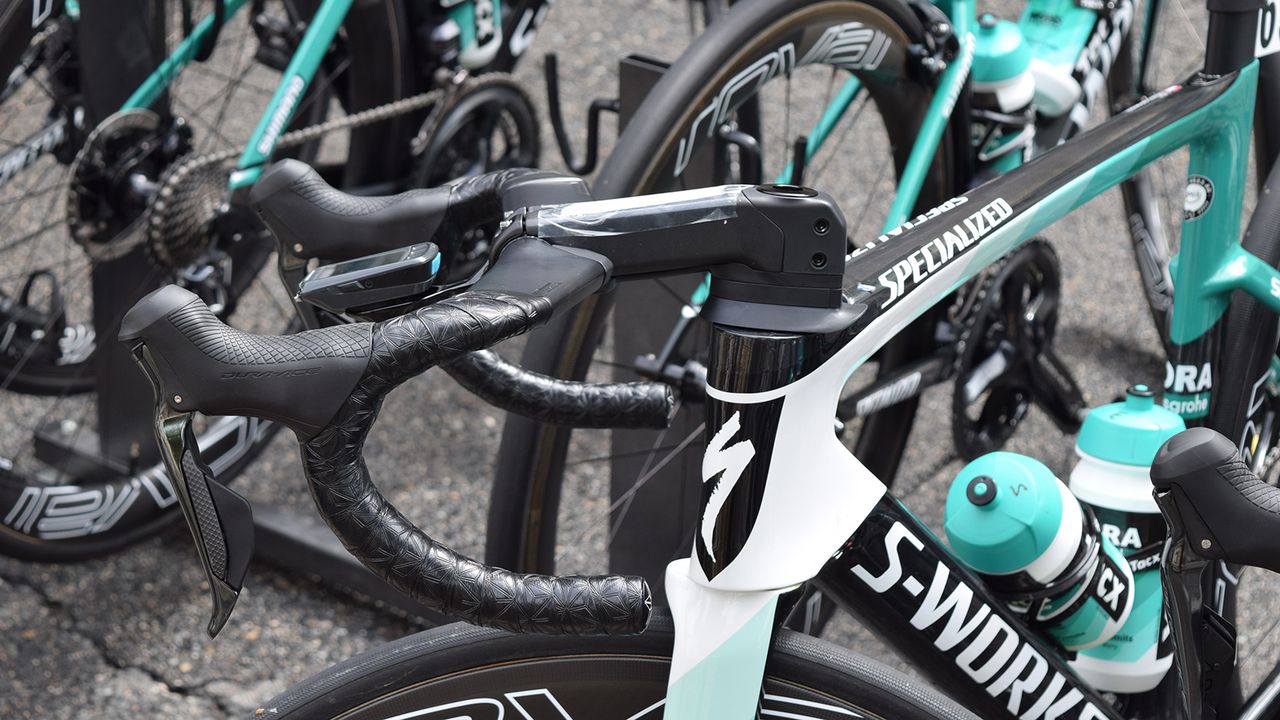

Two tensioning bolts are located on the non-driveside of the stem

Two tensioning bolts are located on the non-driveside of the stem
(Image credit: Josh Evans/Immediate Media)
Image 15 of 26

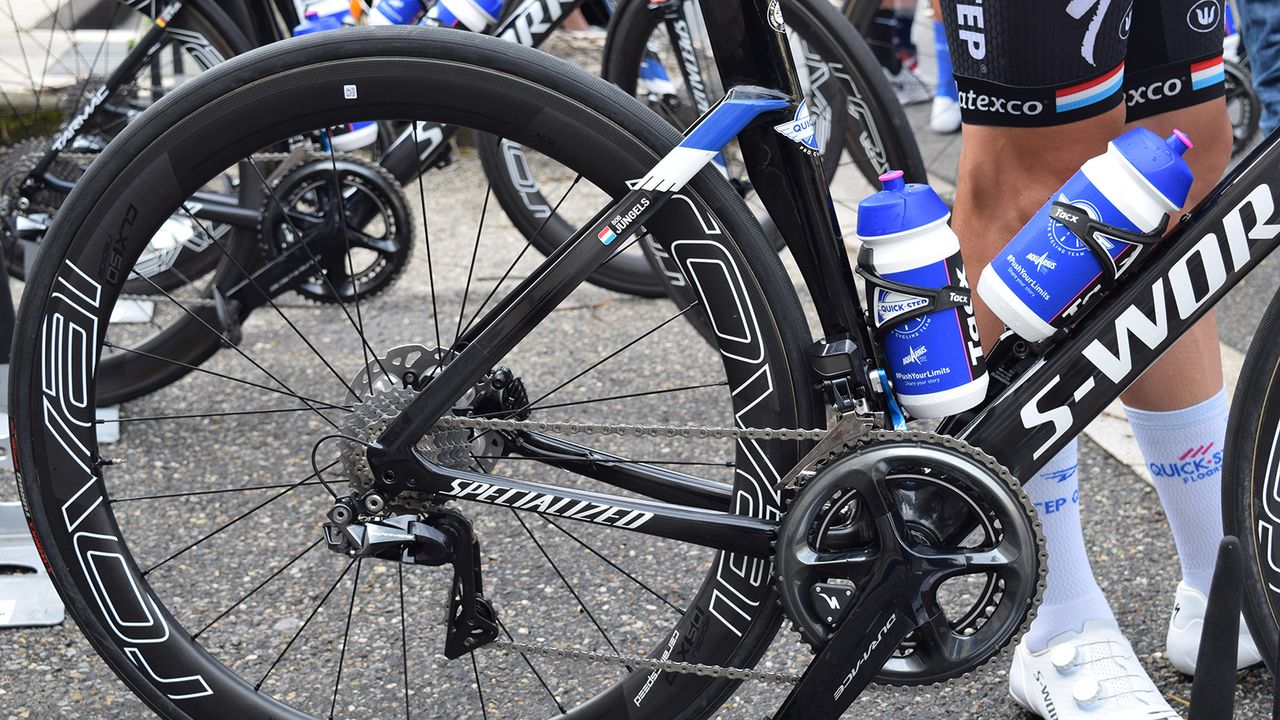

A look at the rear triangle on the bike

A look at the rear triangle on the bike
(Image credit: Josh Evans/Immediate Media)
Image 16 of 26

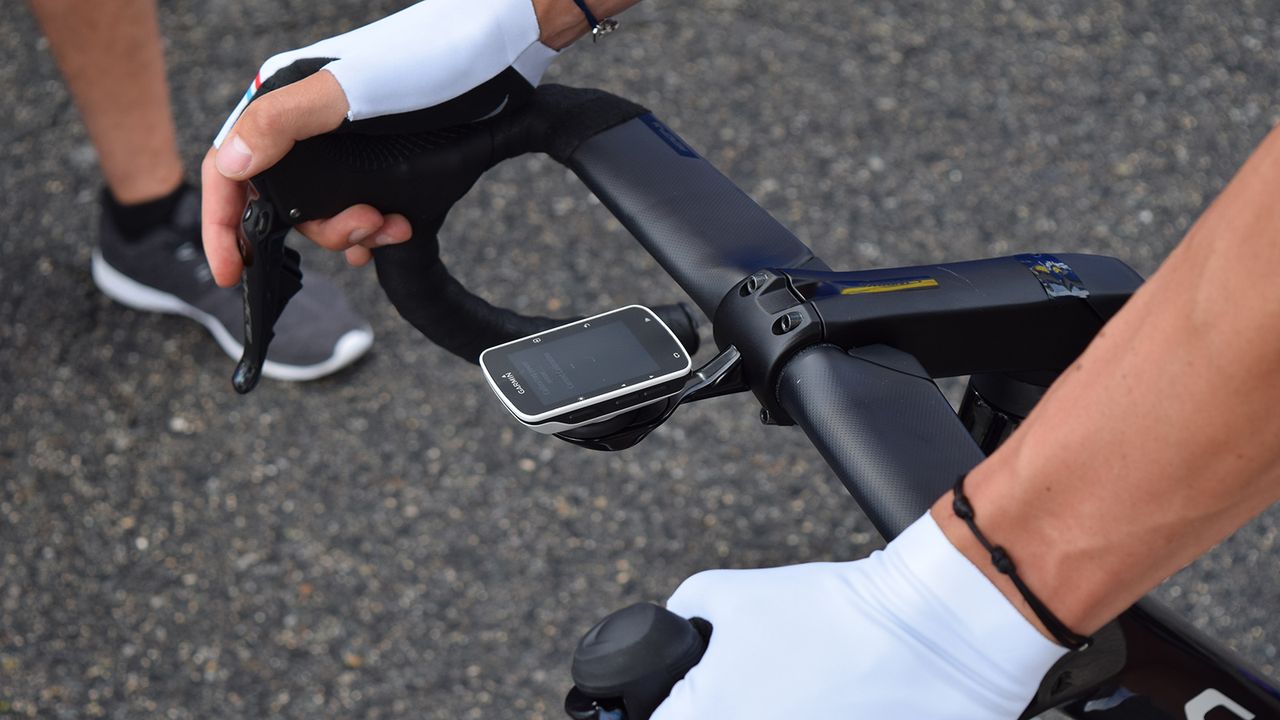

The stem face plate looks to have an integrated computer mount

The stem face plate looks to have an integrated computer mount
(Image credit: Josh Evans/Immediate Media)
Image 17 of 26

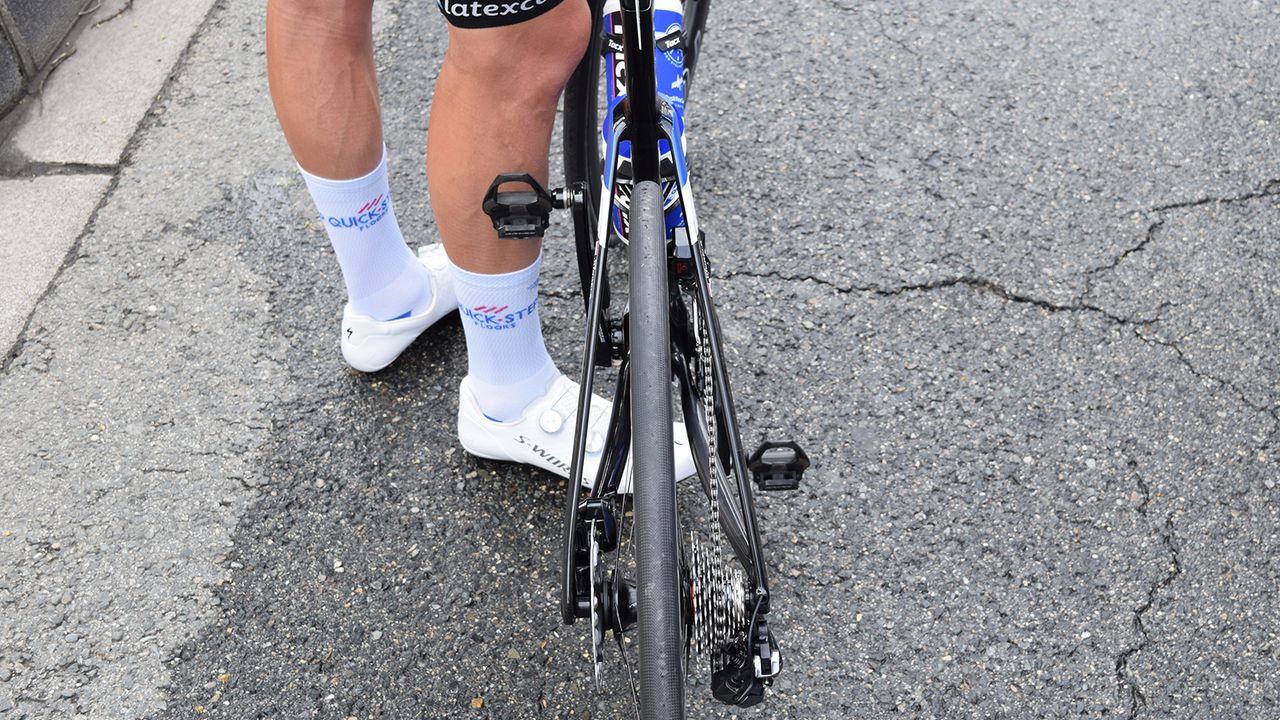

Flared seat stays allow air to flow through the frame as well as around it

Flared seat stays allow air to flow through the frame as well as around it
(Image credit: Josh Evans/Immediate Media)
Image 18 of 26

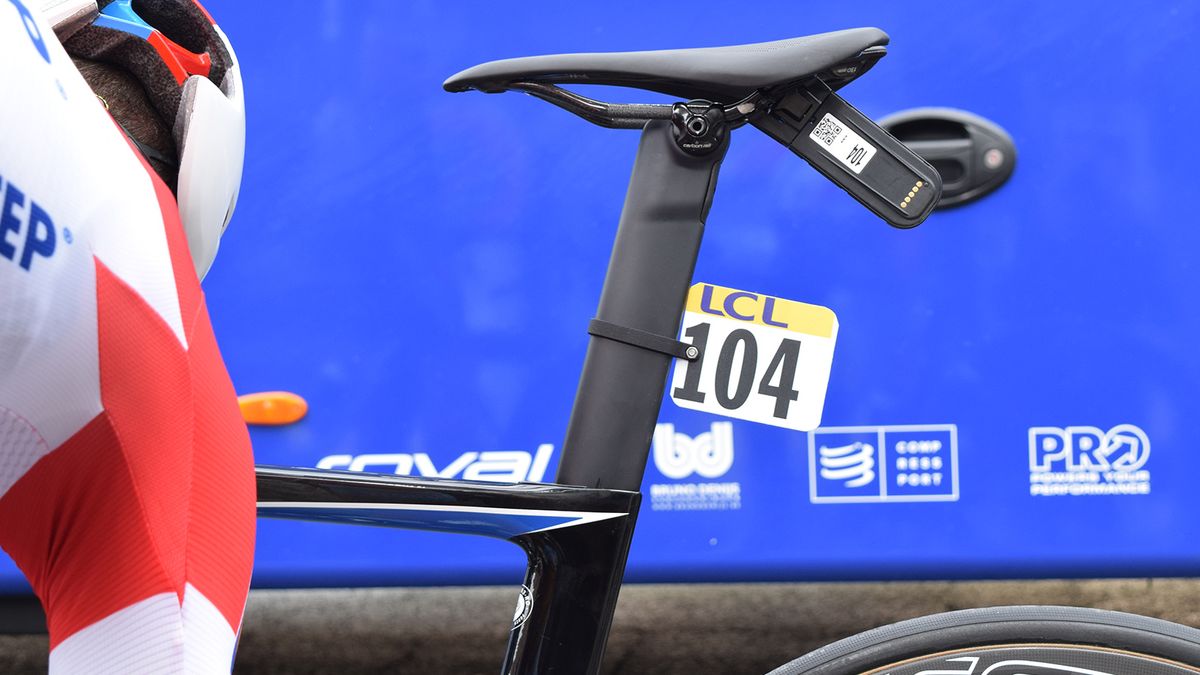

The seat post looks to widen at the top, presumable to house the Di2 junction box

The seat post looks to widen at the top, presumable to house the Di2 junction box
(Image credit: Josh Evans/Immediate Media)
Image 19 of 26

tape all the way to the stem and custom housing on Katie Compton's Trek Boone

tape all the way to the stem and custom housing on Katie Compton's Trek Boone
(Image credit: Josh Evans/Immediate Media)
Image 20 of 26

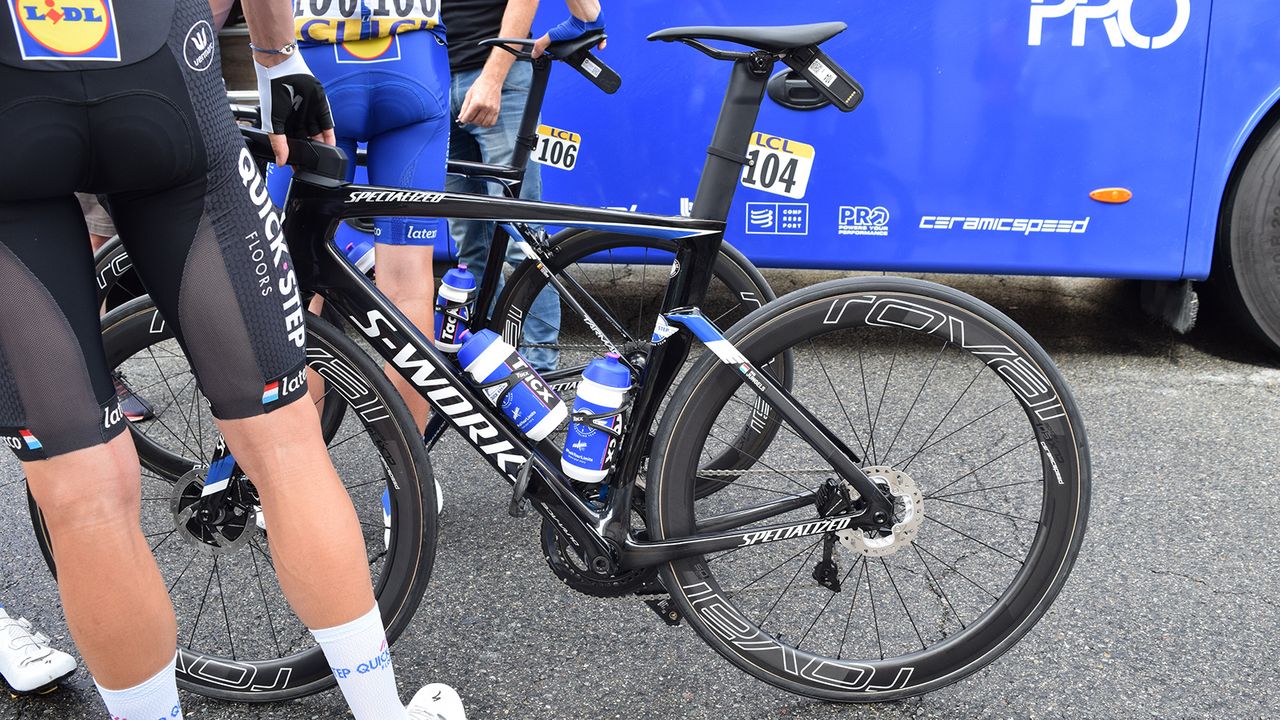

A look at the non-drive side of the bike

A look at the non-drive side of the bike
(Image credit: Josh Evans/Immediate Media)
Image 21 of 26

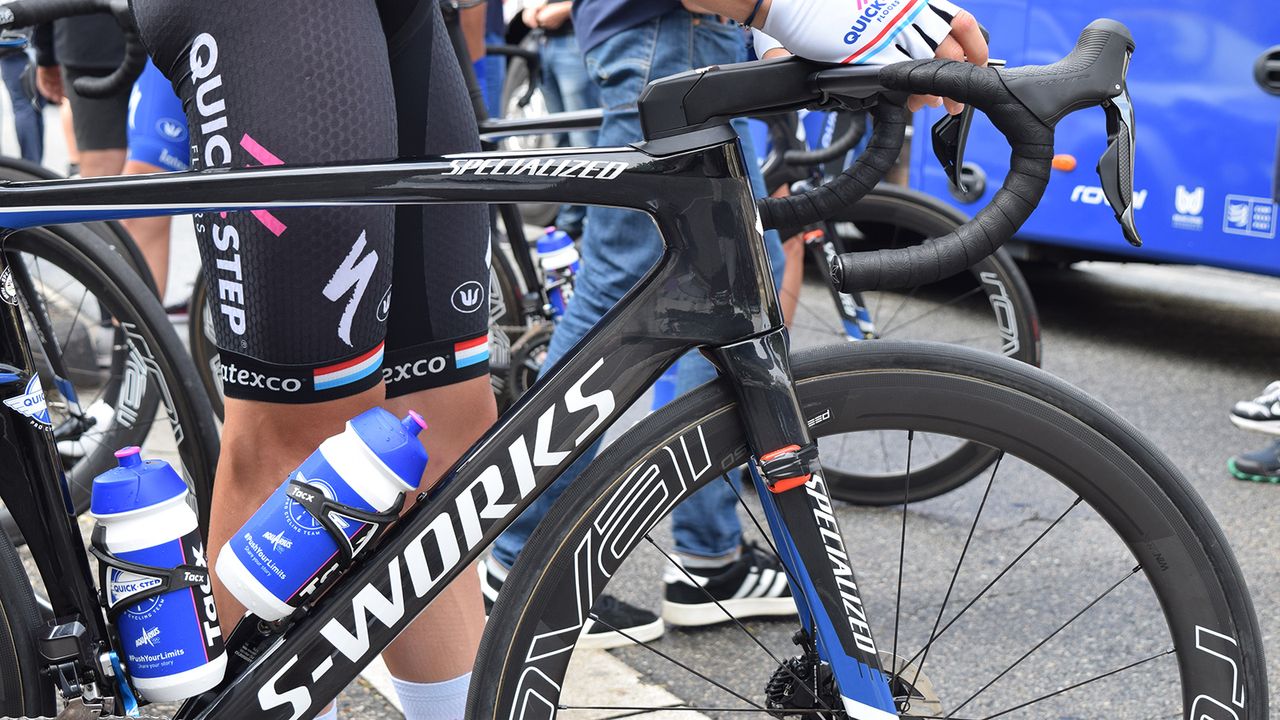

The new fork design looses the oversized crown, while a swoop at the top of the down tube may reduce air turbulance as it passes the frame

The new fork design looses the oversized crown, while a swoop at the top of the down tube may reduce air turbulance as it passes the frame
(Image credit: Josh Evans/Immediate Media)
Image 22 of 26

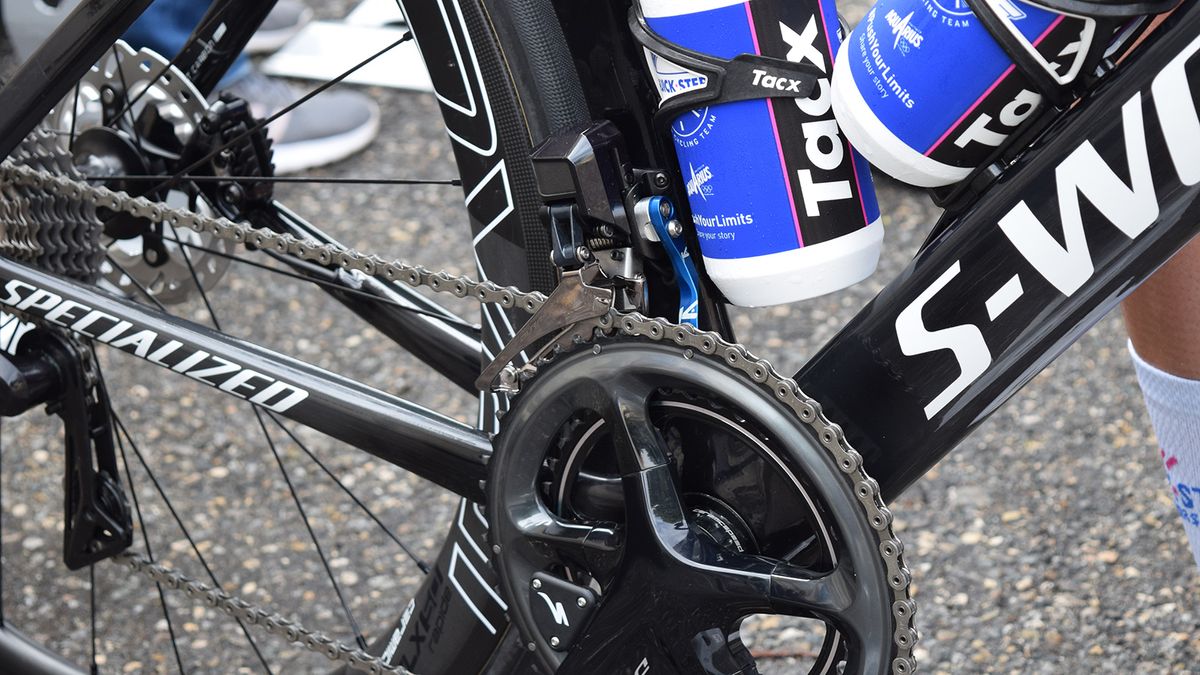

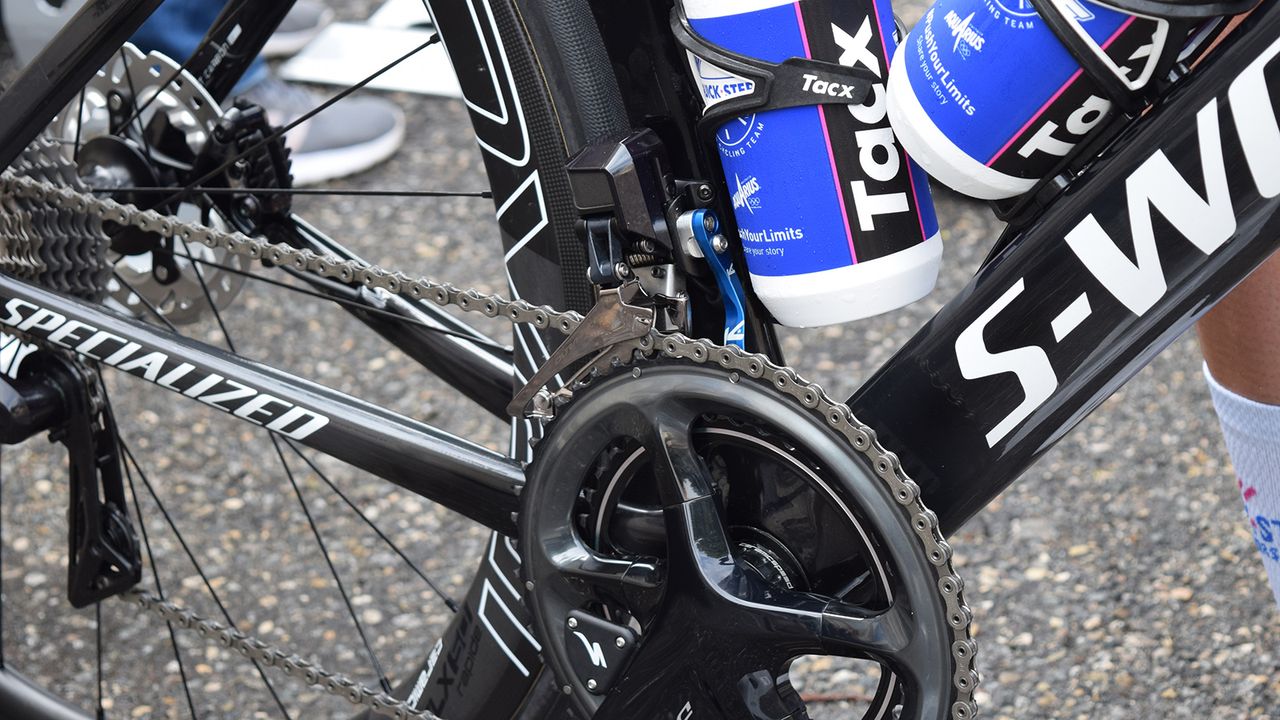

The front derailleur mount looks to be removable, allowing for a tidy setup in a 1X option

The front derailleur mount looks to be removable, allowing for a tidy setup in a 1X option
(Image credit: Josh Evans/Immediate Media)
Image 23 of 26

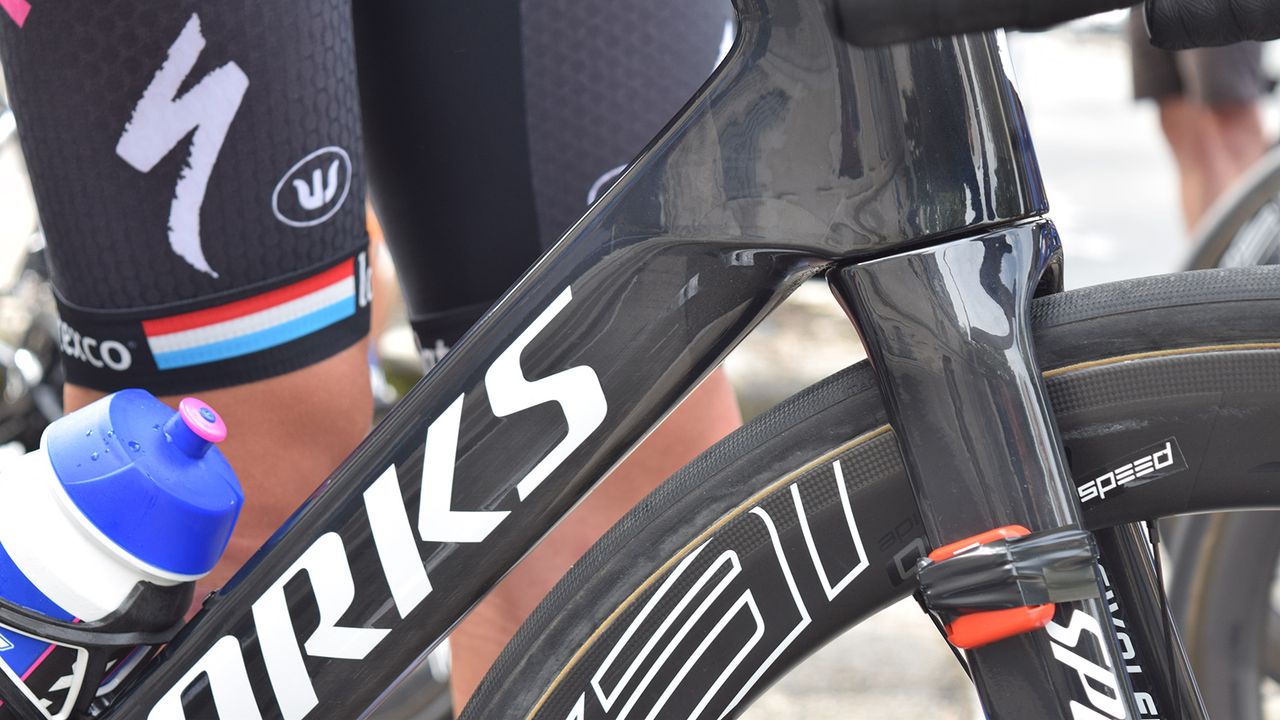

A closer look at the fork crown and down tube design

A closer look at the fork crown and down tube design
(Image credit: Josh Evans/Immediate Media)
Image 24 of 26

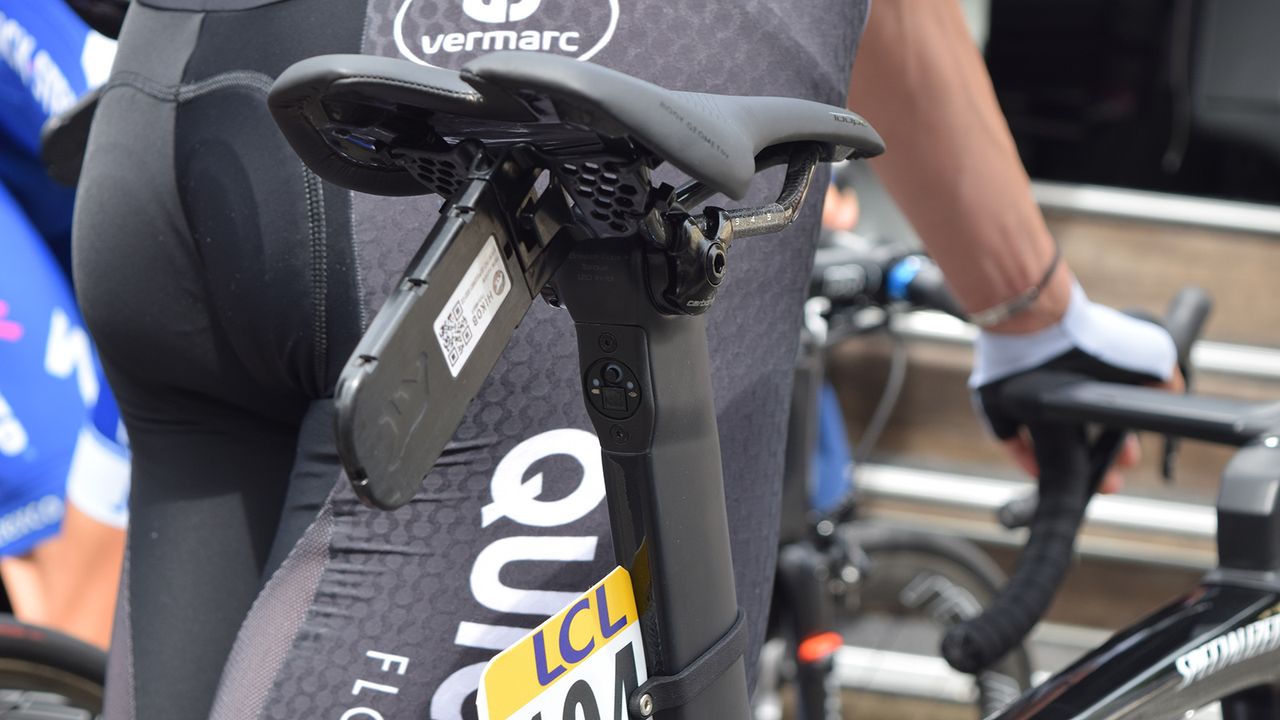

The Di2 junction box looks to be located at the top of the seat post

The Di2 junction box looks to be located at the top of the seat post
(Image credit: Josh Evans/Immediate Media)
Image 25 of 26

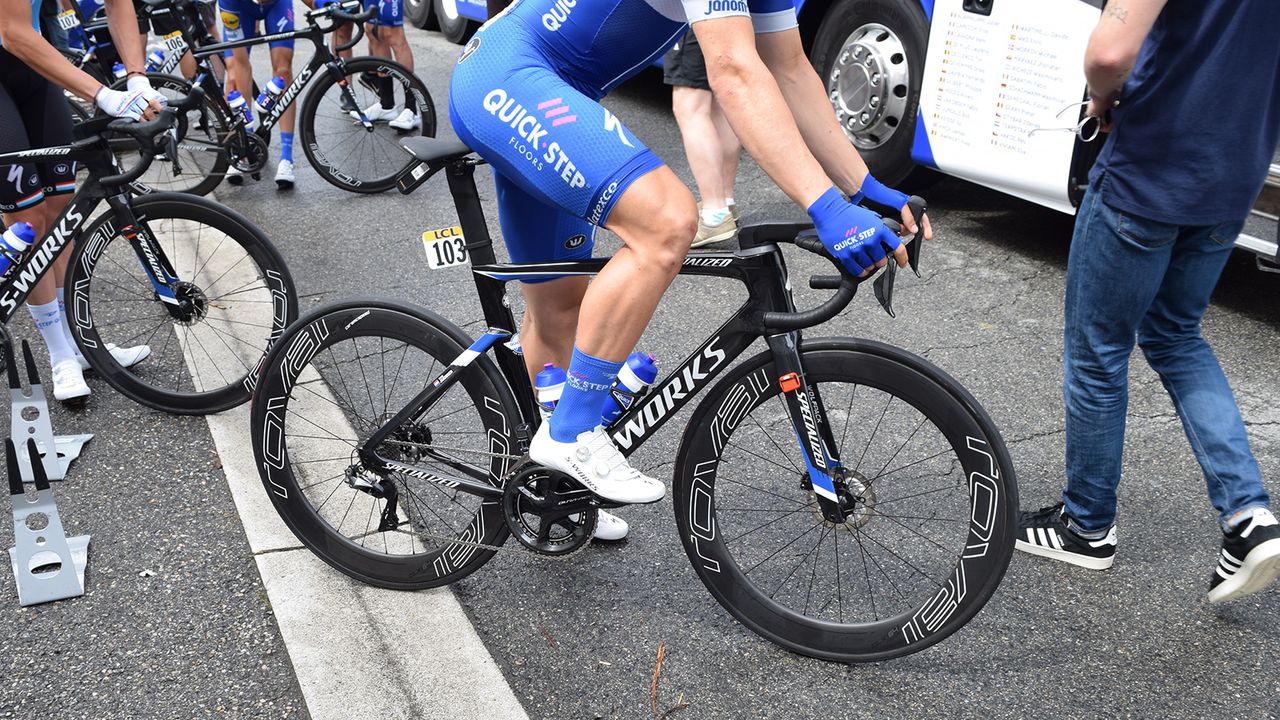

Only disc brake versions of the bike were seen and it would be no surprise if a rim brake version was not offered by Specialized

Only disc brake versions of the bike were seen and it would be no surprise if a rim brake version was not offered by Specialized
(Image credit: Josh Evans/Immediate Media)
Image 26 of 26

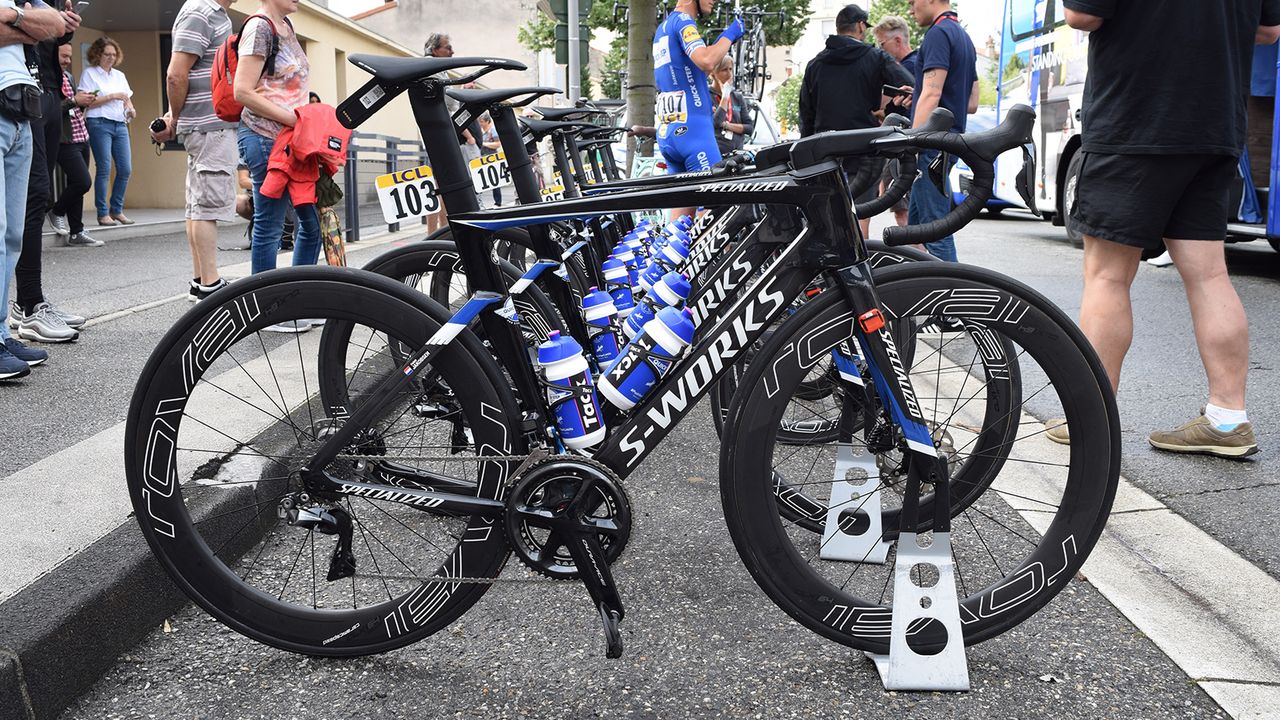

Young Dutch sprinter Fabio Jakobsen raced stage 1 of the Dauphine on the new bike

Young Dutch sprinter Fabio Jakobsen raced stage 1 of the Dauphine on the new bike
(Image credit: Josh Evans/Immediate Media)

Quick-Step Floors and Bora-Hansgrohe lined up for the opening road race stage of the Criterium du Dauphine with two riders from each team aboard a previously unseen aero bike from bike sponsor Specialized.

The new bike shares several design features from the current iteration of the aero-specific S-Works Venge model and although the frame model decals on the chainstays were masked with electrical tape, it is highly likely this is an updated S-Works Venge Disc frameset.

Several subtle design updates appear on the new frame. However the most obvious update looks the be on the forks. A deeper fork blade, square-taper at the dropout area (although the forks are thru-axle) and the removal of the deep fork crown on the current model all seem to be design features taken from the latest Shiv fork - Specialized's time trial frameset.

At the head of the down tube, an indent in the tube looks to encourage stability as air flows over the frame.

Like the fork, several areas of the frame seem to have deeper, truncated tubing, which is likely to reduce turbulence and improve aerodynamics. The most obvious tubing design updates are on the aforementioned fork alongside the seat stays and head tube.

While the current version of the Venge appears to have more of a sloping down tube, the new frameset seen at the Dauphine appears to have a flatter profile and loses the raised crown at the head of the top tube.

Interestingly, at first glance the seatpost looks to be similar to the existing Venge-specific post, the seatpost flares at the top just below the saddle to accommodate the Di2 junction box to the rear, which keeps the frame profile as smooth as possible.

As with the existing Venge - and is a common trend with the latest marquee framesets - the aero bike appears to have an integrated stem system, although Quick-Step Floors and Bora-Hansgrohe looked to have different stem cap systems.

As well as the new frame and stem, new aero handlebars were seen on the new bikes and Peter Kennaugh (Bora-Hansgrohe) also looked to be running them on a regular stem on his S-Works Tarmac SL6 frameset. Labelled up as S-Works Aerofly, the swoop, shape and carbon lay-up look to be different from the current iteration of the range-topping aero handlebars.

The four bikes spotted at the Criterium du Dauphine were all equipped with disc brakes. As with the latest Specialized Roubaix, it is highly likely Specialized will only produce a disc version of the frameset as key design features of the fork and rear end would need to be redesigned for calipers.

Click or swipe through the gallery above for a detailed look at the new aero frameset from Specialized.
