The end of the threaded bottom bracket?

Image 1 of 43

It may be sooner rather than later

It may be sooner rather than later
Image 2 of 43

The bottom bracket itself is remarkably simple

The bottom bracket itself is remarkably simple
Image 3 of 43

Cannondale was the first to develop and use BB30

Cannondale was the first to develop and use BB30
Image 4 of 43

Among the BB30 adopters is Jamis

Among the BB30 adopters is Jamis
Image 5 of 43

Titus brought its Isogrid concept off-road

Titus brought its Isogrid concept off-road
Image 6 of 43

Titus also displayed an Exogrid-equipped TRX 'cross bike.

Titus also displayed an Exogrid-equipped TRX 'cross bike.
Image 7 of 43

There's lots of clearance here

There's lots of clearance here
Image 8 of 43

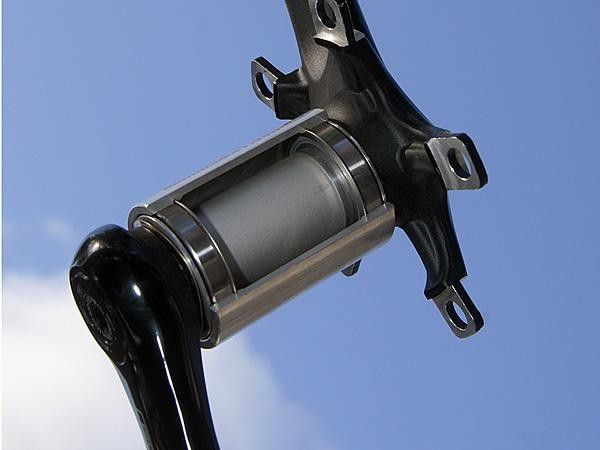

It may be sooner rather than later that the BB30 standard replaces the threaded shells we're used to seeing.

It may be sooner rather than later that the BB30 standard replaces the threaded shells we're used to seeing. (Image credit: James Huang/Cyclingnews.com)
Image 9 of 43

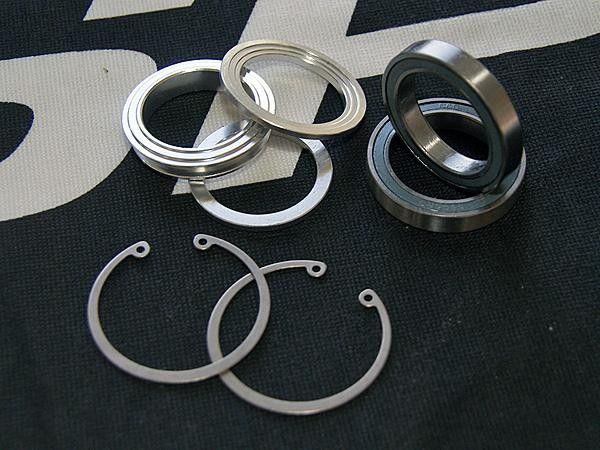

The bottom bracket itself is remarkably simple ; in FSA's case, it comprises just a pair of bearing, a pair of snap rings and a few spacers.

The bottom bracket itself is remarkably simple ; in FSA's case, it comprises just a pair of bearing, a pair of snap rings and a few spacers. (Image credit: James Huang/Cyclingnews.com)
Image 10 of 43

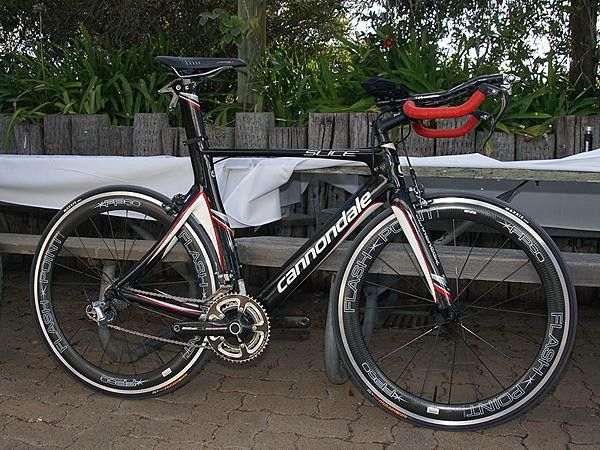

Cannondale was the first to develop and use BB30 but it can now be viewed as an industry pioneer rather than an technical outlier.

Cannondale was the first to develop and use BB30 but it can now be viewed as an industry pioneer rather than an technical outlier. (Image credit: James Huang/Cyclingnews.com)
Image 11 of 43

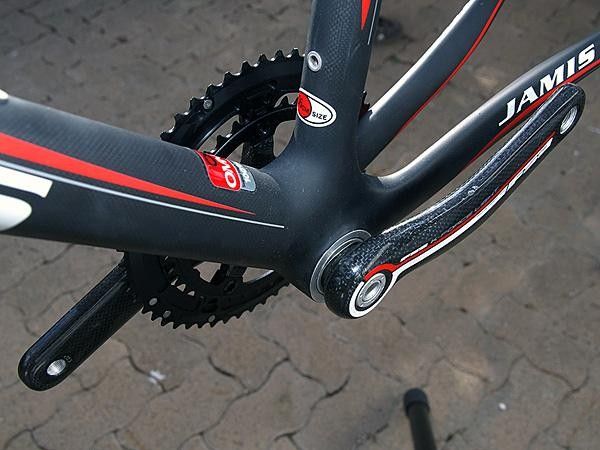

Among the BB30 adopters is Jamis who showed off a BB30-equipped sample of its Xenith SL road frame.

Among the BB30 adopters is Jamis who showed off a BB30-equipped sample of its Xenith SL road frame. (Image credit: James Huang/Cyclingnews.com)
Image 12 of 43

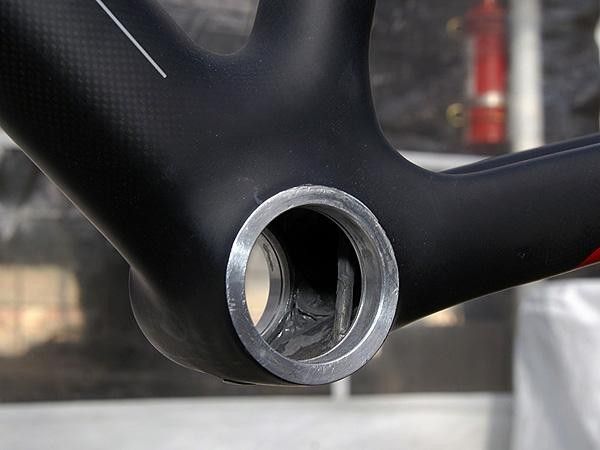

The BB30 shell is larger in diameter and easier to make, but bore tolerances will still need to be pretty tightly controlled for good bearing life.

The BB30 shell is larger in diameter and easier to make, but bore tolerances will still need to be pretty tightly controlled for good bearing life. (Image credit: James Huang/Cyclingnews.com)
Image 13 of 43

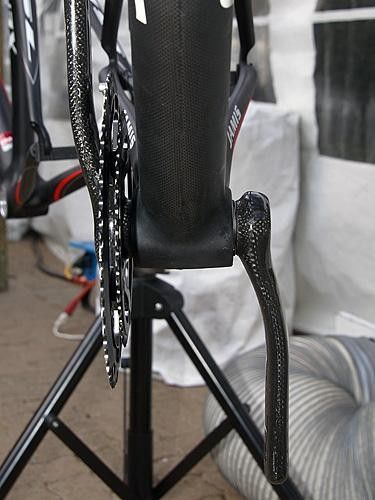

The BB30 shell is also just 68mm wide and since the bearings are contained within, pedal stance widths can be brought back down.

The BB30 shell is also just 68mm wide and since the bearings are contained within, pedal stance widths can be brought back down. (Image credit: James Huang/Cyclingnews.com)
Image 14 of 43

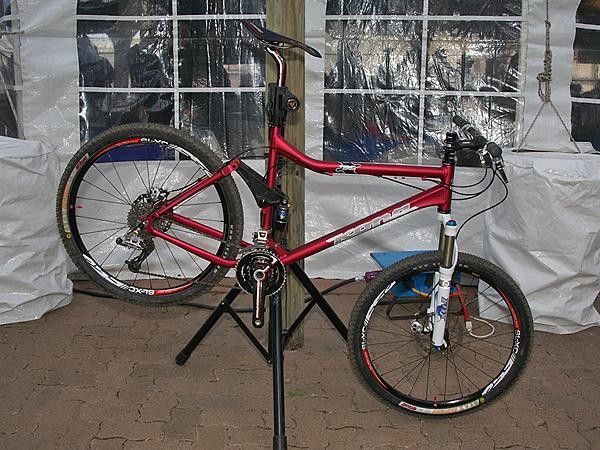

Kona showed off this BB30-equipped full-suspension machine.

Kona showed off this BB30-equipped full-suspension machine. (Image credit: James Huang/Cyclingnews.com)
Image 15 of 43

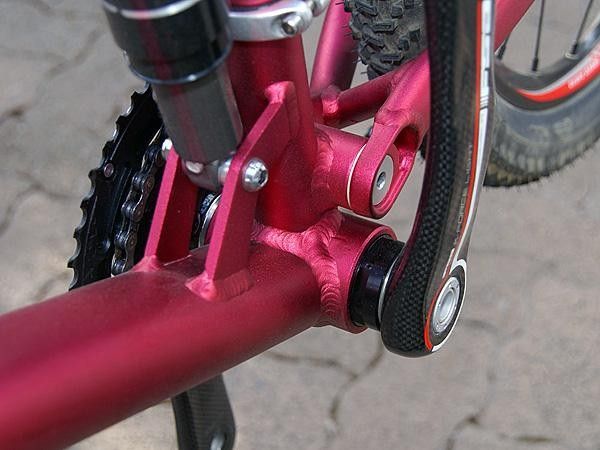

The larger diameter shell won't allow for the mega-broad down tubes and widely spaced chain stays of some of the newest crop of frames but it does offer plenty of surface area for welding.

The larger diameter shell won't allow for the mega-broad down tubes and widely spaced chain stays of some of the newest crop of frames but it does offer plenty of surface area for welding. (Image credit: James Huang/Cyclingnews.com)
Image 16 of 43

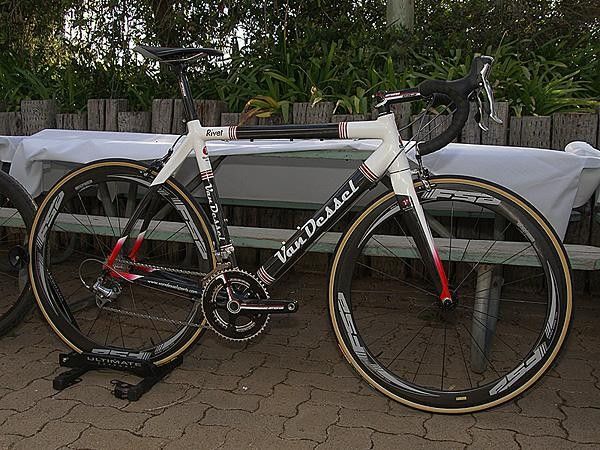

Van Dessel jumped on the bandwagon earlier this season with its updated Rivet carbon road frame and Gin and Trombones 'cross model.

Van Dessel jumped on the bandwagon earlier this season with its updated Rivet carbon road frame and Gin and Trombones 'cross model. (Image credit: James Huang/Cyclingnews.com)
Image 17 of 43

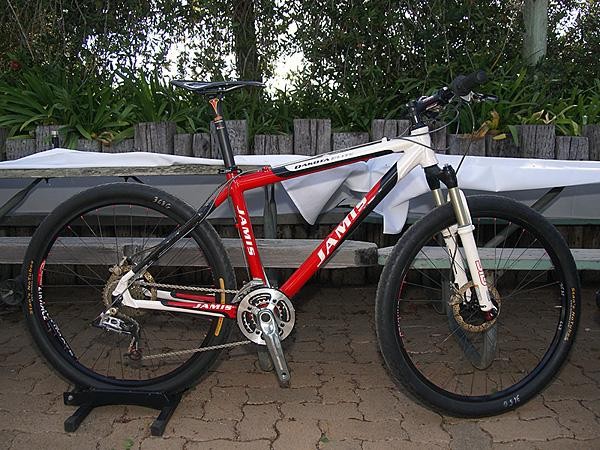

Jamis also took BB30 off-road with this version of its popular Dakota.

Jamis also took BB30 off-road with this version of its popular Dakota. (Image credit: James Huang/Cyclingnews.com)
Image 18 of 43

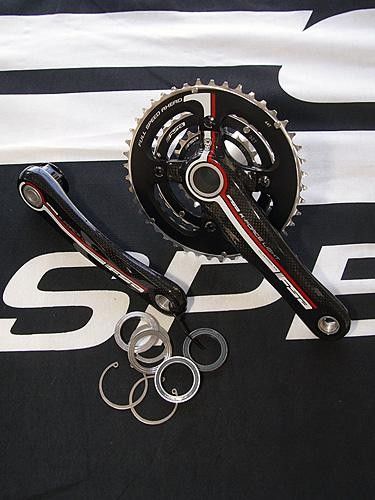

FSA is 100 percent on board with BB30 and will offer seven compatible models next year.

FSA is 100 percent on board with BB30 and will offer seven compatible models next year. (Image credit: James Huang/Cyclingnews.com)
Image 19 of 43

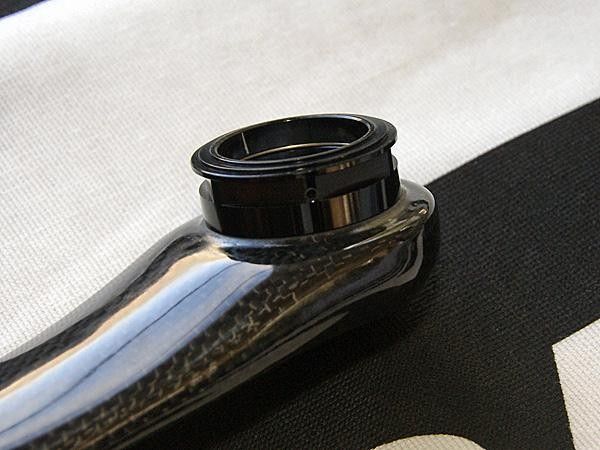

Mountain bike versions will incorporate a small threaded collar for bearing preload; road versions get by with a wave washer.

Mountain bike versions will incorporate a small threaded collar for bearing preload; road versions get by with a wave washer. (Image credit: James Huang/Cyclingnews.com)
Image 20 of 43

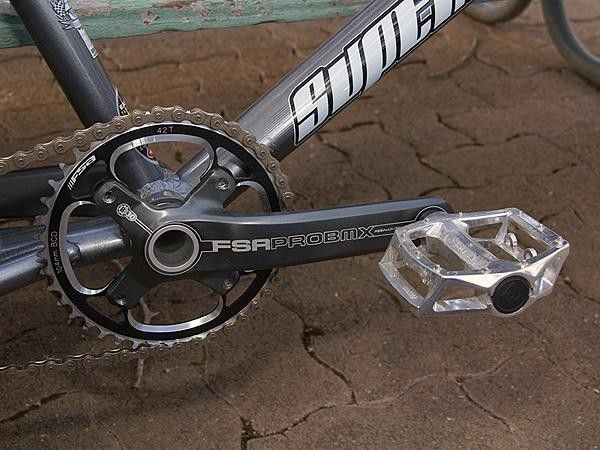

FSA also displayed a BMX crankset that complied with the BB30 standard.

FSA also displayed a BMX crankset that complied with the BB30 standard. (Image credit: James Huang/Cyclingnews.com)
Image 21 of 43

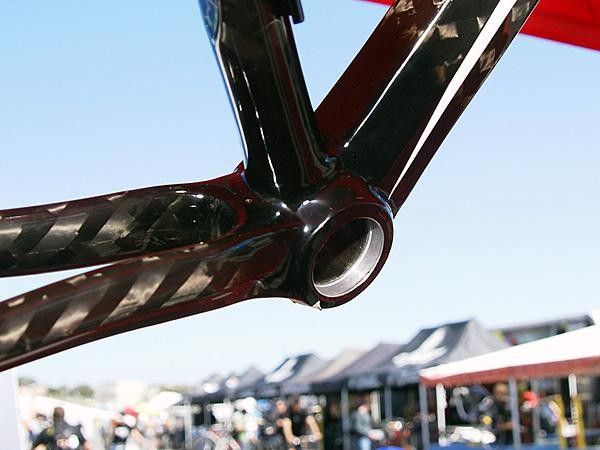

BH wasn't on hand at the official BB30 presentation but this sample of its Connect road frame proved that it's playing with the idea, too.

BH wasn't on hand at the official BB30 presentation but this sample of its Connect road frame proved that it's playing with the idea, too. (Image credit: James Huang/Cyclingnews.com)
Image 22 of 43

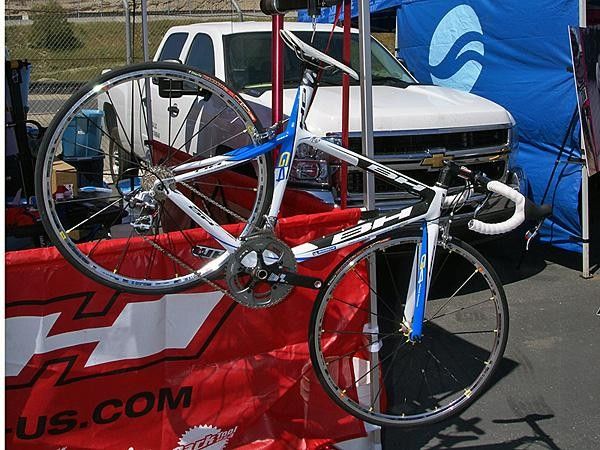

BH's top-end G4 was proudly hanging from a scale at Sea Otter.

BH's top-end G4 was proudly hanging from a scale at Sea Otter. (Image credit: James Huang/Cyclingnews.com)
Image 23 of 43

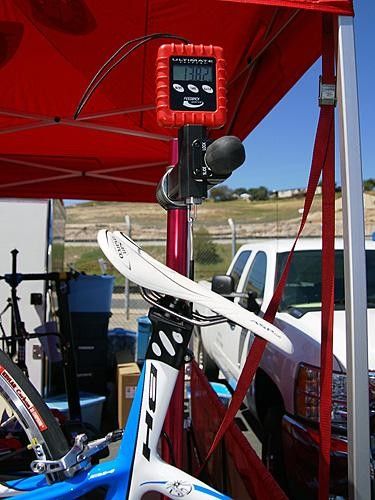

And what did it weigh, you wonder? Not much.

And what did it weigh, you wonder? Not much. (Image credit: James Huang/Cyclingnews.com)
Image 24 of 43

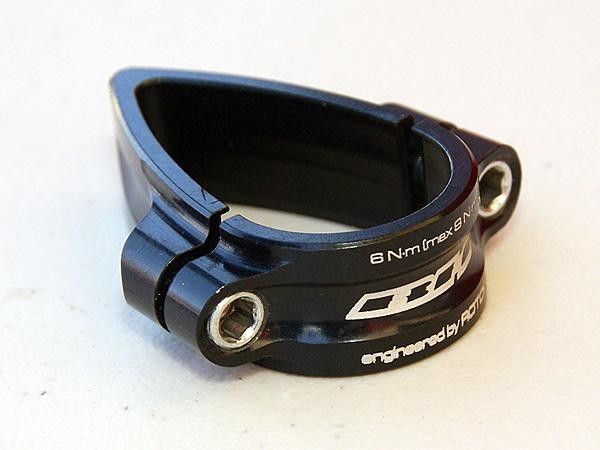

The G4 is also set to get even lighter courtesy of a new seatpost clamp designed by Rotor.

The G4 is also set to get even lighter courtesy of a new seatpost clamp designed by Rotor. (Image credit: James Huang/Cyclingnews.com)
Image 25 of 43

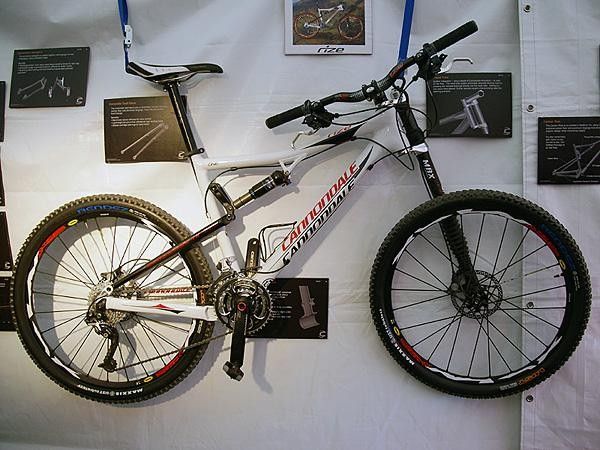

Cannondale highlighted the effectiveness of integrated system design with its new Rize trail bike.

Cannondale highlighted the effectiveness of integrated system design with its new Rize trail bike. (Image credit: James Huang/Cyclingnews.com)
Image 26 of 43

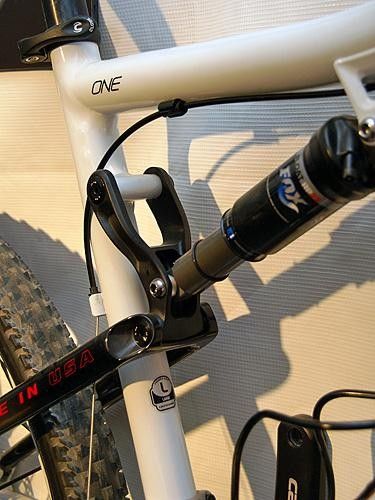

The overall suspension layout is roughly similar to that of the Scalpel.

The overall suspension layout is roughly similar to that of the Scalpel. (Image credit: James Huang/Cyclingnews.com)
Image 27 of 43

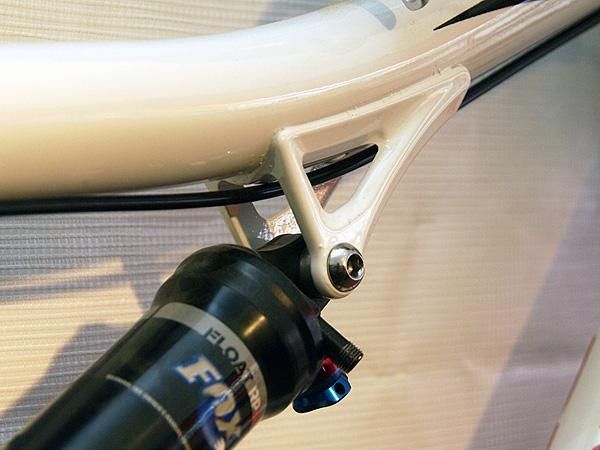

The upper shock mount is bonded to the top tube.

The upper shock mount is bonded to the top tube. (Image credit: James Huang/Cyclingnews.com)
Image 28 of 43

Asymmetrical chain stays are joined by a substantial-looking bridge.

Asymmetrical chain stays are joined by a substantial-looking bridge. (Image credit: James Huang/Cyclingnews.com)
Image 29 of 43

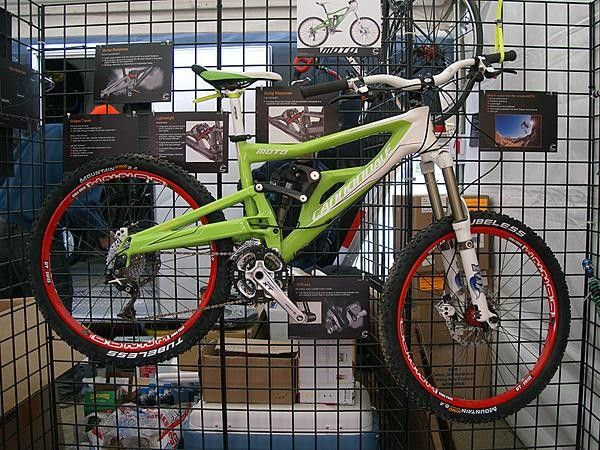

The Cannondale Moto offers 160mm of travel but supposedly weighs under 13.6kg (30.0lb).

The Cannondale Moto offers 160mm of travel but supposedly weighs under 13.6kg (30.0lb). (Image credit: James Huang/Cyclingnews.com)
Image 30 of 43

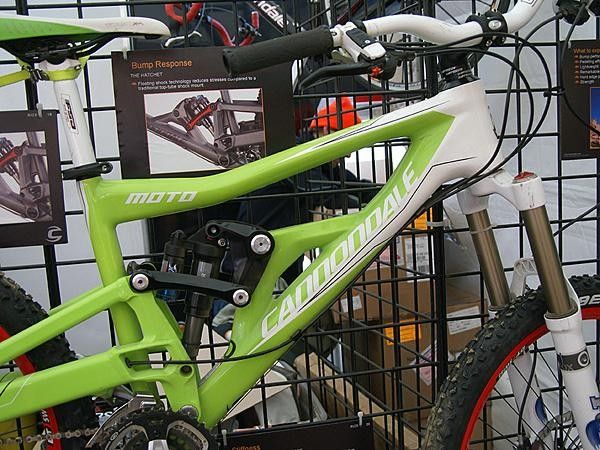

The Moto's carbon front triangle certainly deserves much of the credit for the impressively light weight.

The Moto's carbon front triangle certainly deserves much of the credit for the impressively light weight. (Image credit: James Huang/Cyclingnews.com)
Image 31 of 43

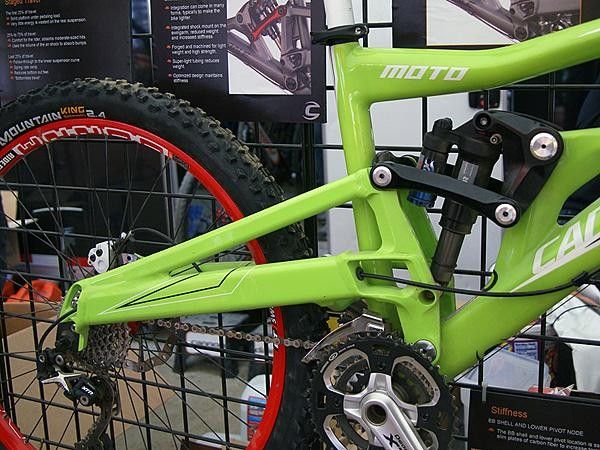

The single pivot rear triangle is made of welded aluminum.

The single pivot rear triangle is made of welded aluminum. (Image credit: James Huang/Cyclingnews.com)
Image 32 of 43

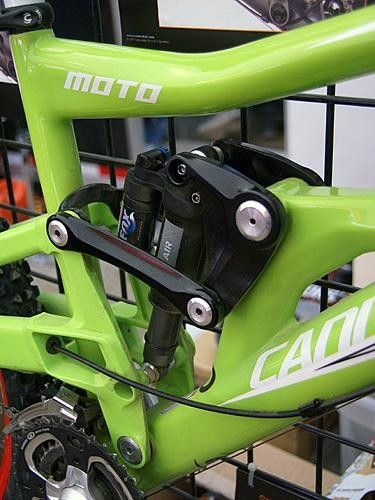

The linkage is cleverly designed such that the carbon frame is always in tension, not compression.

The linkage is cleverly designed such that the carbon frame is always in tension, not compression. (Image credit: James Huang/Cyclingnews.com)
Image 33 of 43

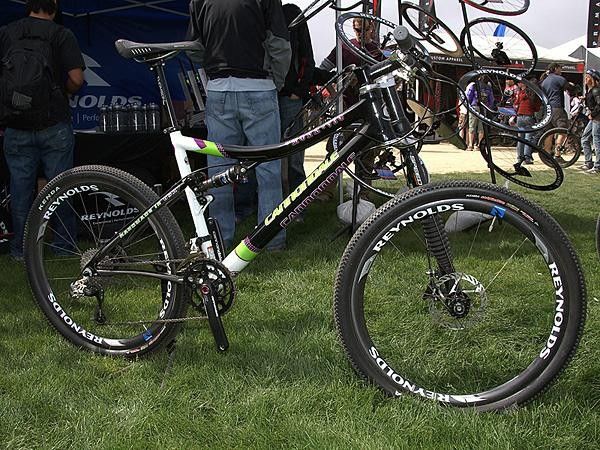

The team-issued MonaVie Cannondale Scalpel is decked out and ready to roll.

The team-issued MonaVie Cannondale Scalpel is decked out and ready to roll. (Image credit: James Huang/Cyclingnews.com)
Image 34 of 43

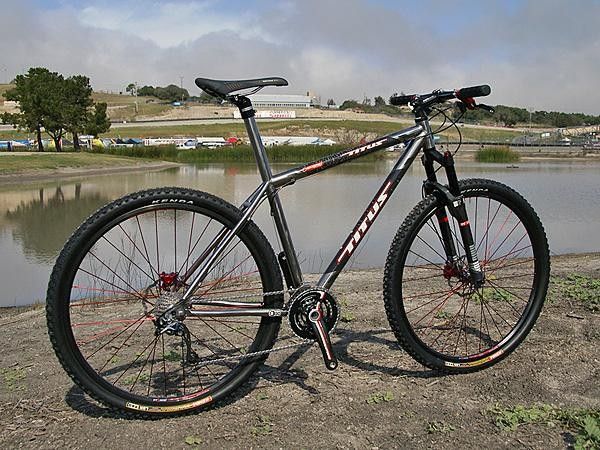

Titus brought its Isogrid concept off-road with this sharp-looking prototype.

Titus brought its Isogrid concept off-road with this sharp-looking prototype. (Image credit: James Huang/Cyclingnews.com)
Image 35 of 43

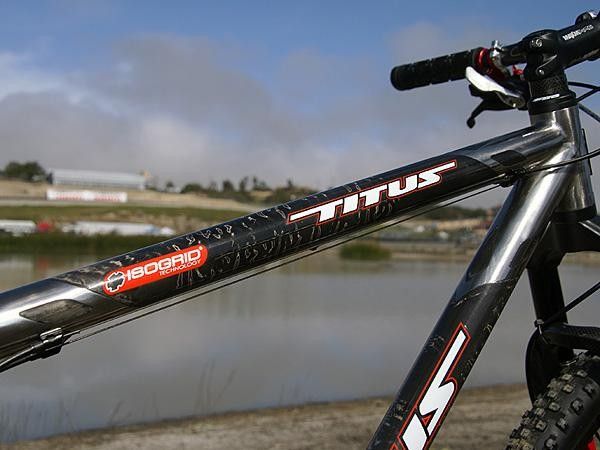

The top tube and down tube are both made from titanium and carbon fiber that is internally reinforced for more strength and rigidity.

The top tube and down tube are both made from titanium and carbon fiber that is internally reinforced for more strength and rigidity. (Image credit: James Huang/Cyclingnews.com)
Image 36 of 43

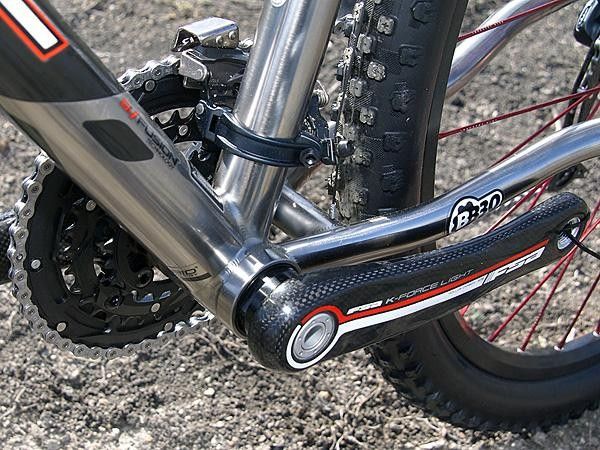

Titus is also playing with the BB30 idea on this prototype. If all goes well in testing, expect to see BB30 as an option for the '09 model year.

Titus is also playing with the BB30 idea on this prototype. If all goes well in testing, expect to see BB30 as an option for the '09 model year. (Image credit: James Huang/Cyclingnews.com)
Image 37 of 43

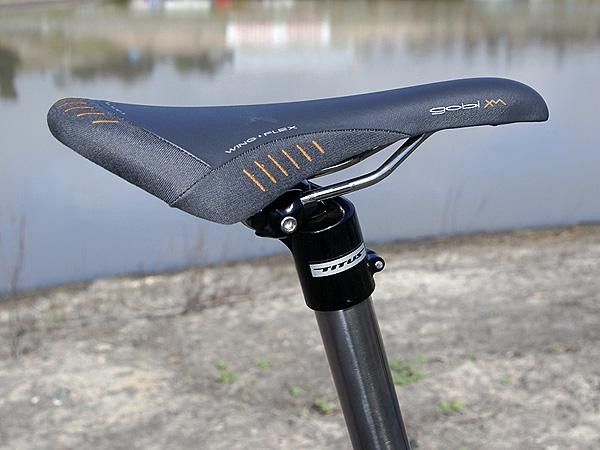

An integrated seatmast is still a questionable feature on a mountain bike, but it sure looks trick and might save a bit of weight, too.

An integrated seatmast is still a questionable feature on a mountain bike, but it sure looks trick and might save a bit of weight, too. (Image credit: James Huang/Cyclingnews.com)
Image 38 of 43

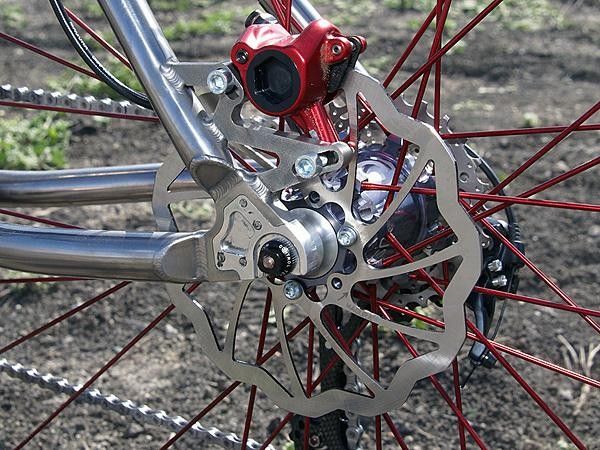

Convertible dropouts make for easy use in fixed or geared applications.

Convertible dropouts make for easy use in fixed or geared applications. (Image credit: James Huang/Cyclingnews.com)
Image 39 of 43

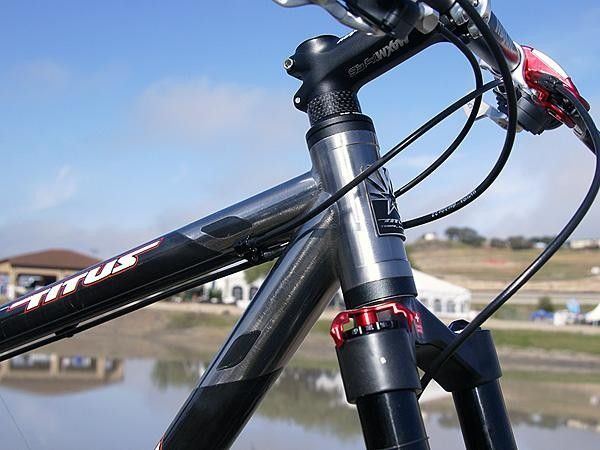

The upsized head tube is fitted with an FSA internal cup-style headset.

The upsized head tube is fitted with an FSA internal cup-style headset. (Image credit: James Huang/Cyclingnews.com)
Image 40 of 43

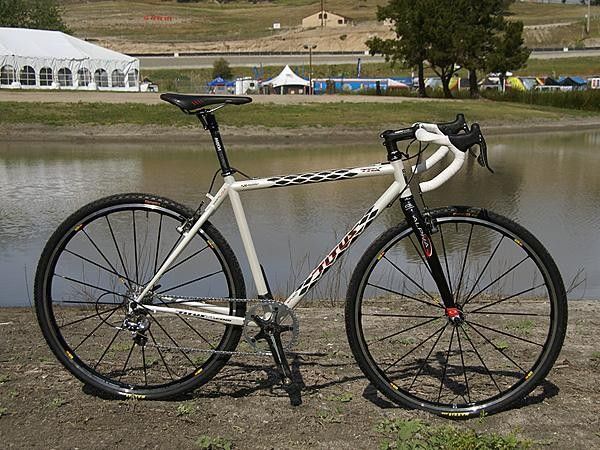

Titus also displayed an Exogrid-equipped TRX 'cross bike.

Titus also displayed an Exogrid-equipped TRX 'cross bike. (Image credit: James Huang/Cyclingnews.com)
Image 41 of 43

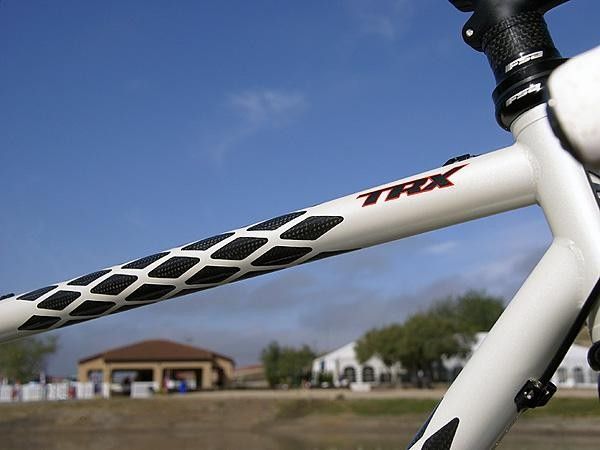

This particular sample was a carbon-and-steel hybrid, although 'cross frames in titanium Exogrid and straight titanium will also be available in time for 'cross season.

This particular sample was a carbon-and-steel hybrid, although 'cross frames in titanium Exogrid and straight titanium will also be available in time for 'cross season. (Image credit: James Huang/Cyclingnews.com)
Image 42 of 43

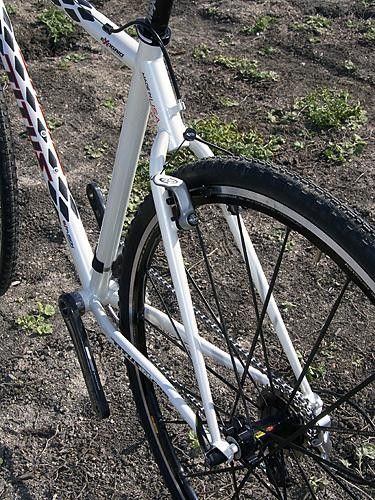

The small-diameter steel tubes make for plenty of room out back.

The small-diameter steel tubes make for plenty of room out back. (Image credit: James Huang/Cyclingnews.com)
Image 43 of 43

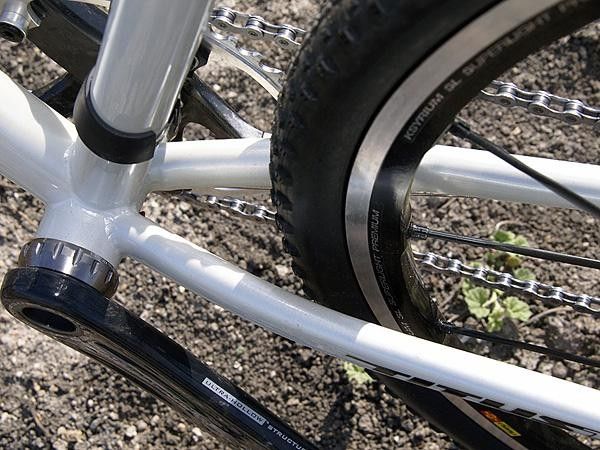

There's lots of clearance here for mud to squeeze through.

There's lots of clearance here for mud to squeeze through. (Image credit: James Huang/Cyclingnews.com)

On Show: Sea Otter Classic, April 22, 2008

The end of the threaded bottom bracket?

BB30 makes major inroads for 2009

Cannondale was accused of needlessly stirring the industry pot when it introduced its BB30 integrated bottom bracket standard years ago. However, much like Manitou and its 74mm post mount brake tabs, Cannondale can now proudly say 'I told you so' as the now-open BB30 bottom bracket and crank standard will be far more widely adopted for 2009.

From a strictly engineering standpoint, BB30 is an easy sell: all other things being equal, it's lighter and stiffer than current external-type bottom bracket systems while also offering reduced pedal stance widths and longer bearing lives thanks to the narrower, but larger diameter, bottom bracket shell.

FSA readily admits that the most dramatic weight savings probably won't come at the high end, though: by its own calculations, the BB30 version of its SL-K Light crankset sheds just 24g. Thankfully, the biggest benefits will likely be found at the mid-range. For example, FSA's standard Gossamer crankset weighs 936g complete but the BB30 version is just 830g.

The new standard will obviously create some compatibility headaches moving forward but a number of companies apparently feel the advantages are too great to ignore. At a BB30 presentation during this year's Sea Otter Classic, manufacturers such as Cannondale, Kona, Jamis, Titus and Caribou all showed off BB30-compatible bicycles while event host FSA displayed no fewer than seven corresponding cranksets covering a wide range of uses. Specialized frames equipped with its house brand integrated cranks are also apparently BB30-compatible even though the company doesn't tout them as such.

Even with this impending wave, though, some of the growing pains may be ameliorated by the fact that any BB30 shell can be fitted with an adapter to allow the use of standard threaded bottom brackets.

Cannondale Rize and Moto models highlight effectiveness of systems integration

Cannondale, the originator of the BB30 standard, showed off its new Rize trail bike platform that highlighted the effectiveness of its integrated approach to bicycle design. The Rize is claimed to weigh as little as 10.7kg (23.5lb), roughly the same as many high-end full-suspension race bikes, but offers 130mm of travel at either end while supposedly still delivering top-end bump performance and chassis rigidity.

Much of the credit for the feathery weight of the top-end Rize 1 assuredly belongs to the carbon-and-aluminum frame and premium spec but a pair of proprietary parts also lends helping hands. For example, the new Lefty Max Carbon PBR fork is among the stiffest front suspension platforms we've laid hands on (two legs or one) yet is said to weigh just 1.3kg (2.9lb), thanks in part to the integrated stem and steerer tube. Likewise, the BB30-standard Hollowgram crank continues the 'light but stiff' theme with its directly pressed-in bearings and 30mm-diameter aluminum spindle.

In Cannondale's case, the integrated approach is anything but new but the company has proven that sticking to its once-unorthodox design principles works well.

While not necessarily rife with integrated systems, Cannondale's new Moto looks to be an impressive bit of kit nonetheless as it offers 160mm of travel front and rear in a no-compromise package claimed to weigh under 13.6kg (30.0lb). The top-end Moto 1's shock linkage is cleverly designed such that its carbon front triangle is always under tensile, rather than compressive, load and the stout single pivot rear end is bridged at no fewer than four locations for good torsional rigidity.

Titus explores the BB30 possibilities

Arizona-based builder Titus showed off its own BB30-equipped hardtail and it was quite the stunner. The unnamed prototype was essentially an off-road version of its Ligero road machine, complete with an Isogrid co-molded carbon fiber-and-titanium top tube and down tube as well as an integrated seat mast capped with a Ritchey head. Convertible rear dropouts also allow for either geared or singlespeed use. Claimed frame weight is just 1.54kg (3.4lb) with an uncut mast.

Why bother with such an extravagant hardtail, though, when full-suspension seems like the default choice these days, you ask? According to PR man Jeff Titone, Titus' own hardtail sales have soared 50 percent last year as more and more riders re-embrace the performance appeal of their lighter weight and increased responsiveness. If the new frame also delivers on its promise of offering similar ride characteristics to the Ligero, easily one of the sweetest riding road frames we've handled in recent memory, sign us up.

Titone said the new frame was still in the experimental phase for now as it still had to undergo testing. Assuming everything goes well in that department, it's entirely possible that we'll see it in the 2009 lineup along with a BB30 option for other models. Projected cost on the prototype hardtail hasn't been set yet, but Titone said it'd likely be 'no less than US$3500". Better start saving now.
