Adam Yates' Ineos Grenadiers Pinarello Dogma F12 - Gallery

Image 1 of 11

Adam Yates Pinarello Dogma F12 X-Light

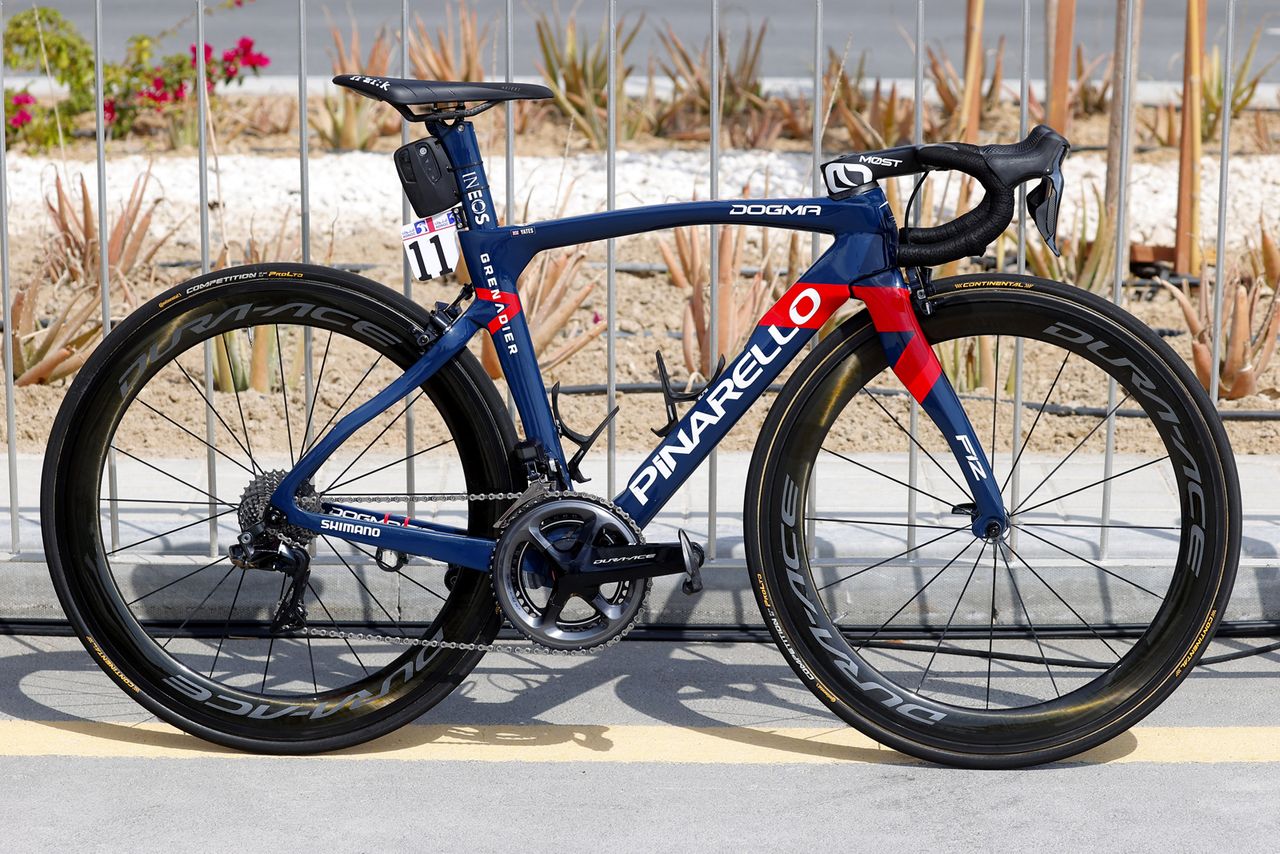

Adam Yates' Pinarello Dogma F12 X-Light basks in the sunshine ahead of the UAE Tour (Image credit: Bettini Photo)
Image 2 of 11

Adam Yates Pinarello Dogma F12 X-Light

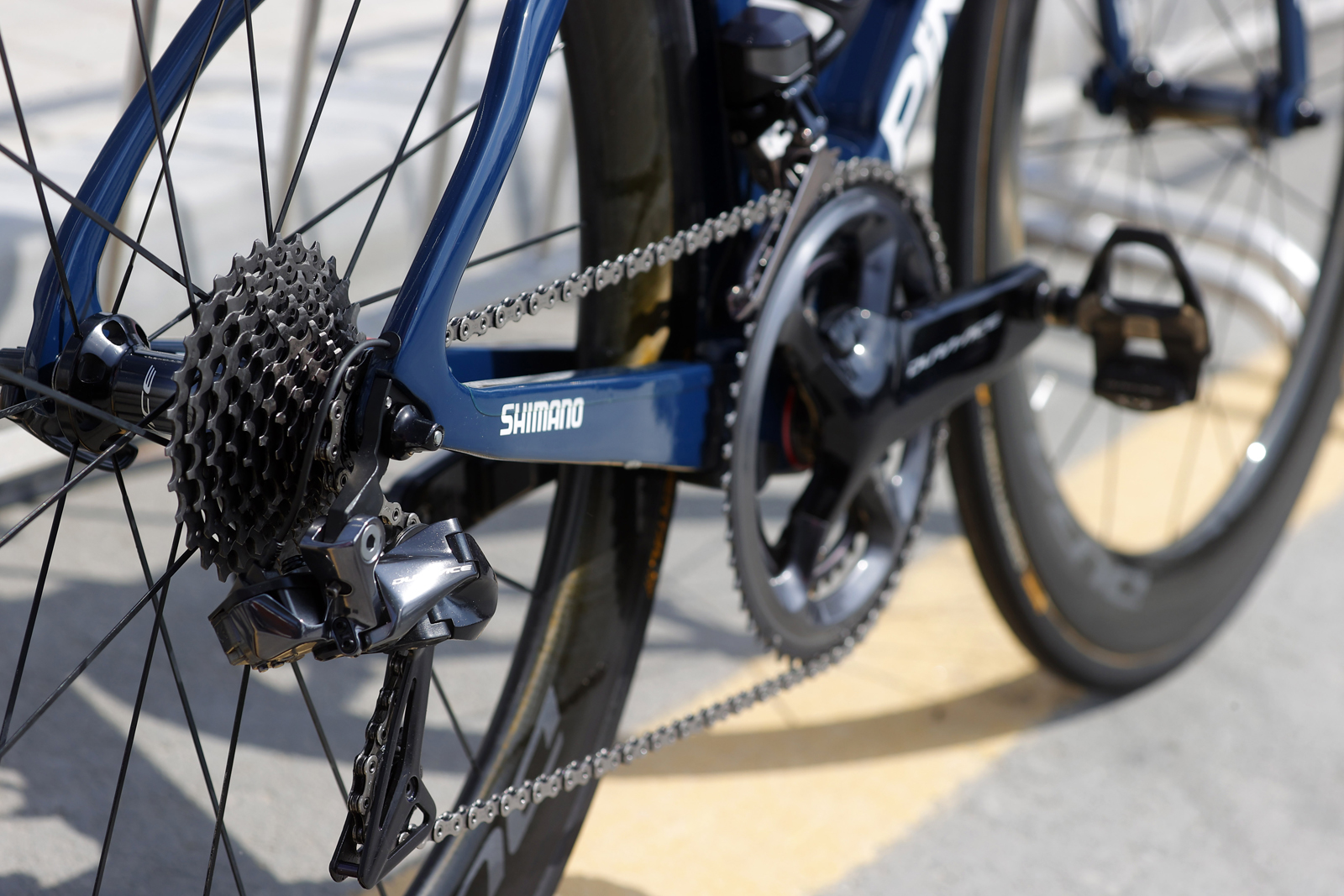

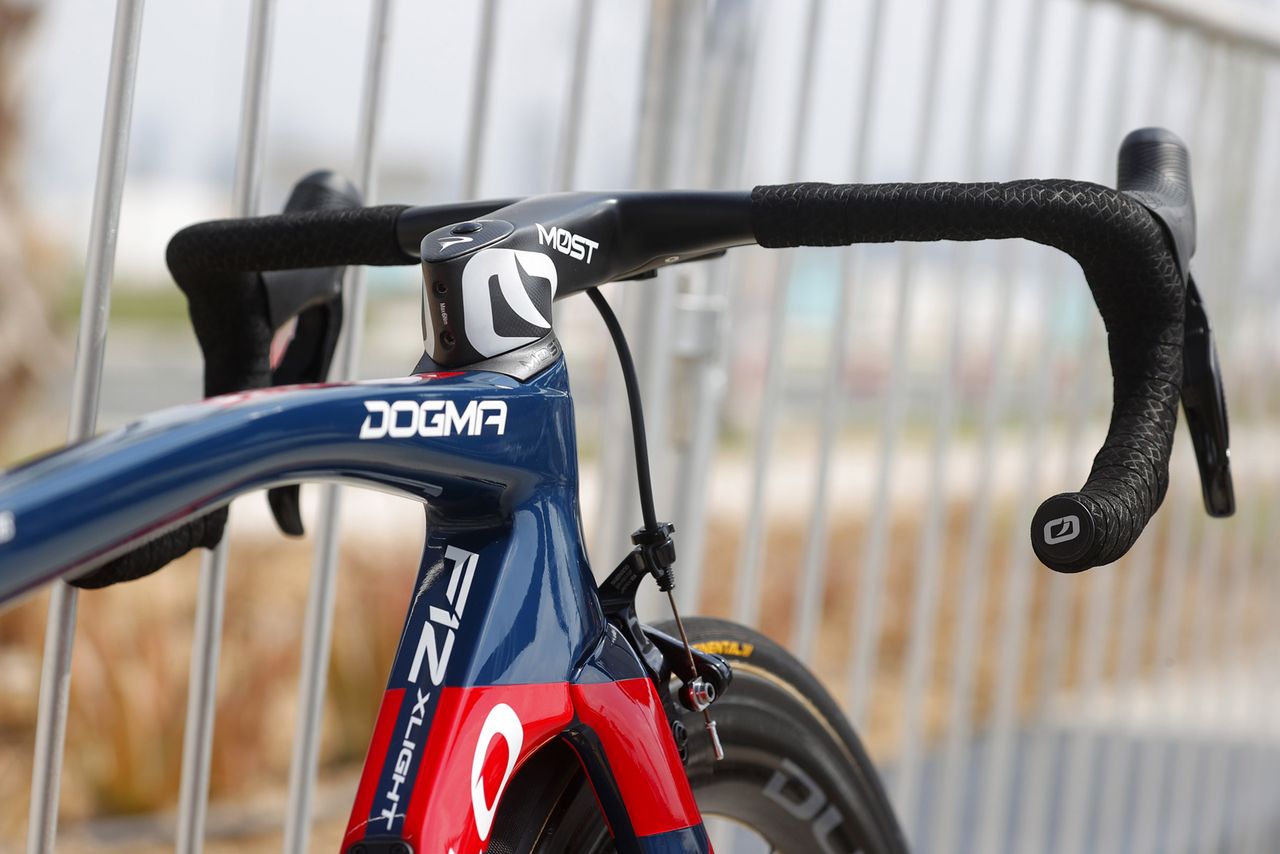

While the frame is different, familiarity comes courtesy of Shimano's Dura-Ace groupset (Image credit: Bettini Photo)
Image 3 of 11

Adam Yates Pinarello Dogma F12 X-Light

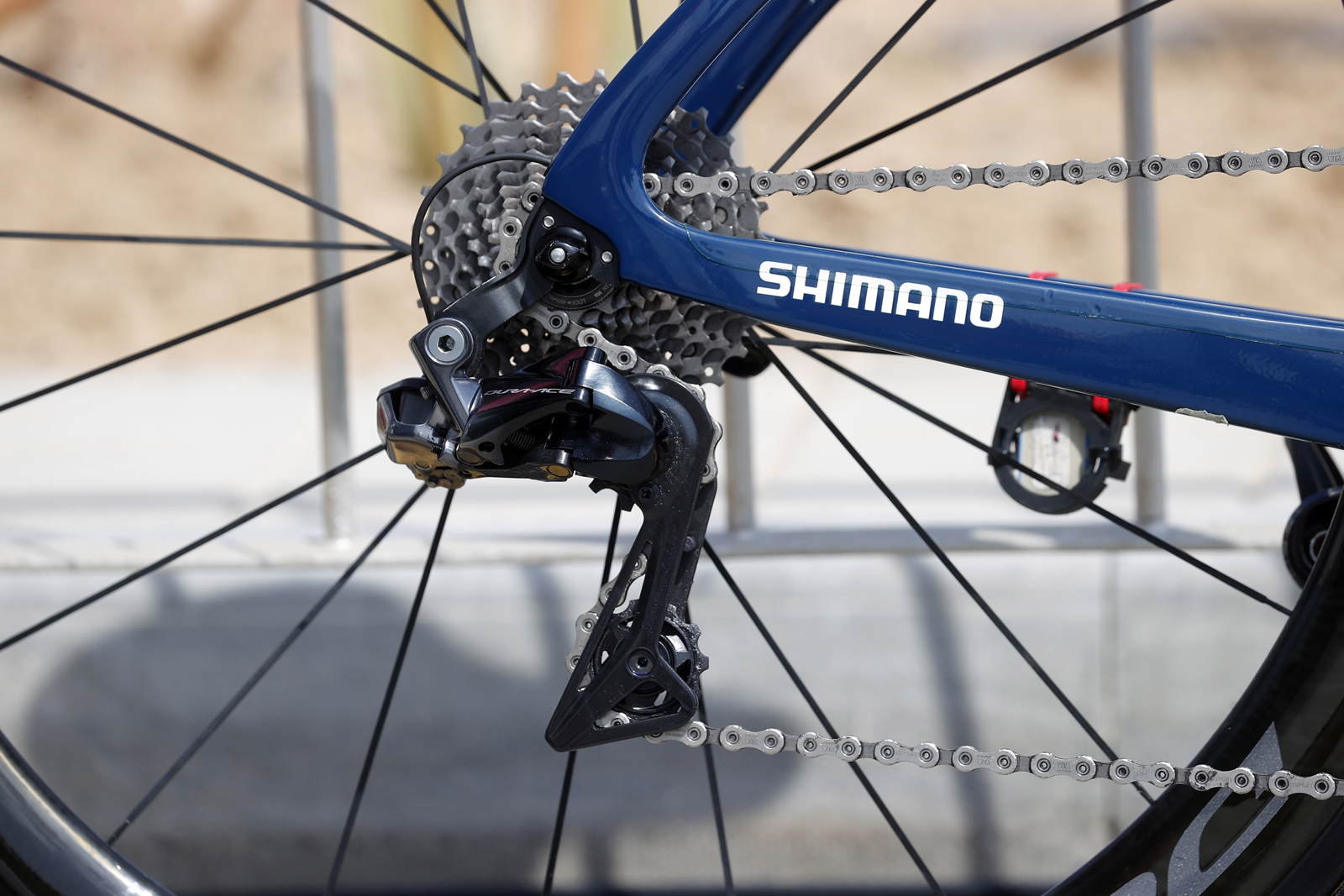

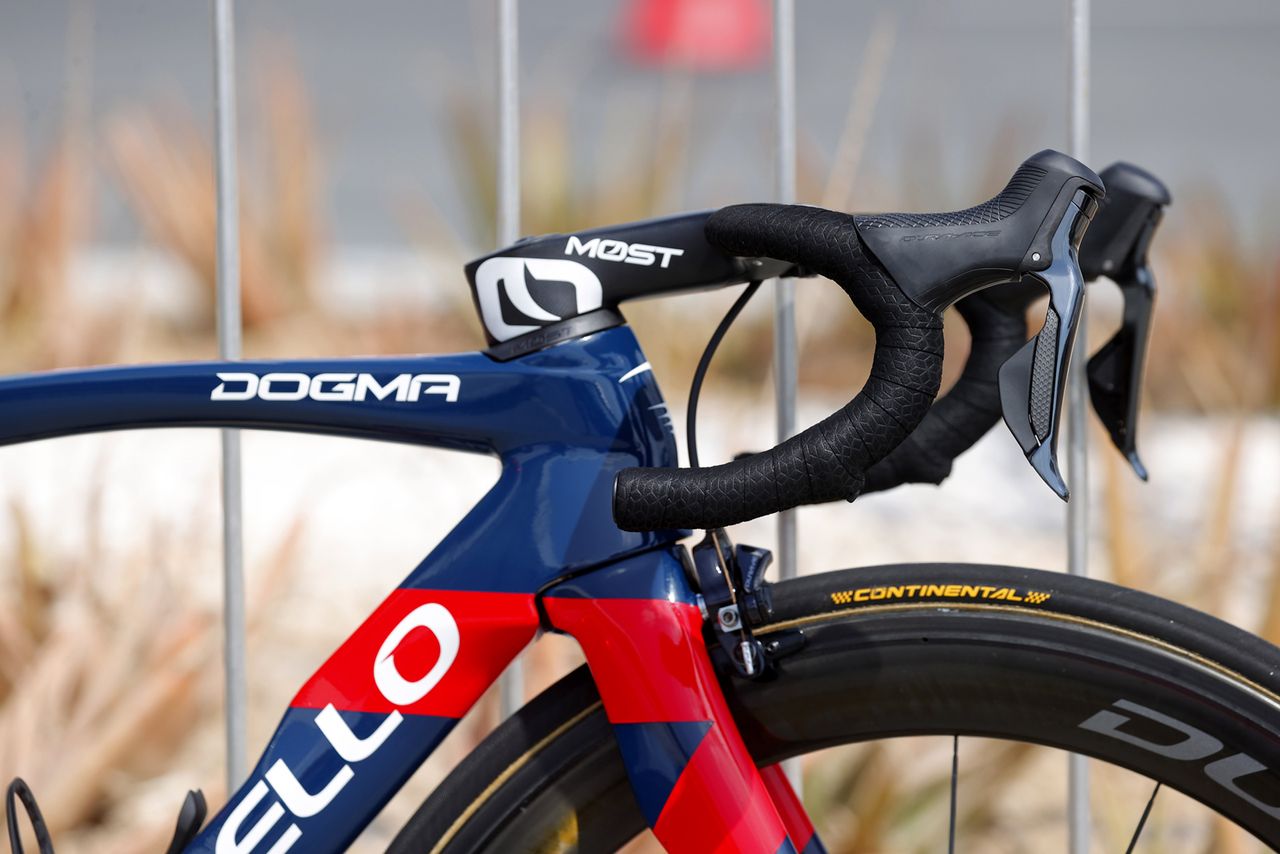

Dura-Ace is still an 11-speed group, but rumours suggest 12 is coming (Image credit: Bettini Photo)
Image 4 of 11

Adam Yates Pinarello Dogma F12 X-Light

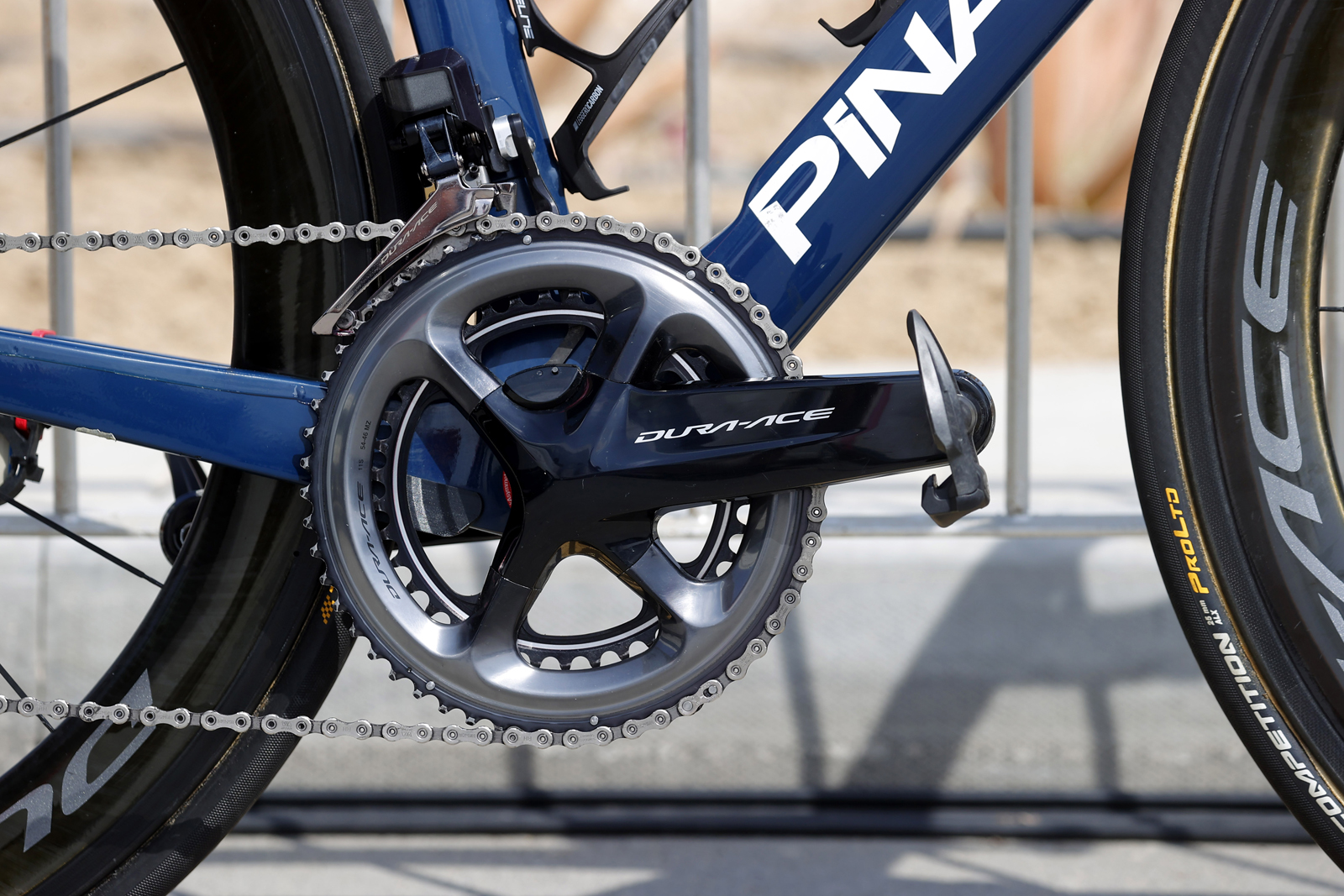

A 54-tooth chainring for the flat first stage in the crosswinds - a day on which Yates was the only Ineos man to make the front echelon (Image credit: Bettini Photo)
Image 5 of 11

Adam Yates Pinarello Dogma F12 X-Light

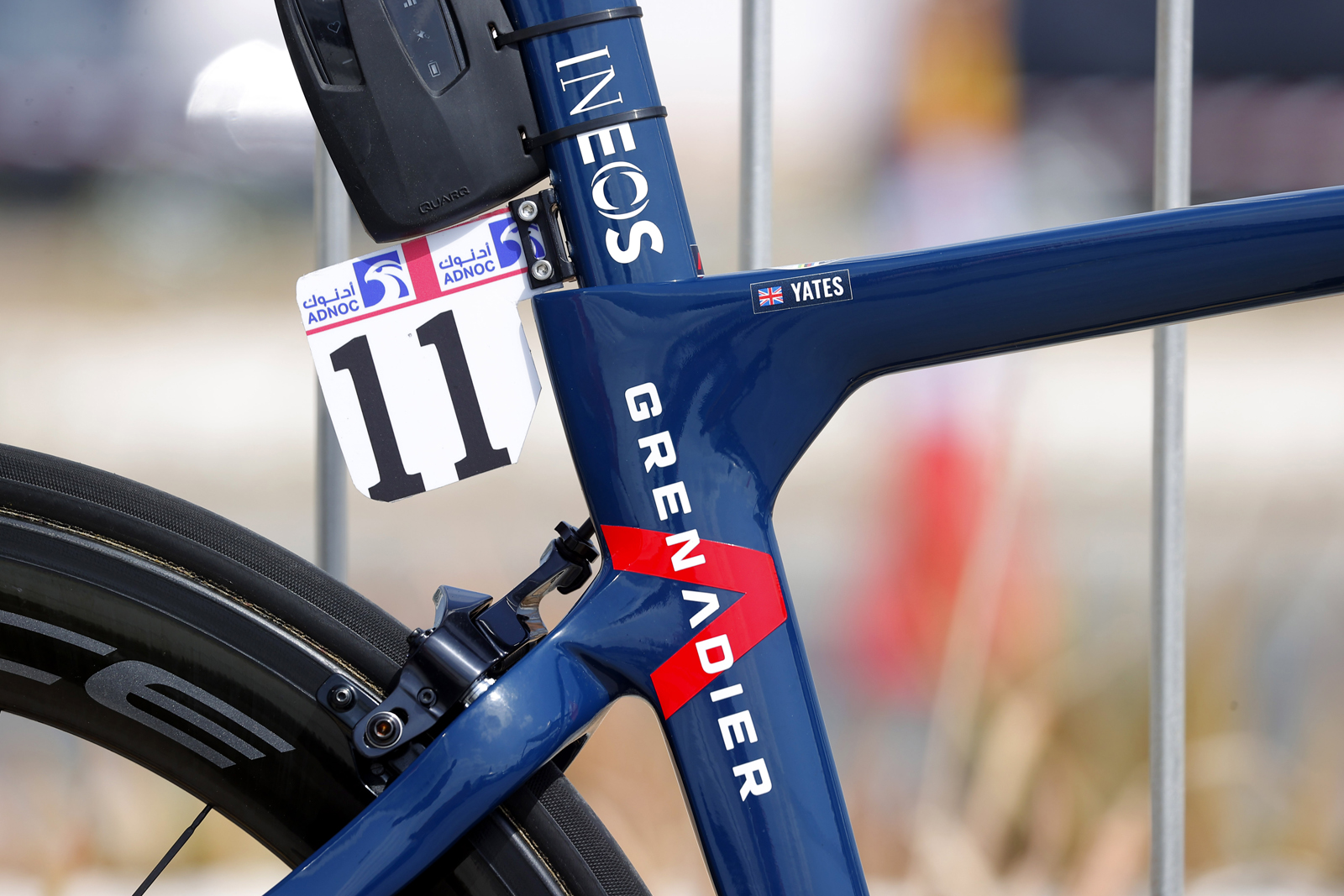

The new 'Grenadiers' team name sticks for 2021 (Image credit: Bettini Photo)
Image 6 of 11

Adam Yates Pinarello Dogma F12 X-Light

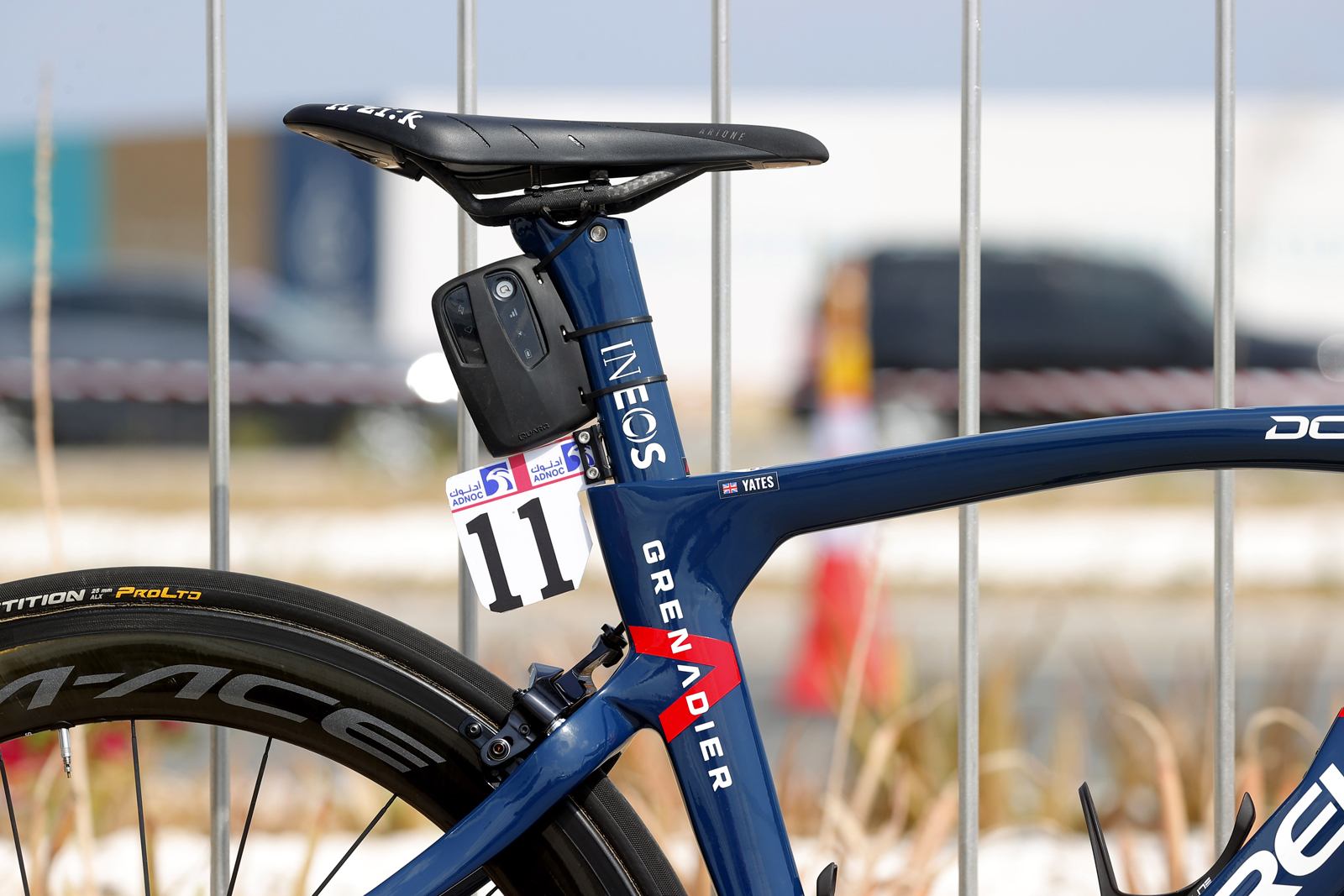

Atop the proprietary Pinarello seatpost sits Fizik's Arione 00 Carbon Braided saddle worth £325 / $300 (Image credit: Bettini Photo)
Image 7 of 11

Adam Yates Pinarello Dogma F12 X-Light

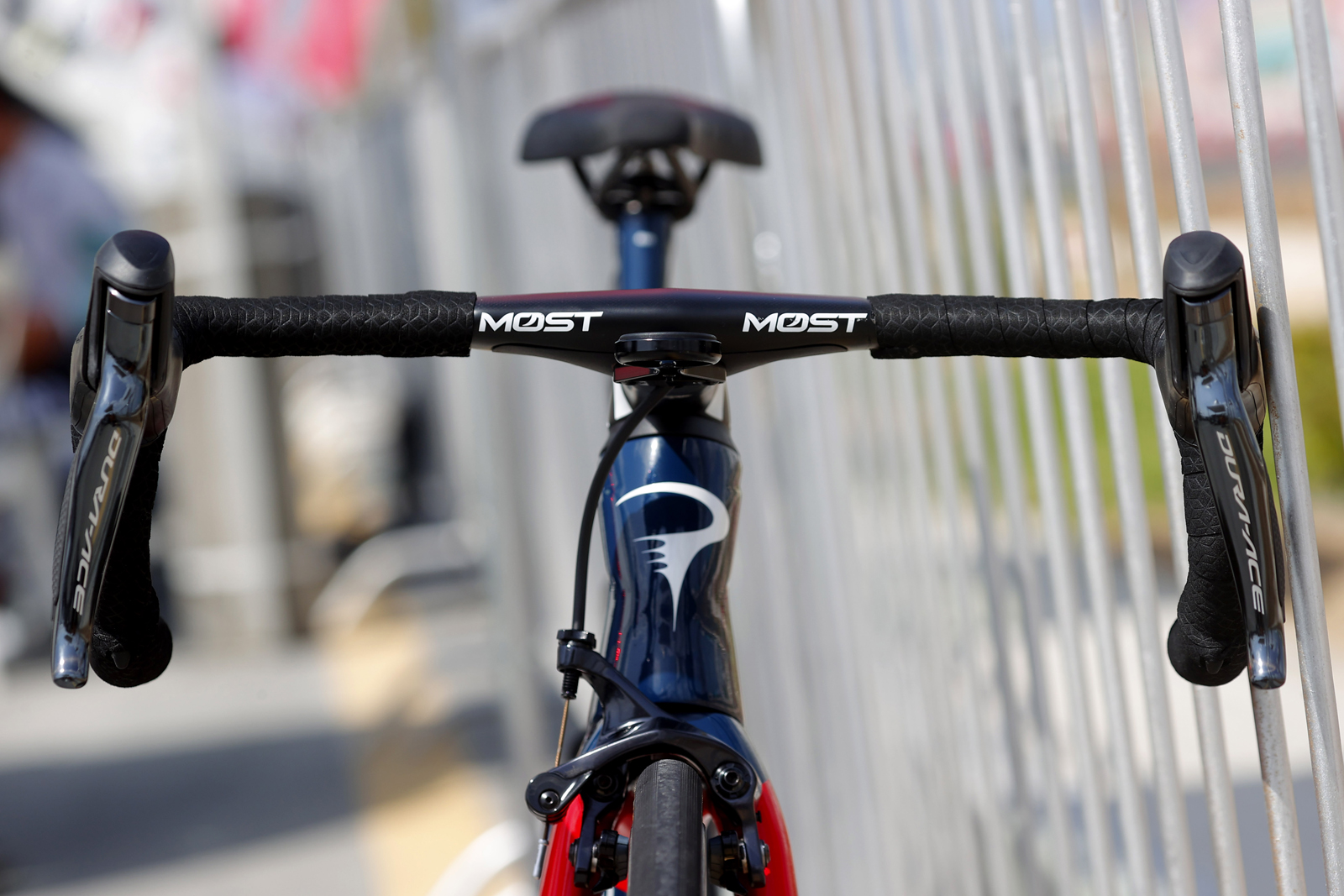

The one-piece cockpit comes courtesy of MOST (Image credit: Bettini Photo)
Image 8 of 11

Adam Yates Pinarello Dogma F12 X-Light

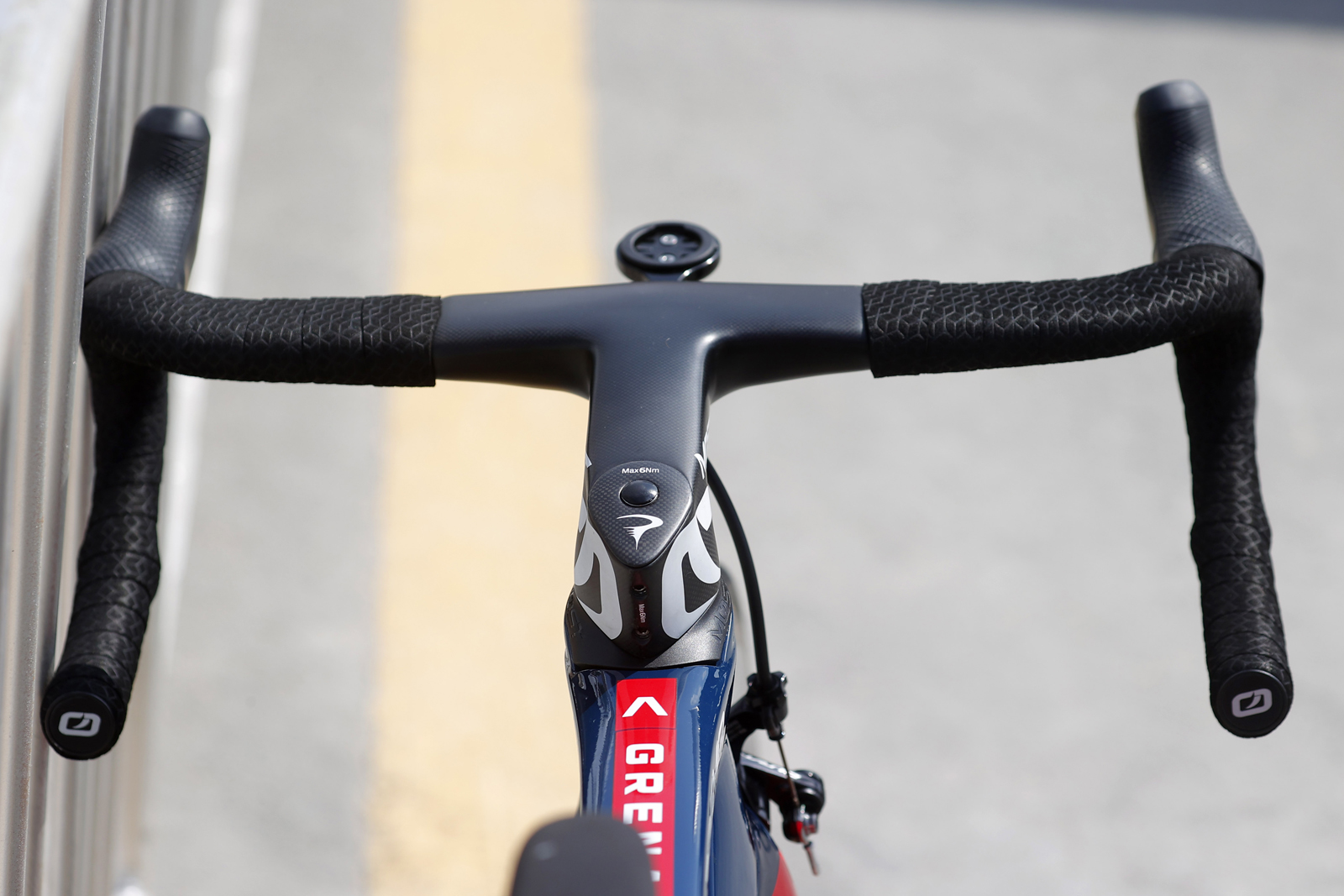

At the front of the clean-looking cockpit, Yates will house a Garmin Edge computer (Image credit: Bettini Photo)
Image 9 of 11

Adam Yates Pinarello Dogma F12 X-Light

Shimano satellie Di2 shifters are positioned in the 'trigger' position on the underside of the drops (Image credit: Bettini Photo)
Image 10 of 11

Adam Yates Pinarello Dogma F12 X-Light

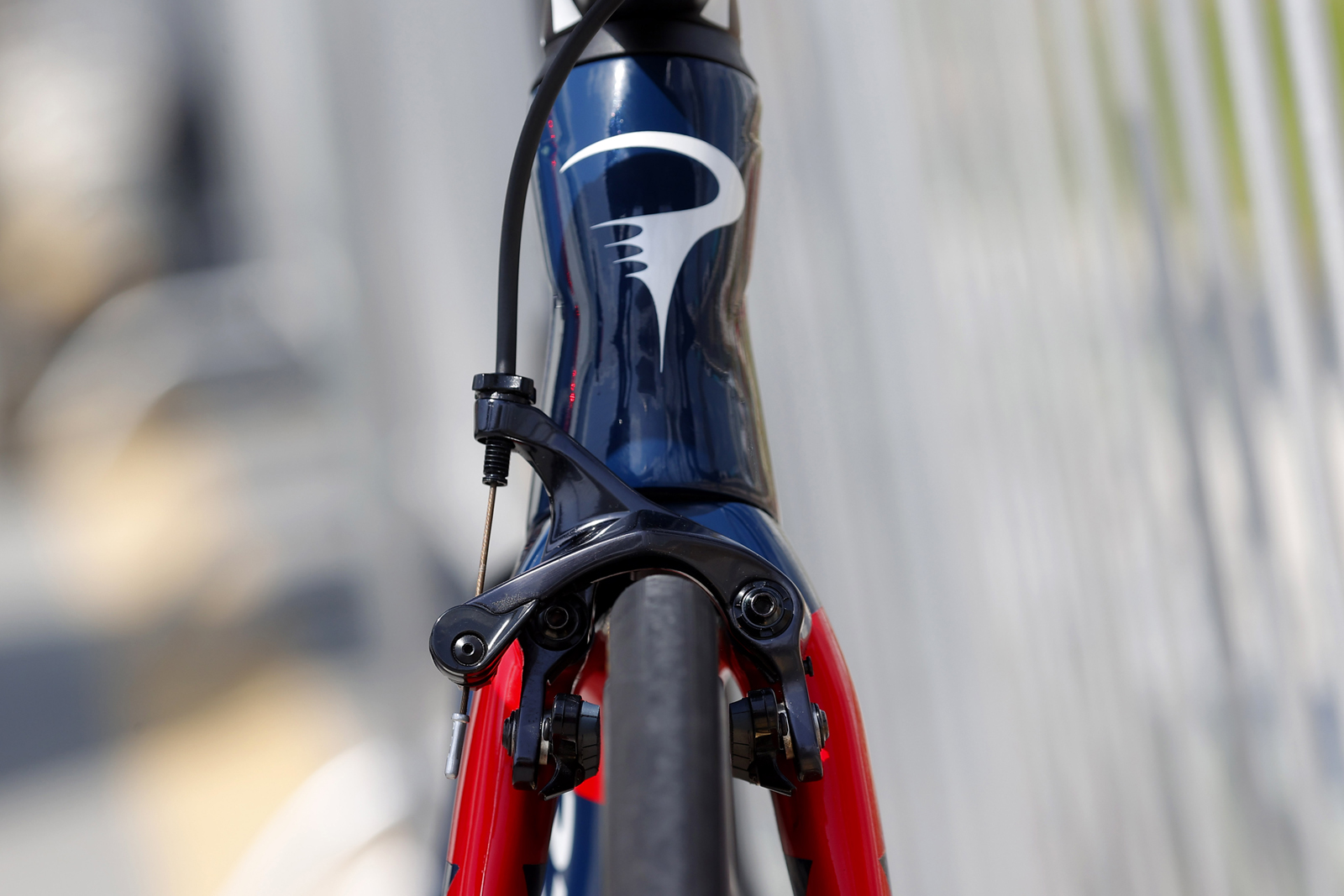

Rim brakes aren't dead, but with Ineos as the only team left using them, they're certainly a rarity in today's peloton (Image credit: Bettini Photo)
Image 11 of 11

Adam Yates Pinarello Dogma F12 X-Light

The stem couldn't get much more slammed than this (Image credit: Bettini Photo)

The recent UAE Tour marked the beginning of a new era for Adam Yates. It was his Ineos Grenadiers debut after joining his home team from the Mitchelton-Scott team that he and twin brother, Simon, had spent their entire careers at since turning pro in 2014.

Throughout his entire professional career, Yates has been aboard Scott Bikes, so his move to Ineos will see the Briton familiarising himself with an all-new brand of bike. It clearly didn't take him long. Despite a heavy crash on the final stage, it was an almost-perfect debut in which he finished 2nd on GC.

Ineos Grenadiers' bike of choice for the 2021 season is the Dogma F12 from Pinarello, and for his week in the Middle East, Yates was aboard the top shelf X-Light model. As its name suggests, the X-Light takes advantage of Pinarello's best carbon fibre technologies to shave weight from the frame.

While the frame itself is new to the Briton, the Dura-Ace Di2 groupset will at least offer some sense of familiarity. Both Mitchelton Scott (known this year as Team BikeExchange), and Ineos are sponsored by the Japanese components manufacturer. However, while the shifting performance will be the same, the brakes differ considerably. Yates has spent the past two seasons using the disc version of the Dura-Ace groupset, while Ineos Grenadiers remain the only team still using rim brakes in the pro peloton this year.

Another sponsor shared by the two teams is Garmin, which supply the teams with its range of Edge computers. While it's not pictured here, Yates looks to have opted for the Edge 530..

Most notable about Yates' cockpit is the addition of the Shimano Di2 satellite shifters, positioned on the underside of the drops to adopt the 'gun trigger' shifter position - likely benefitting Yates' attacking out-of-the-saddle climbing style. For now, the groupset is the 11-speed model, although rumours are rife to suggest that new Dura-Ace is coming and that it will be 12-speed - perhaps even wireless.

Yates was using wheels from the same Dura-Ace series as his groupset, even though Ineos regularly opt to use Lightweight Meilenstein wheels when the road points up, and despite prototype Shimano wheels being spotted during the 2020 Tour de France. The wheels are wrapped in the ever-popular 25mm Continental Pro Ltd tubular tyres.

The cockpit comes courtesy of Pinarello's component subsidiary, MOST, with a one-piece bar and stem. Perched atop the proprietary Pinarello seatpost is the Arione carbon saddle from fellow Italians Fizik, and completing the Italian theme is a duo of Leggero Carbon bottle cages from Elite.

While he seemed to walk away from his crash with little more than a cut face, Yates has plenty of time to recover. His main 2021 event will be leading the Ineos Grenadiers line at La Vuelta in August. However, after a curtailed 2020 season in which Yates only finished three races and a spring in which more than 20 race days have been lost already, the way in which the 2021 season will play out is anything but certain.

Adam Yates' Pinarello Dogma F12 X-Light
FramePinarello Dogma F12
GroupsetShimano Dura-Ace R9150 Di2
BrakesShimano Dura-Ace R9100 Rim
WheelsetShimano Dura-Ace C40 / C60 tubular
StemMOST Talon Ultra bar/stem
HandlebarsMOST Talon Ultra bar/stem
Power MeterShimano Dura-Ace R9100-P
PedalsShimano Dura-Ace R9100
SaddleFizik Arione 00 carbon braided
TyresContinental Pro Ltd Tubular
ComputerGarmin
Bottle CagesElite Leggero Carbon
BottlesElite Fly
