Gallery: Bianchi reveals Infinito CV endurance bike

Image 1 of 23

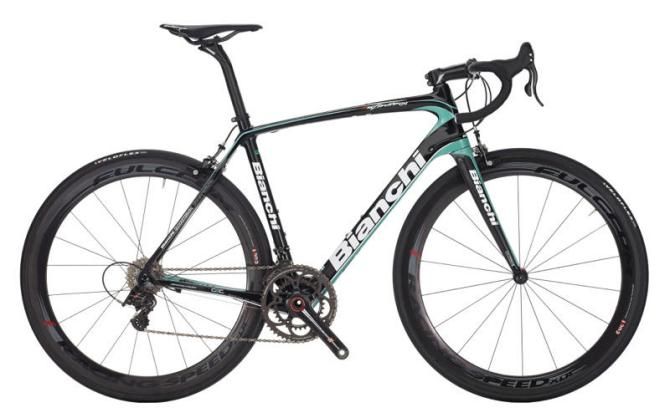

The new Bianchi Infinito CV

The new Bianchi Infinito CV
(Image credit: BikeRadar)
Image 2 of 23

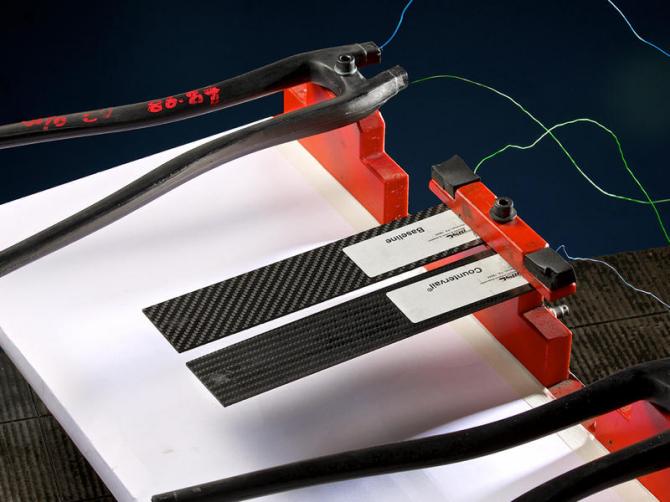

Bianchi demonstrated the vibration-damping qualities of the new CV material compared to standard carbon

Bianchi demonstrated the vibration-damping qualities of the new CV material compared to standard carbon
(Image credit: BikeRadar)
Image 3 of 23

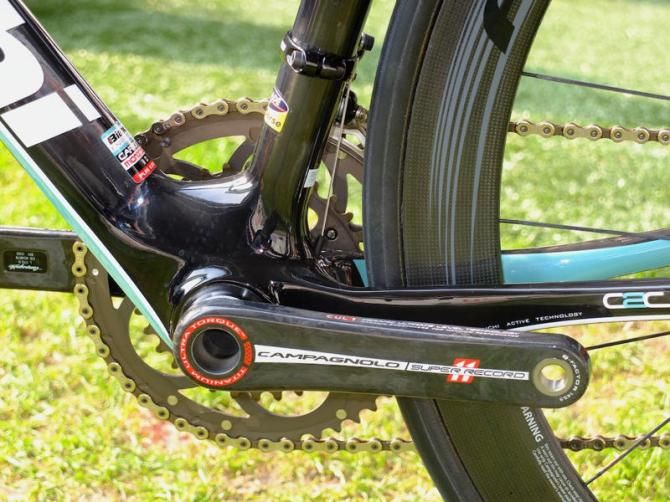

Customarily large bottom bracket area, containing a PF30 BB shell

Customarily large bottom bracket area, containing a PF30 BB shell
(Image credit: BikeRadar)
Image 4 of 23

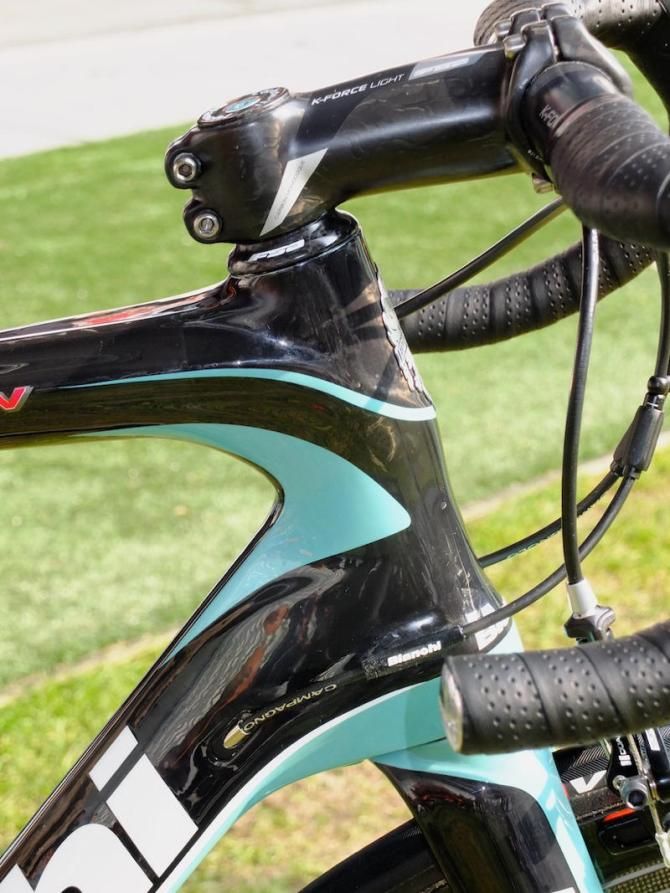

The head tube is oversized but has some aero shaping

The head tube is oversized but has some aero shaping
(Image credit: BikeRadar)
Image 5 of 23

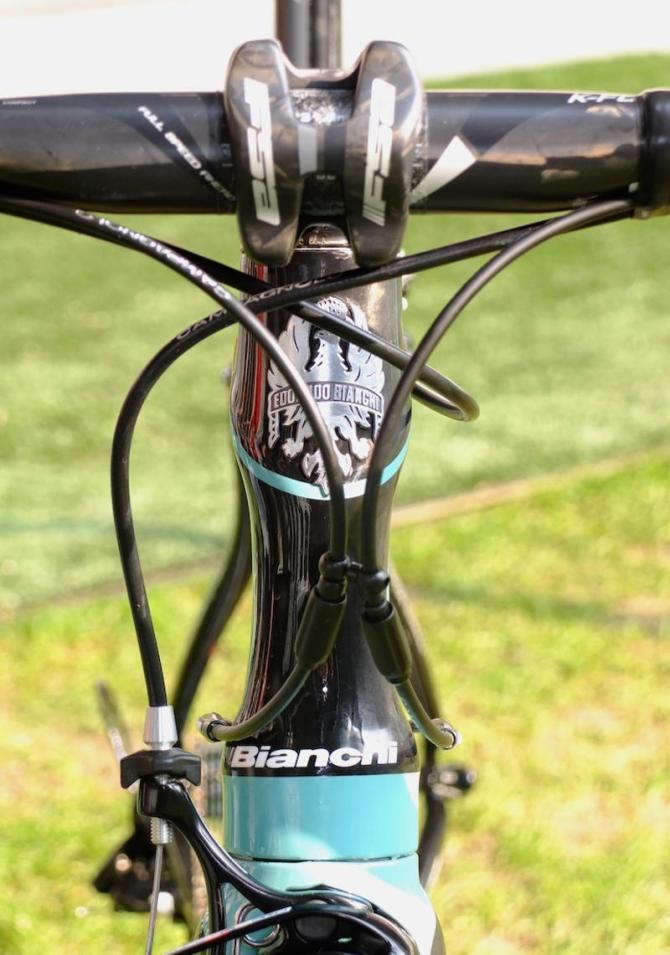

Frontal view of the hourglass shaped aero head tube

Frontal view of the hourglass shaped aero head tube
(Image credit: BikeRadar)
Image 6 of 23

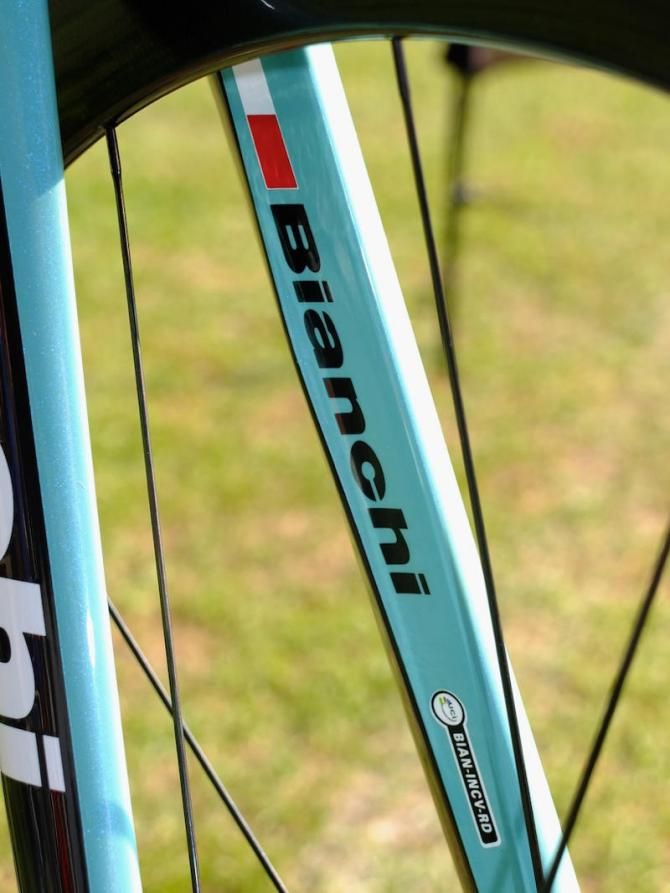

UCI approval label on the inner fork leg, plus subtle curves on the trailing edge

UCI approval label on the inner fork leg, plus subtle curves on the trailing edge
(Image credit: BikeRadar)
Image 7 of 23

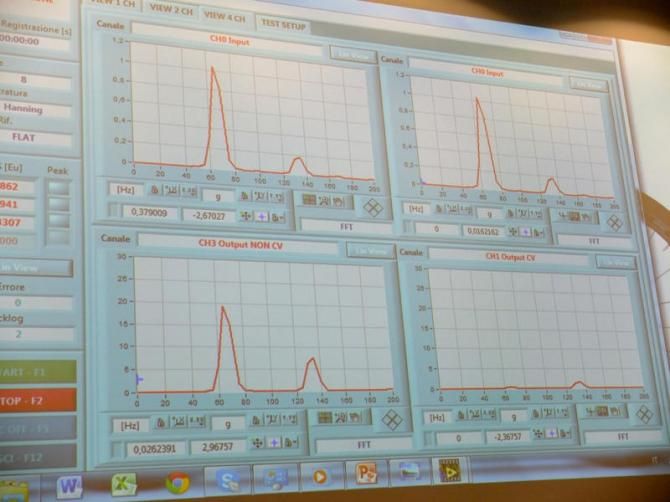

The graphs showing the vibration rig's results. The top graphs are the vibration applied to the stays, and the bottom graphs show how much damping each set of stays has - the CV stays are on the bottom right

The graphs showing the vibration rig's results. The top graphs are the vibration applied to the stays, and the bottom graphs show how much damping each set of stays has - the CV stays are on the bottom right
(Image credit: BikeRadar)
Image 8 of 23

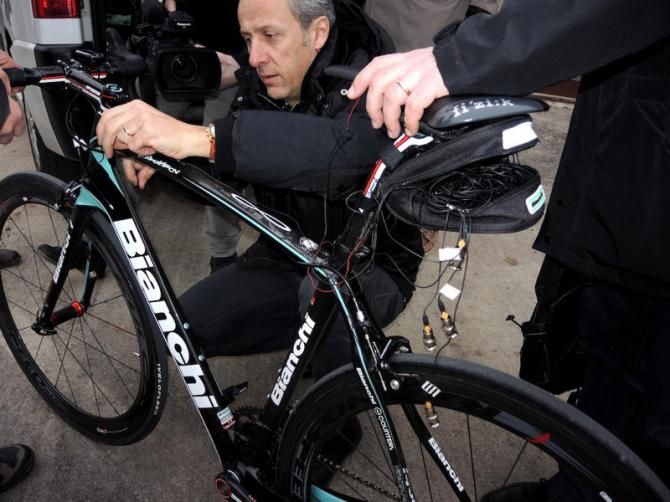

Bianchi's test team installing sensors to measure vibration

Bianchi's test team installing sensors to measure vibration
(Image credit: BikeRadar)
Image 9 of 23

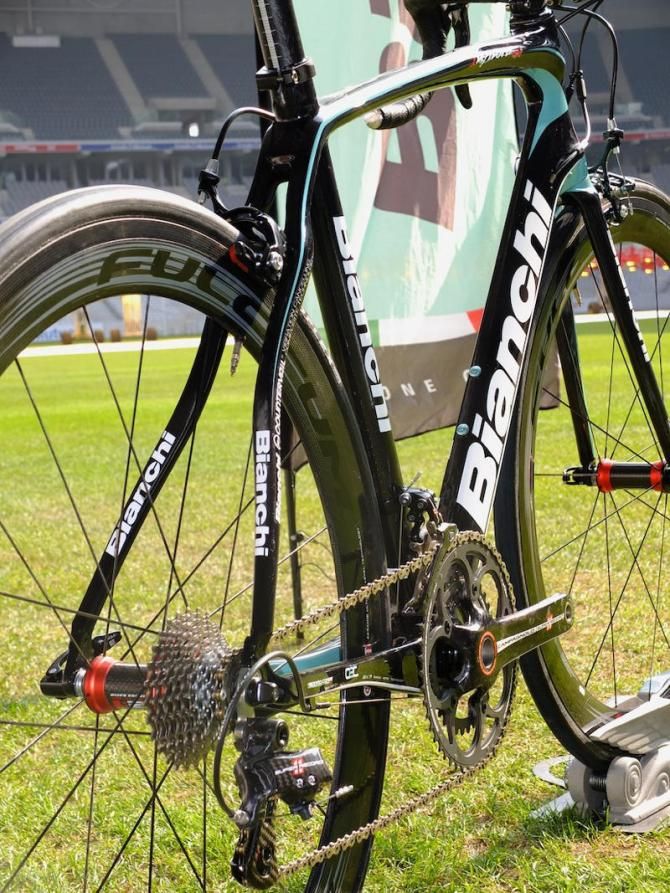

A completely Italian spec'ed machine

A completely Italian spec'ed machine
(Image credit: BikeRadar)
Image 10 of 23

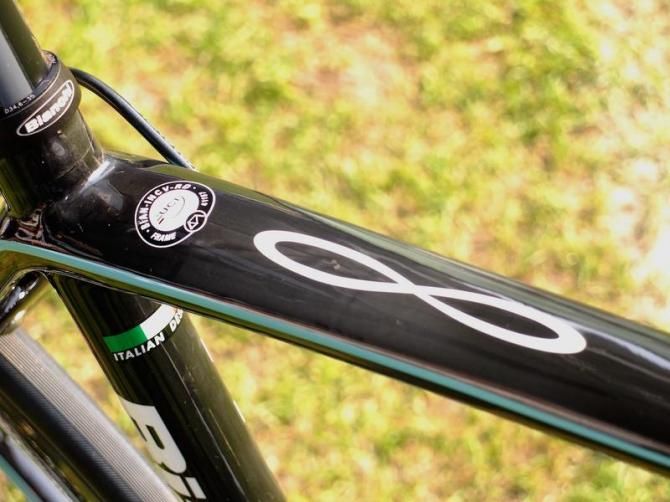

The frame's UCI approval mark, and large infinity symbol, which could prove popular in the Chinese market

The frame's UCI approval mark, and large infinity symbol, which could prove popular in the Chinese market
(Image credit: BikeRadar)
Image 11 of 23

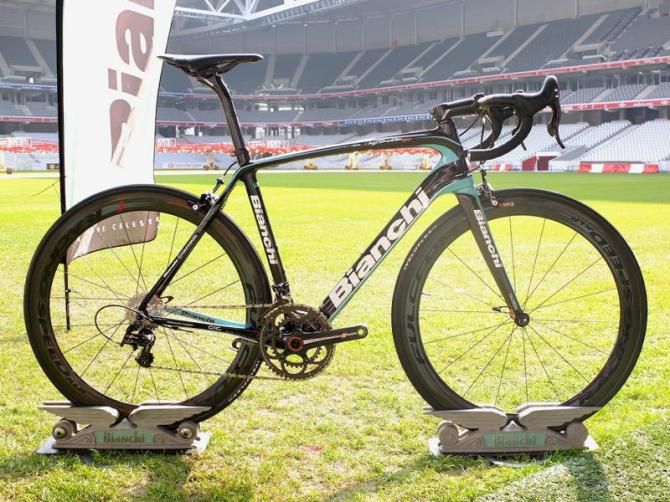

The Infinito CV on a sunny Lille stadium pitch, far from its intended use this Sunday at Paris-Roubaix

The Infinito CV on a sunny Lille stadium pitch, far from its intended use this Sunday at Paris-Roubaix
(Image credit: BikeRadar)
Image 12 of 23

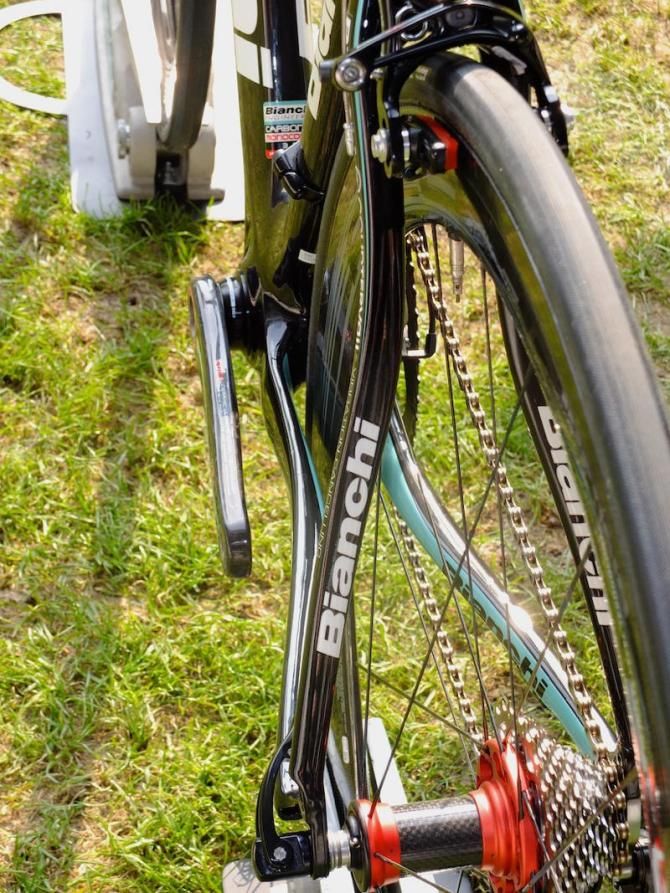

Top view of the seat stay shaping, showing their boxy profile

Top view of the seat stay shaping, showing their boxy profile
(Image credit: BikeRadar)
Image 13 of 23

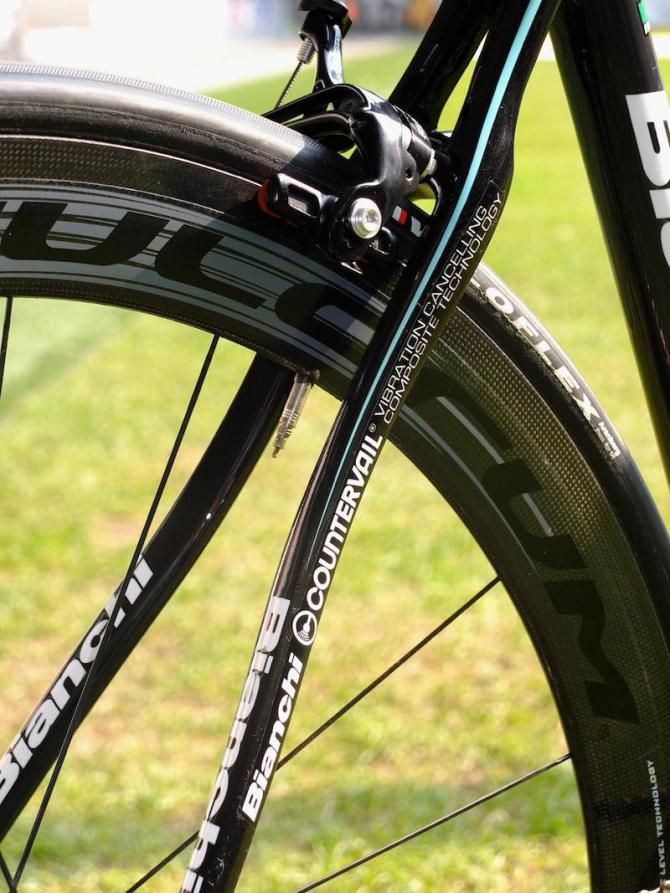

Seat stays are also heavily shaped but will contain some Countervail material

Seat stays are also heavily shaped but will contain some Countervail material
(Image credit: BikeRadar)
Image 14 of 23

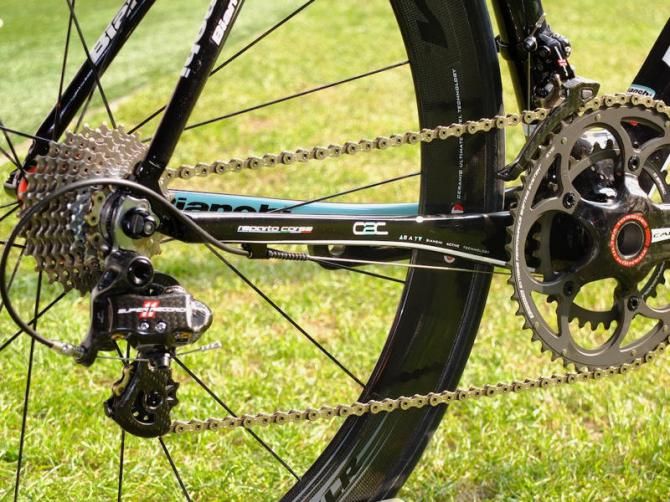

The chain stays are flattened horizontally but laterally rigid

The chain stays are flattened horizontally but laterally rigid
(Image credit: BikeRadar)
Image 15 of 23

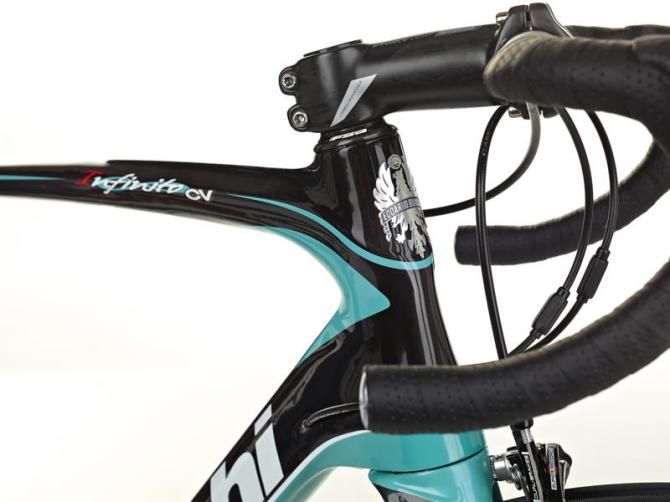

The Infinito CV, being an endurance bike, has a slightly taller head tube than standard race machines

The Infinito CV, being an endurance bike, has a slightly taller head tube than standard race machines
(Image credit: BikeRadar)
Image 16 of 23

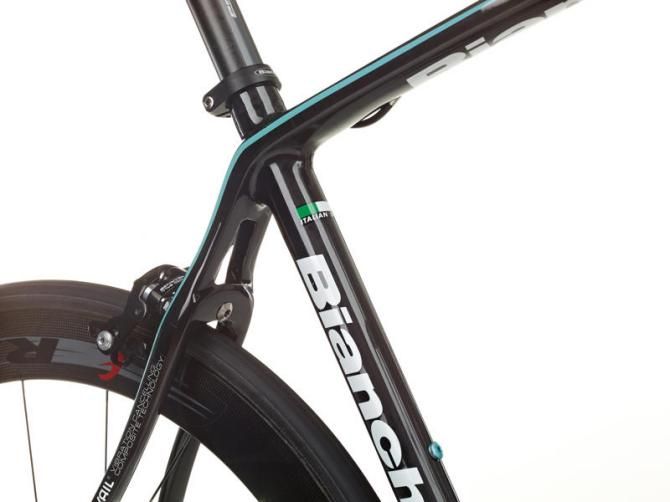

The Infinito CV is not more flexible because of the Countervail, Bianchi claims, but just better at damping vibration

The Infinito CV is not more flexible because of the Countervail, Bianchi claims, but just better at damping vibration
(Image credit: BikeRadar)
Image 17 of 23

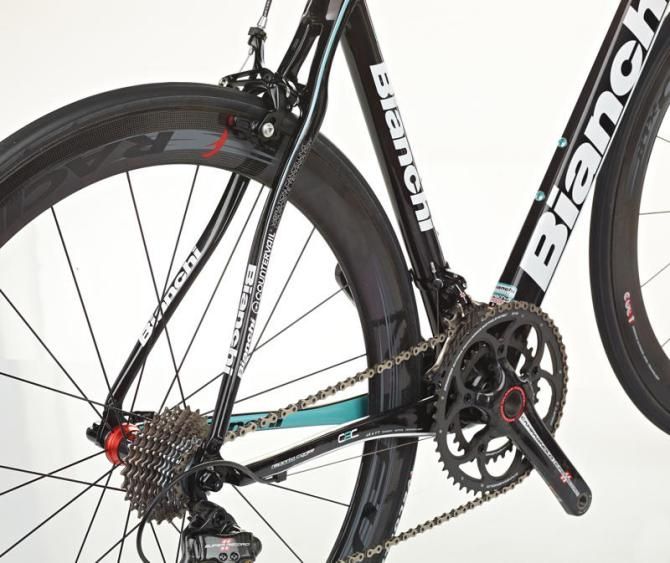

Bianchi uses layers of the CV material between layers of standard carbon

Bianchi uses layers of the CV material between layers of standard carbon
(Image credit: BikeRadar)
Image 18 of 23

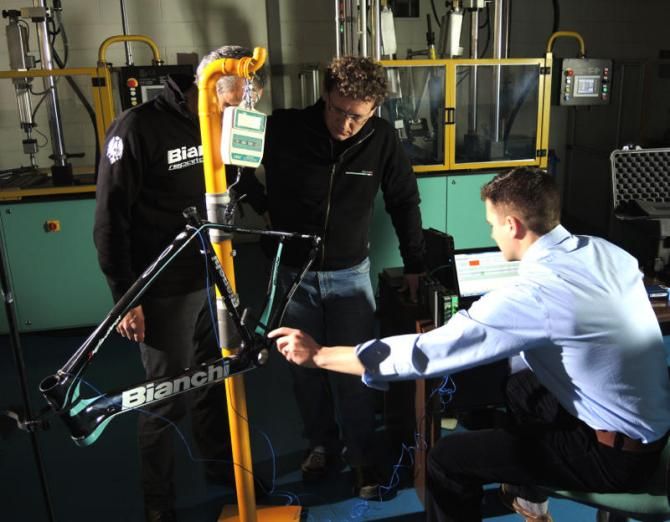

Bianchi tested the new material in the lab and on the road

Bianchi tested the new material in the lab and on the road
(Image credit: BikeRadar)
Image 19 of 23

Vibration sensors were mounted at various places on a bike, with the data pack stashed on the rider

Vibration sensors were mounted at various places on a bike, with the data pack stashed on the rider
(Image credit: BikeRadar)
Image 20 of 23

Less vibration transmitted to the rider means more power and less fatigue, Bianchi claims

Less vibration transmitted to the rider means more power and less fatigue, Bianchi claims
(Image credit: BikeRadar)
Image 21 of 23

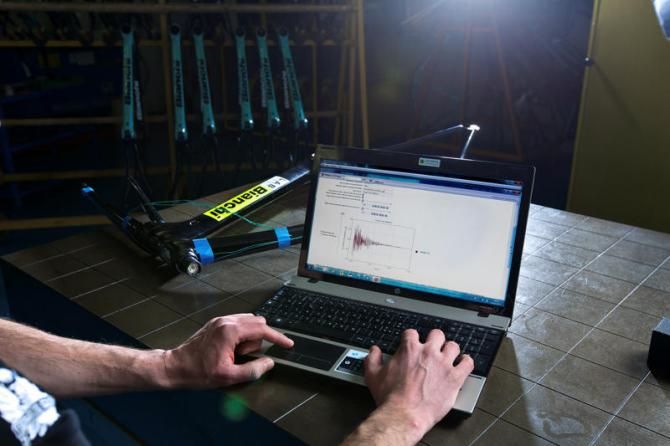

Bianchi showed how much more rapidly the CV material reduced vibration than standard carbon

Bianchi showed how much more rapidly the CV material reduced vibration than standard carbon
(Image credit: BikeRadar)
Image 22 of 23

The new Bianchi Infinito CV

The new Bianchi Infinito CV
(Image credit: BikeRadar)
Image 23 of 23

The Infinito CV on a sunny Lille stadium pitch, far from its intended use this Sunday at Paris-Roubaix

The Infinito CV on a sunny Lille stadium pitch, far from its intended use this Sunday at Paris-Roubaix
(Image credit: BikeRadar)

Bianchi has a new vibration damping concept that it claims could revolutionise endurance cycling. Just days before Paris-Roubaix, Bianchi officially launched the new Infinito CV, with Vacansoleil-DCM’s cobbles specialist Juan Antonio Flecha on hand to talk about his role in the creation of the bike.

We spotted the new bike with the team at last week's Tour of Flanders, but today Bianchi revealed the frameset's use of Countervail, a patented material developed between Bianchi and US company Materials Science Corporation (MSC), and exclusively used for cycling applications by Bianchi. Termed ‘Vibration Cancelling Composite Technology,’ the key feature is a viscoelastic carbon layer embedded between standard carbon layers at critical areas of the frame and fork – although Bianchi wouldn’t say where.

Countervail (CV) is also used by NASA in aerospace applications, but that won’t help you on the cobbles. Bianchi’s use of CV is designed to cancel vibration before it reaches the rider, not through a suspension movement, but by viscoelastic damping. This does not make the frame more flexible, Bianchi claims.

To demonstrate the material's performance, Bianchi had two open-ended seat stays mounted on a plate attached to a motor vibrating at around 60-80Hz — an approximation of riding over 15cm-wide cobbles at 38-40kph. One seat stay was of conventional carbon construction, the other contained the CV layer. Both used the Infinito CV mold. When a ping pong ball in a clear tube was held against the stay with all normal carbon fiber, it kicked, hopped and bounced, around 5cm above the stay. But when placed against the CV stay there was barely any visible vibration. Shown as oscillations on a graph, the vibrations put through the CV reduced to almost nothing around 60% faster.

Bianchi say the Infinito CV weighs around 950g for a 55cm frame, +/- 3-5% depending on paint finish. There will be four available – celeste, black/celeste, black/red and white/celeste, but apparently black is the lightest as it uses less paint. As it is a structural layer, the CV material doesn’t add weight to the frame, Bianchi says. The 1 1/8 – 1 1/2in fork will weigh under 400g, and the complete frameset gains around 100g over the outgoing Infinito.

Bianchi have no current plans to use CV in any other frames, but did announce that there will also be a disc version of the Infinito CV available when they both reach the market in June. This will be engineered with a strengthened left fork leg and stays to counteract the braking force of a full hydraulic system, which the company have been testing. The rear end will be spaced for 135mm hubs, with the calliper mounted on the chain stay, and the fork will have an integrated post mount and accept 140 or 160mm rotors. Although not UCI legal yet, Bianchi are clearly throwing their weight behind the imminent hydraulic braking systems.

The main features of both frames are longer head tubes, seat stays and wheelbase, internal cable routing for mechanical and electronic, PF30 bottom bracket shell, space for 28mm tyres, aero frame shaping, and eight sizes – 47, 50, 53, 55, 57, 59, 61 and 63cm. The head tube length for a 47cm frame will be 125mm, with an increase of 15mm for each jump in frame size, up to 23cm for the largest. Prices for both variants will be announced in June.

Tomorrow we’ll be swinging a leg over one of the new machines, and will report back once we’ve found some cobbles to point it at.
