Trek finally ventures out of its shell for new Madone

Image 1 of 63

Lance Armstrong joins Trek head John Burke

Lance Armstrong joins Trek head John Burke (Image credit: James Huang)
Image 2 of 63

Somehow we get the feeling that Lance

Somehow we get the feeling that Lance (Image credit: James Huang)
Image 3 of 63

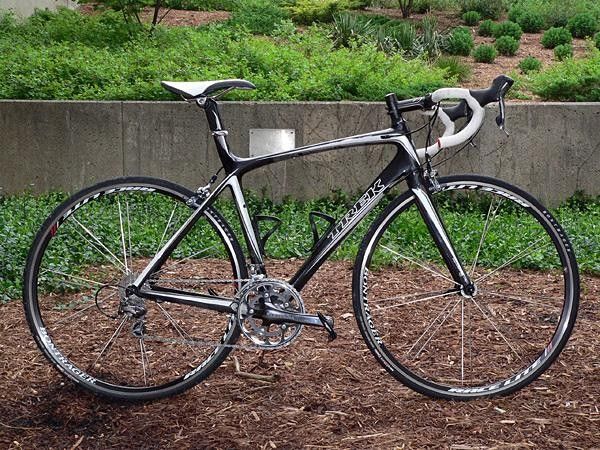

Trek incorporates a sloping top tube

Trek incorporates a sloping top tube (Image credit: James Huang)
Image 4 of 63

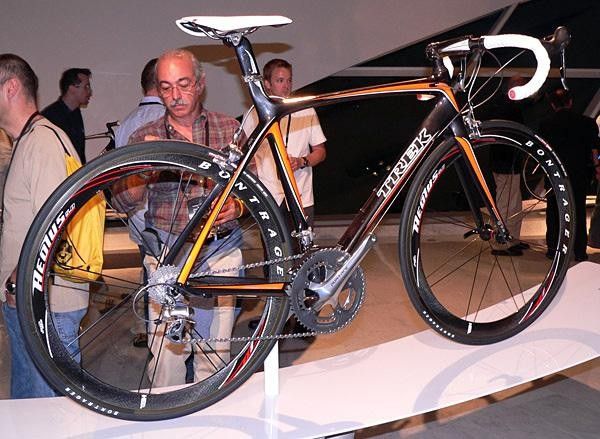

Bold and bright new graphics packages

Bold and bright new graphics packages (Image credit: James Huang)
Image 5 of 63

Cutaway of the Bontrager Race XXX Lite E2 fork

Cutaway of the Bontrager Race XXX Lite E2 fork (Image credit: James Huang)
Image 6 of 63

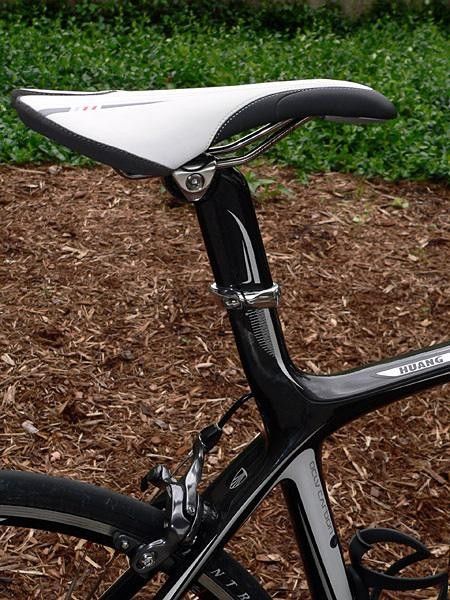

The carbon fiber 'cap' incorporates more overlap

The carbon fiber 'cap' incorporates more overlap (Image credit: James Huang)
Image 7 of 63

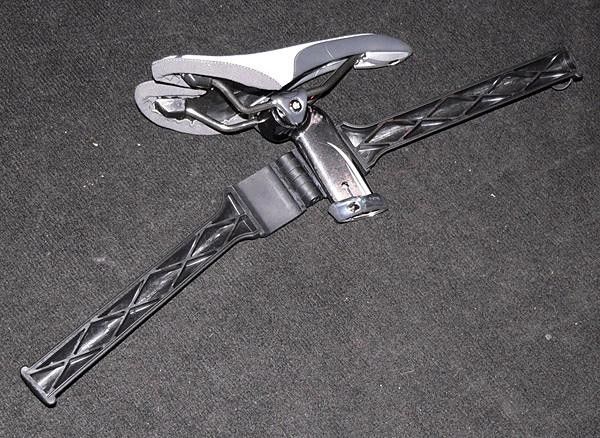

A new Madone-specific tool wraps around the seatpost cap

A new Madone-specific tool wraps around the seatpost cap (Image credit: James Huang)
Image 8 of 63

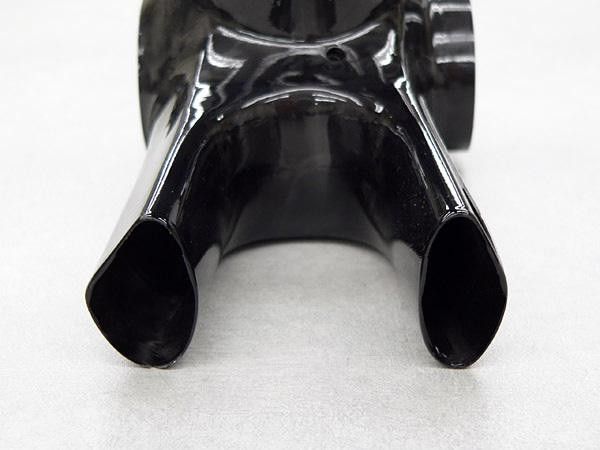

The wider bottom bracket shell

The wider bottom bracket shell (Image credit: James Huang)
Image 9 of 63

Tom Rose has been one of Trek's top frame technicians

Tom Rose has been one of Trek's top frame technicians (Image credit: James Huang)
Image 10 of 63

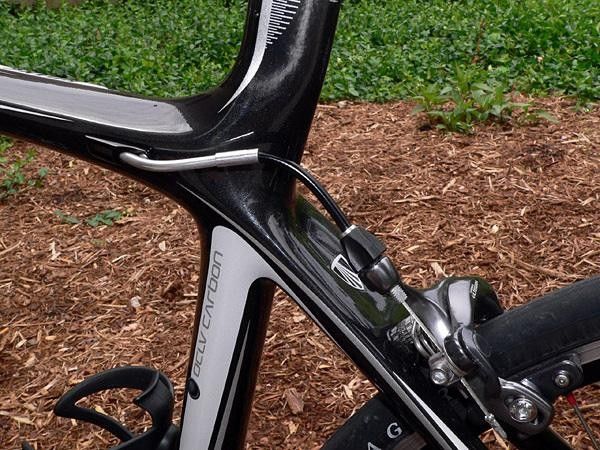

Smaller frames use a short stainless steel tube

Smaller frames use a short stainless steel tube (Image credit: James Huang)
Image 11 of 63

The new Bontrager Speed Limit brake

The new Bontrager Speed Limit brake (Image credit: James Huang)
Image 12 of 63

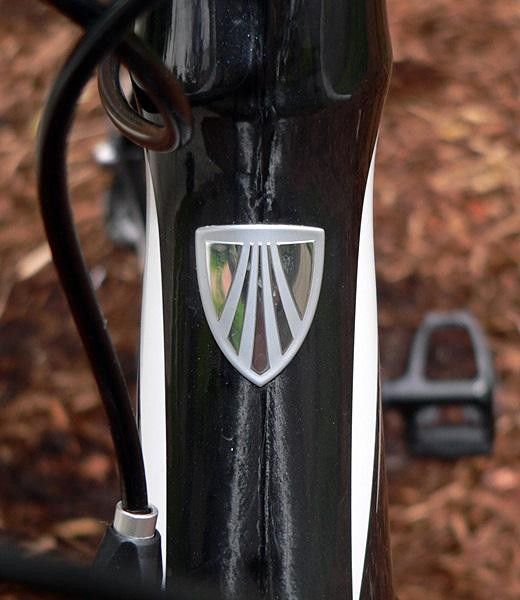

The new face of Trek.

The new face of Trek. (Image credit: James Huang)
Image 13 of 63

Trek incorporates a sloping top tube into its top-end racing machines for the first time.

Trek incorporates a sloping top tube into its top-end racing machines for the first time. (Image credit: James Huang/Cyclingnews.com)
Image 14 of 63

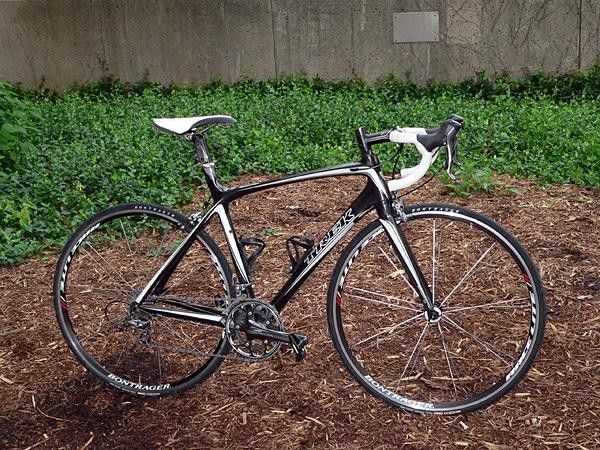

This is not your father's Trek Madone!

This is not your father's Trek Madone! (Image credit: James Huang/Cyclingnews.com)
Image 15 of 63

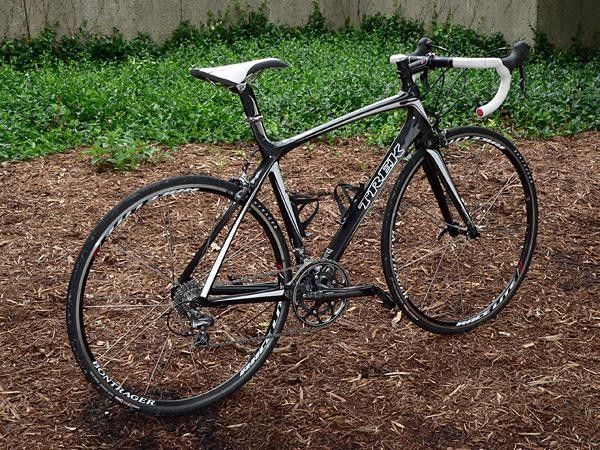

The new Trek Madone strikes a purposeful pose.

The new Trek Madone strikes a purposeful pose. (Image credit: James Huang/Cyclingnews.com)
Image 16 of 63

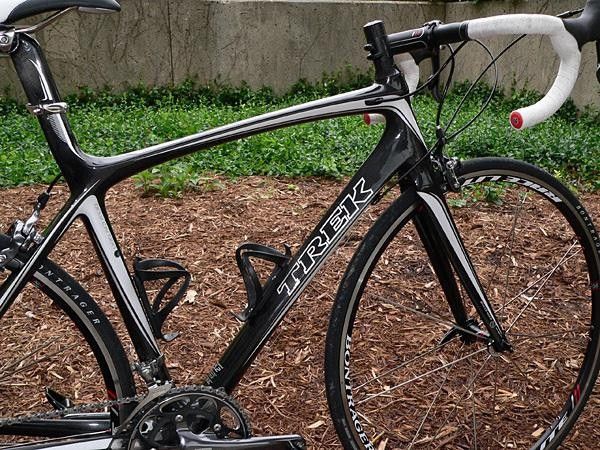

Aggressive tube profiles are a stark contrast from the previous generation's round pipes.

Aggressive tube profiles are a stark contrast from the previous generation's round pipes. (Image credit: James Huang/Cyclingnews.com)
Image 17 of 63

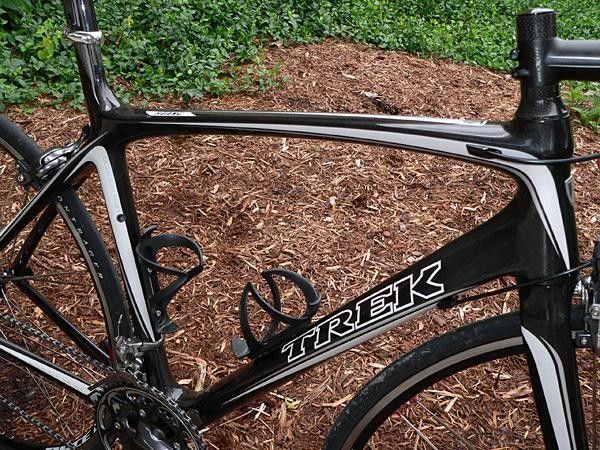

Bold graphics are the result of industrial designers having a little more leeway these days.

Bold graphics are the result of industrial designers having a little more leeway these days. (Image credit: James Huang/Cyclingnews.com)
Image 18 of 63

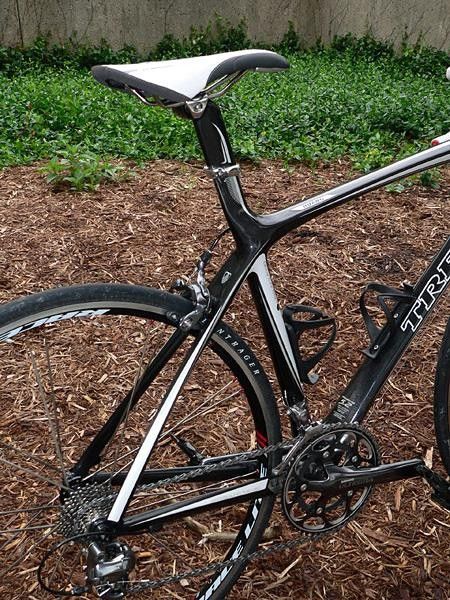

The integrated seat mast is engineered with a prescribed amount of flex for more rider comfort.

The integrated seat mast is engineered with a prescribed amount of flex for more rider comfort. (Image credit: James Huang/Cyclingnews.com)
Image 19 of 63

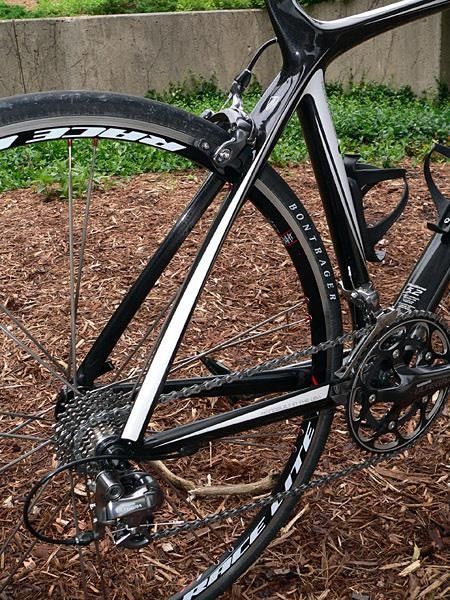

Swoopier stays grace the rear end.

Swoopier stays grace the rear end. (Image credit: James Huang/Cyclingnews.com)
Image 20 of 63

Bottom bracket bearings are integrated directly into the bottom bracket shell of the new Trek Madone.

Bottom bracket bearings are integrated directly into the bottom bracket shell of the new Trek Madone. (Image credit: James Huang/Cyclingnews.com)
Image 21 of 63

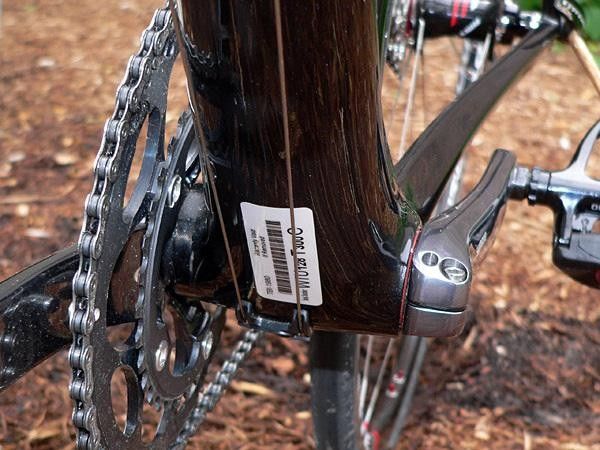

The bottom bracket shell measures 90mm across yet the pedal stance width remains unchanged.

The bottom bracket shell measures 90mm across yet the pedal stance width remains unchanged. (Image credit: James Huang/Cyclingnews.com)
Image 22 of 63

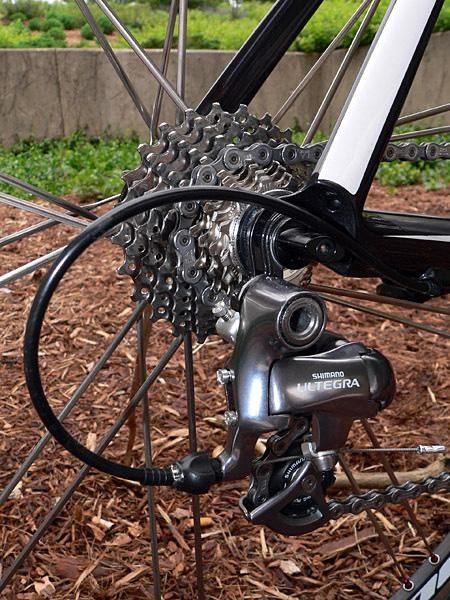

Sadly, the rear dropout still isn't replaceable… for now. While the one-piece design offers a stiffer base for better shifting, Trek officials hinted at a replaceable design in the near future.

Sadly, the rear dropout still isn't replaceable… for now. While the one-piece design offers a stiffer base for better shifting, Trek officials hinted at a replaceable design in the near future. (Image credit: James Huang/Cyclingnews.com)
Image 23 of 63

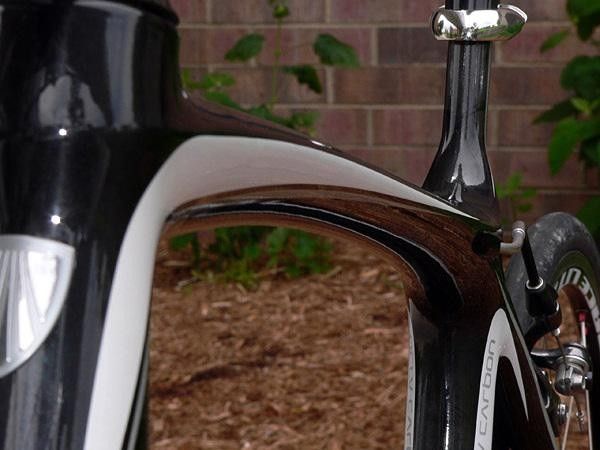

A bowed top tube likely contributes to the excellent vertical compliance of the new frame.

A bowed top tube likely contributes to the excellent vertical compliance of the new frame. (Image credit: James Huang/Cyclingnews.com)
Image 24 of 63

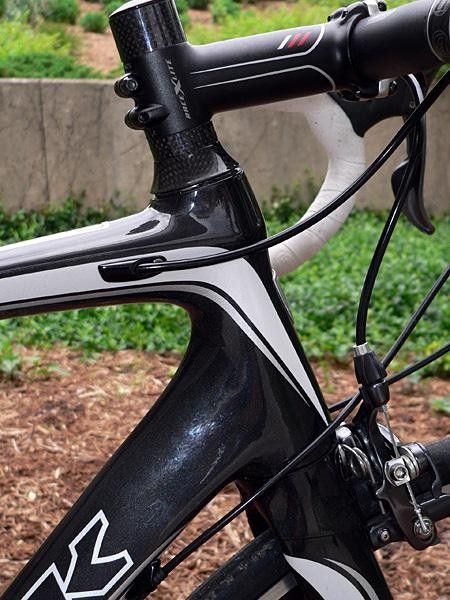

Oversized head tube houses a giant tapered steerer tube and also provides more surface area to mate with the top tube and down tubes.

Oversized head tube houses a giant tapered steerer tube and also provides more surface area to mate with the top tube and down tubes. (Image credit: James Huang/Cyclingnews.com)
Image 25 of 63

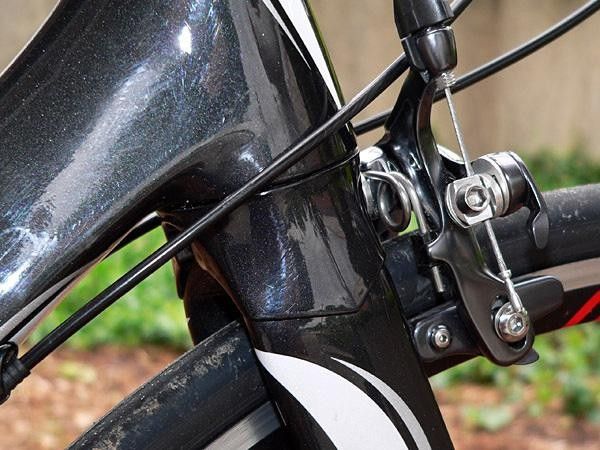

A cosmetic cap smooths the transition from fork to head tube while allowing the carbon fibers in the fork to avoid sharp bends that would weaken the structure.

A cosmetic cap smooths the transition from fork to head tube while allowing the carbon fibers in the fork to avoid sharp bends that would weaken the structure. (Image credit: James Huang/Cyclingnews.com)
Image 26 of 63

The carbon fiber 'cap' incorporates more overlap than most integrated designs, but apparently isn't any heavier yet is much easier to live with.

The carbon fiber 'cap' incorporates more overlap than most integrated designs, but apparently isn't any heavier yet is much easier to live with. (Image credit: James Huang/Cyclingnews.com)
Image 27 of 63

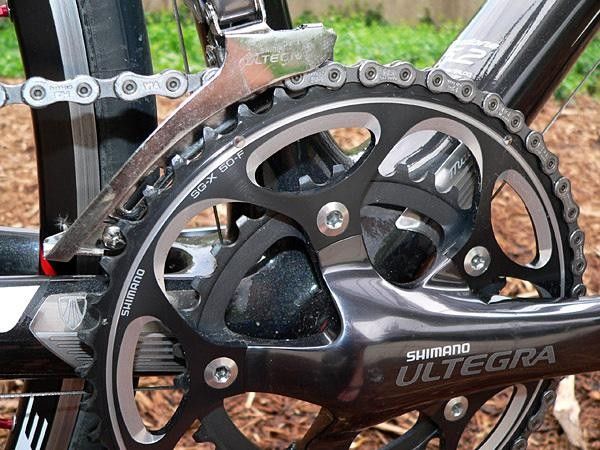

Stainless steel guards on the down tube and chainstay protect the frame from damage in the event of a dropped chain.

Stainless steel guards on the down tube and chainstay protect the frame from damage in the event of a dropped chain. (Image credit: James Huang/Cyclingnews.com)
Image 28 of 63

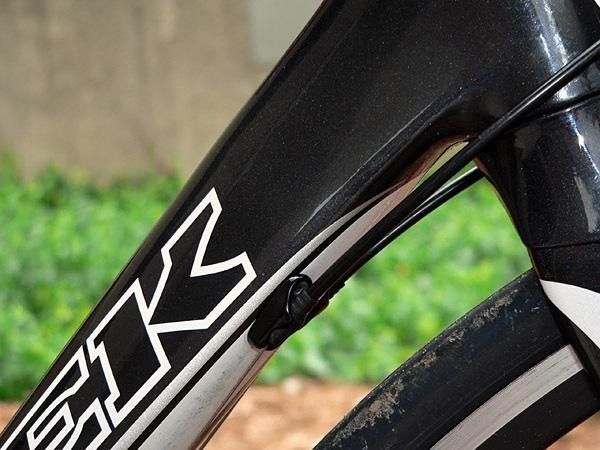

Simple down tube cable stops will no longer accept down tube shifters.

Simple down tube cable stops will no longer accept down tube shifters. (Image credit: James Huang/Cyclingnews.com)
Image 29 of 63

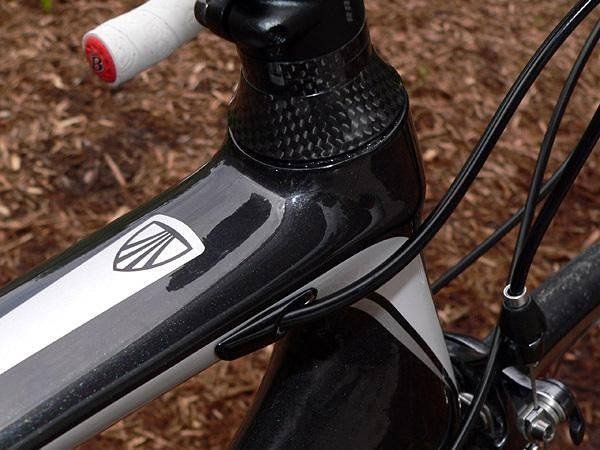

Internal brake cable routing is used on the new Madone.

Internal brake cable routing is used on the new Madone. (Image credit: James Huang/Cyclingnews.com)
Image 30 of 63

Smaller frames use a short stainless steel tube to guide the rear brake line.

Smaller frames use a short stainless steel tube to guide the rear brake line. (Image credit: James Huang/Cyclingnews.com)
Image 31 of 63

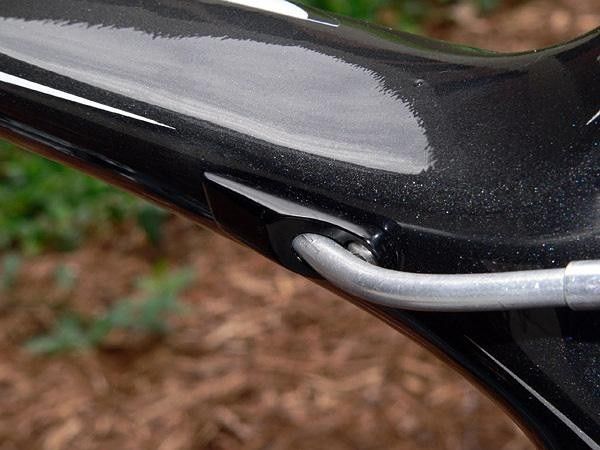

Rear brake cable stop is removable to facilitate snaking a cable through the top tube in case you forget to insert a liner first during service.

Rear brake cable stop is removable to facilitate snaking a cable through the top tube in case you forget to insert a liner first during service. (Image credit: James Huang/Cyclingnews.com)
Image 32 of 63

The new face of Trek.

The new face of Trek. (Image credit: James Huang/Cyclingnews.com)
Image 33 of 63

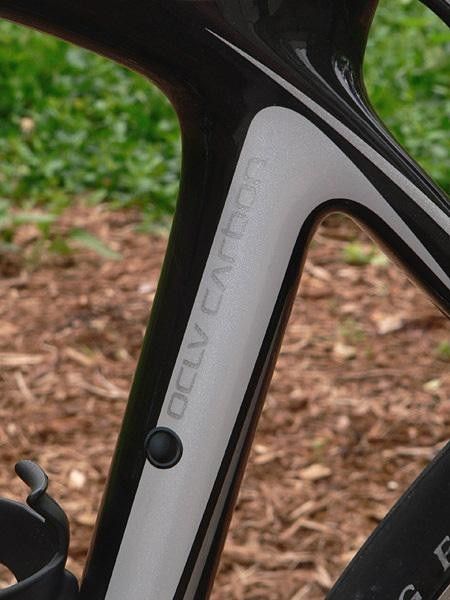

Trek has simplified its carbon fiber hierarchy : OCLV Red, OCLV Black, and OCLV White will now be used to designate the levels of fiber and layup schedule used, from most advanced and complex to most economical.

Trek has simplified its carbon fiber hierarchy : OCLV Red, OCLV Black, and OCLV White will now be used to designate the levels of fiber and layup schedule used, from most advanced and complex to most economical. (Image credit: James Huang/Cyclingnews.com)
Image 34 of 63

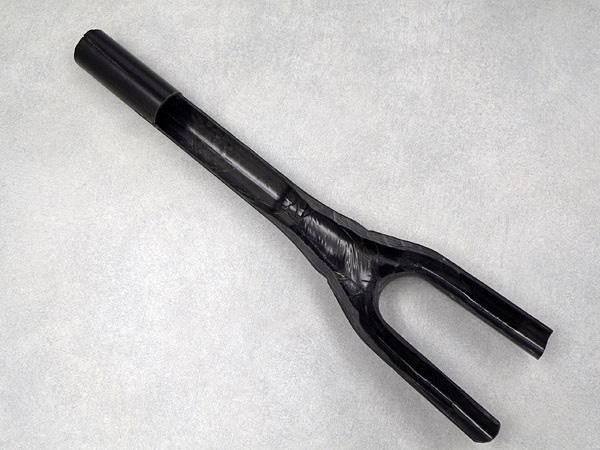

Cutaway of the Bontrager Race XXX Lite E2 fork shows distinctly thin-walled construction around the crown area.

Cutaway of the Bontrager Race XXX Lite E2 fork shows distinctly thin-walled construction around the crown area. (Image credit: James Huang/Cyclingnews.com)
Image 35 of 63

The wider bottom bracket shell offers more real estate for widely set asymmetrical chainstays.

The wider bottom bracket shell offers more real estate for widely set asymmetrical chainstays. (Image credit: James Huang/Cyclingnews.com)
Image 36 of 63

Bold and bright new graphics packages are a welcome departure from Trek's traditionally conservative designs.

Bold and bright new graphics packages are a welcome departure from Trek's traditionally conservative designs. (Image credit: James Huang/Cyclingnews.com)
Image 37 of 63

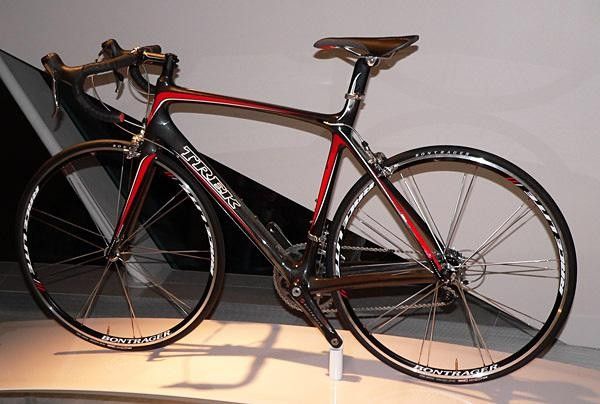

A little bit of color goes a long way…

A little bit of color goes a long way… (Image credit: James Huang/Cyclingnews.com)
Image 38 of 63

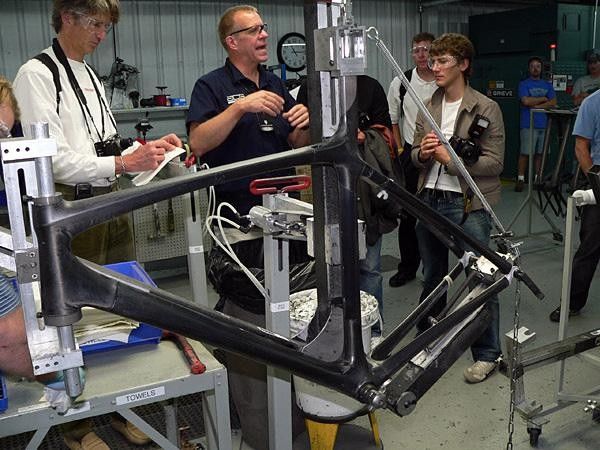

A freshly-bonded Madone frame is ready for the curing oven.

A freshly-bonded Madone frame is ready for the curing oven. (Image credit: James Huang/Cyclingnews.com)
Image 39 of 63

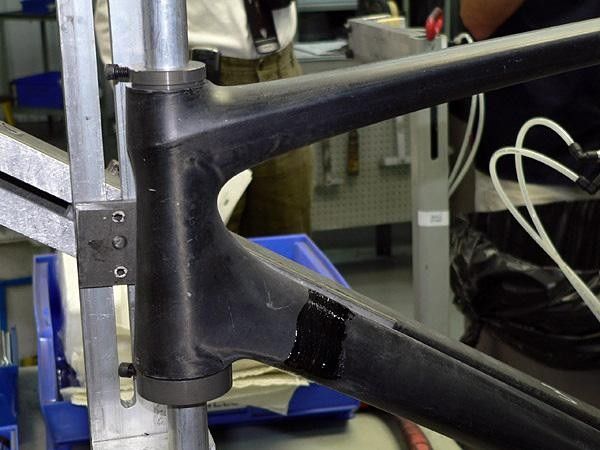

Excess glue will be wiped away prior to the curing stage.

Excess glue will be wiped away prior to the curing stage. (Image credit: James Huang/Cyclingnews.com)
Image 40 of 63

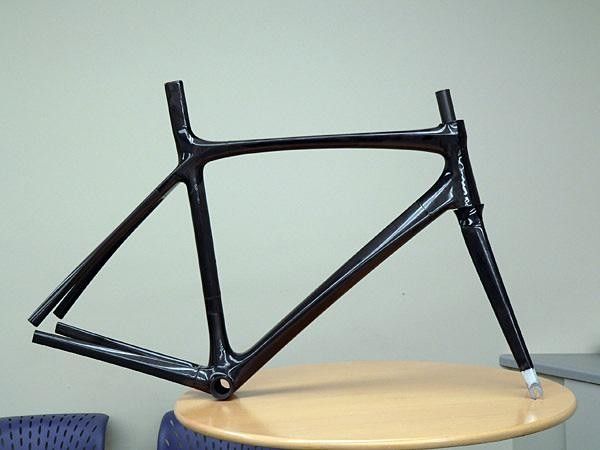

New Precision Fit Socket molding techniques offer a more precise fit straight out of the mold and requires no post-mold machining.

New Precision Fit Socket molding techniques offer a more precise fit straight out of the mold and requires no post-mold machining. (Image credit: James Huang/Cyclingnews.com)
Image 41 of 63

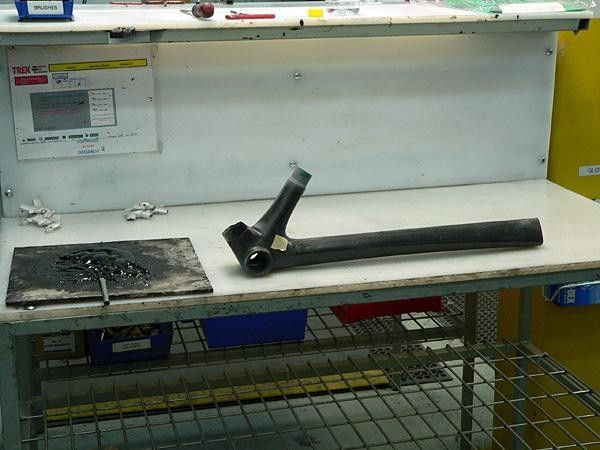

A new Trek Madone frame section ready to be bonded.

A new Trek Madone frame section ready to be bonded. (Image credit: James Huang/Cyclingnews.com)
Image 42 of 63

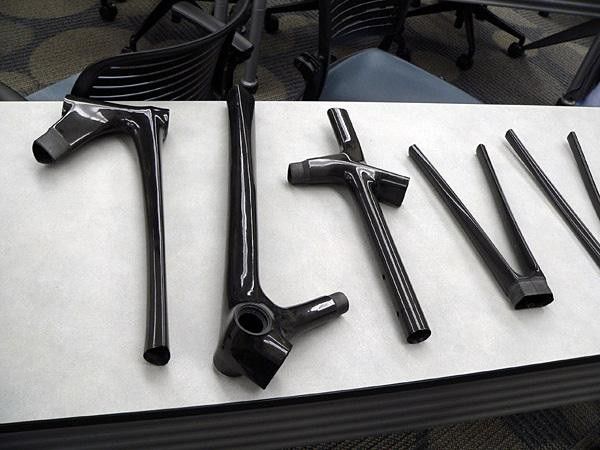

Trek reduced the number of bond joints in the new Madone by 40% (there are now just nine, including the dropouts).

Trek reduced the number of bond joints in the new Madone by 40% (there are now just nine, including the dropouts). (Image credit: James Huang/Cyclingnews.com)
Image 43 of 63

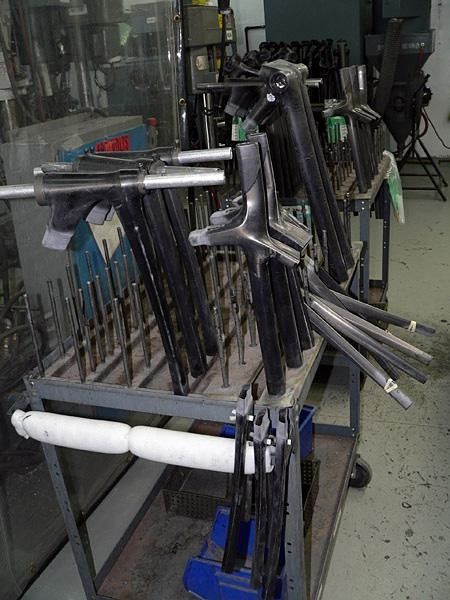

A rack of Madone frame parts await the technician's magic touch.

A rack of Madone frame parts await the technician's magic touch. (Image credit: James Huang/Cyclingnews.com)
Image 44 of 63

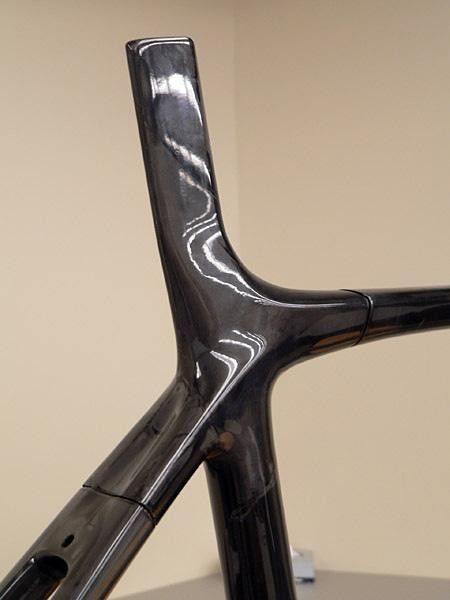

The moderately extended integrated seat mast is fully capped up top, meaning no water can get in (at least not from there).

The moderately extended integrated seat mast is fully capped up top, meaning no water can get in (at least not from there). (Image credit: James Huang/Cyclingnews.com)
Image 45 of 63

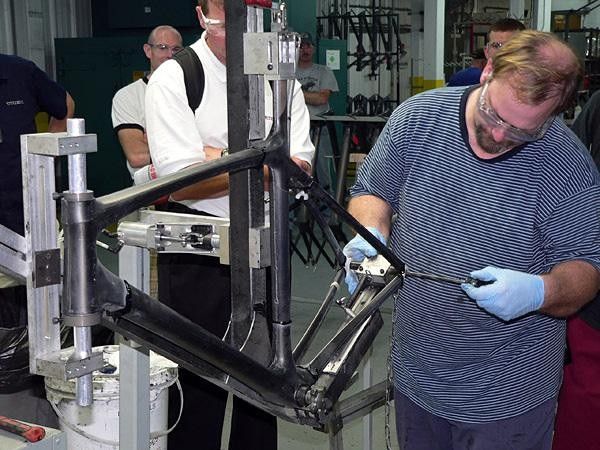

Tom Rose has been one of Trek's top frame technicians for 17 years and was personally responsible for assembling Lance Armstrong's frames.

Tom Rose has been one of Trek's top frame technicians for 17 years and was personally responsible for assembling Lance Armstrong's frames. (Image credit: James Huang/Cyclingnews.com)
Image 46 of 63

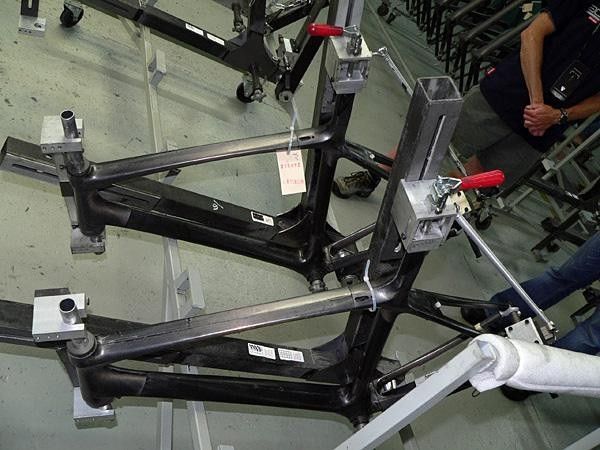

Even the Madone frame jigs are made mostly of carbon fiber to yield matched coefficients of thermal expansion for better alignment in and out of the oven.

Even the Madone frame jigs are made mostly of carbon fiber to yield matched coefficients of thermal expansion for better alignment in and out of the oven. (Image credit: James Huang/Cyclingnews.com)
Image 47 of 63

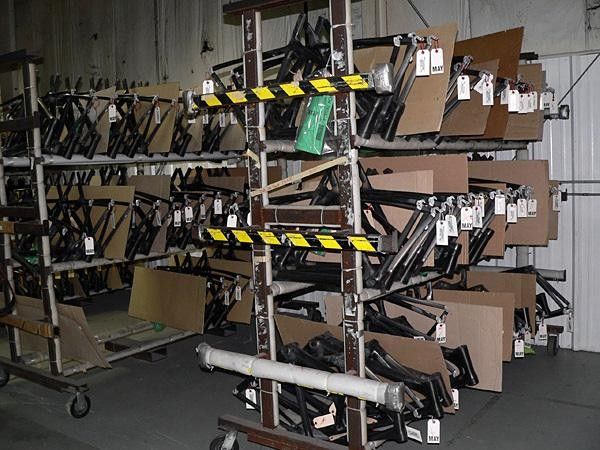

Frame production is already underway, meaning that consumers can bring home a new Madone right now.

Frame production is already underway, meaning that consumers can bring home a new Madone right now. (Image credit: James Huang/Cyclingnews.com)
Image 48 of 63

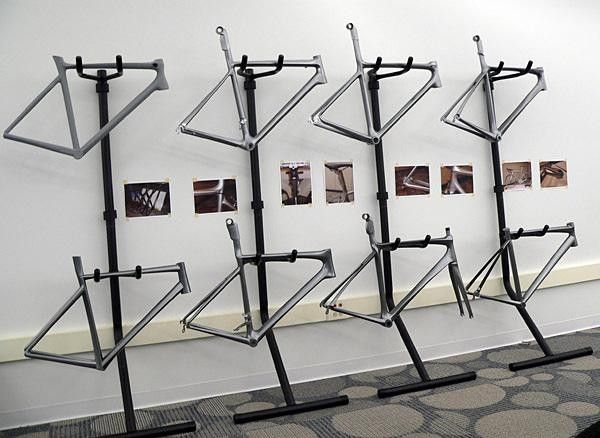

The new Trek Madone underwent several design iterations before a final version was chosen.

The new Trek Madone underwent several design iterations before a final version was chosen. (Image credit: James Huang/Cyclingnews.com)
Image 49 of 63

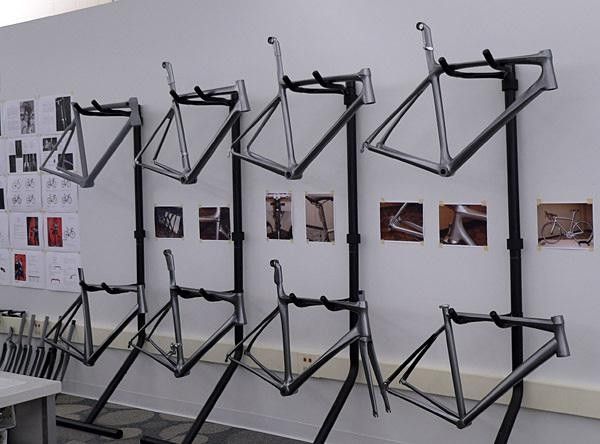

Hmm… what's this at the lower left we see? A new aluminum and carbon road frame is apparently already in development.

Hmm… what's this at the lower left we see? A new aluminum and carbon road frame is apparently already in development. (Image credit: James Huang/Cyclingnews.com)
Image 50 of 63

Trek's new Madone was unveiled at the Milwaukee Art Museum.

Trek's new Madone was unveiled at the Milwaukee Art Museum. (Image credit: James Huang/Cyclingnews.com)
Image 51 of 63

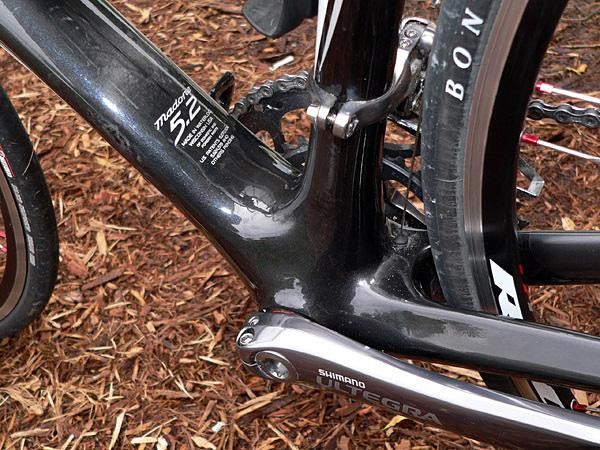

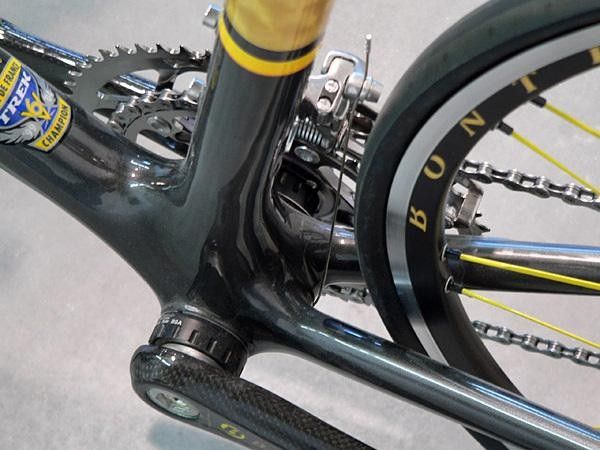

The standard 68mm wide bottom bracket shell width looks positively anemic relative to the new 90mm standard.

The standard 68mm wide bottom bracket shell width looks positively anemic relative to the new 90mm standard. (Image credit: James Huang/Cyclingnews.com)
Image 52 of 63

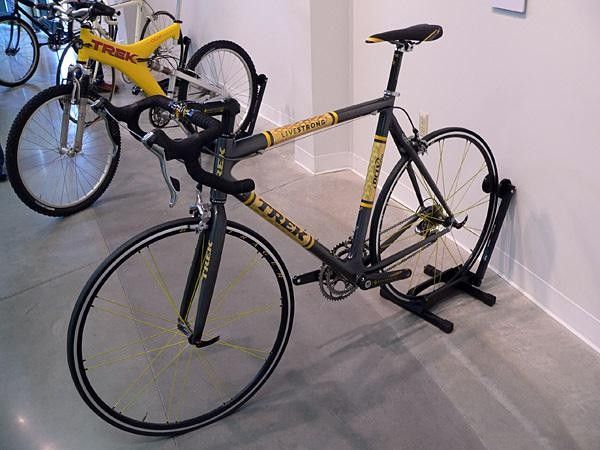

The frame that Lance won his last Tour de France on is relatively wimpy-looking in comparison with the new model.

The frame that Lance won his last Tour de France on is relatively wimpy-looking in comparison with the new model. (Image credit: James Huang/Cyclingnews.com)
Image 53 of 63

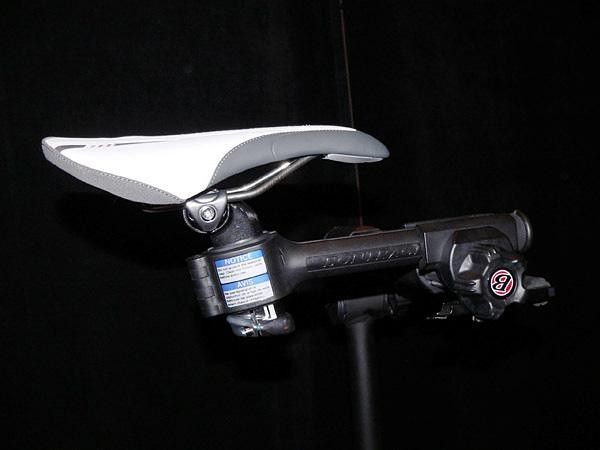

Trek engineers didn’t forget the shop mechanics, either…

Trek engineers didn’t forget the shop mechanics, either… (Image credit: James Huang/Cyclingnews.com)
Image 54 of 63

… a new Madone-specific tool wraps around the seatpost cap and provides a secure clamping location for work stands.

… a new Madone-specific tool wraps around the seatpost cap and provides a secure clamping location for work stands. (Image credit: James Huang/Cyclingnews.com)
Image 55 of 63

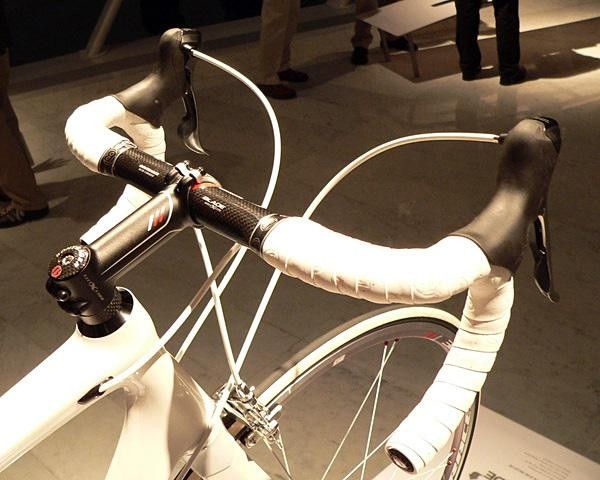

A new Bontrager Race X Lite Blade carbon fiber handlebar features a flatttened upper section.

A new Bontrager Race X Lite Blade carbon fiber handlebar features a flatttened upper section. (Image credit: James Huang/Cyclingnews.com)
Image 56 of 63

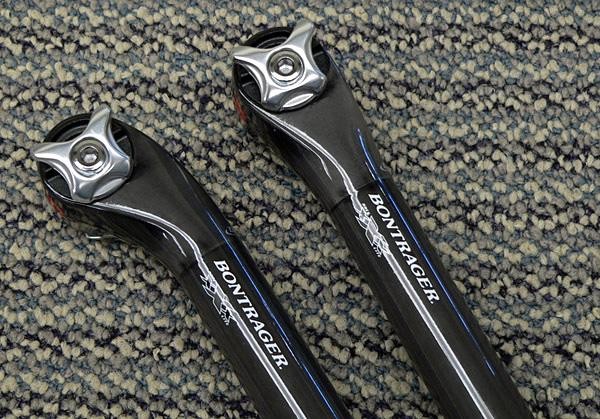

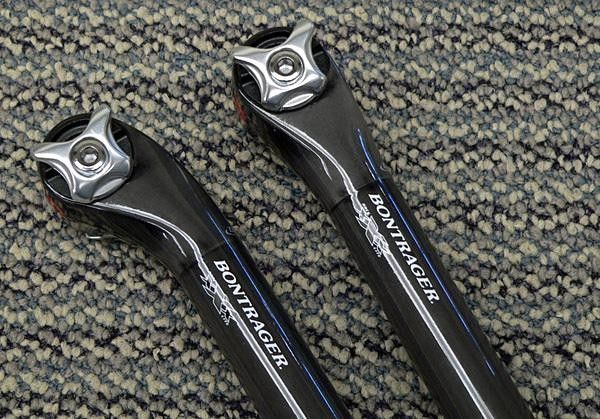

The new Bontrager Race XXX Lite carbon posts now use full carbon post construction.

The new Bontrager Race XXX Lite carbon posts now use full carbon post construction. (Image credit: James Huang/Cyclingnews.com)
Image 57 of 63

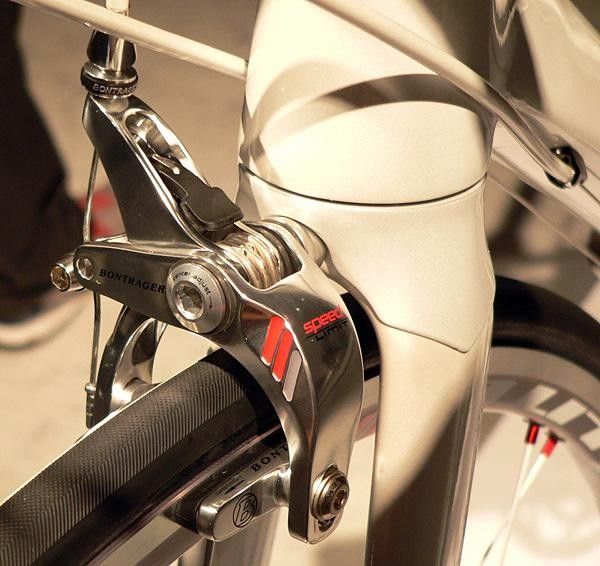

The new Bontrager Speed Limit brake offers the profile and weight of a single-pivot brake…

The new Bontrager Speed Limit brake offers the profile and weight of a single-pivot brake… (Image credit: James Huang/Cyclingnews.com)
Image 58 of 63

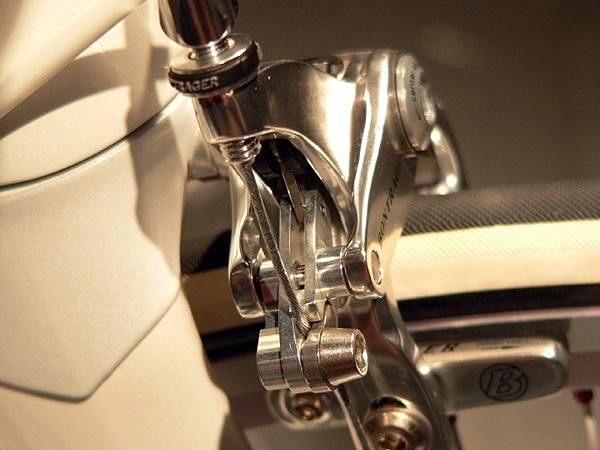

… but a cleverly engineered linkage system delivers the stopping power of a dual-pivot.

… but a cleverly engineered linkage system delivers the stopping power of a dual-pivot. (Image credit: James Huang/Cyclingnews.com)
Image 59 of 63

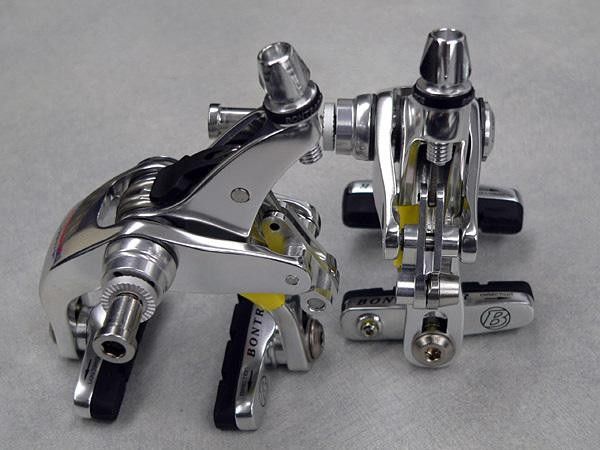

Widely-braced main pivots promise slop-free performance.

Widely-braced main pivots promise slop-free performance. (Image credit: James Huang/Cyclingnews.com)
Image 60 of 63

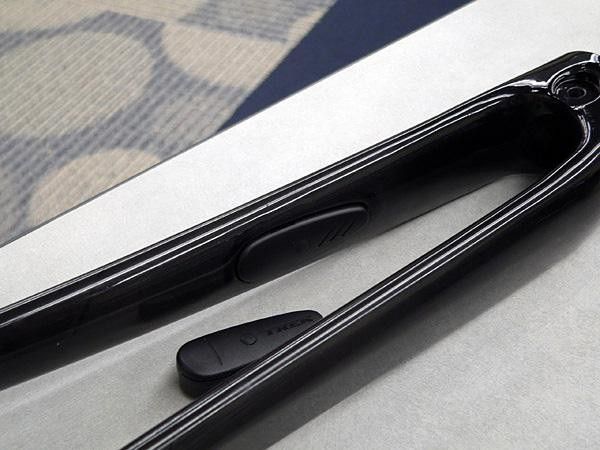

The Race Lite fork includes an integrated pocket that will accept the new Speed Sensor 2.4GHz wireless computer transmitter.

The Race Lite fork includes an integrated pocket that will accept the new Speed Sensor 2.4GHz wireless computer transmitter. (Image credit: James Huang/Cyclingnews.com)
Image 61 of 63

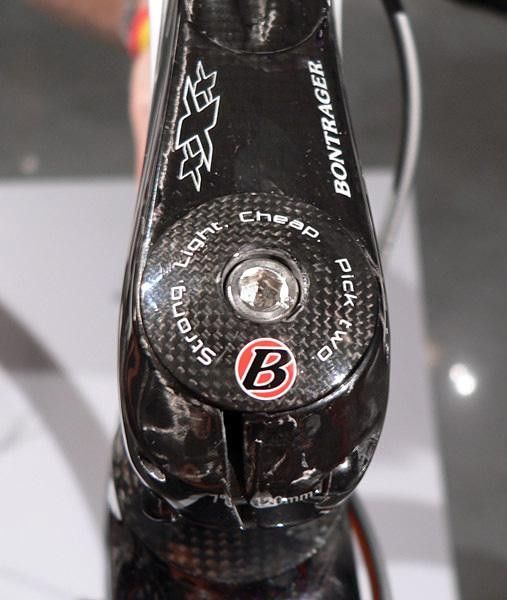

Anyone else remember this motto?

Anyone else remember this motto? (Image credit: James Huang/Cyclingnews.com)
Image 62 of 63

Lance Armstrong joins Trek head John Burke on stage during the introduction of the new Trek Madone.

Lance Armstrong joins Trek head John Burke on stage during the introduction of the new Trek Madone. (Image credit: James Huang/Cyclingnews.com)
Image 63 of 63

Somehow we get the feeling that Lance can get away with this sort of thing.

Somehow we get the feeling that Lance can get away with this sort of thing. (Image credit: James Huang/Cyclingnews.com)

Tech Feature: 2008 Trek Madone, June 7, 2007

If you were to take a hot-selling bicycle line and ask its dealers what they wanted for the next year, the obvious answer would be, 'more of the same'. After all, why mess with a good thing, right? However, after years of playing it safe on the road with level top tube geometries, round carbon tubing, and conservative layouts and graphics, Trek found itself in disturbingly unfamiliar territory after the retirement of its one-man marketing juggernaut, Lance Armstrong. The public stopped buying once the 'Lance factor' wore off, and Trek was left peddling its Madone lineup for what it was: an extremely competent racing-specific platform that unfortunately had little sex appeal on the showroom floor as compared to its more progressive competition.

Trek goes to the mattresses

One look at the all-new Madone is all it takes to see that Trek is a company reborn, or at least a company that has finally thrown the gloves off and ventured outside of its conservative box to reveal its true potential. Especially when compared to its somewhat staid predecessor, the new Madone displays a decidedly more aggressive profile and sleeker lines (including a first-for-Trek sloping top tube on its top-level race machine), more radically-shaped tube sections and lugs, and an eye-catching graphics package with heaps more 'pop' than what we're used to seeing from Trek.

It is underneath the swaths of color, though, where things really get interesting. Trek adopted a self-proclaimed 'no constraints' approach to the new Madone's design and cast aside the usual limitations of existing frame and component systems. Arguably the most defining feature is the 90mm-wide bottom bracket shell (standard ones measure a relatively puny 68mm) around which the rest of the frame is based.

Standard-sized cartridge bearings are integrated directly into the new bottom bracket shell, and the bearing seats are formed during the initial molding process using a new 'Precision Fit Socket' technology. According to Trek, the new procedure not only completely eliminates the need for post-mold machining operations, but also provides a perfect slip-fit for the bearings without any need for weighty aluminum inserts or even installation tools, and the bearing seats have stood up to millions of test cycles in the lab. When viewed as a complete assembly, the new configuration is vastly simplified (using only four or five parts instead of nine) and sheds 40g in the process.

Naturally, the idea of a 90mm-wide bottom bracket shell immediately conjures up the question of 'q-factor', but since the bearings are set in exactly the same spacing as in a conventional setup, pedal stance width is completely unaffected. Moreover, the new interface will be wholly compatible with all major external-bearing crankset systems, including Shimano, Campagnolo, FSA, and SRAM.

Lather, rinse, repeat

Trek uses the same Precision Fit Socket concept for the new Madone headset which now uses a giant 1 ½" bearing at the fork crown paired with a conventional 1 ⅛" bearing up top. The larger diameter lower bearing yields a stiffer system for more precise handling, while the inherent strength benefits also allow for thinner-walled and significantly lighter fork crowns with integrated bearing seats.

The new Bontrager Race XXX Lite fork will use a one-piece carbon fiber leg, crown, and lower steerer tube assembly. Somewhat surprisingly, this assembly is then bonded to an aluminum upper steerer tube on early production samples, although our information (as well as inconsistencies in Trek's own print materials) strongly suggests that full-carbon versions utilizing continuous fibers running uninterrupted from end-to-end are waiting in the near future.

As compared to the '07 version, the new Race XXX Lite fork drops an impressive 120g (although it is unclear whether that figure corresponds to the aluminum or carbon steerer), while the integrated lower bearing seat will also provide the same 100% tool-free assembly and maintenance benefits as on the bottom bracket.

The new Race Lite fork will use a more conventional carbon leg and aluminum crown configuration, but a unique one-piece forged steerer tube and thin-walled crown supposedly sheds 100g from typical aluminum crowned setups. As on the Race XXX Lite, the lower bearing seat is integrated into the crown, again indicating that no tools will be required for assembly.

Unique to the Race Lite (and Race) forks, however, is a molded 'pocket' on the inside of the driveside leg which can accept an optional 2.4GHz wireless sensor for use on new Trek computers.

Integrated seatposts a la Trek

Integrated seatposts are currently the rage in the high-end road frame world, but their inherent benefits (stiffer pedaling platform and lighter weight) are also associated with some substantial drawbacks (requires irreversible cutting, more difficult to ship, limited sizing options).

Trek may have been slow to develop its own version, but that patience may have paid off. As compared to its competition, the seat mast on the new Madone is only moderately extended, and the carbon fiber seat 'cap' is significantly longer with more overlap (but still much less than a conventional seat post design).

As a result, the new Madone offers up to 95mm of saddle height adjustment without having to cut the frame (using the optional tall cap), is still 25% lighter than traditional post designs, and can be shipped in a UPS-compliant box (save for the largest size frame). Moreover, Trek will offer caps in three different offsets (+10mm, -5mm, -20mm) to satisfy most fit requirements, and the mast is fully sealed against contaminants.

In a distinct departure from other integrated designs, though, the seat mast on the Madone is not intended to offer a more solid pedaling platform. Instead, Trek actually intentionally designed a measurable amount of flex into the system to provide more rider comfort. According to Trek, the new Madone delivers a whopping 39% increase in vertical compliance as compared to last year's version.

Bigger is better

The dramatically oversized bottom bracket shell and head tube provide an awful amount of real estate to play with, and Trek takes full advantage. The down tube is now a full 74mm wide at the bottom bracket shell, while the new box-type chainstay yoke measures 75mm across. The widely-set chainstays are also asymmetric to better combat each side's unique applied loads: measured just aft of the chainstay yoke, the driveside stay is almost 40mm tall and 18mm wide, while the non-driveside is 38mm tall and 25mm wide. If those numbers don't mean much to you, just think 'big', but that 'bigness' is also somewhat size-specific to help maintain consistent ride quality across the size range.

The larger tube sections deliver a claimed 40% increase in lateral rigidity on the down tube side of the bottom bracket shell as compared to the '07 Madone, and 20% on the chainstay side. Impressively, those numbers also come with a concurrent 250g+ drop in total fuselage weight (including the frame, fork, seat post, headset, and bottom bracket).

What has changed, what has remained the same

If all of this sounds like a total revamp of the Madone, you'd be largely correct. When placed side-by-side, the two frames bear virtually no resemblance to each other, and the relatively small proportions of the old Madone even look downright fragile in comparison.

However, while Trek gave the Madone a thorough overhaul, it wisely retained the original frame geometry along with its well-proven handling characteristics. With that being said, Trek has still acknowledged that the majority of Madone customers aren't likely to possess the flexibility of your typical ProTour rider.

Instead of resorting to the usual stack of headset spacers and upturned stem (or offering a softened version of the geometry), Trek will offer the Madone in three distinct fits: the Pro Fit is a carbon copy of the current Madone, while the Performance Fit is also identical save for a 30mm head tube extension and 1cm shorter stem. A separate WSD (Women's Specific Design) geometry will also bear the same extension and proportionally shorter reach. All Madones will also be available with either 15mm or 5mm headset cones.

Size offerings will be extensive, particularly for a carbon bike. Currently, Trek plans to offer eight standard sizes (50-64cm in 2cm increments, in both Pro and Performance Fit) and five WSD sizes (47, 50, 52, 54, and 56cm.

The proof is in the pudding…mmm, pudding

Tech-speak certainly always sounds good on paper (or in pixels, as the case may be), but the true measure of a bicycle is how it performs on the road. We sampled a mid-level Madone 5.2 for several hours over two days on the back roads of Wisconsin (including the Trek 100 and came away pleasantly surprised.

This latest-generation Madone is indeed noticeably snappier and more comfortable: out-of-saddle efforts are rewarded with responsive acceleration, and road imperfections are absorbed so well that we actually checked the tires before heading out the first time to make sure our tires were properly inflated. At the same time, though, the new Madone delivers a reasonably lively feel that has often been somewhat lacking in previous OCLV offerings.

True to Trek's claims, the Performance Fit of our tester manages to provide a slightly more relaxed fit without compromising the confident handling (we did switch to the stem length of the Pro Fit, however). More importantly, though, the updated dimensions allowed for a minimal stack of headset spacers to maintain the racy appearance.

To be fair, most of technologies and concepts incorporated into the new Madone really aren't completely new - new to Trek, perhaps, but much of its technologies have been seen before on other makes and models and many will undoubtedly also draw some visual parallels between several noteworthy competitors. What Trek has done, however, is take the best of what was out there, refined it in typical Trek fashion, and then add its own twist to seemingly make the original idea even better.

In totality, initial impressions on the finished product are certainly extremely positive, and we'll keep you posted on the long-term prognosis once our test bike arrives. However, you may develop your own opinions by then as Trek has already had the new Madone in production for some time now and complete bikes should already be on showroom floors as of this writing.

A new Trek?

On a more general level, the new Madone represents a significant change from what we've typically come to expect out of Waterloo. Whereas previous offerings were of that 'more of the same' mentality, Trek has now made a concerted effort to lead the pack instead of follow in the draft. Obviously, it's not certainly if the company's newfound willingness to take a chance will always pan out, but at least few of those risk-takers have ever been accused of being dull.

Increasingly stout competition has likely provided plenty of the needed motivation for what was once thought to be a nearly-unstoppable machine, and we've certainly seen this trend before: after taking a healthy beating from its rivals across the pond at SRAM, Shimano is currently enjoying a healthy resurgence in the mountain bike componentry market after re-examining the way it conducts itself.

If our hunches are correct, this new Madone will only be the first of a number of surprisingly bold introductions from Trek, and the new company logo offers plenty of insight into what direction the company intends to head. Forward is good in this case, and time will tell what else Trek has in store for us.

Thank you for reading 5 articles this month* Join now for unlimited access

Enjoy your first month for just £1 / $1 / €1

*Read 5 free articles per month without a subscription

Join now for unlimited access

Try your first month for just £1 / $1 / €1
