Tour tech: More tidbits from the Tour de France

Image 1 of 25

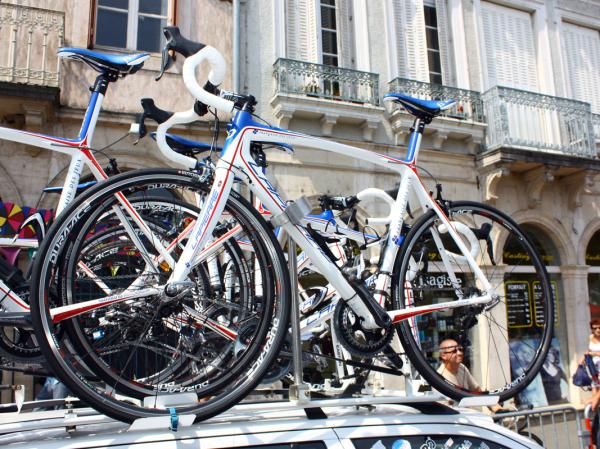

Francais des Jeux is primarily using tubular tires for the main race bikes but most of the spare machines are fitted with Hutchinson Road Tubeless rubber.

Francais des Jeux is primarily using tubular tires for the main race bikes but most of the spare machines are fitted with Hutchinson Road Tubeless rubber.
(Image credit: James Huang)
Image 2 of 25

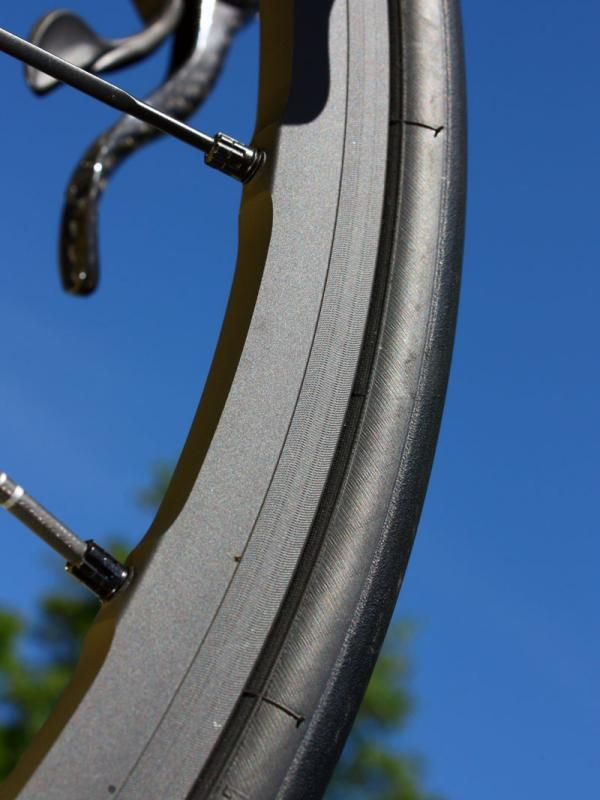

This 2011 Mavic R-Sys rim is notable for its new brake track texture as well as the interesting extra-hard surface finish. We'll have more official information in a few weeks.

This 2011 Mavic R-Sys rim is notable for its new brake track texture as well as the interesting extra-hard surface finish. We'll have more official information in a few weeks.
(Image credit: James Huang)
Image 3 of 25

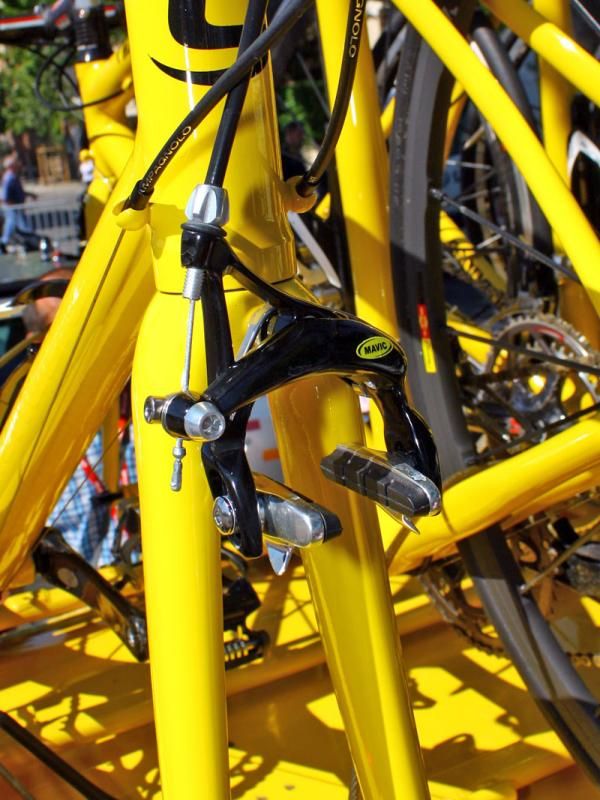

Mavic neutral spare bikes naturally come with the company's own brake calipers.

Mavic neutral spare bikes naturally come with the company's own brake calipers.
(Image credit: James Huang)
Image 4 of 25

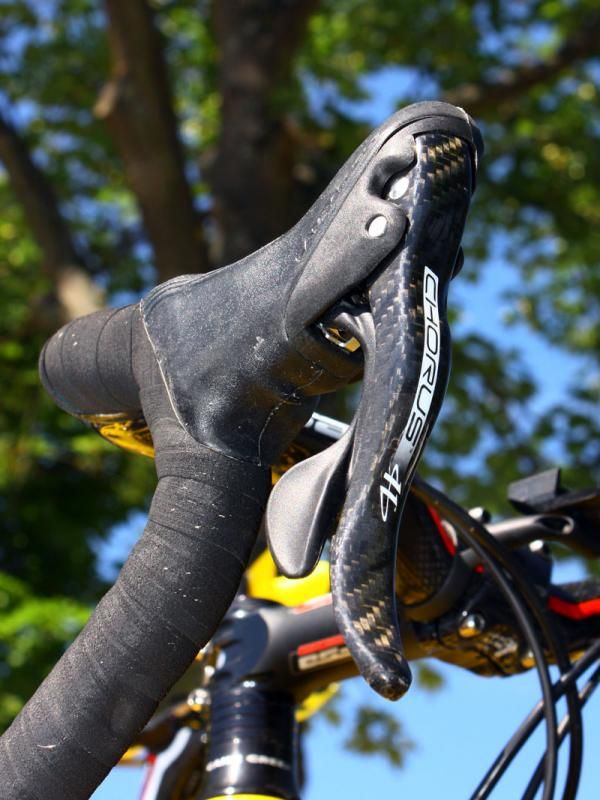

Mavic neutral spares aren't exactly ratty hand-me-downs with Campagnolo Chorus componentry.

Mavic neutral spares aren't exactly ratty hand-me-downs with Campagnolo Chorus componentry.
(Image credit: James Huang)
Image 5 of 25

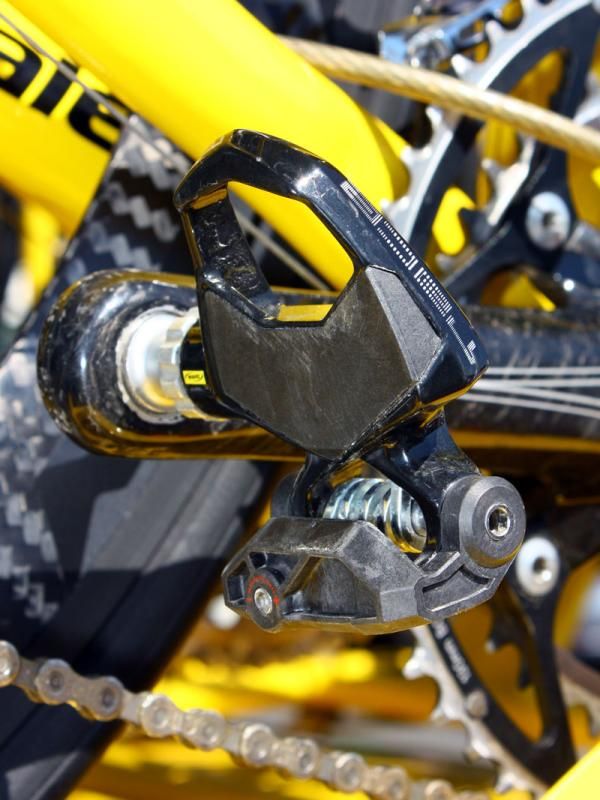

This Mavic neutral spare bike has its own pedals installed but others have toe clips to accommodate any rider's shoes.

This Mavic neutral spare bike has its own pedals installed but others have toe clips to accommodate any rider's shoes.
(Image credit: James Huang)
Image 6 of 25

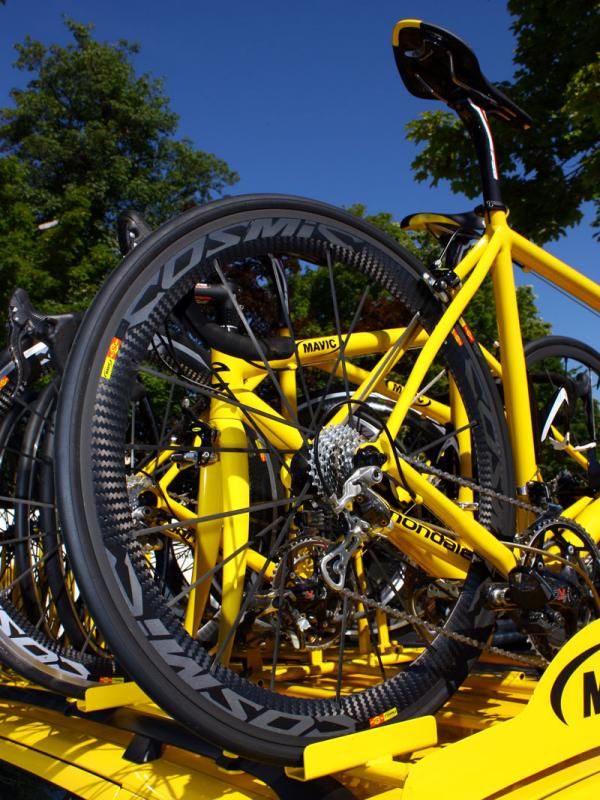

Spare Mavic neutral bikes have a multitude of wheels fitted, including the 2011 Cosmic Carbone SLRs as seen here.

Spare Mavic neutral bikes have a multitude of wheels fitted, including the 2011 Cosmic Carbone SLRs as seen here.
(Image credit: James Huang)
Image 7 of 25

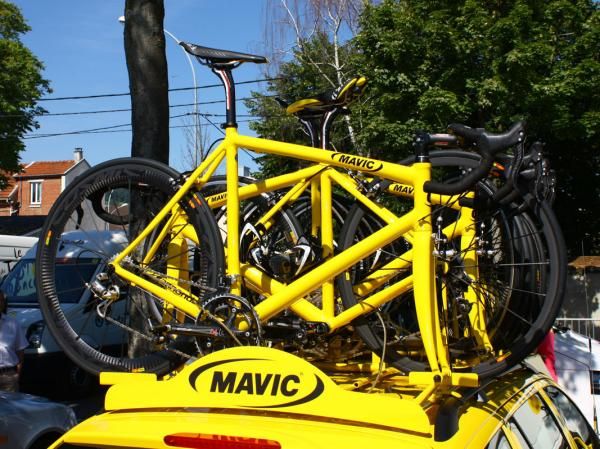

Mavic uses Cannondale CAAD9 aluminum frames as the basis for its spare bikes.

Mavic uses Cannondale CAAD9 aluminum frames as the basis for its spare bikes.
(Image credit: James Huang)
Image 8 of 25

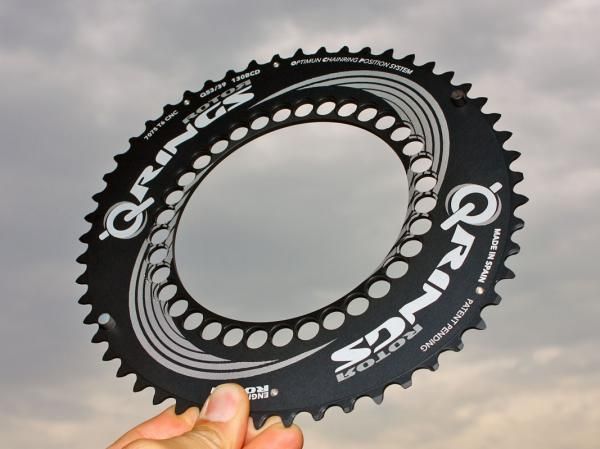

Rotor's latest Q-Rings include revised tooth profiles plus new graphics.

Rotor's latest Q-Rings include revised tooth profiles plus new graphics.
(Image credit: James Huang)
Image 9 of 25

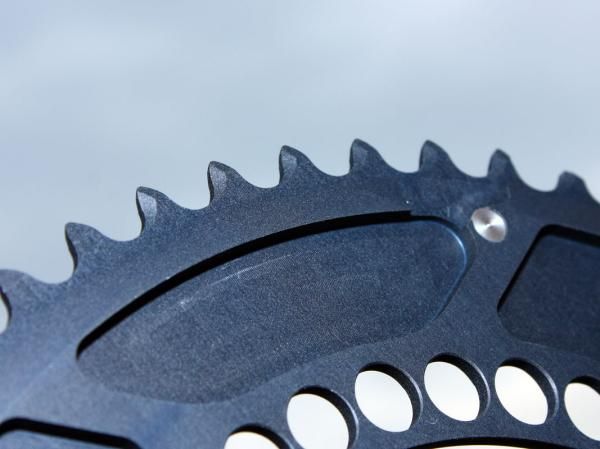

Rotor says the new Q-Ring tooth profile yields smoother downshifts than before.

Rotor says the new Q-Ring tooth profile yields smoother downshifts than before.
(Image credit: James Huang)
Image 10 of 25

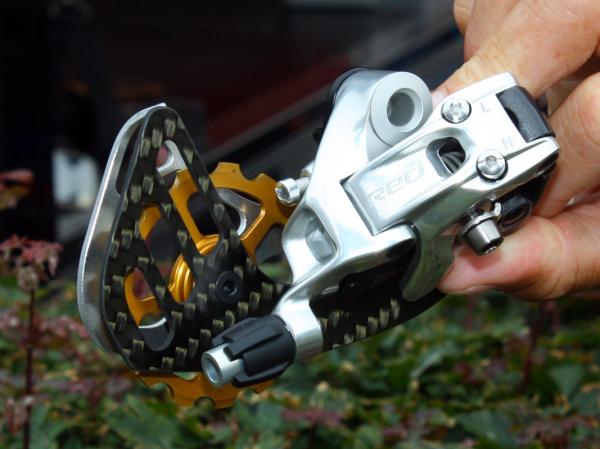

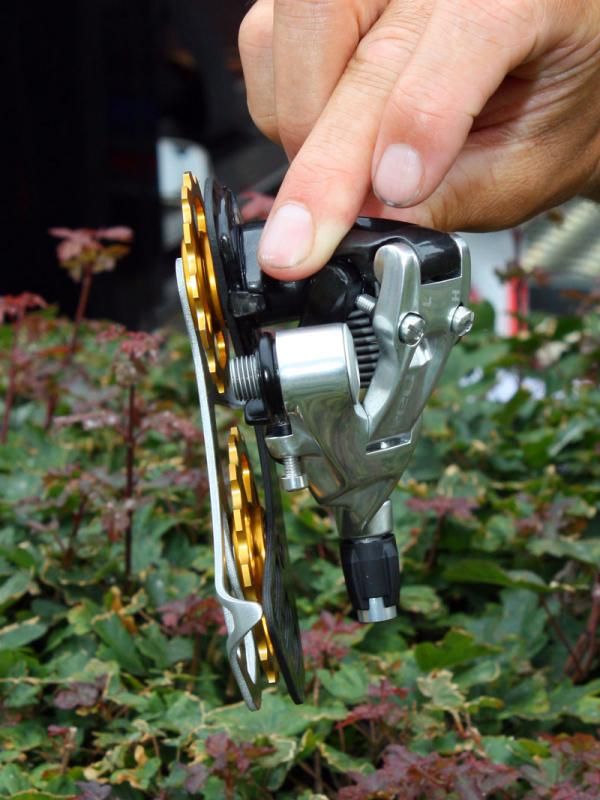

The Berner cage-equipped SRAM Red rear derailleurs use a carbon fiber outer cage plate and an aluminum inner one.

The Berner cage-equipped SRAM Red rear derailleurs use a carbon fiber outer cage plate and an aluminum inner one.
(Image credit: James Huang)
Image 11 of 25

The top SRAM-equipped GC riders in this year's Tour de France are using these special Red rear derailleurs, retrofitted with Berner large-diameter pulleys and cages that supposedly decrease drivetrain drag.

The top SRAM-equipped GC riders in this year's Tour de France are using these special Red rear derailleurs, retrofitted with Berner large-diameter pulleys and cages that supposedly decrease drivetrain drag.
(Image credit: James Huang)
Image 12 of 25

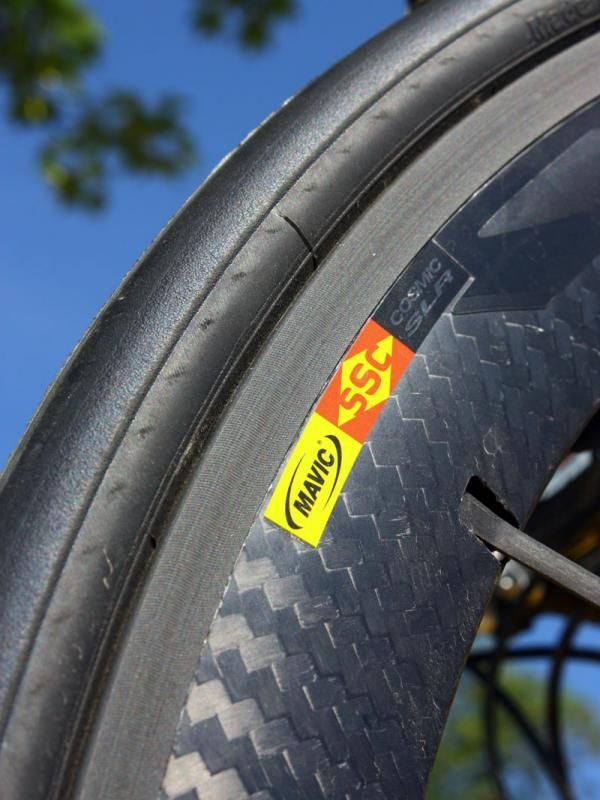

The new Mavic aluminum brake surface sports a fine texture that presumably yields better brake pad bite. There's likely a new extra-hard surface treatment, too, as otherwise the texture would quickly wear off.

The new Mavic aluminum brake surface sports a fine texture that presumably yields better brake pad bite. There's likely a new extra-hard surface treatment, too, as otherwise the texture would quickly wear off.
(Image credit: James Huang)
Image 13 of 25

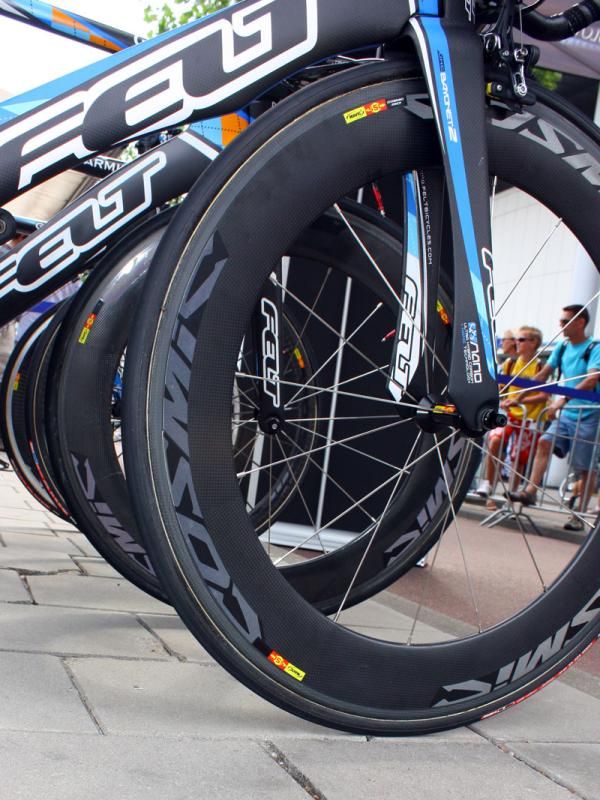

Mavic's Cosmic Carbone 80 makes an appearance in official trim, complete with proper labeling.

Mavic's Cosmic Carbone 80 makes an appearance in official trim, complete with proper labeling.
(Image credit: James Huang)
Image 14 of 25

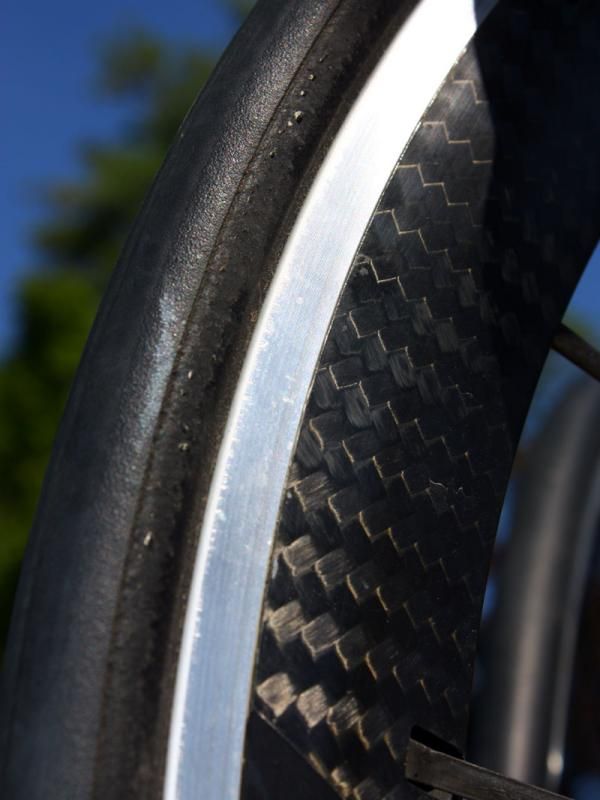

Mavic's old brake track is similar to the machined surfaces used by the vast majority of wheel manufacturers.

Mavic's old brake track is similar to the machined surfaces used by the vast majority of wheel manufacturers.
(Image credit: James Huang)
Image 15 of 25

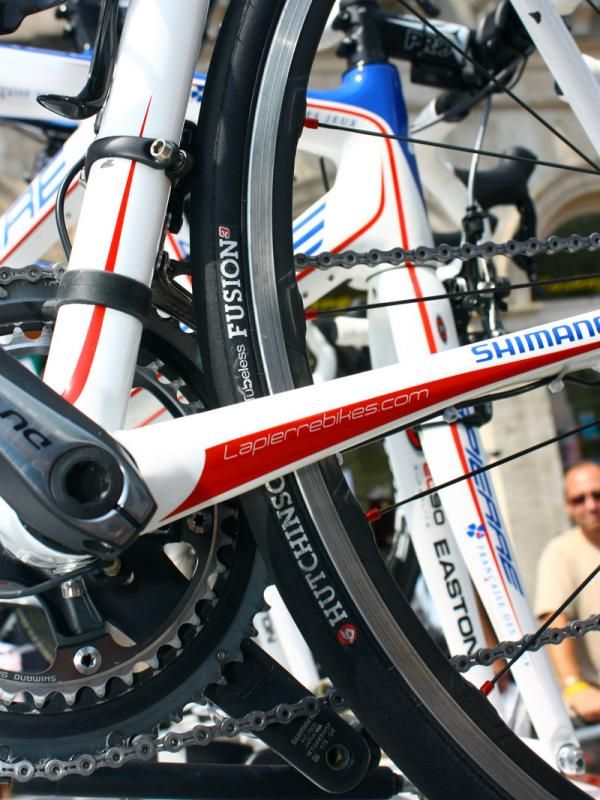

Hutchinson's latest Fusion 3 Road Tubeless model continues to close the performance gap but the concept probably still has a ways to go before it's fully embraced by top pros.

Hutchinson's latest Fusion 3 Road Tubeless model continues to close the performance gap but the concept probably still has a ways to go before it's fully embraced by top pros.
(Image credit: James Huang)
Image 16 of 25

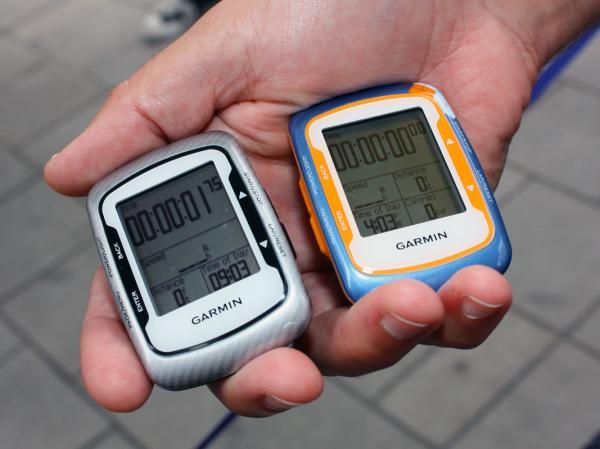

Garmin's latest Edge 500 is available in both Garmin-Transitions team colors, the original blue or this more neutral black.

Garmin's latest Edge 500 is available in both Garmin-Transitions team colors, the original blue or this more neutral black.
(Image credit: James Huang)
Image 17 of 25

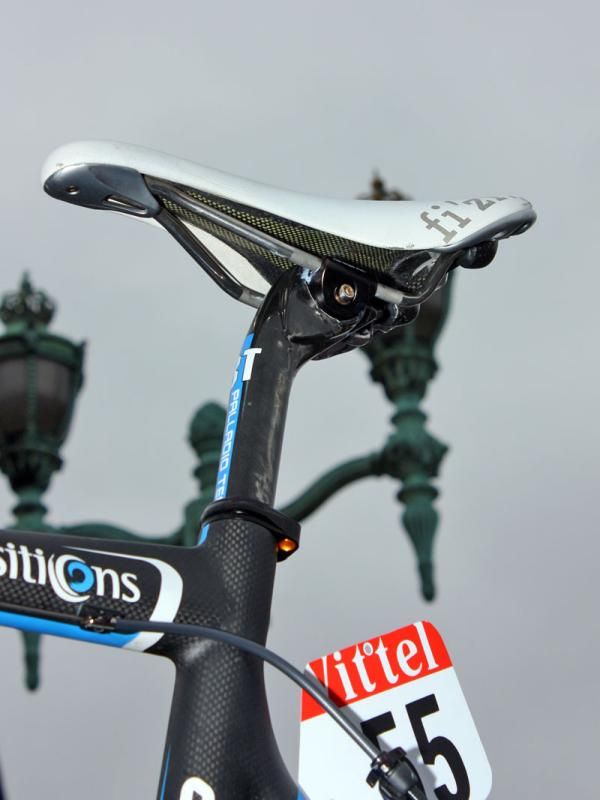

3T's never-come-loose Palladio seatpost makes an appearance on this Garmin-Transitions team bike.

3T's never-come-loose Palladio seatpost makes an appearance on this Garmin-Transitions team bike.
(Image credit: James Huang)
Image 18 of 25

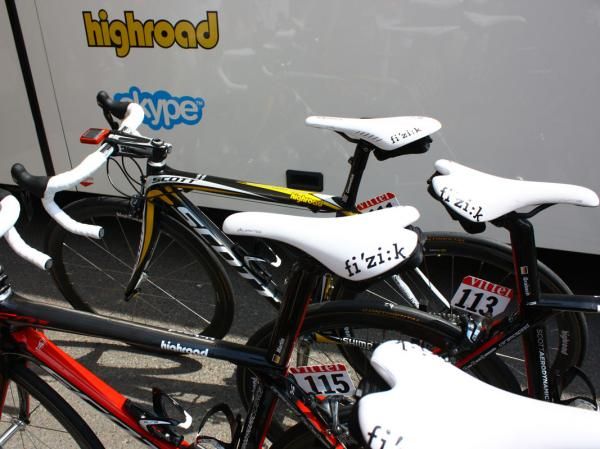

Mark Cavendish (HTC-Columbia) used his old bike for both stage wins in this year's Tour de France but based on the changes we've seen, it's for fit reasons, not because of the bike itself. We expect to see him back on the new rig soon.

Mark Cavendish (HTC-Columbia) used his old bike for both stage wins in this year's Tour de France but based on the changes we've seen, it's for fit reasons, not because of the bike itself. We expect to see him back on the new rig soon.
(Image credit: James Huang)
Image 19 of 25

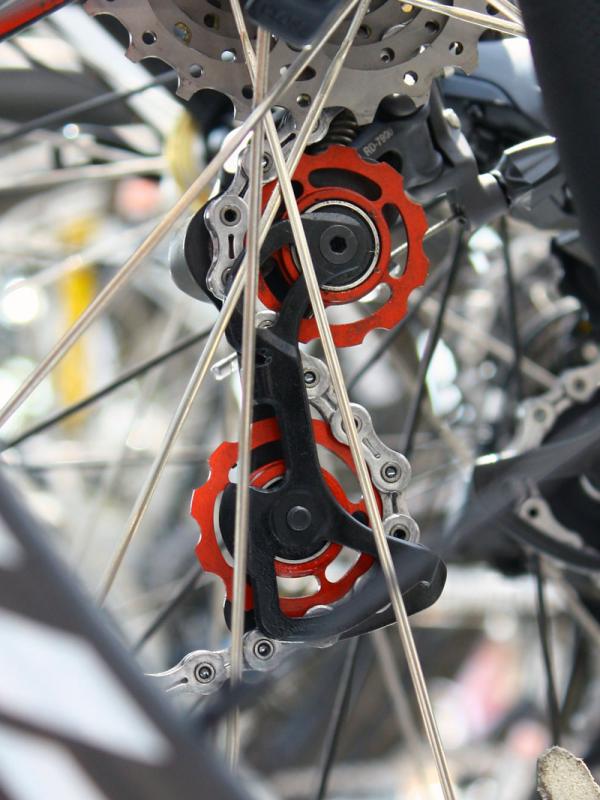

HTC-Columbia sprinter Mark Cavendish gets ceramic-equipped alloy pulleys, too, but his are red.

HTC-Columbia sprinter Mark Cavendish gets ceramic-equipped alloy pulleys, too, but his are red.
(Image credit: James Huang)
Image 20 of 25

Mark Cavendish (HTC-Columbia) is marking this year's 'kills' with crossed samurai swords.

Mark Cavendish (HTC-Columbia) is marking this year's 'kills' with crossed samurai swords.
(Image credit: James Huang)
Image 21 of 25

They're back! We've still got plenty of time to see how many of these Mark Cavendish (HTC-Columbia) will rack up before the end of the Tour de France.

They're back! We've still got plenty of time to see how many of these Mark Cavendish (HTC-Columbia) will rack up before the end of the Tour de France.
(Image credit: James Huang)
Image 22 of 25

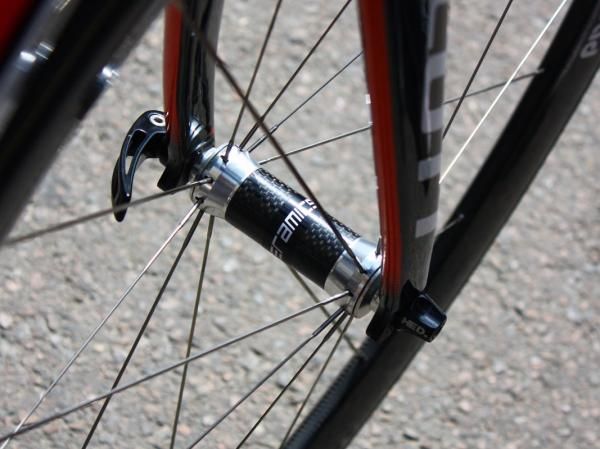

Ok, now it's official: Ceramicspeed is providing ceramic bearings to HTC-Columbia.

Ok, now it's official: Ceramicspeed is providing ceramic bearings to HTC-Columbia.
(Image credit: James Huang)
Image 23 of 25

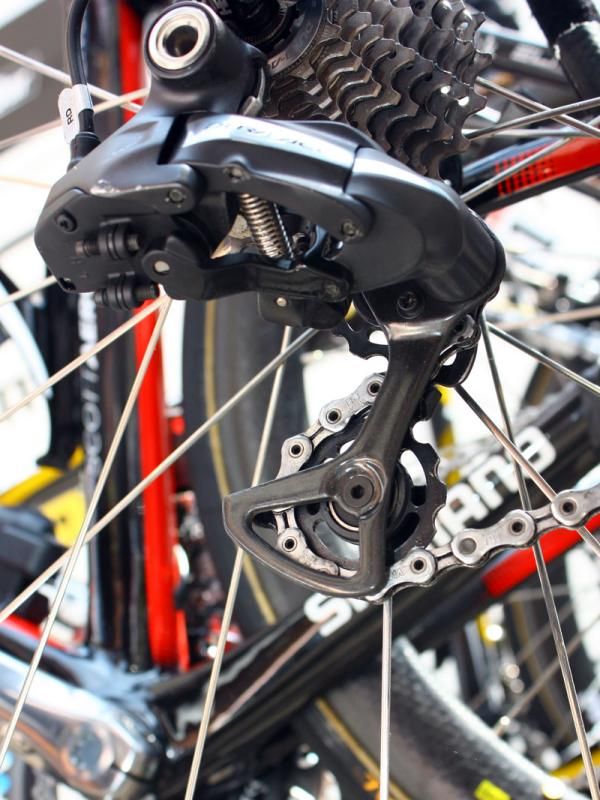

HTC-Columbia inked a late deal with Danish bearing outfit Ceramicspeed during the prologue and team bikes are now fully equipped across the board.

HTC-Columbia inked a late deal with Danish bearing outfit Ceramicspeed during the prologue and team bikes are now fully equipped across the board.
(Image credit: James Huang)
Image 24 of 25

Garmin-Transitions GC hopeful Ryder Hesjedal dons a frozen bodysuit after hot stages to help quickly bring his core temperature down - one of the keys to a good recovery according to team directeur sportif Jonathan Vaughters.

Garmin-Transitions GC hopeful Ryder Hesjedal dons a frozen bodysuit after hot stages to help quickly bring his core temperature down - one of the keys to a good recovery according to team directeur sportif Jonathan Vaughters.
(Image credit: James Huang)
Image 25 of 25

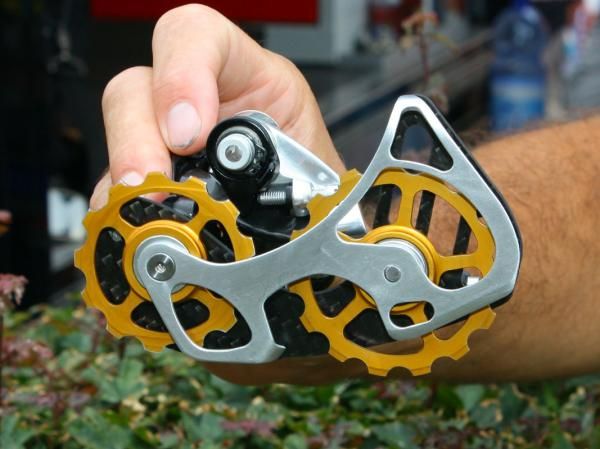

The upper pulley has 13T and the lower one 15T.

The upper pulley has 13T and the lower one 15T.
(Image credit: James Huang)

It's never too late for business, even at the Tour de France.

HTC-Columbia mechanic Jan Lindberg tells us the team signed a formal sponsorship deal with Danish bearing company Ceramicspeed on the day of the opening prologue. Since then, the entire fleet of team bikes has now been properly equipped with low-friction ceramic bearings in the bottom bracket and hubs while the derailleurs get complete ceramic-equipped alloy pulley wheels.

Based on what we've seen before, we're guessing at least some team riders were already running ceramics but now it's official with decals and all.

Star sprinter Mark Cavendish has returned to his winning ways with victories in Stages 5 and 6 but it's worth nothing that both successes came aboard his old Scott Addict – not the new samurai-themed Project F01 aero bike that he started on at this year's Tour de France.

According to team marketing and communications head Kristy Scrymgeour, the issue isn't with the bike itself (which Scott says has tested even stiffer than its Addict) but rather the fit. We noted in his Pro Bike feature that Cavendish moved his position further forward on the new bike but Scrymgeour says he has since reverted.

Cavendish first tried subbing in a slightly shorter stem on his custom-painted machine but it sounds like the modest 5mm decrease wasn't quite enough. According to Scrymgeour, the team was waiting for a properly sized replacement to arrive and 'Cav' was expected to switch back then.

New brake track treatment on alloy-rimmed Mavic wheels

Spare aluminum-rimmed wheels mounted atop the Mavic neutral vehicles incorporated a new brake track that's unlike anything else we've seen. Instead of the typical circumferentially grooved machined finish, the new track is far more elaborately textured – apparently in an effort to gain more pad bite.

Moreover, the brake track is black, not silver, and we couldn’t find a smidgeon of pad wear on any samples we spotted. While it's possible that none of them had yet seen any use, we find it more likely that it's some sort of extra-hard surface treatment to combat wear though the fine machined-looking pattern suggests to us that it's not a redo of Mavic's old ceramic technology.

Also on display throughout the Mavic-sponsored teams were new black reflective rim decals that lend a nice, stealthy appearance during the day but extra visibility in case you're caught at dusk.

Mavic officials weren't available to comment further at the time of this writing but the company's official 2011 launch is coming up in a few weeks so we'll keep you posted.

More Berner-equipped SRAM rear derailleurs pop up at Le Tour

We spotted just a handful of Berner-equipped SRAM Red rear derailleurs early on in this year's Tour de France – mostly on TT machines – but the unique-looking carbon fiber cages and hugely oversized 13T/15T upper/lower anodized aluminum pulley wheels have popped up on more road bikes as the race has wound its way around eastern France.

Among the advocates are Andy Schleck (Saxo Bank) – who admittedly has been using them since the start in the Netherlands – but also Astana's Alberto Contador and Alexandre Vinokourov, and Lance Armstrong (Team Radioshack), all of whom made the switch sometime after Stage 2.

The thinking behind German Wolfgang Berner's oversized pulley layout is that it noticeably reduces drivetrain friction by reducing the angle by which each chain link has to bend as it makes its way up to the cogs but SRAM road sports manager Alex Wassmann confirmed to us several days ago that the company was still determining whether or not that advantage was physical or mental.

Given the fact that all of SRAM's top GC hopefuls are using the setup, though, it's clear that the company is looking at the idea very seriously and we wouldn't be surprised to see it makes its way into production at some point.

Road Tubeless makes an appearance at the Tour de France

Bucking trends in the consumer market, riders at this year's Tour de France are again almost exclusively rolling on traditional tubular tires, citing their lower weights, better ride quality, enhanced cornering capabilities, and heightened safety (.they can be ridden totally deflated mostly without fear of separating from the rim). Ag2r-La Mondiale and Francais de Jeux are notable standouts, though, the former running standard tube-type clinchers and the latter on Hutchinson's Fusion 3 Road Tubeless tires – mostly on spares in both cases, though.

We've seen clinchers at the Tour de France before but this is the first time we recall seeing Road Tubeless – whether on mains, spares, or otherwise – at road cycling's grandest stage. Whether or not it's a sign of things to come remains to be seen but it's a noteworthy occasion from a tech perspective nonetheless.

More on (the lack of) tire sealant at Le Tour

Teams may not be using preventative tire sealants at the Tour de France but is sounds like it's not because they aren't interested in it – Garmin-Transitions rider Steven Cozza himself sent Cyclingnews a message saying they've looked into the idea in the past with one test session in particular that involved the guys "smashing wheels trying to hit the largest potholes" they could.

Cozza reports that the sealants they tried (both Stan's NoTubes and Effetto Mariposa Caffelatex, according to team mechanic Kris Withington when we followed up with him prior to Stage 7) both worked but not as quickly as they needed them to, particularly for more catastrophic failures like pinch flats. According to Cozza – whose account was backed up by Withington – the slow self-repair was ok in terms of saving a tire or being able to limp along for a while but not good enough to totally remove the need for a wheel change during a race.

Withington tells us, however, that the team did run several riders in Paris-Roubaix with sealant this year but mostly support riders that weren't overly hindered by the extra 50g per tire.

Still, it sounds like the concept is mostly hindered by the lack of a specific formula that addresses the particular needs of road racers. Stan's NoTubes already offers a blend with a shorter shelf life that caters to top-level mountain bike racers and a similarly dedicated variant designed to work better on pinched high-pressure tubulars – maybe something with more plugging material? – might just do the trick.
