Tour de France tech: Time trial bike image gallery

Image 1 of 66

Euskaltel-Euskadi is riding the angular Orbea Ordu for time trials in this year's Tour de France.

Euskaltel-Euskadi is riding the angular Orbea Ordu for time trials in this year's Tour de France. (Image credit: James Huang)
Image 2 of 66

Vacansoleil-DCM's Ridley Dean time trial machines are definitely among the most unusual shape in this year's Tour de France.

Vacansoleil-DCM's Ridley Dean time trial machines are definitely among the most unusual shape in this year's Tour de France. (Image credit: James Huang)
Image 3 of 66

In contrast to his custom painted Specialized S-Works Tarmac SL3s, Alberto Contador's S-Works Shiv wears standard Saxo Bank-Sungard team-issue livery.

In contrast to his custom painted Specialized S-Works Tarmac SL3s, Alberto Contador's S-Works Shiv wears standard Saxo Bank-Sungard team-issue livery. (Image credit: James Huang)
Image 4 of 66

In contrast to his custom painted Specialized S-Works Tarmac SL3s, Alberto Contador's S-Works Shiv wears standard Saxo Bank-Sungard team-issue livery.

In contrast to his custom painted Specialized S-Works Tarmac SL3s, Alberto Contador's S-Works Shiv wears standard Saxo Bank-Sungard team-issue livery. (Image credit: James Huang)
Image 5 of 66

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv was fitted with a Zipp 808 front wheel prior to Stage 2's team time trial.

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv was fitted with a Zipp 808 front wheel prior to Stage 2's team time trial. (Image credit: James Huang)
Image 6 of 66

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv features this center-pull front brake. The original design hid the brake inside a giant nosecone but it was outlawed by the UCI.

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv features this center-pull front brake. The original design hid the brake inside a giant nosecone but it was outlawed by the UCI. (Image credit: James Huang)
Image 7 of 66

A small zip-tie helps hold the derailleur housings together on this Saur-Sojasun Time RXR.

A small zip-tie helps hold the derailleur housings together on this Saur-Sojasun Time RXR. (Image credit: James Huang)
Image 8 of 66

The integrated seatmast head on this Saur-Sojasun Time RXR looks like it's fresh out of the CNC mill.

The integrated seatmast head on this Saur-Sojasun Time RXR looks like it's fresh out of the CNC mill. (Image credit: James Huang)
Image 9 of 66

Saur-Sojasun is using Time's striking RXR for time trials in this year's Tour de France.

Saur-Sojasun is using Time's striking RXR for time trials in this year's Tour de France. (Image credit: James Huang)
Image 10 of 66

Some Saur-Sojasun riders have opted for Rotor's elliptical Q-Rings on their Time RXR time trial bikes.

Some Saur-Sojasun riders have opted for Rotor's elliptical Q-Rings on their Time RXR time trial bikes. (Image credit: James Huang)
Image 11 of 66

TRP provides its magnesium-armed R970SL brakes for Saur-Sojasun Time RXR time trial bikes.

TRP provides its magnesium-armed R970SL brakes for Saur-Sojasun Time RXR time trial bikes. (Image credit: James Huang)
Image 12 of 66

This Saur-Sojasun Time RXR is fitted with a Look Ergostem to help achieve the desired position.

This Saur-Sojasun Time RXR is fitted with a Look Ergostem to help achieve the desired position. (Image credit: James Huang)
Image 13 of 66

Several RadioShack Trek Speed Concepts are equipped with Bontrager's new time trial-specific saddle.

Several RadioShack Trek Speed Concepts are equipped with Bontrager's new time trial-specific saddle. (Image credit: James Huang)
Image 14 of 66

Chris Horner's (RadioShack) Trek Speed Concept sits at the head of the line before Stage 2's team time trial. Sadly, Horner won't get to use it again for the individual time trial on Saturday.

Chris Horner's (RadioShack) Trek Speed Concept sits at the head of the line before Stage 2's team time trial. Sadly, Horner won't get to use it again for the individual time trial on Saturday. (Image credit: James Huang)
Image 15 of 66

Trek Speed Concepts are being used by both RadioShack and Leopard-Trek at this year's Tour de France.

Trek Speed Concepts are being used by both RadioShack and Leopard-Trek at this year's Tour de France. (Image credit: James Huang)
Image 16 of 66

The Bontrager integrated aero bar on RadioShack's Trek Speed Concept presents a relatively clean profile to the wind.

The Bontrager integrated aero bar on RadioShack's Trek Speed Concept presents a relatively clean profile to the wind. (Image credit: James Huang)
Image 17 of 66

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv is built with his customary anodized aluminum housing. Note the bits of electrical tape covering up any exposed holes.

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv is built with his customary anodized aluminum housing. Note the bits of electrical tape covering up any exposed holes. (Image credit: James Huang)
Image 18 of 66

Safety tabs are filed off on Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv.

Safety tabs are filed off on Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv. (Image credit: James Huang)
Image 19 of 66

Alberto Contador's (Saxo Bank-Sungard) SRAM brake lever bears the scars of a crash.

Alberto Contador's (Saxo Bank-Sungard) SRAM brake lever bears the scars of a crash. (Image credit: James Huang)
Image 20 of 66

A SRAM Red rear derailleur moves a KMC chain across the SRAM OG-1090 cassette on Vacansoleil-DCM's Ridley Dean time trial bikes.

A SRAM Red rear derailleur moves a KMC chain across the SRAM OG-1090 cassette on Vacansoleil-DCM's Ridley Dean time trial bikes. (Image credit: James Huang)
Image 21 of 66

Does the shape of the pedal body really make that much difference in terms of drag? Look would say yes, as seen in the KéO Blade Aero pedal of Vacansoleil-DCM's time trial bikes.

Does the shape of the pedal body really make that much difference in terms of drag? Look would say yes, as seen in the KéO Blade Aero pedal of Vacansoleil-DCM's time trial bikes. (Image credit: James Huang)
Image 22 of 66

Vacansoleil-DCM is using Ridley's striking Dean time trial bikes.

Vacansoleil-DCM is using Ridley's striking Dean time trial bikes. (Image credit: James Huang)
Image 23 of 66

See those slots in the fork blades? Ridley says the unique shape actively pulls air away from the spinning spokes for less drag.

See those slots in the fork blades? Ridley says the unique shape actively pulls air away from the spinning spokes for less drag. (Image credit: James Huang)
Image 24 of 66

Ridley mounts the scissor-type Tektro brake on the back of the fork crown on its Dean time trial bike in an effort to reduce drag.

Ridley mounts the scissor-type Tektro brake on the back of the fork crown on its Dean time trial bike in an effort to reduce drag. (Image credit: James Huang)
Image 25 of 66

Rotor's elliptical Q-Rings seem more popular on time trial bikes than road ones, as seen on this Vacansoleil-DCM Ridley Dean.

Rotor's elliptical Q-Rings seem more popular on time trial bikes than road ones, as seen on this Vacansoleil-DCM Ridley Dean. (Image credit: James Huang)
Image 26 of 66

The extensions on Vacansoleil-DCM's Deda aero bars pass right through the base bar on the team's Ridley Deans.

The extensions on Vacansoleil-DCM's Deda aero bars pass right through the base bar on the team's Ridley Deans. (Image credit: James Huang)
Image 27 of 66

You can't say that Alberto Contador's (Saxo Bank-Sungard) mechanic, Faustino Munoz, doesn't sweat the details.

You can't say that Alberto Contador's (Saxo Bank-Sungard) mechanic, Faustino Munoz, doesn't sweat the details. (Image credit: James Huang)
Image 28 of 66

Even more electrical tape is applied here to smooth out the exposed ridges and gaps on Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv - might want to push that down a bit harder, though…

Even more electrical tape is applied here to smooth out the exposed ridges and gaps on Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv - might want to push that down a bit harder, though… (Image credit: James Huang)
Image 29 of 66

More bits of electrical tape cover up the exposed bolt head on Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv seatpost.

More bits of electrical tape cover up the exposed bolt head on Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv seatpost. (Image credit: James Huang)
Image 30 of 66

The raised ridges on Alberto Contador's (Saxo Bank-Sungard) Prologo Nago Evo TTR saddle are designed to help keep him in place - something he's notably struggled to do in previous years.

The raised ridges on Alberto Contador's (Saxo Bank-Sungard) Prologo Nago Evo TTR saddle are designed to help keep him in place - something he's notably struggled to do in previous years. (Image credit: James Huang)
Image 31 of 66

Alberto Contador (Saxo Bank-Sungard) gets matching blue anodized aluminum housing and pedal bodies.

Alberto Contador (Saxo Bank-Sungard) gets matching blue anodized aluminum housing and pedal bodies. (Image credit: James Huang)
Image 32 of 66

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv is fitted with Speedplay Zero Nanogram pedals.

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv is fitted with Speedplay Zero Nanogram pedals. (Image credit: James Huang)
Image 33 of 66

Team mechanic Faustino Munoz had to cut the upper bridge on Alberto Contador's (Saxo Bank-Sungard) in order to get the armrests close enough.

Team mechanic Faustino Munoz had to cut the upper bridge on Alberto Contador's (Saxo Bank-Sungard) in order to get the armrests close enough. (Image credit: James Huang)
Image 34 of 66

Look, ma, no cables! The Trek Speed Concept of team RadioShack sports an ultra-clean front end with virtually no extra hardware hanging out in the wind.

Look, ma, no cables! The Trek Speed Concept of team RadioShack sports an ultra-clean front end with virtually no extra hardware hanging out in the wind. (Image credit: James Huang)
Image 35 of 66

The seatpost clamp on Omega Pharma-Lotto's Canyon Speedmax CF time trial machines are neatly integrated into the rest of the frame shape.

The seatpost clamp on Omega Pharma-Lotto's Canyon Speedmax CF time trial machines are neatly integrated into the rest of the frame shape. (Image credit: James Huang)
Image 36 of 66

Katusha's time trial bikes are fitted with Vision integrated aero bars.

Katusha's time trial bikes are fitted with Vision integrated aero bars. (Image credit: James Huang)
Image 37 of 66

A handy window machined into the top stem cover on HTC-Highroad's Specialized S-Works Shiv allows easy access to the Shimano Dura-Ace Di2 control box.

A handy window machined into the top stem cover on HTC-Highroad's Specialized S-Works Shiv allows easy access to the Shimano Dura-Ace Di2 control box. (Image credit: James Huang)
Image 38 of 66

The opening between the top of the steerer and the top cover of the stem provides just enough room for the wire to pass directly into the frame on HTC-Highroad's Specialized S-Works Shiv.

The opening between the top of the steerer and the top cover of the stem provides just enough room for the wire to pass directly into the frame on HTC-Highroad's Specialized S-Works Shiv. (Image credit: James Huang)
Image 39 of 66

HTC-Highroad is using these Specialized S-Works Shiv aero bikes for time trials at this year's Tour de France.

HTC-Highroad is using these Specialized S-Works Shiv aero bikes for time trials at this year's Tour de France. (Image credit: James Huang)
Image 40 of 66

HTC-Highroad's Shimano Dura-Ace Di2-equipped time trial bikes have their batteries mounted underneath the saddle.

HTC-Highroad's Shimano Dura-Ace Di2-equipped time trial bikes have their batteries mounted underneath the saddle. (Image credit: James Huang)
Image 41 of 66

HTC-Highroad's Specialized S-Works Shivs are equipped with PRO Missile Evo bars.

HTC-Highroad's Specialized S-Works Shivs are equipped with PRO Missile Evo bars. (Image credit: James Huang)
Image 42 of 66

Leopard-Trek team mechanics built custom wheels for Frank Schleck using a Bontrager front hub and Zipp dimpled carbon tubular rims. Note how the skewer fits perfectly behind the Trek Speed Concept fork blade.

Leopard-Trek team mechanics built custom wheels for Frank Schleck using a Bontrager front hub and Zipp dimpled carbon tubular rims. Note how the skewer fits perfectly behind the Trek Speed Concept fork blade. (Image credit: James Huang)
Image 43 of 66

Frank Schleck's (Leopard-Trek) Trek Speed Concept was fitted with this handbuilt front wheel prior to Stage 2's team time trial, using a Zipp 808 rim and Bontrager carbon hub.

Frank Schleck's (Leopard-Trek) Trek Speed Concept was fitted with this handbuilt front wheel prior to Stage 2's team time trial, using a Zipp 808 rim and Bontrager carbon hub. (Image credit: James Huang)
Image 44 of 66

Europcar's Colnago Flight time trial machines are unfortunately looking a little dated in comparison with many of the other cutting-edge rigs currently being used by the rest of the peloton.

Europcar's Colnago Flight time trial machines are unfortunately looking a little dated in comparison with many of the other cutting-edge rigs currently being used by the rest of the peloton. (Image credit: James Huang)
Image 45 of 66

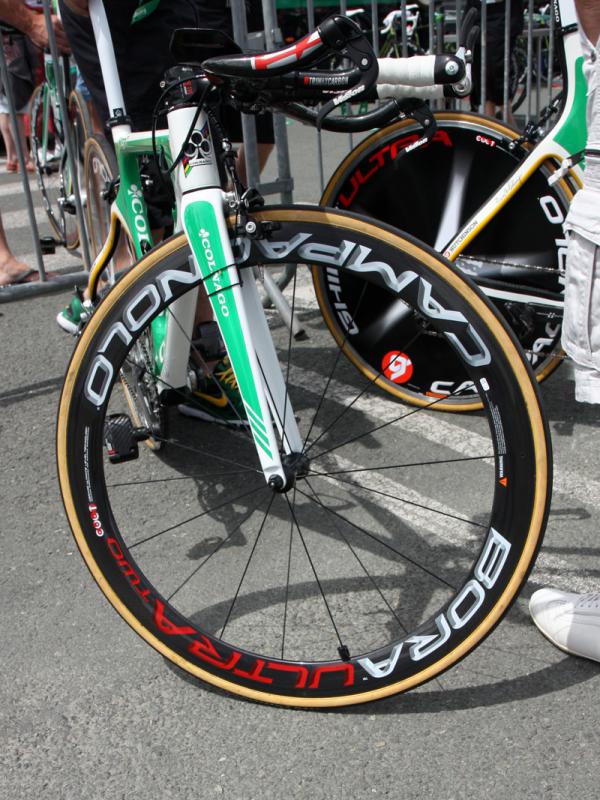

Campagnolo's Bora Ultra Two deep-section carbon tubular wheel is fitted to the front end of this Europcar Colnago Flight.

Campagnolo's Bora Ultra Two deep-section carbon tubular wheel is fitted to the front end of this Europcar Colnago Flight. (Image credit: James Huang)
Image 46 of 66

Many Campagnolo-sponsored riders are still using the old time trial shifters, as seen on this Europcar Colnago Flight.

Many Campagnolo-sponsored riders are still using the old time trial shifters, as seen on this Europcar Colnago Flight. (Image credit: James Huang)
Image 47 of 66

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv apparently went straight into storage after winning the Giro d'Italia. This is how we found it just a day before the start of this year's Tour de France.

Alberto Contador's (Saxo Bank-Sungard) Specialized S-Works Shiv apparently went straight into storage after winning the Giro d'Italia. This is how we found it just a day before the start of this year's Tour de France. (Image credit: James Huang)
Image 48 of 66

While some riders opt for more padding on their time trial bikes, Andrey Grivko (Astana) goes the opposite route with this wholly unpadded carbon fiber Selle Italia SLR

While some riders opt for more padding on their time trial bikes, Andrey Grivko (Astana) goes the opposite route with this wholly unpadded carbon fiber Selle Italia SLR (Image credit: James Huang)
Image 49 of 66

Vision's new Metron 90 carbon tubular front wheels are fitted to Katusha's time trial bikes.

Vision's new Metron 90 carbon tubular front wheels are fitted to Katusha's time trial bikes. (Image credit: James Huang)
Image 50 of 66

Katusha carries on with the old - but still very good - Izalco Chrono frameset designed by aero guru Andy Walser.

Katusha carries on with the old - but still very good - Izalco Chrono frameset designed by aero guru Andy Walser. (Image credit: James Huang)
Image 51 of 66

Katusha's Walser-designed Focus Izalco features knife-like trailing edges.

Katusha's Walser-designed Focus Izalco features knife-like trailing edges. (Image credit: James Huang)
Image 52 of 66

Look's smooth-bodied KéO Blade Aero time trial pedals are fitted to Omega Pharma-Lotto's Canyon Speedmax CFs. Mechanics have even applied a swatch of tape to cover up the front opening.

Look's smooth-bodied KéO Blade Aero time trial pedals are fitted to Omega Pharma-Lotto's Canyon Speedmax CFs. Mechanics have even applied a swatch of tape to cover up the front opening. (Image credit: James Huang)
Image 53 of 66

Philippe Gilbert (Omega Pharma-Lotto) uses a Berner pulley cage on his Canyon Speedmax CF.

Philippe Gilbert (Omega Pharma-Lotto) uses a Berner pulley cage on his Canyon Speedmax CF. (Image credit: James Huang)
Image 54 of 66

Canyon developed this special stem and bar setup for riders that needed a slightly lower position.

Canyon developed this special stem and bar setup for riders that needed a slightly lower position. (Image credit: James Huang)
Image 55 of 66

It's a good thing that Canyon had to develop a special variant of its Speedmax CF front end for former Omega Pharma-Lotto captain Cadel Evans since Sebastian Lang needs it, too.

It's a good thing that Canyon had to develop a special variant of its Speedmax CF front end for former Omega Pharma-Lotto captain Cadel Evans since Sebastian Lang needs it, too. (Image credit: James Huang)
Image 56 of 66

Philippe Gilbert's (Omega Pharma-Lotto) Campagnolo bar-con shifters are augmented with friction tape on both sides of the levers.

Philippe Gilbert's (Omega Pharma-Lotto) Campagnolo bar-con shifters are augmented with friction tape on both sides of the levers. (Image credit: James Huang)
Image 57 of 66

Philippe Gilbert (Omega Pharma-Lotto) uses a clipped Selle Italia Flite TT Team Edition saddle on his time trial machine.

Philippe Gilbert (Omega Pharma-Lotto) uses a clipped Selle Italia Flite TT Team Edition saddle on his time trial machine. (Image credit: James Huang)
Image 58 of 66

Just like on the road, Philippe Gilbert (Omega Pharma-Lotto) has two custom painted time trial bikes for this year's Tour de France.

Just like on the road, Philippe Gilbert (Omega Pharma-Lotto) has two custom painted time trial bikes for this year's Tour de France. (Image credit: James Huang)
Image 59 of 66

Philippe Gilbert (Omega Pharma-Lotto) was treated to this slightly customized Canyon Speedmax CF when he was in yellow after Stage 1.

Philippe Gilbert (Omega Pharma-Lotto) was treated to this slightly customized Canyon Speedmax CF when he was in yellow after Stage 1. (Image credit: James Huang)
Image 60 of 66

Philippe Gilbert's (Omega Pharma-Lotto) Canyon Speedmax is fitted with these unmarked cranks but hidden beneath the black paint are a set of Vision carbon fiber arms.

Philippe Gilbert's (Omega Pharma-Lotto) Canyon Speedmax is fitted with these unmarked cranks but hidden beneath the black paint are a set of Vision carbon fiber arms. (Image credit: James Huang)
Image 61 of 66

Omega Pharma-Lotto star Philippe Gilbert is using these Ritchey time trial bars on his Canyon Speedmax CF.

Omega Pharma-Lotto star Philippe Gilbert is using these Ritchey time trial bars on his Canyon Speedmax CF. (Image credit: James Huang)
Image 62 of 66

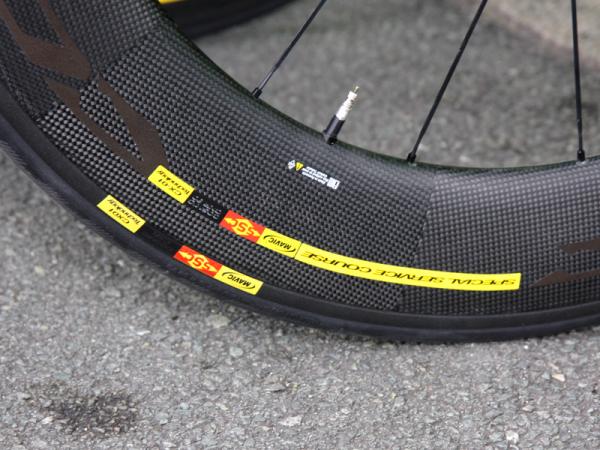

Liquigas-Cannondale team time trial bikes use Mavic's new clip-on fairing that fills the space in between the rim and tire.

Liquigas-Cannondale team time trial bikes use Mavic's new clip-on fairing that fills the space in between the rim and tire. (Image credit: James Huang)
Image 63 of 66

Cannondale mounts the rear brake in a conventional location on the current Slice but the new model will feature integrated brakes that are much more cleanly tucked away.

Cannondale mounts the rear brake in a conventional location on the current Slice but the new model will feature integrated brakes that are much more cleanly tucked away. (Image credit: James Huang)
Image 64 of 66

Liquigas-Cannondale's Cannondale Slice is definitely getting long in the tooth but Cannondale has a new design that might be used on Saturday.

Liquigas-Cannondale's Cannondale Slice is definitely getting long in the tooth but Cannondale has a new design that might be used on Saturday. (Image credit: James Huang)
Image 65 of 66

Ivan Basso's (Liquigas-Cannondale) Vison aerobars are fitted with a third brake lever so he can adust his speed without breaking his tuck.

Ivan Basso's (Liquigas-Cannondale) Vison aerobars are fitted with a third brake lever so he can adust his speed without breaking his tuck. (Image credit: James Huang)
Image 66 of 66

Astana is using these starkly finished Specialized S-Works Shivs in this year's Tour de France.

Astana is using these starkly finished Specialized S-Works Shivs in this year's Tour de France. (Image credit: James Huang)

The Tour de France's final time trial was a pivotal moment in this year's race with Cadel Evans (BMC) finishing second and in the process overturning Andy Schleck's 57-seconds advantage to win his first Tour.

The riders covered 42.5km on rolling terrain around the city of Grenoble on machines that have been purpose-built for optimum wind-cheating and efficiency. Check out our massive image gallery to see some of the cutting-edge aero bikes that vied for supremacy.
