Tom Dumoulin's Giant Trinity Advanced Pro time trial bike – Gallery

Image 1 of 34

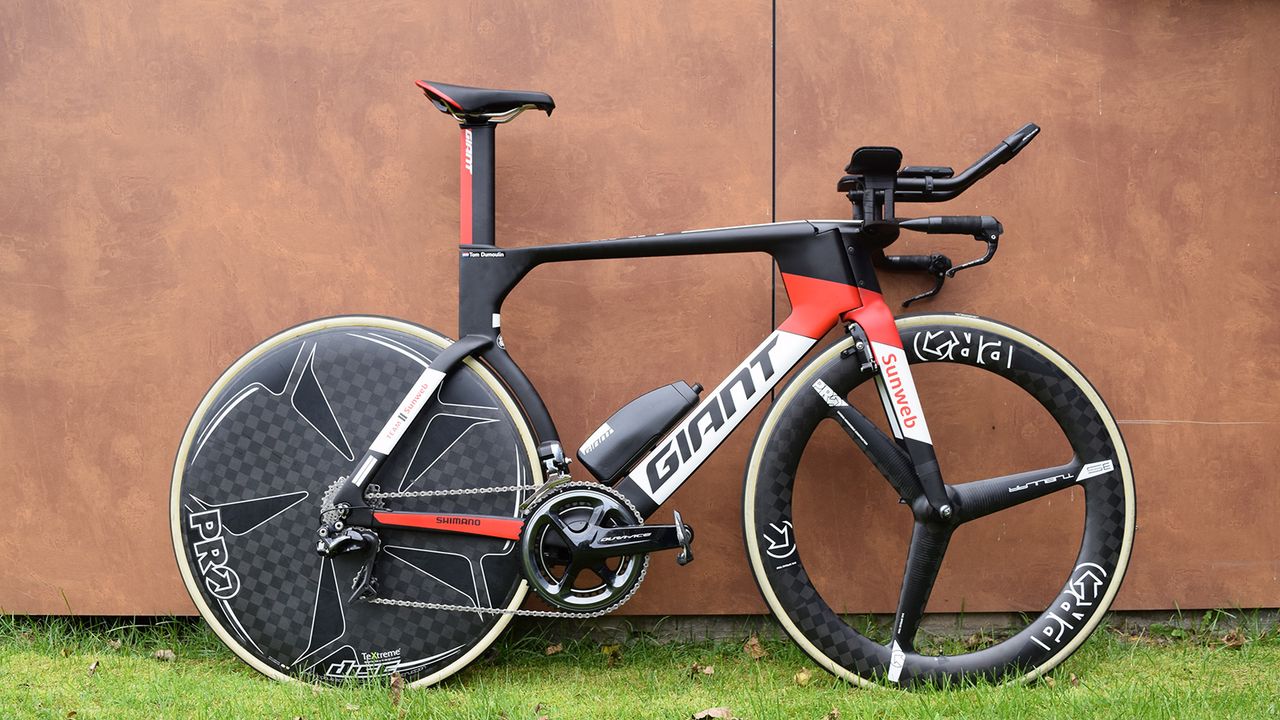

Tom Dumoulin's world championship time trial winning Giant Trinity Advanced Pro

Tom Dumoulin's world championship time trial winning Giant Trinity Advanced Pro
(Image credit: Josh Evans)

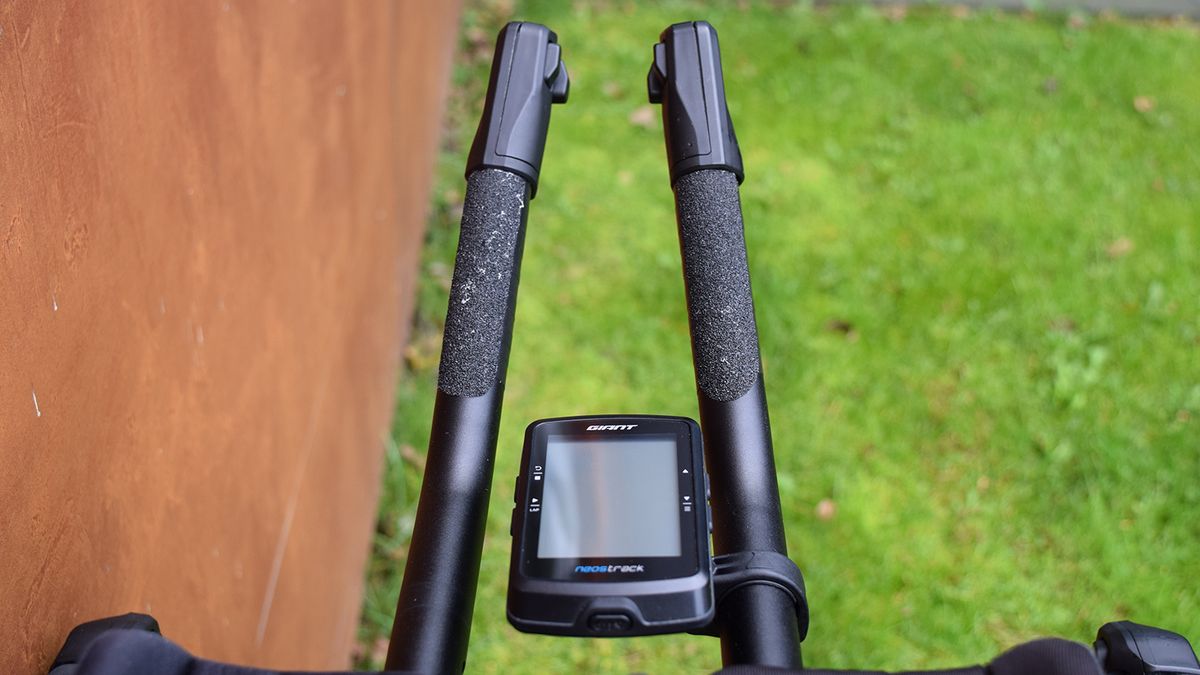

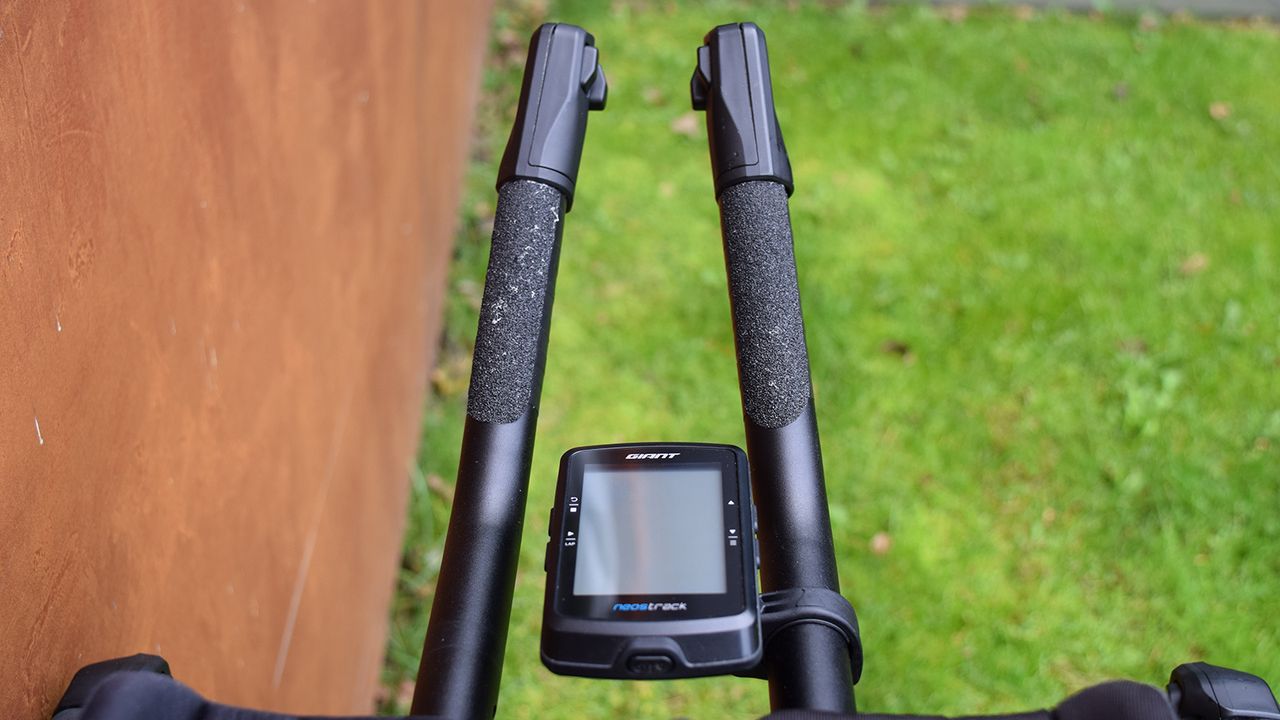

Image 2 of 34

Grip tape on the handle bar extensions help to stay in position whilst racing

Grip tape on the handle bar extensions help to stay in position whilst racing
(Image credit: Josh Evans)
Image 3 of 34

The low-profile front end reduces as much wind resistance as possible

The low-profile front end reduces as much wind resistance as possible
(Image credit: Josh Evans)
Image 4 of 34

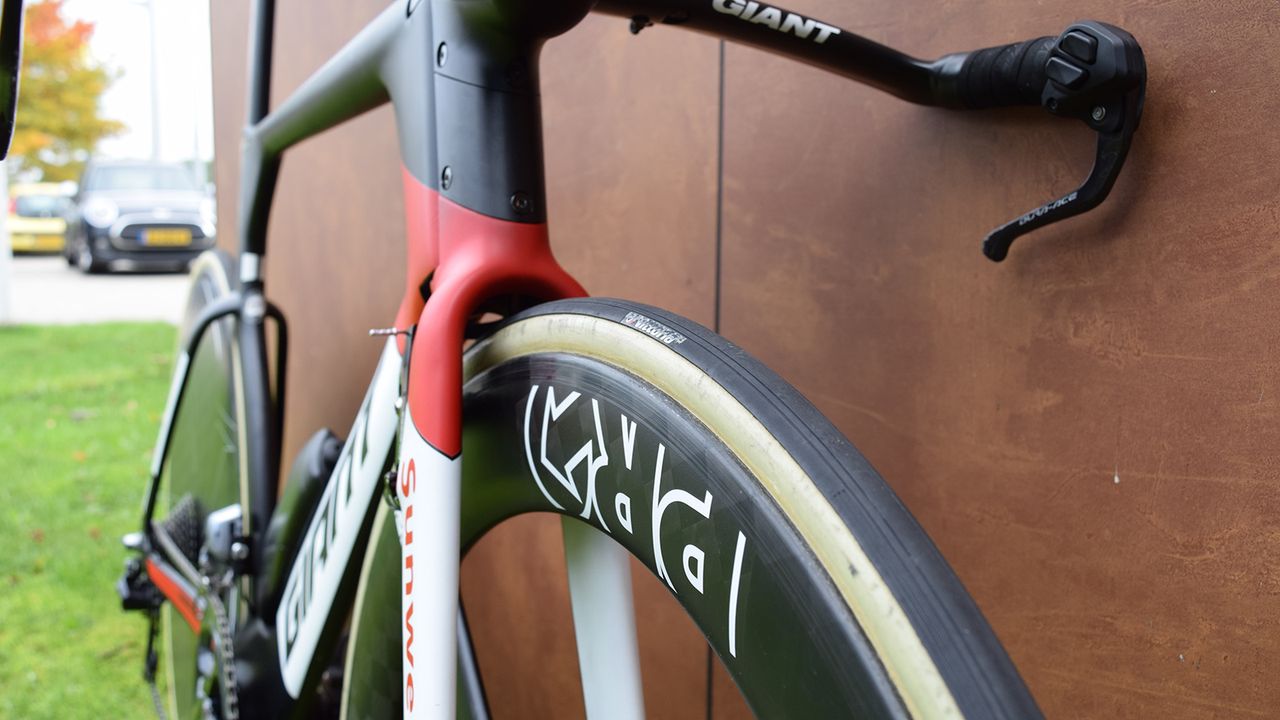

Positioning the front brake behind the fork reduces air turbulance at the front of the bike

Positioning the front brake behind the fork reduces air turbulance at the front of the bike
(Image credit: Josh Evans)

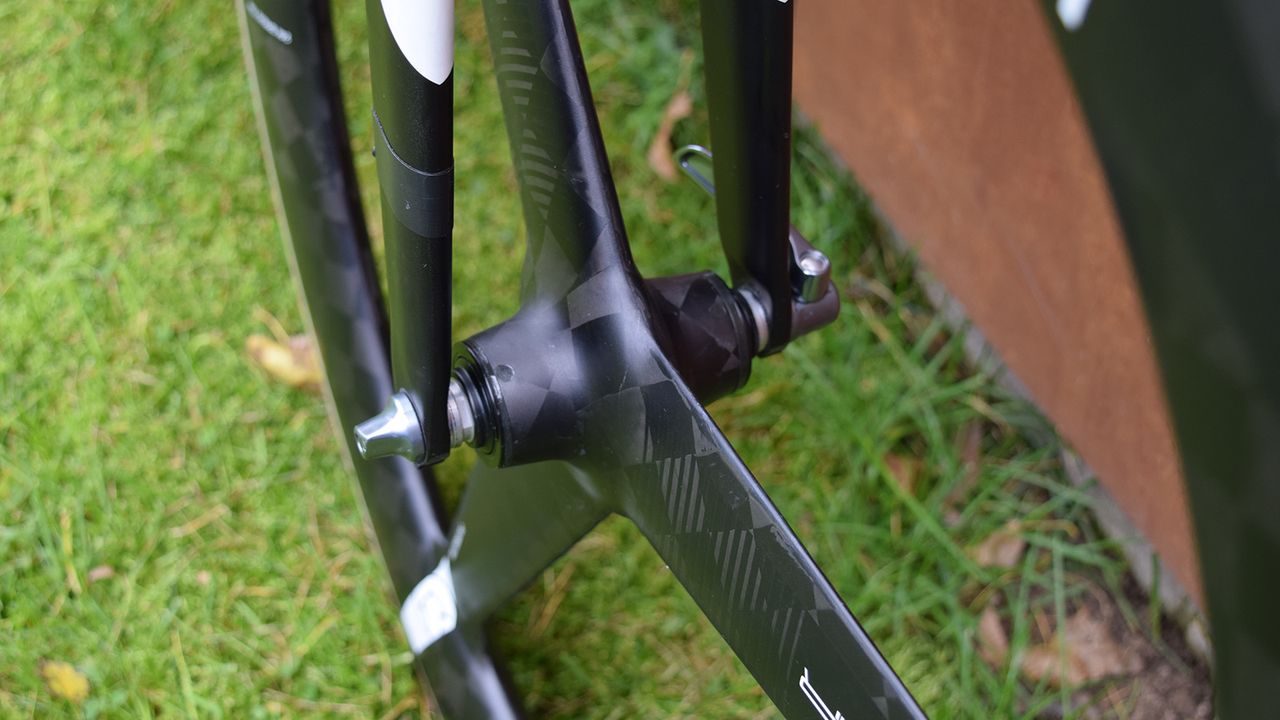

Image 5 of 34

A look at the Pro Textreme three-spoke front hub

A look at the Pro Textreme three-spoke front hub
(Image credit: Josh Evans)
Image 6 of 34

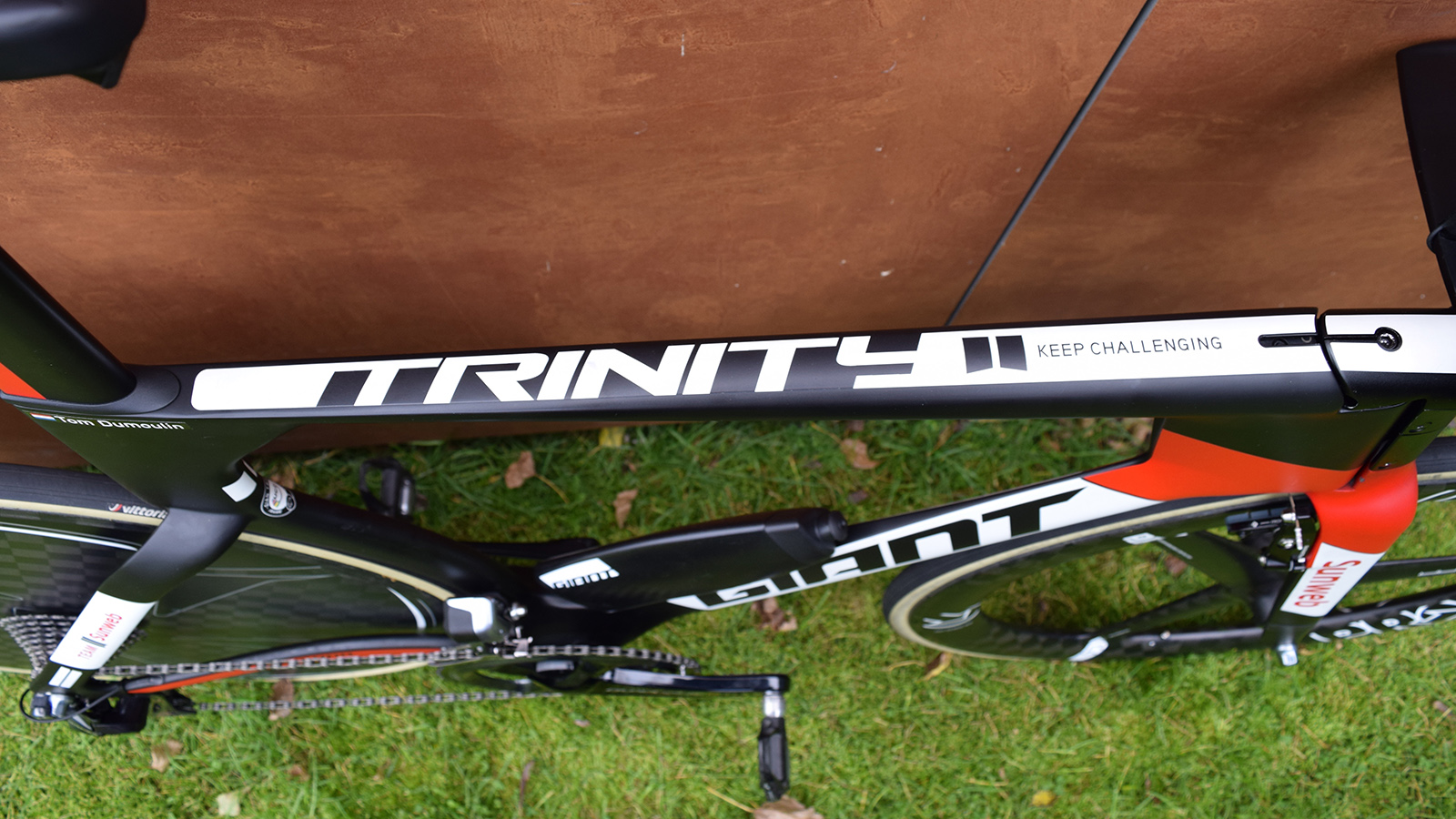

Simple decals on the Giant Trinity

Simple decals on the Giant Trinity
(Image credit: Josh Evans)

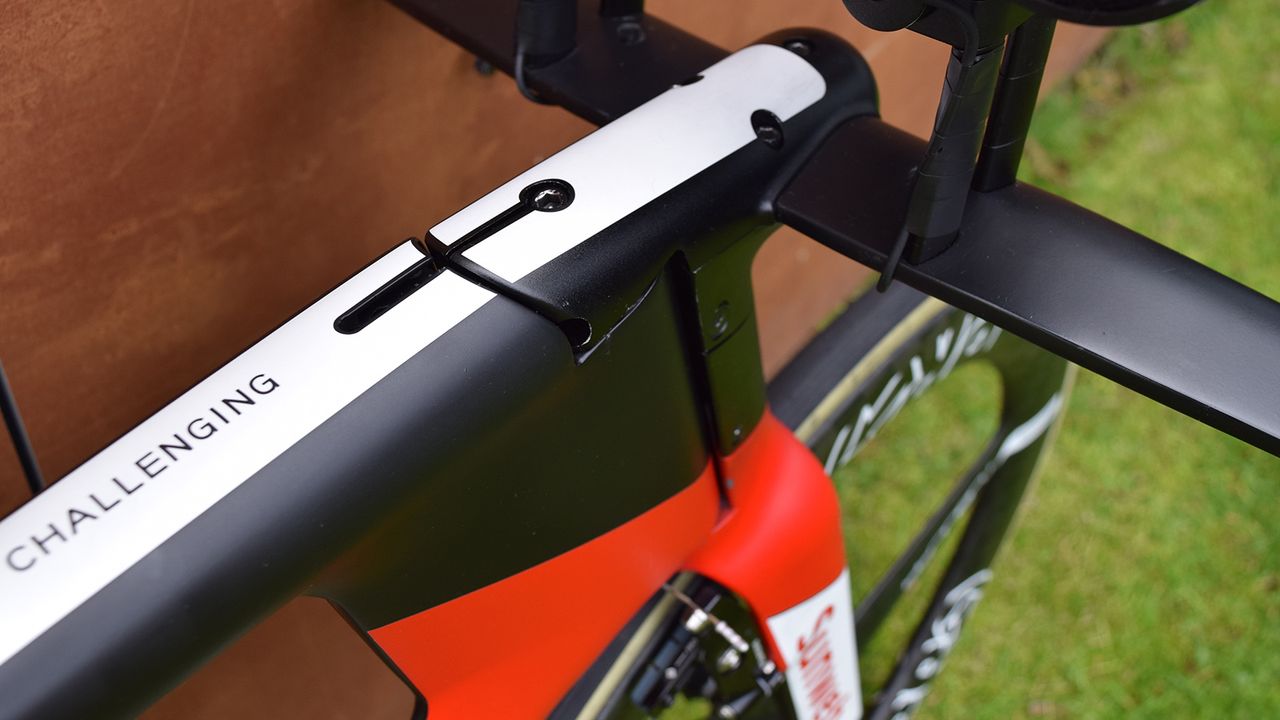

Image 7 of 34

The fork is integrated with the stem to further improve aerodynamics at the front end

The fork is integrated with the stem to further improve aerodynamics at the front end
(Image credit: Josh Evans)
Image 8 of 34

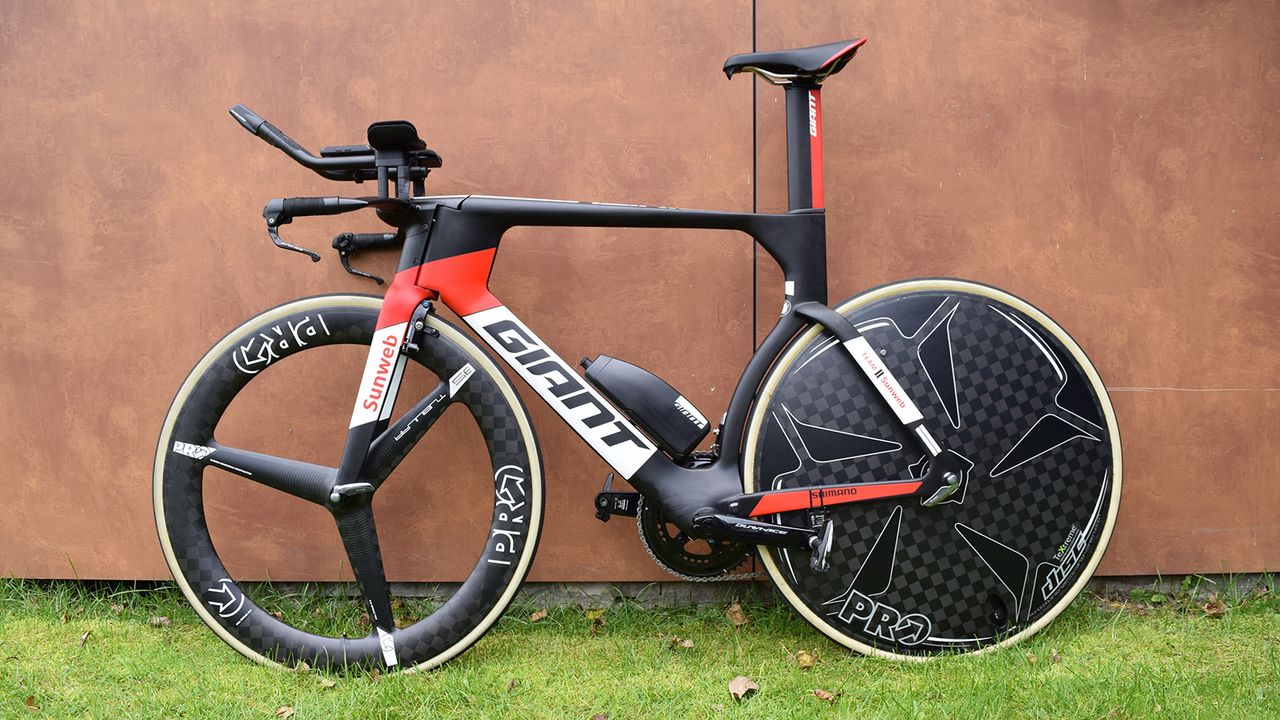

A look at the Giant Trinity from the non-drive side

A look at the Giant Trinity from the non-drive side
(Image credit: Josh Evans)
Image 9 of 34

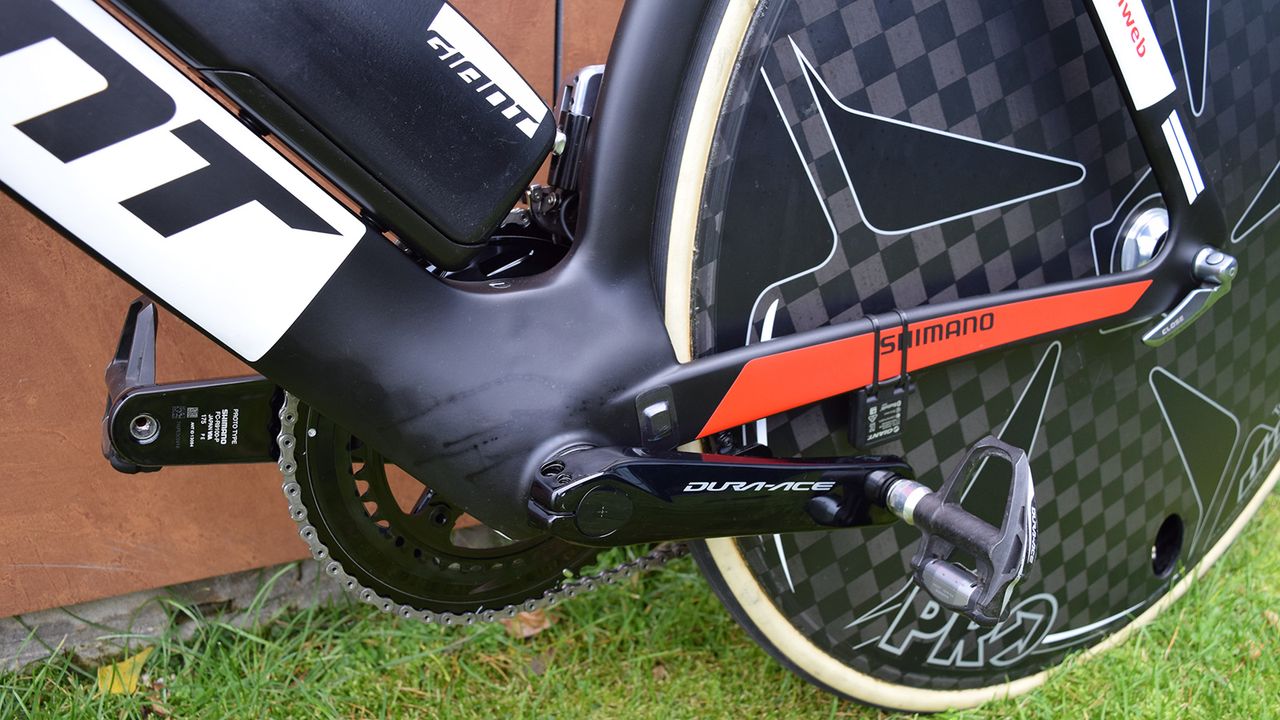

The oversized bottom bracket is 92 millimeters wide and claims to contribute to stiffness in the area

The oversized bottom bracket is 92 millimeters wide and claims to contribute to stiffness in the area
(Image credit: Josh Evans)
Image 10 of 34

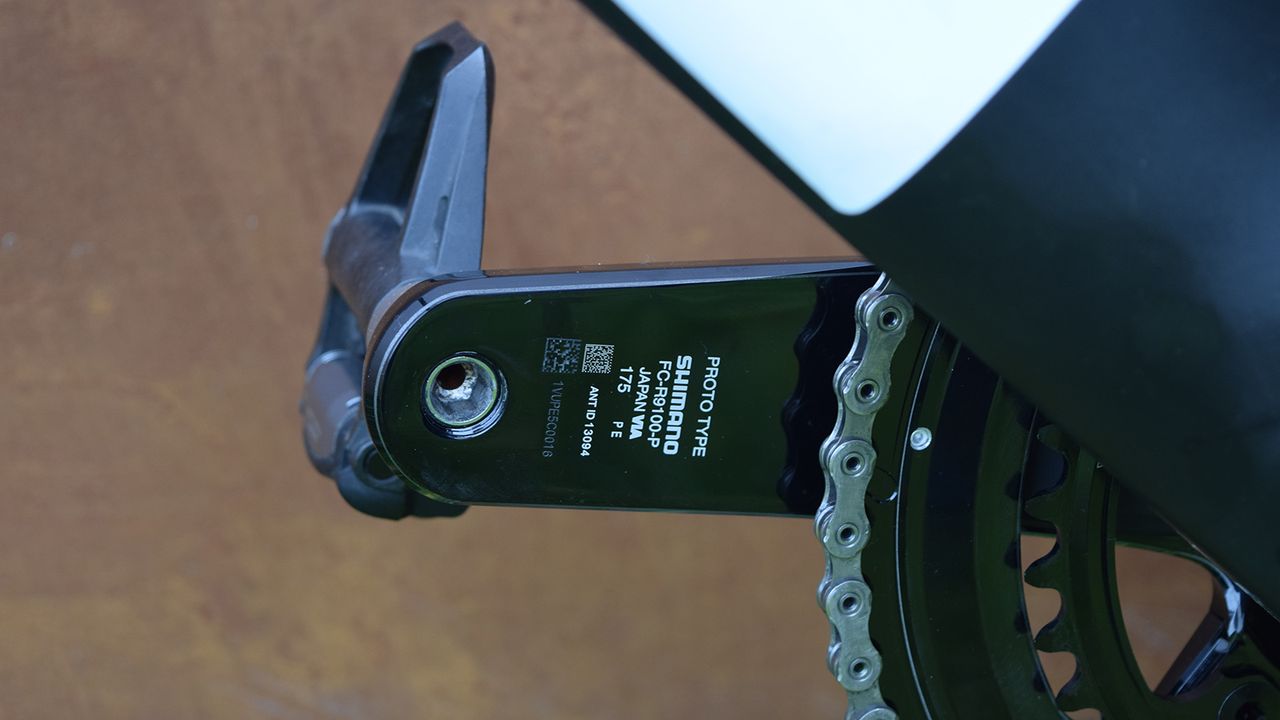

Dumoulin, like Chris Froome, opts for 175mm cranks

Dumoulin, like Chris Froome, opts for 175mm cranks
(Image credit: Josh Evans)

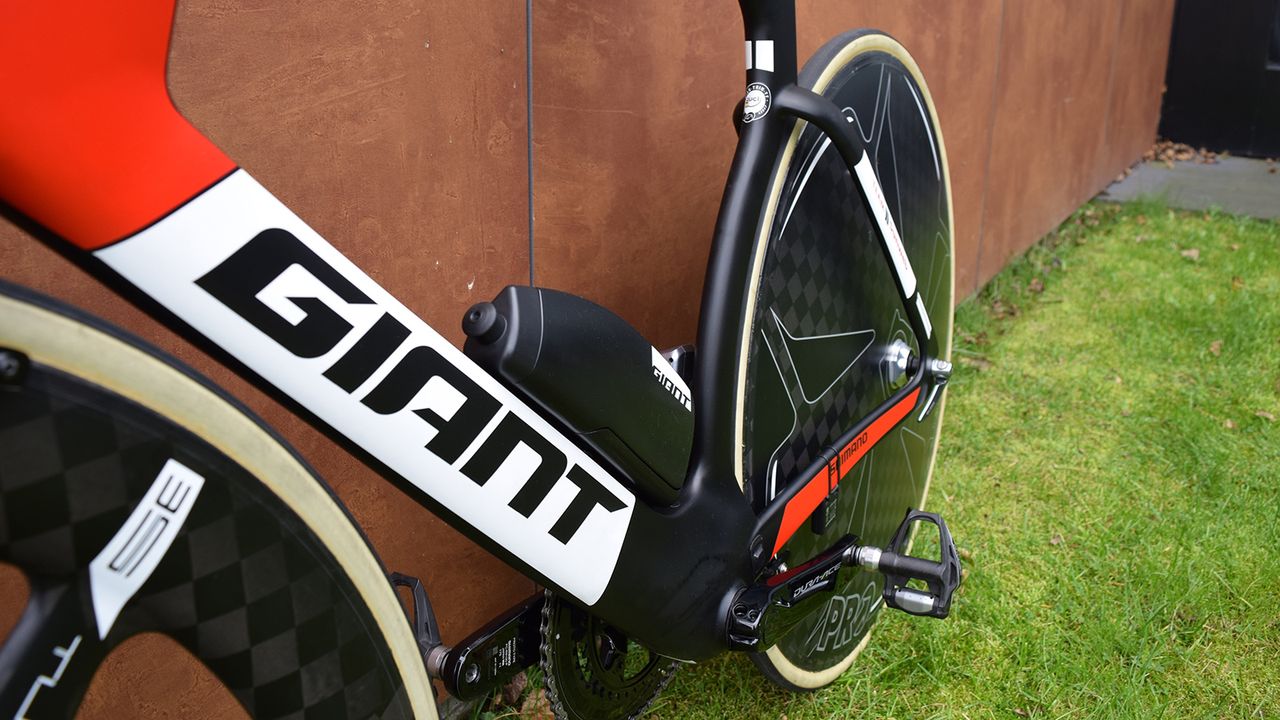

Image 11 of 34

Giant offer an integrated bottle design dubbed the Aerovault System

Giant offer an integrated bottle design dubbed the Aerovault System
(Image credit: Josh Evans)

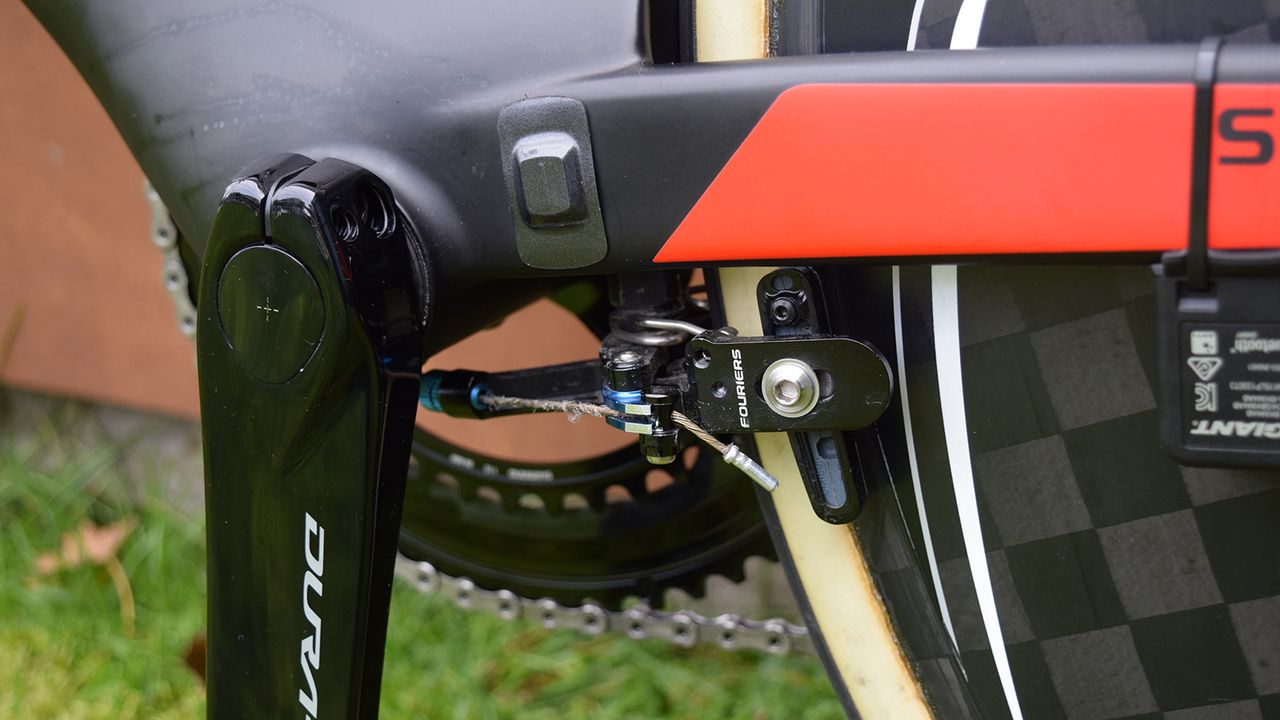

Image 12 of 34

A look at the non-driveside Shimano power meter and the Fouriers rear brake

A look at the non-driveside Shimano power meter and the Fouriers rear brake
(Image credit: Josh Evans)

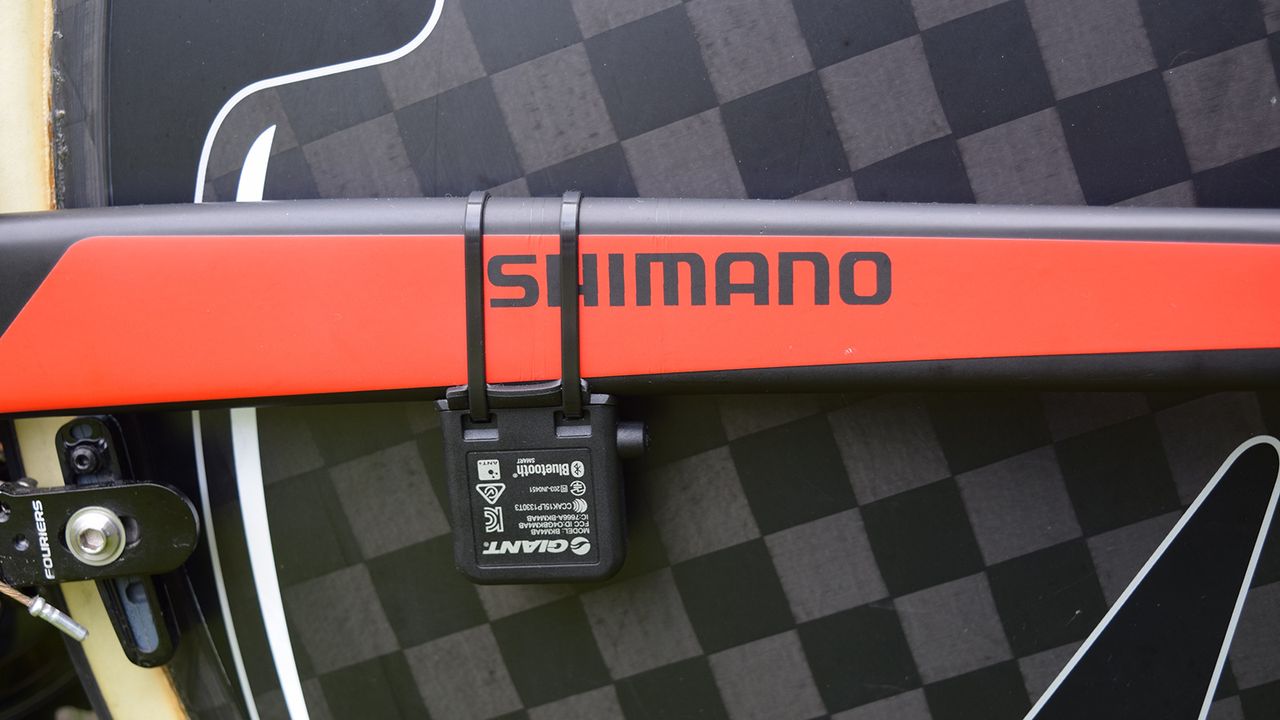

Image 13 of 34

The Giant sensor is cable-tied to the chainstay

The Giant sensor is cable-tied to the chainstay
(Image credit: Josh Evans)

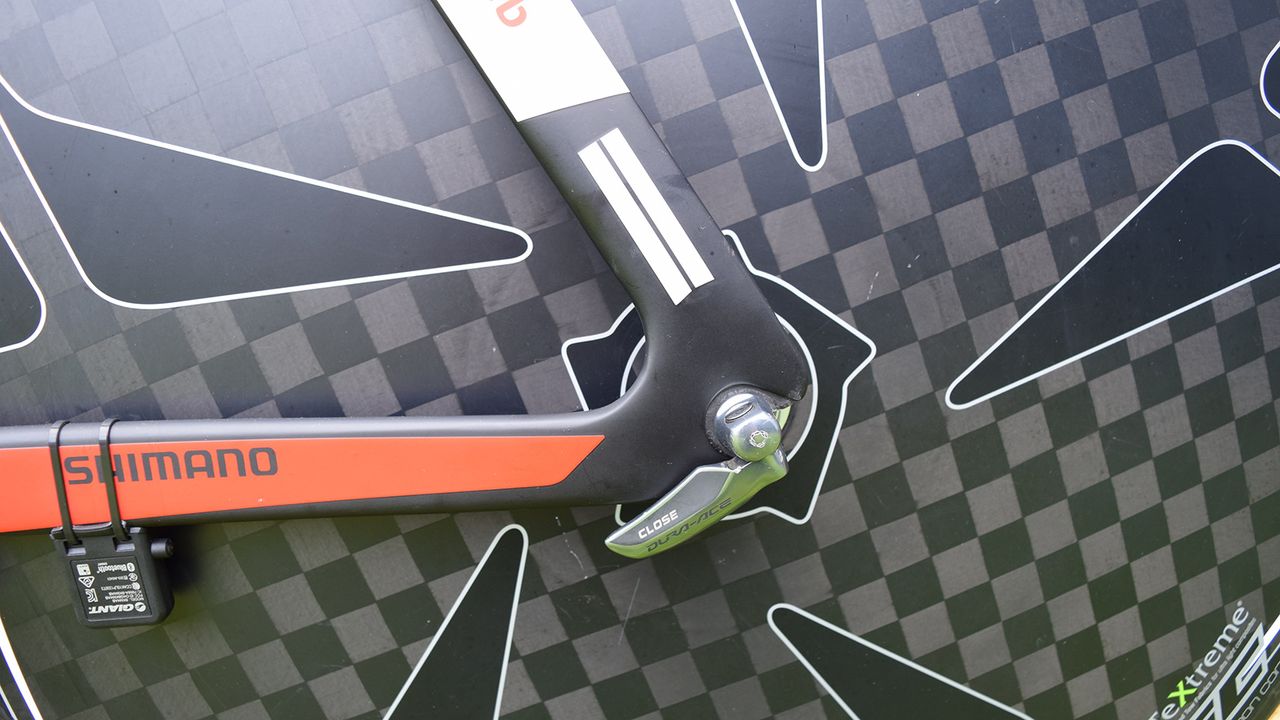

Image 14 of 34

The team use older generation Shimano Dura-Ace skewers

The team use older generation Shimano Dura-Ace skewers
(Image credit: Josh Evans)

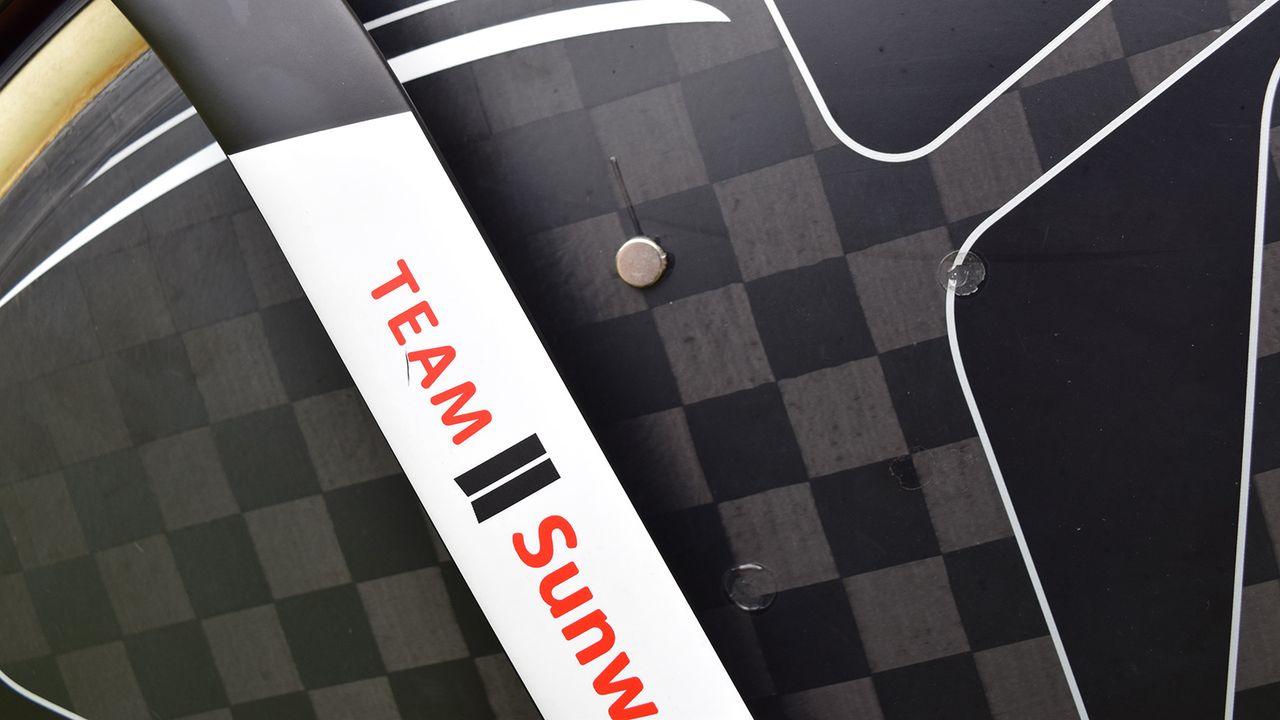

Image 15 of 34

With a lack of spokes, sensors are glued to the carbon disc

With a lack of spokes, sensors are glued to the carbon disc
(Image credit: Josh Evans)

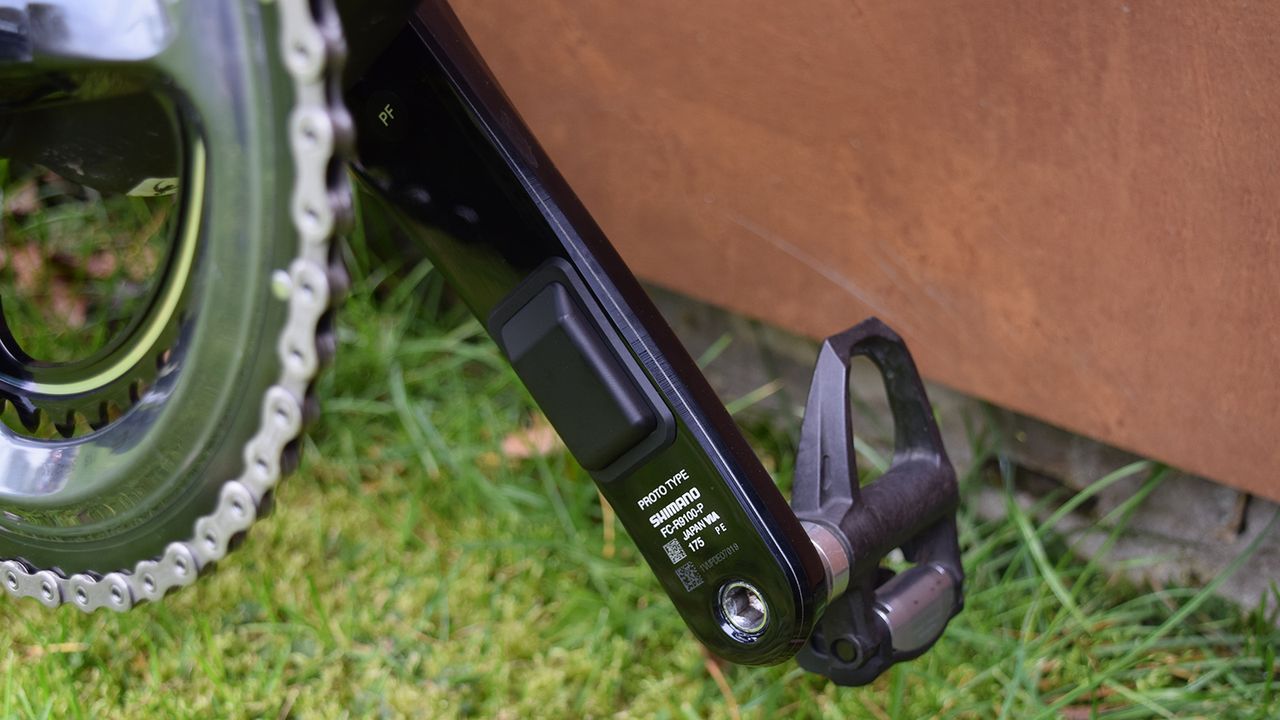

Image 16 of 34

The team is currently testing prototype models of the Shimano power meter, with production models available later this year

The team is currently testing prototype models of the Shimano power meter, with production models available later this year
(Image credit: Josh Evans)

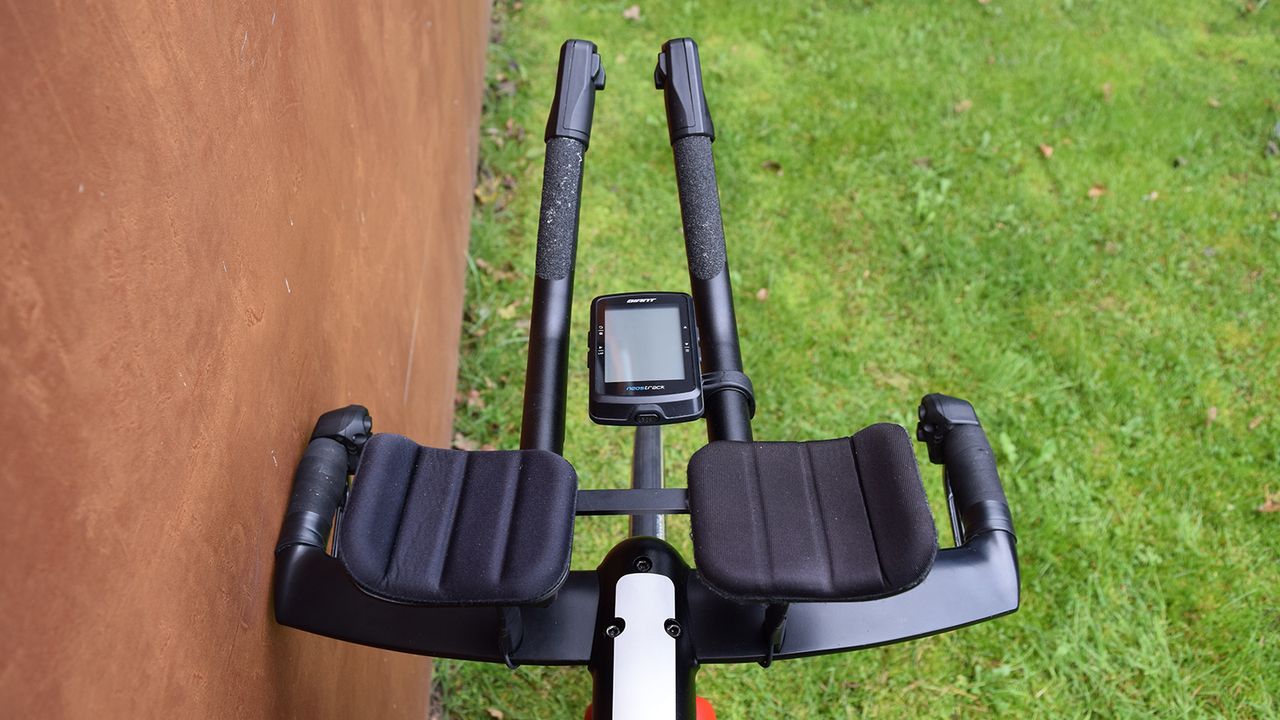

Image 17 of 34

Dumoulin's cockpit is a neat and uncluttered affair

Dumoulin's cockpit is a neat and uncluttered affair
(Image credit: Josh Evans)

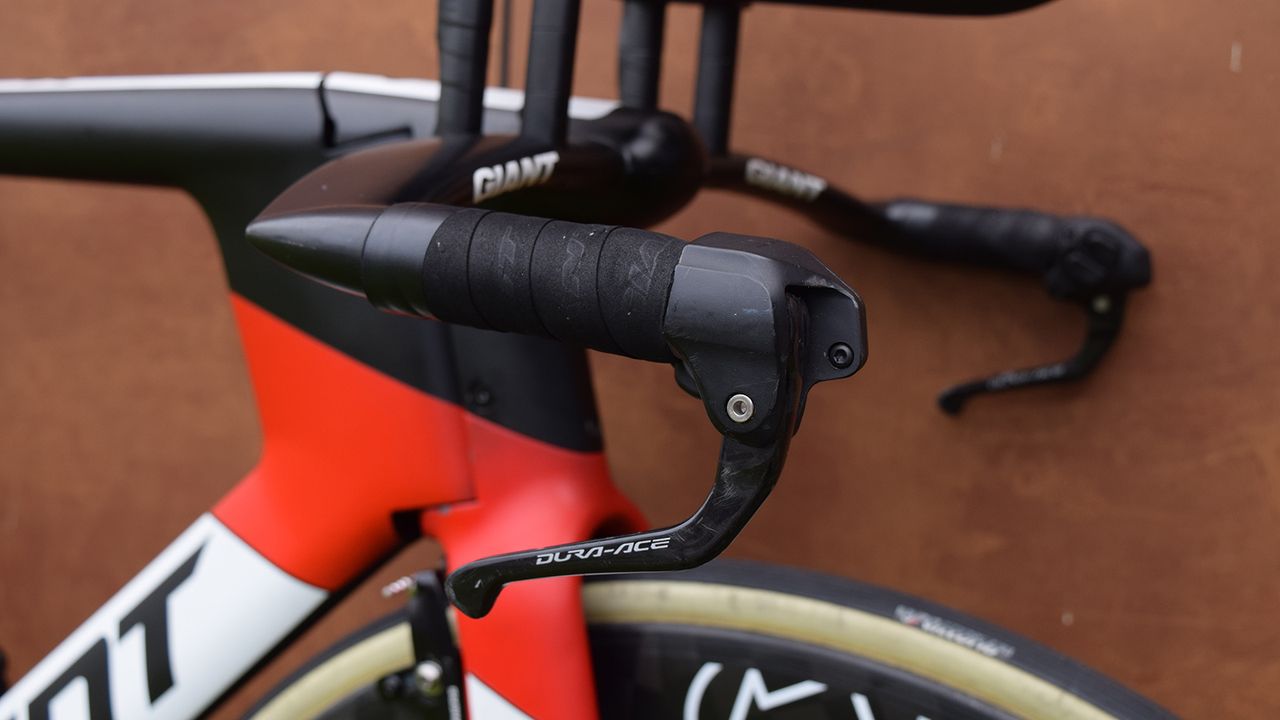

Image 18 of 34

Shimano provide the time trial specific brake levers

Shimano provide the time trial specific brake levers
(Image credit: Josh Evans)

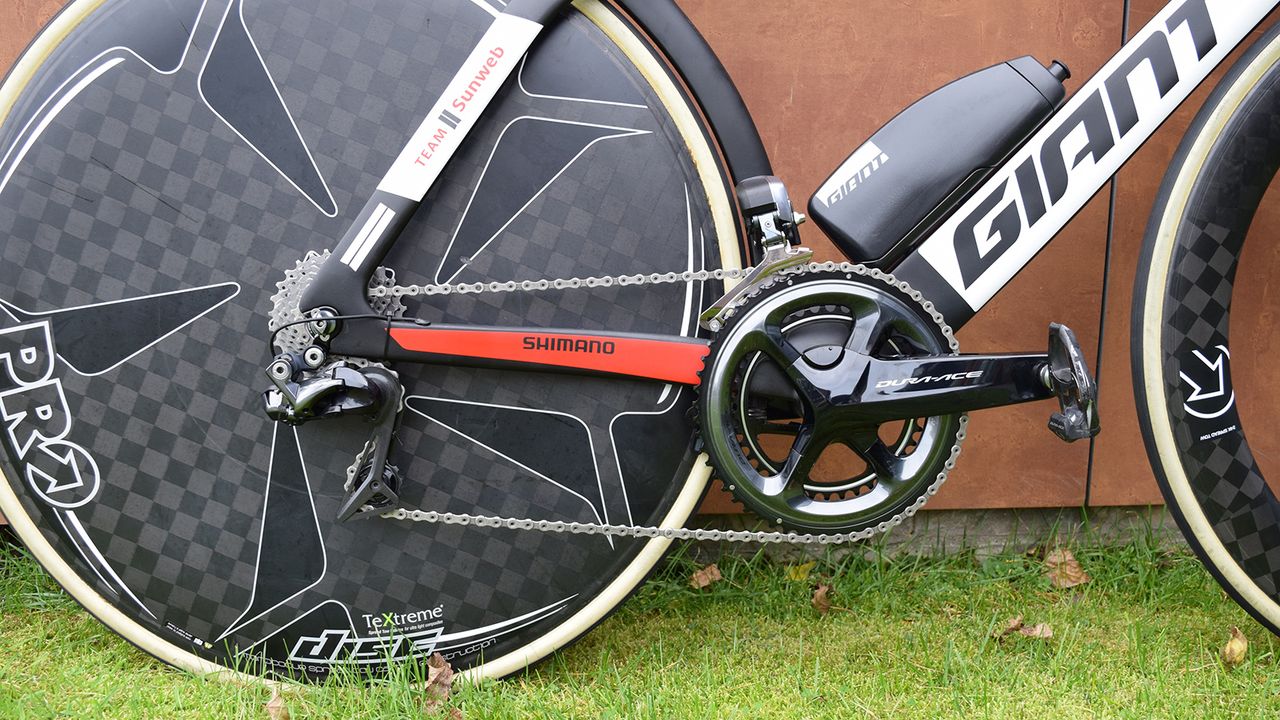

Image 19 of 34

The drivetrain and shifters are a mix of Shimano Dura-Ace R9100 and R9000 series components

The drivetrain and shifters are a mix of Shimano Dura-Ace R9100 and R9000 series components
(Image credit: Josh Evans)

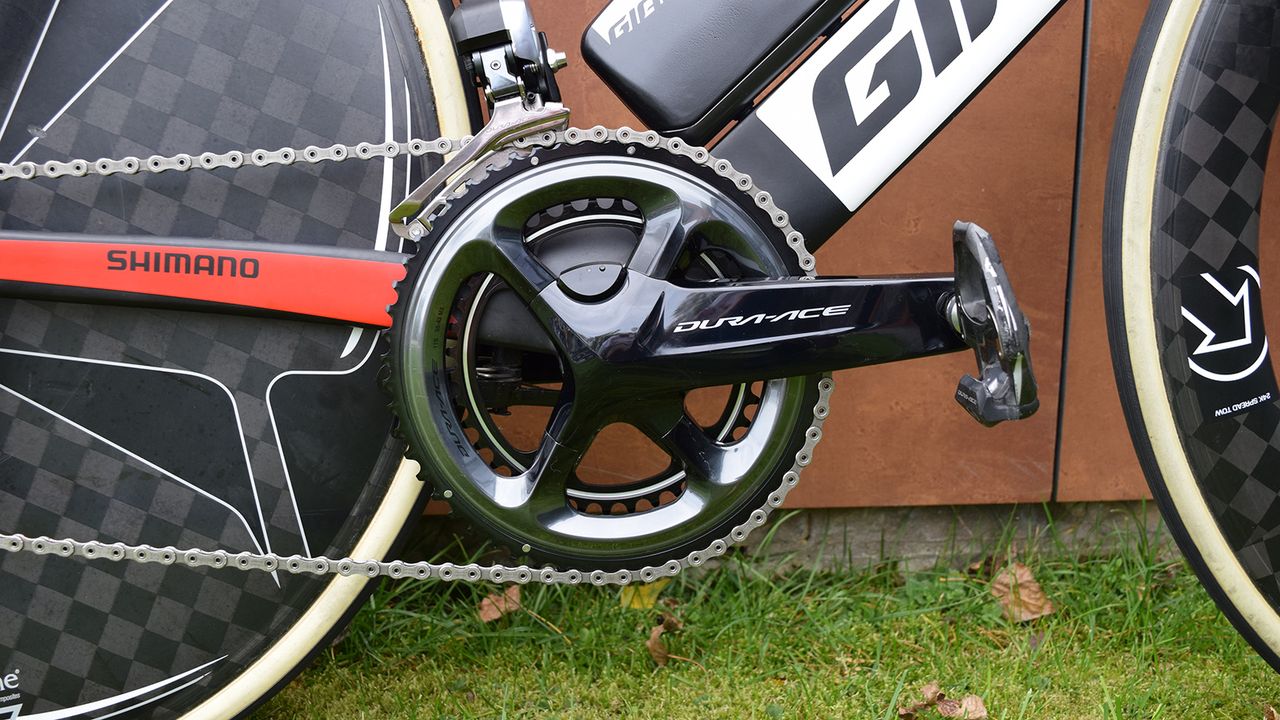

Image 20 of 34

Dumoulin ran a Pioneer power meter equipped Shimano Dura-Ace 9000 series crankset during the time trial in Bergen

Dumoulin ran a Pioneer power meter equipped Shimano Dura-Ace 9000 series crankset during the time trial in Bergen
(Image credit: Josh Evans)

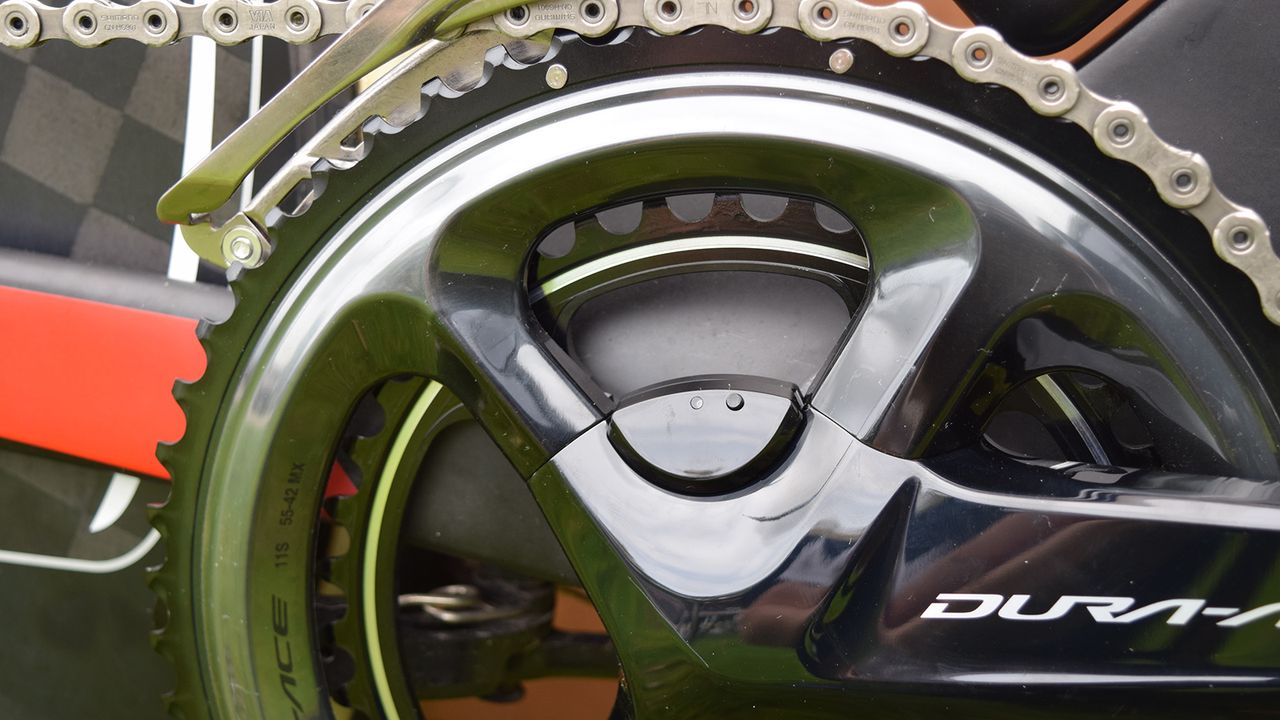

Image 21 of 34

Dumoulin's bike is now equipped with the Shimano R9100-P power meter

Dumoulin's bike is now equipped with the Shimano R9100-P power meter
(Image credit: Josh Evans)

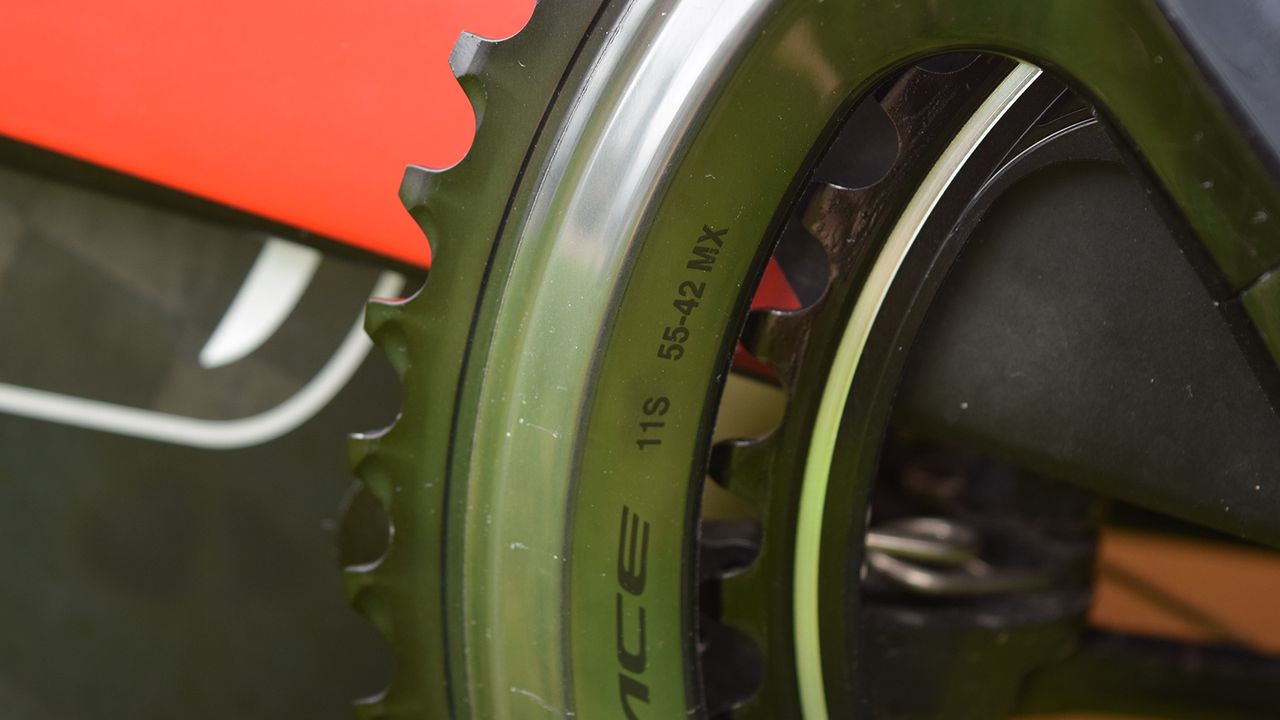

Image 22 of 34

Tom Dumoulin opts for 55/42 chainrings although the Dutchman ran a 56/39 combination at the world championships

Tom Dumoulin opts for 55/42 chainrings although the Dutchman ran a 56/39 combination at the world championships
(Image credit: Josh Evans)
Image 23 of 34

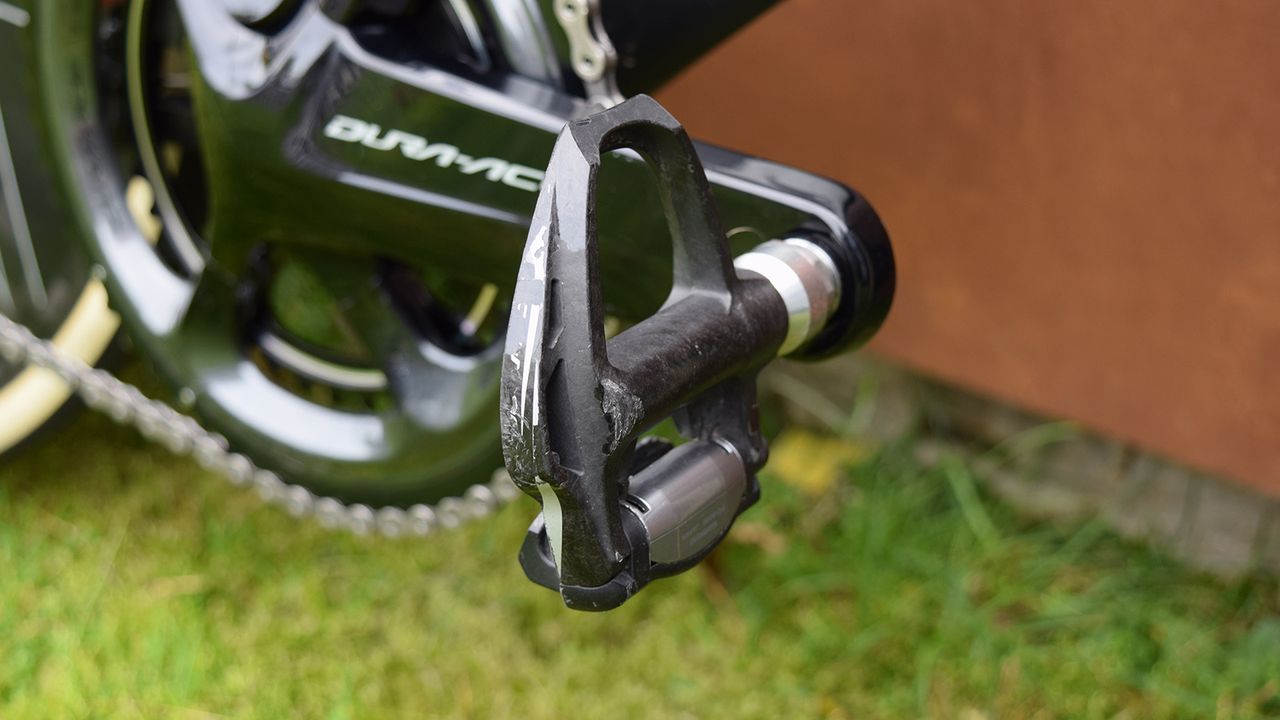

Well used Shimano Dura-Ace 9000 series pedals

Well used Shimano Dura-Ace 9000 series pedals
(Image credit: Josh Evans)

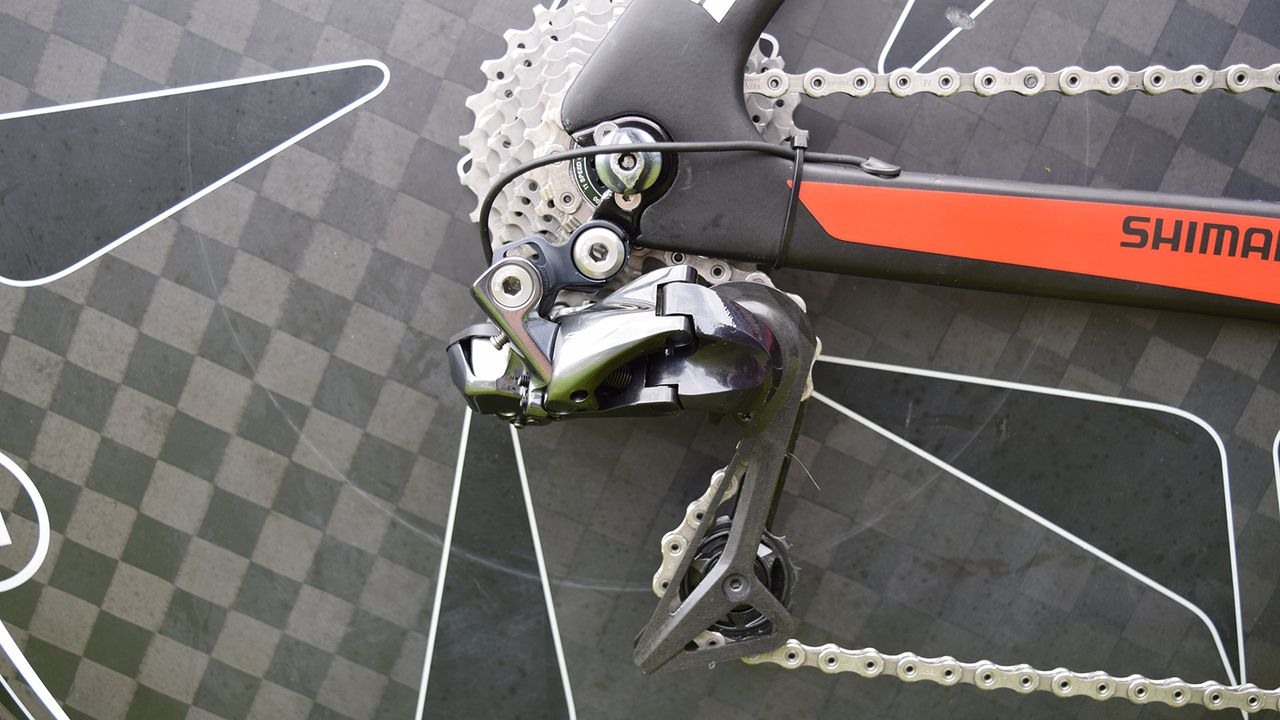

Image 24 of 34

The latest Shimano Dura-Ace R9150 rear dearailleur provides the shifting at the back of the bike

The latest Shimano Dura-Ace R9150 rear dearailleur provides the shifting at the back of the bike
(Image credit: Josh Evans)

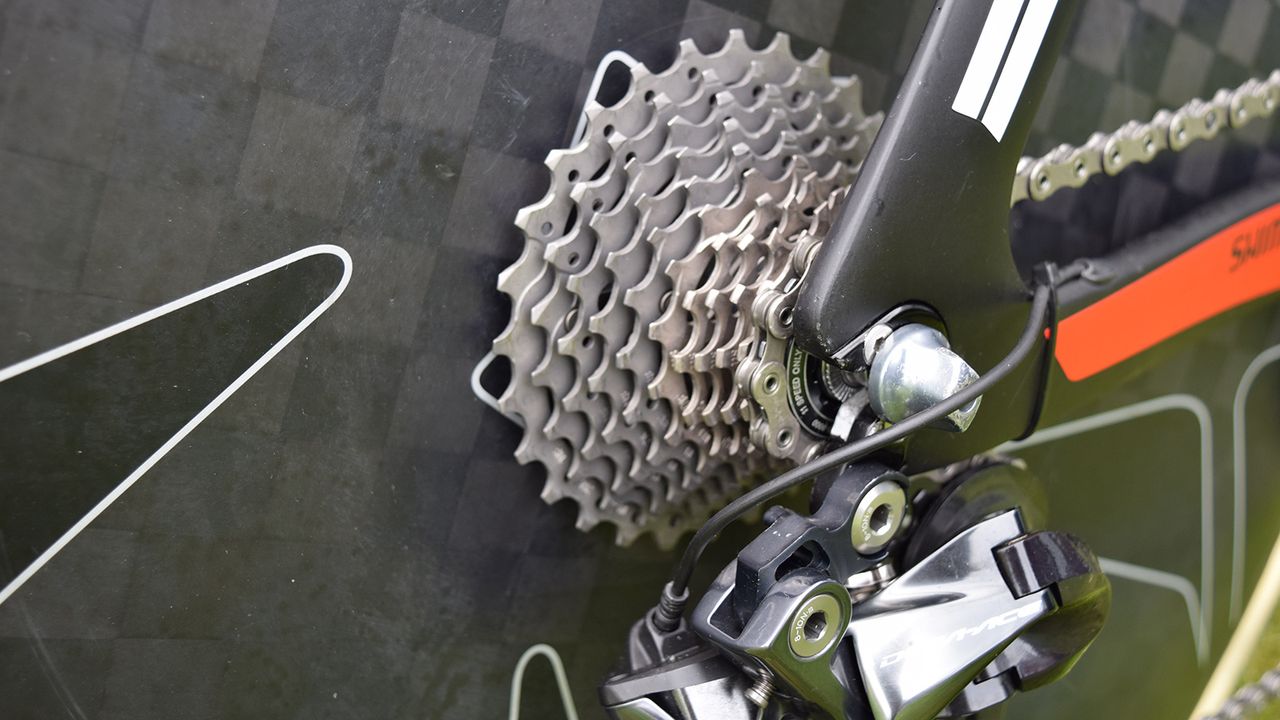

Image 25 of 34

Dumoulin opts for an 11-28 Shimano Dura-Ace cassette

Dumoulin opts for an 11-28 Shimano Dura-Ace cassette
(Image credit: Josh Evans)
Image 26 of 34

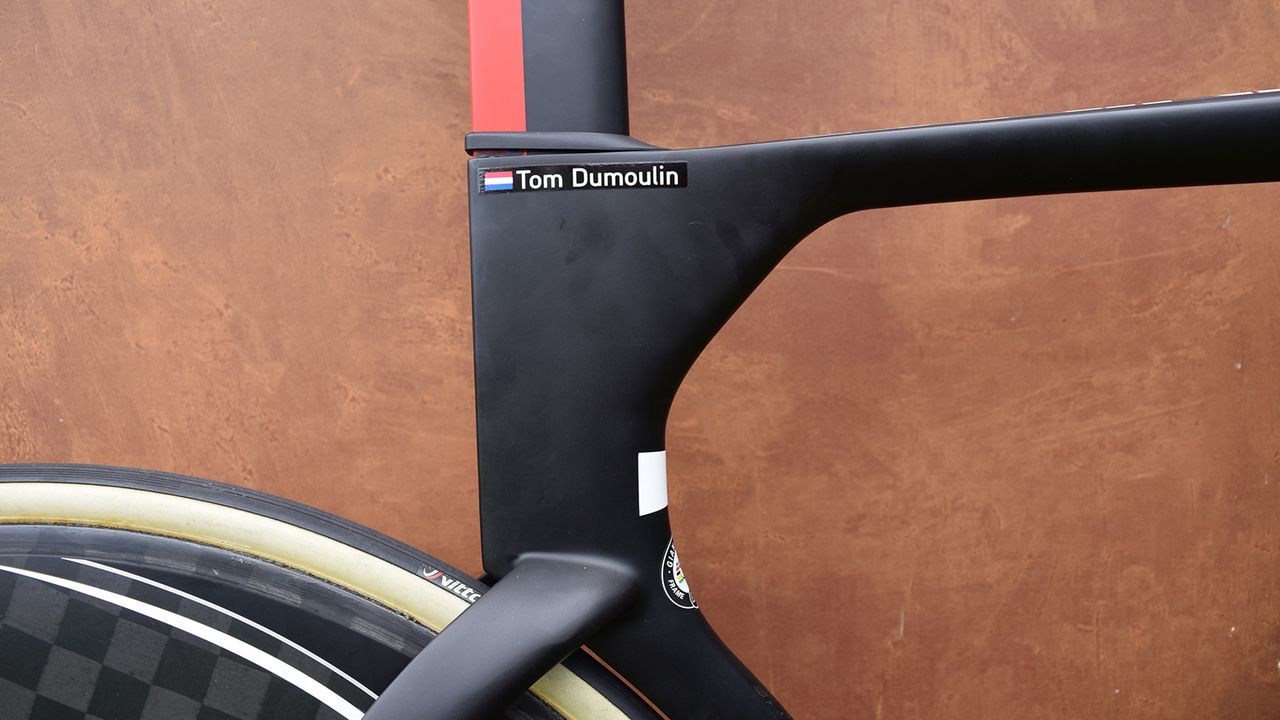

The frame is constructed from Giant's proprietry carbon fiber and resin composite

The frame is constructed from Giant's proprietry carbon fiber and resin composite
(Image credit: Josh Evans)
Image 27 of 34

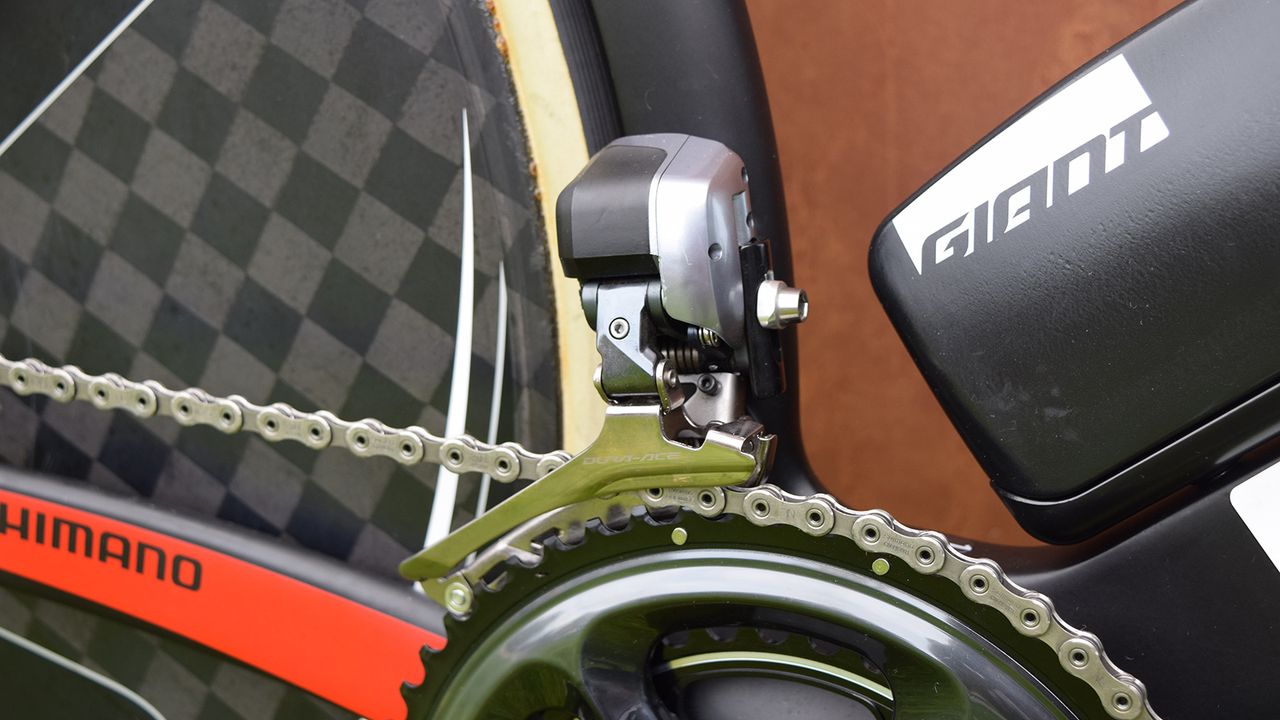

The bike is equipped with a 9000 series Shimano Dura-Ace front derailleur

The bike is equipped with a 9000 series Shimano Dura-Ace front derailleur
(Image credit: Josh Evans)
Image 28 of 34

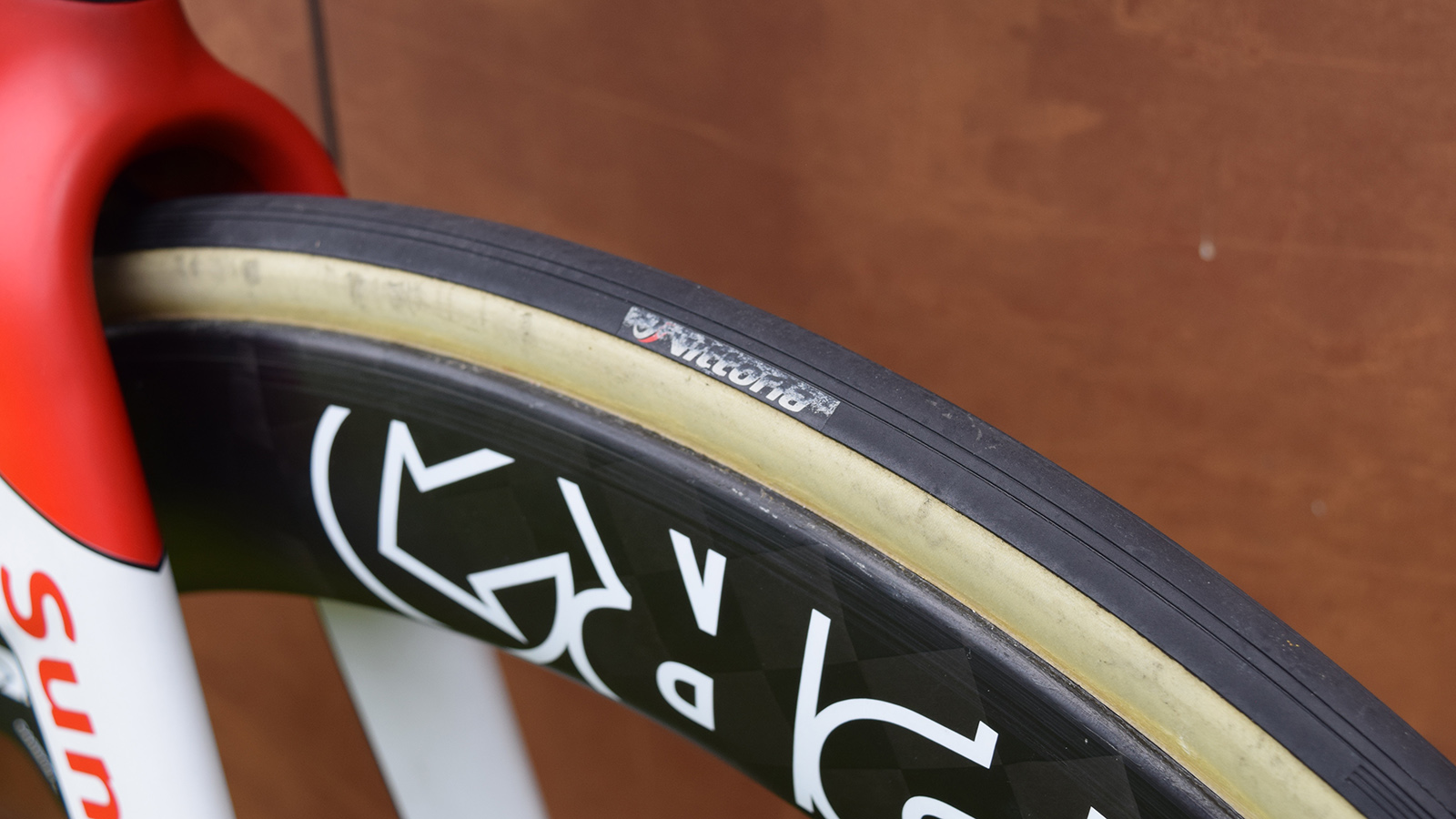

The Vittoria Corsa tubulars are tried and tested at the top level of cycling

The Vittoria Corsa tubulars are tried and tested at the top level of cycling
(Image credit: Josh Evans)

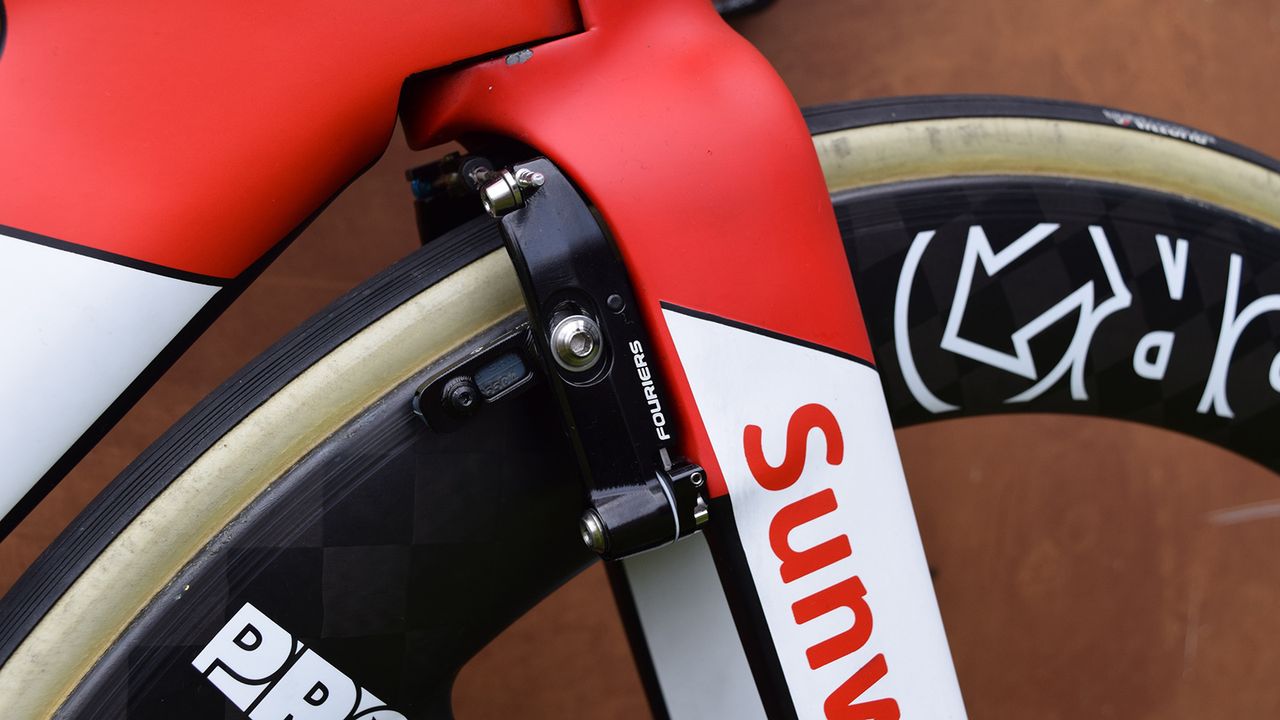

Image 29 of 34

Fouriers provide the stopping with the calipers positioned at the rear of the fork to stay out of the wind

Fouriers provide the stopping with the calipers positioned at the rear of the fork to stay out of the wind
(Image credit: Josh Evans)

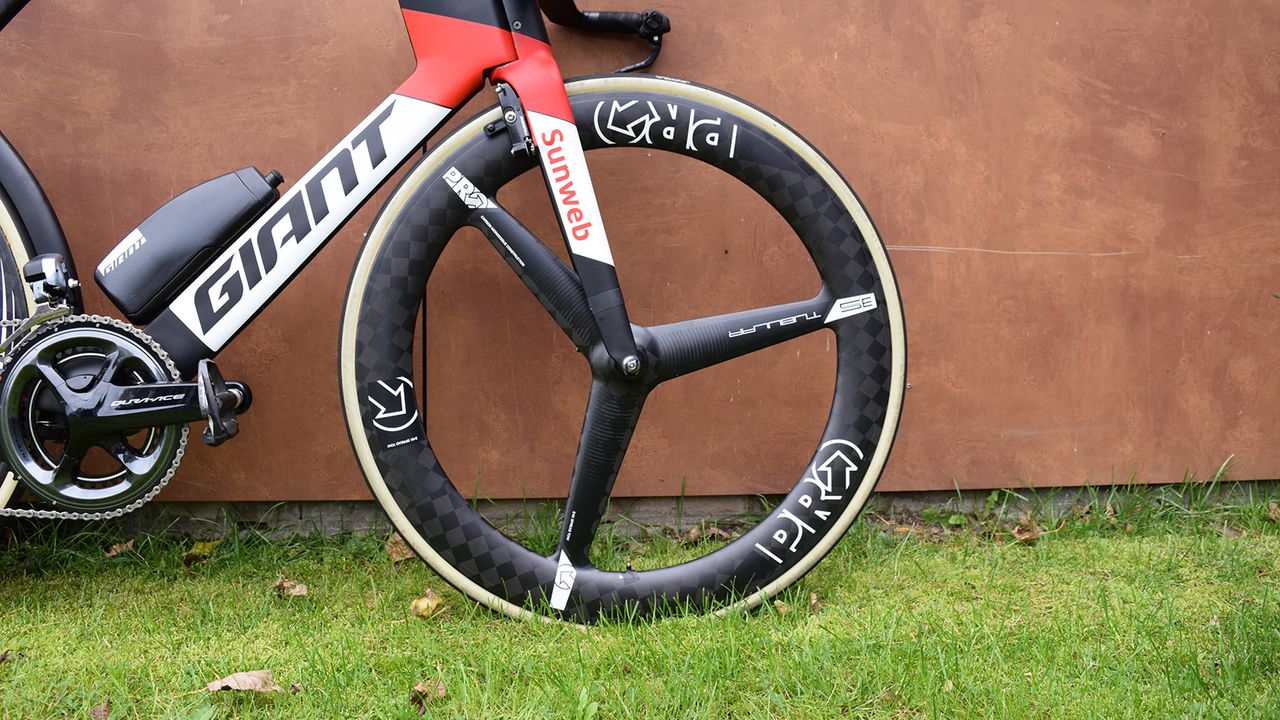

Image 30 of 34

Shimano's component brand Pro provide the Textreme three spoke front wheel

Shimano's component brand Pro provide the Textreme three spoke front wheel
(Image credit: Josh Evans)

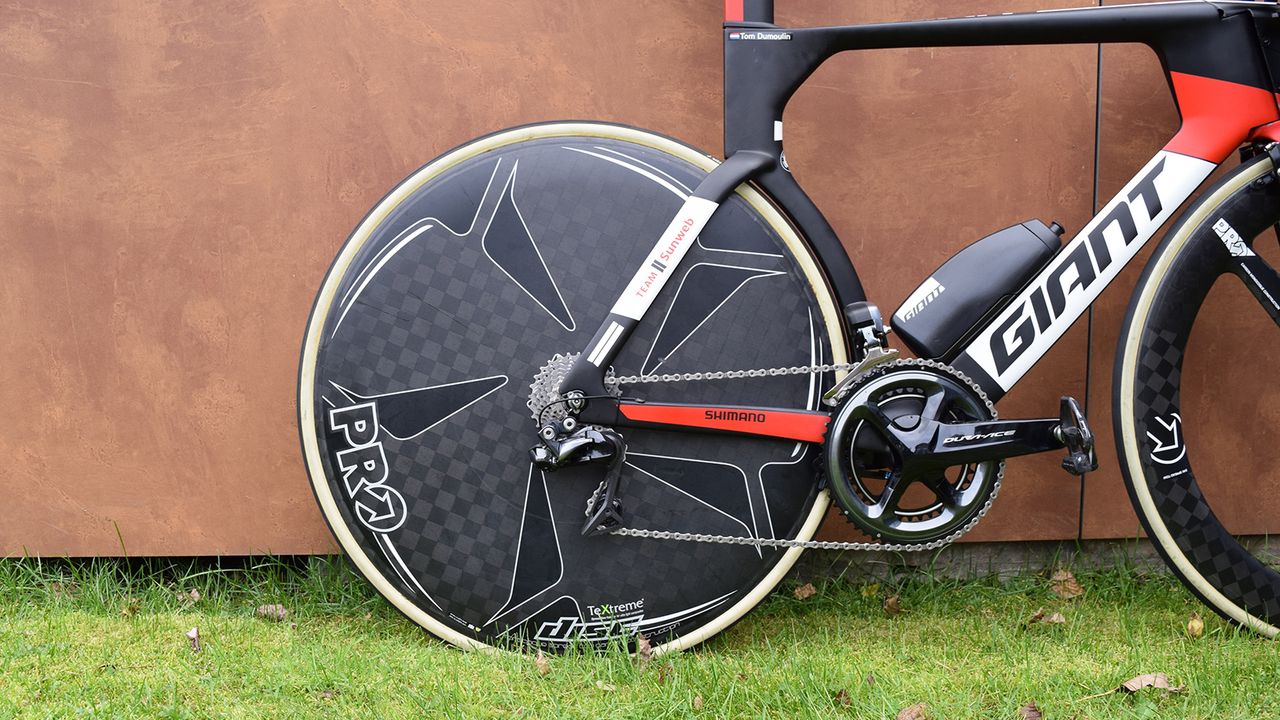

Image 31 of 34

A Pro Textreme Disc sits at the rear end of the bike

A Pro Textreme Disc sits at the rear end of the bike
(Image credit: Josh Evans)

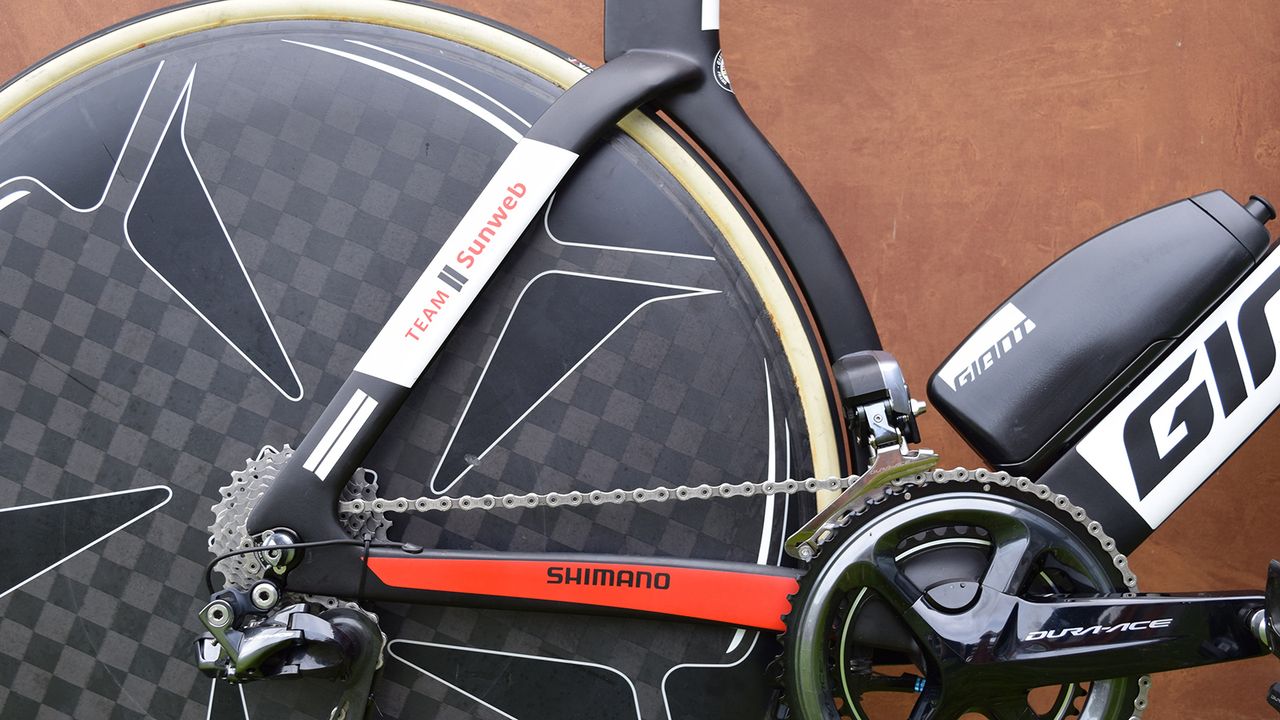

Image 32 of 34

Rear facing dropouts allow perfect wheel positioning

Rear facing dropouts allow perfect wheel positioning
(Image credit: Josh Evans)

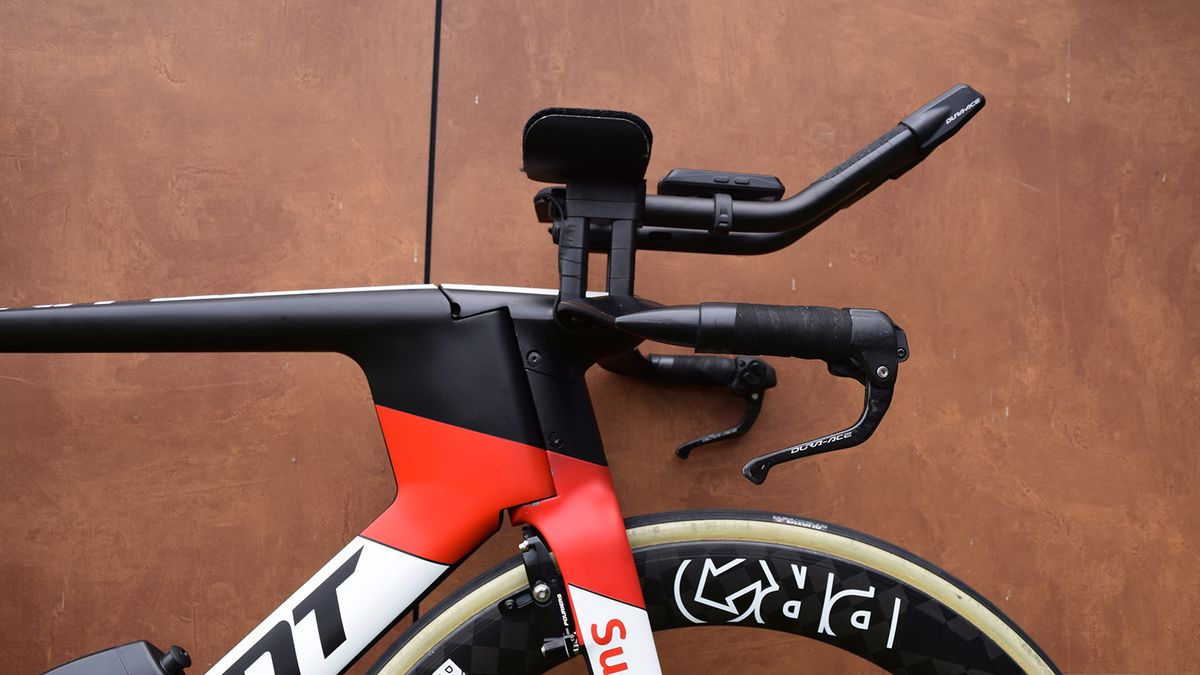

Image 33 of 34

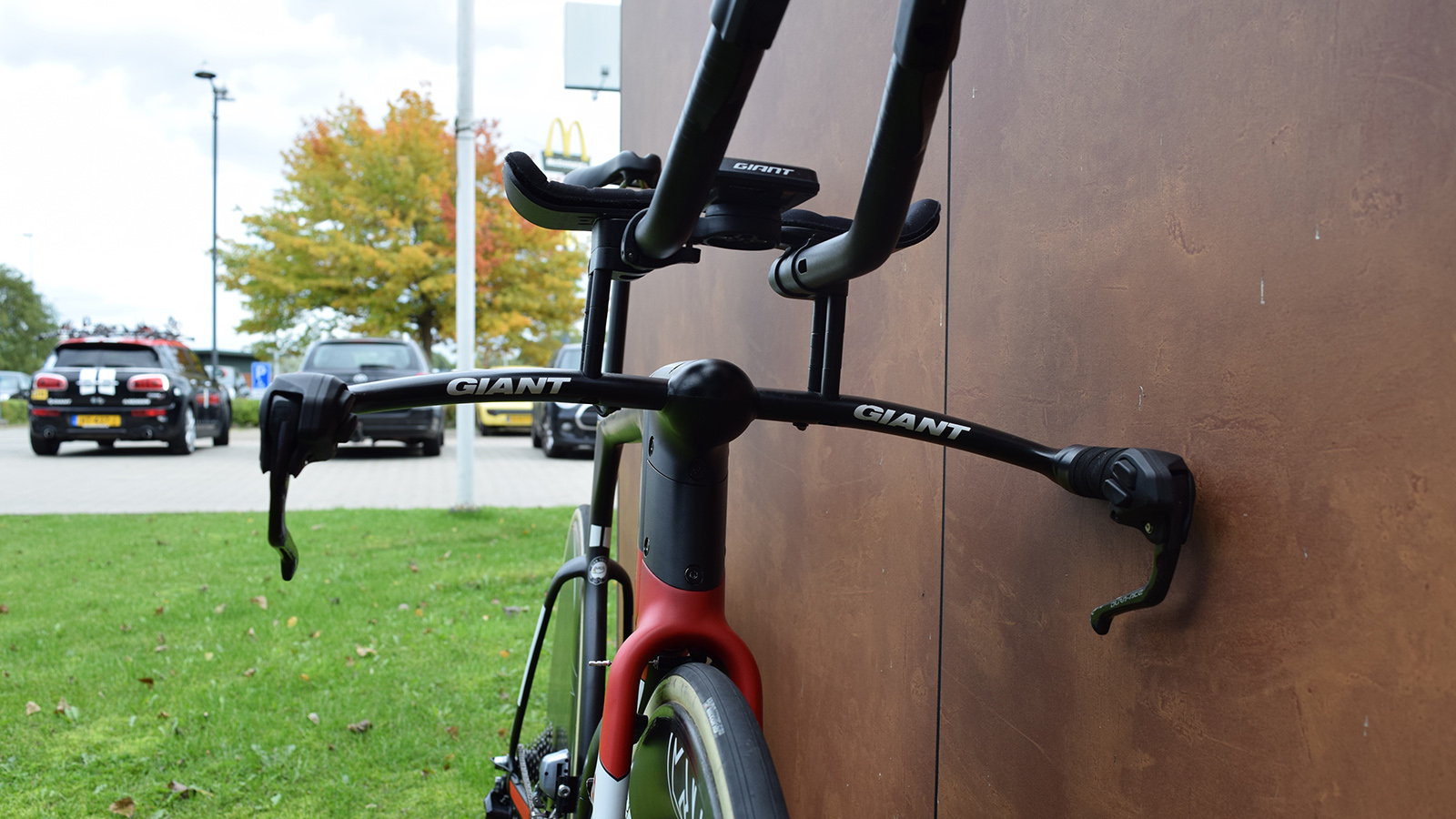

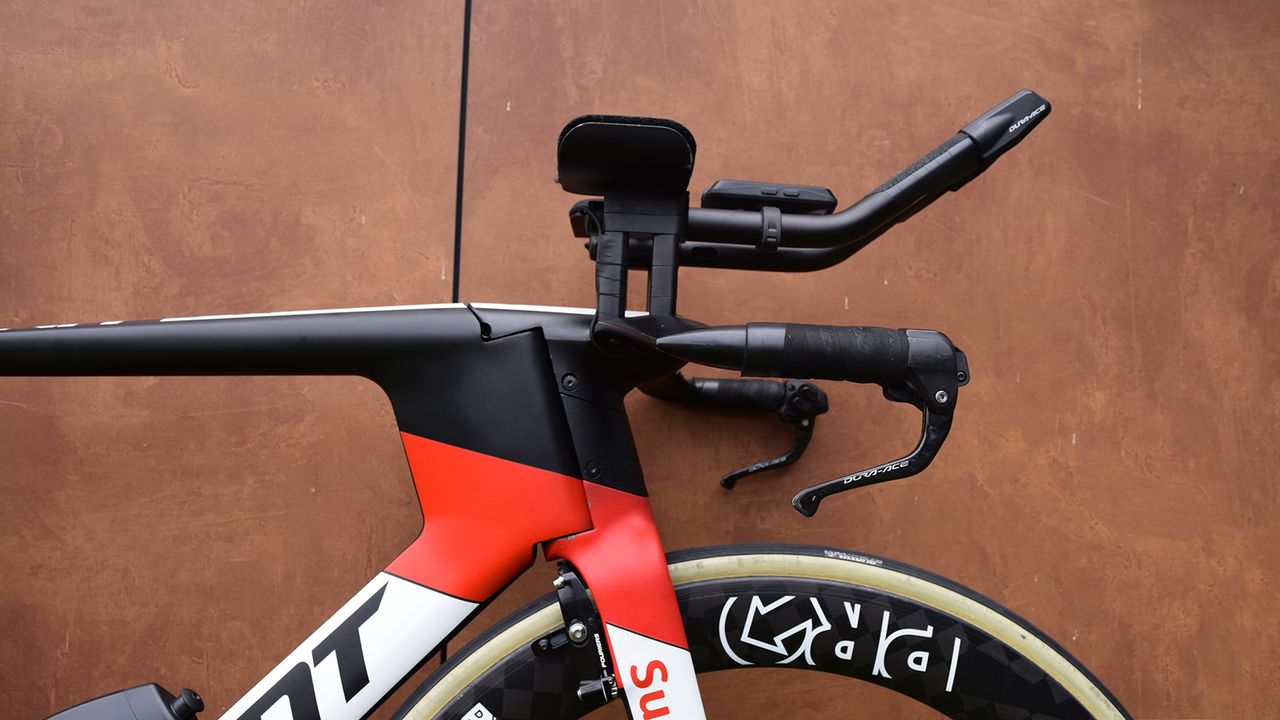

A look at the front end of the Giant Trinity

A look at the front end of the Giant Trinity
(Image credit: Josh Evans)

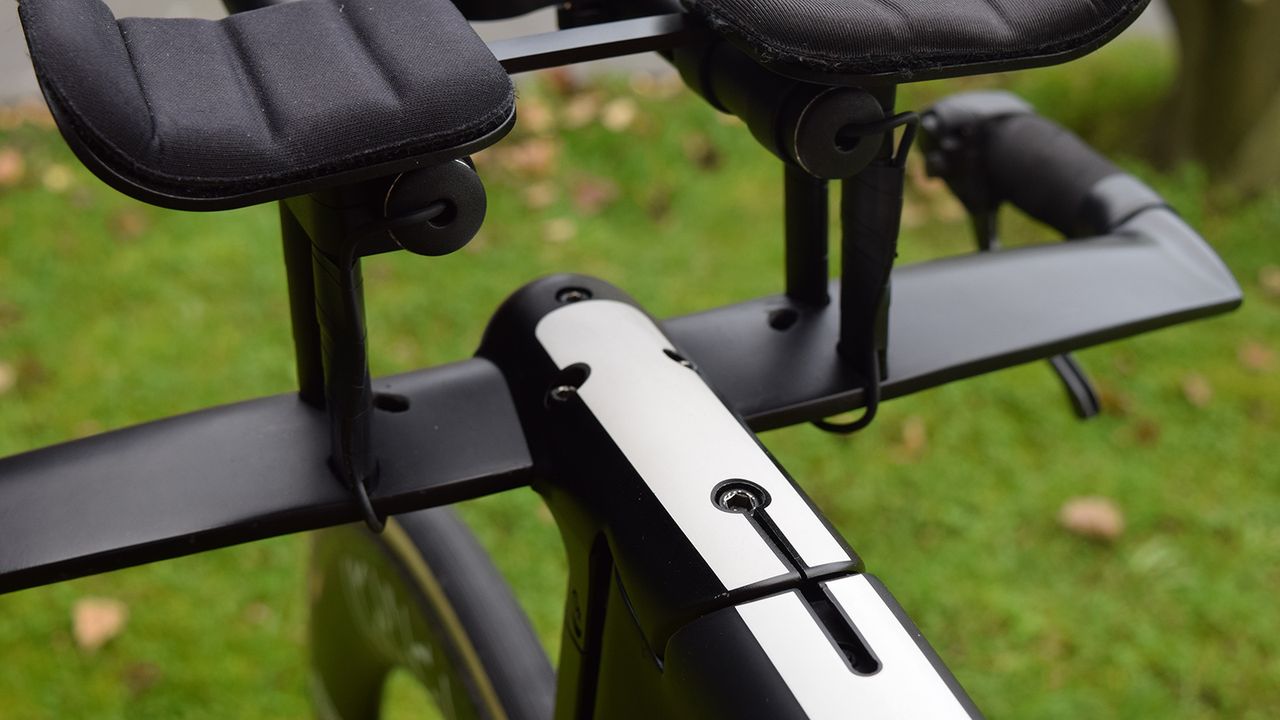

Image 34 of 34

The only exposed shifting cable at the front end of the cockpit due to the considered design of the cockpit

The only exposed shifting cable at the front end of the cockpit due to the considered design of the cockpit
(Image credit: Josh Evans)

Tom Dumoulin (Team Sunweb) ends his 2017 season with his first Grand Tour victory, a national time trial title, overall victory at the BinckBank Tour, a team time trial world title and the individual time trial world title, which comes with the honour of donning the rainbow skinsuit for the 2018 season.

Dumoulin's stellar season has been defined by his time trialling ability, raced aboard the Giant Trinity Advanced Pro time trial. The bike is equipped with an electronic Shimano Dura-Ace groupset and aerodynamic wheels from Shimano's component brand Pro.

While Shimano components offer the shifting and wheels, Giant's highly integrated bike results in almost all of the finishing kit and cockpit coming exclusively in-house from the Taiwanese bike manufacturer. Fouriers provide the stopping power and Vittoria supply the Corsa tubular tyres.

During the time trial at the World Championships, Dumoulin was equipped with a Shimano Dura-Ace R9000 series crankset paired with a Pioneer power meter.

The predominantly flat course was followed with an ascent of Mount Fløyen in Bergen, Norway, where Dumoulin opted for a 56t outer chainring and 39t inner chainring, which was paired a more traditional 11-28 cassette.

Ahead of the 2018 season, Dumoulin has switched the crankset to a Shimano R9100-P power meter crankset (photographed), opting for a 55/42t chainring combination. It is expected that Team Sunweb will run the power meter from Shimano across their range of road racing and time trial bikes.

Full Specification

Frame: Giant Trinity Advanced Pro TT
Fork: Giant Aerodrive TT Advanced Grade Hybrid Fork

Front brake: Fouriers
Rear brake: Fouriers
Brake levers: Shimano Dura-Ace TT
Front derailleur: Shimano Dura-Ace R9000 series
Rear derailleur: Shimano Dura-Ace R9150
Shift levers: Shimano Dura-Ace Di2 R-671
Cassette: Shimano Dura-Ace, 11-28
Chain: Shimano Dura-Ace
Crankset: Shimano Dura-Ace R9100-P with integrated power meter, 175mm crank length, 55/42t chainrings
Rear wheel: PRO Textreme Disc
Front wheel: PRO Textreme 3-spoke
Tyres: Vittoria Corsa tubular
Handlebars: Giant Trinity Composite base bar with Ski Bend
Stem: Giant Trinity integrated
Pedals: Shimano Dura-Ace R9000 series
Seat post: Giant Trinity Composite
Bottle cages: Giant Aerovault System
Computer: n/a

Critical Measurements

Rider weight: 69kg
Rider height: 1.85m
Saddle height (from bottom bracket): 805mm
Seat tube length (c-t): 545mm
Tip of saddle nose to centre of bars: 560mm
Top tube length (c-c): 608mm
