Felt F1x Di2 review

Fantastic carbon frame and lots of clever spec work make for a race ready machine

Image 1 of 30

The Felt F1x Di2 is an absolute race rocket, combining incredible stiffness and efficiency with a surprisingly smooth ride

The Felt F1x Di2 is an absolute race rocket, combining incredible stiffness and efficiency with a surprisingly smooth ride (Image credit: James Huang / Immediate Media)
Image 2 of 30

The hydraulic hose couplers that make the bike easier to assemble at the factory unfortunately also make the lines less flexible and clutter up the front end

The hydraulic hose couplers that make the bike easier to assemble at the factory unfortunately also make the lines less flexible and clutter up the front end (Image credit: James Huang / Immediate Media)
Image 3 of 30

The F1x Di2 comes with Rotor's excellent 3D+ crankset

The F1x Di2 comes with Rotor's excellent 3D+ crankset (Image credit: James Huang / Immediate Media)
Image 4 of 30

Felt includes both round and elliptical chainrings with the F1x so you can decide for yourself which way you want to go

Felt includes both round and elliptical chainrings with the F1x so you can decide for yourself which way you want to go (Image credit: James Huang / Immediate Media)
Image 5 of 30

Both chainring options use alternating thick-thin teeth to help keep the chain from falling off

Both chainring options use alternating thick-thin teeth to help keep the chain from falling off (Image credit: James Huang / Immediate Media)
Image 6 of 30

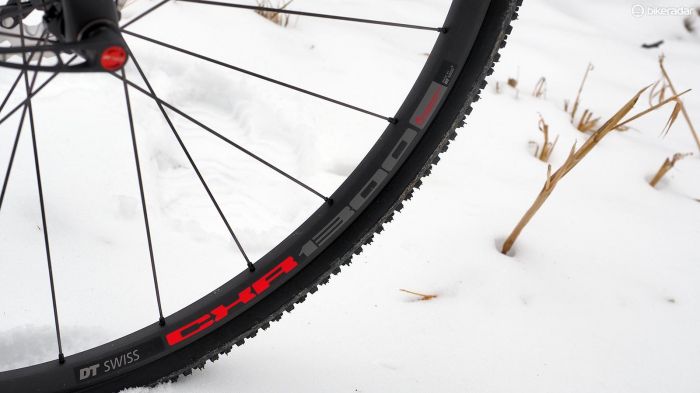

Quite brilliantly, Felt has repurposed some older DT Swiss carbon tubeless clincher rims for 'cross use. While these are now considered too narrow for mountain biking, they're perfect in this application

Quite brilliantly, Felt has repurposed some older DT Swiss carbon tubeless clincher rims for 'cross use. While these are now considered too narrow for mountain biking, they're perfect in this application (Image credit: James Huang / Immediate Media)
Image 7 of 30

The Schwalbe X-One tubeless tyres hold air reliably – even at very low pressures – but the very small knobs fold too easily under aggressive cornering, producing a vague feel that lacks in confidence

The Schwalbe X-One tubeless tyres hold air reliably – even at very low pressures – but the very small knobs fold too easily under aggressive cornering, producing a vague feel that lacks in confidence (Image credit: James Huang / Immediate Media)
Image 8 of 30

DT Swiss 350 hubs with straight-pull spokes are used front and rear

DT Swiss 350 hubs with straight-pull spokes are used front and rear (Image credit: James Huang / Immediate Media)
Image 9 of 30

The 3T cockpit certainly helps the F1x hit its fantastically low weight

The 3T cockpit certainly helps the F1x hit its fantastically low weight (Image credit: James Huang / Immediate Media)
Image 10 of 30

The 3T Ergoterra bars are reasonably comfortable but the sizes specified seem awkwardly wide

The 3T Ergoterra bars are reasonably comfortable but the sizes specified seem awkwardly wide (Image credit: James Huang / Immediate Media)
Image 11 of 30

The Prologo saddle is quite minimally padded but is still reasonably comfortable

The Prologo saddle is quite minimally padded but is still reasonably comfortable (Image credit: James Huang / Immediate Media)
Image 12 of 30

Elastomeric inserts in the seatpost head help absorb vibrations

Elastomeric inserts in the seatpost head help absorb vibrations (Image credit: James Huang / Immediate Media)
Image 13 of 30

The stock handlebar tape is impressively grippy even when wet

The stock handlebar tape is impressively grippy even when wet (Image credit: James Huang / Immediate Media)
Image 14 of 30

Felt includes a smattering of alloy bolts on the F1x where appropriate

Felt includes a smattering of alloy bolts on the F1x where appropriate (Image credit: James Huang / Immediate Media)
Image 15 of 30

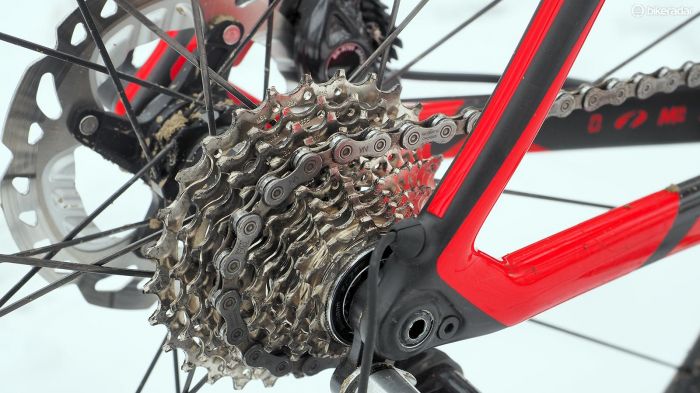

The 11-28t cassette doesn't offer enough gearing range for courses with even a modest amount of climbing

The 11-28t cassette doesn't offer enough gearing range for courses with even a modest amount of climbing (Image credit: James Huang / Immediate Media)
Image 16 of 30

Unfortunately, Felt uses the standard Shimano Dura-Ace Di2 rear derailleur, which doesn't have a clutched pulley cage to keep the chain from bouncing around. A short-cage XTR Di2 derailleur would have been a better choice

Unfortunately, Felt uses the standard Shimano Dura-Ace Di2 rear derailleur, which doesn't have a clutched pulley cage to keep the chain from bouncing around. A short-cage XTR Di2 derailleur would have been a better choice (Image credit: James Huang / Immediate Media)
Image 17 of 30

Front triangle stiffness is especially good

Front triangle stiffness is especially good (Image credit: James Huang / Immediate Media)
Image 18 of 30

Felt's 'Carbon Shield' technology promises good impact resistance for the feathery composite frame

Felt's 'Carbon Shield' technology promises good impact resistance for the feathery composite frame (Image credit: James Huang / Immediate Media)
Image 19 of 30

Nearly all of the top carbon companies have shifted to nominally round frame tubes

Nearly all of the top carbon companies have shifted to nominally round frame tubes (Image credit: James Huang / Immediate Media)
Image 20 of 30

Without rim brakes to worry about, the seatstays can be built without a bridge for heaps of mud clearance

Without rim brakes to worry about, the seatstays can be built without a bridge for heaps of mud clearance (Image credit: James Huang / Immediate Media)
Image 21 of 30

The stout fork steers precisely without beating you up

The stout fork steers precisely without beating you up (Image credit: James Huang / Immediate Media)
Image 22 of 30

There's very good tyre clearance down at the chainstays thanks to the very wide bottom bracket shell

There's very good tyre clearance down at the chainstays thanks to the very wide bottom bracket shell (Image credit: James Huang / Immediate Media)
Image 23 of 30

Felt's new carbon 'cross frames mark the company's first use of the wider-format BB386EVO bottom bracket shell

Felt's new carbon 'cross frames mark the company's first use of the wider-format BB386EVO bottom bracket shell (Image credit: James Huang / Immediate Media)
Image 24 of 30

The down tube makes full use of the available real estate

The down tube makes full use of the available real estate (Image credit: James Huang / Immediate Media)
Image 25 of 30

The internal cable routing is relatively neat with moulded rubber grommets to help finish things off

The internal cable routing is relatively neat with moulded rubber grommets to help finish things off (Image credit: James Huang / Immediate Media)
Image 26 of 30

The rear brake sticks to the tried-and-true post mount standard – for now

The rear brake sticks to the tried-and-true post mount standard – for now (Image credit: James Huang / Immediate Media)
Image 27 of 30

Felt specs the F1x Di2 with 140mm-diameter rotors front and rear

Felt specs the F1x Di2 with 140mm-diameter rotors front and rear (Image credit: James Huang / Immediate Media)
Image 28 of 30

Shimano doesn't offer a 1x Dura-Ace Di2 drivetrain so Felt went ahead and put together its own

Shimano doesn't offer a 1x Dura-Ace Di2 drivetrain so Felt went ahead and put together its own (Image credit: James Huang / Immediate Media)
Image 29 of 30

Felt has reprogrammed the Shimano R785 Di2 levers so that either button on the righthand lever moves the chain to a harder gear whereas either button on the left moves it to an easier one. The idea is that this should be a more foolproof method of shifting gears when you're deliriously hypoxic

Felt has reprogrammed the Shimano R785 Di2 levers so that either button on the righthand lever moves the chain to a harder gear whereas either button on the left moves it to an easier one. The idea is that this should be a more foolproof method of shifting gears when you're deliriously hypoxic (Image credit: James Huang / Immediate Media)
Image 30 of 30

It doesn't hurt to shave a gram here and there, right?

It doesn't hurt to shave a gram here and there, right? (Image credit: James Huang / Immediate Media)

This article originally appeared on BikeRadar

The revamped Felt F1x cyclocross racer is all-new for 2016, featuring an ultra light carbon frameset, a disc brake-only configuration, and tubeless carbon wheels that can hold their own against many tubulars but without the hassles of glue. Felt has even reprogrammed the stock Shimano Dura-Ace Di2 transmission to create its own custom 1x electronic drivetrain. All in all, it's a slick package and unquestionably speedy – but it's not without its quirks.

  • Highs: Ultra-light and efficient frame, surprisingly smooth ride, great handling, slick custom drivetrain and wheels
  • Lows: Clutchless rear derailleur yields so-so chain security, sketchy tires, curiously wide handlebar spec
  • Buy if: You want a top-end 'cross bike that's race ready out of the box and don't plan on using it much off the race course

A fantastic new chassis…

Whereas some 'cross bikes proudly tout their versatility and practicality for a wide range of uses, the F1x is singularly focused on going fast – preferably on a race course. The new frame's oversized tubes yield an incredibly efficient chassis that rockets forward under power, matching the best full-on road frames in terms of responsiveness.

Felt's new carbon 'cross frameset is absolutely superb

There's no wag detectable through the bars when sprinting out of the saddle, for example, and not the slightest iota of side-to-side movement through the rear triangle when you're really on the gas. Fork rigidity is impressive, too, with no twist even in hard, high-speed corners with excellent traction.

Helping that matter even further is the F1x Di2's exceptionally low weight: just 7.44kg (16.40lb) for my 53cm test sample (without pedals) with a claimed frame weight of just 950g. Even the rotational weight is kept to a minimum with custom shallow-profile carbon tubeless DT Swiss wheels and matching Schwalbe X-One tubeless tires, which rival many deep-section carbon tubulars I've used in terms of acceleration out of tight corners.

The disc-only format yields heaps of clearance

Despite appearances, Felt has done a great job of tempering the F1x's ride quality. Although the huge tubes obviously don't move much, the chassis is superbly adept at squelching smaller-amplitude vibration, subtly (but effectively) filtering out the buzz of hardpacked trails and even taking the edge off of sharper rocks and roots. Plush and soft the F1x is most certainly not, but it's nevertheless surprisingly calm and composed.

When it comes to 'cross, mud clearance is also a key performance metric and the F1x has it in spades all around. The disc-specific format leaves heaps of space around the seatstays and fork legs but it's down below where it's most impressive. Felt has moved away from its usual narrow-format BB30 bottom bracket shell in favour of the wider BB386EVO system, which allows for much wider chainstay spacing and better clearance in that critical area without sacrificing cross-sectional area.

The wide-format bottom bracket shell allows the chainstays to be pushed further apart for better clearance but without sacrificing rear-end stiffness

There's still a bit of a shelf behind the bottom bracket shell for mud and debris to accumulate, however.

Handling is spot-on though, with a quick turn-in, excellent high-speed stability, and just enough bottom bracket height – BB drop is a middle-of-the-road 65mm – to allow pedaling through most corners without feeling tippy. Just be mindful when choosing a size, though, as the F1x runs a bit big.

...and a clever build kit to go with it

Felt has long been no stranger to creatively assembled spec sheets, and this F1x Di2 flagship perhaps embodies that talent best of all. Currently, off-the-shelf single-chainring drivetrain options are limited to SRAM, SRAM, and SRAM but road product manager Dave Koesel is a big fan of electronic shifting and wanted to provide a Di2 option as well.

Shimano doesn't offer a single-ring Di2 transmission so Felt went ahead and made its own

Since Shimano doesn't offer a left-hand lever without shifter internals, Felt has gone ahead and reprogrammed the controls itself. Tap either right-hand button for an upshift and either left-hand one for a downshift, effectively creating a sequential transmission perfectly suited for the rigors of 'cross. Whereas I usually have reservations about using Di2 in cyclocross given the lack of tactile button feedback and the small targets, that simply wasn't an issue here – you can literally just smack the side of the lever and you get the desired shift, even when wearing heavy winter gloves.

Unfortunately, the range of gears at your disposal is frustratingly limited as Felt has opted for a curiously narrow 11-28t cassette – enough for flatter courses but not for ones with more demanding climbs, and certainly not enough for everyday training. And while the gear ratio ‘window' can be moved relatively inexpensively on SRAM Force 1 by swapping chainrings, expanding the range on Felt's custom 1x setup will require buying a more expensive cassette.

Felt repurposed some older DT Swiss carbon mountain bike wheels into tubeless 'cross wheels

I also wish that Felt had used a short-cage XTR Di2 rear derailleur instead of a Dura-Ace Di2 one. In addition to reprogramming the lever buttons, Felt has also increased the pulley cage tension to help boost chain security but without the aid of a proper clutch, the drivetrain is still noisier on bumpy terrain than SRAM's essentially silent Force 1 setup – nor is chain security as reliably solid. What Felt has done here is undoubtedly impressive but I'd recommend a supplemental seat tube-mounted guide to be safe.

There's nothing to complain about with the brakes, however, with Shimano's hydraulic calipers providing their usual superb power and bite plus excellent control in all weather conditions – plus pads that self-adjust for wear for more consistent lever feel. Thru-axle hub interfaces at both ends keep the rotors from rubbing even under hard cornering or sprinting loads, too.

The Shimano Di2 levers are awesome; the bars, not so much

Unfortunately, other spec items also feel a little off-kilter.

In particular, the 3T Ergoterra handlebars are inexplicably wide with my 53cm tester coming with a somewhat reasonable 44cm center-to-center measurement at the hoods but a whopping 47cm at the flared drops. While you could perhaps argue that the extra width might add some control and stability in slippery conditions, I mostly just found it awkward.

Likewise, the firm Prologo X-Zero saddle is fine for shorter stints but I still would have appreciated a bit more padding for remounts. And while the elastomeric insert in the seatpost head seems to be effective at further attenuating vibration on top of the frame itself, the splined head is a nightmare to adjust. Riders who prefer a more forward position will undoubtedly take issue with the generous 25mm offset, too.

The elastomeric insert in the 3T seatpost seems to work at damping vibration but the 25mm setback is a bit much and the head is a nightmare to adjust

Finally, I had a few issues with the tires. They're quite light, roll very quickly, and are very reliable even at low pressures (I easily ran down into the mid-20s in terms of psi), but they just don't provide much grip. The small knobs fold over at the slightest hint of cornering load and feedback through the contact patch is disconcertingly vague.

Great bones to build on

Felt has nailed the fundamentals on its revamped 'cross platform with excellent efficiency, solid handling, and a remarkably smooth and composed ride quality. Most of the associated componentry reveals some impressively clever thinking, too, but a few key missteps hamper what would otherwise be a really stellar total package.

Complete specifications as tested:
Name: F1x Di2
Built by: Felt
Price: £N/A / US$6,999.00 / AU$N/A

Frame: Felt Cyclocross UHC Advanced + TeXtreme carbon
Fork: Felt Cyclocross UHC Ultimate + TeXtreme carbon, 1 1/8-to-1 1/2in tapered
Headset: FSA NO.38/42
Stem: 3T ARX II Team Stealth
Handlebar: 3T Ergoterra Team Stealth
Tape: Felt CxGel
Front brake: Shimano BR-R785 hydraulic disc w/ Shimano SM-RT99-SS 140mm rotor
Rear brake: Shimano BR-R785 hydraulic disc w/ Shimano SM-RT99-SS 140mm rotor
Brake levers: Shimano Di2 STI Dual Control ST-R785
Front derailleur: n/a
Rear derailleur: Shimano Dura-Ace Di2 RD-9070
Shift levers: Shimano Di2 STI Dual Control ST-R785
Cassette: CS-5600, 11-28T
Chain: Shimano CN-HG600
Crankset: Rotor 3D+ CX1 w/ 40T Rotor XC1 Q-Ring and 40T Rotor XC1 NoQ-Ring
Bottom bracket: Rotor BB386
Pedals: n/a
Rims: DT Swiss XCR1300 Carbon db, 28h
Hubs: DT Swiss 350 Centerlock, 28h
Spokes: DT Swiss Competition w/ ProLock alloy nipples
Front tire: Schwalbe X-One Evo tubeless, 700x33c
Rear tire: Schwalbe X-One Evo tubeless, 700x33c
Saddle: Prologo X-Zero TiRox
Seatpost: 3T Ionic VR 25 Team Stealth
Total weight: 7.44kg (16.40lb, 53cm, without pedals)
