Image 1 of 24

The Altum's seatpost is available in both inline and lay-back options

The Altum's seatpost is available in both inline and lay-back options (Image credit: Parlee)
Image 2 of 24

In addition to aftermarket components, Enve Composites also produces custom tubing for smaller builders such as Alchemy.

In addition to aftermarket components, Enve Composites also produces custom tubing for smaller builders such as Alchemy. (Image credit: Jonny Irick)
Image 3 of 24

Like the ESX, the ESX-R is available in standard paint finishes or custom options

Like the ESX, the ESX-R is available in standard paint finishes or custom options (Image credit: Parlee)
Image 4 of 24

The new ESX-R is set to retail for £3,299 (US/Aus pricing TBA)

The new ESX-R is set to retail for £3,299 (US/Aus pricing TBA) (Image credit: Parlee)
Image 5 of 24

The ESX-R is new for 2015

The ESX-R is new for 2015 (Image credit: Parlee)
Image 6 of 24

The Altum R comes in a cool blue option

The Altum R comes in a cool blue option (Image credit: Parlee)
Image 7 of 24

The Altum R replaces the Z5i

The Altum R replaces the Z5i (Image credit: Parlee)
Image 8 of 24

The Altum R is £700 cheaper for the frameset than the top Altum model

The Altum R is £700 cheaper for the frameset than the top Altum model (Image credit: Parlee)
Image 9 of 24

The new Parlee-designed disc fork

The new Parlee-designed disc fork (Image credit: Parlee)
Image 10 of 24

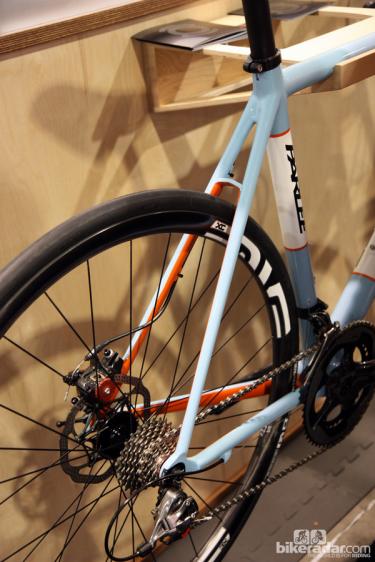

The Altum disc uses a 15mm thru-axle up front and is switchable between 12mm thru-axle and standard QR at the rear

The Altum disc uses a 15mm thru-axle up front and is switchable between 12mm thru-axle and standard QR at the rear (Image credit: Parlee)
Image 11 of 24

The Altum disc uses a 15mm thru-axle up front and is switchable between 12mm thru-axle and standard QR at the rear

The Altum disc uses a 15mm thru-axle up front and is switchable between 12mm thru-axle and standard QR at the rear (Image credit: Parlee)
Image 12 of 24

The rounded down tube and seat tube are evolved from the Z5SLi

The rounded down tube and seat tube are evolved from the Z5SLi (Image credit: Parlee)
Image 13 of 24

The new Altum replaces the Z5SLi, though it uses rounded tubing for the downtube its top tube design and rear stays borrow heavily from the ESX aero machine

The new Altum replaces the Z5SLi, though it uses rounded tubing for the downtube its top tube design and rear stays borrow heavily from the ESX aero machine (Image credit: Parlee)
Image 14 of 24

The ESX-R shares the same design as the range topping ESX but manufacturing changes have brought the price down by £700 and only added 100g to the overall frameset weight

The ESX-R shares the same design as the range topping ESX but manufacturing changes have brought the price down by £700 and only added 100g to the overall frameset weight (Image credit: Parlee)
Image 15 of 24

The new molded carbon fiber dropouts on the Parlee Z-Zero include a port for use with electronic wires.

The new molded carbon fiber dropouts on the Parlee Z-Zero include a port for use with electronic wires. (Image credit: Jonny Irick)
Image 16 of 24

Parlee claims the new Z-Zero has enough clearance for 28mm-wide tires.

Parlee claims the new Z-Zero has enough clearance for 28mm-wide tires. (Image credit: Jonny Irick)
Image 17 of 24

In contrast to the company's more typical lugged construction, Parlee builds the new Z-Zero with tube-to-tube joints for a more seamless look.

In contrast to the company's more typical lugged construction, Parlee builds the new Z-Zero with tube-to-tube joints for a more seamless look. (Image credit: Jonny Irick)
Image 18 of 24

Parlee launched its new Z-Zero flagship at this year's Interbike booth. Said to be lighter and more rigid than the current Z1 flagship, it's also available with optional disc brake mounts.

Parlee launched its new Z-Zero flagship at this year's Interbike booth. Said to be lighter and more rigid than the current Z1 flagship, it's also available with optional disc brake mounts. (Image credit: Jonny Irick)
Image 19 of 24

The exotic drivetrain's most conventional parts are the Shimano XTR 2x10 derailleurs. Otherwise, Jason Woznick of Fairwheel Bikes has fitted this New Ultimate Big Warp with THM-Carbones Clavicula cranks, a prototype KCNC 11-28T titanium cassette, a KMC chain with a slippery DLC surface treatment, and segmented aluminum cable housing from Alligator.

The exotic drivetrain's most conventional parts are the Shimano XTR 2x10 derailleurs. Otherwise, Jason Woznick of Fairwheel Bikes has fitted this New Ultimate Big Warp with THM-Carbones Clavicula cranks, a prototype KCNC 11-28T titanium cassette, a KMC chain with a slippery DLC surface treatment, and segmented aluminum cable housing from Alligator. (Image credit: Jonny Irick)
Image 20 of 24

The ultralight Tune saddle is fixed atop an Enve Composites seatpost.

The ultralight Tune saddle is fixed atop an Enve Composites seatpost. (Image credit: Jonny Irick)
Image 21 of 24

The front end features a Cannondale Lefty fork, Enve Composites carbon rims, Tune hubs, and Vredestein tires.

The front end features a Cannondale Lefty fork, Enve Composites carbon rims, Tune hubs, and Vredestein tires. (Image credit: Jonny Irick)
Image 22 of 24

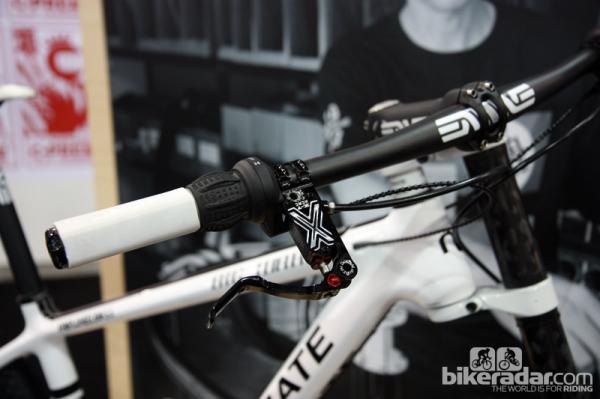

Shifters are from SEC and brakes are from KCNC on Jason Woznick's ultralight New Ultimate Big Warp carbon 29er hardtail.

Shifters are from SEC and brakes are from KCNC on Jason Woznick's ultralight New Ultimate Big Warp carbon 29er hardtail. (Image credit: Jonny Irick)
Image 23 of 24

Jason Woznick of Fairwheel Bikes built this New Ultimate Big Warp 29 for himself, draped in high-end exotica and weighing in at a claimed 7.71kg (17lb).

Jason Woznick of Fairwheel Bikes built this New Ultimate Big Warp 29 for himself, draped in high-end exotica and weighing in at a claimed 7.71kg (17lb). (Image credit: Jonny Irick)
Image 24 of 24

Enve Composites provides Parlee with a custom 1 1/8-to-1 1/4" version of its disc road fork.

Enve Composites provides Parlee with a custom 1 1/8-to-1 1/4" version of its disc road fork. (Image credit: Jonny Irick)

This article originally published on BikeRadar

Enve Composites didn't show any new products at Interbike but the Utah-based company has made a habit of showcasing boutique machines from supportive manufacturers in its booth and the 2012 edition was no different. While not quite an expansive as in some previous years, we caught a few stunners from Parlee Cycles and New Ultimate.

Parlee Cycles introduces new Z-Zero and disc brake option

Parlee Cycles has perhaps the star of the space with its new disc brake-equipped Z-Zero carbon road racing flagship. As compared to the current Z1's lugged joints, round tubing, straight 1 1/8" front end, and two-piece machined titanium dropouts, the Z-Zero instead sports smoother-looking wrapped tube-to-tube construction, Di2/EPS-compatible molded carbon fiber dropouts with a replaceable hanger, tapered and ovalized bladder molded tubing, a tapered 1 1/8-to-1 1/4" steerer, and a bottom bracket shell that's co-molded with the seat tube for extra rigidity.

Other optional features include rear disc brake mounts (coupled with 135mm hub spacing and a custom Enve fork) and an integrated seatmast.

Seamless tube-to-tube joints on the new Z-Zero

According to Tom Rodi of Parlee, the real draw of the Z-Zero is its modularity and greater tunability relative to the company's current offerings.

"Motivation for the Z-Zero was to use some of the advances we have made in our stock bikes (Z5 range) to our custom bikes especially bladder molded shaped tubes, 1 1/4" tapered forks, shaped stays, etc. in a modular design that could accommodate true custom geometry and lay-up as well as be a design to take future changes," he told BikeRadar.

"The Z1 design has had that type of modular construction and is one of the reasons it still sells for us. We now see changes coming (disc brakes, electronics) that are not really going to be compatible with the Z1/2/3 family so it was time to do something new. There are nearly no limits with this type of construction. The joints are only made of carbon – no paste epoxy, no filler. The frames are essentially monocoques when cured."

As a result, Parlee says the Z-Zero frame drops about 70g from the Z1 – claimed weights start as low as 750g - while also boosting the stiffness-to-weight ratio.

Rim brake versions will be begin shipping later this month while the disc versions won't be delivered until the first quarter of 2013. Retail price is US$8,200 for a fully custom frameset (frame, Enve 1.0 fork, headset, Parlee's own carbon fiber front derailleur clamp, and custom paint) or US$7,200 for standard geometry. Either way, Rodi says every Z-Zero will include custom tube selections and lug lay-ups.

New Ultimate's ultralight 29er hardtail

Jason Woznick of Fairwheels Bikes in Tucson, Arizona certainly gets to play with more than his fair share of lightweight goodies as one of the premier outlets of carbon fiber exotica, including bits from AX Lightness, Dash Cycles, EE Cycleworks, Extralite, Far and Near, KCNC, Mcfk, Parts of Passion, Schmolke, THM, Tune, and others.

This year, Enve put on display Woznick's own personal carbon fiber 29er hardtail, built around a New Ultimate Warp frame said to weigh around 1,100g. Woznick dressed up his new machine with Shimano XTR 2x10 derailleurs, Recon twist shifters, KCNC's machined aluminum disc brakes and prototype 11-38T titanium cassette, a THM carbon fiber crankset, a Cannondale Lefty fork, a Tune carbon fiber saddle, and custom wheels built with Enve Composites rims and Tune hubs.

High-end exotica on Jason Woznick's custom New Ultimate Warp.

Since the show, however, Woznick replaced the Recon shifters with XTR pods and the KCNC brakes with Tune's new Kill Hill stoppers.

According to Woznick, the complete weight without pedals is "right at 17 pounds [7.71kg] with durable parts that I consider race worthy."
