Giro d'Italia pro bike gallery: Hugh Carthy's Cannondale SuperSix Evo

Image 1 of 13

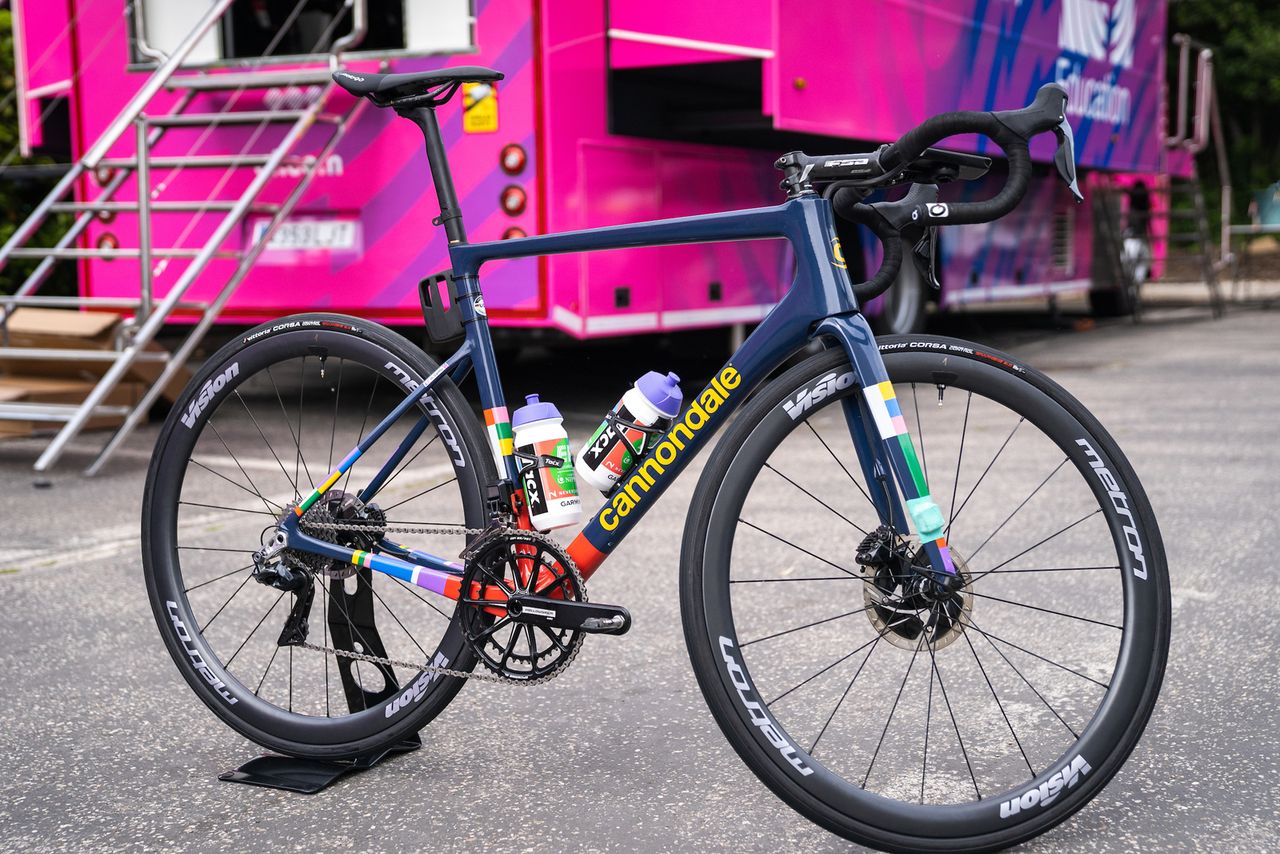

Hugh Carthy's Cannondale SuperSix Evo

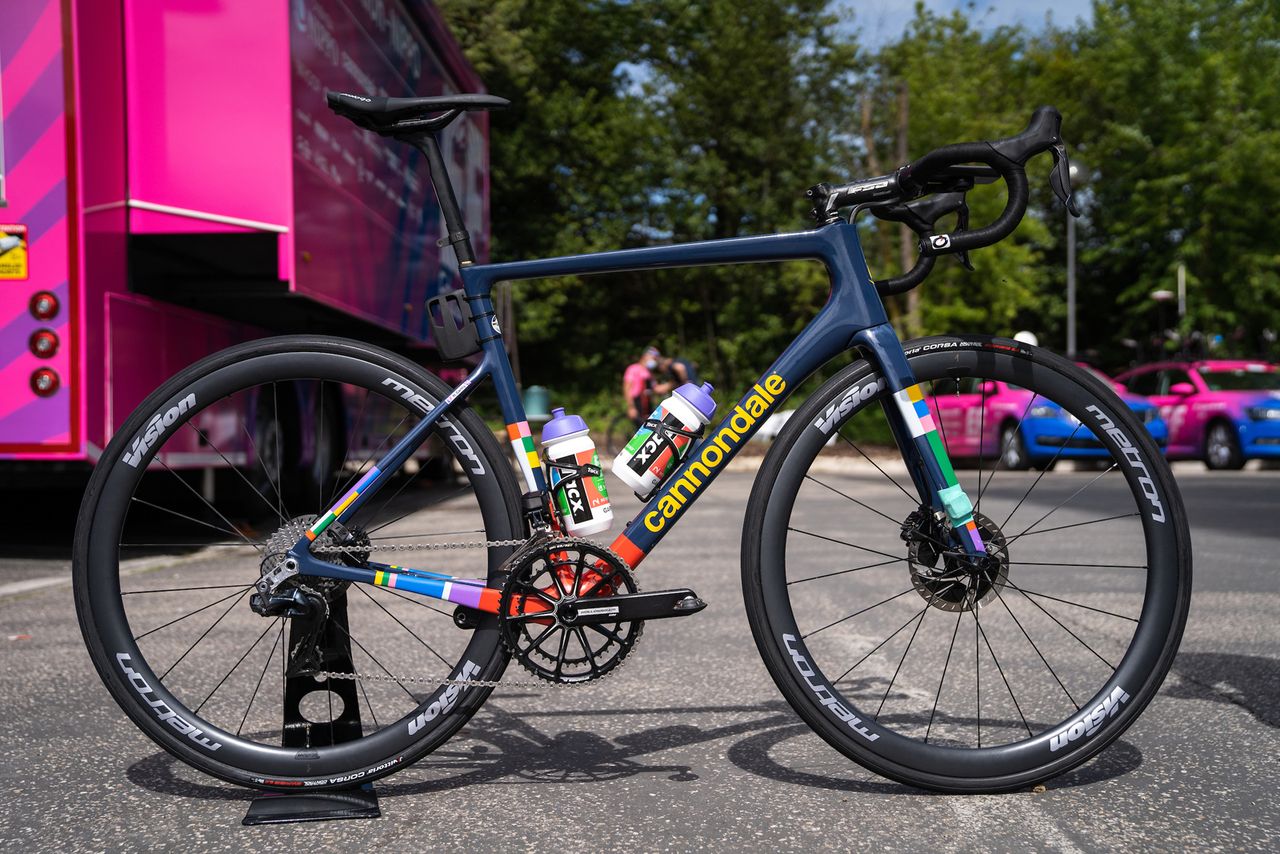

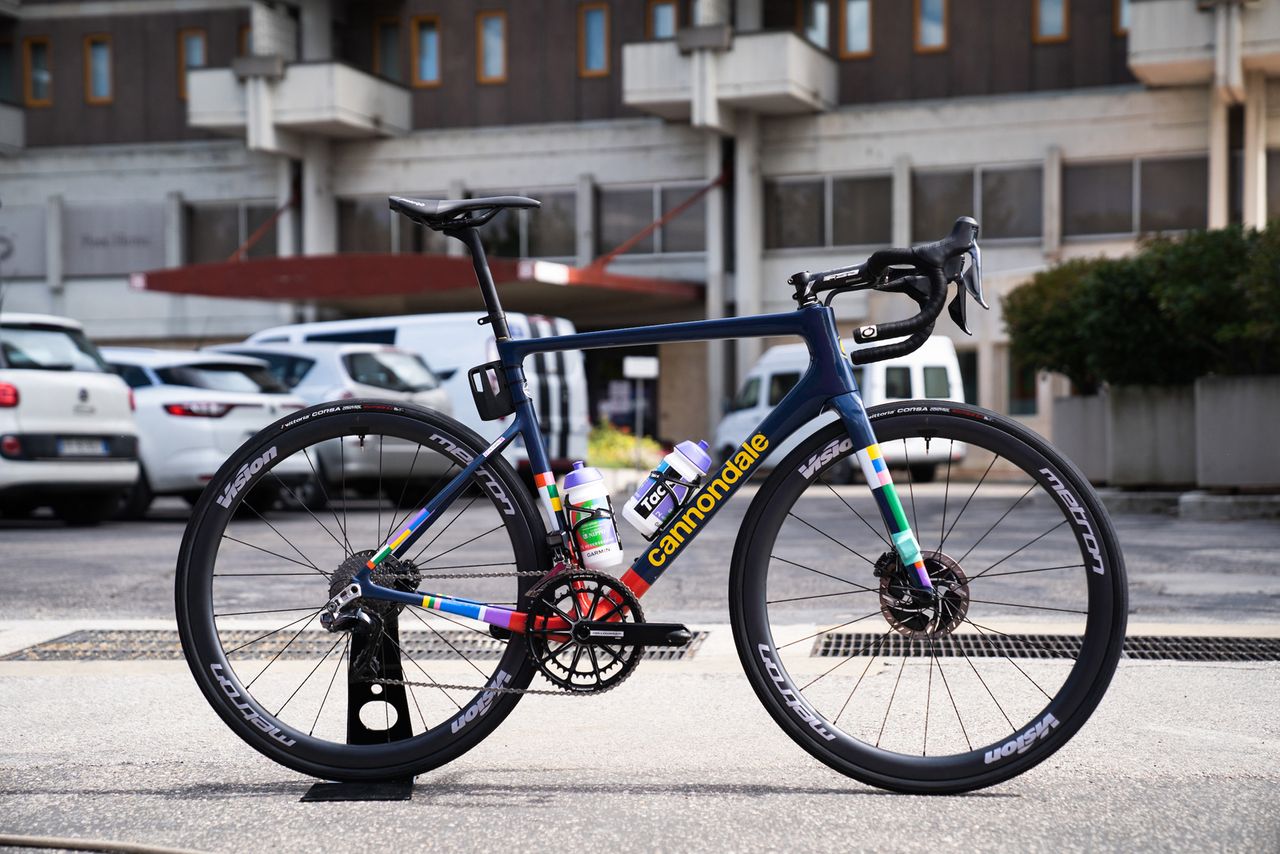

Hugh Carthy's Cannondale SuperSix Evo Hi-Mod (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 2 of 13

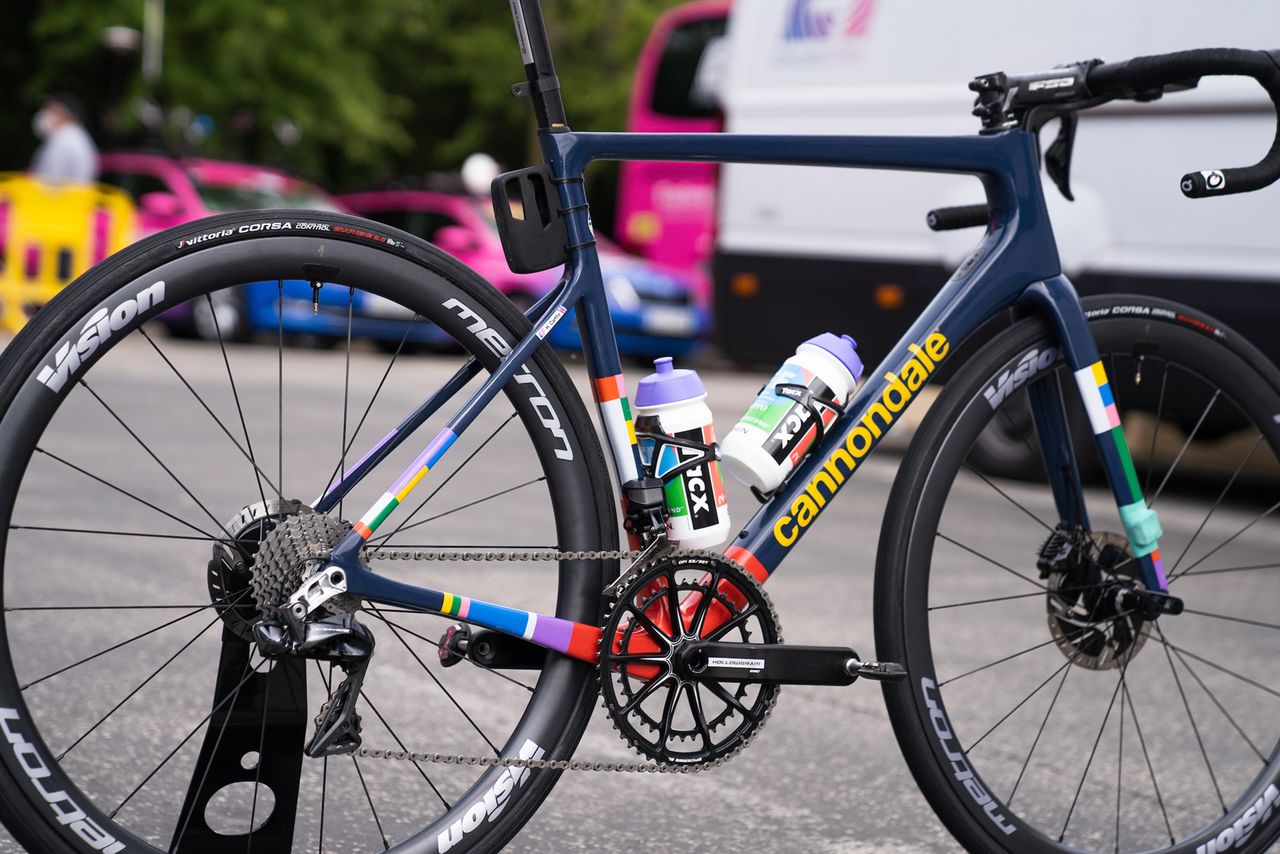

Hugh Carthy's Cannondale SuperSix Evo

The bike's design is called 'Euphoria' (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 3 of 13

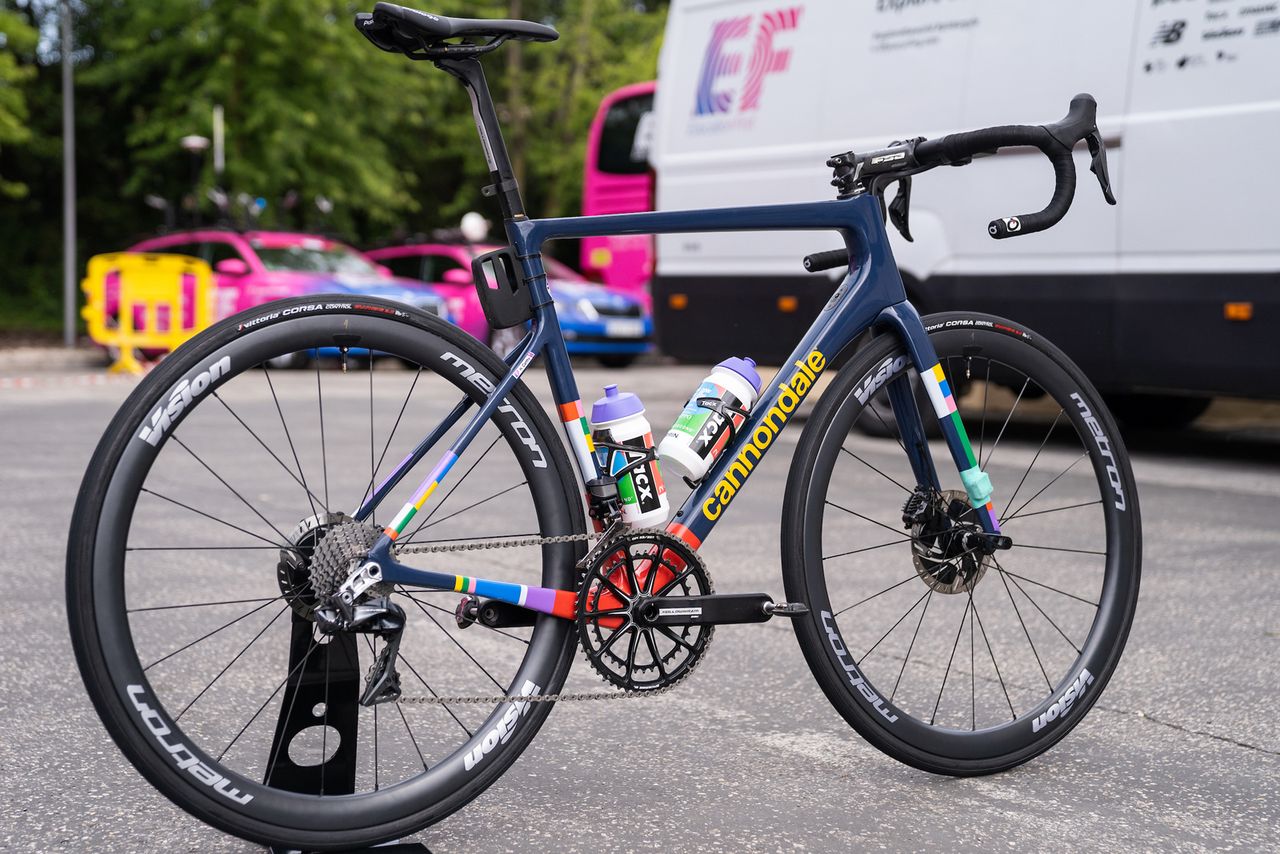

Hugh Carthy's Cannondale SuperSix Evo

It is said to be a celebration of people from different backgrounds and nations coming together in pursuit of a common goal (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 4 of 13

Hugh Carthy's Cannondale SuperSix Evo

The bike complements the team's Giro d'Italia changeout kit (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 5 of 13

Hugh Carthy's Cannondale SuperSix Evo

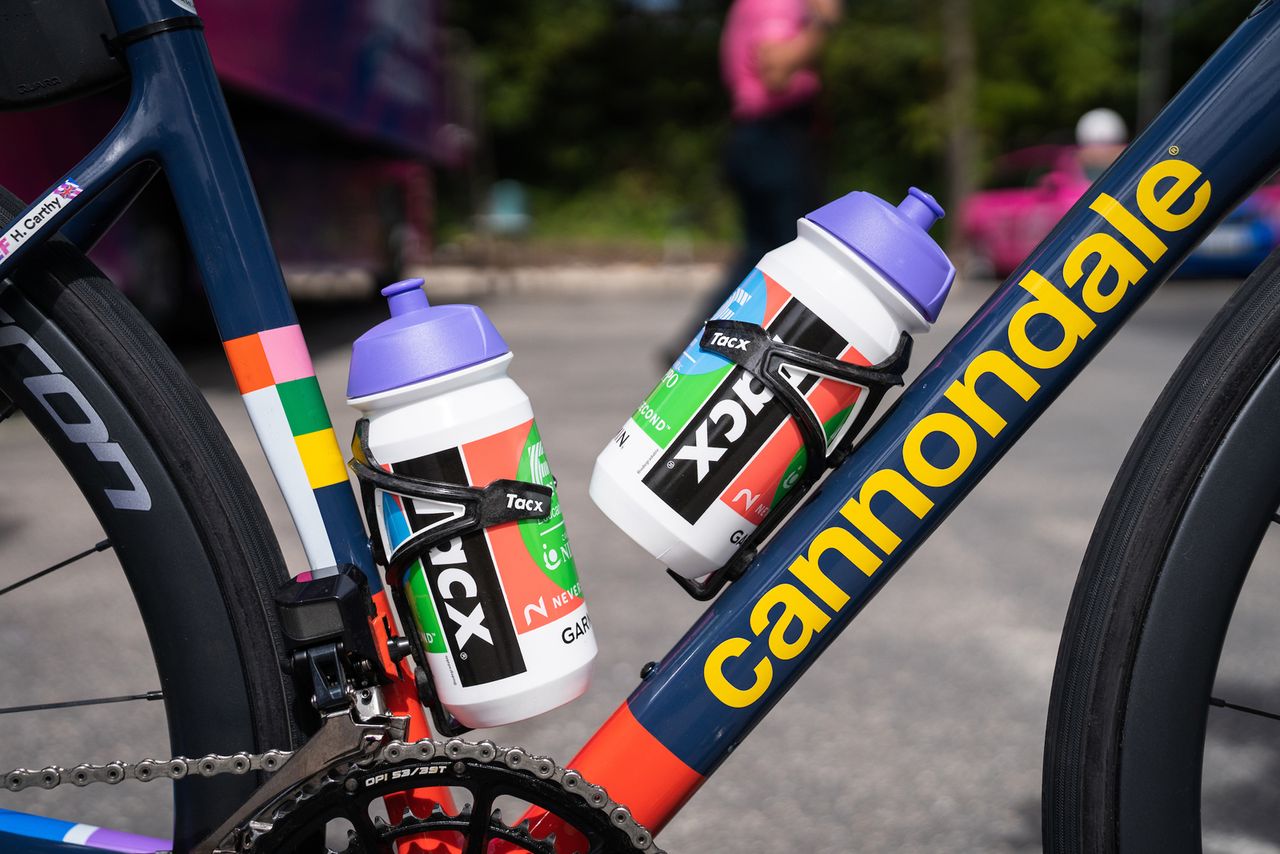

Bottles and cages come courtesy of Tacx (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 6 of 13

Hugh Carthy's Cannondale SuperSix Evo

Tacx has matched the multicoloured theme with its bottles (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 7 of 13

Hugh Carthy's Cannondale SuperSix Evo

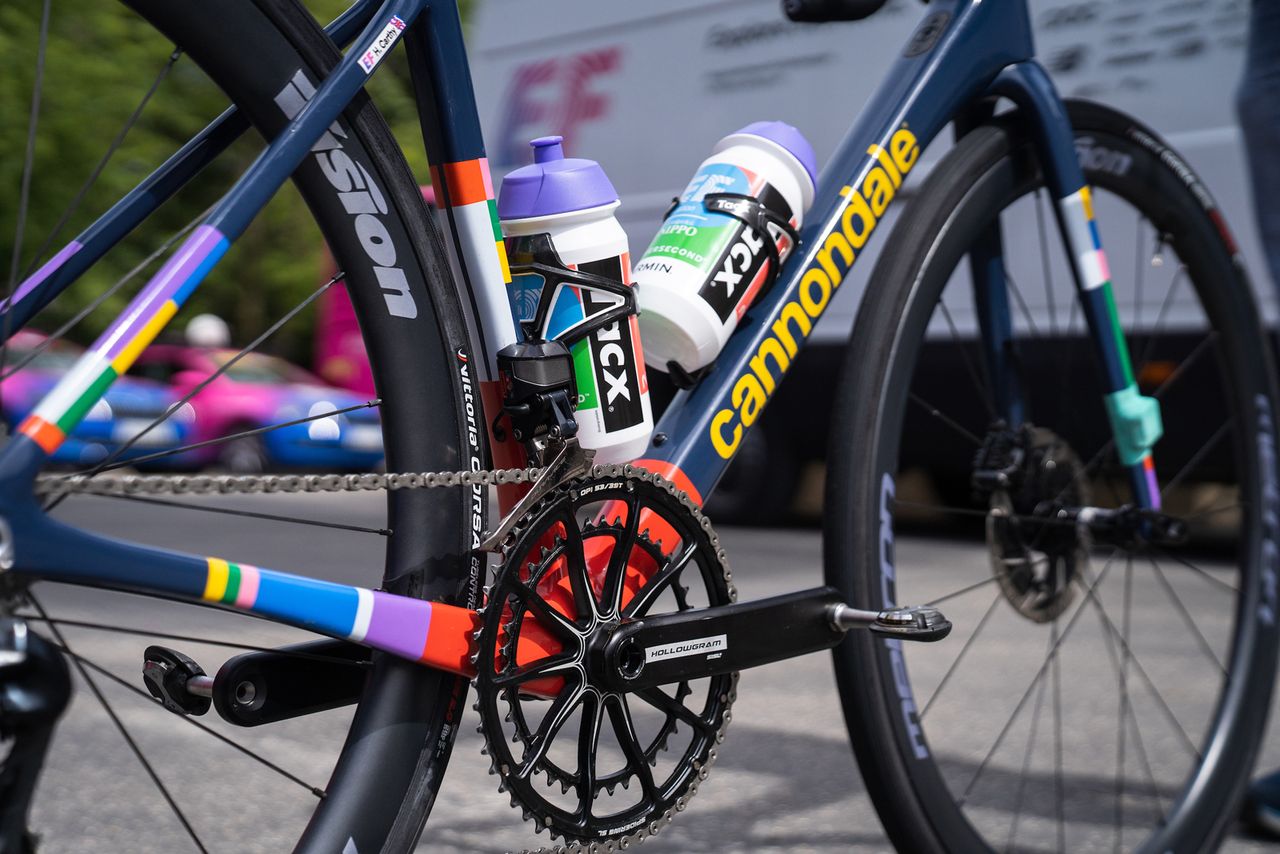

Carthy is racing without a power meter (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 8 of 13

Hugh Carthy's Cannondale SuperSix Evo

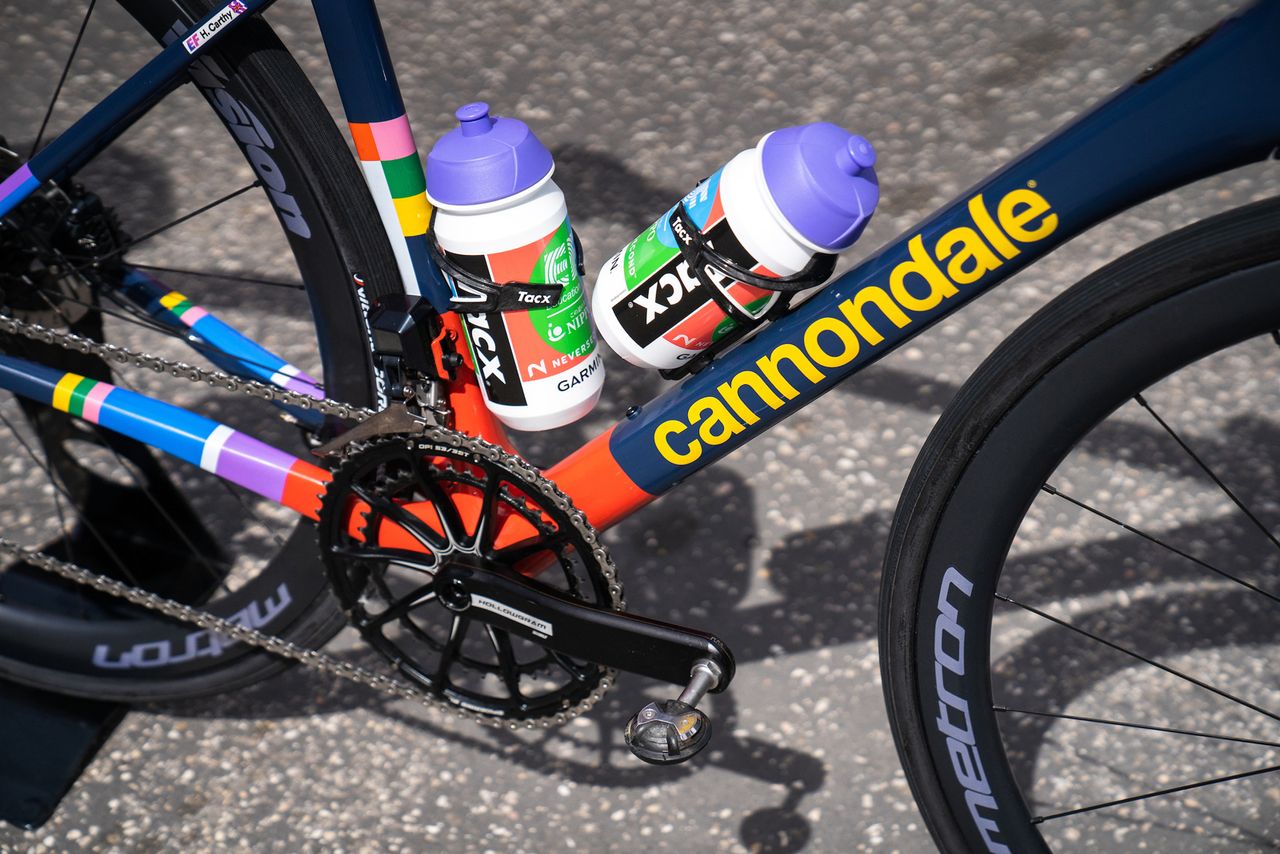

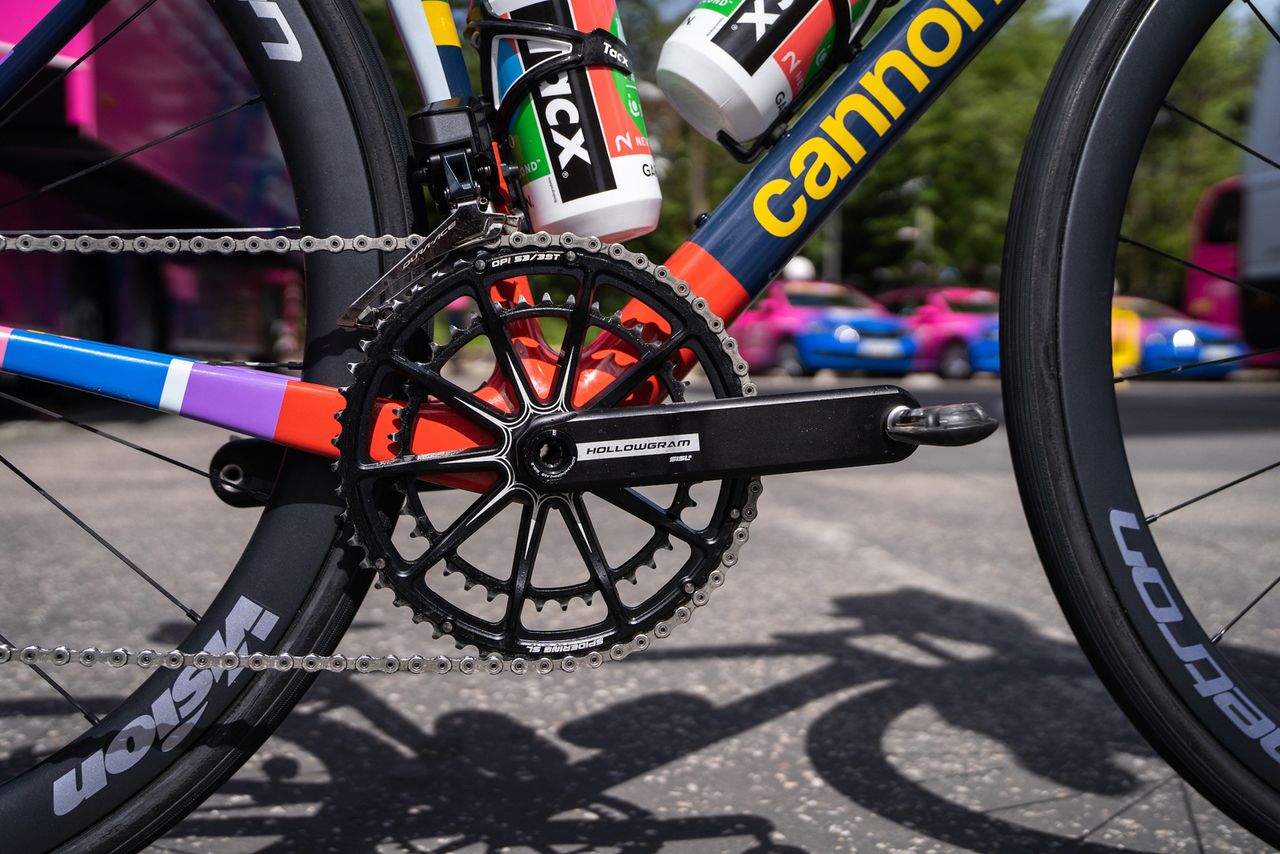

Instead of the Power2Max spider-based power meter, he is using the lightweight Spidering chainrings (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 9 of 13

Hugh Carthy's Cannondale SuperSix Evo

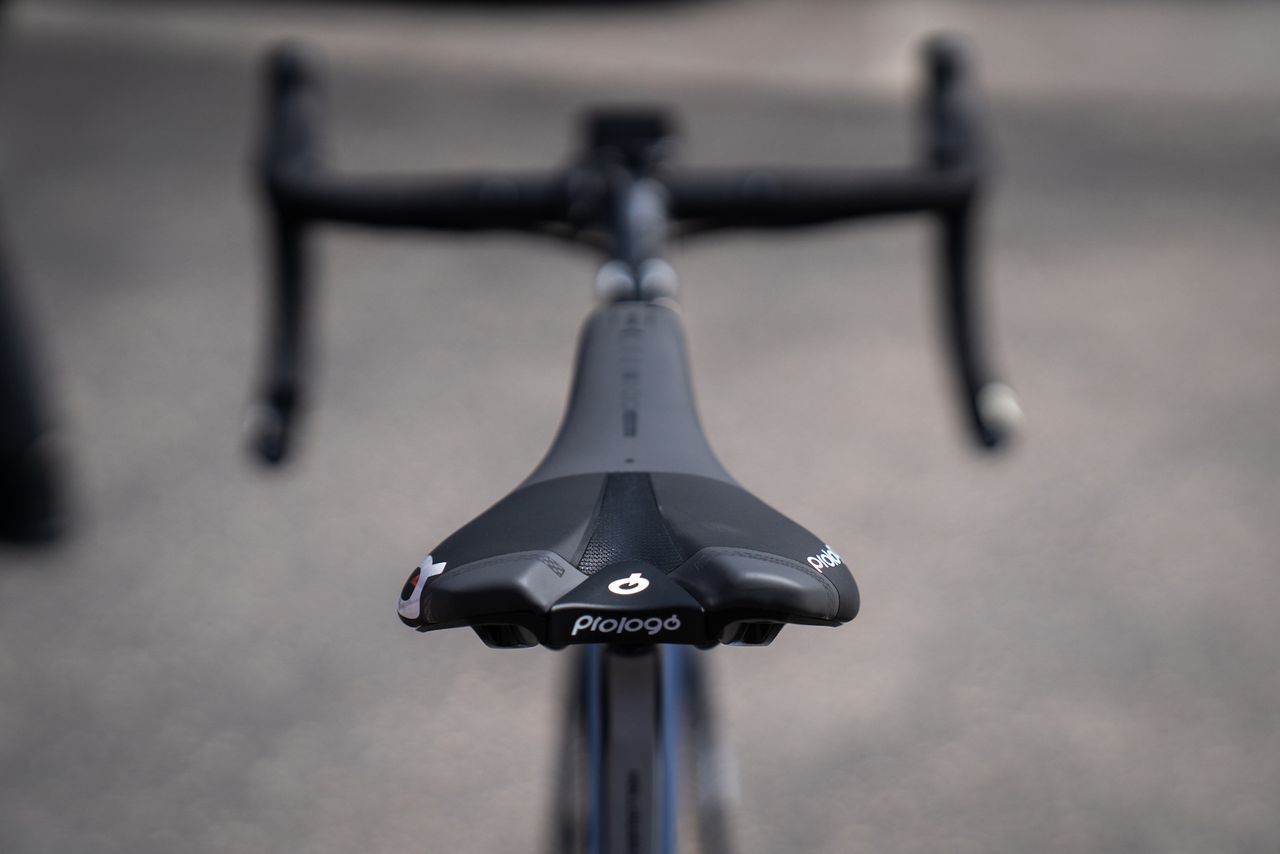

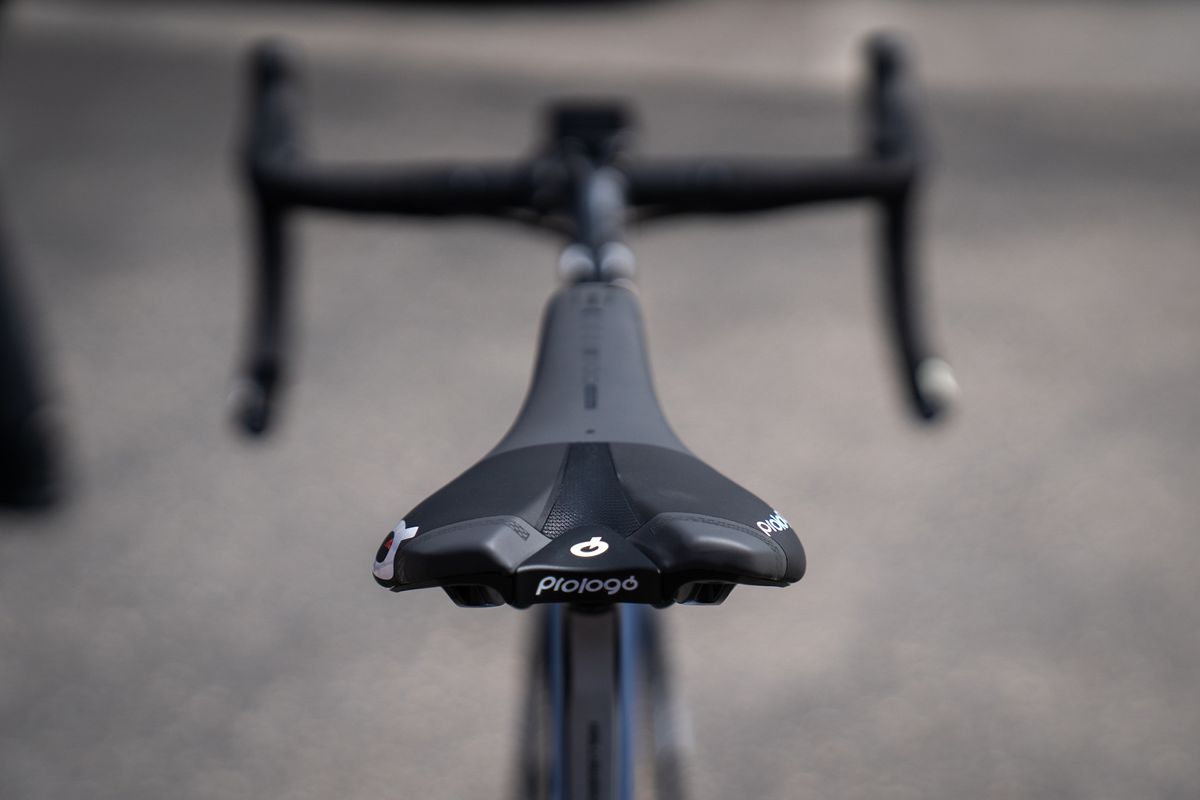

Carthy's saddle is a new model from Prologo (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 10 of 13

Hugh Carthy's Cannondale SuperSix Evo

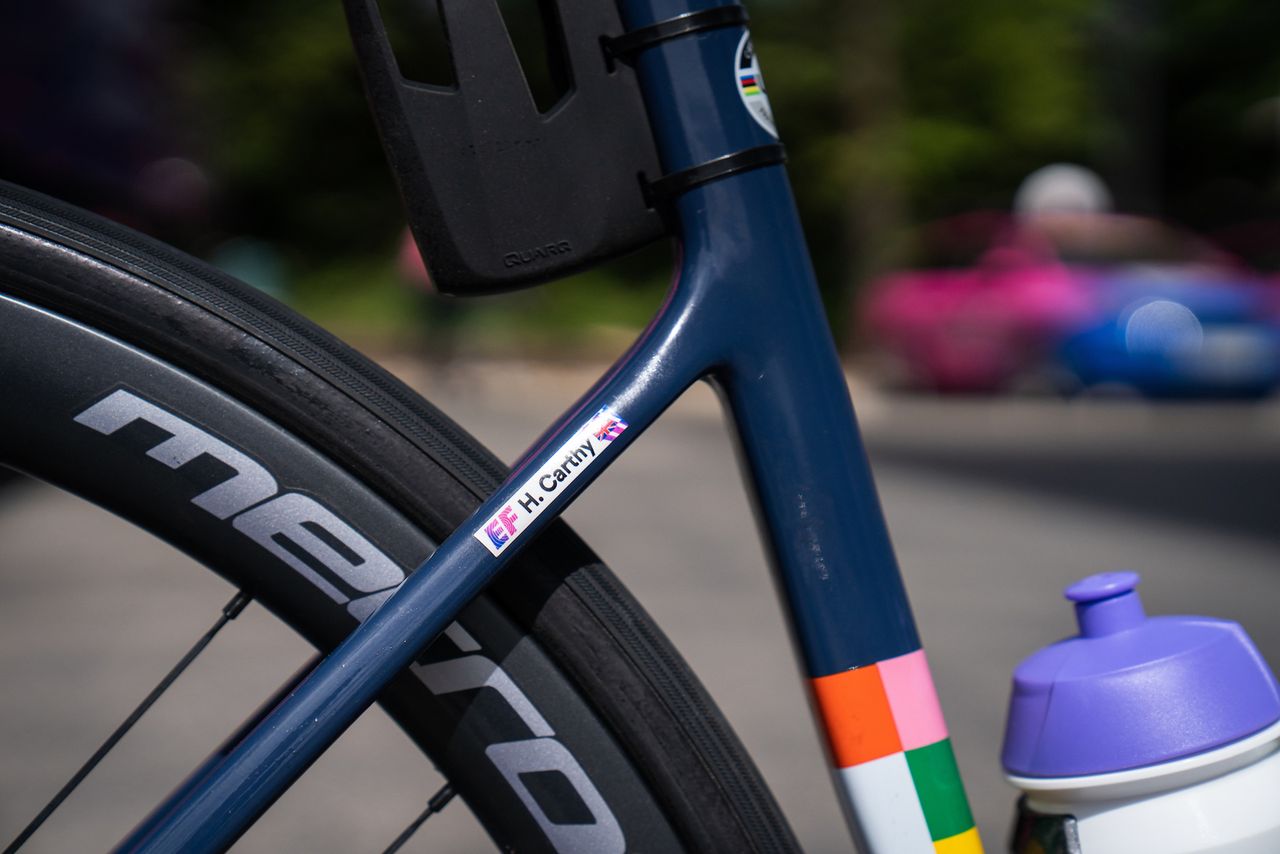

Carthy's name sticker adorns the driveside seat stay (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 11 of 13

Hugh Carthy's Cannondale SuperSix Evo

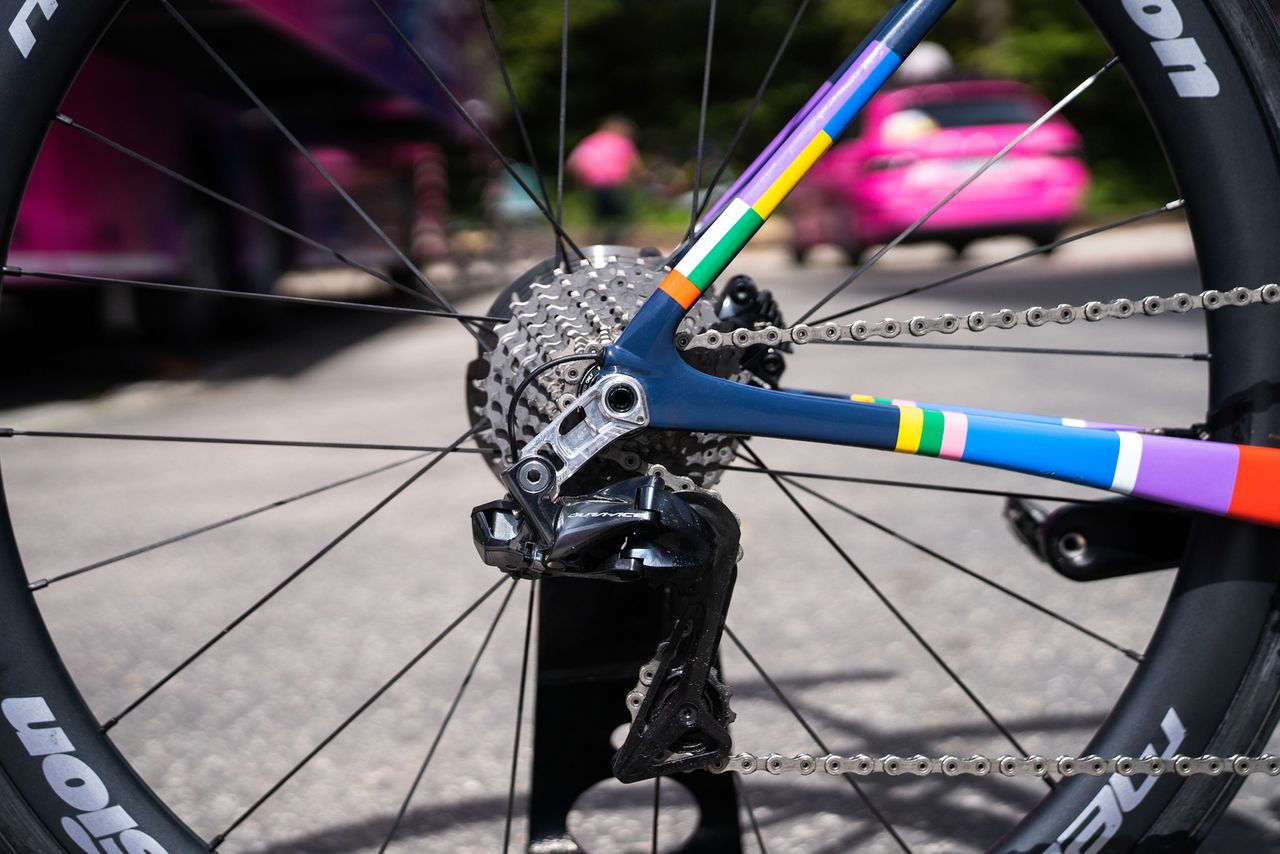

The Shimano Dura-Ace derailleur is held by a reinforced alloy direct-mount hanger (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 12 of 13

Hugh Carthy's Cannondale SuperSix Evo

Carthy has been racing on Vision's Metron 40 SL Disc tubeless wheels, and for the gravel stage, the tyres were swapped for Vittoria's Corsa Control TLR (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)
Image 13 of 13

Hugh Carthy's Cannondale SuperSix Evo

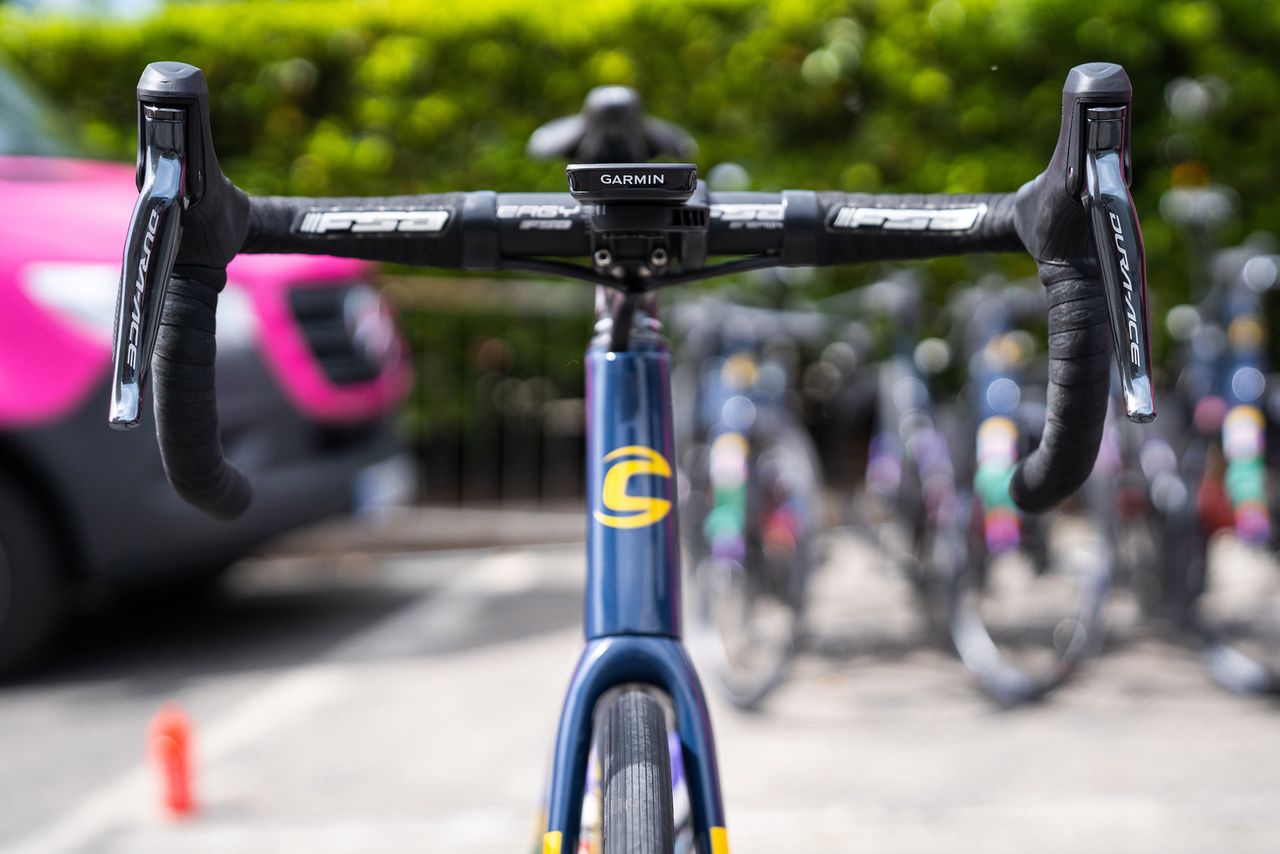

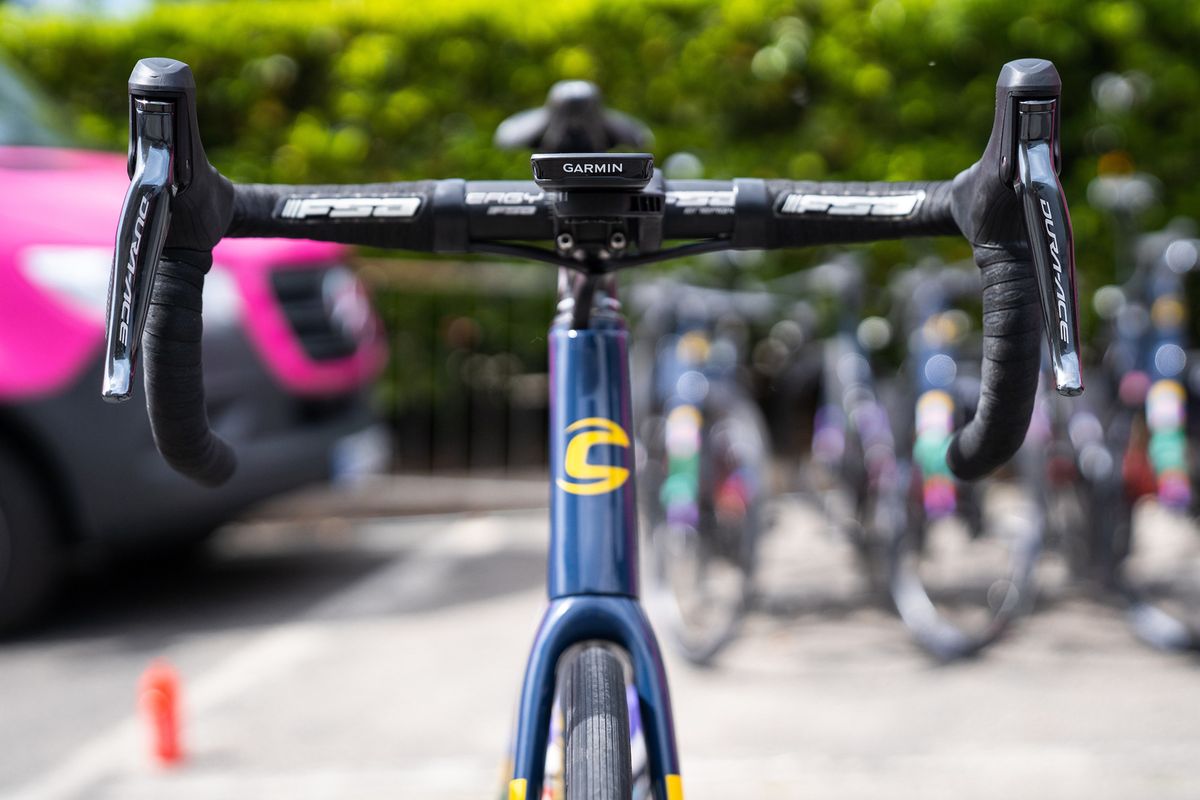

Up front, an alloy FSA Energy handlebar is used, and a Garmin Edge 1030 Plus provides the data (Image credit: Gruber Images | Ashley Gruber & Jered Gruber)

For the past two iterations of the Giro d'Italia, EF Education-Nippo have been required to switch away from their usual pink kit, as race organisers deem it too close a match to the race leader's maglia rosa.

Unless you were living on the moon, you probably heard about the design they switched to in 2020. In a collaboration with Palace Skateboards, they swapped out everything, including kit, helmets, bikes and even the colour of their team cars. So popular were the limited edition run of jerseys that they were being sold on eBay for 10 times their usual retail price.

Unsurprisingly, when this year's Giro rolled onto our horizons, the cycling world waited with bated breath for the announcement, and although it turned out to be considerably less wild than last year, the unveiling didn't disappoint. Many concluded that it is a better-looking and classier design than its forebear.

The design, entitled Euphoria, was created in-house at Rapha, and is said to symbolise 'a celebration of people from different backgrounds and nations coming together in pursuit of a common goal'.

Toning things down a little on last year, the team decided against matching their helmets and cars for this year, but they still took the paintbrush to their Cannondale bikes, and we've been up close and personal with their team leader Hugh Carthy's SuperSix Evo, designed in a similar 'euphoria' fashion and painted by Doktor Bobby out of his studio in Bristol, UK.

In terms of spec when we caught up with it, Carthy's SuperSix is set up for the gravel roads found on stage 11, with tubeless tyres, an alloy handlebar, a reinforced direct-mount derailleur hanger, quick-release thru-axles, and perhaps most interestingly, a lack of power meter.

Carthy has raced without a power meter for all but the time trial stage of this year's Giro, and the gravel stage was no different. While many of the team are using the spider-based power meter from Power2Max, Carthy has stuck with Cannondale's own super-lightweight SISL2 crankset and Spidering SL 53/39 chainrings.

Despite rumours around a new Shimano Dura-Ace 12-speed groupset being on the way, Carthy and his team are still using the trusty 11-speed Dura-Ace Di2 R9170 groupset, complete with disc brakes.

The bike's wheelset comes courtesy of team sponsor Vision, with its Metron 40 SL Disc clincher/TLR wheels. According to sponsor, Vision, the team helped to develop special ceramic bearings as well as a new elastic tape for its tubeless wheels. The tape, which is also used by Bahrain Victorious, is said to improve the interface between wheel and tyre and allow the team to use less sealant, resulting in lower weight.

The wheels are wrapped in Vittoria's Corsa tyres, and ahead of stage 11's gravel sectors, Carthy had switched from Vittoria's Corsa TLR to the grippier and more puncture resistant Corsa Control TLR tyres. They had been set up tubeless with Muc-Off valves and sealant, and while we can't see it from these images, we also believe Carthy was running the new Airliner from Vittoria

As is common on disc brake road bikes, Carthy's bike is using 12mm thru-axles, however, to simplify wheel changes in the event of a puncture, the bike is also set up with quick-release axles, allowing Carthy to remove his own wheel ready for the team car to arrive.

Upfront, Carthy went with a traditional drop handlebar from FSA, however, instead of choosing one of the brand's many featherweight carbon fibre options, the Briton is using the €99 FSA Energy Traditional Alloy.

This is likely a permanent feature that helps the lightweight bike climb back above the UCI's 6.8kg limit, but it would have been a welcome addition on stage 11, given alloy handlebars are less prone to catastrophic failure in the event of a crash.

The EF team also seem to have upgraded the strength of their derailleur hangers for the 2021 Giro. In 2020, the team was using lightweight - pink anodised - versions that were prone to bending out of shape (as seen on Lachlan Morton's bike from early 2020), the team are now using sturdier-looking silver versions.

Up top, it also looks as though Carthy's trialling out a new saddle for sponsors Prologo, with a design that most closely resembles the brand's Nago and Zero models. Unfortunately, details are sparse, but we'll bring you details as soon as we find out more.

Hugh Carthy's Cannondale SuperSlice TT: Specification
FrameCannondale SuperSix Evo Hi Mod
GroupsetShimano Dura-Ace R9170 Di2
Brake leversShimano Dura-Ace Di2 mechanical
Brake calipersShimano Dura-Ace disc
WheelsetMetron 40 SL Disc clincher/TLR
HandlebarFSA Energy Traditional Alloy
StemFSA OS99 Carbon
Power MeterN/A
PedalsSpeedplay Aero
SaddlePrologo new model
TyresVittoria Corsa Control TLR
Tubeless ValvesMuc-Off
ComputerGarmin Edge 1030 Plus
Bottle CagesTacx Ciro
BottlesTacx Custom
