Boonen aiming for top step in London

Image 1 of 37

Boonen's new TT bike certainly looks the part

Boonen's new TT bike certainly looks the part
Image 2 of 37

A narrow down tube

A narrow down tube
Image 3 of 37

…but this is what is required

…but this is what is required
Image 4 of 37

Campagnolo's bar-end shifters

Campagnolo's bar-end shifters
Image 5 of 37

Boonen will use his tried-and-true

Boonen will use his tried-and-true
Image 6 of 37

A pair of 54/44T chainrings

A pair of 54/44T chainrings
Image 7 of 37

The rear wheel is closely profiled

The rear wheel is closely profiled
Image 8 of 37

Cables are run internally.

Cables are run internally.
Image 9 of 37

Rear brake is tucked behind and below

Rear brake is tucked behind and below
Image 10 of 37

Campagnolo Record components

Campagnolo Record components
Image 11 of 37

Boonen's custom-finished Selle San Marco saddle.

Boonen's custom-finished Selle San Marco saddle.
Image 12 of 37

If all else failed

If all else failed
Image 13 of 37

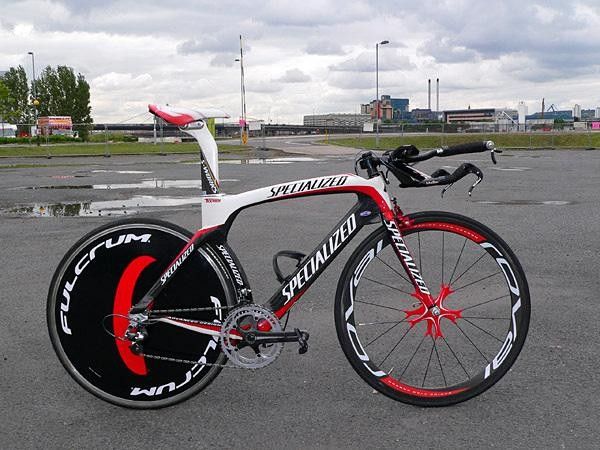

Boonen's new TT bike certainly looks the part, but almost wasn't going to be allowed to the start house on Saturday.

Boonen's new TT bike certainly looks the part, but almost wasn't going to be allowed to the start house on Saturday. (Image credit: James Huang/Cyclingnews.com)
Image 14 of 37

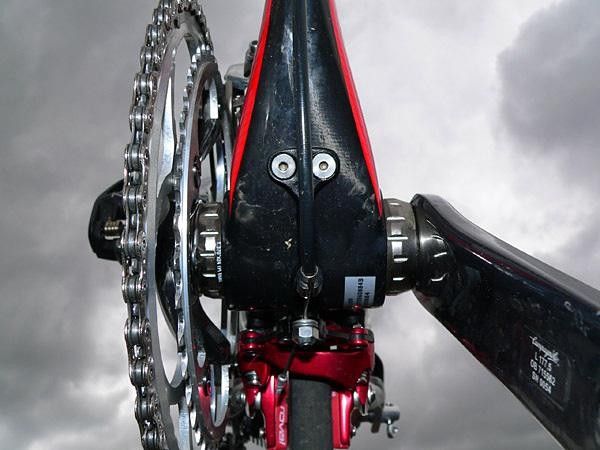

A narrow down tube flares into the full width of the bottom bracket shell.

A narrow down tube flares into the full width of the bottom bracket shell. (Image credit: James Huang/Cyclingnews.com)
Image 15 of 37

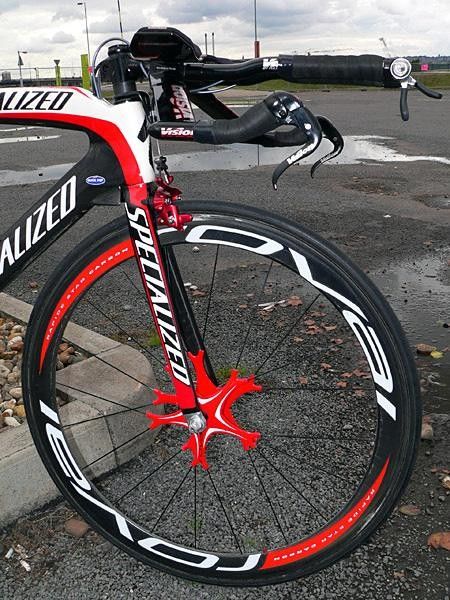

Quickstep-Innergetic team mechanics insist that Boonen will race on Saturday using Specialized's Roval Rapide Star Carbon front wheel.

Quickstep-Innergetic team mechanics insist that Boonen will race on Saturday using Specialized's Roval Rapide Star Carbon front wheel. (Image credit: James Huang/Cyclingnews.com)
Image 16 of 37

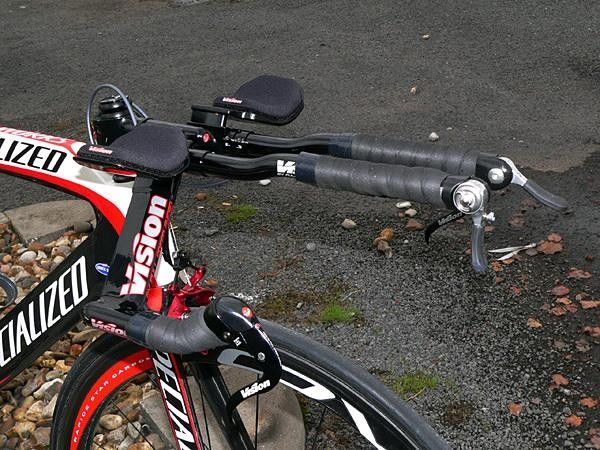

This is a far cry from the long stem and deep drop bars that we're accustomed to seeing on the front of Boonen's bikes..

This is a far cry from the long stem and deep drop bars that we're accustomed to seeing on the front of Boonen's bikes.. (Image credit: James Huang/Cyclingnews.com)
Image 17 of 37

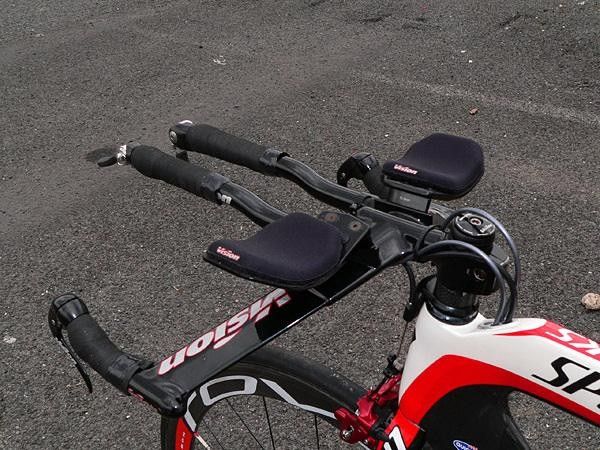

…but this is what is required if 'Tornado Tom' hopes to put in a good time on Saturday.

…but this is what is required if 'Tornado Tom' hopes to put in a good time on Saturday. (Image credit: James Huang/Cyclingnews.com)
Image 18 of 37

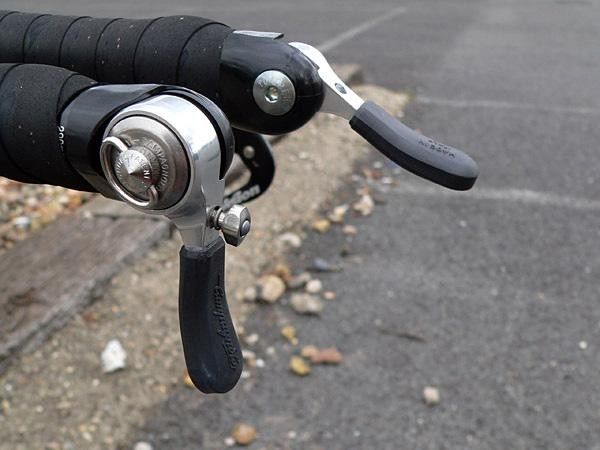

Campagnolo's bar-end shifters handle the duties up front.

Campagnolo's bar-end shifters handle the duties up front. (Image credit: James Huang/Cyclingnews.com)
Image 19 of 37

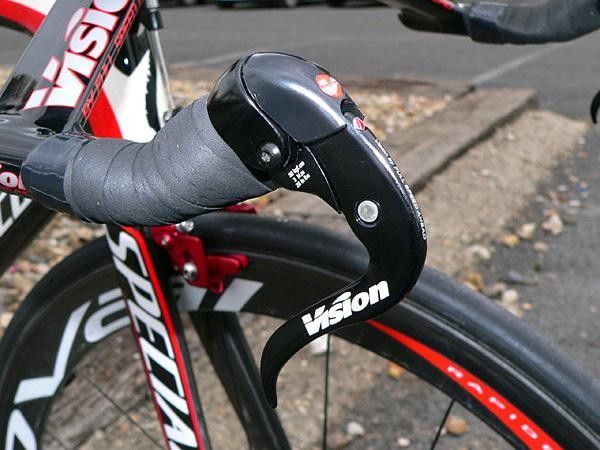

Vision's knife-edged brake levers offer up little wind resistance.

Vision's knife-edged brake levers offer up little wind resistance. (Image credit: James Huang/Cyclingnews.com)
Image 20 of 37

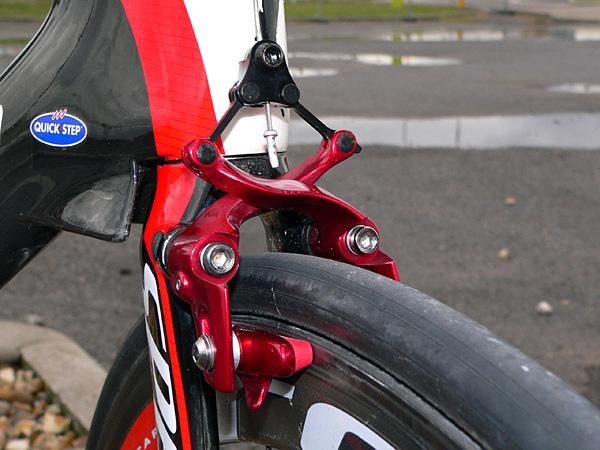

The proprietary Specialized brake is said to offer a cleaner path through the air than a traditional dual-pivot caliper.

The proprietary Specialized brake is said to offer a cleaner path through the air than a traditional dual-pivot caliper. (Image credit: James Huang/Cyclingnews.com)
Image 21 of 37

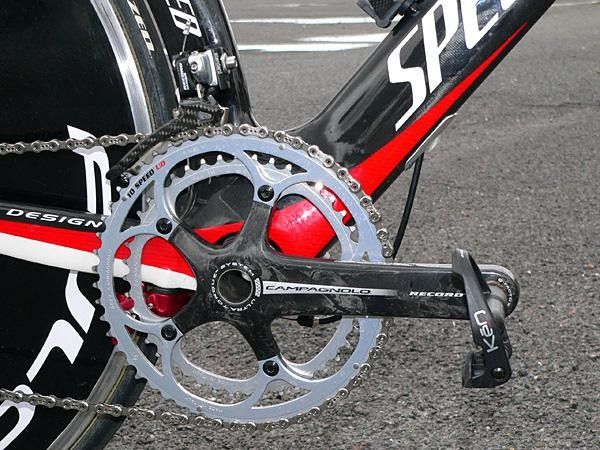

Boonen will use his tried-and-true Campy Record Ultra-Torque crankset.

Boonen will use his tried-and-true Campy Record Ultra-Torque crankset. (Image credit: James Huang/Cyclingnews.com)
Image 22 of 37

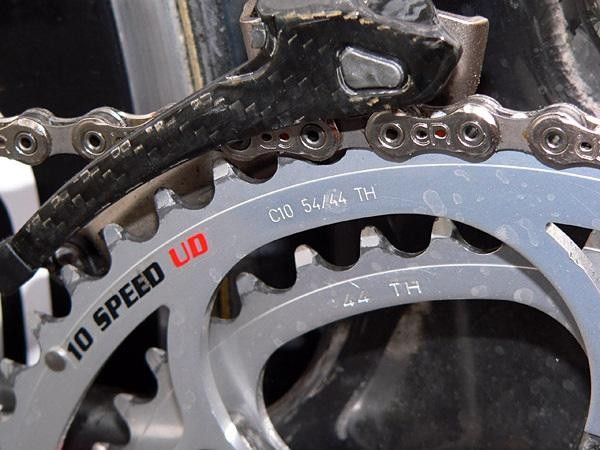

A pair of 54/44T chainrings ought to do the trick on the flat prologue course.

A pair of 54/44T chainrings ought to do the trick on the flat prologue course. (Image credit: James Huang/Cyclingnews.com)
Image 23 of 37

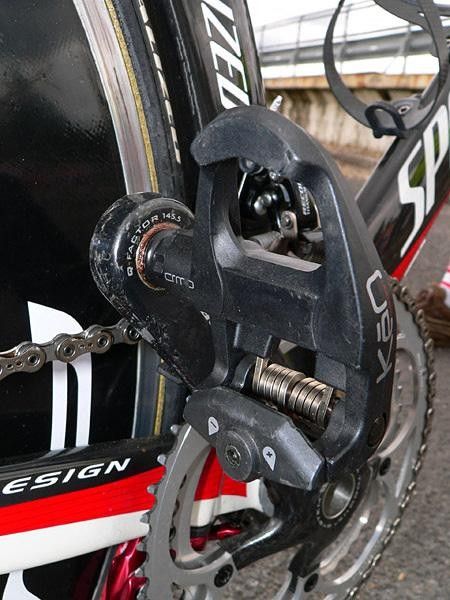

Look continues to provide Boonen with its chrome-moly spindled Keo pedals.

Look continues to provide Boonen with its chrome-moly spindled Keo pedals. (Image credit: James Huang/Cyclingnews.com)
Image 24 of 37

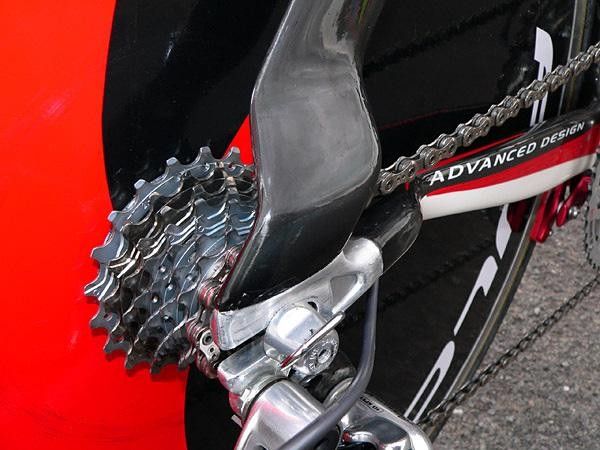

The Transition stays take a nearly parallel path back towards the rear of the bike, then take a dramatic turn towards the dropout.

The Transition stays take a nearly parallel path back towards the rear of the bike, then take a dramatic turn towards the dropout. (Image credit: James Huang/Cyclingnews.com)
Image 25 of 37

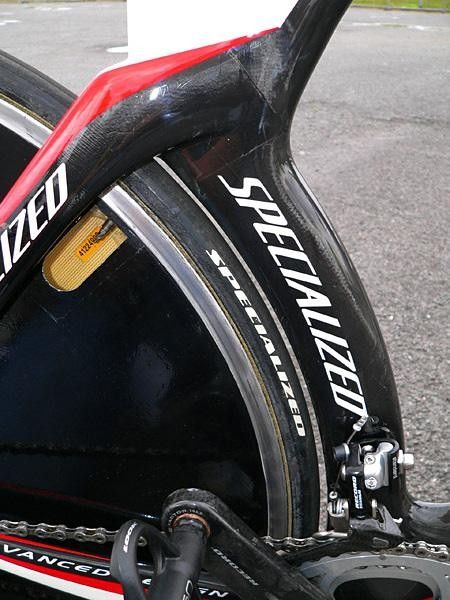

The rear wheel is closely profiled by the seat tube.

The rear wheel is closely profiled by the seat tube. (Image credit: James Huang/Cyclingnews.com)
Image 26 of 37

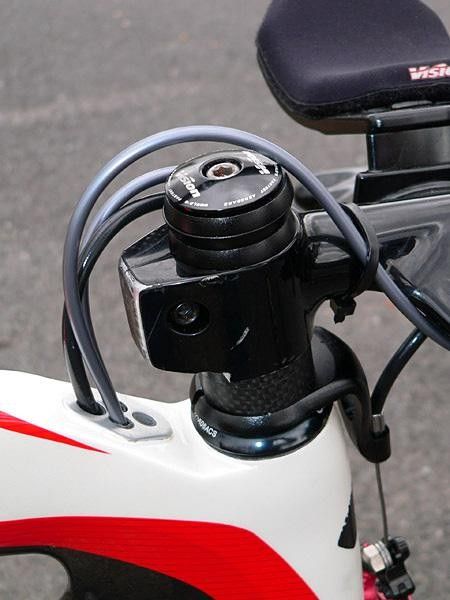

Cables are run internally.

Cables are run internally. (Image credit: James Huang/Cyclingnews.com)
Image 27 of 37

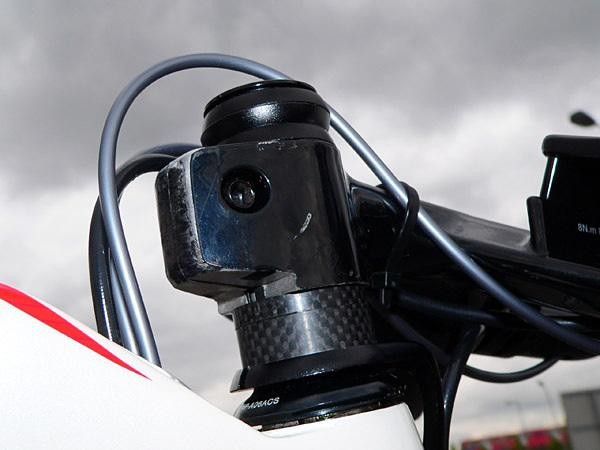

Boonen's Vision integrated TT bar and stem were heavily filed at the rear.

Boonen's Vision integrated TT bar and stem were heavily filed at the rear. (Image credit: James Huang/Cyclingnews.com)
Image 28 of 37

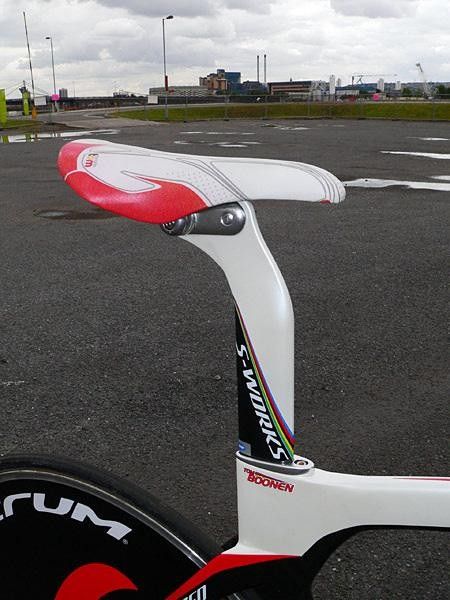

Boonen's desired position required the rearmost setting on the Transition post.

Boonen's desired position required the rearmost setting on the Transition post. (Image credit: James Huang/Cyclingnews.com)
Image 29 of 37

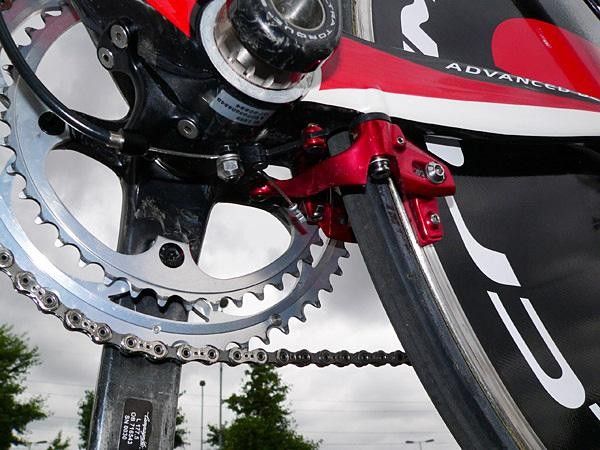

Rear brake is tucked behind and below the bottom bracket shell.

Rear brake is tucked behind and below the bottom bracket shell. (Image credit: James Huang/Cyclingnews.com)
Image 30 of 37

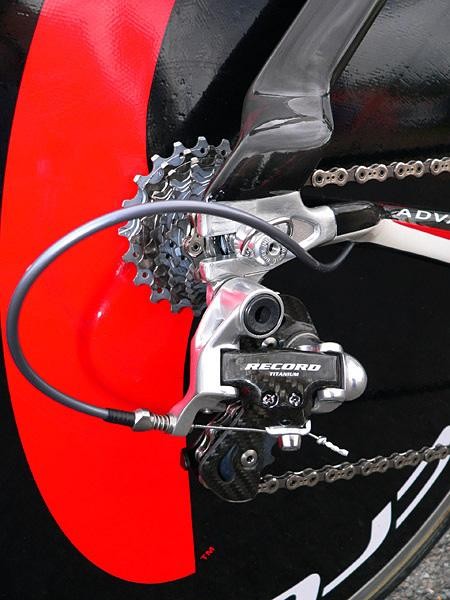

Campagnolo Record components fill out the drivetrain.

Campagnolo Record components fill out the drivetrain. (Image credit: James Huang/Cyclingnews.com)
Image 31 of 37

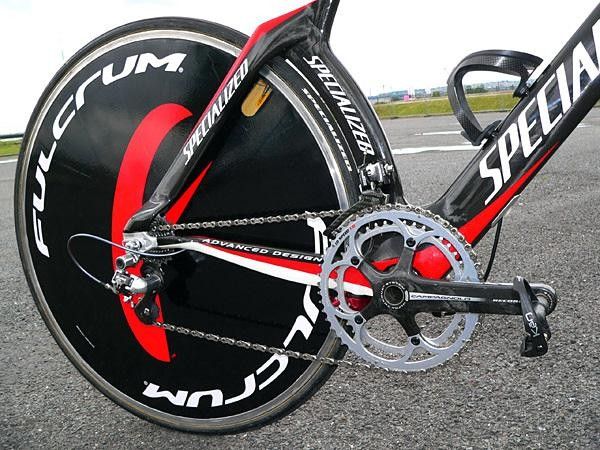

Unless the wind is howling out of control, rear disc wheels are sure to be the standard on Saturday.

Unless the wind is howling out of control, rear disc wheels are sure to be the standard on Saturday. (Image credit: James Huang/Cyclingnews.com)
Image 32 of 37

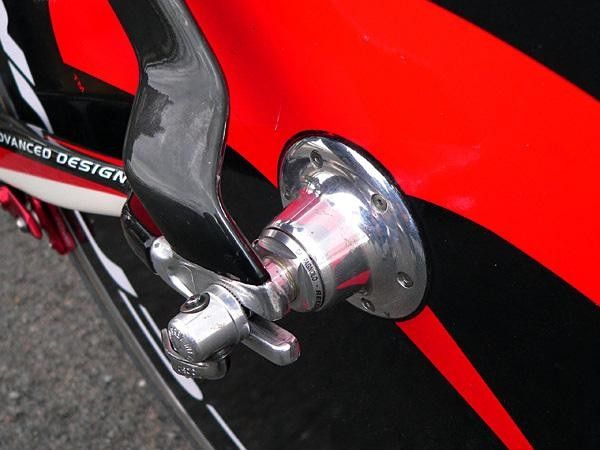

The Fulcrum rear disc incorporates familiar Campagnolo hub internals.

The Fulcrum rear disc incorporates familiar Campagnolo hub internals. (Image credit: James Huang/Cyclingnews.com)
Image 33 of 37

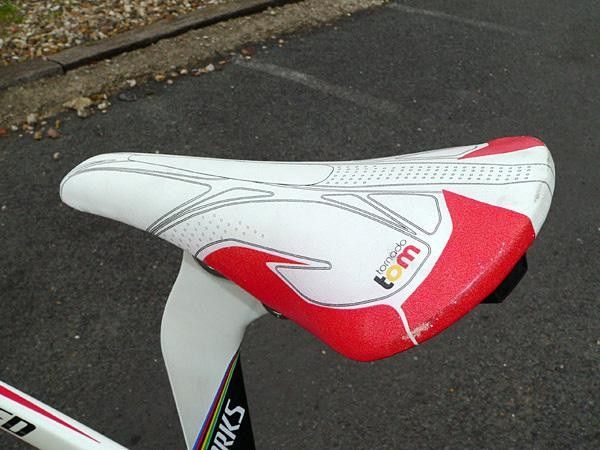

Boonen's custom-finished Selle San Marco saddle.

Boonen's custom-finished Selle San Marco saddle. (Image credit: James Huang/Cyclingnews.com)
Image 34 of 37

The prologue course is only 7.9km long so we're not sure why this is even on here!

The prologue course is only 7.9km long so we're not sure why this is even on here! (Image credit: James Huang/Cyclingnews.com)
Image 35 of 37

UCI officials carefully scrutinize Boonen's new machine…

UCI officials carefully scrutinize Boonen's new machine… (Image credit: James Huang/Cyclingnews.com)
Image 36 of 37

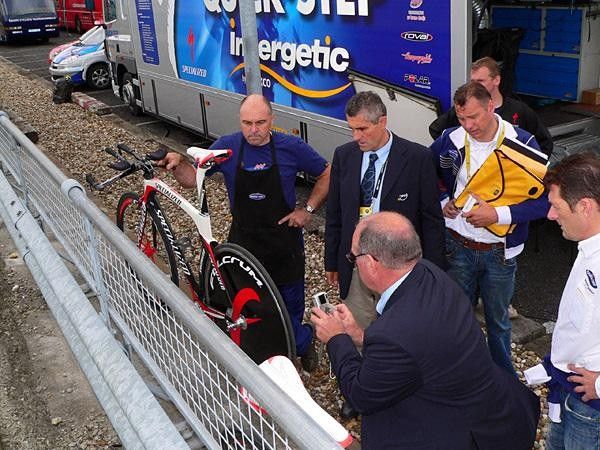

…while team officials nervously look on.

…while team officials nervously look on. (Image credit: James Huang/Cyclingnews.com)
Image 37 of 37

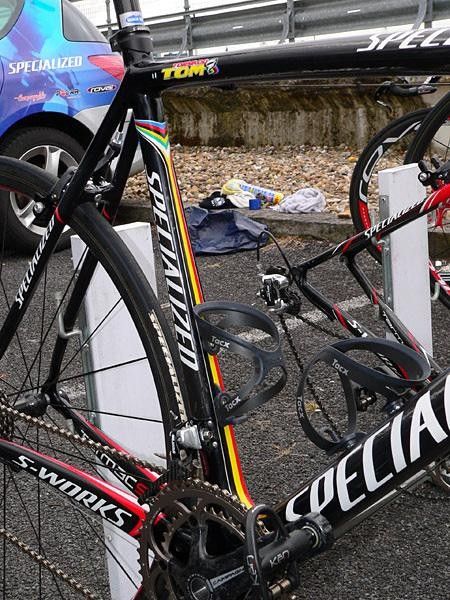

If all else failed, at least Boonen still has yet another Tarmac SL2 to ride, resplendent in the World Champion and Belgian national colors.

If all else failed, at least Boonen still has yet another Tarmac SL2 to ride, resplendent in the World Champion and Belgian national colors. (Image credit: James Huang/Cyclingnews.com)

Race Tech: Tour de France, July 6, 2007

With the start to this year's Tour de France less than two days away, the peloton already finds itself without Alessandro Petacchi (Milram), who undoubtedly would have injected a load of excitement into the first week's likely sprint finishes. To make matters even more dramatic, one of Petacchi's most potent sprint finish rivals, Tom Boonen (Quickstep-Innergetic), almost found himself without a ride for this Saturday's opening time trial courtesy of a few UCI officials.

Boonen hopes to carry the maillot jaune into his home country as the TdF crosses the English Channel into Belgium for Stage 2 and much of that goal will rest on an outstanding performance in Saturday's opening Prologue through the streets of London. To assist 'Tornado Tom' in that endeavor, team bicycle sponsor Specialized provided him with its brand-new Transition time trial machine, which was formally unveiled just last week at the company's global product launch in Spain.

Specialized frame designers were quick to point out during the press event that the radical dimensions of the new Transition just barely satisfied UCI requirements, saying that "[its] designers and engineers pushed right up to the legal limit in an effort to give riders the maximum aerodynamic advantage possible."

As it turns out, Specialized may still have pushed that envelope a bit too far as a swarm of UCI officials were seen carefully scrutinizing the bike in the pit area outside the team hotel as Quickstep-Innergetic staff nervously looked on. Luckily for Boonen (not to mention Specialized and the rest of the team), the UCI did eventually approve use of the Transition for Saturday's start, albeit begrudgingly if our information is correct. We weren't able to obtain an official UCI statement as far as what its major objection was, but rumor had it that it wasn't even related to the frame tubes themselves per se, which was apparently what Specialized had most concerned itself with. Rather, it supposedly had more to do with the range of adjustment allowed by the bike's rear-facing horizontal dropouts and its effect on the distance between the rear wheel and the seat tube.

Be that as it may, Boonen has averted disaster this time around, but the rumors in the pits suggested that the technically over-involved UCI was still wielding its meddling stick in regards to poorly worded minutia, seemingly with reckless abandon (and we still don't understand why the 6.8kg minimum weight restriction has yet to be lifted or modified). If those rumors are true, the UCI was apparently considering declaring 'modified' dropouts as unlawful modifications to stock safety features, and confusion over aero bar extension positioning had at least one team searching for clarification over the rules in fear of disqualification.

Regardless, at least one thing is for certain: the teams and riders already have enough to worry about without having to wonder whether or not filing the lawyer tabs from their forks will force a last-minute scramble for more equipment.
