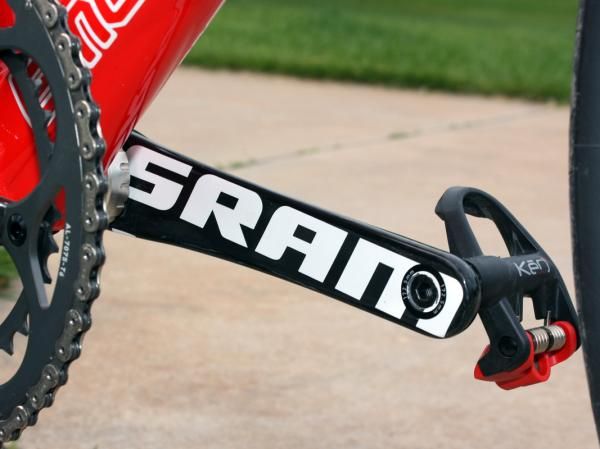

Force takes a page from the Red playbook with the giant graphics on the back of the non-driveside crankarm

Force takes a page from the Red playbook with the giant graphics on the back of the non-driveside crankarm (Image credit: James Huang)
Image 2 of 11

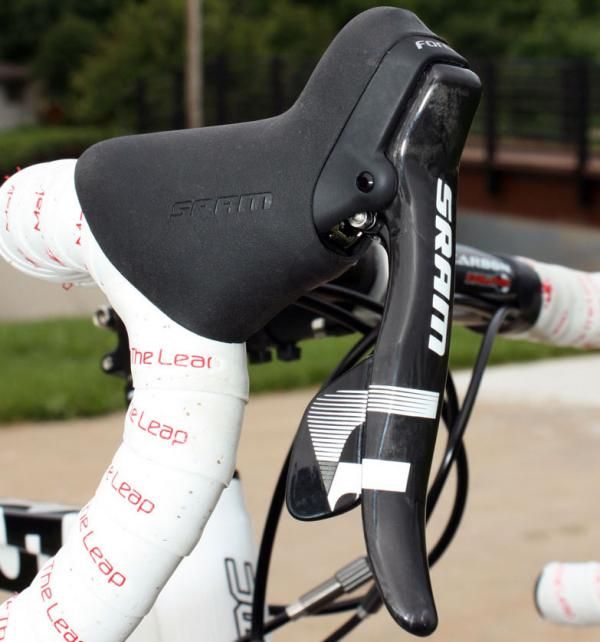

The reshaped DoubleTap levers retain their characteristic outward cant for an easier reach from the hoods

The reshaped DoubleTap levers retain their characteristic outward cant for an easier reach from the hoods (Image credit: James Huang)
Image 3 of 11

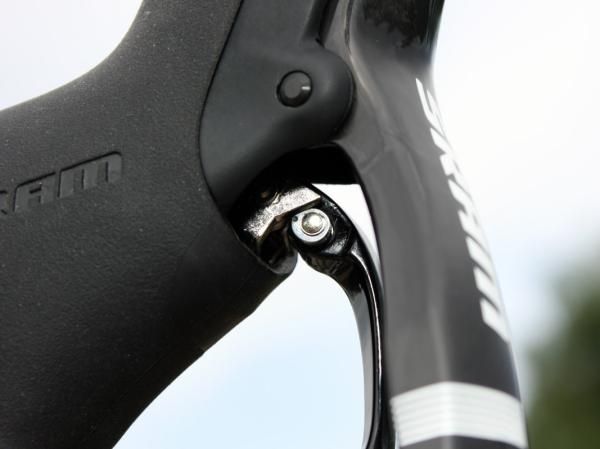

We still wish the shift paddle reach were easier to adjust but the existing cam setup is decidedly unobtrusive, secure and effective

We still wish the shift paddle reach were easier to adjust but the existing cam setup is decidedly unobtrusive, secure and effective (Image credit: James Huang)
Image 4 of 11

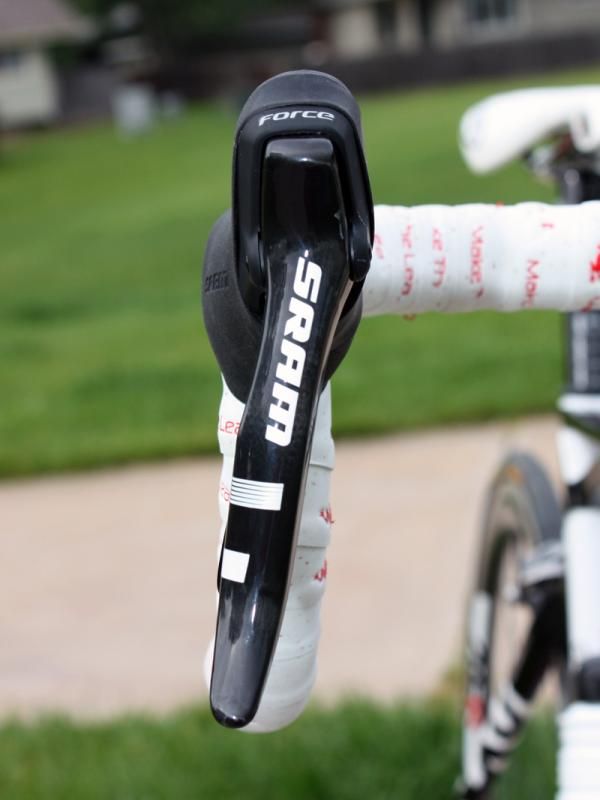

Brake lever blade and shift paddle shapes are wholly lifted from Red along with separately adjustable reach for both

Brake lever blade and shift paddle shapes are wholly lifted from Red along with separately adjustable reach for both (Image credit: James Huang)
Image 5 of 11

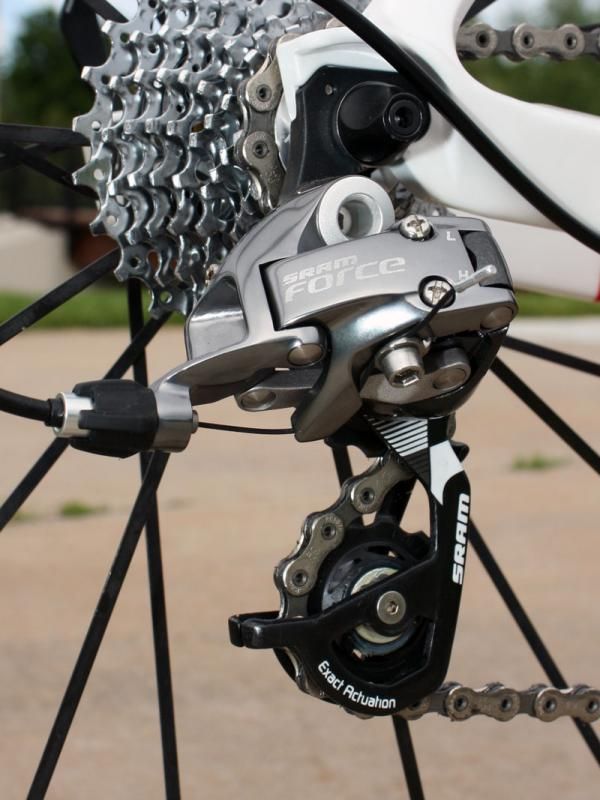

Rear derailleur changes include a new finish and updated unidirectional carbon outer cage plate

Rear derailleur changes include a new finish and updated unidirectional carbon outer cage plate (Image credit: James Huang)
Image 6 of 11

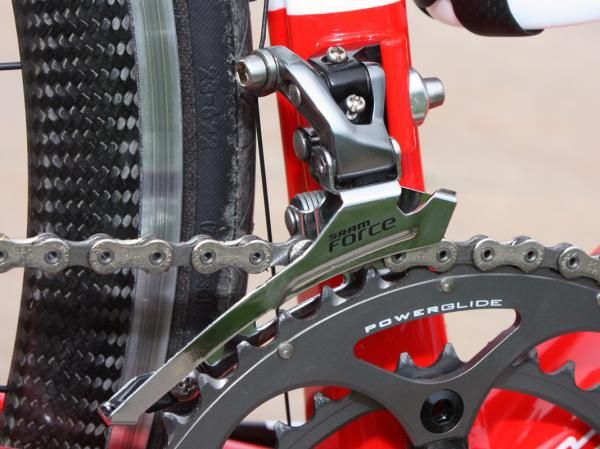

Not much change to note here aside from the new finish

Not much change to note here aside from the new finish (Image credit: James Huang)
Image 7 of 11

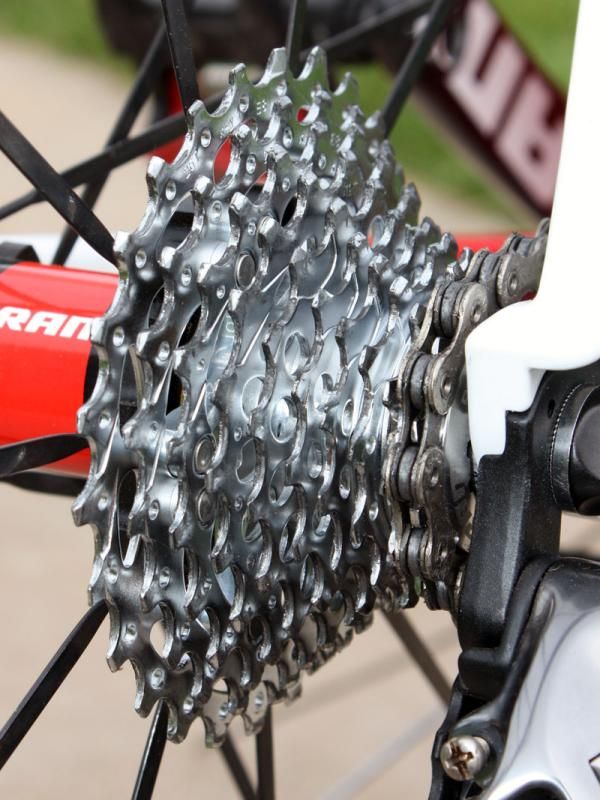

The new PG-1070 cassette skips the wholly omitted teeth of the OpenGlide design for smoother and notably quieter running

The new PG-1070 cassette skips the wholly omitted teeth of the OpenGlide design for smoother and notably quieter running (Image credit: James Huang)
Image 8 of 11

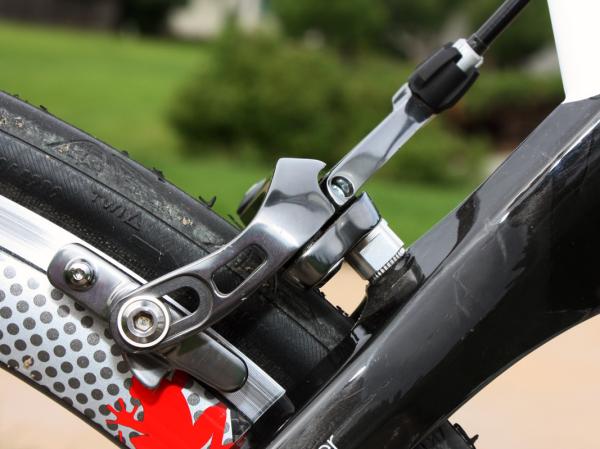

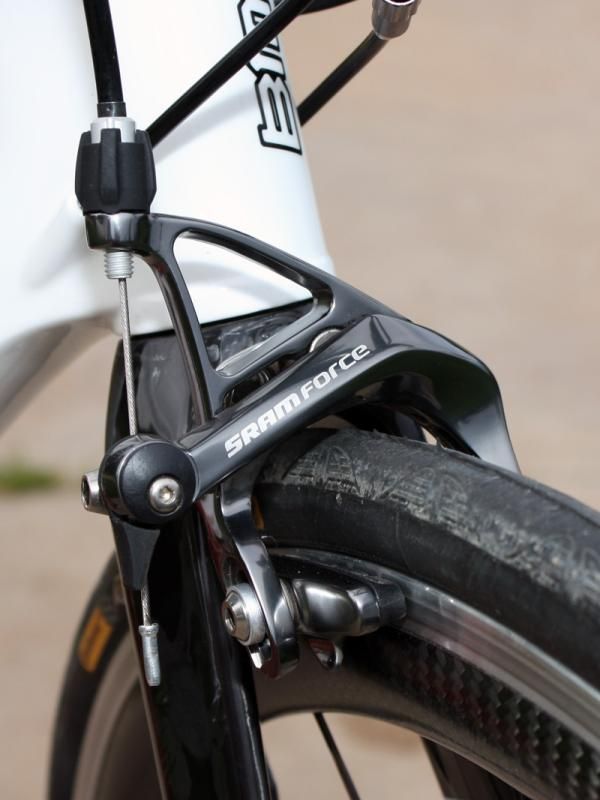

The more aggressively triangulated arm of the 2010 SRAM Force brake caliper lends a slightly stiffer feel at the lever

The more aggressively triangulated arm of the 2010 SRAM Force brake caliper lends a slightly stiffer feel at the lever (Image credit: James Huang)
Image 9 of 11

The weight-saving cutout in the arm is nice and all but we're really more excited about the long-overdue addition of a proper centering screw up top

The weight-saving cutout in the arm is nice and all but we're really more excited about the long-overdue addition of a proper centering screw up top (Image credit: James Huang)
Image 10 of 11

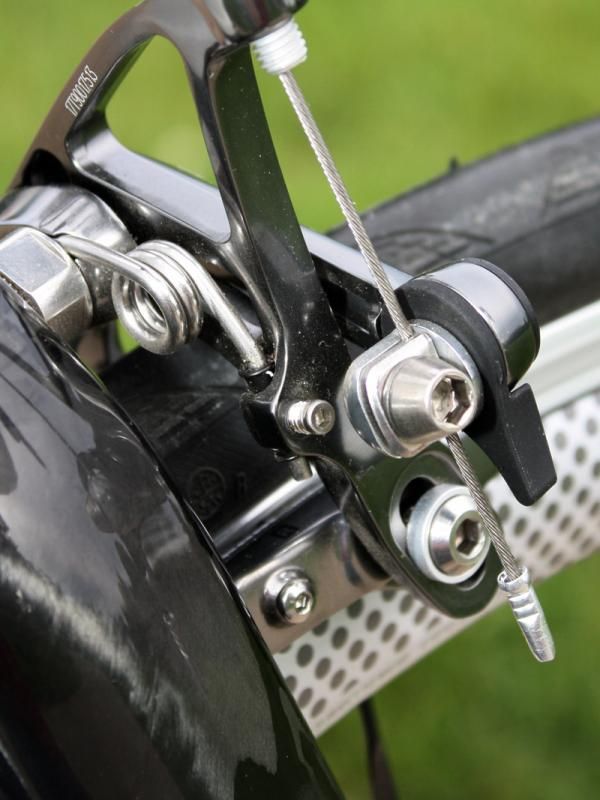

Spring tension is now adjustable as well to better deal with rider preference and poorly designed frame routing

Spring tension is now adjustable as well to better deal with rider preference and poorly designed frame routing (Image credit: James Huang)
Image 11 of 11

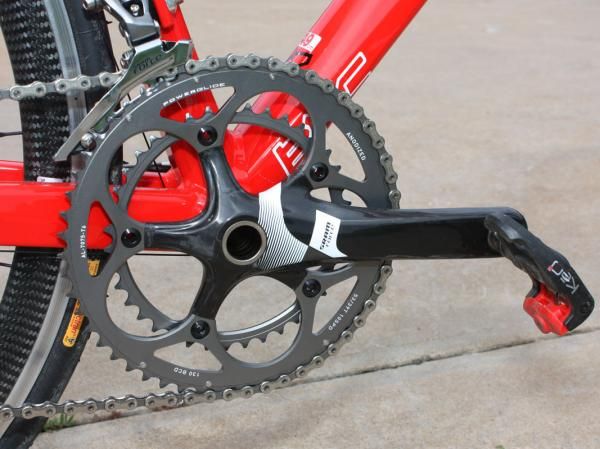

The new crank gets a revised shape, a unidirectional top sheet, and new graphics

The new crank gets a revised shape, a unidirectional top sheet, and new graphics (Image credit: James Huang)

SRAM's latest update of its second-tier Force group borrows so many design cues – and in fact, physical pieces – from the top-level Red package that we could practically just cut-and-paste this review after six months of testing.

While there are still a few key differences, Force is now so close to Red in look, feel and performance that there's almost no reason to move up any higher in the company's range.

Dead-ringer ergonomics and short lever throws

Lever enhancements taken from Red and introduced last year into Force have carried over with the only changes being a new unidirectional finish on the carbon brake lever blades and fresher-looking graphics.

As such, the 2010 Force levers still offer very natural-feeling ergonomics with independently reach-adjustable brake levers and shift paddles, and longer lever blades for easier braking from the drops. The shift paddles themselves are well sized, making for an intuitive target for your fingers from either the drops or hoods.

Zero-Loss shifter internals on the left-hand side yield refreshingly short lever throws when moving up to the big ring while throws on the other side are still extremely short even without Zero-Loss – aside from when you're moving out of the smallest cog, in which case the dead zone is curiously longer. Last year's refresh also moved the front trim position out to the big ring instead of the inner one.

As with all SRAM road shifters, spring tensions are reassuringly firm and there's very good tactile feedback but lever feel is still a bit tinny compared to Shimano or Campagnolo, though hardly offensive and easy to get used to. Front- or rear-of-bar derailleur cable routing makes for easier fitting (and often more hand comfort) with a wider range of bars.

Rear shift performance has been refined slightly over the original Force group, mostly on account of the updated PG-1070 cassette (the PC-1070 chain is unchanged and updates to the rear derailleur are essentially cosmetic). The new PowerGlide shaping reinserts the omitted teeth of the original OpenGlide design but with no perceivable hit in shifting speed or smoothness.

What has improved, however, is the sound quality: even with the same chain design as before, the PG-1070 cassette is noticeably quieter-running and feels a bit silkier under load, thus eliminating a major – and valid – complaint of SRAM critics.

Front shifts on our standard-drive test unit were very good overall but lacking in refinement compared to Campag. Unfortunately for SRAM, that performance gap grows even wider when compared to Shimano and their new fantastically rigid outer rings, which yield the best front shifting in the business hands-down.

SRAM seem to slowly be picking up the pace here given their new optional extra-stiff 'SPR' outer rings, though it'd be nice to see some of those improvements integrated into the standard-issue bits.

More stopping power, improved lever feel

Force's new brake calipers now get made-by-SwissStop pad inserts and use identical aluminium forgings to Red with the only main differences now being the dark grey finish and steel, rather than titanium and aluminium, hardware.

Both lever feel and overall power have improved over the already-very-good levels thanks to the stiffer and more heavily triangulated upper arm, and both panic stops and decelerations in high-speed descents are handled with competence and confidence. But again, recent advances in Shimano's braking systems put SRAM in catch-up mode.

Weight remains virtually unchanged from the previous generation but the new arms do finally gain proper centring and spring tension adjustments.

Newly added BB30 crank option

In keeping with the new group aesthetic, all updated 2010 Force crankarms get a unidirectional carbon finish and updated graphics. Standard and compact GXP versions also get a smoother shape with more rounded corners and there's still an internal alloy spine running the length of the arms.

SRAM don't say whether or not the new crank is any stiffer than the old one and we couldn't tell any appreciable difference between the two during testing. The external-type bottom bracket is carried over from before, and still has a bit more seal drag than we'd prefer.

Major change comes with the new BB30 variant, however, which lops off about 145g from the standard GXP version and is largely responsible for bringing the total Force package just below the 2kg mark.

Heel clearance is substantially improved but don't expect any monumental jump in stiffness on account of the larger-diameter spindle – the difference is very slight and unlikely to be noticed underfoot by most.

So what does this mean for Red?

Arguments between the virtues and vices of the three major component groups aside, this latest Force iteration raises interesting questions for the fate of SRAM's flagship Red package as it offers a superb weight-to-price ratio and excellent overall performance with just a handful of minor areas of improvement.

Aside from a slightly lighter weight, standard ceramic bearings and Zero Loss right-hand shifter internals, there's little motivation to upgrade and diminishing returns based on cost.

Our prediction? Red will simply move further upscale for 2011. Our bets are on a new ultralight crankset using carbon technology from new purchase Zipp, a more heavily milled-out (and smoother shifting) cassette using X-Dome features from the XX mountain bike group, and possibly some more intriguing brake calipers, too.

In the meantime, Force buyers will be well served knowing they're getting nearly all of the function and performance of the top dog at a much lower price. But if you're willing to deal with another 100g or so, SRAM's value king Rival group is almost an exact replica of Force in terms of function and around £400 cheaper.

Prices and weights:

SRAM Force DoubleTap levers, pair, w/o cables315gUS$450£379
SRAM Force rear derailleur173g$138£108
SRAM Force front derailleur, braze-on89g$55£42
SRAM Force GXP crankset, 172.5mm, 53/39T695g$287£242
SRAM Force GXP bottom bracket125g$35£25
SRAM Force brake calipers, pair, w/pads and hardware287g$180£154
SRAM PG-1070 cassette, 11-25T230g$98£67
SRAM PC-1070 chain, 114 links, w/PowerLock260g$68£43
Total:2,174g$1,311£1,060
