Specialized launches 3D printed saddle with new Mirror Technology

Specialized lifts the lid on their new Mirror Technology with launch of a 3D printed Power saddle

Image 1 of 5

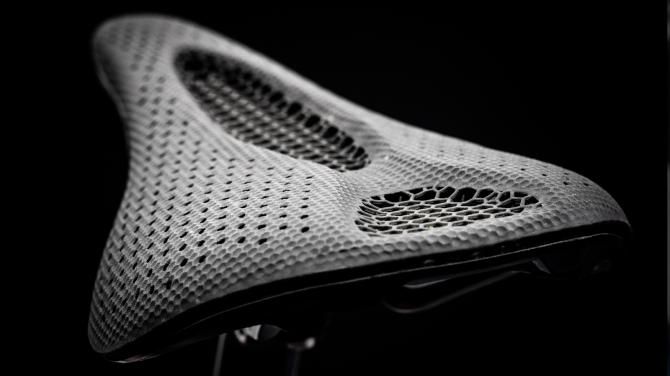

14,000 struts and 7,799 nodes make up the structure, each of which can be tuned individually

14,000 struts and 7,799 nodes make up the structure, each of which can be tuned individually (Image credit: Specialized)
Image 2 of 5

Peter Sagan first saw the saddle at the Tour de France

Peter Sagan first saw the saddle at the Tour de France (Image credit: Specialized)
Image 3 of 5

Marcus Burghardt checks out the saddles, which come with varying shapes for different anatomies

Marcus Burghardt checks out the saddles, which come with varying shapes for different anatomies (Image credit: Russ Ellis)
Image 4 of 5

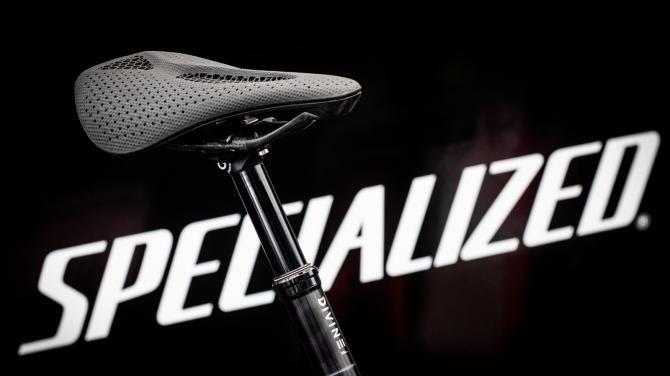

The 3D printed upper is adhered to the carbon base and rails

The 3D printed upper is adhered to the carbon base and rails (Image credit: Specialized)
Image 5 of 5

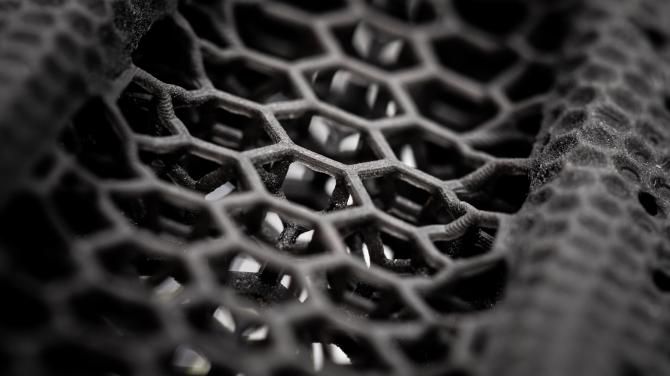

A close up of the honeycomb structure in the central channel

A close up of the honeycomb structure in the central channel (Image credit: Michal Cerveny)
Related Articles

Hexo is the world's first custom 3D-printed cycle helmet

Specialized road bikes 2019: range, details, pricing and specifications

10 best road cycling saddles available in 2019

Specialized launch new Turbo RapidAir tubeless tyre at the Tour De France

The Musette: retro kit, tan sidewalls and more

Specialized has today launched an all-new Power saddle which has been created using its new Mirror Technology. This technology uses a process called Digital Light Synthesis to 3D-print from a liquid polymer.

Specialized has teamed up with Carbon, a company that uses its own CLIP (Continuous Liquid Interface Production) technology, to harness light and oxygen to 3D print objects from a pool of resin, eliminating the layer-by-layer approach.

Light is used to print the lattice structure before a second chemical reaction occurs in a forced-circulation oven, strengthening and setting the material's final properties. This structure replaces the saddle's traditional foam and is affixed to the carbon base.

Mirror Technology comprises a patent-pending lattice structure that is made up of 14,000 struts and 7,799 nodes, each of which can be tuned individually, enabling Specialized to infinity vary the polymer's density. According to Specialized, it would take thousands of different density foams in a single saddle to replicate.

(Image credit: Specialized)

The saddle has been tested by riders from Bora-Hansgrohe, Deceuninck-Quickstep, and has been raced by Christopher Blevins during the Val di Sole UCI MTB World Cup. Specialized's Body Geometry team have validated Mirror Technology's ability to reduce soft tissue pressure, assure penile blood flow and improve sit bone comfort for both men and women.

(Image credit: Russ Ellis)

The new technology can also speed up research and development, as well as manufacturing time. In a year, Specialized has created over 70 designs for this saddle with new concepts being rideable within a day.

The Morgan Hill-based firm has high expectations for the technology; it's already testing the technology for improvements in vibration damping as well as pelvic stability, and it envisages a future where riders can have custom printed touchpoints based on individual preferences.

The saddle will be available to buy early 2020, with pricing yet to be announced.
