FSA shows off prototype wireless groupset at Eurobike

Image 1 of 34

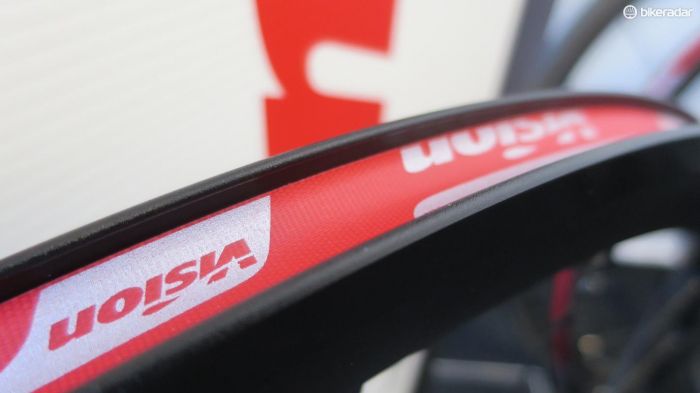

The new Trimax 35 wheels from Vision feature a wider profile rim

The new Trimax 35 wheels from Vision feature a wider profile rim (Image credit: Immediate Media)
Image 2 of 34

The new alloy Gossamer BB386 crankset looks far classier than the model it replaces, and its available in 1x too

The new alloy Gossamer BB386 crankset looks far classier than the model it replaces, and its available in 1x too (Image credit: Immediate Media)
Image 3 of 34

The Comet is just one of FSA's new BB392 standard mountain bike cranksets

The Comet is just one of FSA's new BB392 standard mountain bike cranksets (Image credit: Immediate Media)
Image 4 of 34

The double ring alloy Gossamer Pro, which we expect to see specced as original equipment on a lot of 2016 bikes

The double ring alloy Gossamer Pro, which we expect to see specced as original equipment on a lot of 2016 bikes (Image credit: Immediate Media)
Image 5 of 34

The SL-K -20 degree stem has a shallow 28mm steerer clamp

The SL-K -20 degree stem has a shallow 28mm steerer clamp (Image credit: Immediate Media)
Image 6 of 34

The SL-K -20 is designed to help lower the front end of 27.5 and 29inch bikes

The SL-K -20 is designed to help lower the front end of 27.5 and 29inch bikes (Image credit: Immediate Media)
Image 7 of 34

The Extralight bar from FSA tips the scales at just 167g for the 40cm wide model

The Extralight bar from FSA tips the scales at just 167g for the 40cm wide model (Image credit: Immediate Media)
Image 8 of 34

The hollow carbon SL-K BB392 crankset weighs in at just 438g

The hollow carbon SL-K BB392 crankset weighs in at just 438g (Image credit: Immediate Media)
Image 9 of 34

The new Vision Metron Aero stem

The new Vision Metron Aero stem (Image credit: Immediate Media)
Image 10 of 34

The all carbon stem even hides its titanium hardware out of the way

The all carbon stem even hides its titanium hardware out of the way (Image credit: Immediate Media)
Image 11 of 34

The Aero stem's main body is a one-piece full carbon monocoque construction

The Aero stem's main body is a one-piece full carbon monocoque construction (Image credit: Immediate Media)
Image 12 of 34

The Aero stem presents a smooth forward facing front for aero efficiency

The Aero stem presents a smooth forward facing front for aero efficiency (Image credit: Immediate Media)
Image 13 of 34

Vision's all-new Metron TT crankset is a sleek little number

Vision's all-new Metron TT crankset is a sleek little number (Image credit: Immediate Media)
Image 14 of 34

FSA's line-topping K-Force Light carbon MTB crankset weighs 495g

FSA's line-topping K-Force Light carbon MTB crankset weighs 495g (Image credit: Immediate Media)
Image 15 of 34

A triple-ringed FSA SL-K crankset will set you back €599

A triple-ringed FSA SL-K crankset will set you back €599 (Image credit: Immediate Media)
Image 16 of 34

The SL-K crankset is also available in double and 1x formats

The SL-K crankset is also available in double and 1x formats (Image credit: Immediate Media)
Image 17 of 34

The aero-shaped direct mount brake

The aero-shaped direct mount brake (Image credit: Immediate Media)
Image 18 of 34

The aero-shaped direct mount brake

The aero-shaped direct mount brake (Image credit: Immediate Media)
Image 19 of 34

The new Trimax alloy rims now have a wider 23.7 (18.9mm internal) shape

The new Trimax alloy rims now have a wider 23.7 (18.9mm internal) shape (Image credit: Immediate Media)
Image 20 of 34

The Trimax rim is now CNC machined between the spoke beds to reduce weight

The Trimax rim is now CNC machined between the spoke beds to reduce weight (Image credit: Immediate Media)
Image 21 of 34

Like the Trimax the budget Team alloy rims also have a wider rim

Like the Trimax the budget Team alloy rims also have a wider rim (Image credit: Immediate Media)
Image 22 of 34

The new hubs feature PRA (Preload reduction adjustment) hubs for ease of maintenance

The new hubs feature PRA (Preload reduction adjustment) hubs for ease of maintenance (Image credit: Immediate Media)
Image 23 of 34

The base-model Team 30 all alloy wheelset tip the scales at 1920g a pair

The base-model Team 30 all alloy wheelset tip the scales at 1920g a pair (Image credit: Immediate Media)
Image 24 of 34

The Team 35's rim has a blunted aero shape to match its new wider track

The Team 35's rim has a blunted aero shape to match its new wider track (Image credit: Immediate Media)
Image 25 of 34

The wire exit on the FSA rear derailleur looks far more convincing than SRAM's efforts to hide its wireless design

The wire exit on the FSA rear derailleur looks far more convincing than SRAM's efforts to hide its wireless design (Image credit: Immediate Media)
Image 26 of 34

Up close and personal with the new Prototype 201 wireless rear derailleur

Up close and personal with the new Prototype 201 wireless rear derailleur (Image credit: Immediate Media)
Image 27 of 34

The front derailleur 'Prototype 277' features a bank of four LEDs alongside a power button, set button and check button

The front derailleur 'Prototype 277' features a bank of four LEDs alongside a power button, set button and check button (Image credit: Immediate Media)
Image 28 of 34

The LED's light up when shifting on this prototype, but as we shifted when the chain wasn't moving the red led blinked and the derailleur corrected itself

The LED's light up when shifting on this prototype, but as we shifted when the chain wasn't moving the red led blinked and the derailleur corrected itself (Image credit: Immediate Media)
Image 29 of 34

The prototype levers are slimmer than most and shown here with no covers

The prototype levers are slimmer than most and shown here with no covers (Image credit: Immediate Media)
Image 30 of 34

The shifter buttons act like a vertical rocker switch

The shifter buttons act like a vertical rocker switch (Image credit: Immediate Media)
Image 31 of 34

The back of the shifter showing the locations of the actual switches behind the rocker

The back of the shifter showing the locations of the actual switches behind the rocker (Image credit: Immediate Media)
Image 32 of 34

Up close with the long vertical rocker switch

Up close with the long vertical rocker switch (Image credit: Immediate Media)
Image 33 of 34

The K-Force dual pivot brake has been redesigned to take wider rims

The K-Force dual pivot brake has been redesigned to take wider rims (Image credit: Immediate Media)
Image 34 of 34

FSA's Prototype 201 wireless groupset

FSA's Prototype 201 wireless groupset (Image credit: Immediate Media)

This article originally appeared on BikeRadar

For 2016, FSA and Vision are making major revamps to cranks, wheels, bars and stems. More intriguingly, in the same week SRAM finally took the wraps off its Red eTap electronic drivetrain, FSA also showed off a prototype of its own wireless shifting system, which was spotted in the wild at this year's Tour de France.

FSA road range: No-wires groupset preview

Let's deal with that juicy glimpse of wireless groupset first of all. Although reps remained tight-lipped as to technical details, we did get a chance to have a good look over the group and fiddle with the gear shifting on what was a fully working prototype.

The main point of difference seems to be with the levers. Sitting behind the brake lever are two-way rocker switches that handle up and downshifts (right lever for the rear derailleur, left lever for the front).

While shifting is wireless, both derailleurs had wires coming from them and running into the normal channels of the S-Works Tarmac frame they were fitted to, which suggests one central battery supplying power to the derailleurs while the levers have their own independent power source. As we say, this is only speculation but FSA did tell us that the system isn't far away from completion – so we look forward to being able to test the group in anger out on the road.

Up close with the new Prototype 201 wireless rear derailleur

Turning to road products that we know the public will be able to get their hands on in the coming months, FSA has revamped the Gossamer Pro alloy crankset to follow the design form of the range-topping K-Force light. That means it now has the asymmetric bolt pattern of the carbon model and also has the same single bolt circle diameter (BCD) no matter whether you're running CX-style 42/36 or a standard 53/39.

The new crankset, priced at €249.80, looks great in the flesh with its aggressive angular styling and it's a million miles away from the old budget-looking Gossamer we usually find on complete bikes. The new Gossamer is pretty good on the scales too tipping the scales at 751g (including 50/34 chainrings), and there's also a 1x (Megatooth ring) version available.

The double ring alloy Gossamer Pro, which we expect to see specced on a lot of 2016 bikes

While sister brand Vision has an all-new aero bar (more on which below), FSA has gone for lightweight. The new Extralight being the lightest road bar it's ever, weighing a lowly 167g (40cm) and priced at a not quite so light on the pocket €325.

FSA's rim brakes have had a further revamp with the standard dual pivot brake now ready for rim widths up to 28mm and featuring a more angular and (it's claimed) more aero shape. The K-Force dual pivots weigh 299g a pair and are priced at €378.90.

For aero bikes and TT machines FSA has also launched a new direct mount brake. Having a bit of the Campagnolo Delta look about them, these fully cowled beauties are aerodynamically designed but will still handle wide (28mm) rims and have a central QR switch on the centrally mounted cable stop. They tip the scales at 350g a pair and are priced at €116.60 each for front or rear.

FSA MTB range: Fresh crank standard and racy stems

For mountain bikes, FSA is bringing a whole new standard to cranksets – but before you start groaning about yet another ‘standard' it may be worth taking note of FSA's BB392EVO.

The crankset is based around an alloy 30mm axle that's long enough to work with every bottom bracket standard out there, so that's good old BSA, PF, BB30, BB92 and any variants therein. The new crankset range is topped by the hollow carbon-armed K-Force light, which tips the scales at 495g (including rings for the triple) and just 425g for the 1x version with FSA's own Megatooth chainring. A double is also available.

A triple-ringed SL-K crankset will set you back €599

Next in line is the SL-K, which in a 1x setup with a 76mm BCD tips the scales at 438g.

Pricing starts at €649 for the K-Force Light 1x, €669 for the double, and €679 for the triple. For the SL-K its €579 (1x) €589 (2x) €599 (3x). No US or UK prices are available yet.

Staying with the FSA mountain bike range, there's also a new, aggressively dropped -20 degree stem, which has been designed to lower your front end ride position with an eye on smaller sized 29ers or riders looking to get a more racy and aggressive position.

The flat-headed design is available in sizes from 50mm to 120mm in 10mm increments. The slender steerer clamp has 28mm of stack height and the 80mm version tips the scales at a meagre 162g. The SL-K -20 degree is priced at €115 (no US or UK prices are available yet).

The SL-K -20 stem is designed to help lower the front end of 27.5 and 29in bikes

FSA has also looked to ramp things up on its mountain bike wheel lines, with the flagship carbon K-Force 27.5 and 29er wheelsets tipping the scales at 1414g and 1464g a pair respectively.

The new K-Force wheels are built around a whole new rim design. The 25mm deep x 26.1mm wide all-carbon rim is tubeless ready and both front and rear rims are designed asymmetrically. The asymmetric profile has allowed FSA to reduce the spoke count (24 two-cross front, 24 two-cross rear) while, according to the firm, maintaining strength.

There are also new hub designs to match the fresh rims, which feature a six-pawl freehub that handles pickup in pairs of three pawls. FSA claims this means drive pickup is almost instantaneous with little or no loss of power.

The hubs' 45-degree angular contact bearings are held in place with a new designed cap called PRA (preload adjustment assembly), which allows for easy bearing load adjustment without the risk of over tightening and damaging the bearings.

New SL-K wheelsets feature the same PRA hubs, and carbon rims to the same dimensions. The SL-Ks weigh in at 1500g a pair for 29in hoops, and 1450g for 27.5s.

Pricing so far is in euros only with the K-Force 29s and 27.5s at €1699.30 a pair, while the SL-Ks are €100 cheaper.

Vision 2016: Bar and stem progressions

Vision's 2016 range includes an all-new Metron TT crankset, and for the first time it includes an option for 1x drivetrains thanks to the inclusion of a Megatooth chainring. The single ring version is the slipperiest crankset Vision have produced, improving its aero efficiency over the previous model by a claimed 7.5 percent.

Vision's all-new Metron TT crankset is a sleek little number

The full crankset and ring tips the scales at 744g and a standard double chainring version is also available. The fully faired carbon crankset is available in 170 through 177.5 lengths and is priced at €907.40.

At the entry-to-mid level, Vision's older T30 and T35 wheel designs have been looking somewhat long in the tooth, so we were glad to see it launching a new rim design for the alloy range.

As with the FSA mountain bike line there's a switch to a new asymmetric rim design, and with the new T30 being 30mm deep and 23.7mm wide with a 18.9mm internal these should fare a lot better with wider 25c rubber than the outgoing super slender alloy rim did.

The rims are built onto the PRA system hubs and the Trimax 30s tip the scales at 1580g a pair and will retail for €649. The entry level Team 30 also shares the same rim profile but built onto a standard hub (with aero-bladed spokes) and weighs 1920g with a price tag of €285. We expect to see the Team 30s turning up on plenty of new bikes as original equipment.

The new Vision hubs feature PRA (preload reduction adjustment) hubs for ease of maintenance

Up front Vision had a whole new bar and stem combination. The former is the new Metron Aero carbon stem. It was built and designed at the request of Mark Cavendish who wanted a more aero (and stiffer) set up for his S-Works Venge.

The Metron Aero stem weighs 162g (120mm) so it's in no way heavy, and features a monocoque carbon construction body with carbon faceplate and titanium hardware. Under wind tunnel testing it was found to reduce aero drag by 86 percent over the previous standard stem design.

To match the new stem there's a fresh bar called the Metron 4D compact, which weighs 240g and features a 125mm ergo drop, 80mm of reach with a 2 degree outward sweep on the drops and a 5mm offset (so it sits in line with the levers on SRAM and Shimano).

The aero shaped top has a 10-degree forward shift. Vision told us that's because plenty of professionals are opting to ride a smaller bike than usual to get a more aero position, which compromises their comfort by becoming too cramped. Adding this forward shape the can effectively extend the reach of the bike by around 10mm.
