Tech feature: Gary Fisher road launch

Image 1 of 43

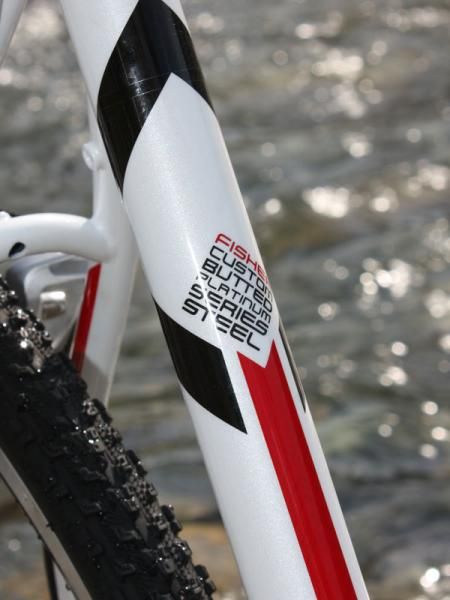

Gary Fisher admits the steel tubes on the Presidio 'cross frame aren't as light as carbon fiber (claimed frame weight is 2,120g) but the payoff is a smoother ride.

Gary Fisher admits the steel tubes on the Presidio 'cross frame aren't as light as carbon fiber (claimed frame weight is 2,120g) but the payoff is a smoother ride. (Image credit: James Huang)
Image 2 of 43

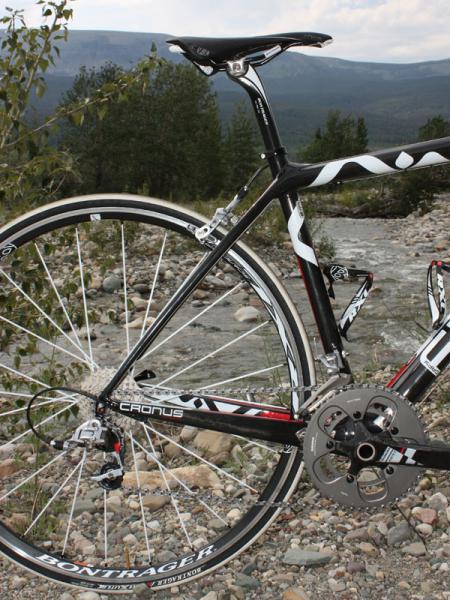

The Gary Fisher name is almost synonymous with mountain bikes but the new Cronus shows off his road chops, too, with an impressively quick chassis and well sorted geometry.

The Gary Fisher name is almost synonymous with mountain bikes but the new Cronus shows off his road chops, too, with an impressively quick chassis and well sorted geometry. (Image credit: James Huang)
Image 3 of 43

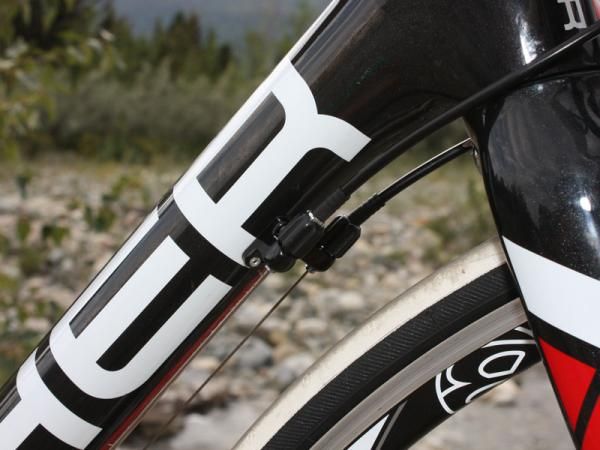

Internal cable routing looks nice but racers that have to do their own maintenance will likely appreciate the easily acceptable external layout with built-in barrel adjusters at the down tube for on-the-fly shifting tweaks.

Internal cable routing looks nice but racers that have to do their own maintenance will likely appreciate the easily acceptable external layout with built-in barrel adjusters at the down tube for on-the-fly shifting tweaks. (Image credit: James Huang)
Image 4 of 43

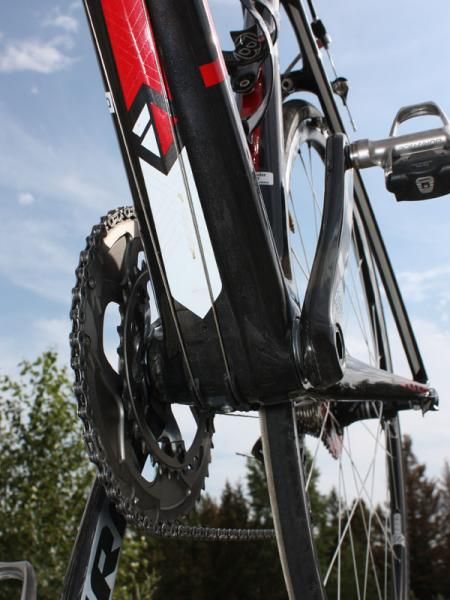

If the down tube on the new Cronus looks big to you, that's because it is. At roughly 76mm across, it's the biggest down tube the Trek corporation has ever produced.

If the down tube on the new Cronus looks big to you, that's because it is. At roughly 76mm across, it's the biggest down tube the Trek corporation has ever produced. (Image credit: James Huang)
Image 5 of 43

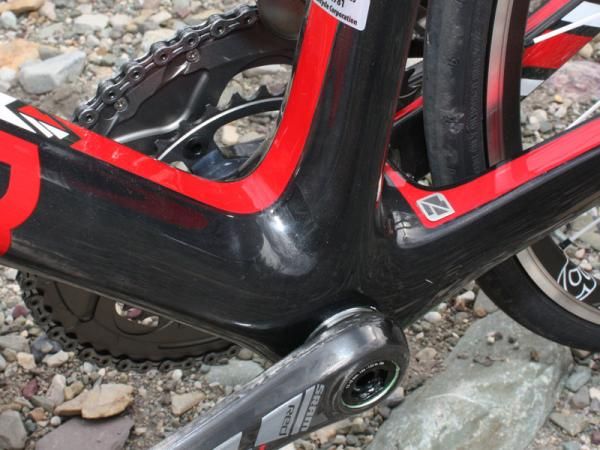

A common design theme on the Cronus is a central rib running the length of each main tube.

A common design theme on the Cronus is a central rib running the length of each main tube. (Image credit: James Huang)
Image 6 of 43

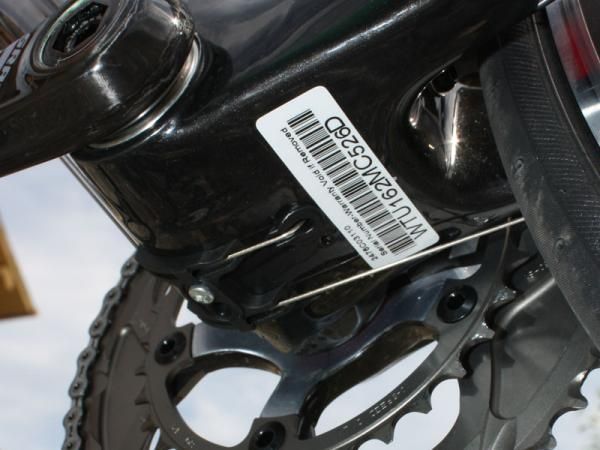

A molded plastic cable guide smoothes the bend as the cable makes its way up to the front derailleur.

A molded plastic cable guide smoothes the bend as the cable makes its way up to the front derailleur. (Image credit: James Huang)
Image 7 of 43

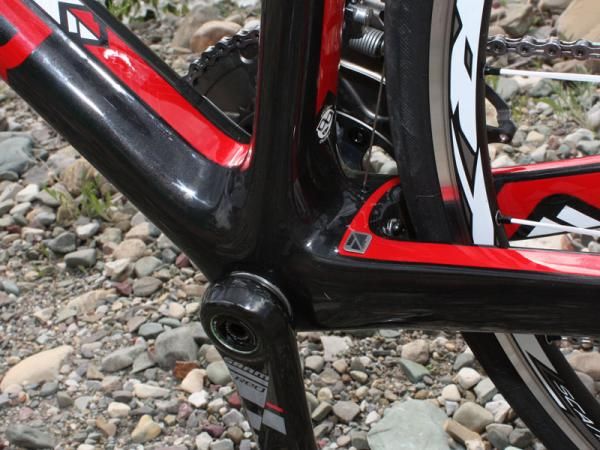

Gary Fisher has chosen the BB90 option for its integrated bottom bracket, preferring the extra width it affords to the down tube, seat tube and chain stays relative to BB30.

Gary Fisher has chosen the BB90 option for its integrated bottom bracket, preferring the extra width it affords to the down tube, seat tube and chain stays relative to BB30. (Image credit: James Huang)
Image 8 of 43

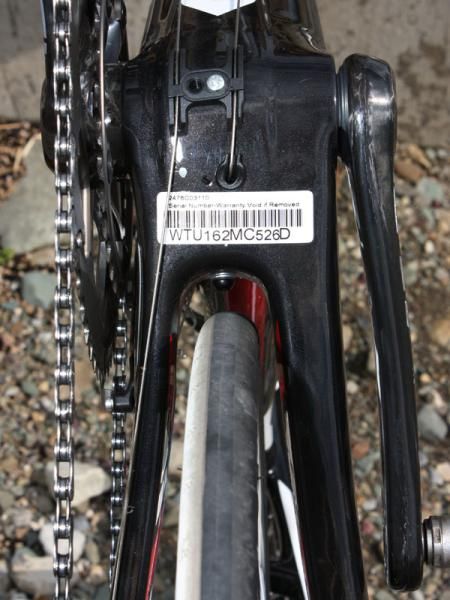

The chain stays are dramatically asymmetrical with the non-drive stay measuring nearly twice the width of the driveside tube.

The chain stays are dramatically asymmetrical with the non-drive stay measuring nearly twice the width of the driveside tube. (Image credit: James Huang)
Image 9 of 43

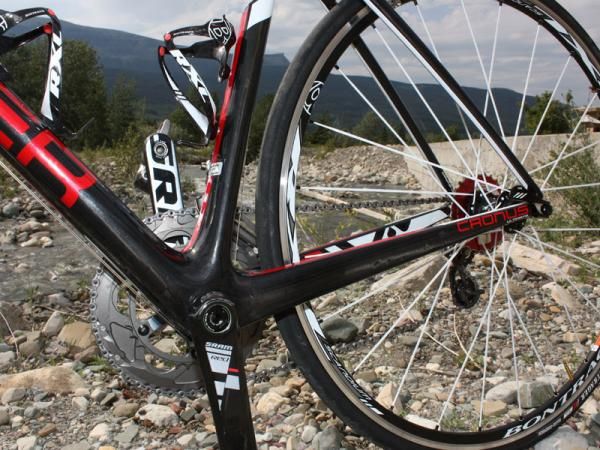

The Cronus' huge chain stays pay real noticeable dividends on the road.

The Cronus' huge chain stays pay real noticeable dividends on the road. (Image credit: James Huang)
Image 10 of 43

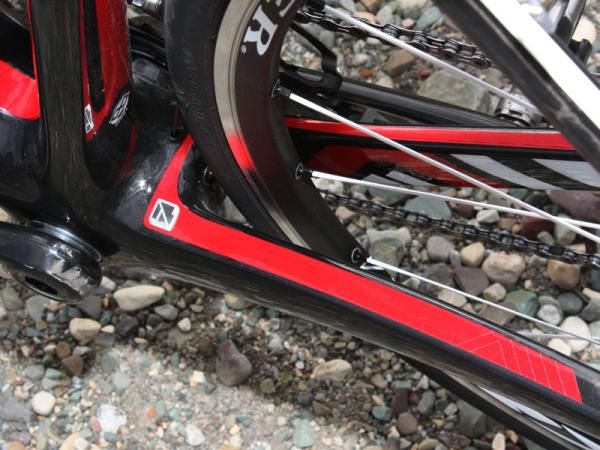

Gary Fisher pushes the non-drive chain stay right up to the edge of the bottom bracket shell.

Gary Fisher pushes the non-drive chain stay right up to the edge of the bottom bracket shell. (Image credit: James Huang)
Image 11 of 43

The small set screws at the aluminum dropouts aren't drain holes; they're just plugs for the optional fender mounts.

The small set screws at the aluminum dropouts aren't drain holes; they're just plugs for the optional fender mounts. (Image credit: James Huang)
Image 12 of 43

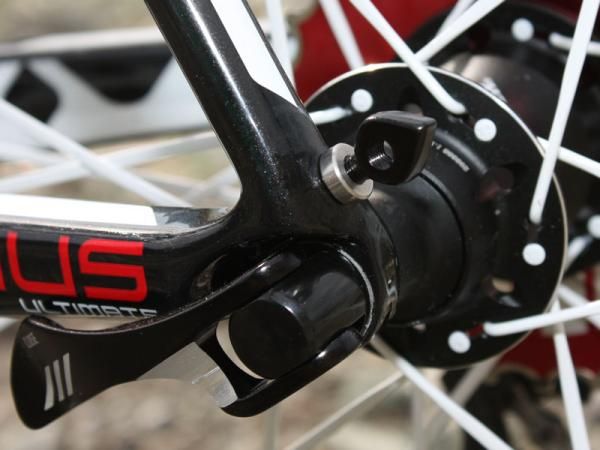

Simply unthread the plugs to provide a handy mounting point for the included rear fender mounts. Pacific Northwest riders, are you reading this?

Simply unthread the plugs to provide a handy mounting point for the included rear fender mounts. Pacific Northwest riders, are you reading this? (Image credit: James Huang)
Image 13 of 43

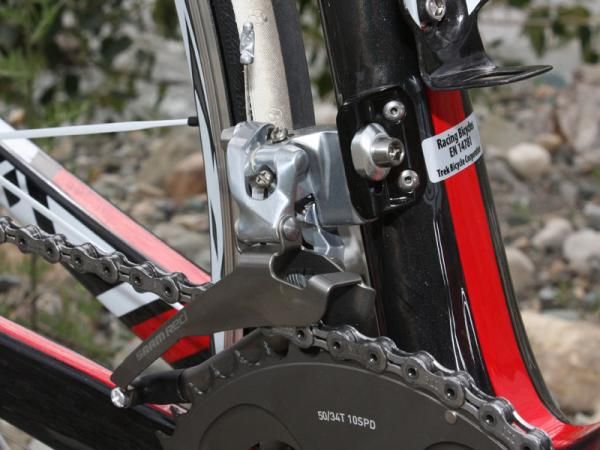

The stout front derailleur mount offers a solid foundation for good shifting performance.

The stout front derailleur mount offers a solid foundation for good shifting performance. (Image credit: James Huang)
Image 14 of 43

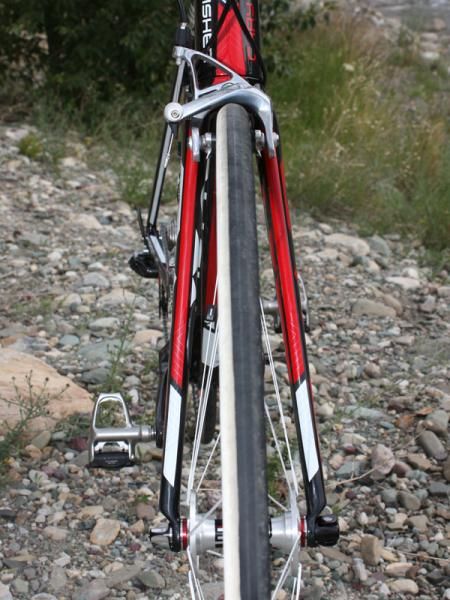

The 'Fisher Control Column' concept uses very widely spaced fork blades for additional steering precision.

The 'Fisher Control Column' concept uses very widely spaced fork blades for additional steering precision. (Image credit: James Huang)
Image 15 of 43

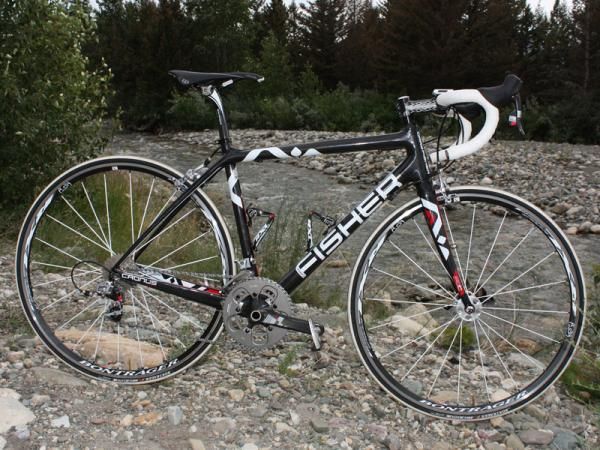

Unbeknowst to many, Gary Fisher has a long history of road racing and applies that knowledge to his new line of road and 'cross bikes, highlighted by the new Cronus Ultimate flagship.

Unbeknowst to many, Gary Fisher has a long history of road racing and applies that knowledge to his new line of road and 'cross bikes, highlighted by the new Cronus Ultimate flagship. (Image credit: James Huang)
Image 16 of 43

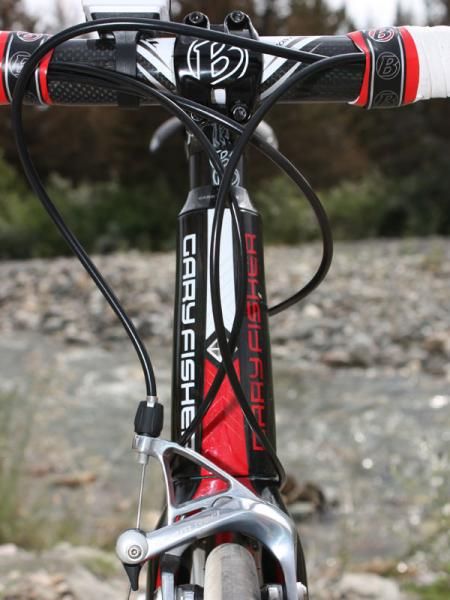

the Gary Fisher Cronus borrows the E2 tapered head tube and steerer design from its Trek Madone cousin.

the Gary Fisher Cronus borrows the E2 tapered head tube and steerer design from its Trek Madone cousin. (Image credit: James Huang)
Image 17 of 43

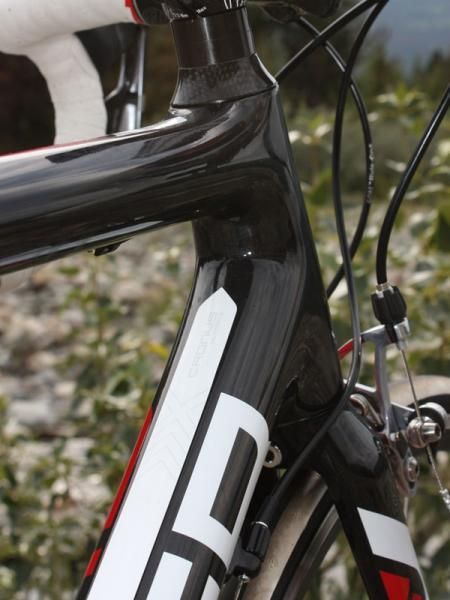

In addition to stiffening up the steering column, the tapered head tube also provides more surface area at the top tube and down tube junctions.

In addition to stiffening up the steering column, the tapered head tube also provides more surface area at the top tube and down tube junctions. (Image credit: James Huang)
Image 18 of 43

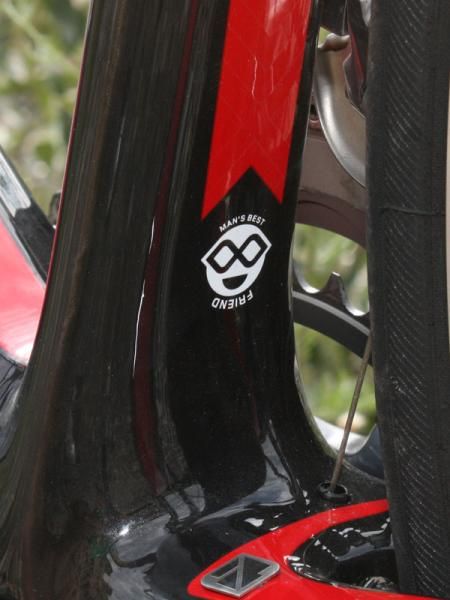

Long-time Gary Fisher bicycle aficionados will know this phrase well.

Long-time Gary Fisher bicycle aficionados will know this phrase well. (Image credit: James Huang)
Image 19 of 43

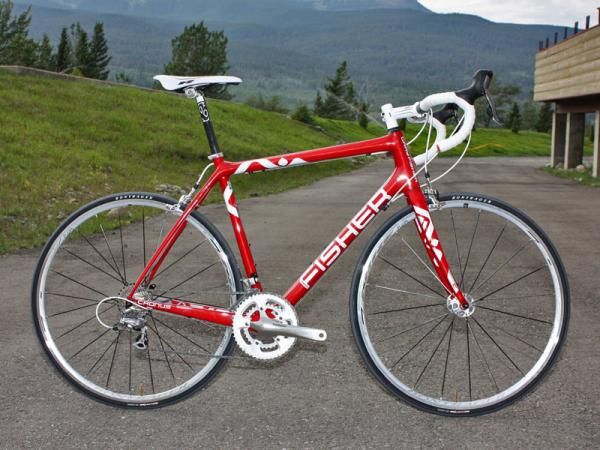

Gary Fisher will offer three different Cronus models, all of which will share the exact same frame.

Gary Fisher will offer three different Cronus models, all of which will share the exact same frame. (Image credit: James Huang)
Image 20 of 43

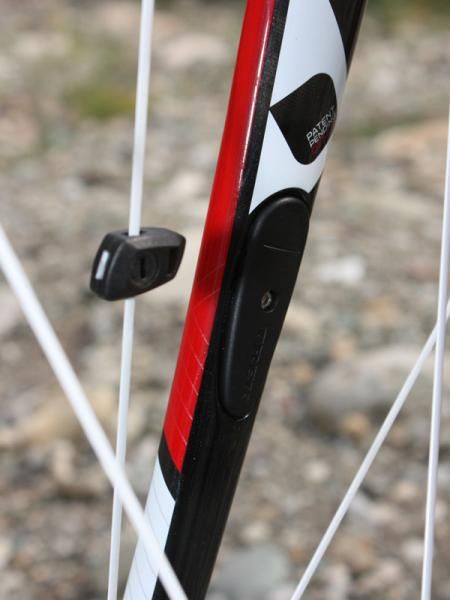

The FCC fork includes a recess for Trek's clever SpeedTrap wireless speed transmitter.

The FCC fork includes a recess for Trek's clever SpeedTrap wireless speed transmitter. (Image credit: James Huang)
Image 21 of 43

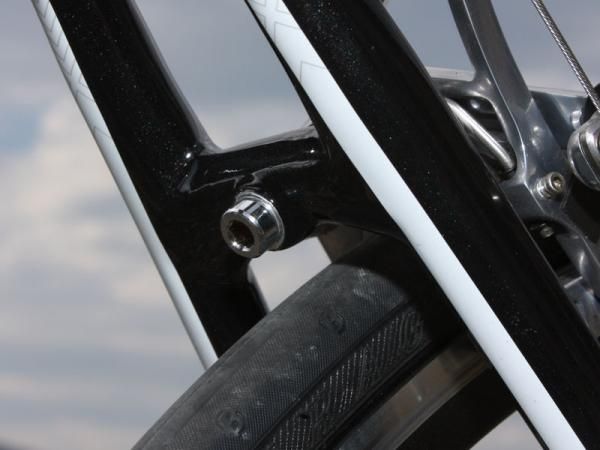

The custom brake mounting bolts are dual-threaded: 6x1mm at the caliper end as usual but 5x0.8mm on the backside for an easy (and stealthy) fender installation.

The custom brake mounting bolts are dual-threaded: 6x1mm at the caliper end as usual but 5x0.8mm on the backside for an easy (and stealthy) fender installation. (Image credit: James Huang)
Image 22 of 43

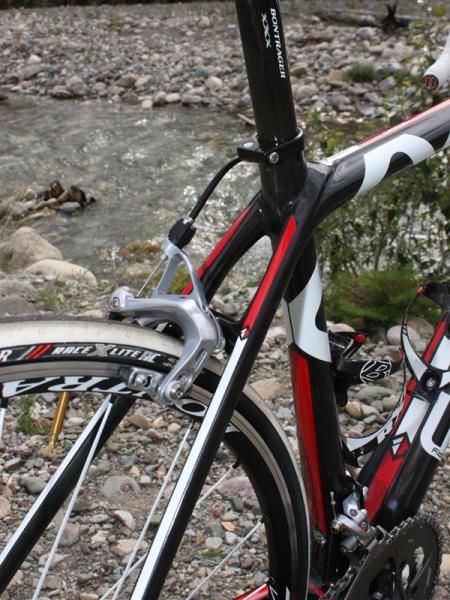

The Cronus uses a dual seat stay design instead of a wishbone layout.

The Cronus uses a dual seat stay design instead of a wishbone layout. (Image credit: James Huang)
Image 23 of 43

The chain stays are about as big as anything else out there but the seat stays aren't quite as spindly as some. As such, the back end is impressively stout but a little firmer-riding than some ultra-smooth competitors.

The chain stays are about as big as anything else out there but the seat stays aren't quite as spindly as some. As such, the back end is impressively stout but a little firmer-riding than some ultra-smooth competitors. (Image credit: James Huang)
Image 24 of 43

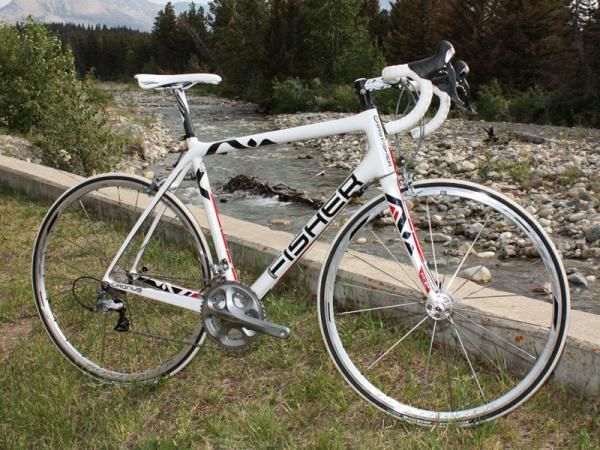

The mid-range Cronus Pro will come with a Shimano Ultegra 6700 drivetrain and Bontrager Race Lite FCC clincher wheels.

The mid-range Cronus Pro will come with a Shimano Ultegra 6700 drivetrain and Bontrager Race Lite FCC clincher wheels. (Image credit: James Huang)
Image 25 of 43

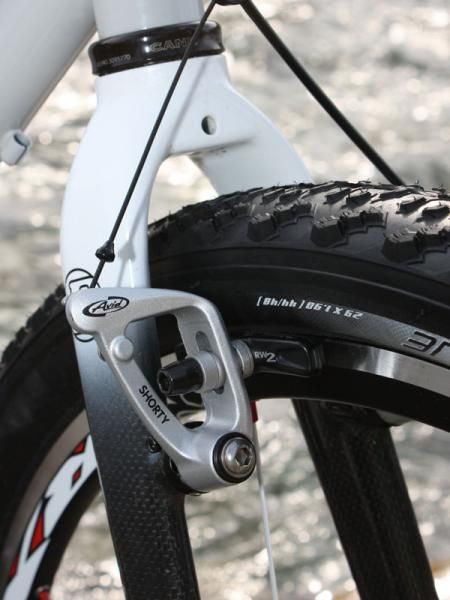

One common theme throughout the new Gary Fisher cyclo-cross line is huge tire clearance - enough for 29x1.9" mountain bike tires, in fact.

One common theme throughout the new Gary Fisher cyclo-cross line is huge tire clearance - enough for 29x1.9" mountain bike tires, in fact. (Image credit: James Huang)
Image 26 of 43

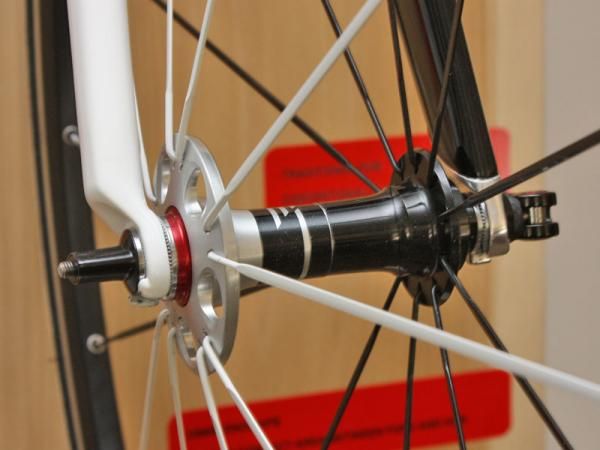

This side-by-side display (the conventional design is on the right) provides a good reference for how much bigger the FCC hub design is. In fact, FCC front wheels likely won't fit in most other forks.

This side-by-side display (the conventional design is on the right) provides a good reference for how much bigger the FCC hub design is. In fact, FCC front wheels likely won't fit in most other forks. (Image credit: James Huang)
Image 27 of 43

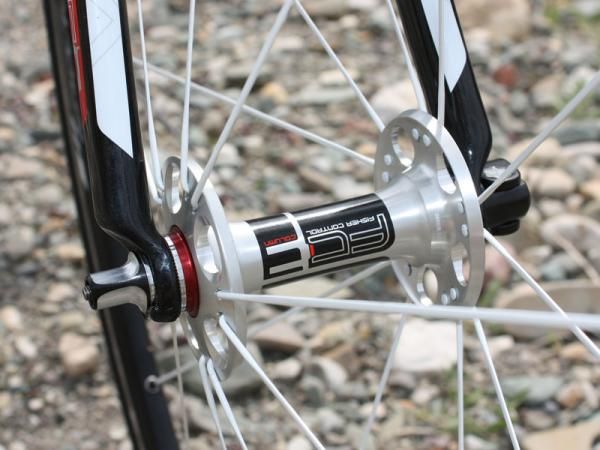

One key element to the FCC system is the front hub, which features very widely spaced and tall flanges, oversized hub end caps and a 'heads in' spoking configuration.

One key element to the FCC system is the front hub, which features very widely spaced and tall flanges, oversized hub end caps and a 'heads in' spoking configuration. (Image credit: James Huang)
Image 28 of 43

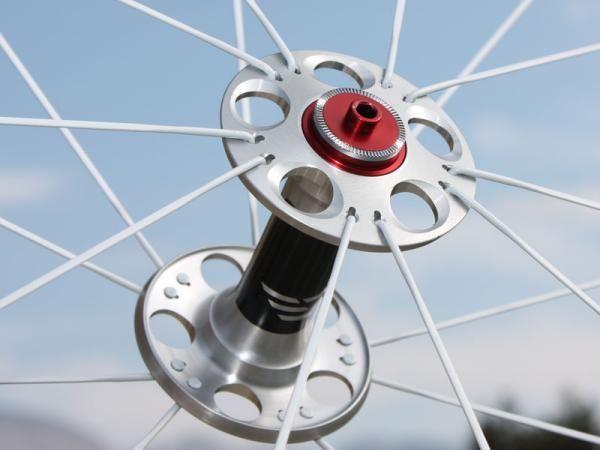

The FCC end caps are a full 25mm in diameter in comparison to a more common 19mm. Measured outside-to-outside, the hub flanges are a whopping 83mm apart.

The FCC end caps are a full 25mm in diameter in comparison to a more common 19mm. Measured outside-to-outside, the hub flanges are a whopping 83mm apart. (Image credit: James Huang)
Image 29 of 43

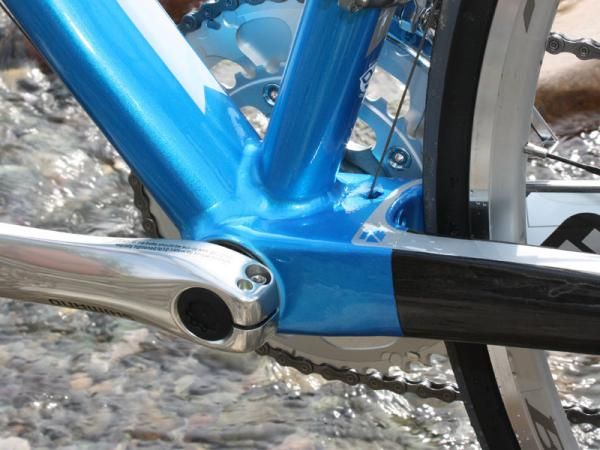

Gary Fisher says its new Ion aluminum and carbon fiber frame is the stiffest in the corporate range, thanks in part to giant tube cross-sections and the extra-wide BB86 bottom bracket shell.

Gary Fisher says its new Ion aluminum and carbon fiber frame is the stiffest in the corporate range, thanks in part to giant tube cross-sections and the extra-wide BB86 bottom bracket shell. (Image credit: James Huang)
Image 30 of 43

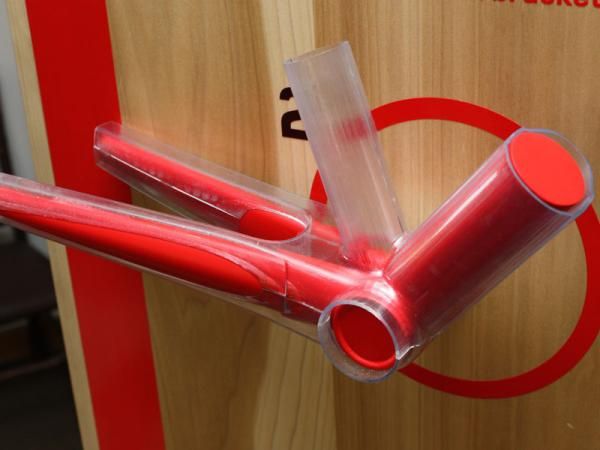

Gary Fisher went for stiffness first and foremost on the new Ion frame, whose tubes can almost completely surround the outer surface of the frame it replaces.

Gary Fisher went for stiffness first and foremost on the new Ion frame, whose tubes can almost completely surround the outer surface of the frame it replaces. (Image credit: James Huang)
Image 31 of 43

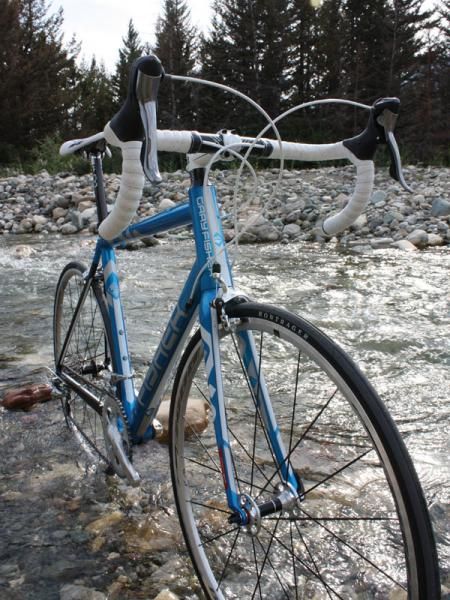

The Ion also uses the FCC front end design, including the E2 tapered head tube and steerer, widely spaced fork blades and custom FCC front hub.

The Ion also uses the FCC front end design, including the E2 tapered head tube and steerer, widely spaced fork blades and custom FCC front hub. (Image credit: James Huang)
Image 32 of 43

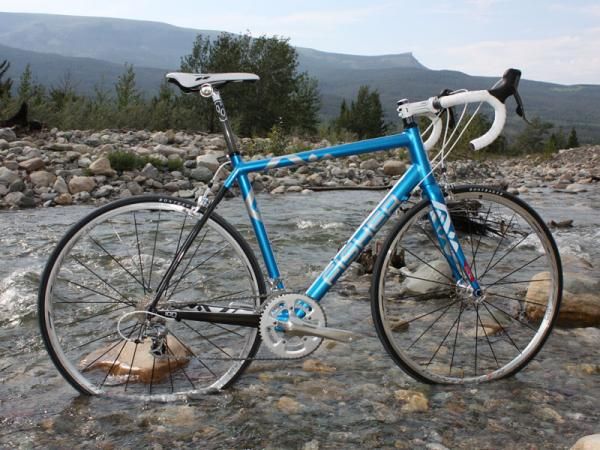

The new Gary Fisher Ion won't be the lightest frame in the range at about 1,400g but it's supposedly the stiffest bike in the Trek corporate lineup.

The new Gary Fisher Ion won't be the lightest frame in the range at about 1,400g but it's supposedly the stiffest bike in the Trek corporate lineup. (Image credit: James Huang)
Image 33 of 43

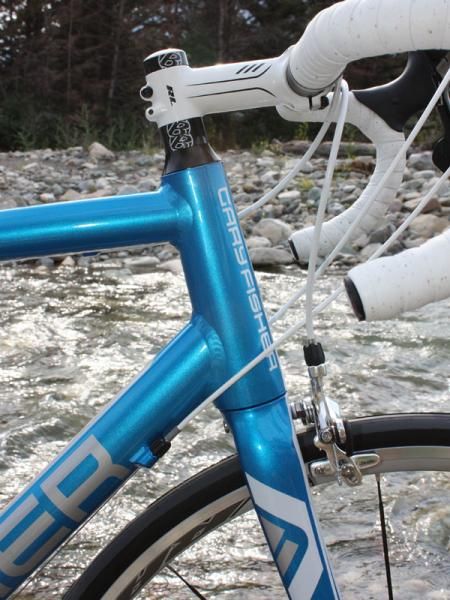

As on the Cronus, the E2 head tube on the Ion allows for a bigger and stiffer down tube.

As on the Cronus, the E2 head tube on the Ion allows for a bigger and stiffer down tube. (Image credit: James Huang)
Image 34 of 43

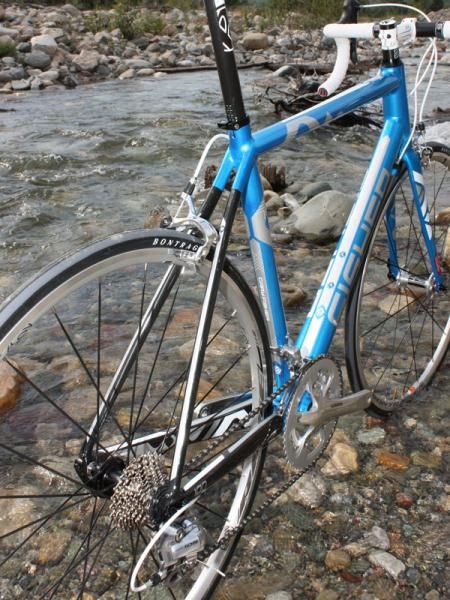

The back end of the Ion is essentially borrowed intact from the Cronus.

The back end of the Ion is essentially borrowed intact from the Cronus. (Image credit: James Huang)
Image 35 of 43

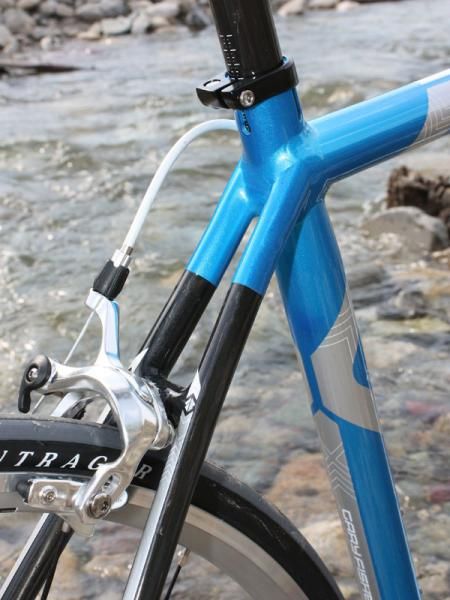

The Ion's joints feature a constant outer diameter for a clean look.

The Ion's joints feature a constant outer diameter for a clean look. (Image credit: James Huang)
Image 36 of 43

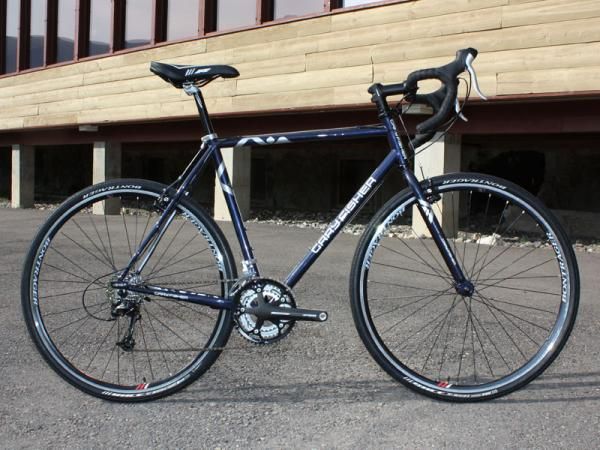

The Lane uses the same frame as the Presidio and Erwin but is intended more as a commuter rig out of the box.

The Lane uses the same frame as the Presidio and Erwin but is intended more as a commuter rig out of the box. (Image credit: James Huang)
Image 37 of 43

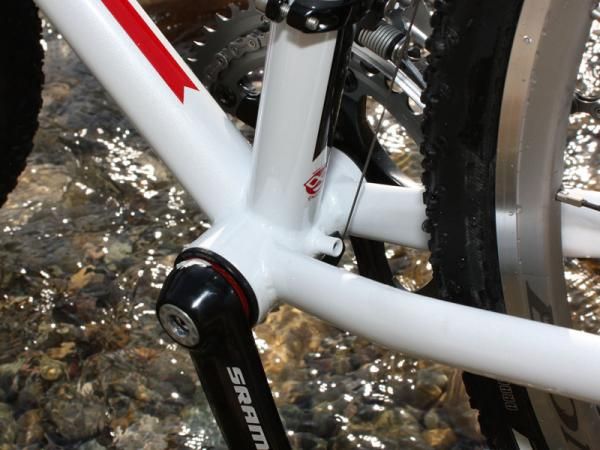

The bridgeless chain stays and wider spacing provided by the BB86 shell afford more mud clearance. Note the included fender mount.

The bridgeless chain stays and wider spacing provided by the BB86 shell afford more mud clearance. Note the included fender mount. (Image credit: James Huang)
Image 38 of 43

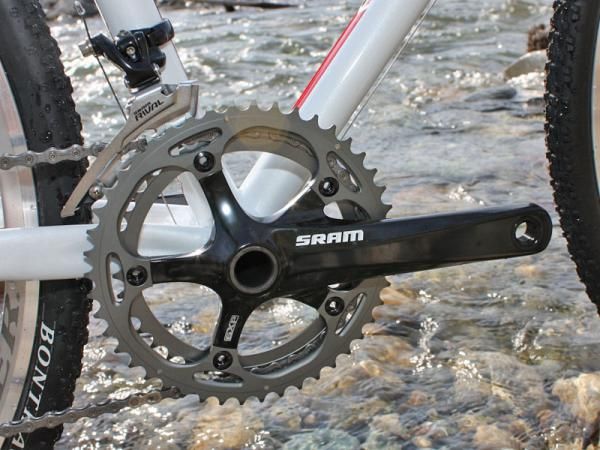

The Presidio and Erwin will come with 'cross-specific gearing.

The Presidio and Erwin will come with 'cross-specific gearing. (Image credit: James Huang)
Image 39 of 43

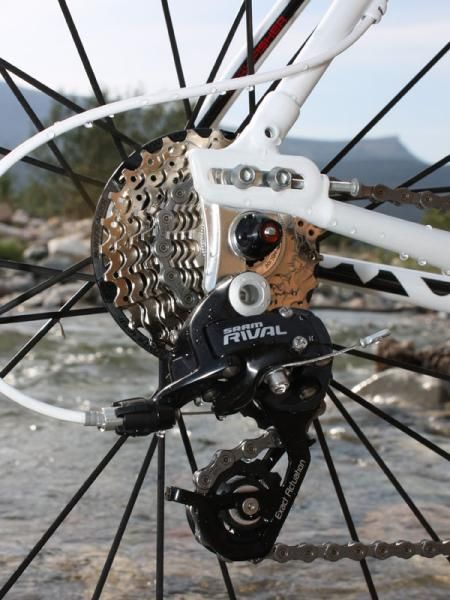

All Gary Fisher 'cross frames will feature sliding rear dropouts for geared or singlespeed versatility plus full fender mounts.

All Gary Fisher 'cross frames will feature sliding rear dropouts for geared or singlespeed versatility plus full fender mounts. (Image credit: James Huang)
Image 40 of 43

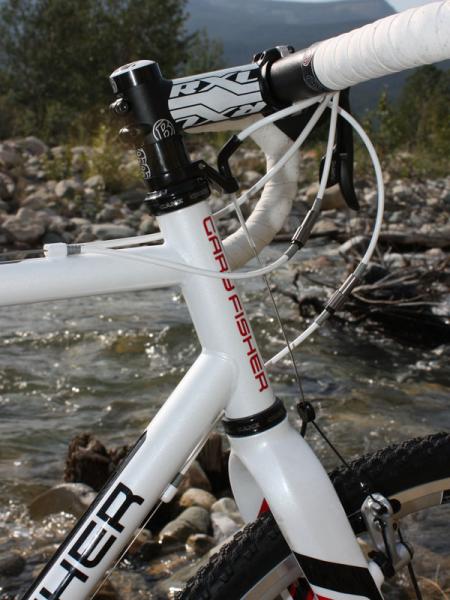

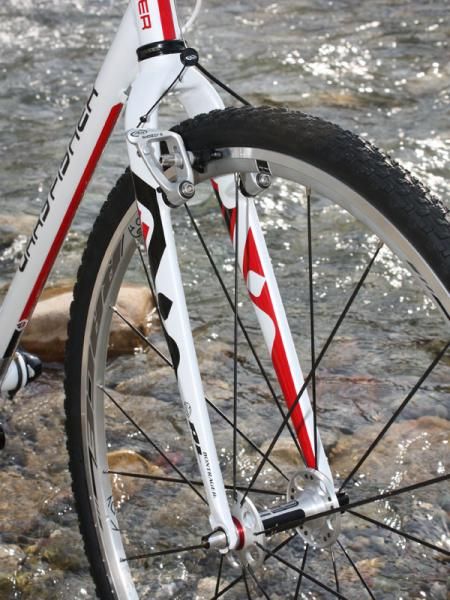

The Presidio doesn't get the full FCC treatment but still uses the widely-set fork blades and FCC hub.

The Presidio doesn't get the full FCC treatment but still uses the widely-set fork blades and FCC hub. (Image credit: James Huang)
Image 41 of 43

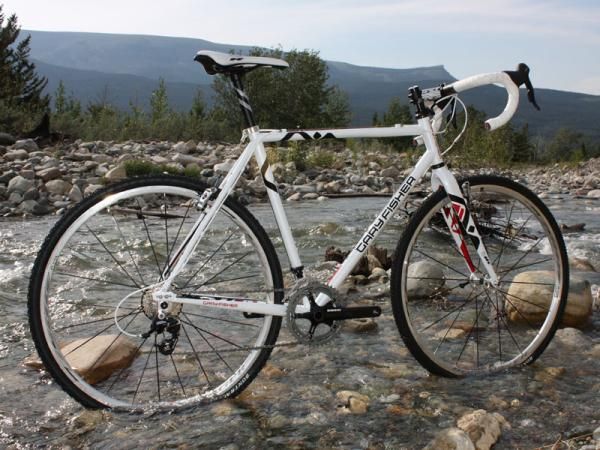

Gary Fisher is also debuting a new line of 'cross bikes, using the same concept of 'Race Utility'.

Gary Fisher is also debuting a new line of 'cross bikes, using the same concept of 'Race Utility'. (Image credit: James Huang)
Image 42 of 43

The Presidio gets a carbon fork but a straight 1 1/8" steerer.

The Presidio gets a carbon fork but a straight 1 1/8" steerer. (Image credit: James Huang)
Image 43 of 43

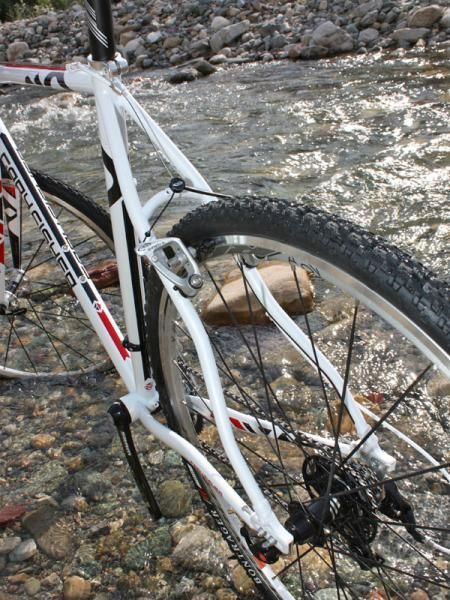

The seat stays also provide gobs of tire clearance thanks to generous spacing and small-diameter tubing.

The seat stays also provide gobs of tire clearance thanks to generous spacing and small-diameter tubing. (Image credit: James Huang)

Really? Road bikes from Gary Fisher?

Unbeknowst to many, the man commonly associated with the birth of mountain biking started out his career three decades ago as a road racer and has spent a healthy portion of his life on the pavement since then. For 2010, Gary Fisher will bring to market over a dozen new road models comprising four separate frame platforms as well as three 'cross bikes built around an all-new steel frame.

Rather than just debut yet another line of pure race bikes though the new Gary Fisher bikes espouse the concepts of 'smartly different' and 'Race Utility'. In other words, minimal weights and a few clever features still make the bikes very competition worthy but they also offer more practicality than the usual race only bikes.

Go fast

Take the new Cronus flagship for example, whose carbon frame weighs just 900g (56cm, fully painted) and builds up to a feathery 6.67kg (14.7lb) package in top-end Ultimate trim with SRAM Red and Bontrager Race X Lite FCC aluminum clincher wheels – easily well under the UCI weight limit if you swap in a set of carbon tubulars.

On the stiffness, side, the Cronus borrows the integrated BB90 bottom bracket shell from its Trek Madone cousin with its drop-in bearing design but takes even more advantage of the extra real estate it affords with notably bigger tube cross sections. The seat tube flares in width down below as with the Madone but the ovalized down tube measures a gargantuan 76mm across and the chain stays are visibly taller and wider. All of these tubes are noticeably asymmetrical as well to provide just enough clearance for a triple-chainring drivetrain if so desired.

Up front, Gary Fisher introduces the 'Fisher Control Column' for more precise handling. In addition to the tapered 1 1/8"-to-1 1/2" E2 steerer as used on the Madone, FCC also includes more broadly spaced 'Wide Stance' fork blades (spare us the Larry Craig jokes, please) plus a special front hub that and wheel design with extra-tall flanges pushed all the way out to the oversized 25mm-diameter end caps and heads-in spoke lacing for more triangulation.

In total, Gary Fisher says FCC yields a 27 percent improvement in lateral stiffness as compared to the next 'best in class' 2009 model year competitor without an adverse effect on comfort. Also, while FCC front hubs and wheels won't work in most other forks, the FCC fork's standard 100mm OLD dimension means you can still run any of your favorite race wheels without any problem.

If it sounds like this should produce a stiffer frame than the Madone, you win a lollipop (just tell the clerk at your local 7-Eleven we said so). After some persistent prodding, Gary Fisher product manager Aaron Mock even reluctantly admitted as such though he couldn't – or wouldn't – say by exactly how much.

Geometry-wise, the Cronus features relatively long top tubes for a given size along with generously proportioned head tubes (roughly on par with the Trek Madone's 'Performance' fit but with greater variation across the size range) to open up the rider's torso for better breathing and power output. Bottom bracket drops measure between 68-70mm for stability while the middle-of-the-road head tube angles range from 69.4 to 74 degrees depending on the size. Fork rakes vary from 45-55mm though to keep trail (and thus overall feel) relatively consistent throughout.

Go long

And what about utility on the new Cronus? In addition to the requisite 'stiff and light' checkboxes, Gary Fisher acknowledges that many racers will use their bikes for more than just racing and typically won't enjoy the same level of support as the pros: training rides don't always happen on smooth roads, not every bit of Earth is paved, Mother Nature doesn't always cooperate, and when something goes wrong there's no mechanic to hand the bike off to while you go and get your daily massage and muesli.

As such, ample clearances all around allows for up to 28mm-wide rubber, cable routing is fully external for easier maintenance, and the standard 27.2mm-diameter round seatpost adds comfort relative to deeper-section integrated designs and makes the bike easier to pack when traveling to events.

In addition, when the rain starts to fall – Pacific Northwest and UK riders pay attention here – very clever hidden fender mounts at the brake mounting nuts, chain stay wishbone, and rear dropouts and fork tips readily accept full-coverage fenders with virtually no disassembly required. Even better, the Cronus does all this while still using standard-reach brake calipers and you can still fit 700x25c tires under the fenders with room to spare.

Even sizing is well thought-out: Gary Fisher will offer the Cronus platform in eight standard sizes plus five women's-specific versions, each with consistent 20mm stack and 6mm reach increments for more logical size choices with no overlap.

Going to the sun

Our initial test run took place in rugged Glacier National Park, Montana and in spite of its relative brevity – and unfortunately for Trek – it's immediately apparent that the Cronus is stiffer and snappier under power than even the newest Madone, and seemingly not by as subtle a margin as the roughly 50g weight difference would suggest. Whereas the latest Madone is slightly smoother and perhaps better suited for longer rides, the Cronus is firmer-riding, edgier and more eager, making it an excellent option for US-style criteriums as long as the longer head tube suits you.

As promised, front-end rigidity in particular is especially superb and most noticeable when out of the saddle. Rise up to crest a climb with the bulk of your weight on the hoods and it feels more like you're rocking back and forth on a solid T-shaped pole instead of a bicycle. In fact, front-end stiffness on the Cronus is so good that it unfortunately almost makes the rear end with its narrowly spaced hub flanges feel one step behind.

As intended, the fit seems well-suited for a variety of purposes – our tester worked well for the 600m (2000ft) slog up to the top of Logan Pass, the moderately curvy descent back down, as well as the headwind-riddled drag race back to the St. Mary's side after we hit the flats again. We'll know more after we get some miles on familiar terrain on a proper production tester but the initial impression so far is quite favorable.

Go figure: the 'father of mountain biking' apparently knows a thing about road riding, too.

Other options

Gary Fisher will also offer an all-new aluminum and carbon platform called Ion. This mid-range offering also uses the complete FCC front end concept plus a rear end lifted almost entirely intact from the Cronus but a front triangle built with butted aluminum. In addition, the bottom bracket uses a slightly more conventional forged BB86 aluminum bottom bracket shell with press-fit cups instead of the Cronus' drop-in carbon unit.

According to Mock, the Ion's Cronus-like tube sizes make it "the stiffest bike we've ever made" and even trumps the carbon flagship but at a fairly hefty weight penalty – a 56cm painted Ion frame is over 50 percent heavier than the Cronus with a claimed weight of 1,375g (3.03lb). The Ion still boasts the same handy versatility features, though, such as the hidden fender mounts, ample tire clearance, standard 27.2mm round seatpost and external cable routing.

While the Ion might not appeal to wispy climber-types looking to minimize their bike weight-to-rider weight quotient, power riders might give the Ion a closer look.

The all-aluminum Rail road bike will carry into the new year unchanged but the 2010 season will bring an all-new range of 'cross bikes from Gary Fisher, all of which will share the identical butted steel frame. Mock acknowledges that the ferrous construction isn't as light as aluminum or carbon (claimed frame weight is 2,120g and the top-end Presidio is over 9.5kg) but the promised payoff is a smoother and more communicative ride plus a more appealing price point for privateer racers. The smaller tubes paired to the extra-wide BB86 press-fit bottom bracket shell also makes for massive tire clearance – enough to actually run 29x1.9" MTB tires with room to spare.

Up front, the steel bikes get a partial FCC treatment with the Wide Stance fork used throughout and FCC hub on the top-end Presidio but a straight, non-tapered 1 1/8" steerer. All models still get a dose of versatility though with full fender mounts at both ends, sliding dropouts across the board for geared or singlespeed use.

Gary Fisher will also use the same frame for the commuter-friendly Lane, which will arrive with smooth tires and a triple crankset.

Pricing and availability

Cronus models will begin to trickle into stores beginning August 1. The top-end Cronus Ultimate will fetch US$5,249.99 with SRAM Red while the mid-range Cronus Pro slots in at US$3,299 with Shimano Ultegra 6700. The base-level Cronus will substitute in a Shimano 105 mix for US$2,399.

The Ion will arrive a tad later around October 1 and will debut with two models: the Ion Pro at US$2,039 with Shimano 105 and the Ion Super at US$1,489.99 with Shimano Tiagra.

Unfortunately, 'cross bikes will accompany the Ion models at around the same time frame and thus will pretty much miss the coming mud season. The US$1,979.99 Presidio will come with a carbon-legged fork, SRAM Rival and Bontrager Race FCC wheels while the Erwin will come with Shimano Tiagra (pricing still to be determined).
