Teams crack out some new gear for Stage 2

Image 1 of 30

Campagnolo's electronic group showed its face again

Campagnolo's electronic group showed its face again (Image credit: James Huang)
Image 2 of 30

The electronic Ergopower levers look like standard issue

The electronic Ergopower levers look like standard issue (Image credit: James Huang)
Image 3 of 30

The updated group also gains a new computer head

The updated group also gains a new computer head (Image credit: James Huang)
Image 4 of 30

Lots of wires feed into the underside

Lots of wires feed into the underside (Image credit: James Huang)
Image 5 of 30

The distinctive winged Campagnolo logo

The distinctive winged Campagnolo logo (Image credit: James Huang)
Image 6 of 30

The battery is now integrated

The battery is now integrated (Image credit: James Huang)
Image 7 of 30

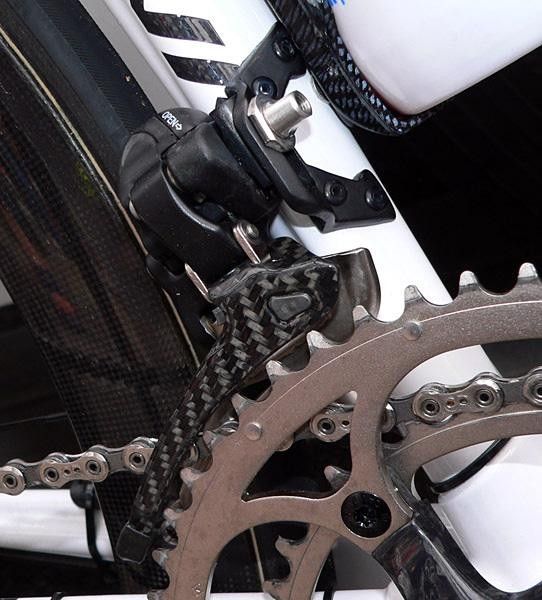

The front derailleur

The front derailleur (Image credit: James Huang)
Image 8 of 30

…but is still a bit tidier.

…but is still a bit tidier. (Image credit: James Huang)
Image 9 of 30

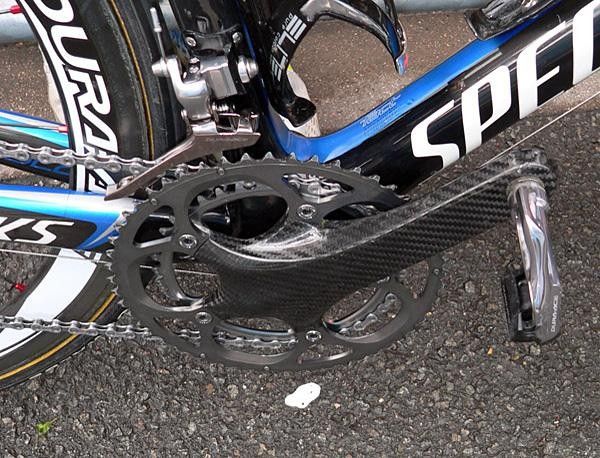

We don't have any indication of the new crankset's weight

We don't have any indication of the new crankset's weight (Image credit: James Huang)
Image 10 of 30

The backside of the crankset is smoothly contoured as well.

The backside of the crankset is smoothly contoured as well. (Image credit: James Huang)
Image 11 of 30

Campagnolo's electronic group showed its face again at Stage 2 of this year's Tour de France.

Campagnolo's electronic group showed its face again at Stage 2 of this year's Tour de France. (Image credit: James Huang/Cyclingnews.com)
Image 12 of 30

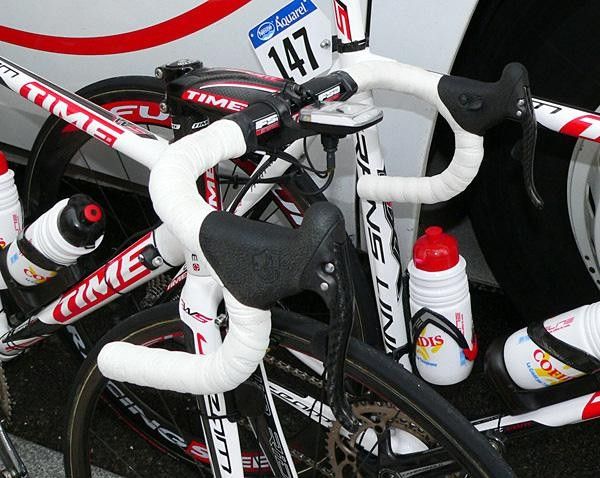

The electronic Ergopower levers look like standard issue from a distance…

The electronic Ergopower levers look like standard issue from a distance… (Image credit: James Huang/Cyclingnews.com)
Image 13 of 30

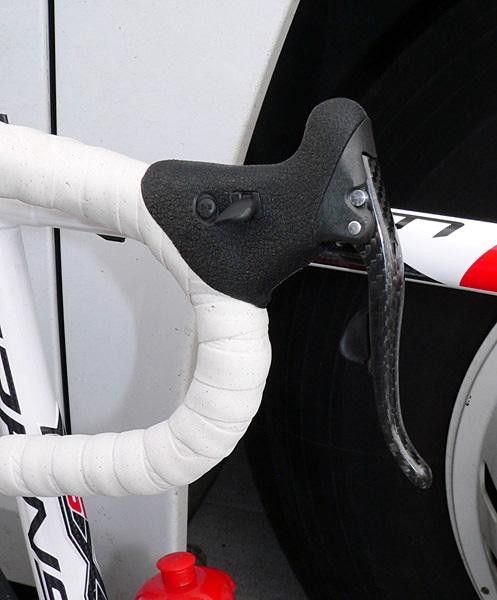

…but a close look reveals that slight subtleties in the shape.

…but a close look reveals that slight subtleties in the shape. (Image credit: James Huang/Cyclingnews.com)
Image 14 of 30

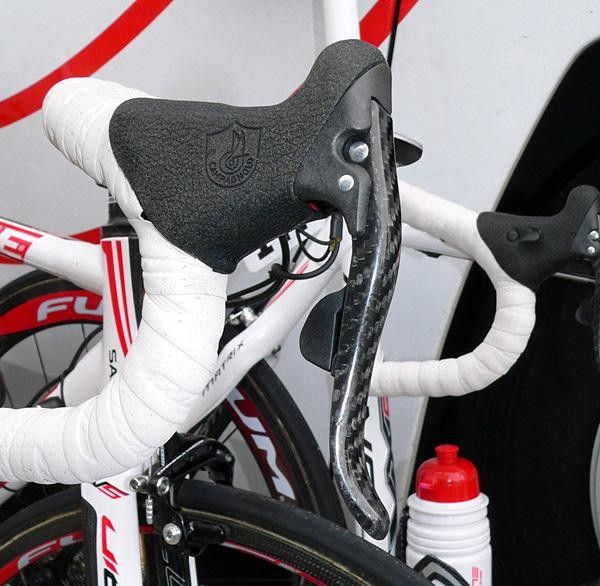

The main shift paddle looks slightly shorter as compared to the mechanical version.

The main shift paddle looks slightly shorter as compared to the mechanical version. (Image credit: James Huang/Cyclingnews.com)
Image 15 of 30

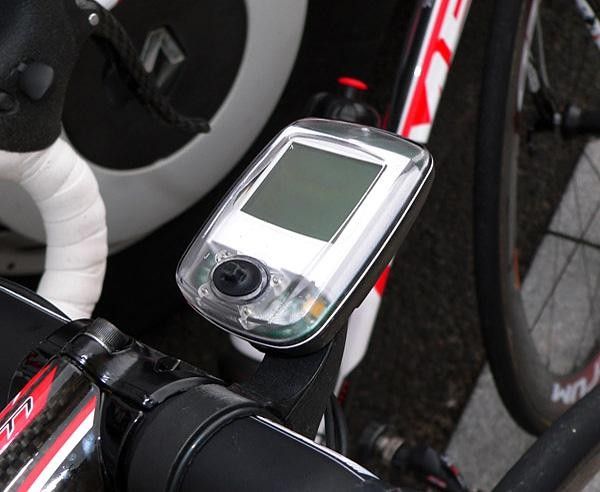

The updated group also gains a new computer head with a multi-directional joystick instead of buttons to control all of its (as yet unidentified) functions.

The updated group also gains a new computer head with a multi-directional joystick instead of buttons to control all of its (as yet unidentified) functions. (Image credit: James Huang/Cyclingnews.com)
Image 16 of 30

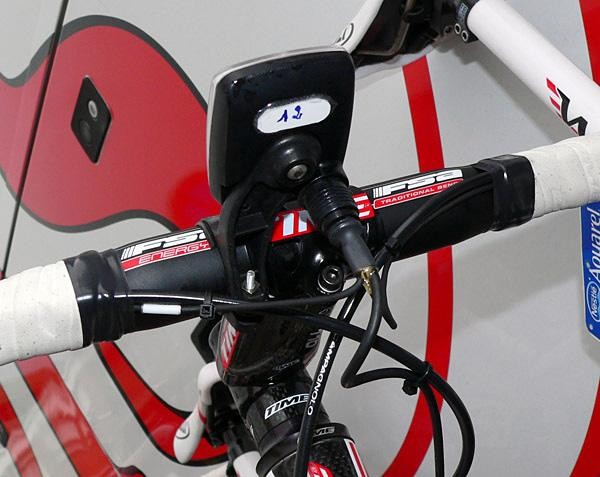

Lots of wires feed into the underside of the new computer head.

Lots of wires feed into the underside of the new computer head. (Image credit: James Huang/Cyclingnews.com)
Image 17 of 30

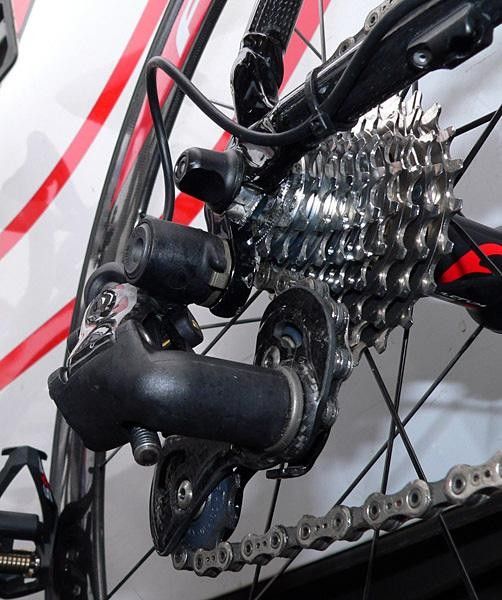

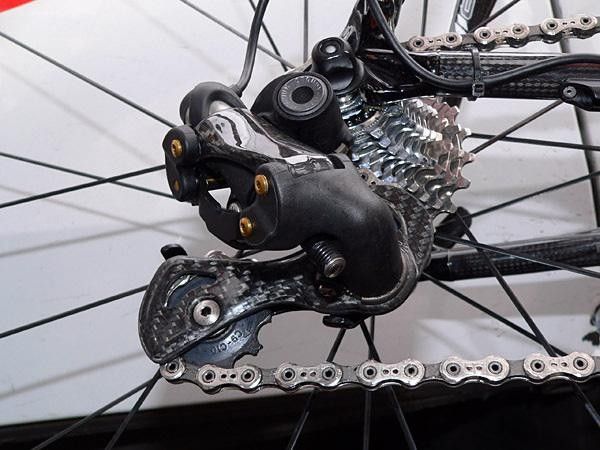

The Campagnolo electronic rear derailleur is chock full of carbon fiber and other composites.

The Campagnolo electronic rear derailleur is chock full of carbon fiber and other composites. (Image credit: James Huang/Cyclingnews.com)
Image 18 of 30

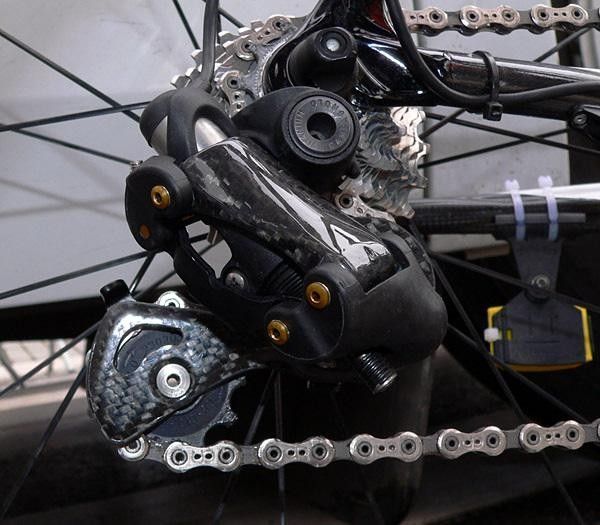

Pivots appear to be made at least partially of anodized aluminum.

Pivots appear to be made at least partially of anodized aluminum. (Image credit: James Huang/Cyclingnews.com)
Image 19 of 30

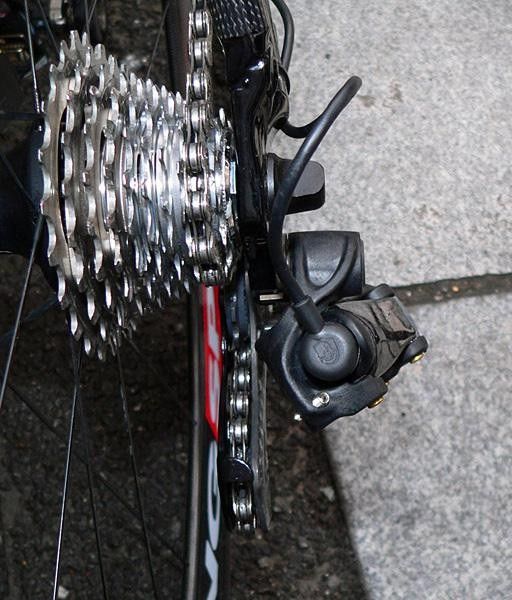

The distinctive winged Campagnolo logo graces the rear of the derailleur.

The distinctive winged Campagnolo logo graces the rear of the derailleur. (Image credit: James Huang/Cyclingnews.com)
Image 20 of 30

The battery is now integrated into a proprietary carbon fiber bottle cage.

The battery is now integrated into a proprietary carbon fiber bottle cage. (Image credit: James Huang/Cyclingnews.com)
Image 21 of 30

Several electrical connectors are scattered throughout the setup, including a particularly interesting 12-pin interface located on the side of the battery/cage.

Several electrical connectors are scattered throughout the setup, including a particularly interesting 12-pin interface located on the side of the battery/cage. (Image credit: James Huang/Cyclingnews.com)
Image 22 of 30

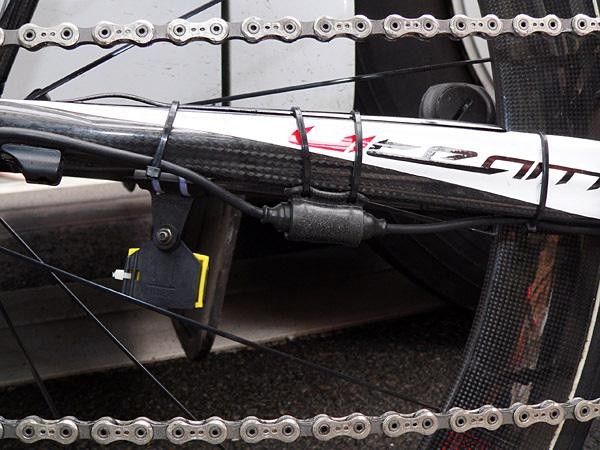

Other connectors look to allow for easy separation of components for servicing.

Other connectors look to allow for easy separation of components for servicing. (Image credit: James Huang/Cyclingnews.com)
Image 23 of 30

The front derailleur isn't much different from before…

The front derailleur isn't much different from before… (Image credit: James Huang/Cyclingnews.com)
Image 24 of 30

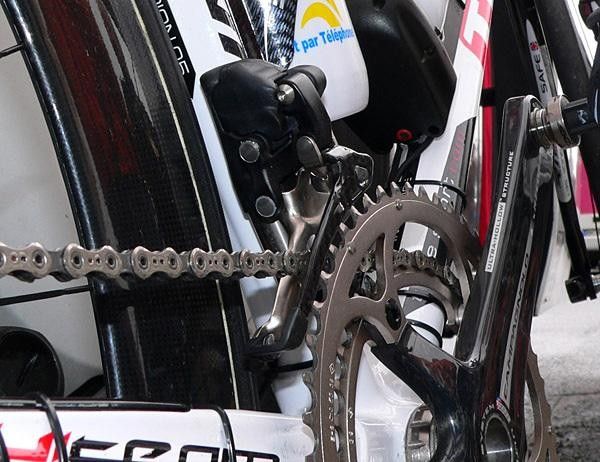

…but is still a bit tidier.

…but is still a bit tidier. (Image credit: James Huang/Cyclingnews.com)
Image 25 of 30

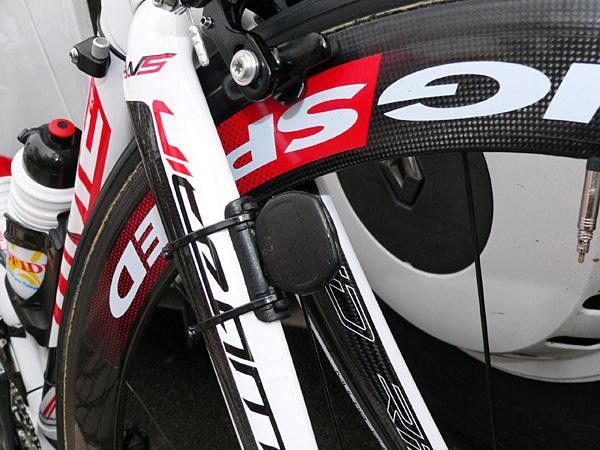

A wireless sensor handles speed duties.

A wireless sensor handles speed duties. (Image credit: James Huang/Cyclingnews.com)
Image 26 of 30

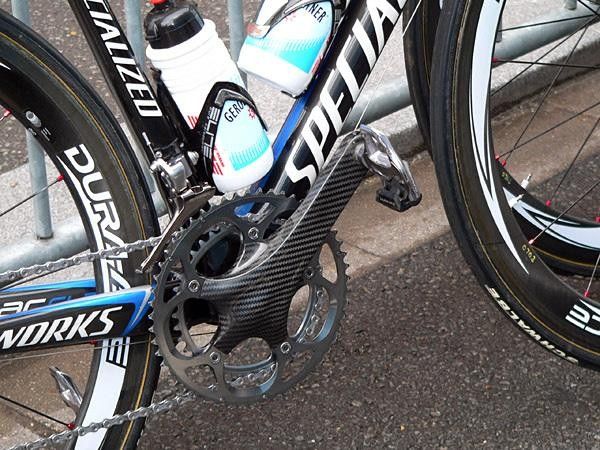

Shimano's prototype carbon fiber crankset made several appearances at Stage 2 of the TdF.

Shimano's prototype carbon fiber crankset made several appearances at Stage 2 of the TdF. (Image credit: James Huang/Cyclingnews.com)
Image 27 of 30

We don't have any indication of the new crankset's weight, but a big heaping of carbon fiber around the spider suggests that it will at least be stiff.

We don't have any indication of the new crankset's weight, but a big heaping of carbon fiber around the spider suggests that it will at least be stiff. (Image credit: James Huang/Cyclingnews.com)
Image 28 of 30

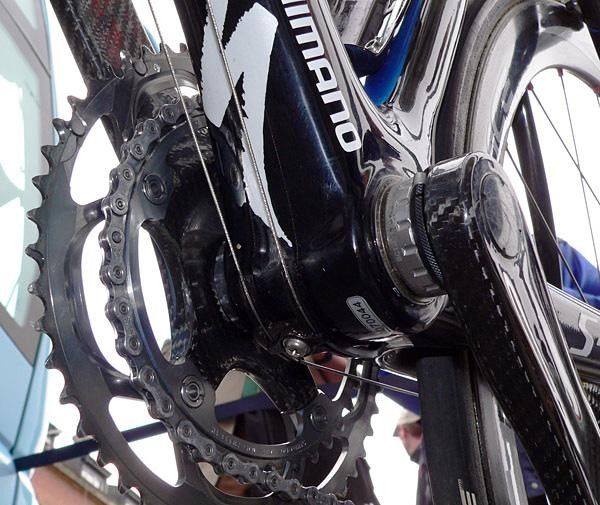

The backside of the crankset is smoothly contoured as well.

The backside of the crankset is smoothly contoured as well. (Image credit: James Huang/Cyclingnews.com)
Image 29 of 30

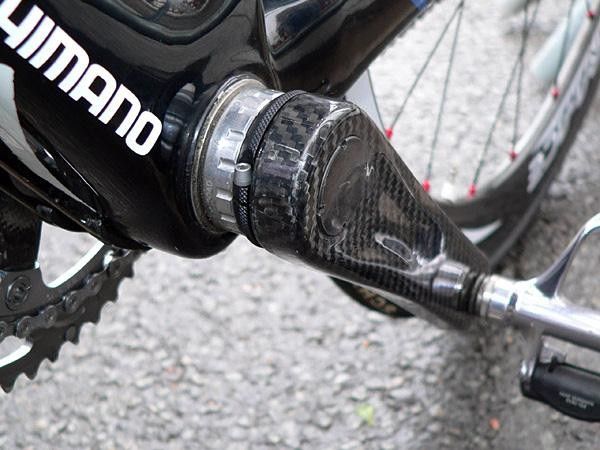

Shimano uses nearly the same attachment method for the new carbon crankset as on the recently introduced M970 XTR.

Shimano uses nearly the same attachment method for the new carbon crankset as on the recently introduced M970 XTR. (Image credit: James Huang/Cyclingnews.com)
Image 30 of 30

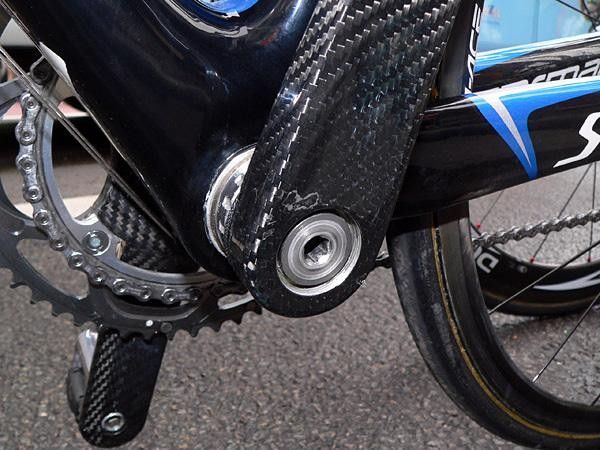

Underneath the cosmetic carbon fiber cap lies a large-diameter alloy fixing bolt.

Underneath the cosmetic carbon fiber cap lies a large-diameter alloy fixing bolt. (Image credit: James Huang/Cyclingnews.com)

Race tech: Tour de France, July 10, 2007

Stage 2 of the 2007 Tour de France started in Dunkerque on the northern coast of France after a short transfer across the English Channel (which can also be made via ferry from the picturesque white cliffs of Dover). With the prologue now but a distant memory, teams were now fully focused on claiming stage wins during the flat first week.

The day's forecast called for rain, but that didn't keep Cofidis riders Staf Scheirlinckx and Stéphane Auge from setting off equipped with the latest generation of Campagnolo's electronic group. Although rarely seen or spoken of, the group's development has been far from secret; we first spotted it in 2003 at E3 PrijsVlaanderen and Campagnolo has openly admitted that it has been a work in progress since around 1994. Increasingly refined versions have been periodically seen since then, but this latest iteration is decidedly more polished, suggesting that it might not too far off from production.

Campagnolo had previously stated that fitting the system's required battery in a suitably elegant fashion was among the most difficult challenges the company faced. Earlier versions incorporated a small battery 'stick' located on the seat tube near the front derailleur, but this latest iteration integrates the power source into a proprietary carbon fiber bottle cage.

This version is arguably cleaner-looking than before but is noticeably bulkier than the 'stick'. The larger size format and the peculiar inclusion of a 12-pin connector on the side, however, suggest that Campagnolo may have also included some additional electronics into the package for programming or customization capabilities (a simpler and smaller 2-pin or coaxial connector could have been used if it were just for charging purposes).

Speaking of electronics, Campagnolo may have developed an analogous Ergobrain for use with the new system as wires originating from the shifters clearly fed into a previously-unseen computer head. Interestingly, there were no traditional buttons to be found on the unit's exterior. Instead, a multi-directional 'joystick' on the unit's face appeared to control all functions and was paired to a large LCD panel (sorry, there was nothing on display to show when we shot the images and Cofidis mechanics were not too keen on us tinkering with team bikes just prior to the start).

The updated front derailleur is somewhat tidier than before as well, but other components appear largely identical to what we've seen before. The electronic Ergopower levers still bear striking resemblance to their mechanical brethren and there were no changes to the rear derailleur that we could see (the design has been rather stable for the past several years as far as we can tell). Naturally, other non-affected components such as the crankset and brake calipers were standard-issue Record items.

The rain also didn't keep Gerolsteiner's Ronny Scholz from continuing to evaluate his electronic Shimano Dura-Ace group which looks to have received no changes since we took a look at it at this year's Critérium du Dauphiné Libéré. Scholz is obviously keen to the system these days (or at least used to it): not only did he race on it today, but his spare was so-equipped as well.

Shimano's prototype carbon fiber crankset also made another appearance, but not on the bike of Gerolsteiner rider Stefan Schumacher as we saw in this year's Tour de Suisse. We spotted three riders using it for Stage 2: Schumacher's Gerolsteiner teammates Bernhard Kohl and Markus Fothen, and Michael Boogerd of Rabobank.

It's clear now that Shimano has borrowed the updated Hollowtech II arm attachment from M970 XTR for this new crankset, but the bearing adjustment ring now bears a simple knurled pattern for easier hand operation. Unfortunately, though, we still have no word on whether or not the arms are hollow (although we'd bet they are), how much it weighs, or if it's even slated for production, but we'll continue to feed you information as we get it.
