Ridley's aerodynamic advantage

Image 1 of 47

The down tube is very wide

The down tube is very wide (Image credit: Ben Atkins)
Image 2 of 47

The Dean's head tube has a beak

The Dean's head tube has a beak (Image credit: Ben Atkins)
Image 3 of 47

Chain stays hug the rear wheel

Chain stays hug the rear wheel (Image credit: Ben Atkins)
Image 4 of 47

The seatpost and other forward areas

The seatpost and other forward areas (Image credit: Ben Atkins)
Image 5 of 47

The aero-special Oval rear brake

The aero-special Oval rear brake (Image credit: Ben Atkins)
Image 6 of 47

… but the chainrings have been

… but the chainrings have been (Image credit: Ben Atkins)
Image 7 of 47

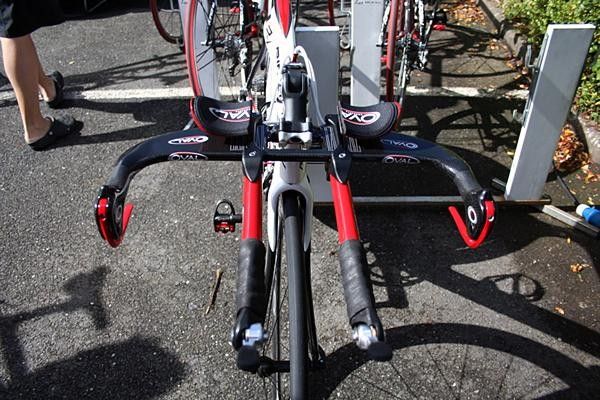

Straight handlebar extensions

Straight handlebar extensions (Image credit: Ben Atkins)
Image 8 of 47

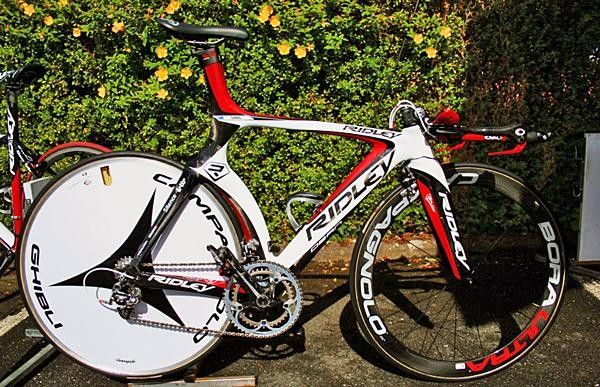

Cadel Evans' Ridley Dean has been developed using oil flow mapping and integrates Oval Concepts's unique JetStream technology in the fork blades and seat stays.

Cadel Evans' Ridley Dean has been developed using oil flow mapping and integrates Oval Concepts's unique JetStream technology in the fork blades and seat stays. (Image credit: Ben Atkins/Cyclingnews.com)
Image 9 of 47

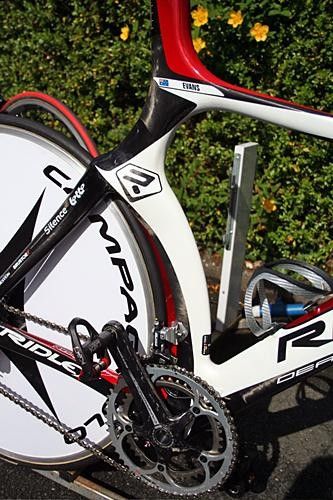

The Dean's seat tube closely hugs the rear wheel before heading up towards the saddle.

The Dean's seat tube closely hugs the rear wheel before heading up towards the saddle. (Image credit: Ben Atkins/Cyclingnews.com)
Image 10 of 47

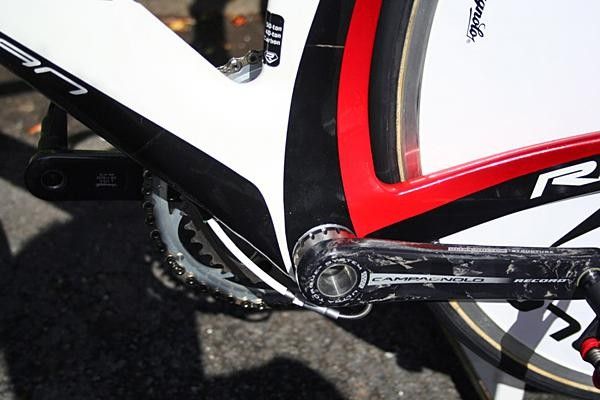

The bottom bracket area of the Dean is built up for stiffness and to cut through the air.

The bottom bracket area of the Dean is built up for stiffness and to cut through the air. (Image credit: Ben Atkins/Cyclingnews.com)
Image 11 of 47

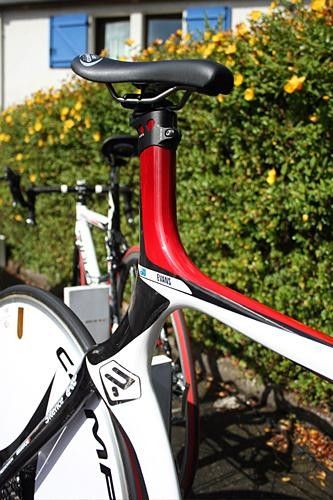

The top tube joins the seat tube in a huge, aerodynamic joint.

The top tube joins the seat tube in a huge, aerodynamic joint. (Image credit: Ben Atkins/Cyclingnews.com)
Image 12 of 47

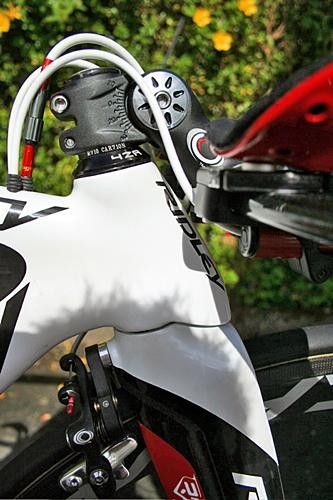

The Dean's head tube has a beak that covers the top of the extended fork crown to keep the lines clean.

The Dean's head tube has a beak that covers the top of the extended fork crown to keep the lines clean. (Image credit: Ben Atkins/Cyclingnews.com)
Image 13 of 47

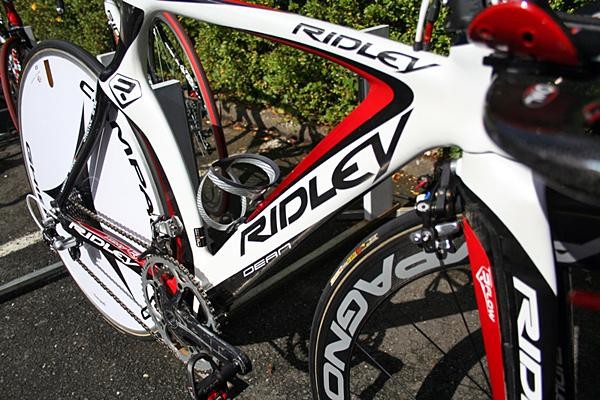

The down tube is very wide from the side view…

The down tube is very wide from the side view… (Image credit: Ben Atkins/Cyclingnews.com)
Image 14 of 47

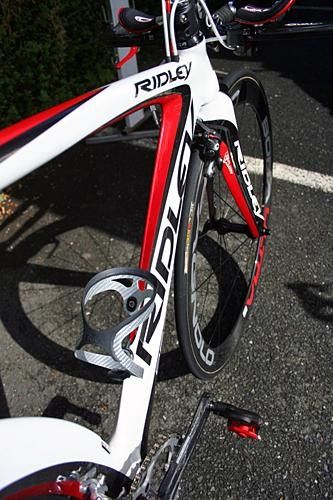

but very narrow where it hits the wind and is as aerodynamic as UCI regulations allow.

but very narrow where it hits the wind and is as aerodynamic as UCI regulations allow. (Image credit: Ben Atkins/Cyclingnews.com)
Image 15 of 47

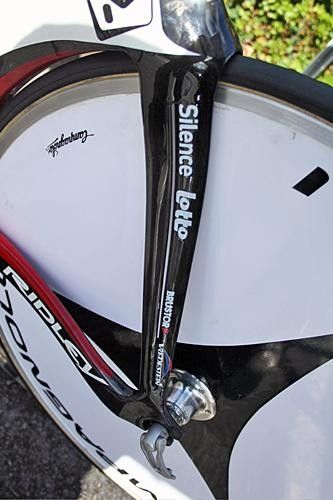

The Dean's seat stays feature Ridley's R-Flow technology that it claims makes the wheels spin even faster.

The Dean's seat stays feature Ridley's R-Flow technology that it claims makes the wheels spin even faster. (Image credit: Ben Atkins/Cyclingnews.com)
Image 16 of 47

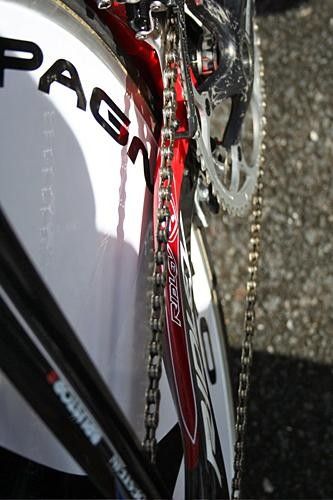

Chain stays hug the rear wheel as closely as possible.

Chain stays hug the rear wheel as closely as possible. (Image credit: Ben Atkins/Cyclingnews.com)
Image 17 of 47

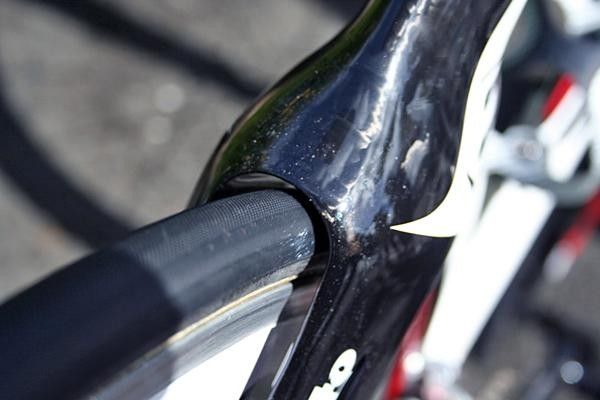

Where the rear wheel passes through the seat stays there's not much clearance for tyres wider than this one!

Where the rear wheel passes through the seat stays there's not much clearance for tyres wider than this one! (Image credit: Ben Atkins/Cyclingnews.com)
Image 18 of 47

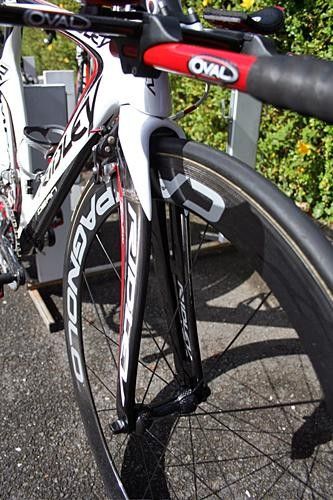

The Dean's incredible looking fork looks aerodynamic enough already…

The Dean's incredible looking fork looks aerodynamic enough already… (Image credit: Ben Atkins/Cyclingnews.com)
Image 19 of 47

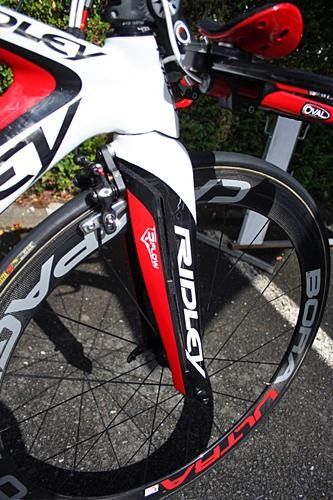

… but Ridley claims those slotted airfoils create a vacuum around the spokes and reduces drag and turbulence around the wheel.

… but Ridley claims those slotted airfoils create a vacuum around the spokes and reduces drag and turbulence around the wheel. (Image credit: Ben Atkins/Cyclingnews.com)
Image 20 of 47

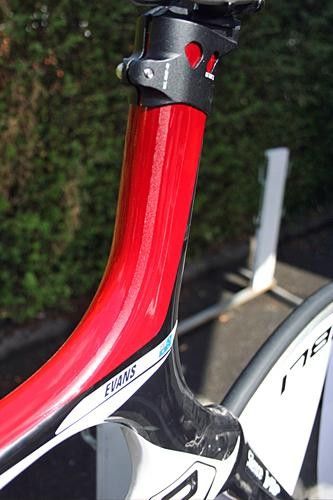

The seatpost and other forward areas have an area of rough surface texture designed to create a boundary layer of air to help it flow more smoothly over the frame.

The seatpost and other forward areas have an area of rough surface texture designed to create a boundary layer of air to help it flow more smoothly over the frame. (Image credit: Ben Atkins/Cyclingnews.com)
Image 21 of 47

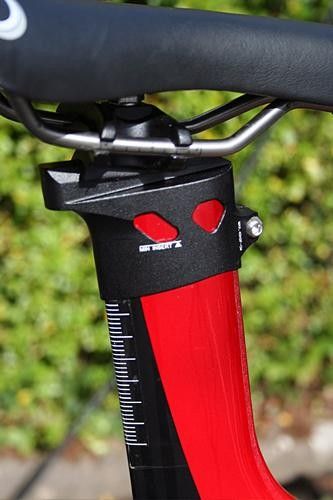

The Dean shares the same kind of seat clamp as the other integrated seatpost frames in the Ridley range.

The Dean shares the same kind of seat clamp as the other integrated seatpost frames in the Ridley range. (Image credit: Ben Atkins/Cyclingnews.com)
Image 22 of 47

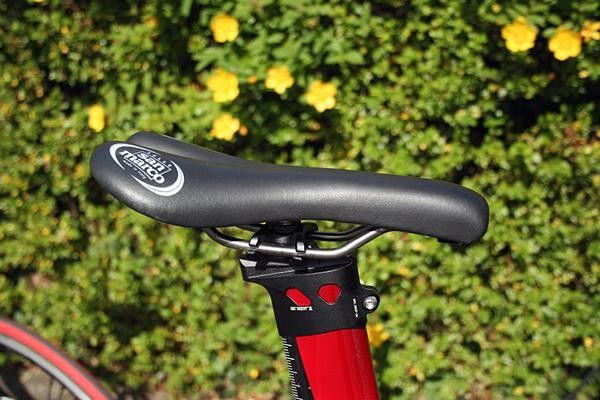

The fat nose of Cadel's San Marco saddle keeps things as comfortable as possible when he gets in his low position.

The fat nose of Cadel's San Marco saddle keeps things as comfortable as possible when he gets in his low position. (Image credit: Ben Atkins/Cyclingnews.com)
Image 23 of 47

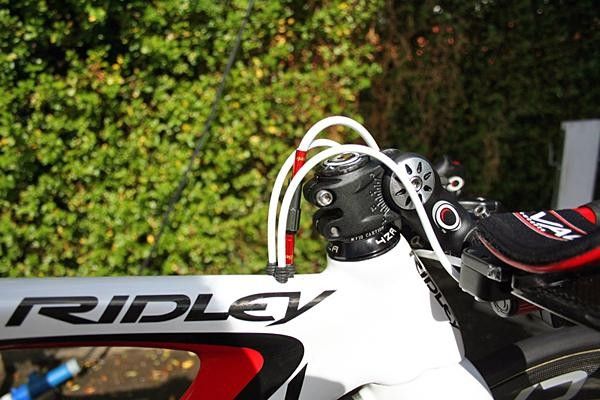

The gear and rear brake cables diasppear into the top of the top tube and reappear at the rear where they're needed.

The gear and rear brake cables diasppear into the top of the top tube and reappear at the rear where they're needed. (Image credit: Ben Atkins/Cyclingnews.com)
Image 24 of 47

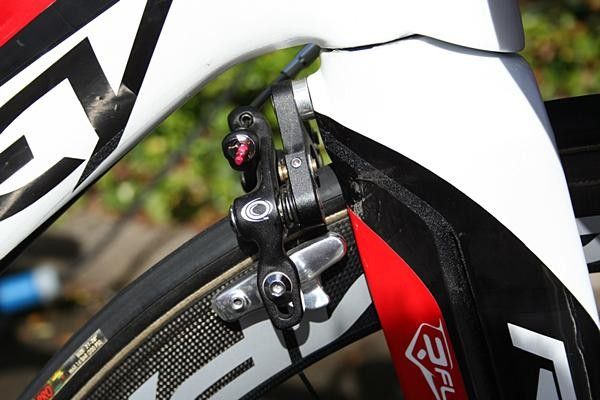

The aero-special Oval rear brake is hidden out of the wind behind the fork.

The aero-special Oval rear brake is hidden out of the wind behind the fork. (Image credit: Ben Atkins/Cyclingnews.com)
Image 25 of 47

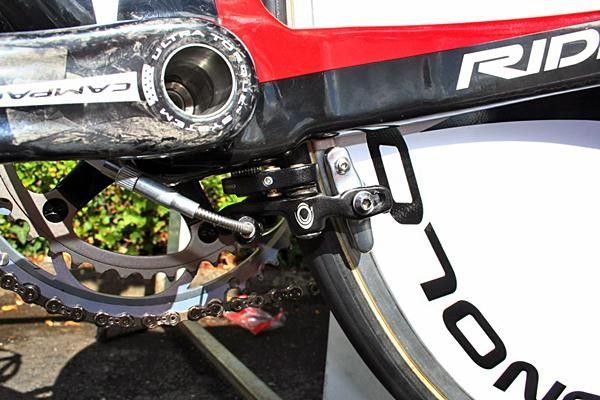

The rear brake sits where its shape will do the least damage to the airflow: under the bottom bracket.

The rear brake sits where its shape will do the least damage to the airflow: under the bottom bracket. (Image credit: Ben Atkins/Cyclingnews.com)
Image 26 of 47

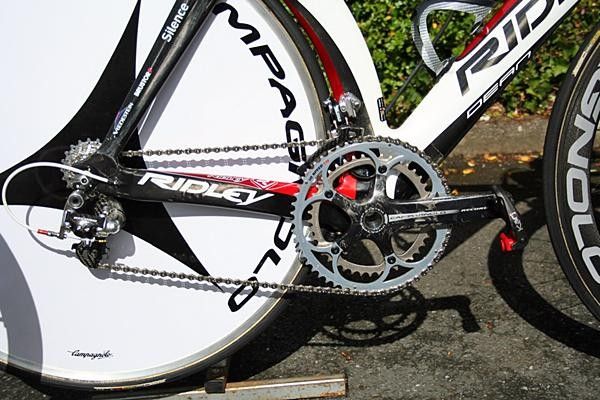

Silence-Lotto uses an entirely Camapgnolo drivetrain on all of its bikes.

Silence-Lotto uses an entirely Camapgnolo drivetrain on all of its bikes. (Image credit: Ben Atkins/Cyclingnews.com)
Image 27 of 47

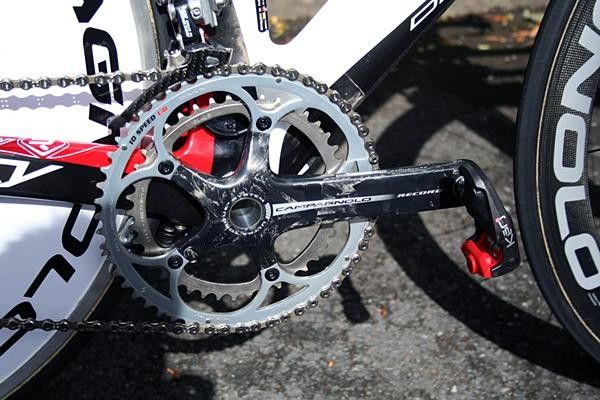

Cadel uses a standard Campagnolo Ultra Torque chainset…

Cadel uses a standard Campagnolo Ultra Torque chainset… (Image credit: Ben Atkins/Cyclingnews.com)
Image 28 of 47

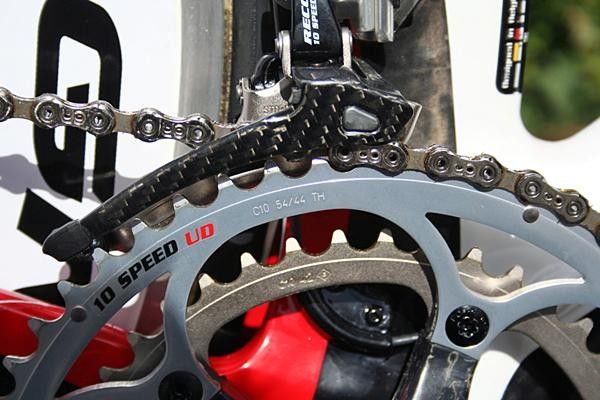

… but the chainrings have been upped to 54/42T instead of the 53/39T of his road machine.

… but the chainrings have been upped to 54/42T instead of the 53/39T of his road machine. (Image credit: Ben Atkins/Cyclingnews.com)
Image 29 of 47

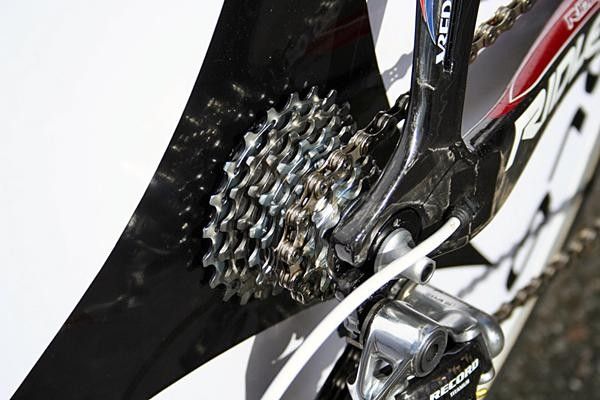

An 11-21T cassette is on hand for Cadel but only nine sprockets fit on the Ghibli disc.

An 11-21T cassette is on hand for Cadel but only nine sprockets fit on the Ghibli disc. (Image credit: Ben Atkins/Cyclingnews.com)
Image 30 of 47

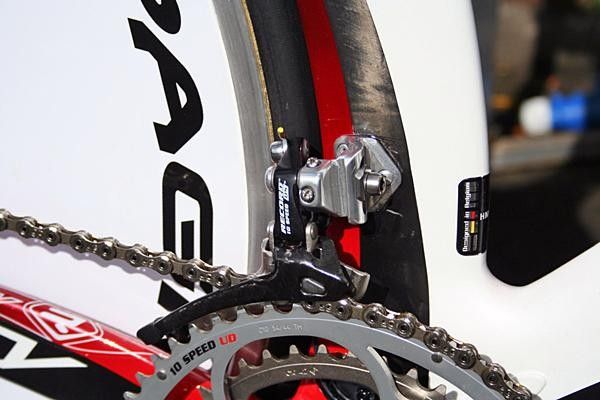

A Campagnolo Record derailleur is fitted to a riveted-on bracket on the side of the aero seat tube.

A Campagnolo Record derailleur is fitted to a riveted-on bracket on the side of the aero seat tube. (Image credit: Ben Atkins/Cyclingnews.com)
Image 31 of 47

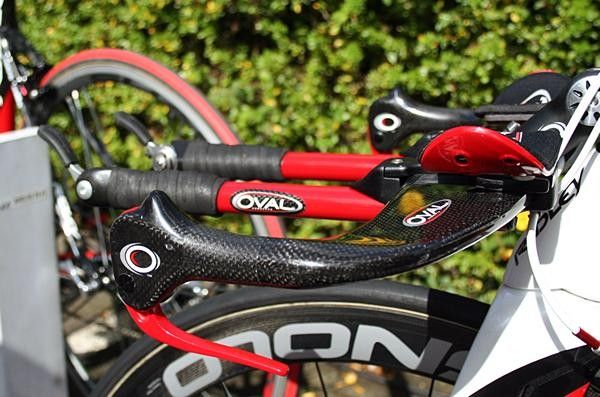

Evans' time trial bar setup allows him to get as low as possible and keeps his arms level.

Evans' time trial bar setup allows him to get as low as possible and keeps his arms level. (Image credit: Ben Atkins/Cyclingnews.com)
Image 32 of 47

Straight handlebar extensions are clamped into Oval's A901 Laminar bars with aerodynamic clamps.

Straight handlebar extensions are clamped into Oval's A901 Laminar bars with aerodynamic clamps. (Image credit: Ben Atkins/Cyclingnews.com)
Image 33 of 47

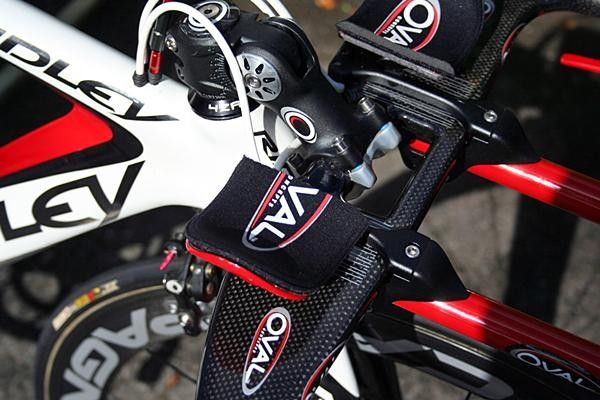

To get his arms as close together as possible, Evans cuts the inside edges of his elbow rests.

To get his arms as close together as possible, Evans cuts the inside edges of his elbow rests. (Image credit: Ben Atkins/Cyclingnews.com)
Image 34 of 47

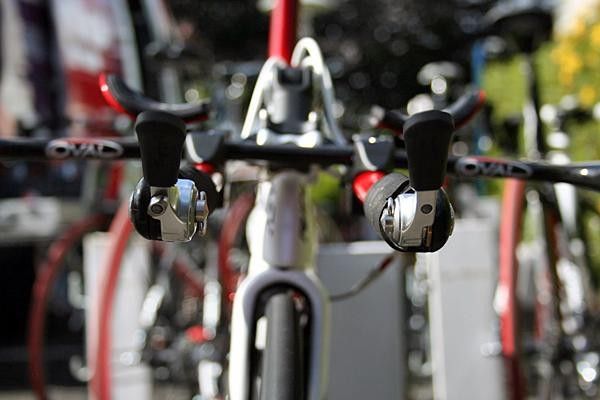

As a Campagnolo sponsored team Silence-Lotto uses Record bar-end levers on its time trial bikes.

As a Campagnolo sponsored team Silence-Lotto uses Record bar-end levers on its time trial bikes. (Image credit: Ben Atkins/Cyclingnews.com)
Image 35 of 47

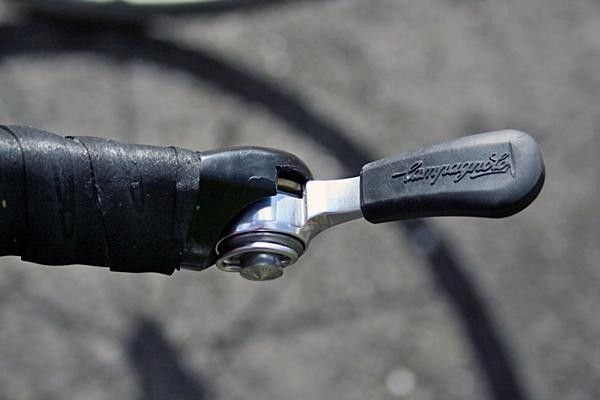

The styling of the bar-end shifters looks much the same as it has for years.

The styling of the bar-end shifters looks much the same as it has for years. (Image credit: Ben Atkins/Cyclingnews.com)
Image 36 of 47

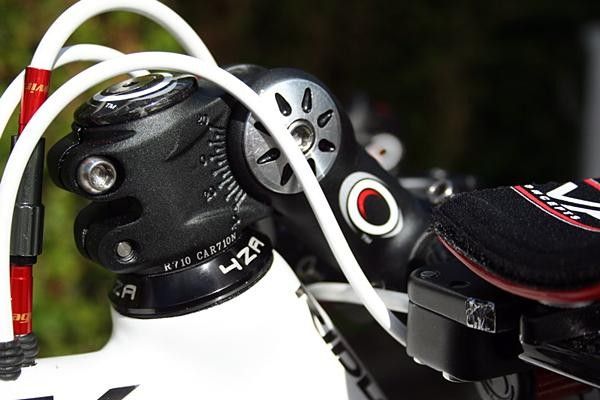

Oval's A710 Adjustable stem allows Evans to get an even lower position on an already-aggressively positioned frame.

Oval's A710 Adjustable stem allows Evans to get an even lower position on an already-aggressively positioned frame. (Image credit: Ben Atkins/Cyclingnews.com)
Image 37 of 47

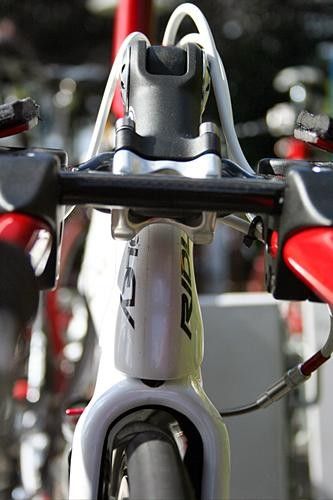

The RBT front of the stem is partially hidden from view by the front of the Laminar bars.

The RBT front of the stem is partially hidden from view by the front of the Laminar bars. (Image credit: Ben Atkins/Cyclingnews.com)
Image 38 of 47

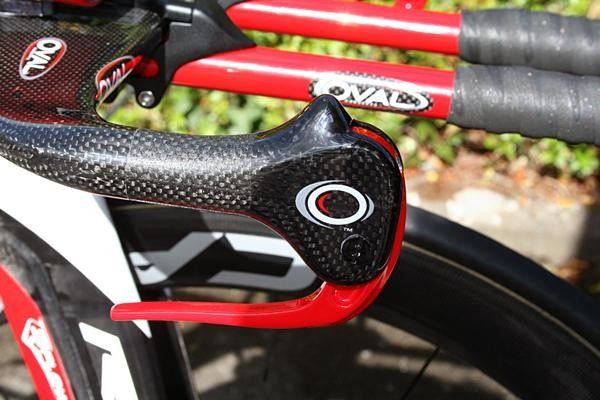

Oval A900 Carbon Upgrade brake levers have as small a frontal area as possible.

Oval A900 Carbon Upgrade brake levers have as small a frontal area as possible. (Image credit: Ben Atkins/Cyclingnews.com)
Image 39 of 47

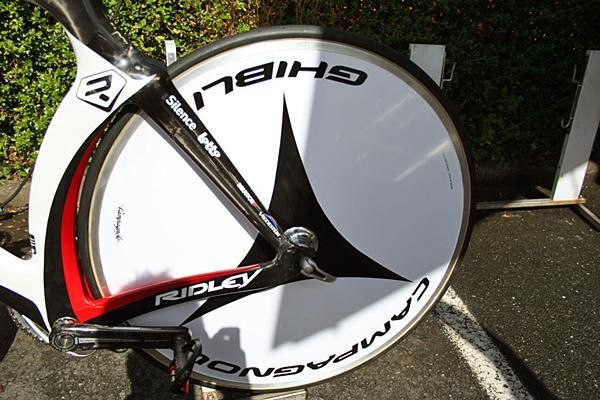

Campagnolo's Ghibli disc wheel has a classic look.

Campagnolo's Ghibli disc wheel has a classic look. (Image credit: Ben Atkins/Cyclingnews.com)
Image 40 of 47

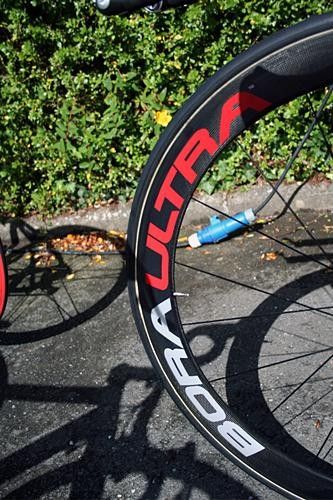

The deep section of Campagnolo's Bora Ultra is the fastest non-disc wheel in the Italian company's range.

The deep section of Campagnolo's Bora Ultra is the fastest non-disc wheel in the Italian company's range. (Image credit: Ben Atkins/Cyclingnews.com)
Image 41 of 47

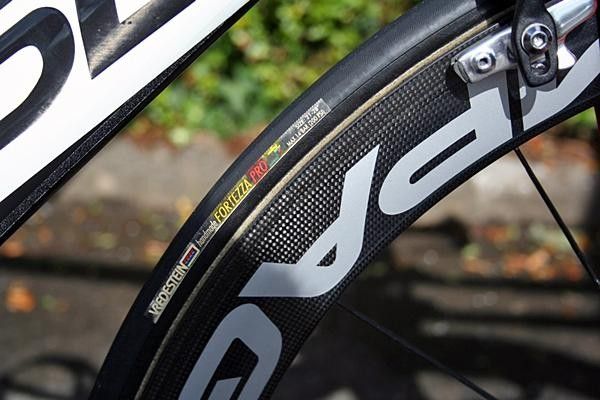

Wrapped around the wheels are a set of Vredestein Fortezza Pro tubulars.

Wrapped around the wheels are a set of Vredestein Fortezza Pro tubulars. (Image credit: Ben Atkins/Cyclingnews.com)
Image 42 of 47

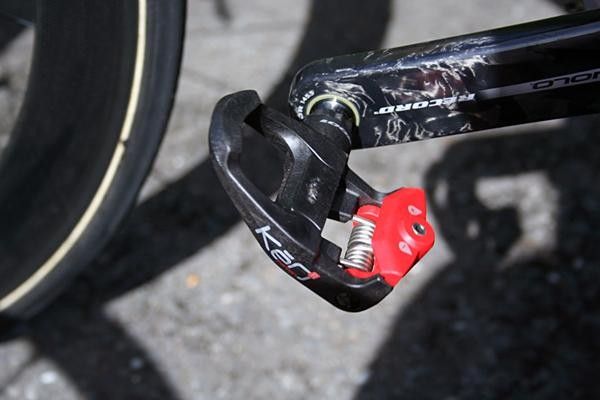

As on his road bike Cadel Evans uses KeO Carbon Ti pedals by Look.

As on his road bike Cadel Evans uses KeO Carbon Ti pedals by Look. (Image credit: Ben Atkins/Cyclingnews.com)
Image 43 of 47

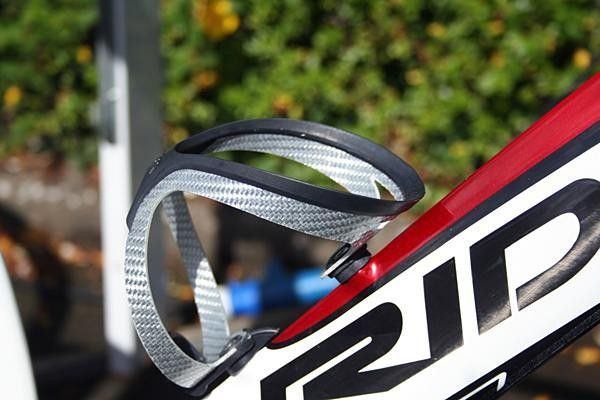

A single Tacx Tao bottle cage was bolted on when we caught up with Evans' bike but he ran without during Tuesday's relatively short time trial.

A single Tacx Tao bottle cage was bolted on when we caught up with Evans' bike but he ran without during Tuesday's relatively short time trial. (Image credit: Ben Atkins/Cyclingnews.com)
Image 44 of 47

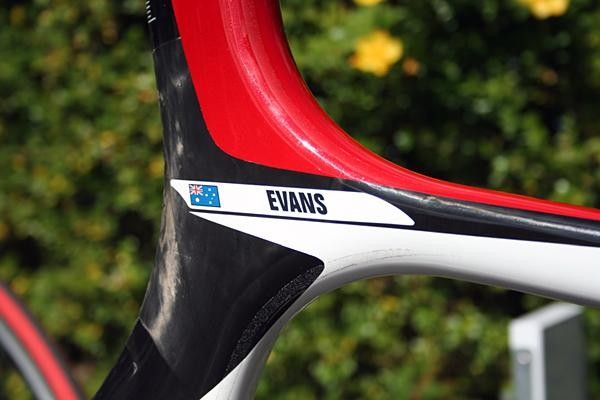

Will this name be added to the Tour de France roll of honour this year?

Will this name be added to the Tour de France roll of honour this year? (Image credit: Ben Atkins/Cyclingnews.com)
Image 45 of 47

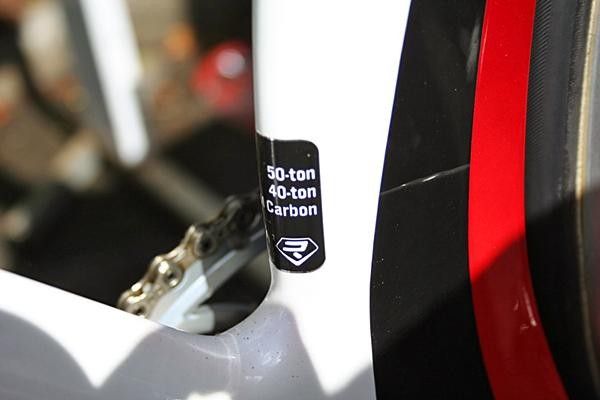

To keep things strong and stiff Ridley has used high modulus 40- and 50-ton carbon fibre in the Dean.

To keep things strong and stiff Ridley has used high modulus 40- and 50-ton carbon fibre in the Dean. (Image credit: Ben Atkins/Cyclingnews.com)
Image 46 of 47

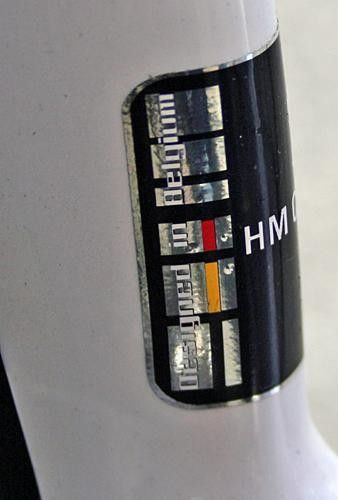

Ridley bikes may be made in Asia but they are designed in the cycling heartland of Belgium.

Ridley bikes may be made in Asia but they are designed in the cycling heartland of Belgium. (Image credit: Ben Atkins/Cyclingnews.com)
Image 47 of 47

Cadel checks the position of the newly assembled Dean with a Silence-Lotto mechanic.

Cadel checks the position of the newly assembled Dean with a Silence-Lotto mechanic. (Image credit: Ben Atkins/Cyclingnews.com)

Pro bikes, July 9, 2008

Cadel Evans' Silence-Lotto Ridley Dean
