Luis Leon Sanchez's Argon 18 Nitrogen Pro – Gallery

Image 1 of 22

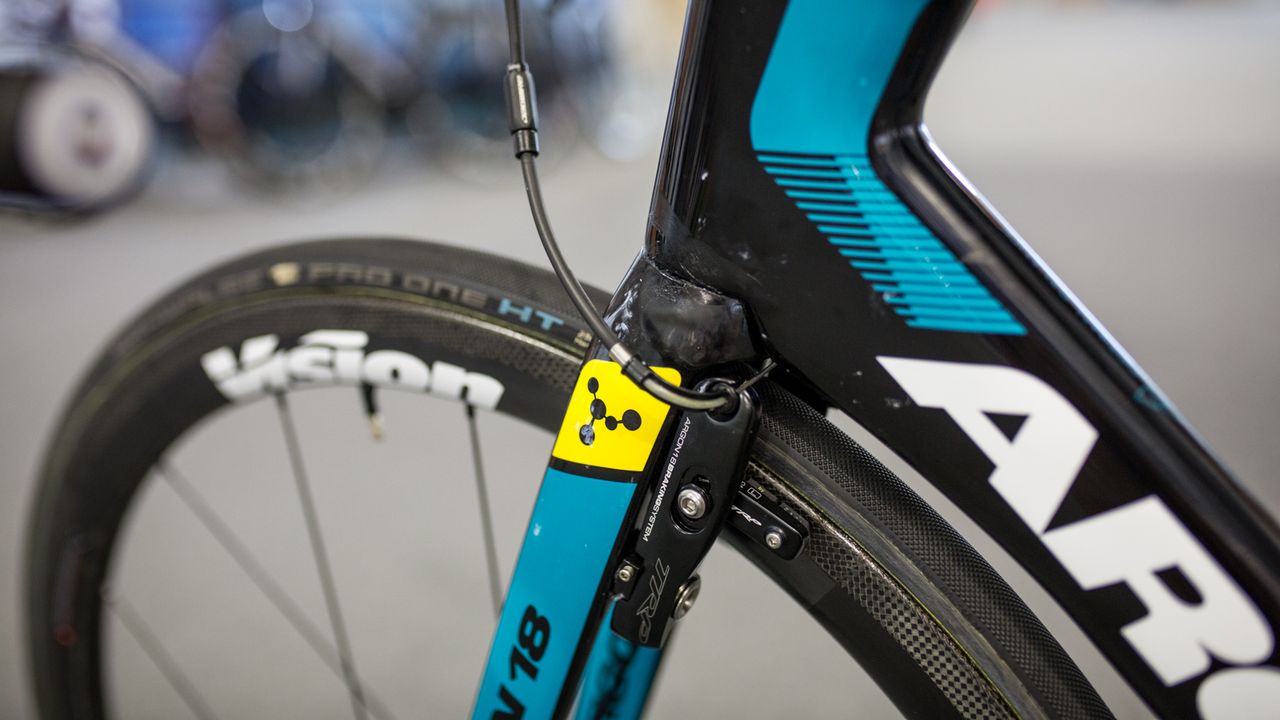

A closer look at the front brakes

A closer look at the front brakes
(Image credit: Colin Levitch / Immediate Media)
Image 2 of 22

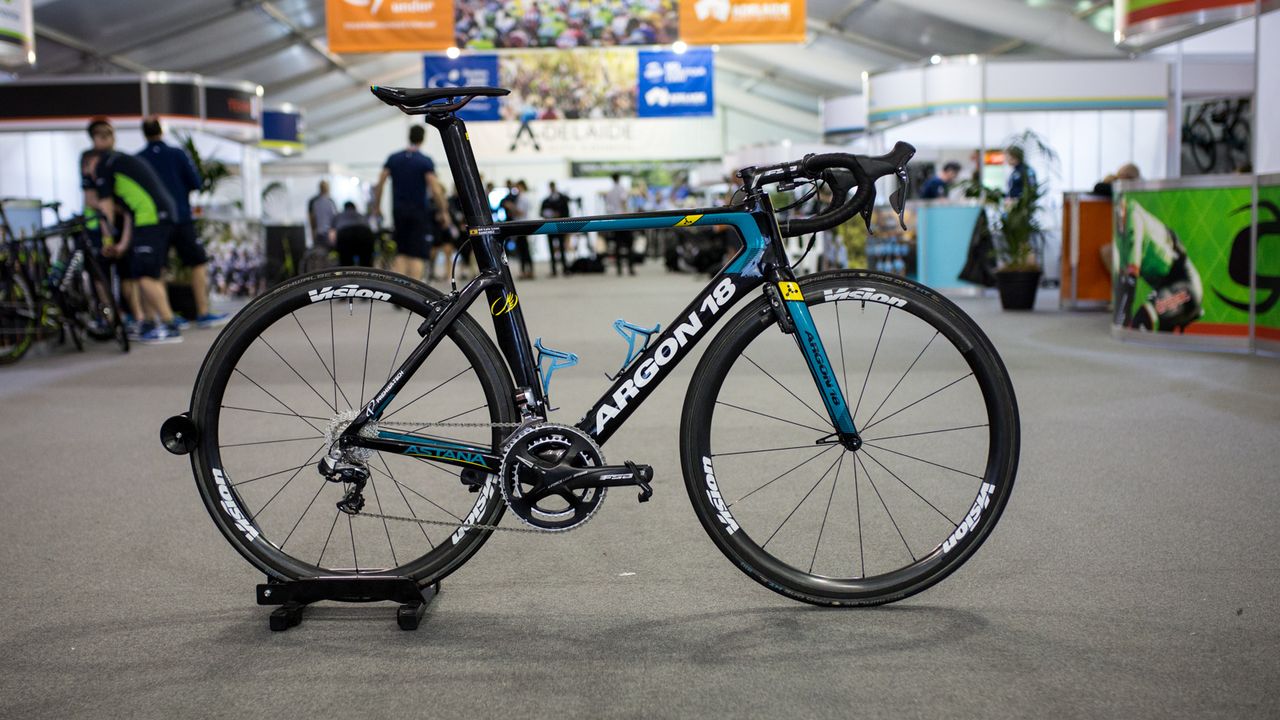

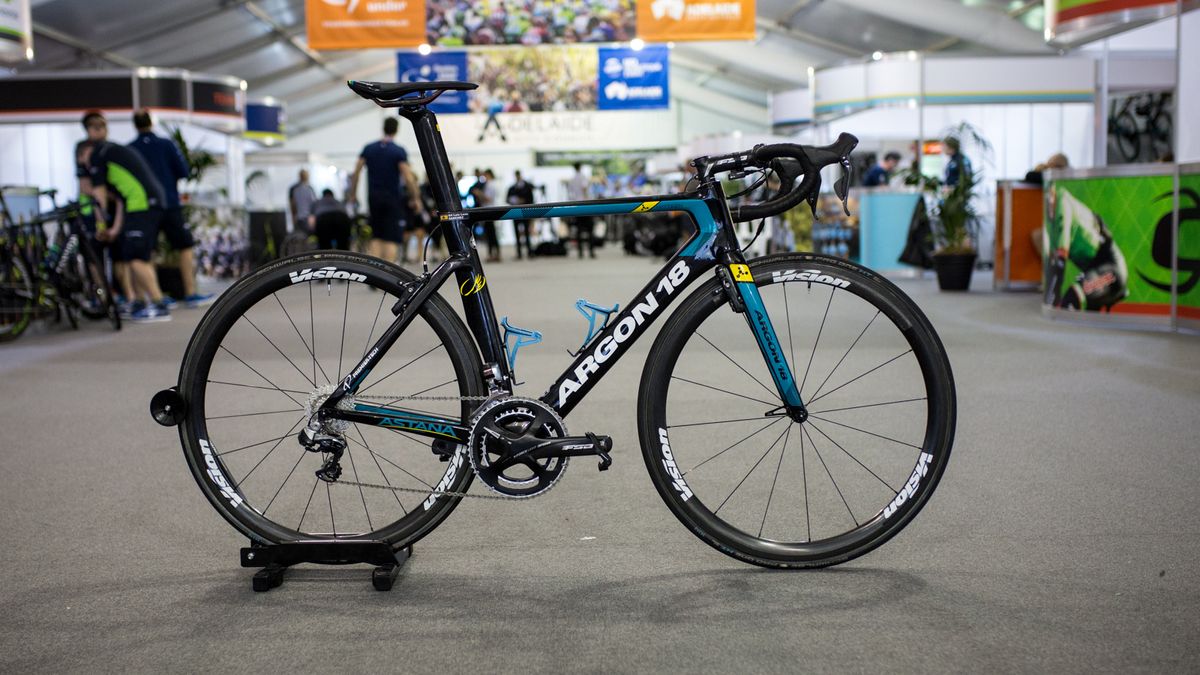

Luis Leon Sanchez's Argon 18 Nitrogen Pro

Luis Leon Sanchez's Argon 18 Nitrogen Pro
(Image credit: Colin Levitch / Immediate Media)
Image 3 of 22

Electrical tape marks the seat post height

Electrical tape marks the seat post height
(Image credit: Colin Levitch / Immediate Media)
Image 4 of 22

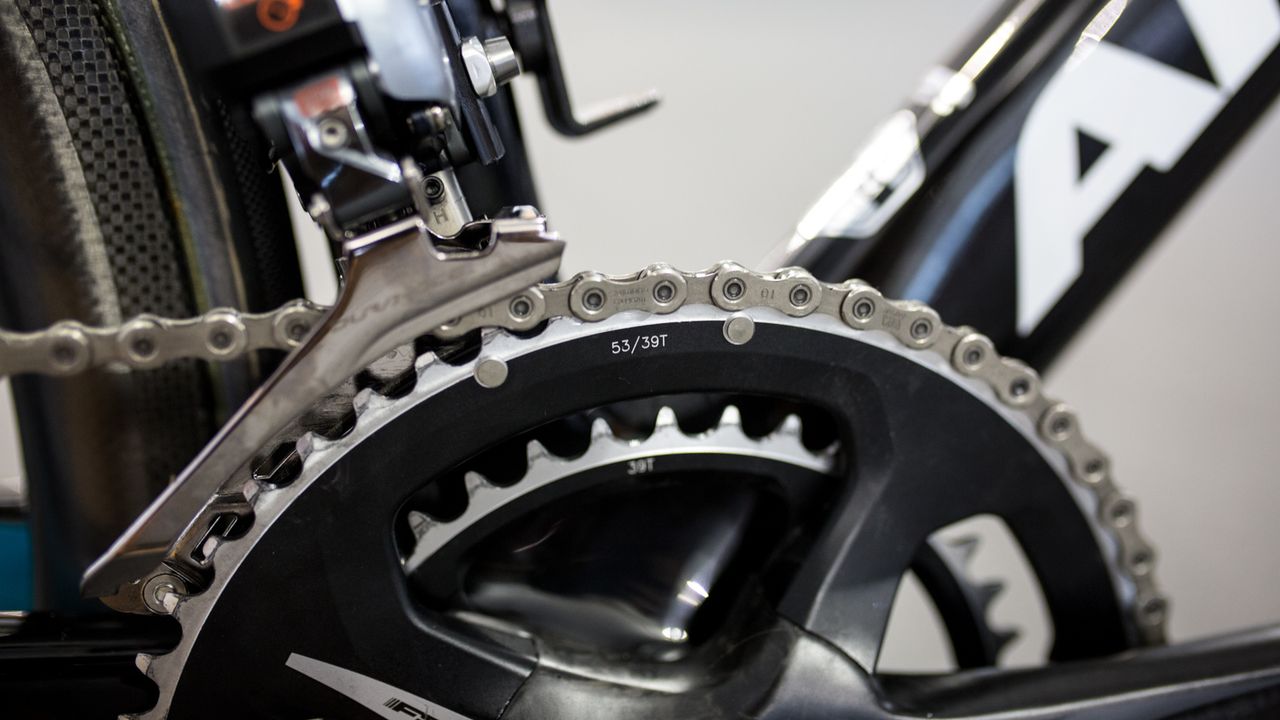

Standard sized chainrings for Sanchez

Standard sized chainrings for Sanchez
(Image credit: Colin Levitch / Immediate Media)
Image 5 of 22

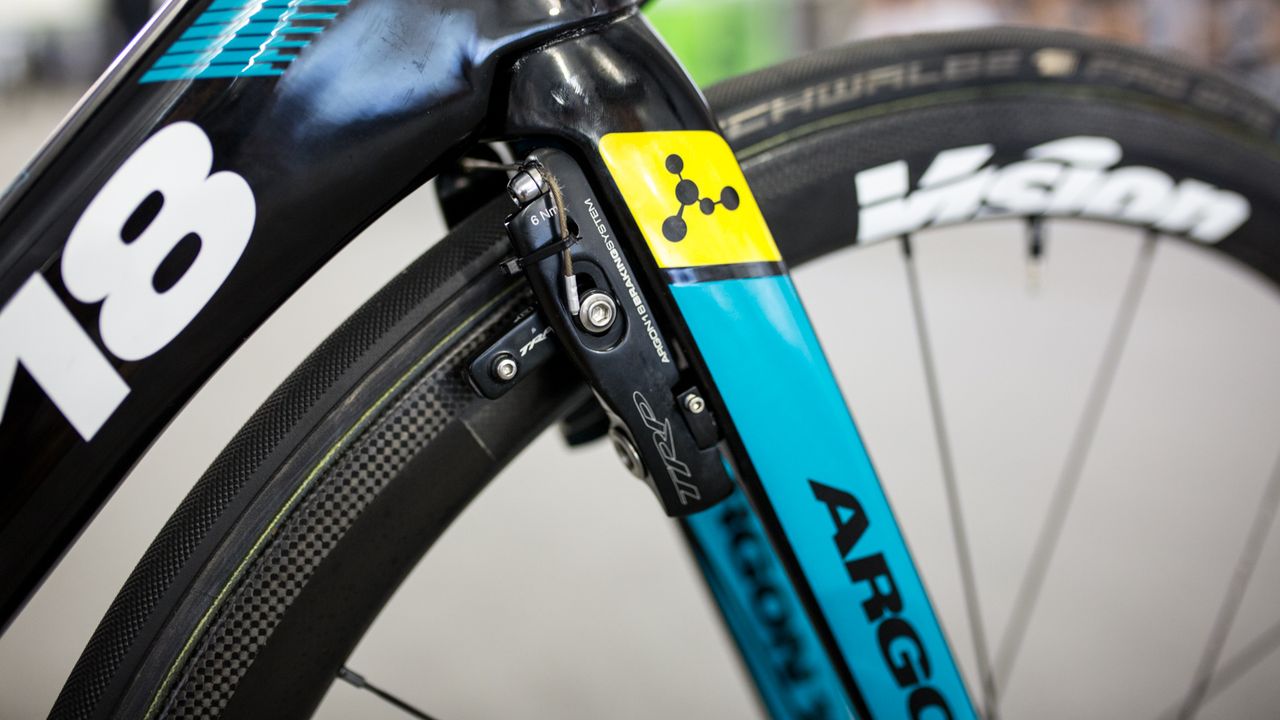

The front brake is tucked behind the fork for added aerodynamic performance

The front brake is tucked behind the fork for added aerodynamic performance
(Image credit: Colin Levitch / Immediate Media)
Image 6 of 22

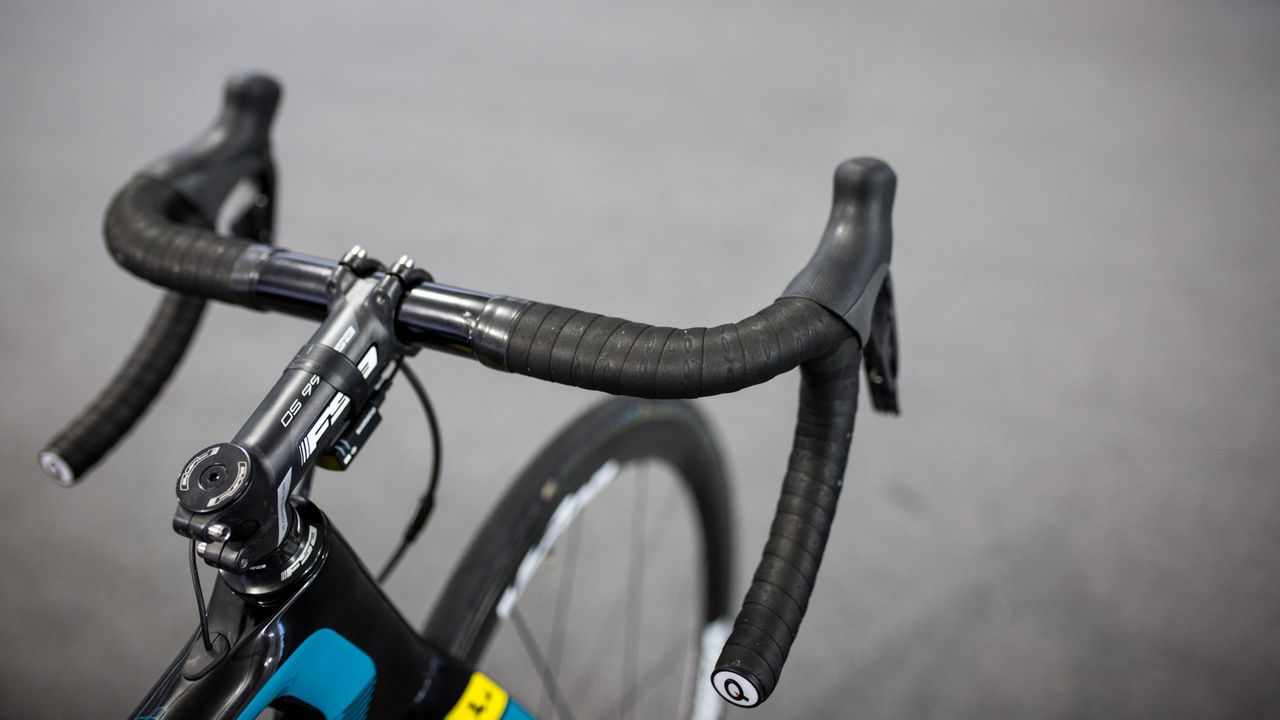

The handlebar tape is supplied by Italian brand Prologo

The handlebar tape is supplied by Italian brand Prologo
(Image credit: Colin Levitch / Immediate Media)
Image 7 of 22

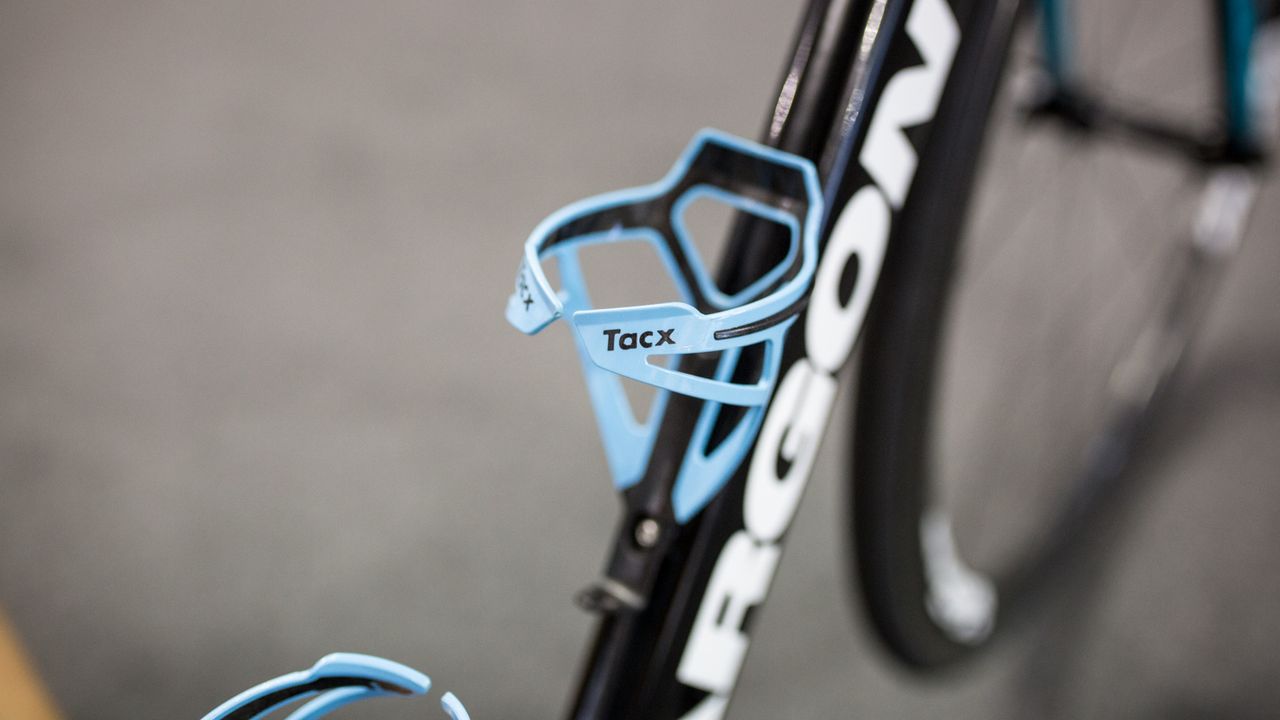

Colour coordinated Tacx Deva bottle cages

Colour coordinated Tacx Deva bottle cages
(Image credit: Colin Levitch / Immediate Media)
Image 8 of 22

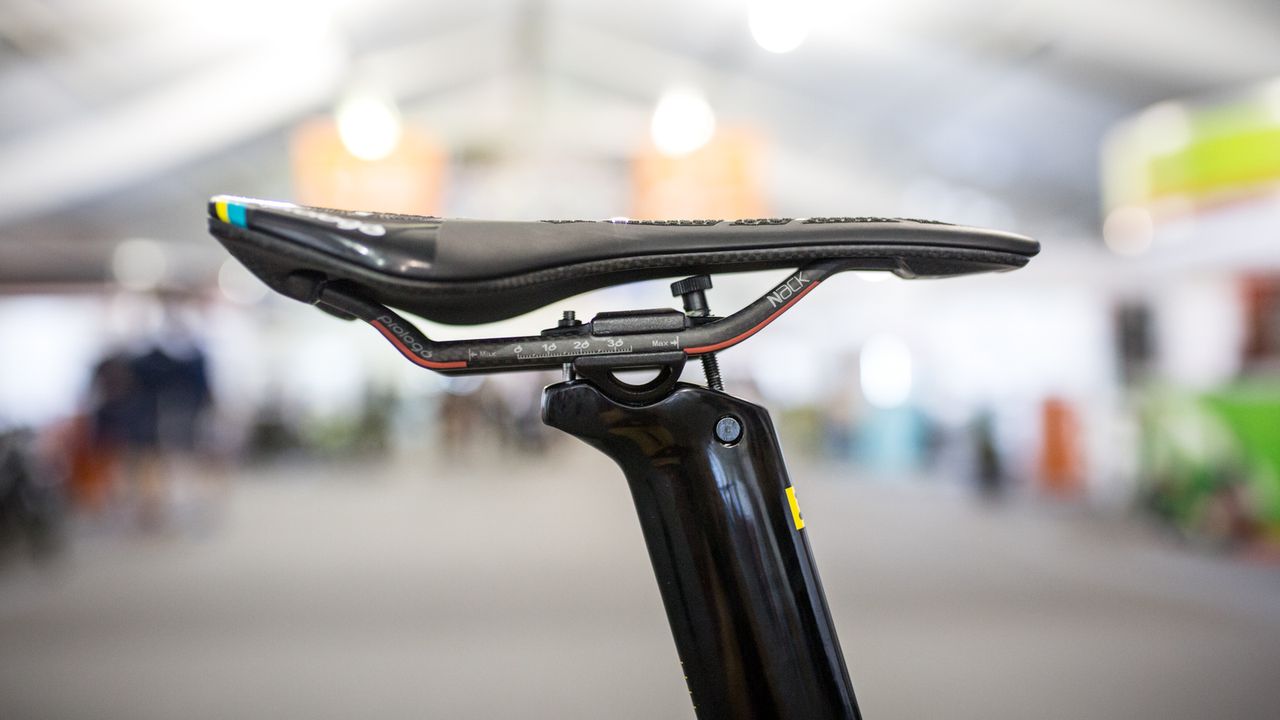

A profile view of the carbon fiber Prologo Zero C3 CPC

A profile view of the carbon fiber Prologo Zero C3 CPC
(Image credit: Colin Levitch / Immediate Media)
Image 9 of 22

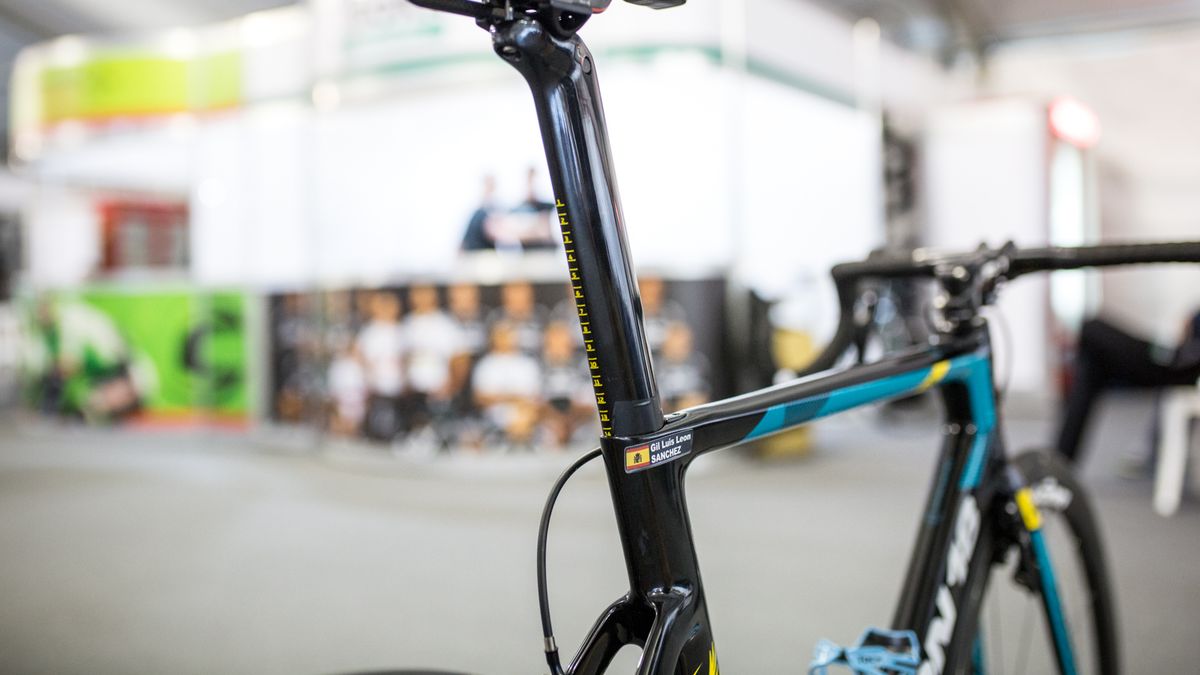

Even the seat post measurements are coordinated to the frame's colour design

Even the seat post measurements are coordinated to the frame's colour design
(Image credit: Colin Levitch / Immediate Media)
Image 10 of 22

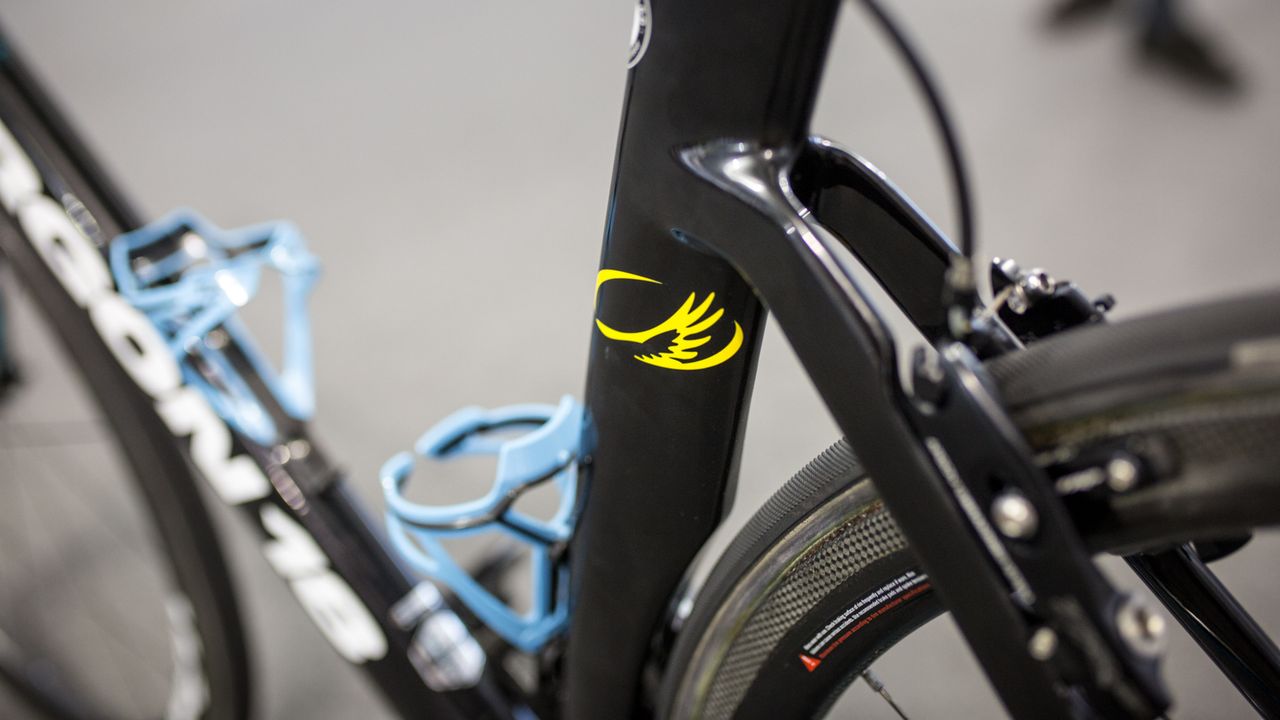

A look at the seatstays and seattube shape

A look at the seatstays and seattube shape
(Image credit: Colin Levitch / Immediate Media)
Image 11 of 22

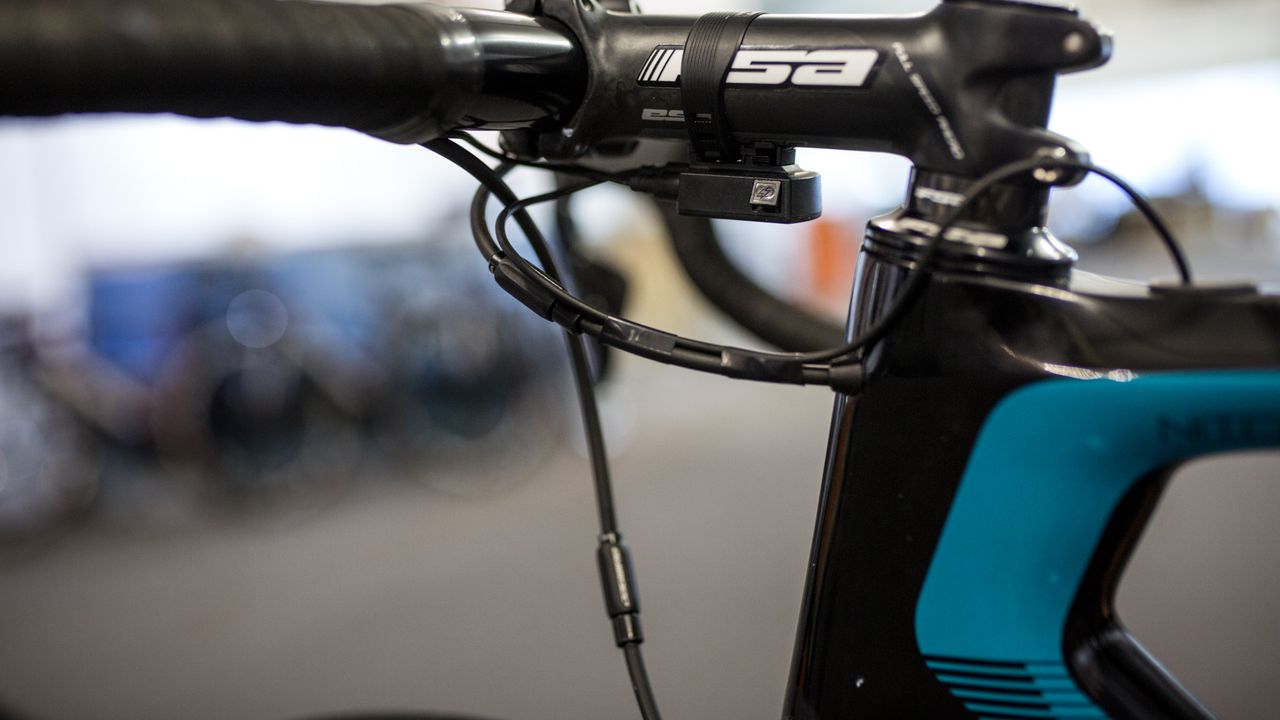

A few wraps of electrical tape keeps the gear and brake cables tidy

A few wraps of electrical tape keeps the gear and brake cables tidy
(Image credit: Colin Levitch / Immediate Media)
Image 12 of 22

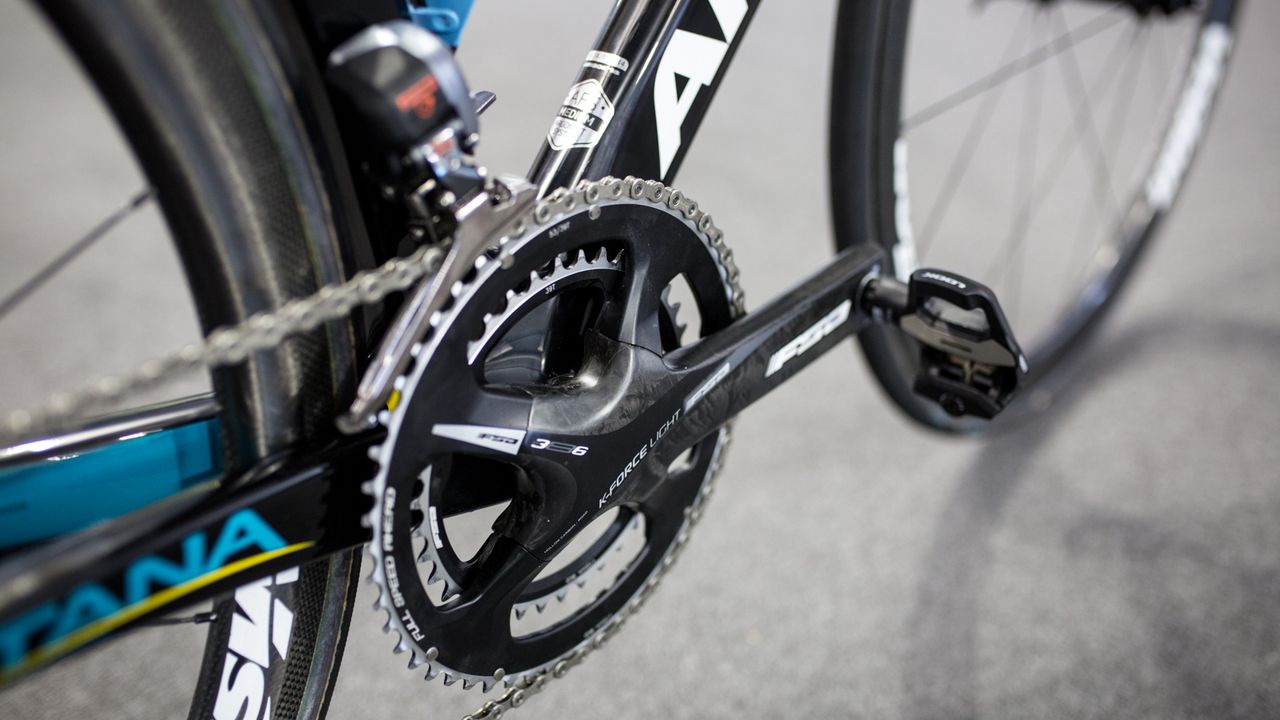

FSA K-Force light cranks

FSA K-Force light cranks
(Image credit: Colin Levitch / Immediate Media)
Image 13 of 22

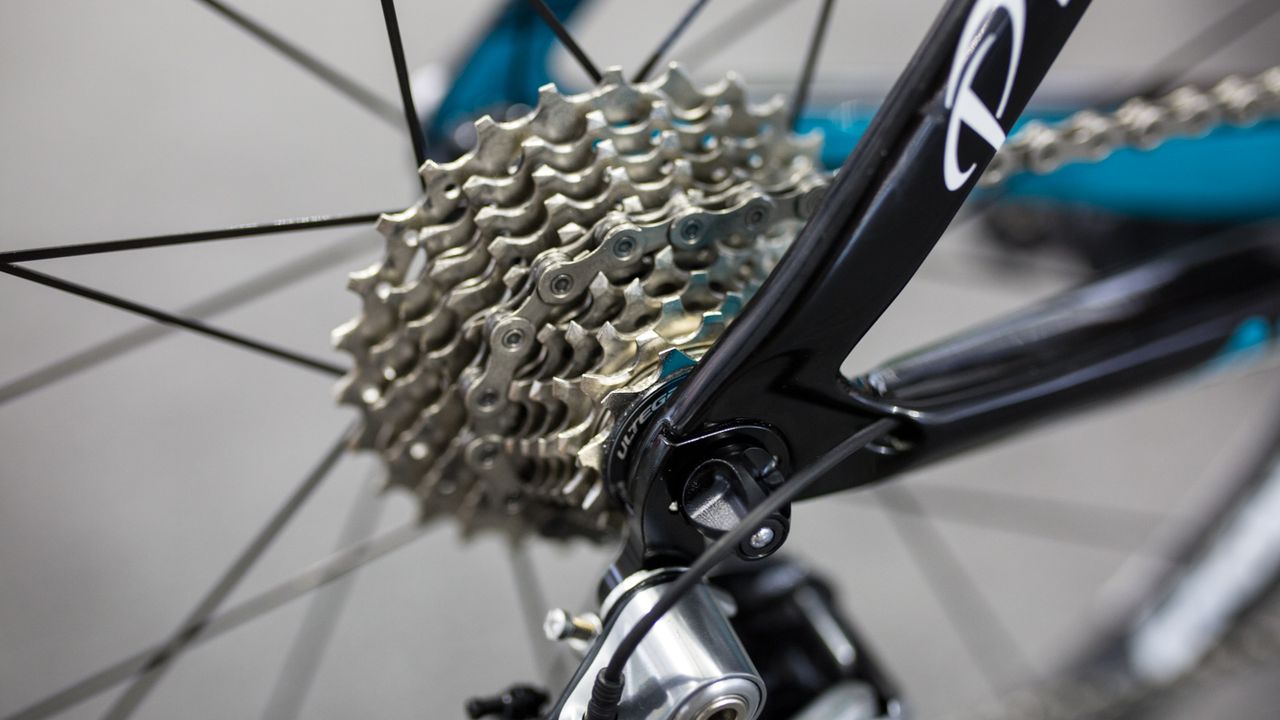

Ultegra cassettes are a lot more common in the WorldTour peloton than you might think

Ultegra cassettes are a lot more common in the WorldTour peloton than you might think
(Image credit: Colin Levitch / Immediate Media)
Image 14 of 22

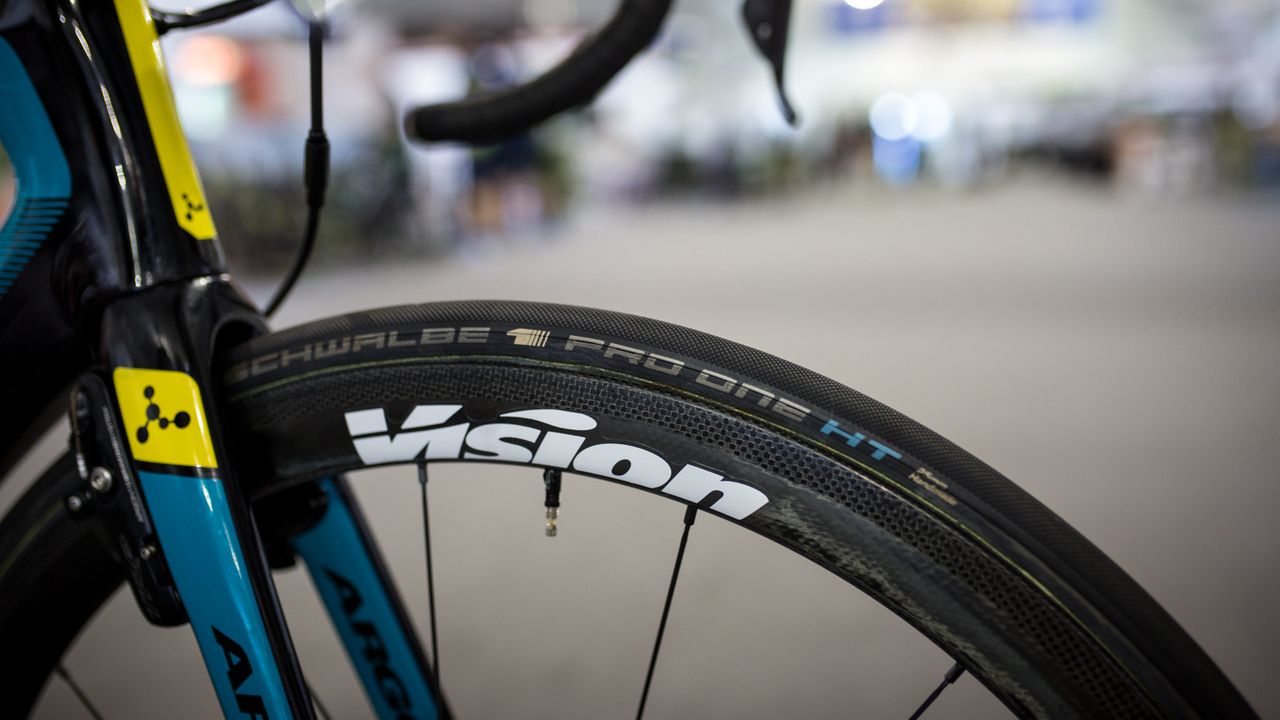

Vision wheels are partnered with Schwalbe Pro One HT tubular tyres

Vision wheels are partnered with Schwalbe Pro One HT tubular tyres
(Image credit: Colin Levitch / Immediate Media)
Image 15 of 22

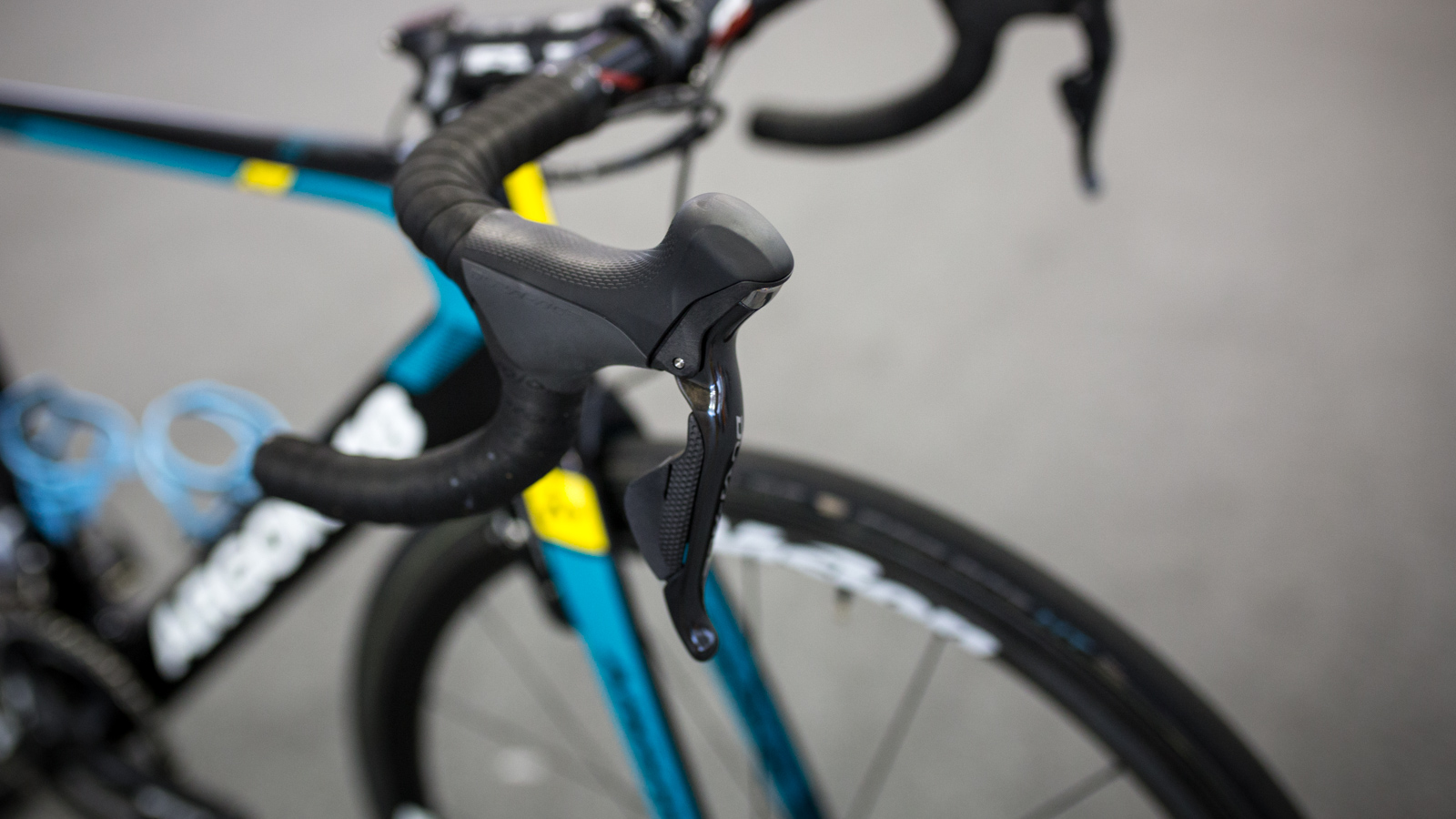

Shimano Dura-Ace Di2 9070 shifters

Shimano Dura-Ace Di2 9070 shifters
(Image credit: Colin Levitch / Immediate Media)
Image 16 of 22

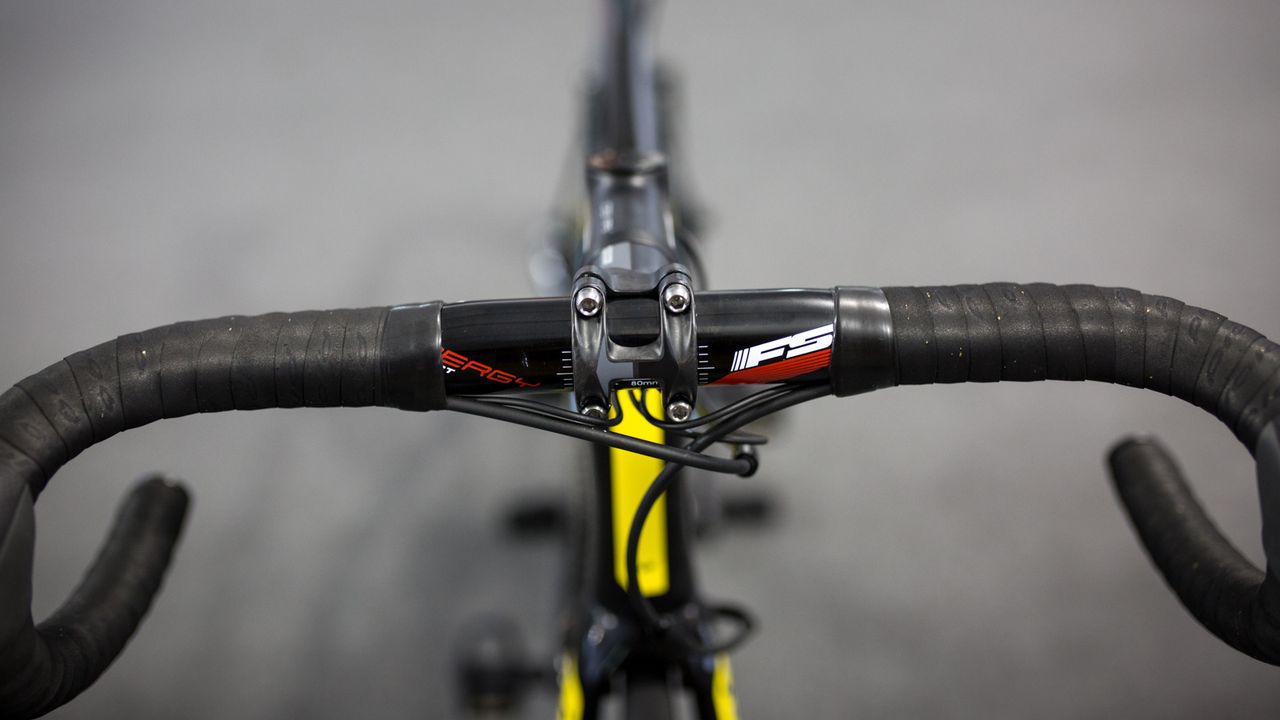

Sanchez tapes his handlebars quite close to the stem

Sanchez tapes his handlebars quite close to the stem
(Image credit: Colin Levitch / Immediate Media)
Image 17 of 22

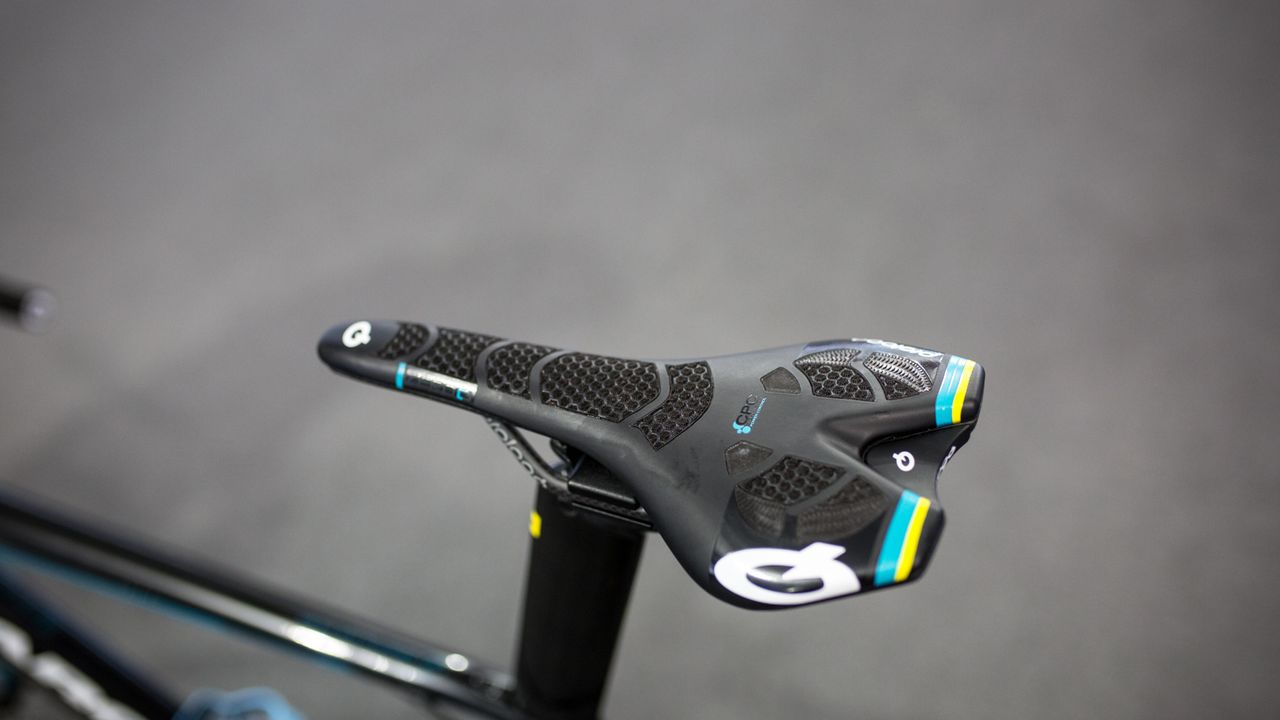

Prologo Zero C3 CPC in Astana team colours

Prologo Zero C3 CPC in Astana team colours
(Image credit: Colin Levitch / Immediate Media)
Image 18 of 22

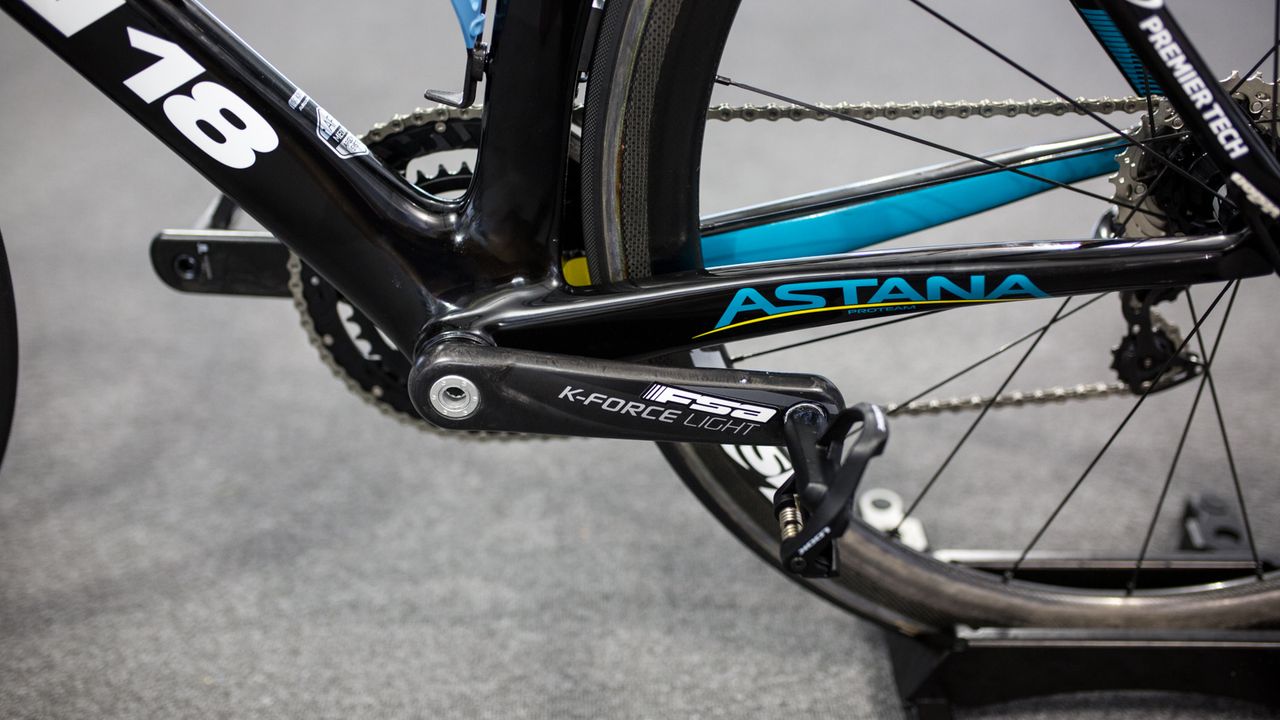

A look at the non-driveside cranks

A look at the non-driveside cranks
(Image credit: Colin Levitch / Immediate Media)
Image 19 of 22

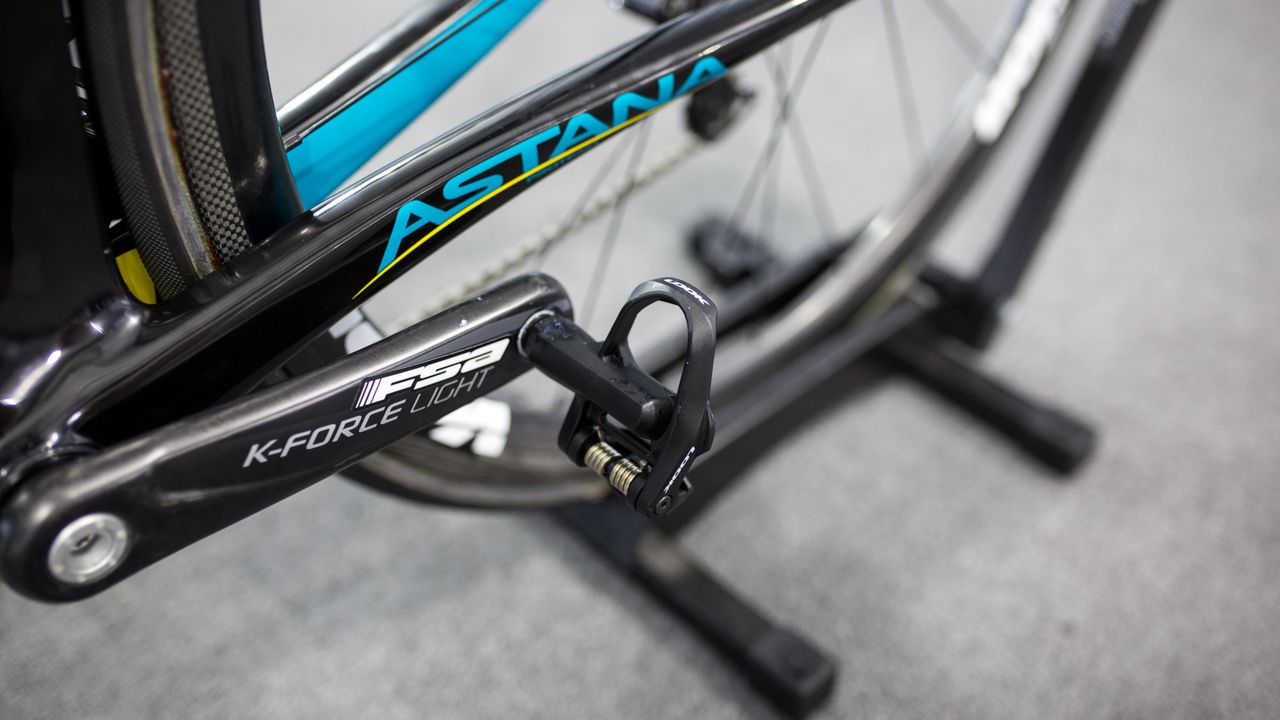

Look Keo pedals for Sanchez

Look Keo pedals for Sanchez
(Image credit: Colin Levitch / Immediate Media)
Image 20 of 22

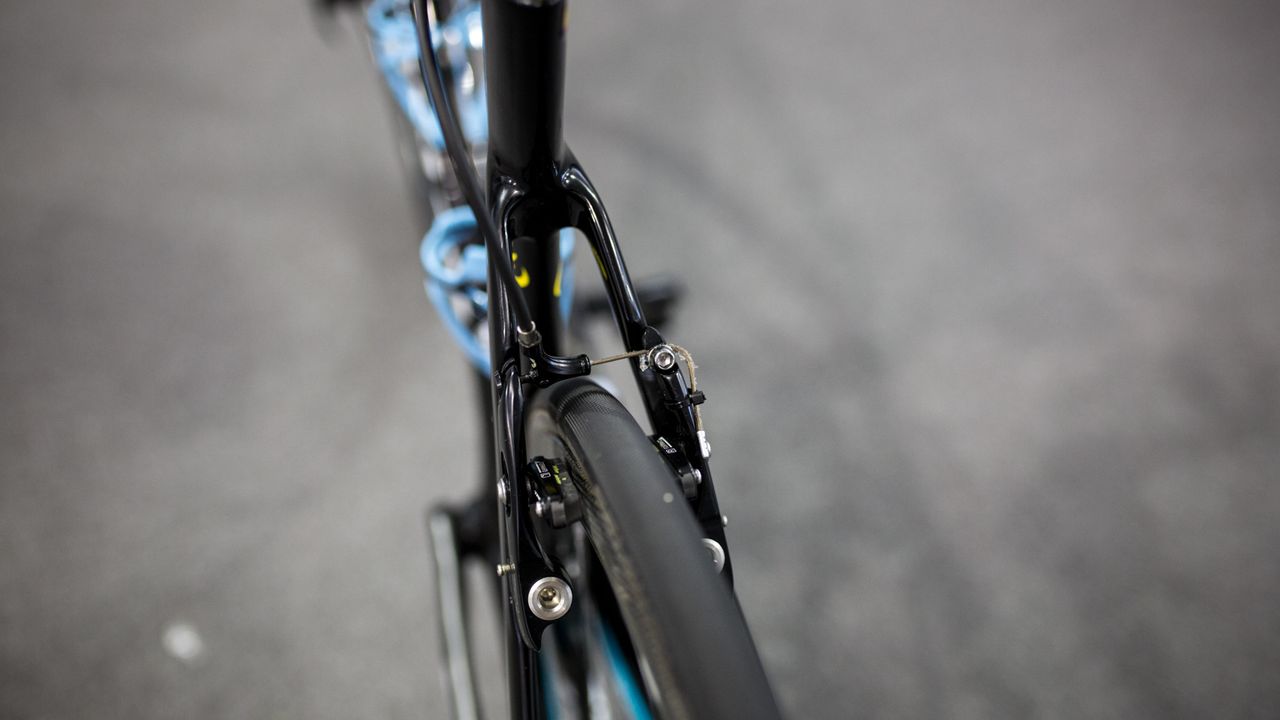

cantilever brakes on Dan Chabanov's Richard Sachs bike.

cantilever brakes on Dan Chabanov's Richard Sachs bike.
(Image credit: Colin Levitch / Immediate Media)
Image 21 of 22

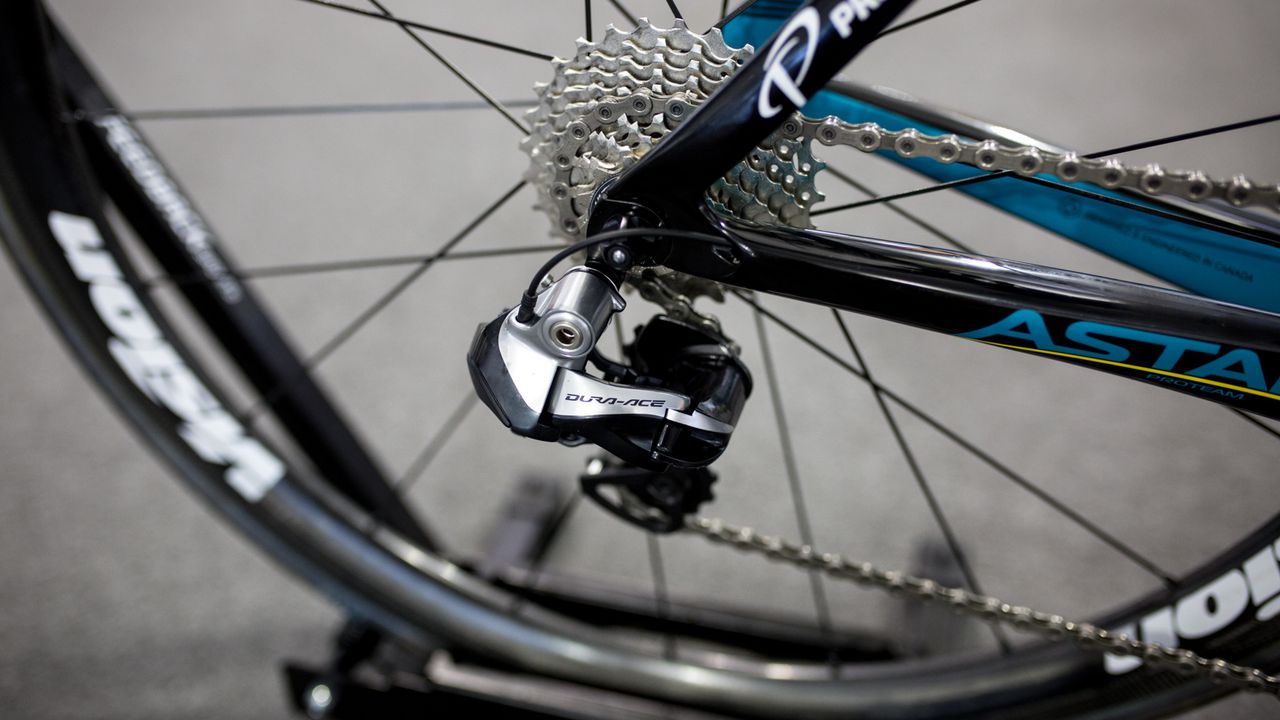

Shimano Dura-Ace Di2 rear derailleur

Shimano Dura-Ace Di2 rear derailleur
(Image credit: Colin Levitch / Immediate Media)
Image 22 of 22

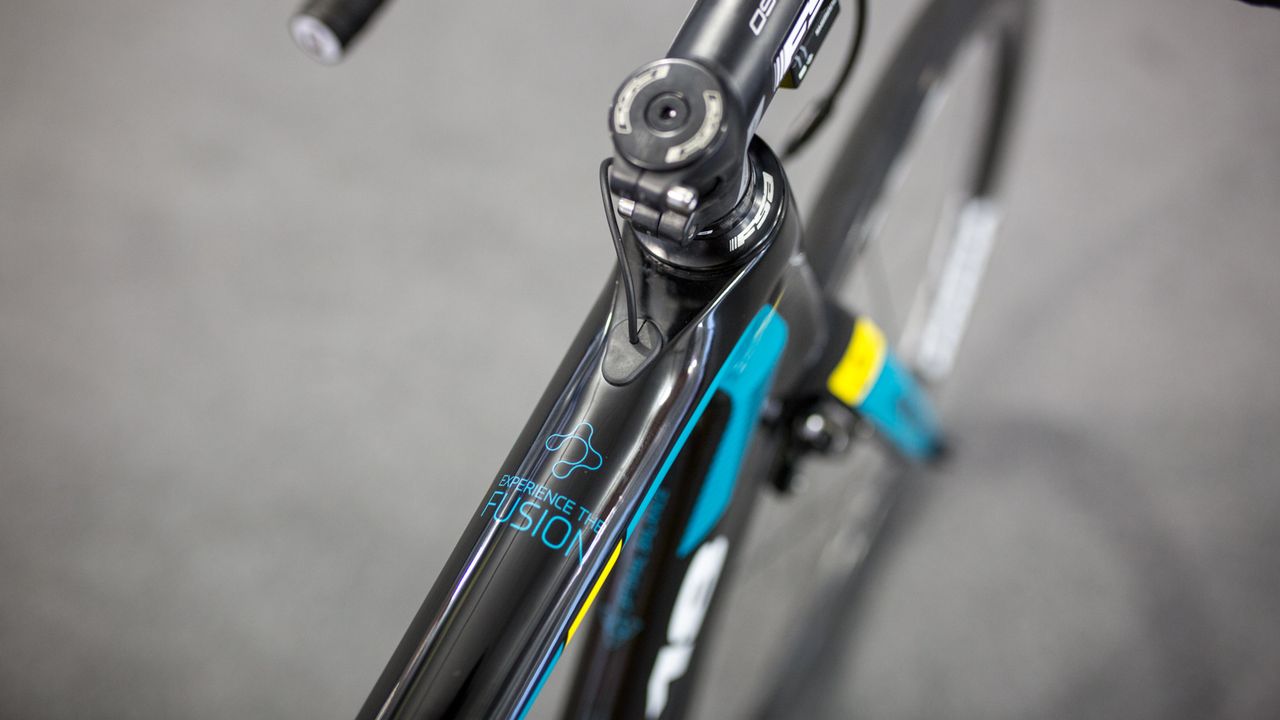

The Di2 gear cable runs along the inside of the top tube

The Di2 gear cable runs along the inside of the top tube
(Image credit: Colin Levitch / Immediate Media)

Argon 18 joins the WorldTour peloton in 2017, providing bikes to the Astana team. The model line-up includes the Gallium Pro, E-118 Next and the aero road Nitrogen Pro. Luis Leon Sanchez and his Astana teammates debuted the aero race bike at the Tour Down Under last month.

The Nitrogen Pro is equipped with Vision Metron wheels paired with Schwalbe Pro ONE HT and a hybrid groupset of Shimano Dura-Ace Di2 shifting, a FSA K-Force Light crankset and TRP aerodynamic brakes. The brakes are designed in a similar vein to v-brakes, but with the brake calliper able to sit flush with the back of the fork for less turbulence as the air runs over the forks. The rear brake is a similar design and sits flush with the outer edge of the seat stays.

As the only WorldTour team equipped with FSA groupset components, we were expecting at least some of the Astana riders to be riding the latest FSA WE groupset later in the season.

The Nanotech HM8003 tubing of the aerodynamic frame results in a similarly shaped bladed Argon 18 ASP-5100 seat post, whilst the stem is an alloy 125mm FSA OS 99.

A custom Prologo Zero C3 CPC saddle in Astana team colours and Prologo handlebar tape complete the bike.

Complete bike specifications
Frame: Argon 18 Gallium Pro, size M
Fork: Argon 18 Gallium Pro
Headset: FSA
Stem: FSA OS 99 alloy, 125mm
Handlebar: FSA Energy, 400m
Tape: Prologo
Front brake: TRP Front Linear Spring
Rear brake: TRP RC Linear Spring
Brake/Shift levers: Shimano Dura-Ace Di2
Front derailleur: Shimano Dura-Ace Di2
Rear derailleur: Shimano Dura-Ace Di2
Cassette: Shimano Ultegra, 11-28T
Chain: Shimano Ultegra, 11 speed
Crankset: FSA K-Force Light, 53-39T 175mm
Pedals: Look Keo 2 Max
Wheelset: Vision Metron
Tyres: Schwalbe Pro ONE HT tubular
Saddle: Prologo Zero C3 CPC, custom
Seatpost: Argon 18 ASP-5100
Bottle cages: Tacx Deva

Critical measurements
Rider's height: 1.87m
Rider's weight: 74kg
Saddle height from BB: 795mm
Centre of saddle to centre of bar: 720mm
Head tube length: 141mm
Top tube length (effective): 556mm
Total bicycle weight: 7.01kg
