Anthony Delaplace's Tour de France Look 796

3D-printed cover hides Di2 junction box inside the top tube

This article originally appeared on BikeRadar.

Former French junior national champ Anthony Delaplace first raced the Tour de France back in 2011, but the 25-year-old is still on his way up.

After riding for the Swiss brand Kemo last year, Bretagne-Séché is racing the storied French brand Look at the 2015 Tour de France. Look launched this 796 time trial bike at the Tour.

The visually striking design incorporates some of the aero styling from Look’s 795 Aerolight road frame, such as front brake hidden inside the fork.

Look tucked the Di2 junction box in the top tube, covering it with a 3D-printed piece.

The Di2 junction box is stored underneath this 3D printed cap. We assume the production version will become a more refined molded cover
We expect this 3D-printed piece will be replaced by a molded cap for production versions of the 796

At 8.61 kg / 18.98lb, Delaplace’s TT rig isn’t light.

Bretagne-Séché is the only team at the Tour riding the Polar Keo Power Bluetooth power meter pedals.

Delaplace finished 144th in the Tour’s opening time trial, and his wild-card-entry Bretagne-Séché squad finished the team time trial in 18th, ahead of WorldTour teams like Katusha and Orica-GreenEdge.

Check out the gallery above for a closer look, and see the full bike details below.

Stay up to date with the latest Tour tech at BikeRadar's Tour de France 2015 homepage and be sure to read our complete race coverage here.

The Power Keo Power Bluetooth power meter pedals operate on Bluetooth Smart, not ANT+ like all other power meters

Full Specifications

Frame: Look 796
Fork: Look 796
Stem: Look 796 integrated
Handlebar: Look 796 integrated
Front brake: Look 796 integrated
Rear brake: Shimano Dura-Ace direct mount
Front derailleur: Shimano Dura-Ace Di2
Rear derailleur: Shimano Dura-Ace Di2
Brake levers: Shimano Dura-Ace Di2
Shift buttons: Shimano Dura-Ace Di2
Cassette: Shimano Dura-Ace, 11-25t
Chain: Shimano Dura-Ace

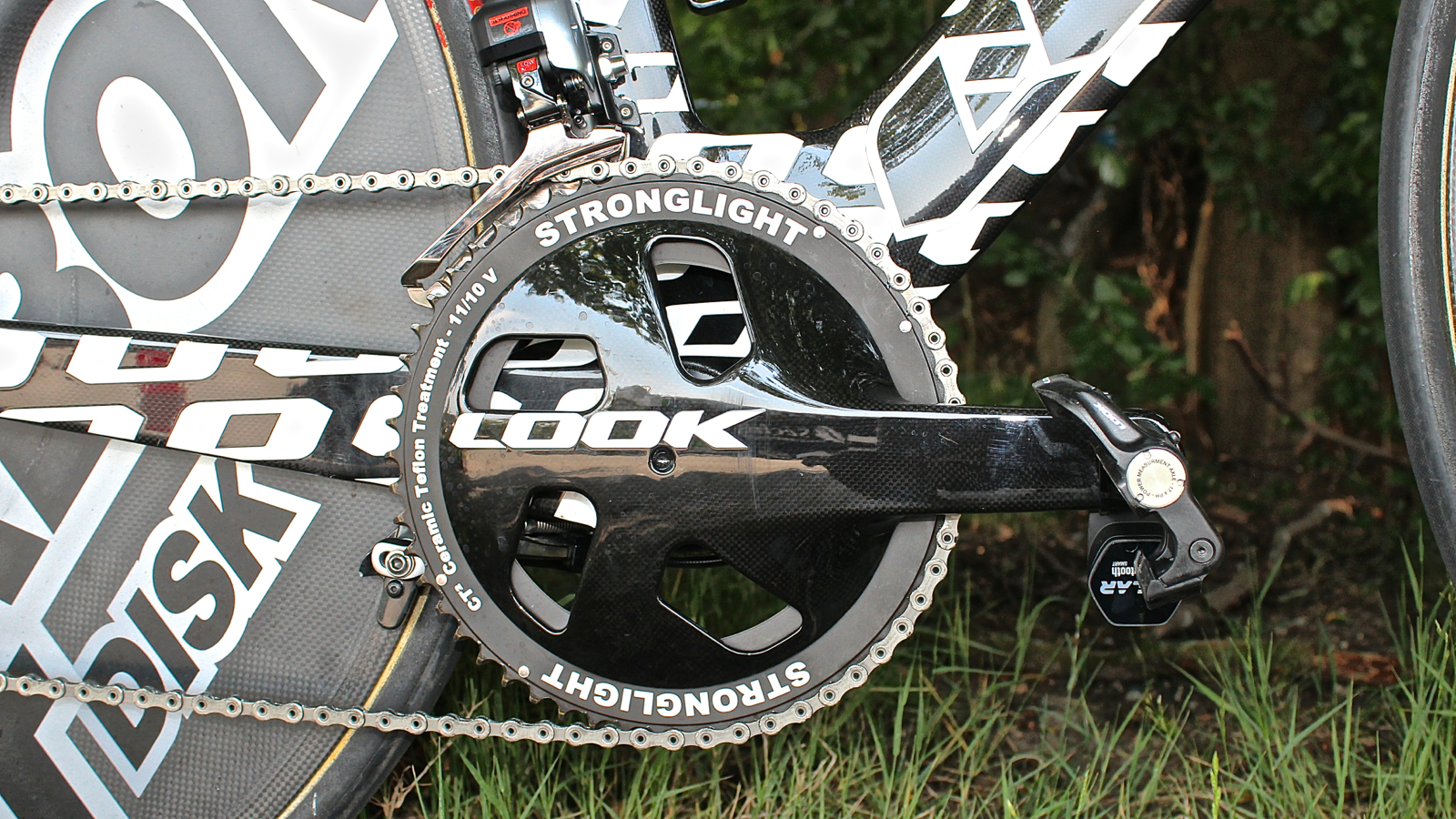

Cranks: Look with Stronglight 56/44t rings, 172.5mm
Power meter: Polar Keo Power pedals
Front wheel: American Classic Carbon 3 Spoke
Rear wheel: American Classic Carbon TT Disk
Tubulars: Challenge Record
Saddle: Selle Italia SLR Team Edition
Seatmast: Look 796 integrated

Critical measurements

Complete bike weight: 8.61 kg / 18.98lb
Rider's height: 181cm / 5’11”
Rider's weight: 65kg / 143lb
Saddle height from BB, c-t: 78cm
Saddle to handlebar top: 17cm
Tip of saddle to center of pads: 55cm
