New Specialized Venge ViAS sets high bar for aero road

Image 1 of 29

The 2016 Specialized S-Works Venge ViAS

The 2016 Specialized S-Works Venge ViAS (Image credit: Courtesy Specialized)
Image 2 of 29

An early prototype of the ViAS

An early prototype of the ViAS (Image credit: Courtesy Castelli)
Image 3 of 29

As with other S-Works bikes, the ViAS has sized-specific builds. At left is the 52cm of longtime designer Chris D'Alusio; at right is engineer Sam Pickman's 58cm

As with other S-Works bikes, the ViAS has sized-specific builds. At left is the 52cm of longtime designer Chris D'Alusio; at right is engineer Sam Pickman's 58cm (Image credit: Courtesy Castelli)
Image 4 of 29

A lot of time was spent on the interactive area of the fork, front brake and down tube

A lot of time was spent on the interactive area of the fork, front brake and down tube (Image credit: Courtesy Castelli)
Image 5 of 29

The seat-tube mount for the rear brake

The seat-tube mount for the rear brake (Image credit: Courtesy Castelli)
Image 6 of 29

A few iterations of the fork/brake prototypes

A few iterations of the fork/brake prototypes (Image credit: Courtesy Castelli)
Image 7 of 29

The first few drafts of new ideas are often based on function, not form

The first few drafts of new ideas are often based on function, not form (Image credit: Courtesy Castelli)
Image 8 of 29

D'Alusio and Pickman tested wheel/frame deflection at three points: at the seatstays, at the chainstays and in the middle of the seat tube

D'Alusio and Pickman tested wheel/frame deflection at three points: at the seatstays, at the chainstays and in the middle of the seat tube (Image credit: Courtesy Castelli)
Image 9 of 29

D'Alusio said the deflection at the seatstays here was higher than at the seat tube, which reinforced the idea for mounting the ViAS brake there

D'Alusio said the deflection at the seatstays here was higher than at the seat tube, which reinforced the idea for mounting the ViAS brake there (Image credit: Courtesy Castelli)
Image 10 of 29

The ViAS Aerofly handlebar and stem went from standard to a fully integrated monocoque before settling on a halfway solution of aerodynamics and adjustability

The ViAS Aerofly handlebar and stem went from standard to a fully integrated monocoque before settling on a halfway solution of aerodynamics and adjustability (Image credit: Courtesy Castelli)
Image 11 of 29

At left is the fastest but least adjustable; at right is the standard very adjustable but not very aero. The final ViAS solution comes with most of the aero and some of the adjustability

At left is the fastest but least adjustable; at right is the standard very adjustable but not very aero. The final ViAS solution comes with most of the aero and some of the adjustability (Image credit: Courtesy Castelli)
Image 12 of 29

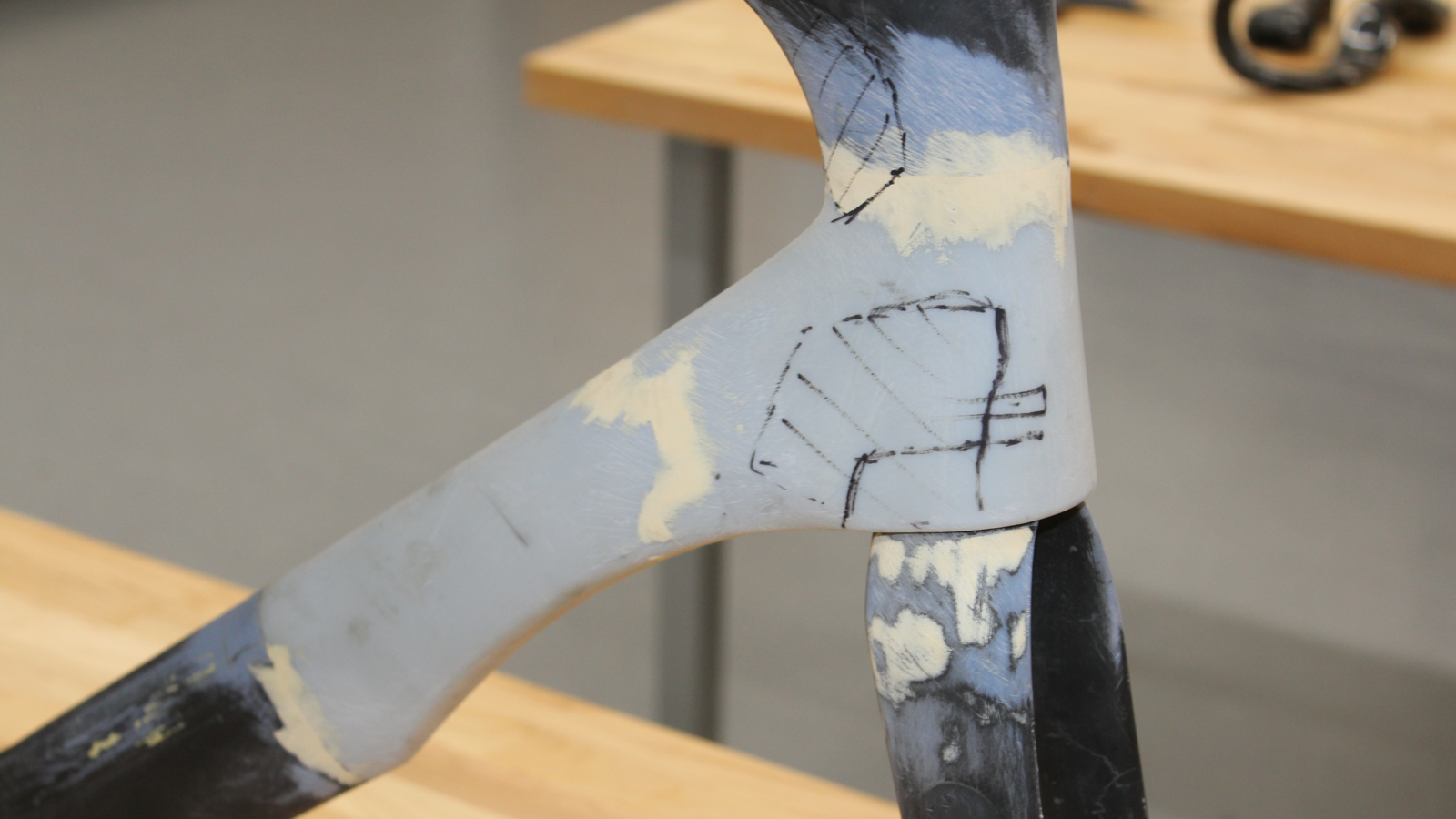

Sketches on an early prototype show plans to recess the fork into the head tube/down tube

Sketches on an early prototype show plans to recess the fork into the head tube/down tube (Image credit: Courtesy Castelli)
Image 13 of 29

Having a wind tunnel across the street from the office allowed for much more iterative prototype testing than in years past

Having a wind tunnel across the street from the office allowed for much more iterative prototype testing than in years past (Image credit: Courtesy Castelli)
Image 14 of 29

The ViAS rear brake pivots on two mounts protruding from the seat tube

The ViAS rear brake pivots on two mounts protruding from the seat tube (Image credit: Courtesy Castelli)
Image 15 of 29

The ViAS front brake is essentially a v-brake, with the massive aero fairings serving as arms for leverage

The ViAS front brake is essentially a v-brake, with the massive aero fairings serving as arms for leverage (Image credit: Courtesy Castelli)
Image 16 of 29

The ViAS brake caliper adds UCI-approved length to the aero shape with hardly any additional width

The ViAS brake caliper adds UCI-approved length to the aero shape with hardly any additional width (Image credit: Courtesy Castelli)
Image 17 of 29

Less is more (aero)

Less is more (aero) (Image credit: Courtesy Specialized)
Image 18 of 29

Venturing into the realm of TT superbikes, the inclusive stem is not an easy-to-adjust stock piece

Venturing into the realm of TT superbikes, the inclusive stem is not an easy-to-adjust stock piece (Image credit: Courtesy Specialized)
Image 19 of 29

An integrated Garmin mount puts the computer in line with the stem

An integrated Garmin mount puts the computer in line with the stem (Image credit: Courtesy Specialized)
Image 20 of 29

Elements of the frame shape certainly have been seen on competitors' bikes, but the brakes have not

Elements of the frame shape certainly have been seen on competitors' bikes, but the brakes have not (Image credit: Courtesy Specialized)
Image 21 of 29

The rear brake tucks in behind the water bottle

The rear brake tucks in behind the water bottle (Image credit: Courtesy Specialized)
Image 22 of 29

Specialized S-Works clinchers are labeled 22 and 24mm front and rear, but actually measure 24 and 26mm respectively when mounted on the Roval CLX 64s, which have a 21mm internal rim width

Specialized S-Works clinchers are labeled 22 and 24mm front and rear, but actually measure 24 and 26mm respectively when mounted on the Roval CLX 64s, which have a 21mm internal rim width (Image credit: Courtesy Specialized)
Image 23 of 29

Specialized claims the front brake design does not add any drag to the fork

Specialized claims the front brake design does not add any drag to the fork (Image credit: Courtesy Specialized)
Image 24 of 29

The integrated stem houses Di2 wires and brake cables, and sits lowered than a standard stem thanks to the upward sweep in the bars

The integrated stem houses Di2 wires and brake cables, and sits lowered than a standard stem thanks to the upward sweep in the bars (Image credit: Courtesy Castelli)
Image 25 of 29

Specialized designed the ViAS with its wind tunnel, which opened in 2013

Specialized designed the ViAS with its wind tunnel, which opened in 2013 (Image credit: Courtesy Castelli)
Image 26 of 29

Recipe for aero: short, narrow head tube; narrow fork without caliper on the fork or inside the legs; dropped stem that houses cabling; inline Garmin mount

Recipe for aero: short, narrow head tube; narrow fork without caliper on the fork or inside the legs; dropped stem that houses cabling; inline Garmin mount (Image credit: Courtesy Castelli)
Image 27 of 29

Specialized's wind tunnel lets engineers test bikes and athletes, with power-resistance controlled while pedaling

Specialized's wind tunnel lets engineers test bikes and athletes, with power-resistance controlled while pedaling (Image credit: Courtesy Castelli)
Image 28 of 29

The 2016 Venge ViAS is a far cry from its predecessor

The 2016 Venge ViAS is a far cry from its predecessor (Image credit: Courtesy Castelli)
Image 29 of 29

This prototype is much closer to the final product

This prototype is much closer to the final product (Image credit: Courtesy Castelli)

This article originally appeared on BikeRadar

Two minutes. That’s how much faster Specialized claims the new Venge ViAS is compared with a standard road bike over a flat 40km.

Tested to be a full minute faster than the previous Venge, the 2016 Specialized Venge features dramatic aero features such as a truncated head tube, an integrated low-riding stem, an elongated front brake mounted behind the fork and a rear brake tucked midway up the seat tube. Cables and wires are internally routed — even through the stem — and the tubeless-ready wheels are a bold depth of 64mm.

But perhaps the most dramatic thing about the new Venge ViAS is that it handles like a great road bike.

Built with massively deep Roval CLX 64 wheels, the Venge ViAS features highly integrated componentry — good luck raising or lowering that stem with spacers — but retains some everyday adjustability such as separate and therefore adjustable handlebar.

At 1,150g, the Venge ViAS frame is certainly not light. But after long-term modelling work with McLaren Applied Technologies, Specialized is highly confident that the massive reduction in aero drag will override the weight penalty for most riders in most situations in terms of overall speed.

Recipe for aero: short, narrow head tube; narrow fork without caliper on the fork or inside the legs; dropped stem housing cabling; inline Garmin mount

Road bike handling, superbike drag

In overhauling the Venge, Specialized's designers decided to focus on making the most aero, best handling road bike possible. Freed from the “it has to be ultralight” mandate of most road bikes, Specialized designers, engineers and product managers like Chris D’Alusio, Luc Callahan and Mark Cote pushed the envelope.

The front end is nearly as stiff as the current S-Works Tarmac, and the bottom-bracket-area stiffness is higher than any Specialized road bike. With a longer seatpost than before, there is a slight increase in flex and thus comfort, though Specialized declined to quantify how much.

The dramatic look and dimensions of the frame, stem and brakes are matched by the rims, which measure a whopping 21mm internally and bulge to 29.9mm around the midpoint of the 64mm shape. The 22mm front and 24mm S-Works tyres measure a respective 24 and 26mm on the hyper-wide rims. As the S-Works are quite supple, this wide footprint makes for great handling with excellent traction and low rolling resistance. The wheels weigh a claimed 695g front and 850g rear — pretty light for such tall hoops.

But what about those brakes? Early aero road bikes were notorious for sub-par braking, as designers often compromised brake mechanics while chasing aero performance. Longtime Specialized designer Chris D’Alusio started tinkering with the Venge brake design years ago. Largely unconstrained by a weight target, D’Alusio was free to focus on aerodynamics and brake performance.

D’Alusio and Specialized studied wheel flex in relation to various points on bike frames in general, and found that there was more movement below the bottom bracket at above the seatstays than in between the two, where the Venge brake is anchored.

The ViAS rear brake pivots on two mounts protruding from the seat tube

Specialized aero engineer Chris Yu also pointed out that tunnel testing showed the under-the-chainstay brake location is not good for aerodynamics, as the down tube can speed up and funnel air through that area.

“We tested against [Shimano] Dura-Ace 9000 for feel, modulation and power,” D’Alusio said. “And the Venge ViAS brakes are right on par.”

In building the Venge ViAS, Specialized adopted a holistic approach. While one man’s integrated can be another man’s incompatible, Specialized decided the gain in aerodynamics was worth giving up some compatibility. Aero, non-standard seatposts are now common on road bikes, but integrated stems and brakes are a step further. Similarly, with the new Venge ViAS, the swooped handlebar is a requirement, too, unless you happen to want a really low bar position.

With all these integrated elements, the rider is locked into the system, so the system had better be pretty darn good. Specialized believes it is, and can point to reams of wind tunnel data to back it up.

Tunnel vision

Don’t believe it the time-savings numbers? Prior to 2013, Specialized designed aero bikes and aero equipment the way many other companies do — computer modelling for the initial design, then prototypes tested in a third-party wind tunnel paid by the hour. Two years ago, however, Specialized opened its own wind tunnel in Morgan Hill, California, and has since performed more than 1,600 hours of testing.

“We are fully friggin’ commited,”said Specialized’s Mark Cote, who helped bring the wind tunnel to life. “Aero is typically 80 percent of the resistance you face on a bike. It’s not just road products where we are studying aerodynamics. It’s e-bikes. It’s mountain bikes. It’s apparel.”

It’s hard to make generalizations about aerodynamics. By definition, the study is dynamic. But one rule holds pretty true; less frontal area means less drag. And less drag means more speed for the same effort. By effectively shrinking the frame, it isn’t a stretch to see how the Venge ViAS would be faster than its predecessor.

The front and rear brake designs resulted in no additional drag on the frame, Specialized claims, as the front follows in-line with the fork legs’ trailing edges and the rear is tucked behind the seat tube and, in real-world conditions, the water bottle.

While cables might not seem like much, they certainly can increase drag on a bike, which is why you increasingly see them hidden away on time trial bikes. To hide cables and wires from end to end, Specialized employed wide headset bearings to route the derailleur and brake lines from inside the stem down into the frame.

Specialized claims that the new Venge is not only faster than all current aero bikes on the market, but has such low aero drag that it is in-line with the Shiv TT.

Fit + Retül interactive measurement chart

As with many TT superbikes, the Venge ViAS comes with fitting adjustment constraints. You can still achieve the position you have on your current bike, but you cannot just swap in different stems and spacers until you have your fit dialed. You have to get your fit exactly dialed first.

Specialized bought fit company Retül back in 2012, and Retül created a nice piece of software that can prescribe the correct Venge ViAS fit (including the critical stem length and height, plus one of four different setback seatposts) based on your current bike by doing a host of measurements.

While you can go into a Specialized fitter and get everything measured, the Retül software lets you measure your bike at home. Besides the standard saddle height and stack and reach measurements for the cockpit, there are also measurements like putting your back wheel against a wall and measuring from the wall to the bottom bracket, to the handlebar and more.

Regardless of how the fit is done, a fit must be done. With the unique design of the compression stem, this is definitely a case of measure twice, cut once.

While the bike design may eventually trickle down, for now it’s top-shelf only. The Specialize S-Works Venge ViAS Di2 complete bike will retail for US$12,500 / £10,999 / AU$15,499, with the module going for US$5,800/ £4,999 / AU$TBC.
