Tom Boonen's 2017 Quick-Step Floors Specialized S-Works Venge ViAS Disc

Image 1 of 22

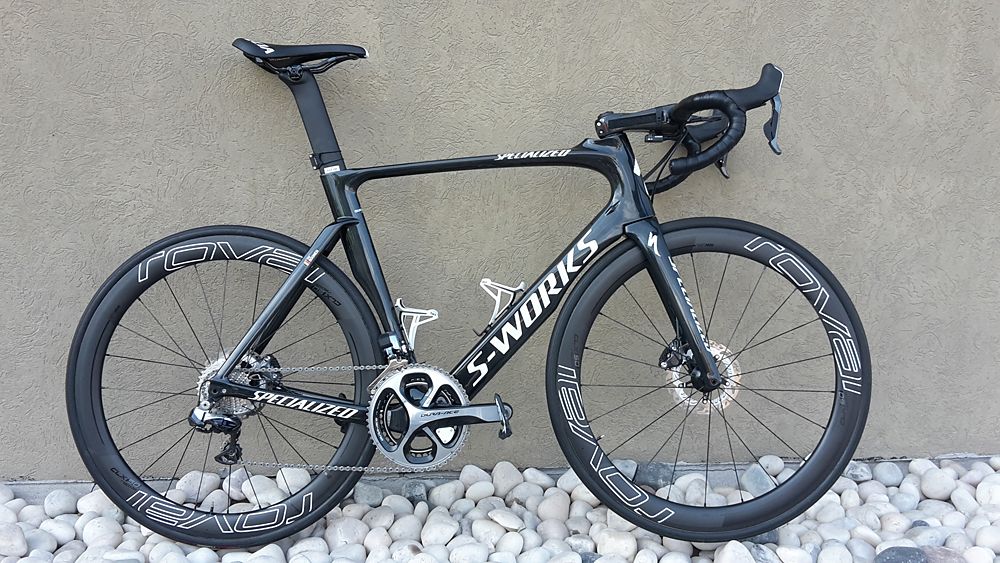

Tom Boonen's 2017 Quick-Step Floors Specialized Venge ViAS Disc

Tom Boonen's 2017 Quick-Step Floors Specialized Venge ViAS Disc
(Image credit: Patrick Fletcher)
Image 2 of 22

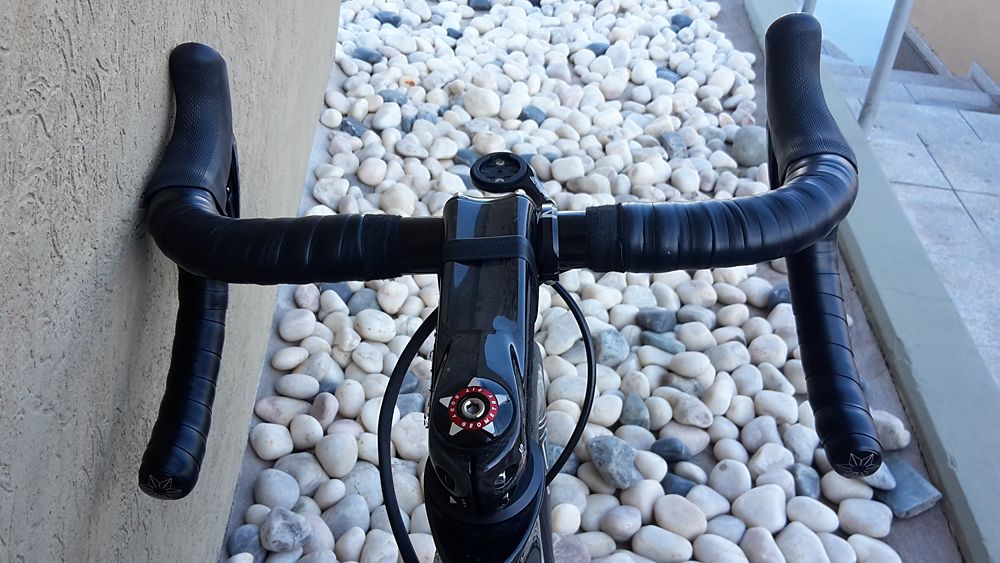

Boonen is running "officially" using a custom Specialized stem with the FSA Compact 40 bar

Boonen is running "officially" using a custom Specialized stem with the FSA Compact 40 bar
(Image credit: Patrick Fletcher)
Image 3 of 22

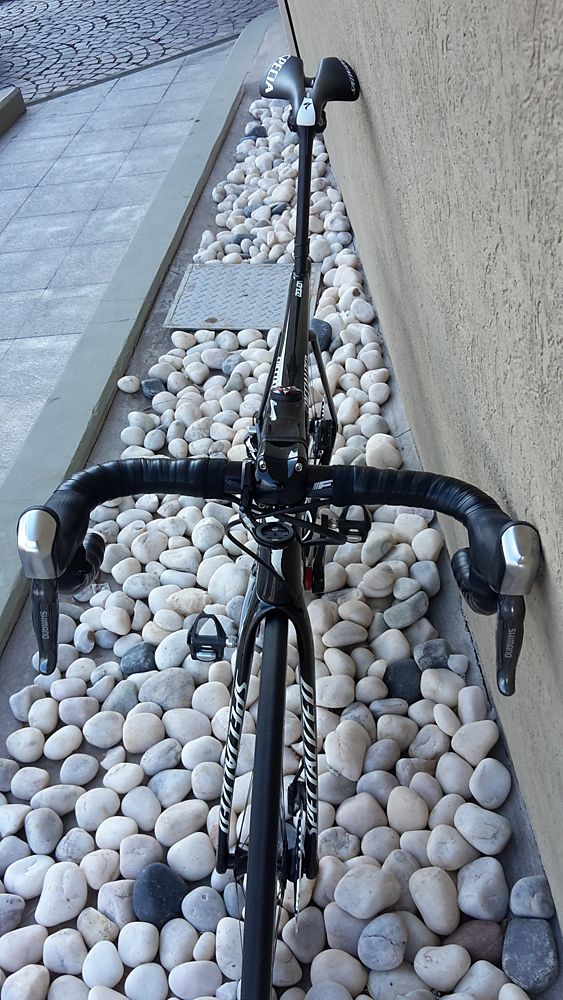

Boonen's Venge ViAS looks like it could cut through the air like a blade

Boonen's Venge ViAS looks like it could cut through the air like a blade
(Image credit: Patrick Fletcher)
Image 4 of 22

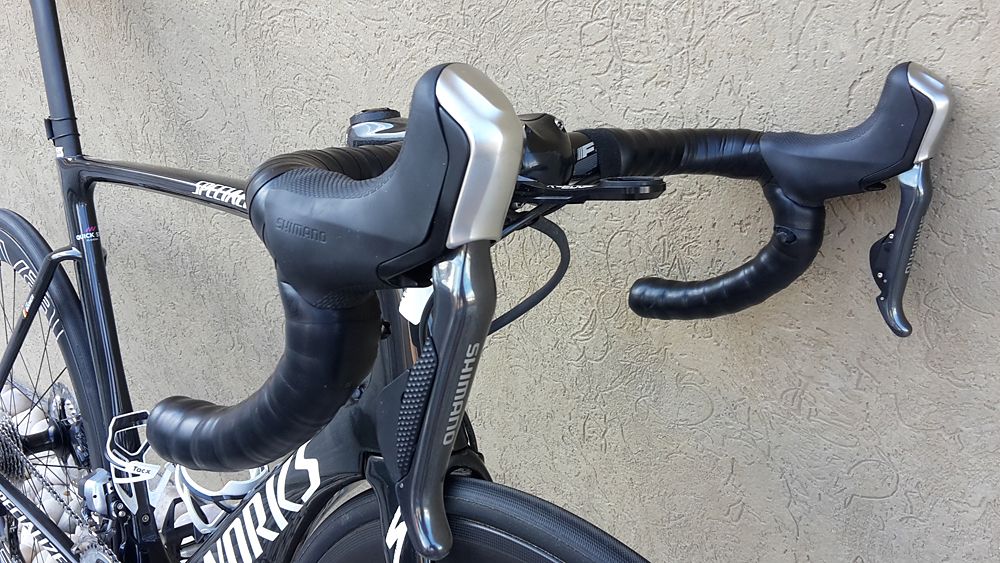

Dura-Ace Di2 levers

Dura-Ace Di2 levers
(Image credit: Patrick Fletcher)
Image 5 of 22

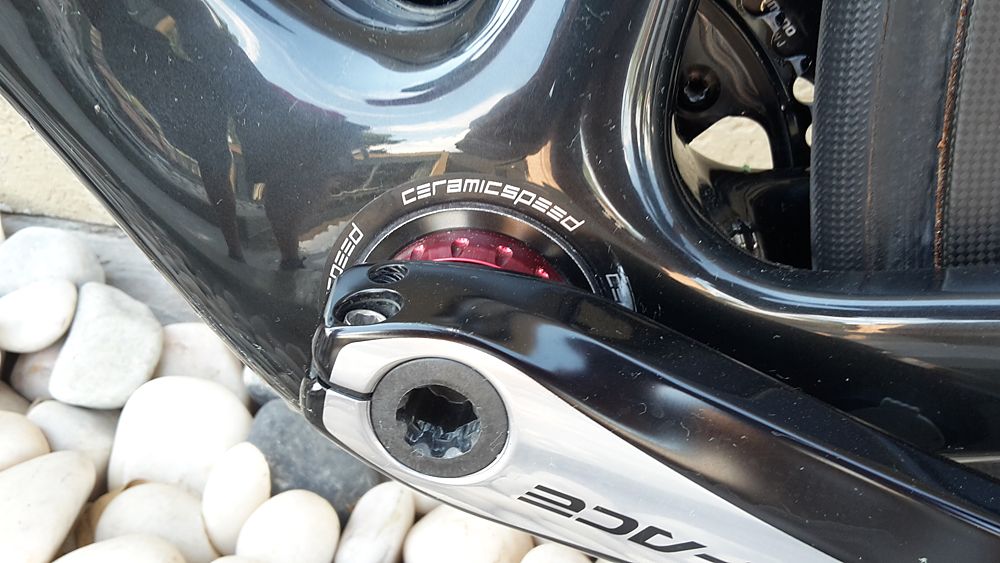

CeramicSpeed bearings cut down on drag in the bottom bracket

CeramicSpeed bearings cut down on drag in the bottom bracket
(Image credit: Patrick Fletcher)
Image 6 of 22

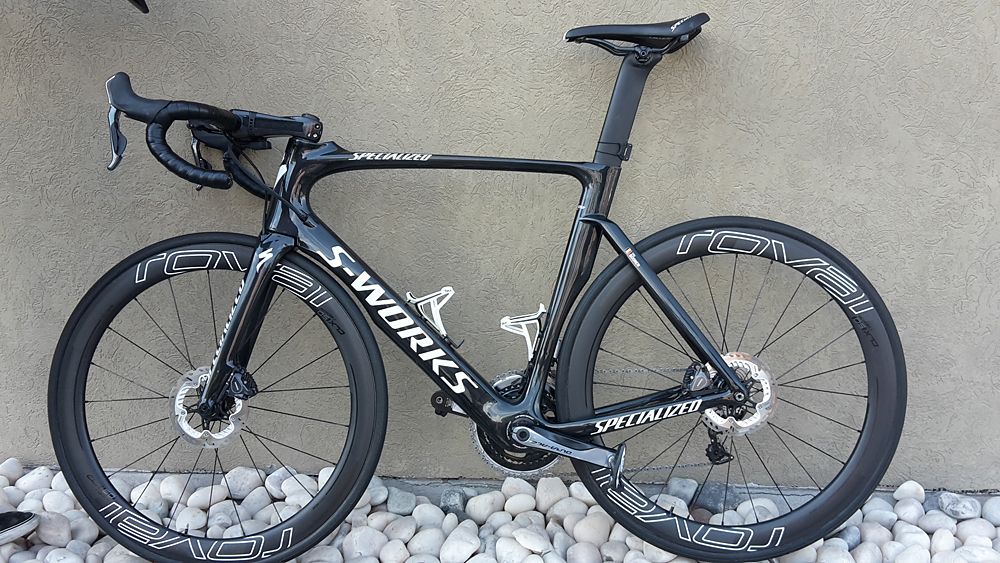

The non-drive side of Boonen's Venge ViAS

The non-drive side of Boonen's Venge ViAS
(Image credit: Patrick Fletcher)
Image 7 of 22

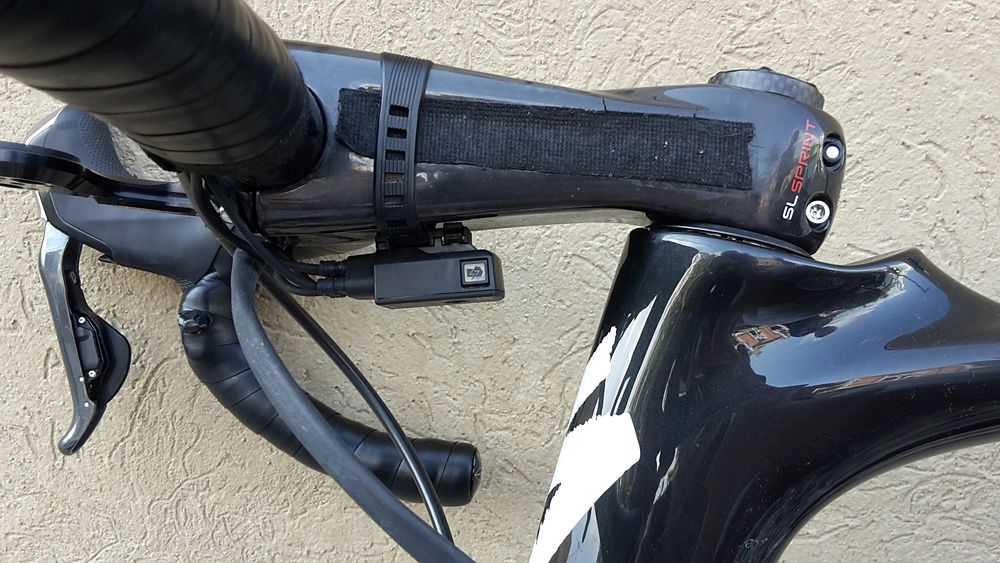

Whoops, that's a Zipp SL Sprint stem with some velcro blocking out the logo

Whoops, that's a Zipp SL Sprint stem with some velcro blocking out the logo
(Image credit: Patrick Fletcher)
Image 8 of 22

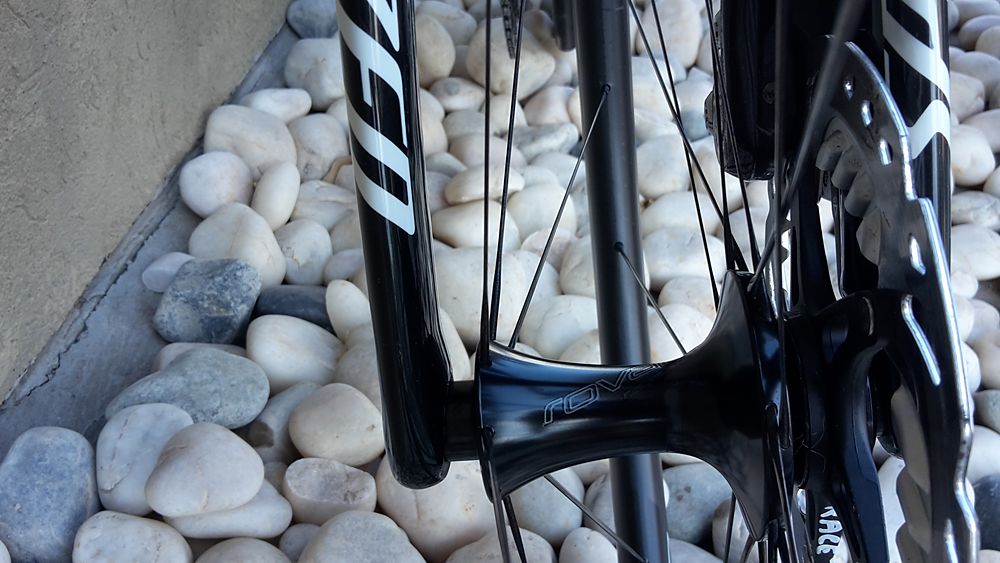

Roval wheels with thru-axles create clean lines in the fork

Roval wheels with thru-axles create clean lines in the fork
(Image credit: Patrick Fletcher)
Image 9 of 22

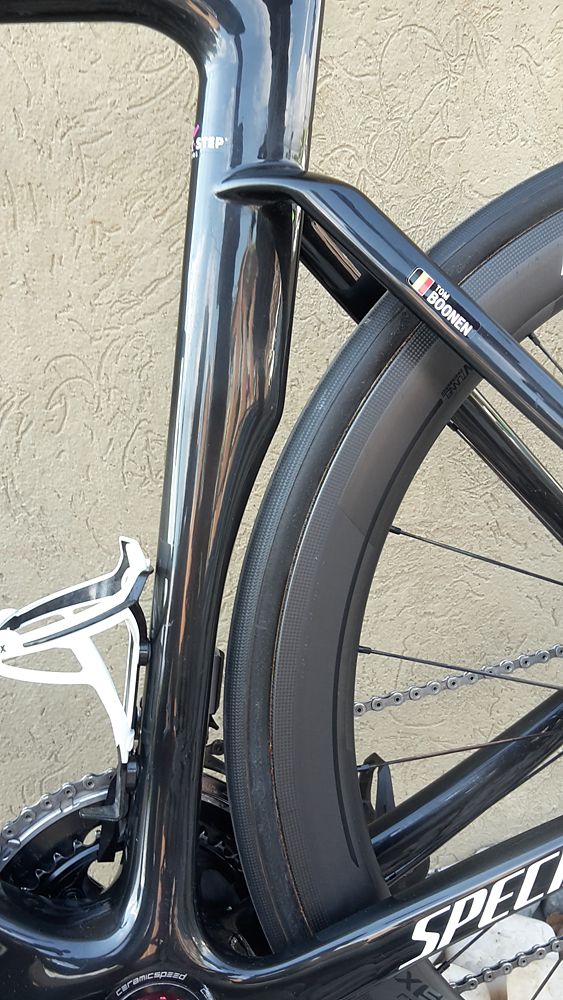

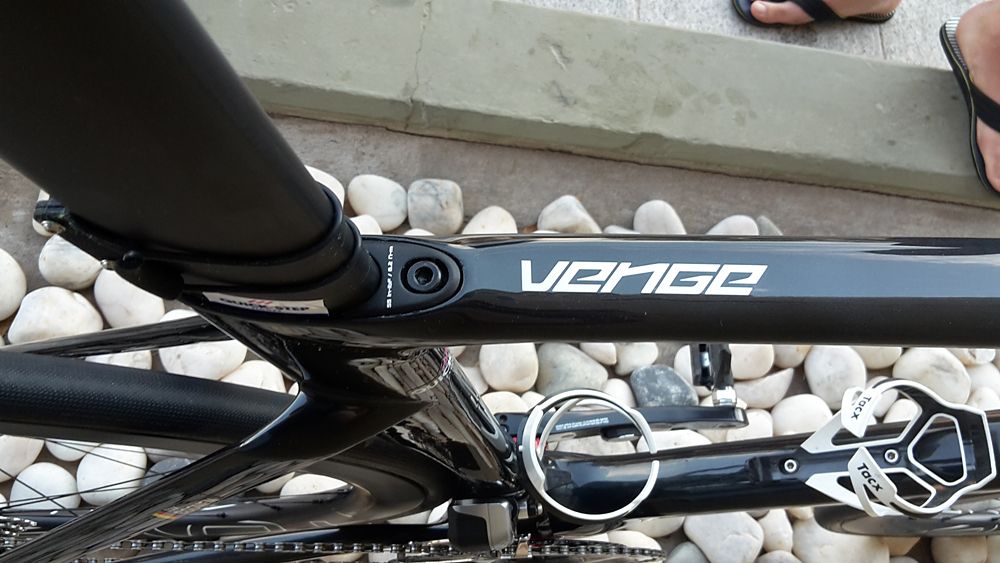

Boonen's Venge ViAS

Boonen's Venge ViAS
(Image credit: Patrick Fletcher)
Image 10 of 22

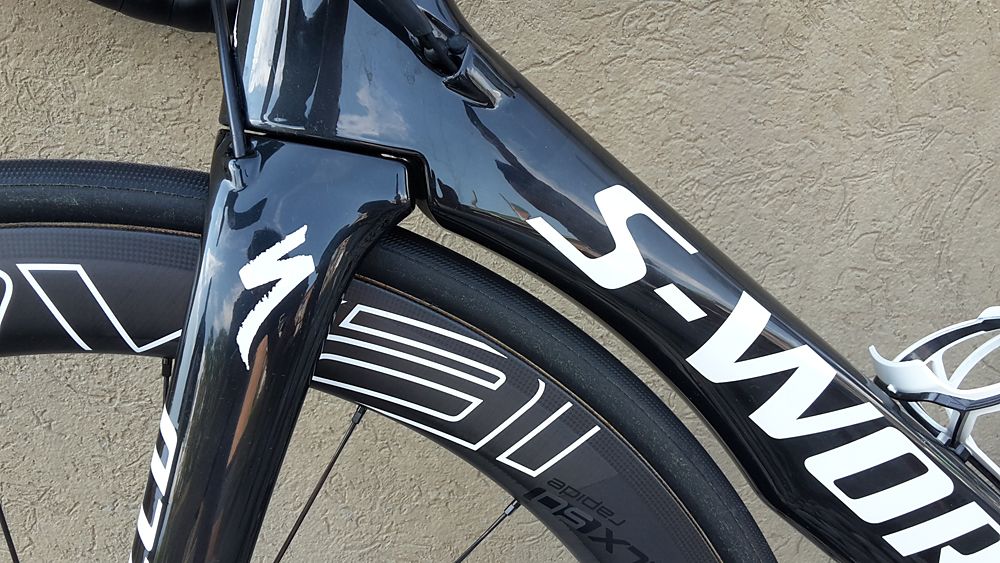

Boonen's Venge ViAS

Boonen's Venge ViAS
(Image credit: Patrick Fletcher)
Image 11 of 22

The Venge ViAS cuts down on drag by tucking the wheels inside the downtube and seat tube

The Venge ViAS cuts down on drag by tucking the wheels inside the downtube and seat tube
(Image credit: Patrick Fletcher)
Image 12 of 22

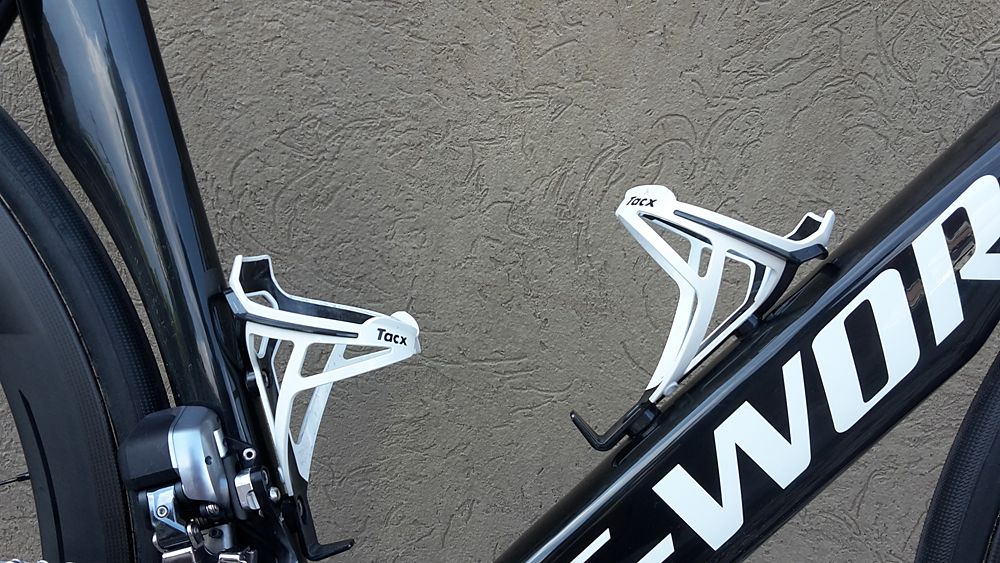

Tacx Deva carbon bottle cages save on weight

Tacx Deva carbon bottle cages save on weight
(Image credit: Patrick Fletcher)
Image 13 of 22

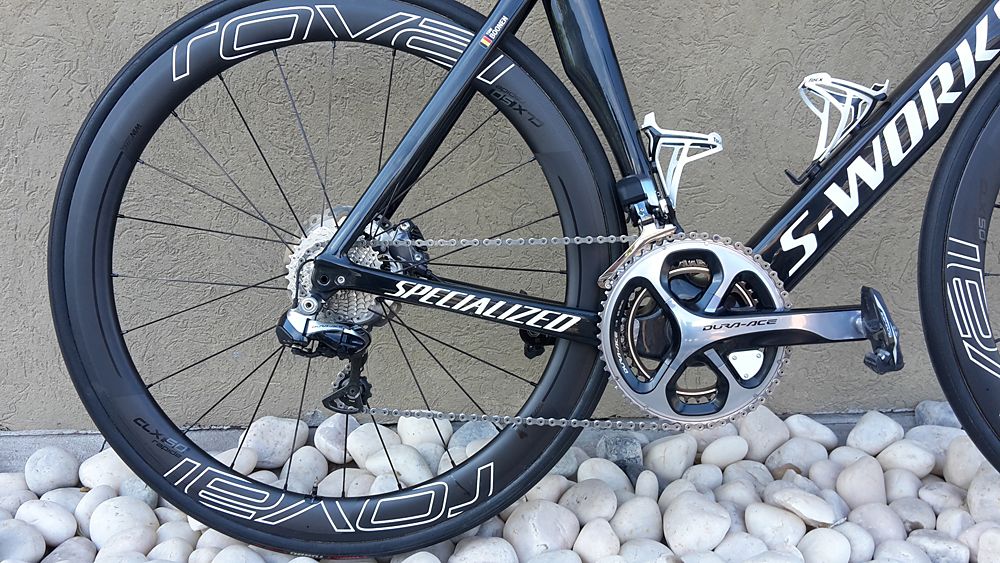

Boonen uses Shimano Dura-Ace Di2 electronic shifting

Boonen uses Shimano Dura-Ace Di2 electronic shifting
(Image credit: Patrick Fletcher)
Image 14 of 22

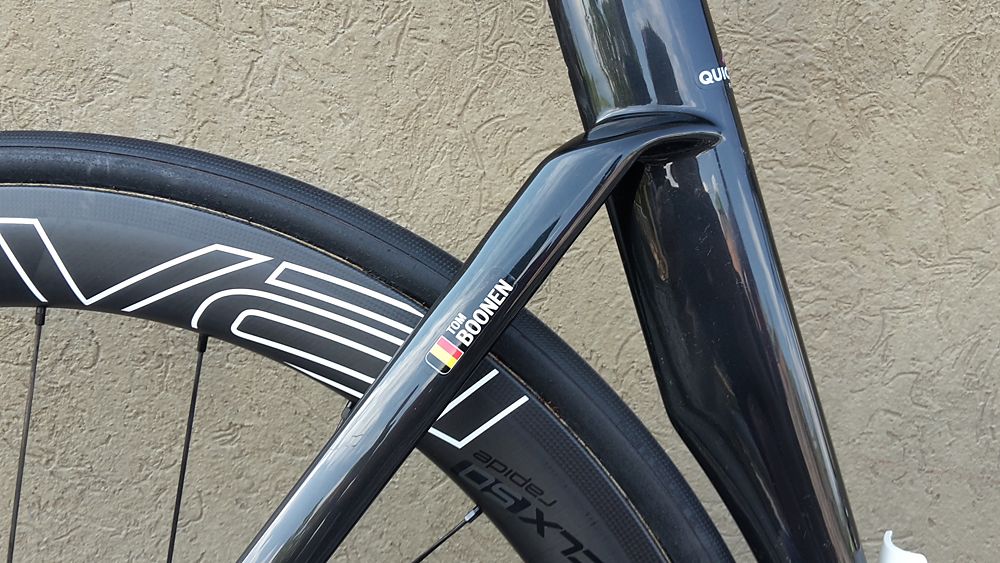

Tom Boonen's S-Works Venge ViAS Disc

Tom Boonen's S-Works Venge ViAS Disc
(Image credit: Patrick Fletcher)
Image 15 of 22

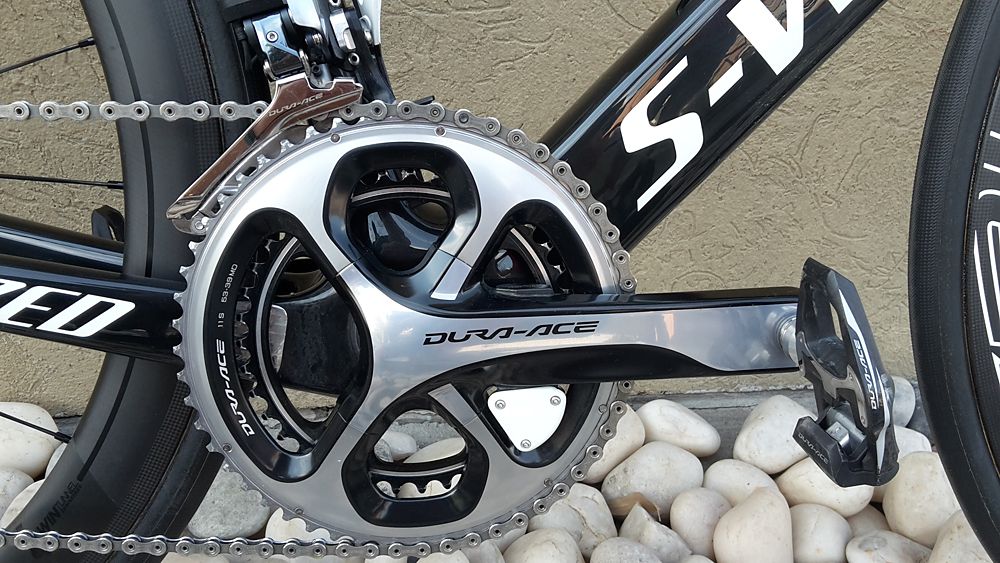

Boonen's Dura-Ace cranks are equipped with a 4iiii power meter system

Boonen's Dura-Ace cranks are equipped with a 4iiii power meter system
(Image credit: Patrick Fletcher)
Image 16 of 22

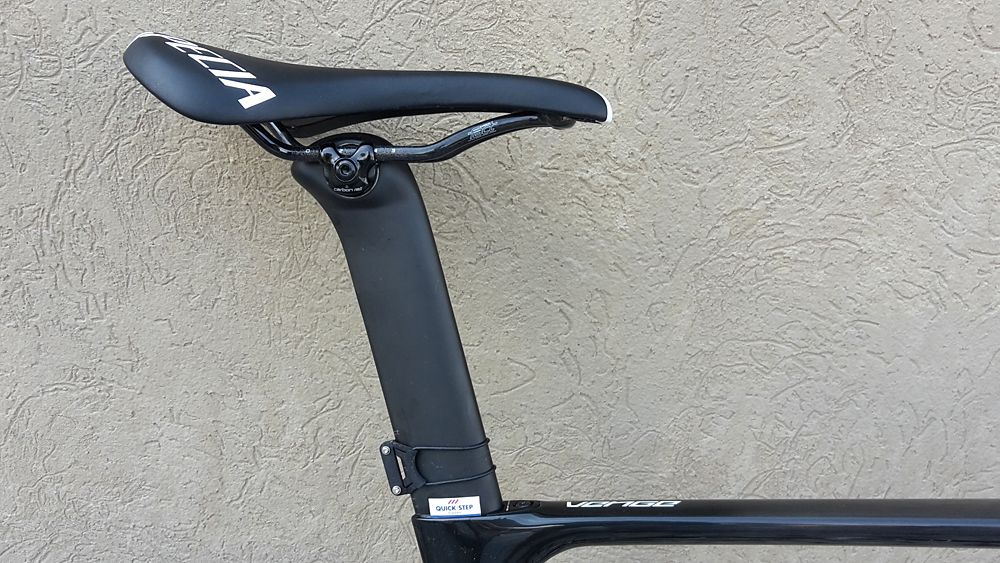

Boonen's seatpost is a carbon integrated post

Boonen's seatpost is a carbon integrated post
(Image credit: Patrick Fletcher)
Image 17 of 22

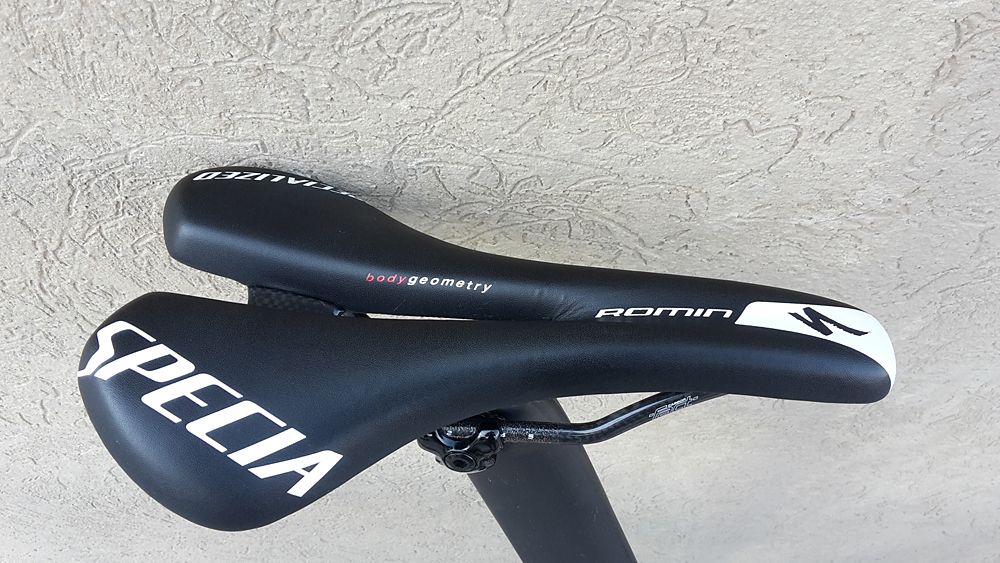

Boonen runs the Specialized BG Romin Plus saddle

Boonen runs the Specialized BG Romin Plus saddle
(Image credit: Patrick Fletcher)
Image 18 of 22

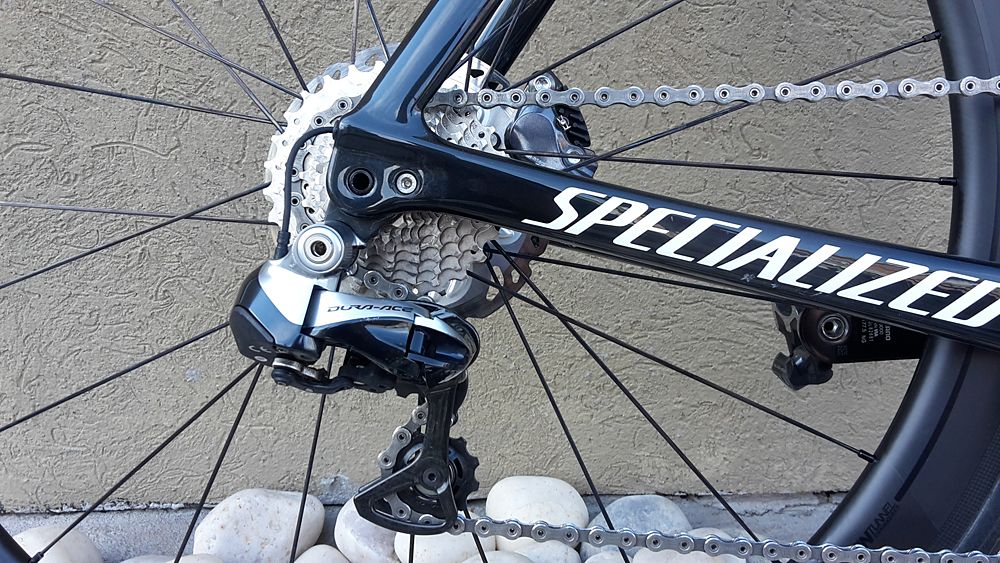

Boonen's rear triangle includes a thru-axle skewer for the disc wheel

Boonen's rear triangle includes a thru-axle skewer for the disc wheel
(Image credit: Patrick Fletcher)
Image 19 of 22

Boonen's Venge ViAS

Boonen's Venge ViAS
(Image credit: Patrick Fletcher)
Image 20 of 22

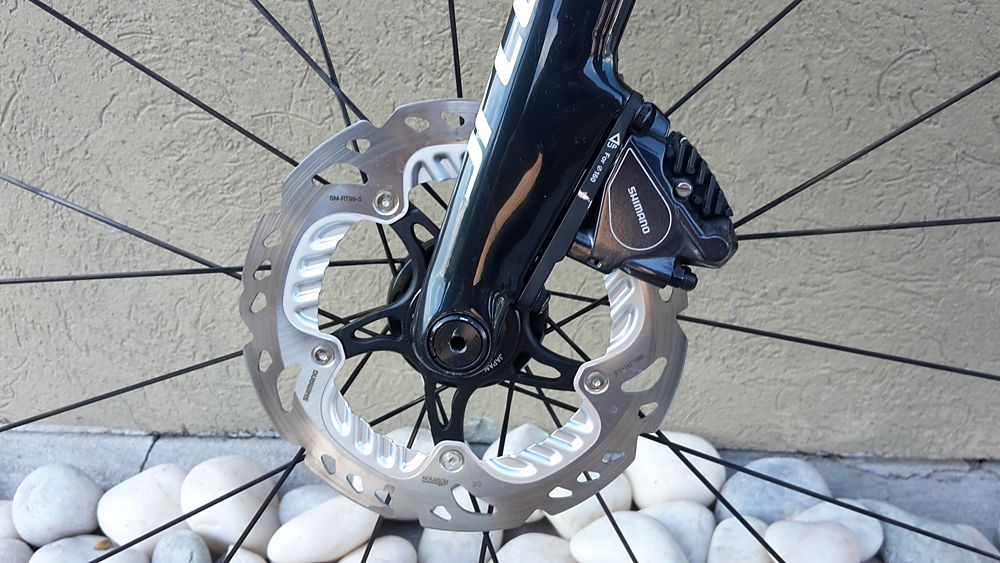

Shimano's BR-RS785 flat-mount hydraulic disc brake and RT99-S center lock disc rotor in 160mm

Shimano's BR-RS785 flat-mount hydraulic disc brake and RT99-S center lock disc rotor in 160mm
(Image credit: Patrick Fletcher)
Image 21 of 22

Shimano's BR-RS785 flat-mount hydraulic disc brake and RT99-S center lock disc rotor in 160mm

Shimano's BR-RS785 flat-mount hydraulic disc brake and RT99-S center lock disc rotor in 160mm
(Image credit: Patrick Fletcher)
Image 22 of 22

Tom Boonen (Quick-Step Floors) on his Specialized Venge ViAS Disc

Tom Boonen (Quick-Step Floors) on his Specialized Venge ViAS Disc
(Image credit: Tim de Waele/TDWSport.com)

It's all change for Tom Boonen's bike in 2017, with the Belgian so impressed by disc brakes that he's decided to use them in the final few months of his career. Boonen spoke to Cyclingnews on the eve of the Vuelta a San Juan about his decision to switch to discs, and we took the opportunity to take some photos of his new Specialized Venge ViAS disc, as well as note down all the specifications.

The Venge is Specialized's aero frame, which features a curved down tube and seat tube for a snug fit around the wheels that minimises drag. In a bid to further enhance the aerodynamics of the set-up, Boonen is using a 64mm Roval CLX wheel on the back – compared to 50mm at the front.

Instead of the extreme Specialized Aerofly handlebars used by Peter Sagan and others, Boonen is using 40cm FSA Compact bars, while his stem is custom-made to provide him with extra stiffness.

As for the disc brakes, they are Shimano's R-785 series and both the front and rear rotors measure 160mm and are paired with a 12mm thru-axle.

Some riders have found that the flex of the larger rotors can create an undesirable noise - and Team Roompot reportedly switched from 160mm to 140mm rotors last year - but the QuickStep team is sticking with the specifications prescribed by the UCI to the neutral service vehicles, which hand out spare wheels in case of punctures. Only Boonen and Marcel Kittel, who debuts at the Dubai Tour later this month, will be using discs at the Belgian team for the time being.

Boonen is running Shimano's Dura-Ace Di2 groupset, with a 53/39 chainring combination on the front and an 11-28 cassette.

The 36-year-old measures in at an imposing 1.92 metres in height, and he uses a size 60 frame, with his Romin Plus saddle – more padded than most – pushed back to allow him to adopt that sleek aero position of his.

In total the bike weighs in at 7.8kg, comfortably above the UCI's lower limit of 6.8kg, with the disc brakes accounting for an extra 300 or so grams.

This is the bike Boonen will be riding in the vast majority of races in his final season, though it remains to be seen whether he chooses to go with Specialized's cobble-specific Roubaix model for some or all of Paris-Roubaix - his final bow.

"Roubaix is a special race, but I'm going to test the bike on the cobblestones in the next few weeks and how it performs there," he said. "If I can ride the Venge I will ride the Venge."

Full Specifications

Frame: Specialized S-Works Venge ViAS disc, size 60
Fork: Specialized S-Works Venge ViAS disc fork
Stem: Custom
Handlebar: FSA Compact 40
Front brake: Shimano R-785 disc, 160mm rotor
Rear brake: Shimano R-785 disc, 160mm rotor
Brake/Shift levers: Shimano
Front derailleur: Shimano Dura-Ace Di2
Rear derailleur: Shimano Dura-Ace Di2
Cassette: Shimano Dura-Ace, 11-28T
Chain: Shimano Dura-Ace 11 speed
Crankset: Shimano Dura-Ace, 177.5mm, 53/39T
Pedals: Shimano Dura-Ace
Wheelset: Roval CLX – 50mm front, 64mm rear
Tyres: S-Works Turbo Cotton
Saddle: S-Works Romin Plus 155mm
Seatpost: Specialized Venge ViAS
Bottle cages: Tacx Deva carbon

Critical measurements

Rider's height: 1.92m
Rider's weight: 82kg
Saddle height from BB: 819mm
Centre of saddle to centre of bar: 798mm
Total bicycle weight: 7.8kg
