Time trial tech from the streets of Monaco

Image 1 of 47

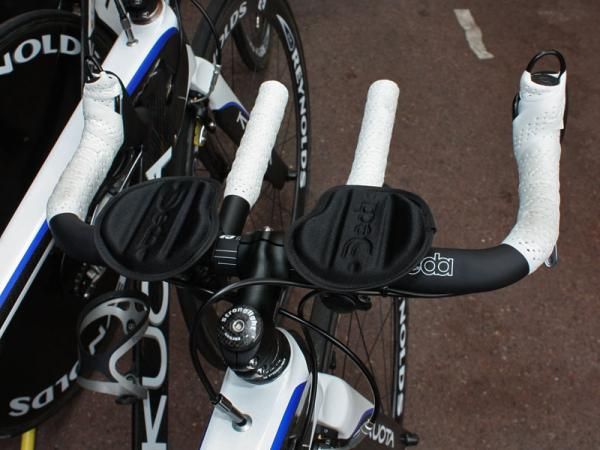

Some of Agritubel's riders ran a rather unusual aero bar setup for Stage 1 with very short and low-mounted straight extensions.

Some of Agritubel's riders ran a rather unusual aero bar setup for Stage 1 with very short and low-mounted straight extensions. (Image credit: James Huang)
Image 2 of 47

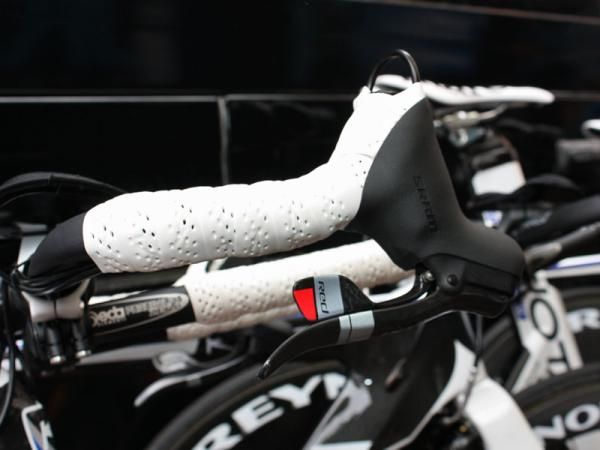

About half of the Agritubel team went with standard SRAM Red DoubleTap levers instead of traditional time trial shifters in order to shift from the base bars on Stage 1's technical course.

About half of the Agritubel team went with standard SRAM Red DoubleTap levers instead of traditional time trial shifters in order to shift from the base bars on Stage 1's technical course. (Image credit: James Huang)
Image 3 of 47

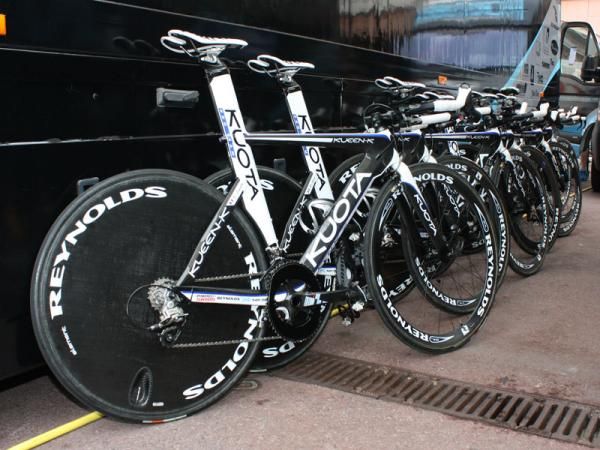

A row of Kuota Kueen-K bikes await their Agritubel riders.

A row of Kuota Kueen-K bikes await their Agritubel riders. (Image credit: James Huang)
Image 4 of 47

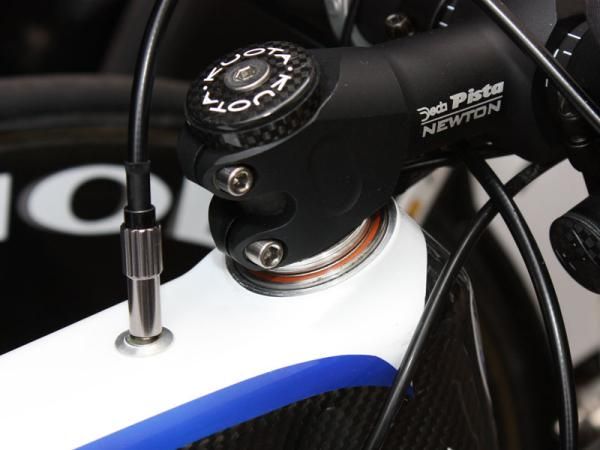

Many of the Agritubel riders apparently wanted to get just a tad bit lower, eliminating the upper headset cover.

Many of the Agritubel riders apparently wanted to get just a tad bit lower, eliminating the upper headset cover. (Image credit: James Huang)
Image 5 of 47

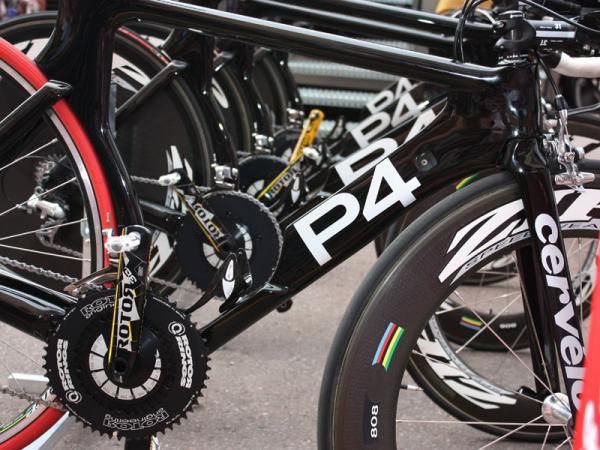

The Cervélo Test Team has finally completely traded in their P3 bikes for the speedy P4.

The Cervélo Test Team has finally completely traded in their P3 bikes for the speedy P4. (Image credit: James Huang)
Image 6 of 47

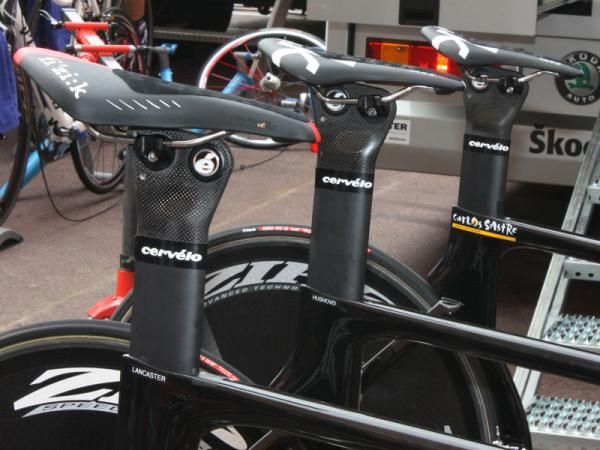

Cervélo Test Team riders used a wide range of saddle setbacks on their P4 aero bikes.

Cervélo Test Team riders used a wide range of saddle setbacks on their P4 aero bikes. (Image credit: James Huang)
Image 7 of 47

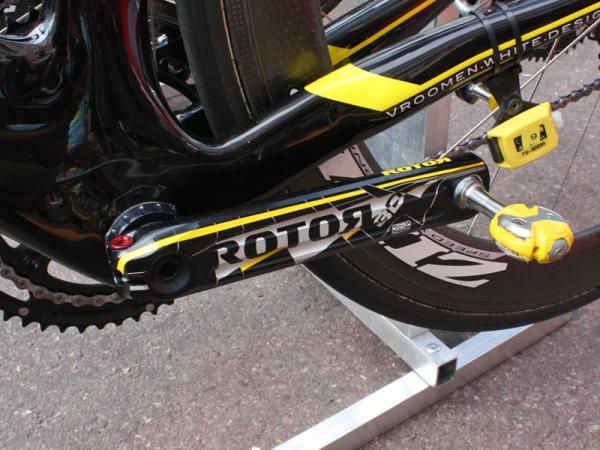

The standard Rotor 3D crank includes channels milled on the surface to save weight.

The standard Rotor 3D crank includes channels milled on the surface to save weight. (Image credit: James Huang)
Image 8 of 47

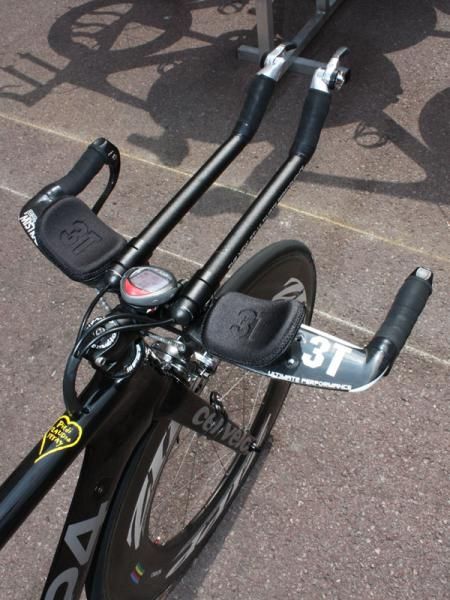

Sastre's aero bar setup is fairly straightforward to set up.

Sastre's aero bar setup is fairly straightforward to set up. (Image credit: James Huang)
Image 9 of 47

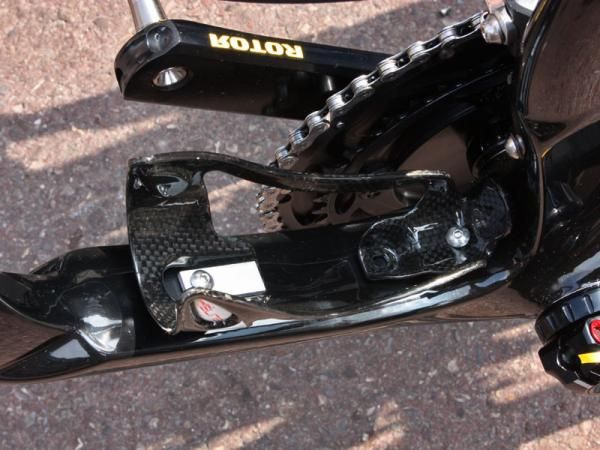

The Cervélo Test Team is using modified Elite aero bottle cages instead of the specially integrated setup originally designed for the P4.

The Cervélo Test Team is using modified Elite aero bottle cages instead of the specially integrated setup originally designed for the P4. (Image credit: James Huang)
Image 10 of 47

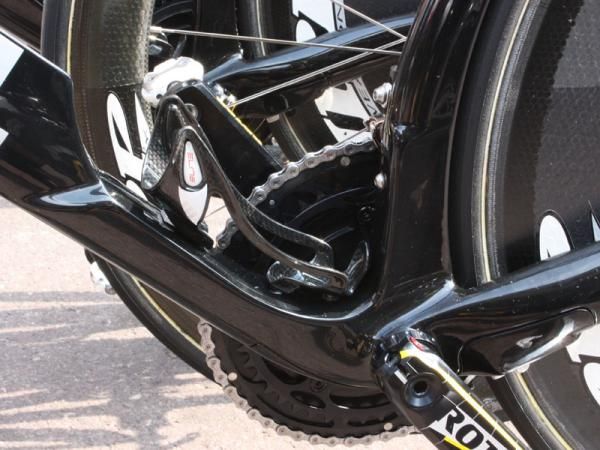

The substituted Elite aero bottle and cage setup isn't as aero as the especially integrated one that comes with the P4 but test engineer Damon Rinard says it's still faster than nothing at all.

The substituted Elite aero bottle and cage setup isn't as aero as the especially integrated one that comes with the P4 but test engineer Damon Rinard says it's still faster than nothing at all. (Image credit: James Huang)
Image 11 of 47

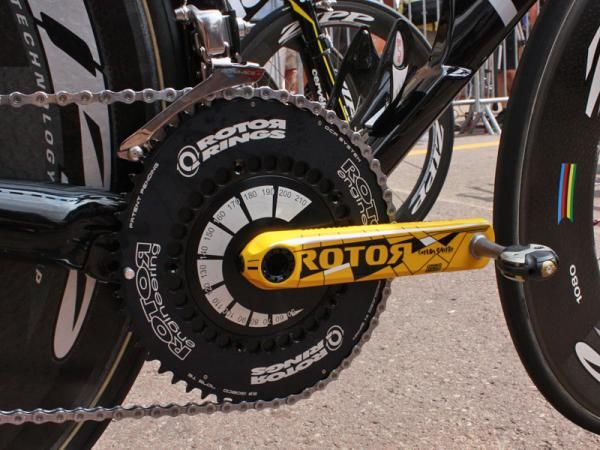

Rotor has provided Sastre with a specially finished pair of its 3D cranks. All of the time trial bikes are also fitted with a specific version of the 3D with smooth crankarm surfaces, solid-sided chainrings and a full chainring disc instead of the usual five-arm unit.

Rotor has provided Sastre with a specially finished pair of its 3D cranks. All of the time trial bikes are also fitted with a specific version of the 3D with smooth crankarm surfaces, solid-sided chainrings and a full chainring disc instead of the usual five-arm unit. (Image credit: James Huang)
Image 12 of 47

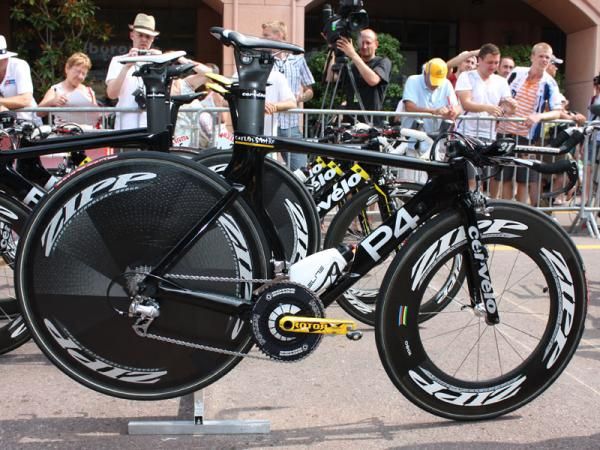

Carlos Sastre's P4 is essentially team-issue but for a few special touches.

Carlos Sastre's P4 is essentially team-issue but for a few special touches. (Image credit: James Huang)
Image 13 of 47

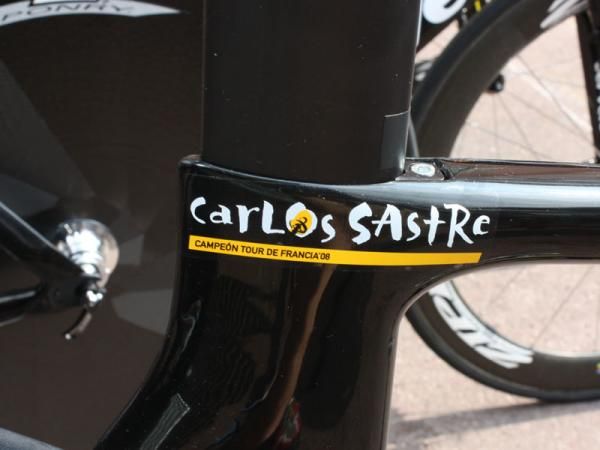

Just in case you'd forgotten.

Just in case you'd forgotten. (Image credit: James Huang)
Image 14 of 47

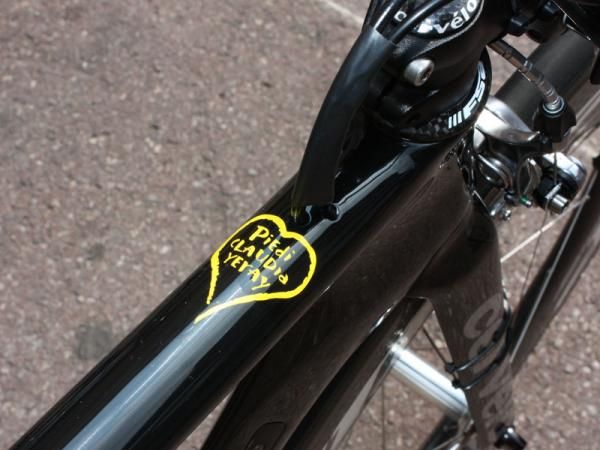

Sastre's reminder of the three things most important to him.

Sastre's reminder of the three things most important to him. (Image credit: James Huang)
Image 15 of 47

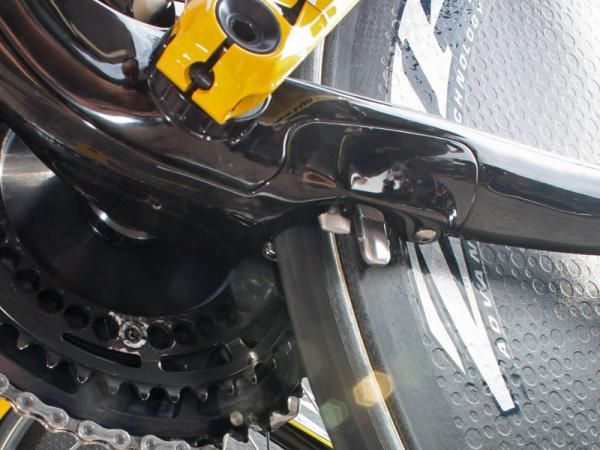

The Cervélo P4's rear brake is mounted inside the chain stays.

The Cervélo P4's rear brake is mounted inside the chain stays. (Image credit: James Huang)
Image 16 of 47

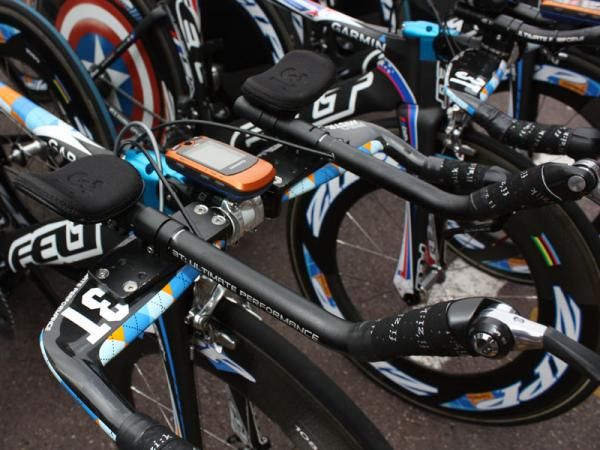

Julian Dean's (Garmin-Slipstream) aero bar setup required some special modifications by the team mechanics.

Julian Dean's (Garmin-Slipstream) aero bar setup required some special modifications by the team mechanics. (Image credit: James Huang)
Image 17 of 47

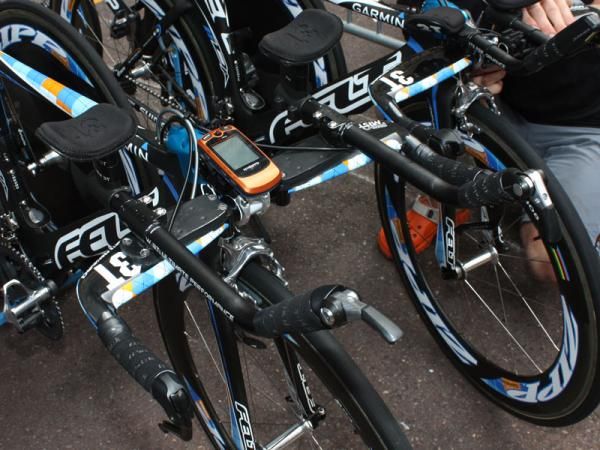

Ryder Hesjedal's (Garmin-Slipstream) setup is even more extreme.

Ryder Hesjedal's (Garmin-Slipstream) setup is even more extreme. (Image credit: James Huang)
Image 18 of 47

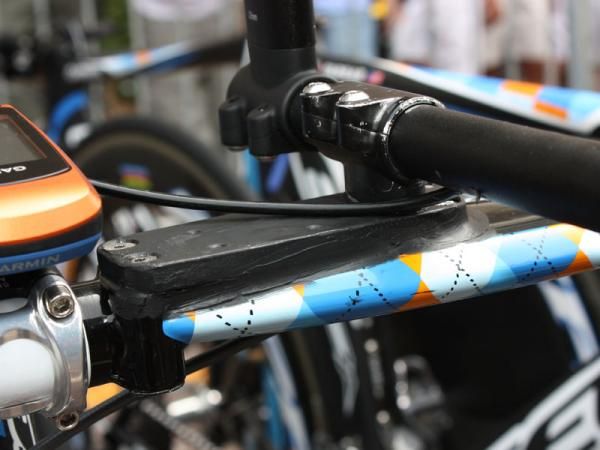

Garmin-Slipstream team mechanics had to craft additional support plates to accommodate some riders' aero positions.

Garmin-Slipstream team mechanics had to craft additional support plates to accommodate some riders' aero positions. (Image credit: James Huang)
Image 19 of 47

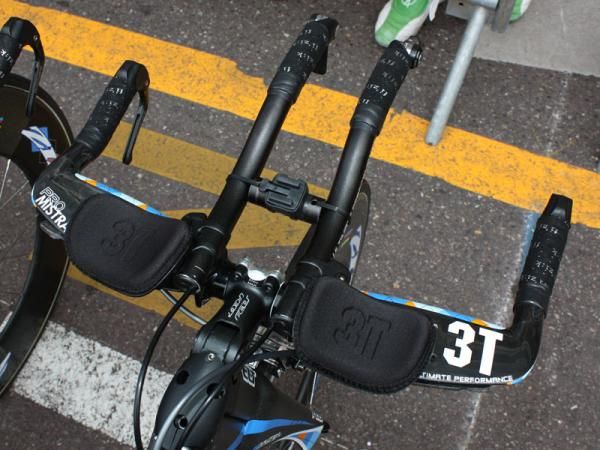

This Garmin-Slipstream aero bar setup is one of the more straightforward ones.

This Garmin-Slipstream aero bar setup is one of the more straightforward ones. (Image credit: James Huang)
Image 20 of 47

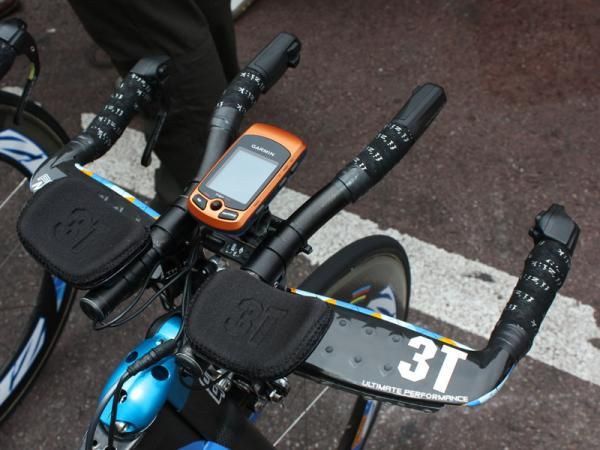

This Garmin-Slipstream aero bar setup uses fairly narrowly set elbow pads but wider hand positions.

This Garmin-Slipstream aero bar setup uses fairly narrowly set elbow pads but wider hand positions. (Image credit: James Huang)
Image 21 of 47

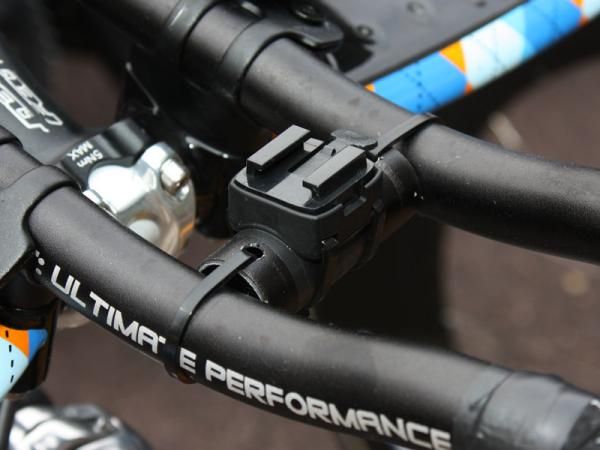

Garmin-Slipstream mechanics employ a wide variety of methods to secure computers on to the riders' bikes.

Garmin-Slipstream mechanics employ a wide variety of methods to secure computers on to the riders' bikes. (Image credit: James Huang)
Image 22 of 47

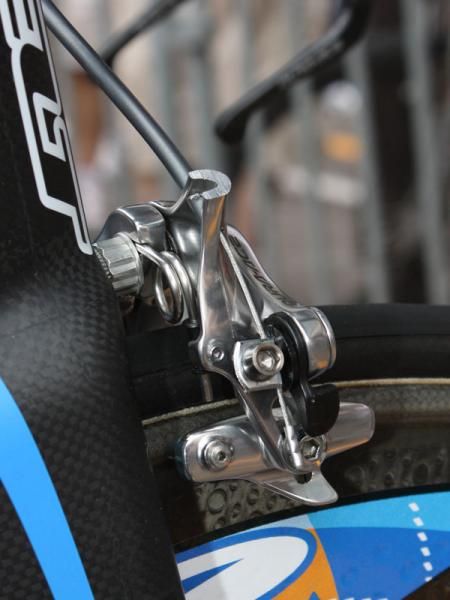

The extra-low base bar positions used by some of the Garmin-Slipstream team forced team mechanics to modify the front brake calipers for a smoother cable route.

The extra-low base bar positions used by some of the Garmin-Slipstream team forced team mechanics to modify the front brake calipers for a smoother cable route. (Image credit: James Huang)
Image 23 of 47

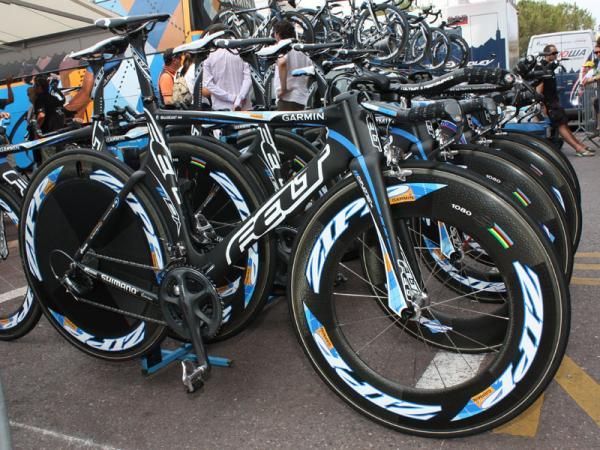

Garmin-Slipstream's Felt DA bicycles at the ready.

Garmin-Slipstream's Felt DA bicycles at the ready. (Image credit: James Huang)
Image 24 of 47

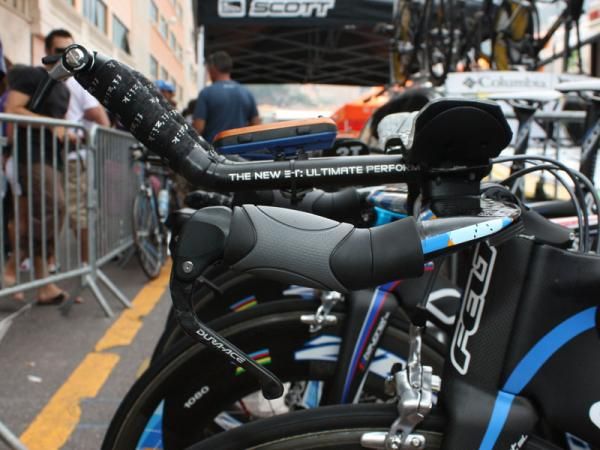

David Millar (Garmin-Slipstream) apparently likes a little extra grip on his base bars, too.

David Millar (Garmin-Slipstream) apparently likes a little extra grip on his base bars, too. (Image credit: James Huang)
Image 25 of 47

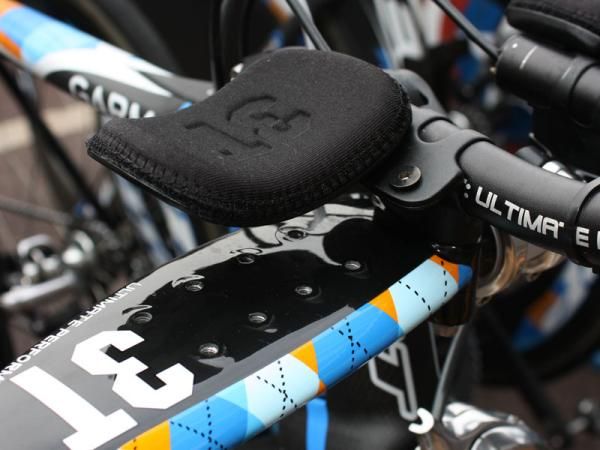

The Garmin-Slipstream team's new 3T Mistral bars have a number of elbow pad positions built in but most riders preferred to run them further back.

The Garmin-Slipstream team's new 3T Mistral bars have a number of elbow pad positions built in but most riders preferred to run them further back. (Image credit: James Huang)
Image 26 of 47

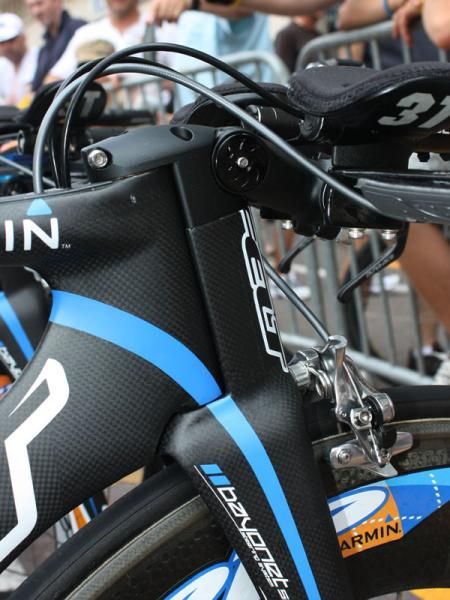

Felt's latest revision for the team is a shortened external steerer on the Bayonet fork system to accommodate the custom lowered stem.

Felt's latest revision for the team is a shortened external steerer on the Bayonet fork system to accommodate the custom lowered stem. (Image credit: James Huang)
Image 27 of 47

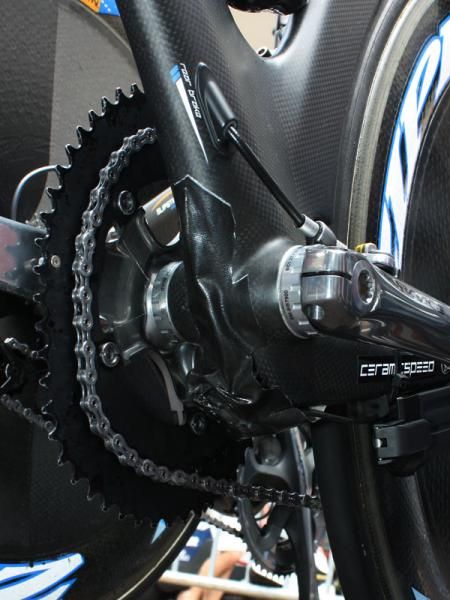

Garmin-Slipstream team mechanics add some tape to the bottom of Bradley Wiggins' bike to help smooth airflow over the exiting Shimano Dura-Ace Di2 wires and harness.

Garmin-Slipstream team mechanics add some tape to the bottom of Bradley Wiggins' bike to help smooth airflow over the exiting Shimano Dura-Ace Di2 wires and harness. (Image credit: James Huang)
Image 28 of 47

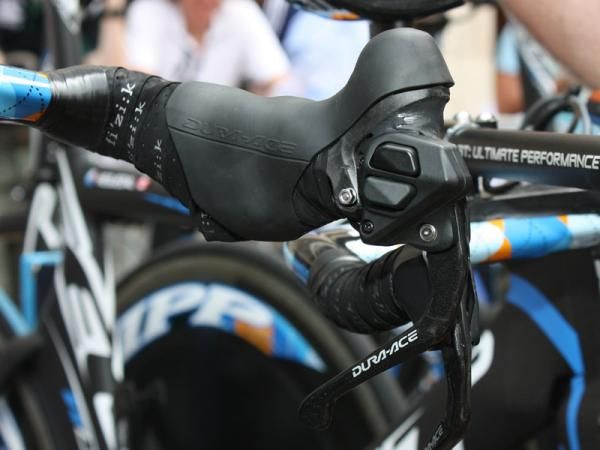

Bradley Wiggins had perhaps the most unique base bar grip setup in the peloton with this custom-made hybrid of Shimano Dura-Ace 7900 STI and Di2.

Bradley Wiggins had perhaps the most unique base bar grip setup in the peloton with this custom-made hybrid of Shimano Dura-Ace 7900 STI and Di2. (Image credit: James Huang)
Image 29 of 47

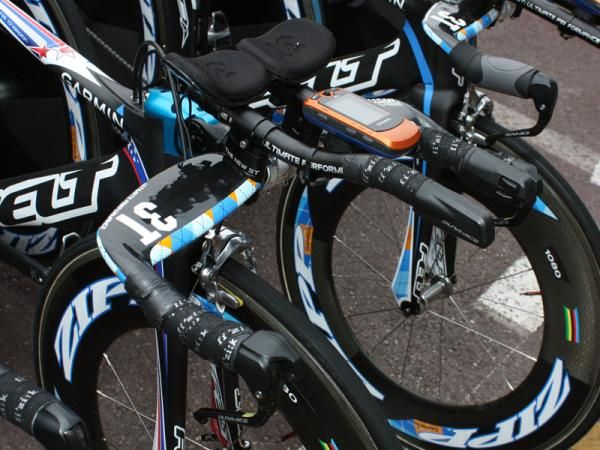

David Zabriskie (Garmin-Slipstream) is able to handle an especially tight aero position.

David Zabriskie (Garmin-Slipstream) is able to handle an especially tight aero position. (Image credit: James Huang)
Image 30 of 47

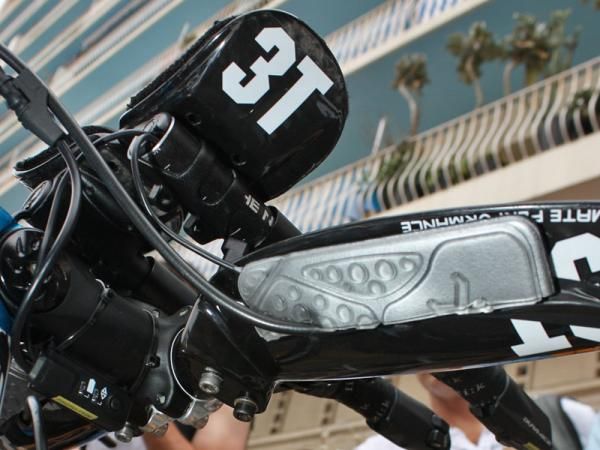

These add-on pads aren't for extra grip; apparently someone in the UCI believed the Mistral base bars to fall outside the 3:1 rule (they don't) so mechanics built up the surface to effectively change the aspect ratio.

These add-on pads aren't for extra grip; apparently someone in the UCI believed the Mistral base bars to fall outside the 3:1 rule (they don't) so mechanics built up the surface to effectively change the aspect ratio. (Image credit: James Huang)
Image 31 of 47

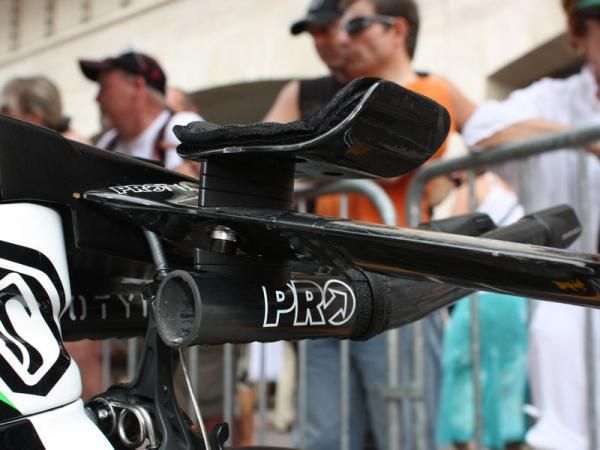

A couple of spacers are needed to achieve the desired angle on Grabsch's aero extensions.

A couple of spacers are needed to achieve the desired angle on Grabsch's aero extensions. (Image credit: James Huang)
Image 32 of 47

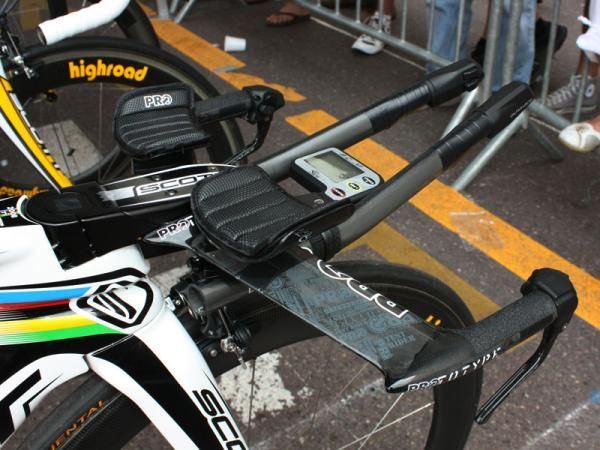

Team Columbia-High Road was another team using Dura-Ace Di2 transmissions on their time trial bikes.

Team Columbia-High Road was another team using Dura-Ace Di2 transmissions on their time trial bikes. (Image credit: James Huang)
Image 33 of 47

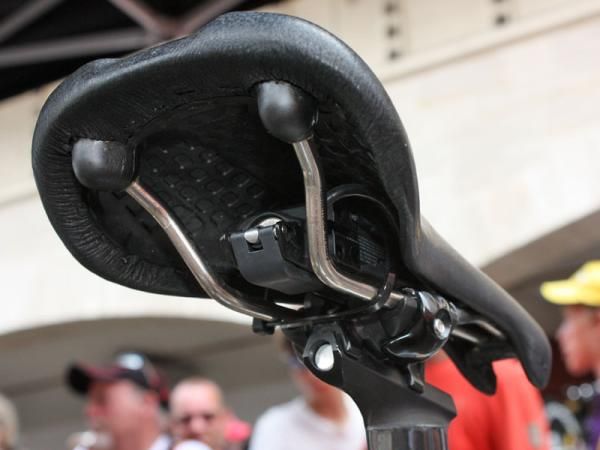

The Shimano Dura-Ace Di2 battery is tucked up underneath the saddle.

The Shimano Dura-Ace Di2 battery is tucked up underneath the saddle. (Image credit: James Huang)
Image 34 of 47

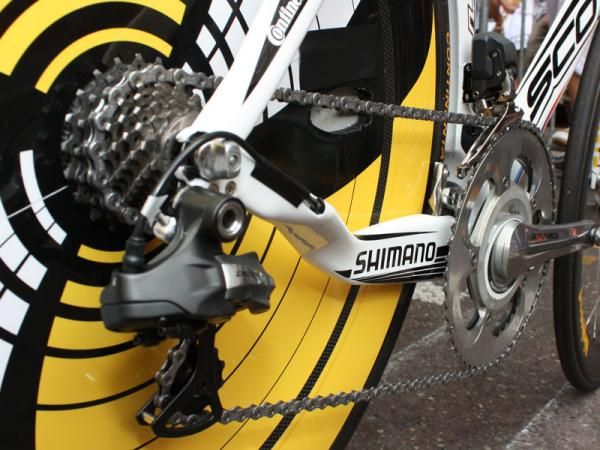

The new Scott Plasma 3 uses uniquely shaped chain stays.

The new Scott Plasma 3 uses uniquely shaped chain stays. (Image credit: James Huang)
Image 35 of 47

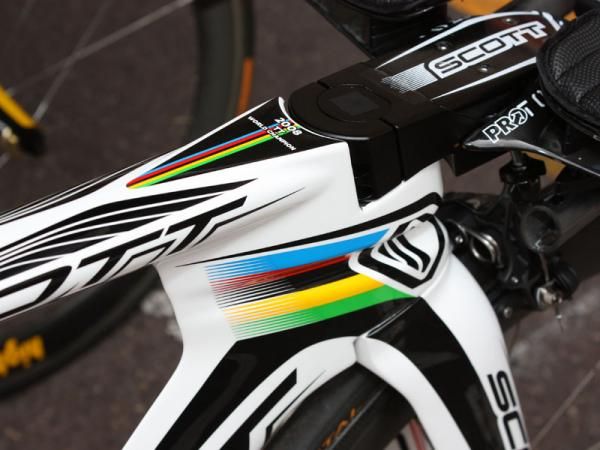

A rainbow jersey naturally requires a matching bike.

A rainbow jersey naturally requires a matching bike. (Image credit: James Huang)
Image 36 of 47

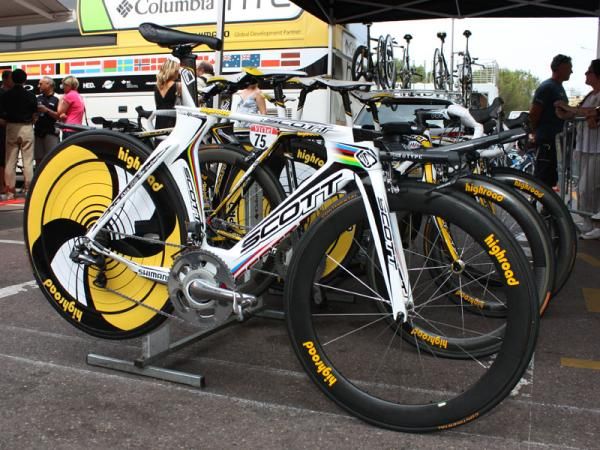

2008 world time trial champion Bert Grabsch (Columbia-High Road) could unfortunately only manage 98th place on the day.

2008 world time trial champion Bert Grabsch (Columbia-High Road) could unfortunately only manage 98th place on the day. (Image credit: James Huang)
Image 37 of 47

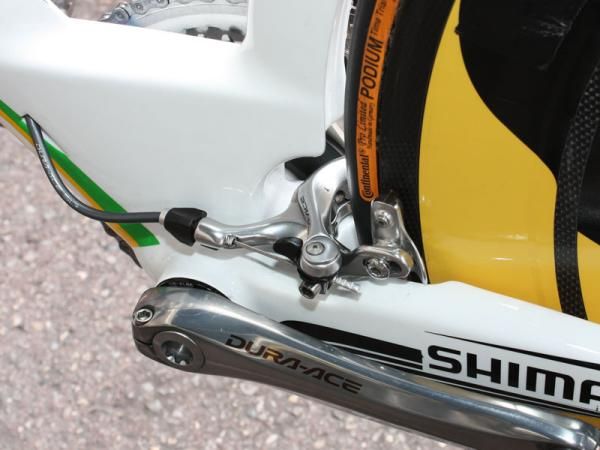

Grabsch's bike is fitted with a Shimano Dura-Ace 7800 rear brake caliper, possibly for clearance reasons.

Grabsch's bike is fitted with a Shimano Dura-Ace 7800 rear brake caliper, possibly for clearance reasons. (Image credit: James Huang)
Image 38 of 47

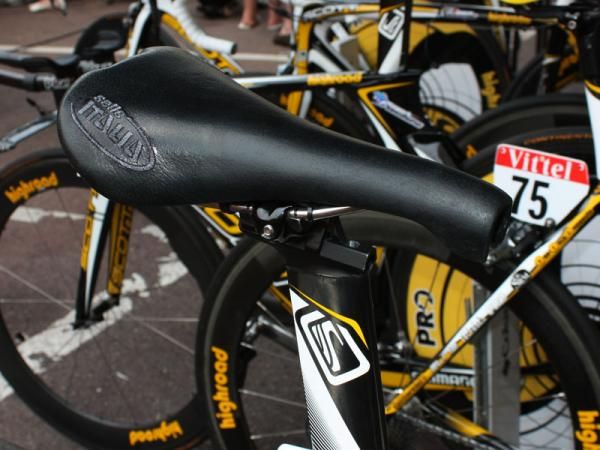

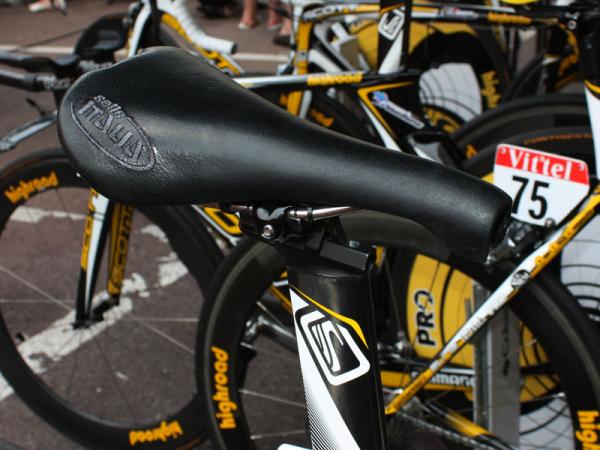

The Selle Italia Flite saddle on Grabsch's bike is cut down to meet UCI guidelines for setback.

The Selle Italia Flite saddle on Grabsch's bike is cut down to meet UCI guidelines for setback. (Image credit: James Huang)
Image 39 of 47

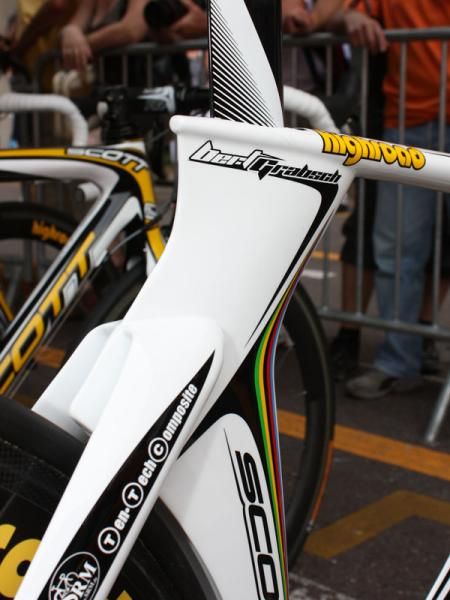

An increasing number of time trial bikes are using bottom bracket-mounted rear brakes to allow aero rear ends like this.

An increasing number of time trial bikes are using bottom bracket-mounted rear brakes to allow aero rear ends like this. (Image credit: James Huang)
Image 40 of 47

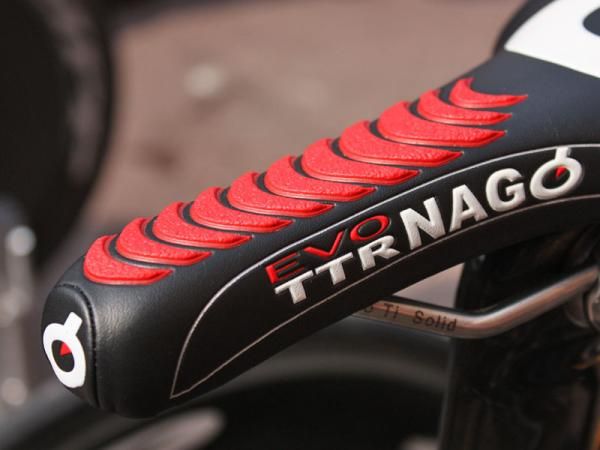

Prologo's Slide Control strips keep riders firmly planted on the nose of their saddles during time trials without slipping.

Prologo's Slide Control strips keep riders firmly planted on the nose of their saddles during time trials without slipping. (Image credit: James Huang)
Image 41 of 47

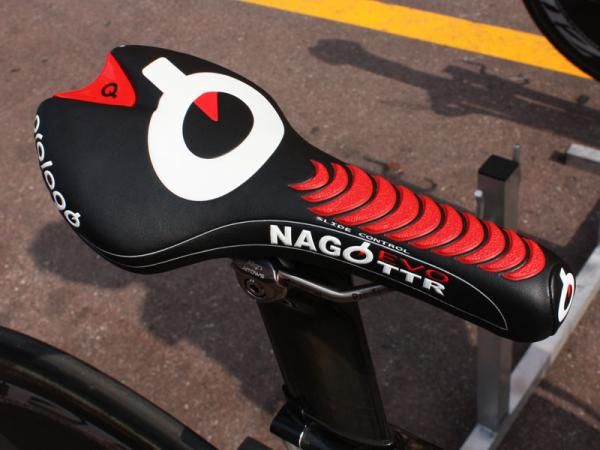

Prologo says its new Nago Evo TTR was specifically designed for time trials at the request of Saxo Bank team director Bjarne Riis.

Prologo says its new Nago Evo TTR was specifically designed for time trials at the request of Saxo Bank team director Bjarne Riis. (Image credit: James Huang)
Image 42 of 47

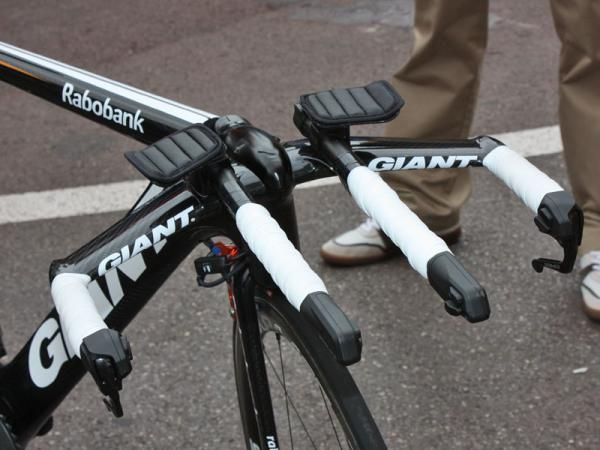

Denis Menchov (Rabobank) was among many Shimano-sponsored riders using the electronic Dura-Ace Di2 setup for their time trial bike.

Denis Menchov (Rabobank) was among many Shimano-sponsored riders using the electronic Dura-Ace Di2 setup for their time trial bike. (Image credit: James Huang)
Image 43 of 47

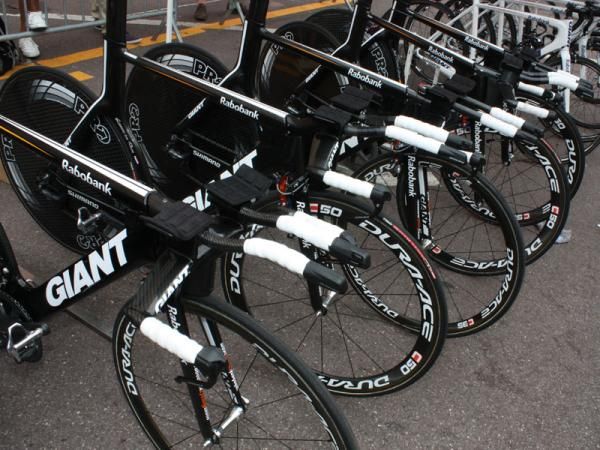

In fact, the entire Rabobank squad ran Shimano Dura-Ace Di2 transmissions for the opening time trial.

In fact, the entire Rabobank squad ran Shimano Dura-Ace Di2 transmissions for the opening time trial. (Image credit: James Huang)
Image 44 of 47

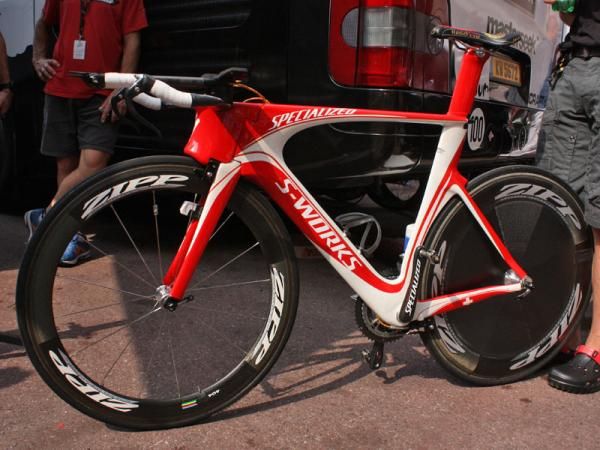

Stage 1 winner Fabian Cancellara (Saxo Bank) ran this custom finished Specialized S-Works Shiv.

Stage 1 winner Fabian Cancellara (Saxo Bank) ran this custom finished Specialized S-Works Shiv. (Image credit: James Huang)
Image 45 of 47

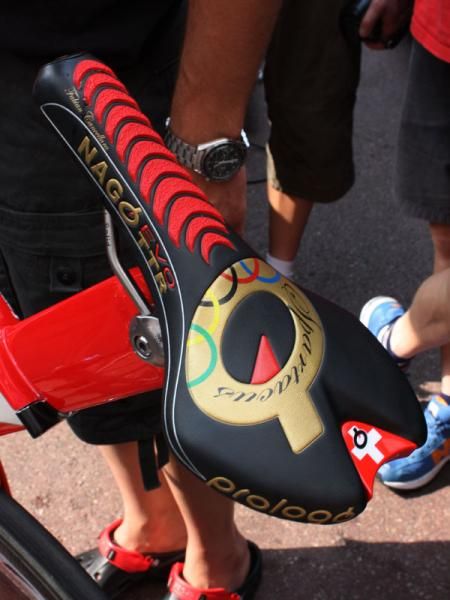

Prologo provided Cancellara with his own customized Nago Evo TTR saddle.

Prologo provided Cancellara with his own customized Nago Evo TTR saddle. (Image credit: James Huang)
Image 46 of 47

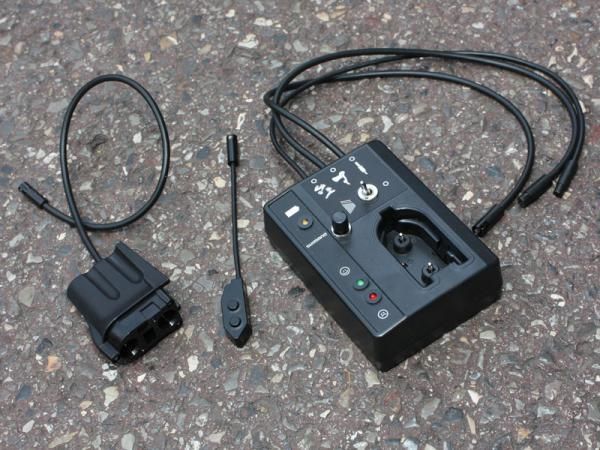

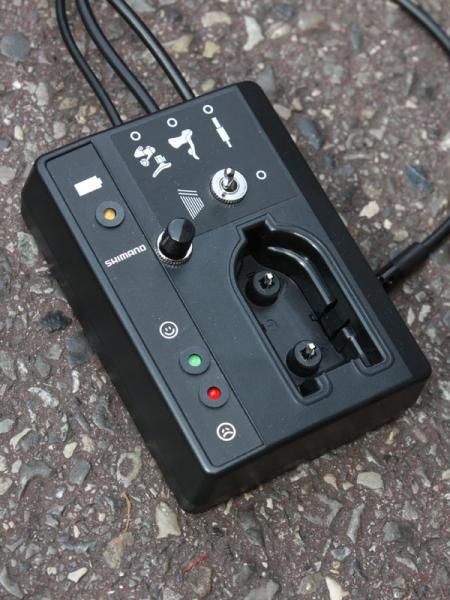

The diagnostic tool is designed as an electronic 'go-no go' gage, helping mechanics isolate which Di2 component might have an issue.

The diagnostic tool is designed as an electronic 'go-no go' gage, helping mechanics isolate which Di2 component might have an issue. (Image credit: James Huang)
Image 47 of 47

Shimano offers this diagnostic tool to help troubleshoot Dura-Ace Di2 electronic components.

Shimano offers this diagnostic tool to help troubleshoot Dura-Ace Di2 electronic components. (Image credit: James Huang)

Cervélo's P4 hits the road en masse

This year's Tour de France marked the first time the entire Cervélo Test Team set off on the company's flagship P4 time trial bike. In response to rumors that the bike wasn't UCI-legal, company principal Gerard Vroomen insisted it was purely a production issue - he didn't want the team to race on it en masse until they were readily available to consumers.

Even so, there are still a few bits of homework to do, according to team test engineer Damon Rinard. In particular, the seatpost measures just over 3:1 but the UCI has apparently indicated it won't enforce seatpost dimensions until January 1. When that time comes though Cervélo will use a modified post and fill in the gap at the frame with some shims.

Another potential sticking point is the P4's unique integrated water bottle. Though not explicitly banned by the UCI, Rinard and the team preferred not to take any chances, instead using a customized aero cage and bottle from team sponsor Elite. Rinard says the cage modifications are easy to perform in case current P4 owners are concerned about scrutiny from their local federations, requiring just one additional hole in the cage and a short aluminum plate.

Most of the team P4s were also fitted with special versions of Rotor's new 3D crank. In contrast to the road-going 3D's external channels and five-armed spiders, this one sports smooth crankarm surfaces, solid-skinned outer chainrings as well as a complete chainring 'disc' for slightly reduced drag. Team leader Carlos Sastre's cranks were further customized with special graphics to commemorate his status as reigning Tour de France champion.

Garmin-Slipstream gets creative

Garmin-Slipstream's riders had among the most diverse array of aero bar setups in the field and the team mechanics and sponsors had to employ some out-of-the-box thinking to get everything to work, especially given the relatively last-minute swaps to 3T's Mistral bar in order to satisfy the recently 'clarified' UCI technical guidelines. Most of the riders preferred to run their base bars low and their extensions high - plus elbow pads mounted further back under their arms - and though the Mistral offers a reasonable variety of armrest width options, custom clamps and fittings were still the norm rather than the exception.

The narrow positions of time trial specialists such as David Zabriskie, David Millar and Bradley Wiggins seemed fairly easy to accommodate but setting up others such as Julian Dean and Ryder Hesjedal wasn't nearly as straightforward. Their extra-wide arm spacing and rearward elbow pads required additional plates mounted atop the base bar for more mounting stability plus custom clamps all around for the extensions and elbow rests.

Unfortunately, those low base bar positions also forced the mechanics to get creative with the brakes, too, given the tight constraints for cable housing. Team mechanics hacked off the upper arm ends - including the barrel adjusters - and drilled new housing stops in the newly truncated stubs. The altered brake geometry surely affected the stopping performance, but it all seemed to work well enough to get the job done.

Even grips weren't ignored. Millar's base bars had rubber mountain bike grips slide over the ends for a surer purchase while Wiggins' setup was a custom hybrid of Dura-Ace 7900 Dual Control levers and Di2 integrated units. Mechanics gutted each 7900 lever - leaving just the body and hood - then slid the whole thing around the base bar and filled in the gaps with some silicone. Though the end product wasn't particularly pretty (or light) it was definitely one of the grippiest base bar setups we've come across.

In contrast, the team's Felt Bayonet fork assemblies have gotten decidedly cleaner and more elegant. Felt supplied custom forks with shorter external steerers plus more aggressively proportioned upper caps to match, thus doing away with the doubled-hinged stems of earlier setups needed to accommodate the ultra-low base bar positions. Most of the caps on the team bikes clearly came off of the CNC machine so it's unclear at the moment whether or not the revised front ends will be offered for consumer sale.

Shimano Dura-Ace Di2 popular choice for Stage 1

Stage 1's highly technical course demanded keen handling skills with its varying grade and dizzying array of tight hairpin turns through the streets of Monaco. Riders were constantly swapping from the outer grips to the aero extensions but many Shimano-sponsored riders may have actually been able to save a smidgeon of time as a result.

Though Shimano's new Dura-Ace Di2 system still isn't ubiquitous in the peloton on the road stages, nearly the entirety of the Rabobank, Garmin-Slipstream and Columbia-High Road TT fleets were so equipped. Speedy shifting, ultra-short button throws and fancy auto-trimming front derailleur aside, Di2's biggest draw here was perhaps the multiple sets of shift buttons - one pair out on the aero extensions as usual but another neatly integrated into the brake levers mounts on the base bar.

As such, riders could easily upshift as they accelerated out of the start house or shot out of corners, or downshift in the midst of tight turns. While other riders could be seen getting in an out of the saddle just to reach their standard extension-mounted shifters, Di2-equipped riders could more easily keep their rhythm and maintain their preferred position. Even so, it still wasn't enough to keep Swiss beast Fabian Cancellara (Saxo Bank) from pummeling the field to take the first yellow jersey of this year's Tour.

The SRAM-sponsored Agritubel riders were apparently also concerned about the ability to shift while on more technical situations but they took a decidedly different tack. Instead of using proper time trial shifters, about half the team opted for standard Red DoubleTap levers mounted to the base bar, leaving the extensions oddly bare.

Prologo's new Nago Evo TTR saddle

Those watching video during Stage 1 of Alberto Contador (Astana) and Denis Menchov (Rabobank) may have noticed the two riders repeatedly sliding forward on their saddles and then pushing themselves back into position. One rider that had no such issues however was winner Fabian Cancellara (Saxo Bank) who appeared firmly planted as he powered through to victory.

Cancellara can perhaps credit his new time trial-specific Prologo Nago Evo TTR saddle, whose development was specifically requested by team director Bjarne Riis. Prologo says the Nago Evo TTR has two distinct seating positions: a specially shaped nose to better accommodate a full aero tuck plus a Scratch-like rear for use when on the base bar and slightly more upright.

For the former, Prologo uses a set of uniquely raised and textured grip strips called 'Slide Control' to securely plant the rider in place, thus eliminating the need for add-ons commonly used by much of the peloton (Menchov's saddle had some additional stick-on foam strips when didn't seem to work very well). In addition, the forward section is especially wide and well padded to provide enough comfort to stay in that position without grimacing plus the nose is also shortened in order to more easily satisfy UCI guidelines for saddle setback.

Prologo will offer the Nago Evo TTR to the public in two versions: the 176g Nack 10 with carbon rails for €189 and the 226g Ti Solid with titanium rails (used by Cancellara) for €139.
