Steve Cummings' Tour de France Cervelo S5 in British champion colours

Image 1 of 19

Stephen Cummings' Cervélo S5 in British champion colours

Stephen Cummings' Cervélo S5 in British champion colours (Image credit: Josh Evans / Immediate Media)
Image 2 of 19

ENVE provides Cummings with its SES Carbon Aero road bar

ENVE provides Cummings with its SES Carbon Aero road bar (Image credit: Josh Evans / Immediate Media)
Image 3 of 19

Dimension Data partners with Tacx for bottle cages, bidons and trainers

Dimension Data partners with Tacx for bottle cages, bidons and trainers (Image credit: Josh Evans / Immediate Media)
Image 4 of 19

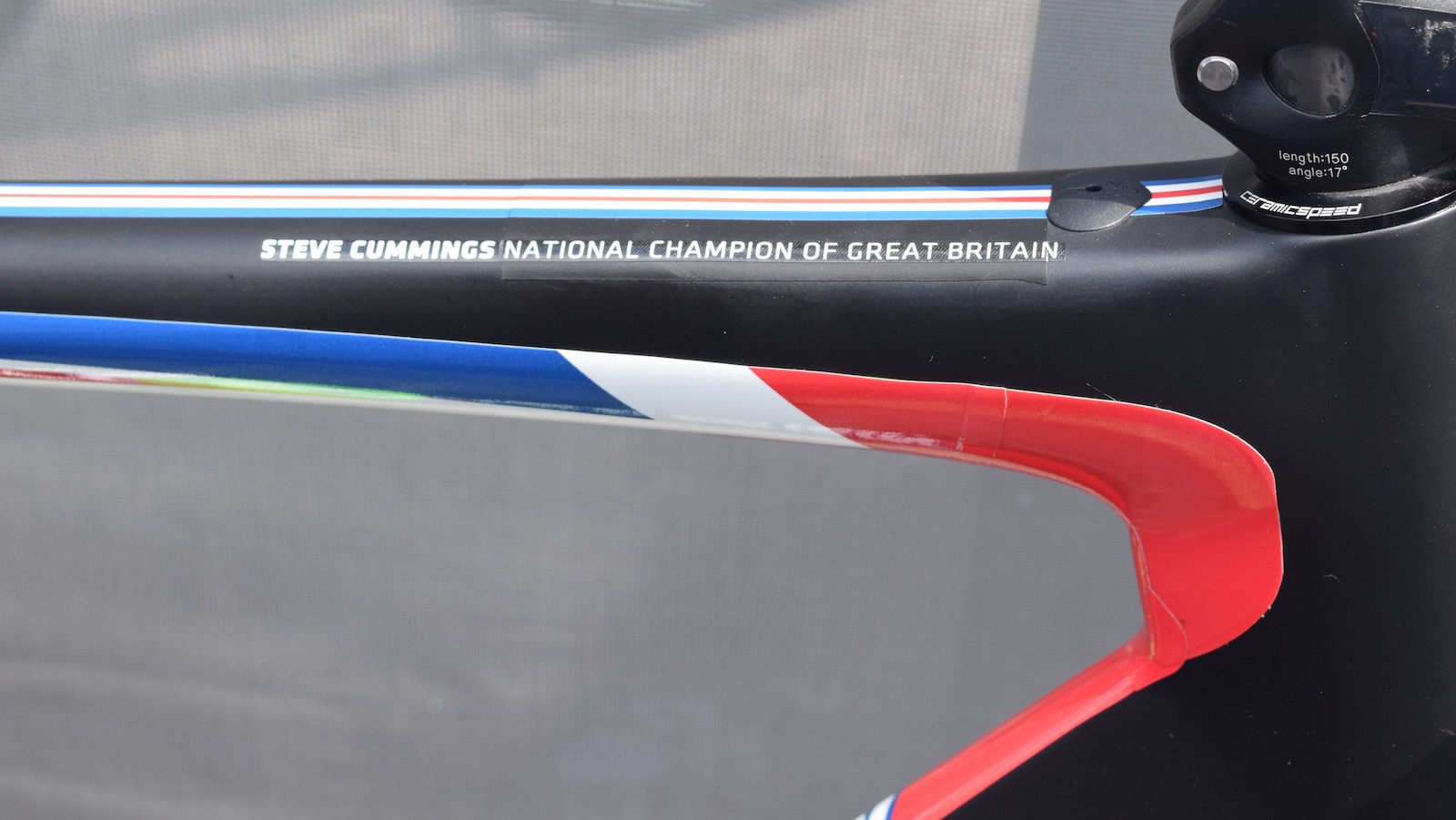

Great Britain is also prominent on the down tube

Great Britain is also prominent on the down tube (Image credit: Josh Evans / Immediate Media)
Image 5 of 19

The Cervélo features the British colours on the inside of the stays and fork, and on the inside of the main triangle

The Cervélo features the British colours on the inside of the stays and fork, and on the inside of the main triangle (Image credit: Josh Evans / Immediate Media)
Image 6 of 19

All black Fizik Antares saddle for Cummings

All black Fizik Antares saddle for Cummings (Image credit: Josh Evans / Immediate Media)
Image 7 of 19

Stephen Cummings won both the road race and the time trial at the British national championships last month

Stephen Cummings won both the road race and the time trial at the British national championships last month (Image credit: Josh Evans / Immediate Media)
Image 8 of 19

Dimension Data opts for Continental Competition ALX 25mm tubular tyres

Dimension Data opts for Continental Competition ALX 25mm tubular tyres (Image credit: Josh Evans / Immediate Media)
Image 9 of 19

Shimano Dura-Ace 9070 provides the shifting

Shimano Dura-Ace 9070 provides the shifting (Image credit: Josh Evans / Immediate Media)
Image 10 of 19

The Speedplay Aero Zero pedals are dimpled on the under side to improve aerodynamics

The Speedplay Aero Zero pedals are dimpled on the under side to improve aerodynamics (Image credit: Josh Evans / Immediate Media)
Image 11 of 19

Cummings opts for Speedplay Zero Aero pedals

Cummings opts for Speedplay Zero Aero pedals (Image credit: Josh Evans / Immediate Media)
Image 12 of 19

ROTOR provides the NoQ chainrings and 2inPower power meter

ROTOR provides the NoQ chainrings and 2inPower power meter (Image credit: Josh Evans / Immediate Media)
Image 13 of 19

A look at Cummings' cockpit

A look at Cummings' cockpit (Image credit: Josh Evans / Immediate Media)
Image 14 of 19

Generally Dimension Data bikes are equipped with Shimano Ultegra cassettes

Generally Dimension Data bikes are equipped with Shimano Ultegra cassettes (Image credit: Josh Evans / Immediate Media)
Image 15 of 19

The stem is a whopping 150mm long and negative 17 degrees

The stem is a whopping 150mm long and negative 17 degrees (Image credit: Josh Evans / Immediate Media)
Image 16 of 19

Cummings runs a blacked-out 3T ARX stem

Cummings runs a blacked-out 3T ARX stem (Image credit: Josh Evans / Immediate Media)
Image 17 of 19

Dimension Data's Cervélos are equipped with Shimano Dura-Ace 9000 series brakes

Dimension Data's Cervélos are equipped with Shimano Dura-Ace 9000 series brakes (Image credit: Josh Evans / Immediate Media)
Image 18 of 19

ENVE offers its wheels with Chris King, DT Swiss or ENVE's own hubs

ENVE offers its wheels with Chris King, DT Swiss or ENVE's own hubs (Image credit: Josh Evans / Immediate Media)
Image 19 of 19

Cummings' forks also feature the shield of royal arms

Cummings' forks also feature the shield of royal arms (Image credit: Josh Evans / Immediate Media)

This article originally appeared on BikeRadar

At this 2017 Tour de France, Stephen Cummings (Dimension Data) jumped into the breakaway on stage 12 with an eye on a third career stage victory.

After shaking his breakaway companions, Cummings was eventually caught on the penultimate climb by the GC group with less than 10km remaining. Romain Bardet (AG2R La Mondiale) eventually won the stage.

Cummings won both the road race and time trial at the British national championships last month, and to celebrate Cervélo presented the 36-year-old with a custom S5 race bike.

The Cervélo features the British colours on the inside of the stays and fork, and on the inside of the main triangle.

Unlike some of the other custom race bikes in the Tour de France peloton, Cervélo opts to add decorative decals as opposed to painting the frame. The British colours feature on the inside of the stays and fork, as well as on the main triangle of the frame.

Cummings’ bike also features the the royal coat of arms of the United Kingdom on either side of the fork legs.

Cummings is known for his elongated, time-trial style on the road bike, which is facilitated by a 150mm, negative 17-degree stem and a size 56 frame.

Equipped with Shimano Dura-Ace 9000 series shifting and braking, the crankset consists of a ROTOR 2inPower crankset and NoQ chainrings.

The wheelset comes courtesy of ENVE’s SES 4.5 rims alongside Chris King R45 hubs.

Team Dimension Data generally runs Shimano Ultegra cassettes to reduce running costs.

Click or swipe through the gallery above to take a closer look at Cummings' bike.

Frame: Cervélo S5, size 56, custom colours for British national champion
Fork: Cervélo all-carbon, tapered S5 Fork
Brakes: Shimano Dura-Ace 9000
Brake/shift levers: Shimano Dura-Ace 9070
Derailleurs: Shimano Dura-Ace 9070
Cassette: Shimano Ultegra, 11-28t
Chain: KMC X11-SL Gold
Crankset: ROTOR 2inPower crankset, ROTOR NoQ chainrings, 53/39t
Bottom bracket: CeramicSpeed
Wheelset: ENVE SES 4.5 with Chris King R45 hubs
Tyres: Continental Competition ALX, 25mm tubular
Handlebars: ENVE SES Aero carbon
Stem: 3T ARX alloy, 150mm, -17 degree negative drop
Headset: CeramicSpeed
Tapes/grips: LizardSkins DSP
Pedals: Speedplay Zero Aero
Saddle: Fizik Antares
Seatpost: Cervélo Carbon Aero SP17
Bottle cages: Tacx Deva
Computer: Garmin Edge 520
Other accessories: ROTOR rear derailleur hanger



Critical measurements

Rider height: 1.89m
Rider weight: 73kg
Stack: 565mm
Reach: 392mm
Top tube length: 565mm
Head tube length: 157mm
