Pro bike: Jens Voigt's RadioShack-Leopard Trek Madone 7-Series

Image 1 of 21

Jens Voigt's (RadioShack-Leopard) Trek Madone 7-Series stands at the ready - literally - just before the start of the 2013 Santos Tour Down Under.

Jens Voigt's (RadioShack-Leopard) Trek Madone 7-Series stands at the ready - literally - just before the start of the 2013 Santos Tour Down Under. (Image credit: Jonny Irick)
Image 2 of 21

We've yet to ride Shimano's new direct-mount Dura-Ace calipers ourselves but it looks like there might still be a few details to work out based on the labeling.

We've yet to ride Shimano's new direct-mount Dura-Ace calipers ourselves but it looks like there might still be a few details to work out based on the labeling. (Image credit: Jonny Irick)
Image 3 of 21

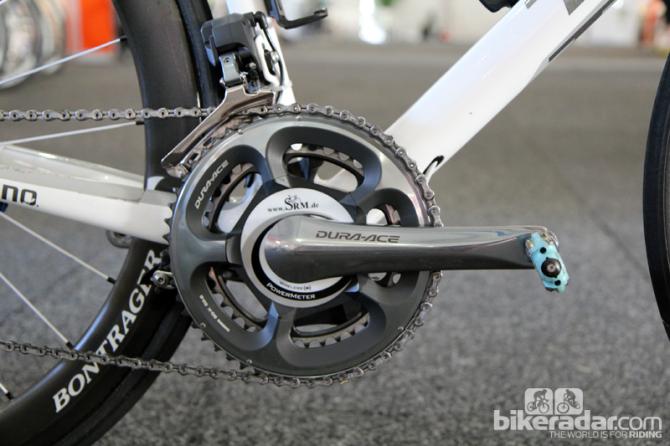

Like most pro riders these days, Jens Voigt (RadioShack-Leopard) both races and trains with a power meter, in this case one from SRM.

Like most pro riders these days, Jens Voigt (RadioShack-Leopard) both races and trains with a power meter, in this case one from SRM. (Image credit: Jonny Irick)
Image 4 of 21

Jens Voigt (RadioShack-Leopard) uses Speedplay Zero pedals with stainless steel axles.

Jens Voigt (RadioShack-Leopard) uses Speedplay Zero pedals with stainless steel axles. (Image credit: Jonny Irick)
Image 5 of 21

A small zip-tie keeps the Shimano Dura-Ace Di2 wire neatly tucked away.

A small zip-tie keeps the Shimano Dura-Ace Di2 wire neatly tucked away. (Image credit: Jonny Irick)
Image 6 of 21

We've seen the RadioShack-Leopard team use steel derailleur hangers in the past but this appears to be a standard aluminum one.

We've seen the RadioShack-Leopard team use steel derailleur hangers in the past but this appears to be a standard aluminum one. (Image credit: Jonny Irick)
Image 7 of 21

Jens Voigt (RadioShack-Leopard) uses Bontrager anatomic-bend bars.

Jens Voigt (RadioShack-Leopard) uses Bontrager anatomic-bend bars. (Image credit: Jonny Irick)
Image 8 of 21

Like other Shimano-sponsored teams, RadioShack-Leopard competed at the Santos Tour Down Under on the previous-generation Dura-Ace Di2 group.

Like other Shimano-sponsored teams, RadioShack-Leopard competed at the Santos Tour Down Under on the previous-generation Dura-Ace Di2 group. (Image credit: Jonny Irick)
Image 9 of 21

The Bontrager Race XXX Lite carbon fiber stem measures 120mm in length.

The Bontrager Race XXX Lite carbon fiber stem measures 120mm in length. (Image credit: Jonny Irick)
Image 10 of 21

The integrated chain catcher is a nice touch on Trek's latest Madone.

The integrated chain catcher is a nice touch on Trek's latest Madone. (Image credit: Jonny Irick)
Image 11 of 21

The 50mm-deep Bontrager Aeolus 5 carbon fiber tubular wheels feature a much wider profile than previous editions.

The 50mm-deep Bontrager Aeolus 5 carbon fiber tubular wheels feature a much wider profile than previous editions. (Image credit: Jonny Irick)
Image 12 of 21

The Shimano Dura-Ace direct-mount brake looks a bit odd here. The space is more thoroughly filled out by the consumer-spec Bontrager version.

The Shimano Dura-Ace direct-mount brake looks a bit odd here. The space is more thoroughly filled out by the consumer-spec Bontrager version. (Image credit: Jonny Irick)
Image 13 of 21

The rear brake isn't accessible by the rider on the road so Trek has integrated a barrel adjuster into the housing stop on the head tube.

The rear brake isn't accessible by the rider on the road so Trek has integrated a barrel adjuster into the housing stop on the head tube. (Image credit: Jonny Irick)
Image 14 of 21

Trek's latest Madone is marked by its telltale 'Kammtail' tube shaping, which is supposedly as aerodynamic as full airfoil sections but without compromising weight or stiffness.

Trek's latest Madone is marked by its telltale 'Kammtail' tube shaping, which is supposedly as aerodynamic as full airfoil sections but without compromising weight or stiffness. (Image credit: Jonny Irick)
Image 15 of 21

The size differential between the tapered head tube and the fork legs is a little disjointed visually but Voigt doesn't ride this thing to look good.

The size differential between the tapered head tube and the fork legs is a little disjointed visually but Voigt doesn't ride this thing to look good. (Image credit: Jonny Irick)
Image 16 of 21

Custom team-only seatmast heads are equipped with bonded-on number plate holders.

Custom team-only seatmast heads are equipped with bonded-on number plate holders. (Image credit: Jonny Irick)
Image 17 of 21

The RadioShack-Leopard team uses Shimano's new direct-mount Dura-Ace brake calipers.

The RadioShack-Leopard team uses Shimano's new direct-mount Dura-Ace brake calipers. (Image credit: Jonny Irick)
Image 18 of 21

The rear brake is moved below the chain stays, leaving the seat stays bare and bridgeless.

The rear brake is moved below the chain stays, leaving the seat stays bare and bridgeless. (Image credit: Jonny Irick)
Image 19 of 21

The bottom bracket is a busy area on Jens Voigt's (RadioShack-Leopard) Trek Madone 7-Series. Bearings are pressed directly into the 90mm-wide shell, the Shimano Dura-Ace Di2 battery is mounted beneath, and right behind is a special Shimano Dura-Ace brake caliper.

The bottom bracket is a busy area on Jens Voigt's (RadioShack-Leopard) Trek Madone 7-Series. Bearings are pressed directly into the 90mm-wide shell, the Shimano Dura-Ace Di2 battery is mounted beneath, and right behind is a special Shimano Dura-Ace brake caliper. (Image credit: Jonny Irick)
Image 20 of 21

Needless to say, the immensely popular Jens Voigt (RadioShack-Leopard) has logged a lot of miles in his career.

Needless to say, the immensely popular Jens Voigt (RadioShack-Leopard) has logged a lot of miles in his career. (Image credit: Jonny Irick)
Image 21 of 21

The non-driveside chain stay features a hollow pocket for Trek's wireless DuoTrap speed sensor.

The non-driveside chain stay features a hollow pocket for Trek's wireless DuoTrap speed sensor. (Image credit: Jonny Irick)

This article originally appeared on BikeRadar

Jens Voigt (RadioShack-Leopard) is without doubt one of the most popular men in the peloton and even at the age of 41 with 17 professional seasons under his belt, he still only says he's "very, very probably" retiring after 2013. While never as outwardly ostentatious as some other cycling superstars, the affable German was still well aware of his role as an "entertainer", putting on a show at the People's Choice Classic before the start of the Santos Tour Down Under.

The end of such an illustrious career would seem the perfect justification for a wild, commemorative paint job from the team's bike sponsor, Trek, but at least for now – we're certainly keeping our eyes open later in the year – Voigt is on his standard team-issue Madone 7-Series, albeit with a big decal on the top tube celebrating his time in the sport.

Among the impressive statistics are an estimated 805,000km ridden, 64 wins, 11 broken bones, and 25 screws – and that's only as of the end of last season, before Voigt's birthday in September.

While perhaps lacking in flair, Voigt's latest Madone is nonetheless equipped with the company's latest arsenal of technology, most notably the "Kammtail" truncated airfoil tube shaping throughout that supposedly reduces aerodynamic drag to the tune of 25 watts of rider effort at 40km/h (or two minutes per hour) relative to the old Madone, according to Trek.

Trek also made a radical change in braking with both ends adopting Shimano's new Direct Mount dual-pivot mounting standard. The rear caliper has moved beneath the chain stays, just behind the bottom bracket, which then leaves the seat stays strikingly bare – and bridgeless – for what Trek says is a more comfortable ride than before.

Otherwise, the usual Madone hallmarks remain, including the 1 1/8-to-1 1/2" tapered head tube, the extra-wide BB90 bottom bracket shell with press-fit bearings, and the integrated seatmast custom made for the team with a bonded-on number plate holder. Although we've seen RadioShack-Leopard team bikes equipped with stouter stainless steel derailleur hangers in the past, Voigt's bike at the Tour Down Under was fitted with a standard aluminum unit.

The build kit is very straightforward with a Shimano Dura-Ace Di2 group – albeit the older version as was the case with nearly every Shimano-sponsored rider we've seen so far – SRM power meter, and a full complement of Bontrager gear including the Aeolus 5 carbon tubular wheels, the molded carbon fiber Race XXX Lite stem, the Team Issue saddle, and a set of aluminum anatomic-bend RL handlebars – positioned nearly 14cm of drop below the saddle with the lever hoods a couple of centimeters further down.

Capping things off are a Cane Creek 110 integrated headset, Speedplay Zero Stainless pedals, and Schwalbe Ultremo HT tires in a new-school 25mm width.

Total weight as pictured is 7.68kg (16.93lb).



Complete bike specifications

Frame: Trek Madone 7-Series, 60cm H1
Fork: Trek Madone KVF full carbon
Headset: Cane Creek 110 integrated, 1 1/8-to-1 1/2" tapered
Stem: Bontrager Race XXX Lite, 120mm x -7°
Handlebars: Bontrager Race Lite Anatomic, 44cm (c-c)
Tape/grips: Bontrager cork
Front brake: Shimano Dura-Ace direct mount BR-9010
Rear brake: Shimano Dura-Ace direct mount, Trek Madone-specific
Brake levers: Shimano Dura-Ace Di2 STI Dual Control ST-7970
Front derailleur: Shimano Dura-Ace Di2 FD-7970
Rear derailleur: Shimano Dura-Ace Di2 RD-7970
Shift levers: Shimano Dura-Ace Di2 STI Dual Control ST-7970
Cassette: Shimano Dura-Ace CS-7900, 11-25T
Chain: Shimano Dura-Ace CN-7901
Crankset: SRM Wireless PowerMeter DuraAce 7900 Compatible, 177.5mm, 53/39T
Bottom bracket: Enduro XD-15
Pedals: Speedplay Zero Stainless
Wheelset: Bontrager Aeolus 5 tubular
Front tire: Schwalbe Ultremo HT tubular, 25mm
Rear tire: Schwalbe Ultremo HT tubular, 25mm
Saddle: Bontrager Team Issue
Seat post: Bontrager Ride Tuned Carbon
Bottle cages: Trek Bat Cage (2)
Computer: SRM PowerControl 7

Critical measurements

Rider's height: 1.90m (6' 3")
Rider's weight: 77kg (170lb)
Saddle height, from BB (c-t): 845mm
Saddle setback: 85mm
Seat tube length, c-t: 538mm
Seat tube length, c-c: 522mm
Tip of saddle nose to C of bars (next to stem): 616mm
Saddle-to-bar drop (vertical): 138mm
Head tube length: 180mm
Top tube length: 591mm (horizontal)
Total bicycle weight: 7.68kg (16.93lb)
