Jasper Stuyven’s Trek Madone Disc — Gallery

Image 1 of 22

Jasper Stuyven's Trek Madone Disc

Jasper Stuyven's Trek Madone Disc (Image credit: Josh Evans/Immediate Media)
Image 2 of 22

Stuyven uses a Bontrager Team Issue saddle

Stuyven uses a Bontrager Team Issue saddle (Image credit: Josh Evans/Immediate Media)
Image 3 of 22

Stuyven opts for satellite shifters on the handlebar drops

Stuyven opts for satellite shifters on the handlebar drops (Image credit: Josh Evans/Immediate Media)
Image 4 of 22

A closer look at the satellite shifters

A closer look at the satellite shifters (Image credit: Josh Evans/Immediate Media)
Image 5 of 22

Trek-Segafredo have been using Shimano's Dura-Ace R9100-P power meters for the 2018 season

Trek-Segafredo have been using Shimano's Dura-Ace R9100-P power meters for the 2018 season (Image credit: Josh Evans/Immediate Media)
Image 6 of 22

The Trek Madone seat post is part integrated, part aero seat post

The Trek Madone seat post is part integrated, part aero seat post (Image credit: Josh Evans/Immediate Media)
Image 7 of 22

The new Madone uses an adjustable Trek Iso Speed system in the seat tube to improve comfort

The new Madone uses an adjustable Trek Iso Speed system in the seat tube to improve comfort (Image credit: Josh Evans/Immediate Media)
Image 8 of 22

The dampening system can be adjusted via the underside of the top tube

The dampening system can be adjusted via the underside of the top tube (Image credit: Josh Evans/Immediate Media)
Image 9 of 22

Bontrager released their Aeolus XXX wheels earlier in the season

Bontrager released their Aeolus XXX wheels earlier in the season (Image credit: Josh Evans/Immediate Media)
Image 10 of 22

The Shimano Dura-Ace R9100 groupset also extends to the pedals

The Shimano Dura-Ace R9100 groupset also extends to the pedals (Image credit: Josh Evans/Immediate Media)
Image 11 of 22

A look at the front end of the new Madone

A look at the front end of the new Madone (Image credit: Josh Evans/Immediate Media)
Image 12 of 22

As with the majority of disc brake bikes, the new Madone uses thru-axles

As with the majority of disc brake bikes, the new Madone uses thru-axles (Image credit: Josh Evans/Immediate Media)
Image 13 of 22

Wide, truncated seat stays allows air to flow through the bike frame

Wide, truncated seat stays allows air to flow through the bike frame (Image credit: Josh Evans/Immediate Media)
Image 14 of 22

The head tube loses the cuckoo clock-styled doors which hid the front rim brake caliper on the previous iteration of the Trek Madone

The head tube loses the cuckoo clock-styled doors which hid the front rim brake caliper on the previous iteration of the Trek Madone (Image credit: Josh Evans/Immediate Media)
Image 15 of 22

The rear derailleur hanger sits on the inside of the rear dropout area

The rear derailleur hanger sits on the inside of the rear dropout area (Image credit: Josh Evans/Immediate Media)
Image 16 of 22

Trek-Segafredo use Shimano Dura-Ace R9100 cassettes and chains

Trek-Segafredo use Shimano Dura-Ace R9100 cassettes and chains (Image credit: Josh Evans/Immediate Media)
Image 17 of 22

The two-piece cockpit allows for a wider range of adjustability compared to a one-piece system

The two-piece cockpit allows for a wider range of adjustability compared to a one-piece system (Image credit: Josh Evans/Immediate Media)
Image 18 of 22

Like other disc-specific aero bikes, the Trek Madone features a square taper at the bottom of the forks

Like other disc-specific aero bikes, the Trek Madone features a square taper at the bottom of the forks (Image credit: Josh Evans/Immediate Media)
Image 19 of 22

Huge Trek decals dominate the down tube on the frameset

Huge Trek decals dominate the down tube on the frameset (Image credit: Josh Evans/Immediate Media)
Image 20 of 22

Shimano Dura-Ace R9150 levers provides control for braking and shifting

Shimano Dura-Ace R9150 levers provides control for braking and shifting (Image credit: Josh Evans/Immediate Media)
Image 21 of 22

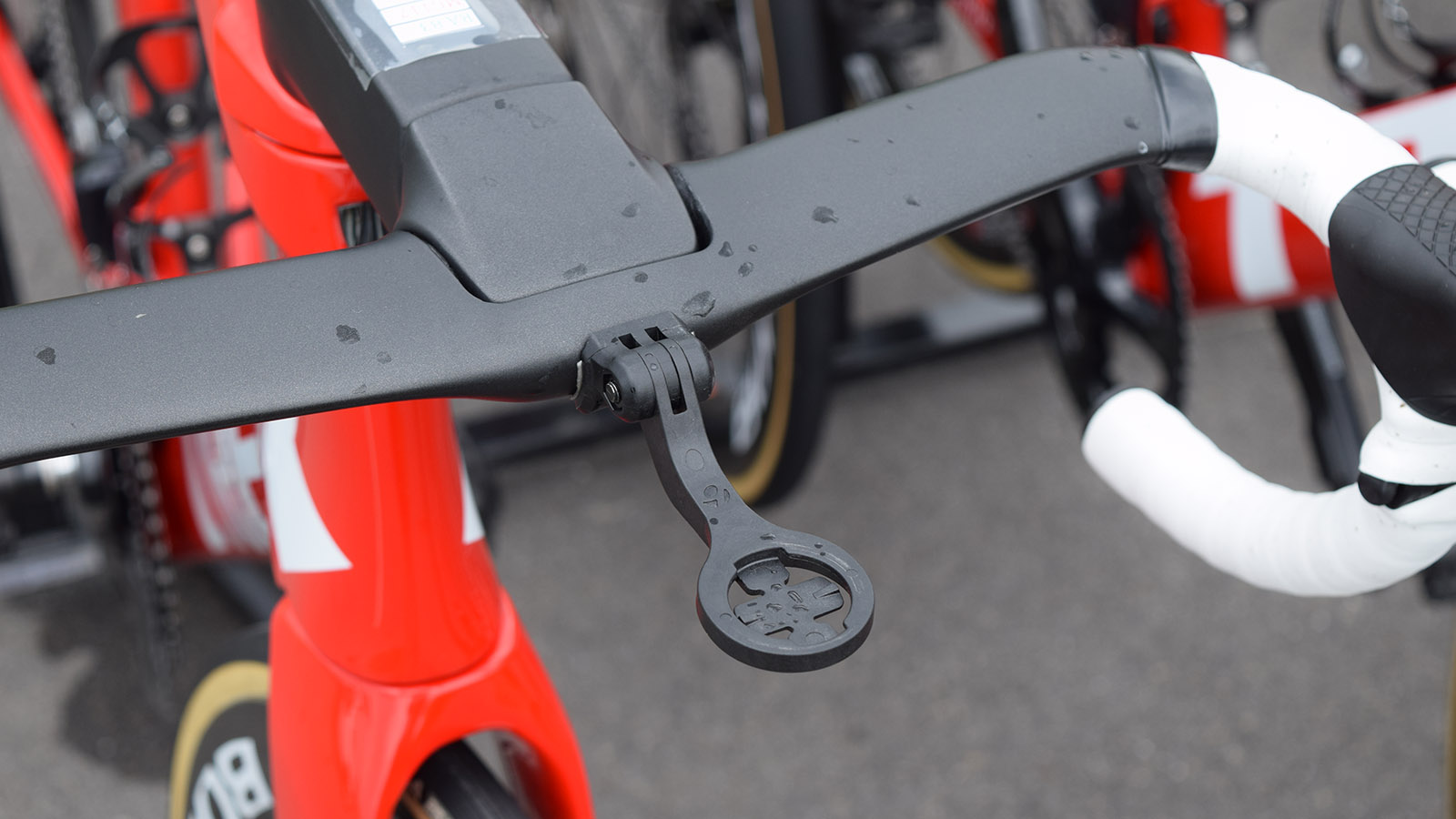

Stuyven's cockpit has an integrated out front computer mount

Stuyven's cockpit has an integrated out front computer mount (Image credit: Josh Evans/Immediate Media)
Image 22 of 22

Trek-Segafredo pair their framesets with Bontrager XXX bottle cages

Trek-Segafredo pair their framesets with Bontrager XXX bottle cages (Image credit: Josh Evans/Immediate Media)

This article first appeared on BikeRadar.

First spotted at the Criterium du Dauphine and released a few weeks later, the updated Trek Madone Disc has since been raced extensively by the American brand’s WorldTour sponsored team, Trek-Segafredo.

On Thursday, Jasper Stuyven took victory on the new Trek Madone Disc at stage 4 of the BinckBank Tour in Belgium.

Photographed here at the Tour de Suisse, Jasper Stuyven's Trek Madone Disc is in the traditional Trek-Segafredo team colours of red and white.

For the Tour de France, the squad were each given Trek’s special ICON paint scheme, although the team’s sole stage victory came aboard a Trek Domane in the same colours as Stuyven’s bike here during stage 9 of the race.

All of Trek-Segafredo’s bikes, however, share the same selection of Shimano Dura-Ace R9100 series drivetrains and Bontrager wheels and finishing kit.

Released back in the spring ahead of the Flemish Classics, the Bontrager Aeolus XXX series wheels are available in three different rim depths, as well as in rim or disc brake format. Trek-Segafredo pairs its wheels with Vittoria Corsa tubular tyres.

Click or swipe through the gallery above for a closer look at Jasper Stuyven’s Trek Madone Disc.

Frameset: Trek Madone Disc

Front brake: Shimano Dura-Ace R9120
Rear brake: Shimano Dura-Ace R9120
Brake/shift levers: Shimano Dura-Ace R9170
Front derailleur: Shimano Dura-Ace R9150
Rear derailleur: Shimano Dura-Ace R9150
Cassette: Shimano Dura-Ace R9100
Chain: Shimano Dura-Ace R9100
Crankset: Shimano Dura-Ace R9100-P
Wheelset: Bontrager Aeolus XXX 4
Tyres: Vittoria Corsa Speed, 25mm tubular
Handlebars/stem: Trek Madone
Tape/grips: Bontrager
Pedals: Shimano Dura-Ace R9100
Saddle: Bontrager Team Issue
Seatpost: Trek Madone
Bottle cages: Bontrager XXX
