Interbike 2010: Heaps of new wheel options for road, 'cross and MTB

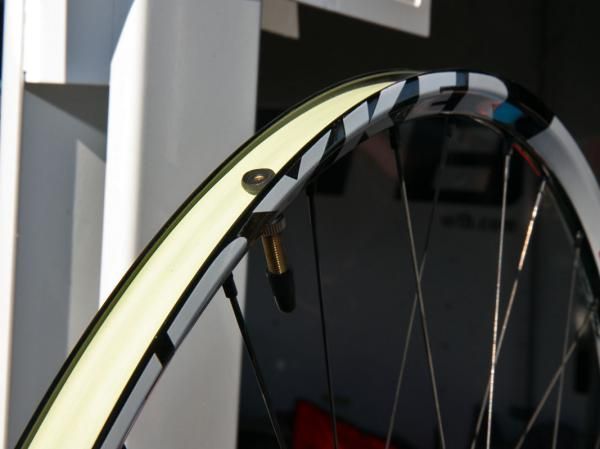

Image 1 of 49

The alloy WTB Stryker rims use airtight rim tape to seal up the spoke holes.

The alloy WTB Stryker rims use airtight rim tape to seal up the spoke holes.
(Image credit: James Huang)
Image 2 of 49

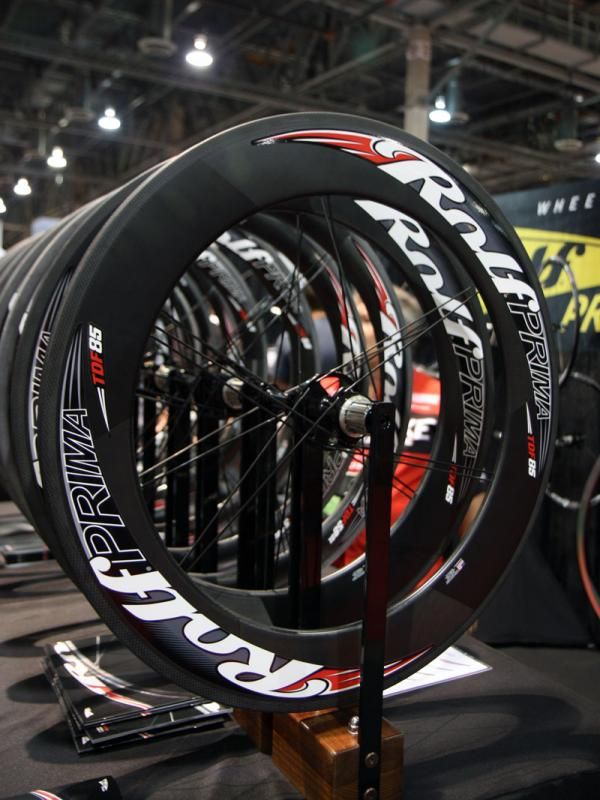

Rolf Prima is among the latest companies to adopt the wider-is-better philosophy with the 23mm-wide carbon hoops on its new TDF85 wheels.

Rolf Prima is among the latest companies to adopt the wider-is-better philosophy with the 23mm-wide carbon hoops on its new TDF85 wheels.
(Image credit: James Huang)
Image 3 of 49

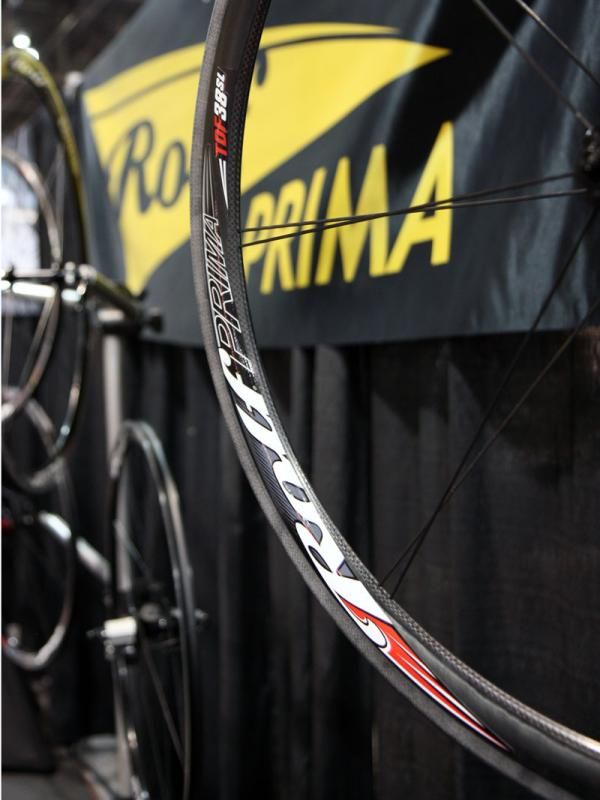

The new Rolf Prima TDF38 SL is the company's lightest wheelset at just 1,105g for the set.

The new Rolf Prima TDF38 SL is the company's lightest wheelset at just 1,105g for the set.
(Image credit: James Huang)

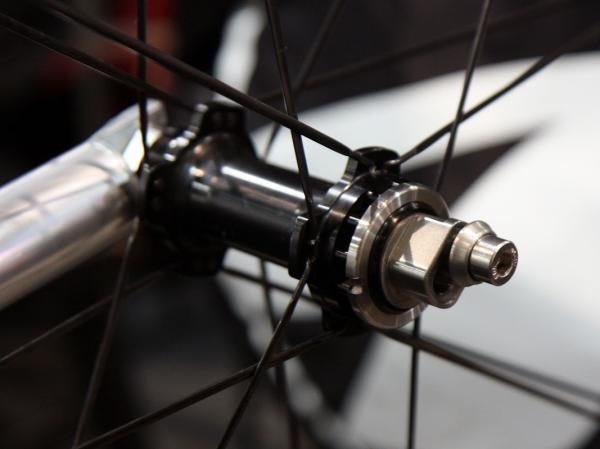

Image 4 of 49

Rolf Prima's singlespeed wheels are built around White Industries' ENO eccentric hub.

Rolf Prima's singlespeed wheels are built around White Industries' ENO eccentric hub.
(Image credit: James Huang)
Image 5 of 49

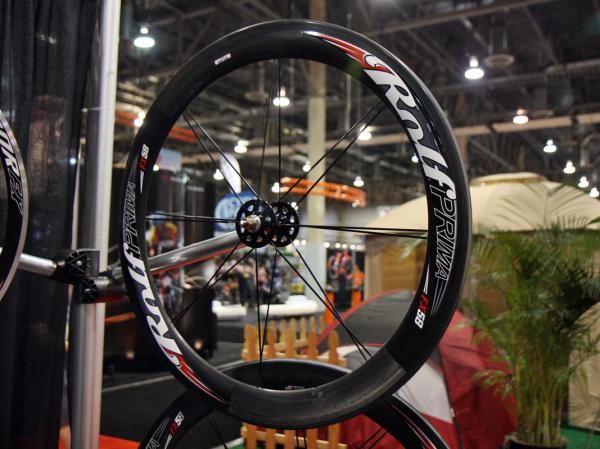

Rolf Prima laces a specially built White Industries hubset into its 58mm-deep rims for the track-specific FX58.

Rolf Prima laces a specially built White Industries hubset into its 58mm-deep rims for the track-specific FX58.
(Image credit: James Huang)

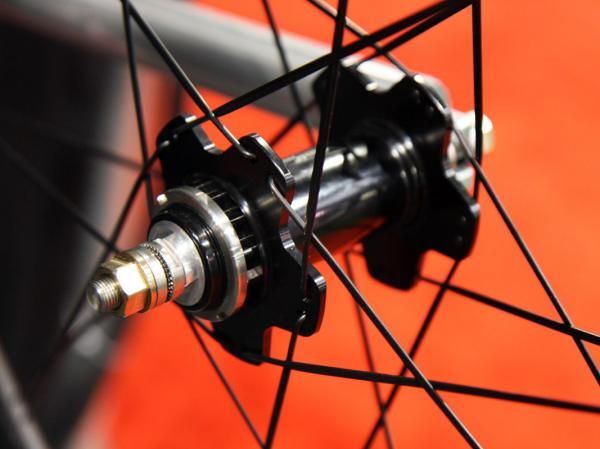

Image 6 of 49

The dedicated track hubs on the Rolf Prima FX58 feature White Industries' easy-change splined cog interface.

The dedicated track hubs on the Rolf Prima FX58 feature White Industries' easy-change splined cog interface.
(Image credit: James Huang)

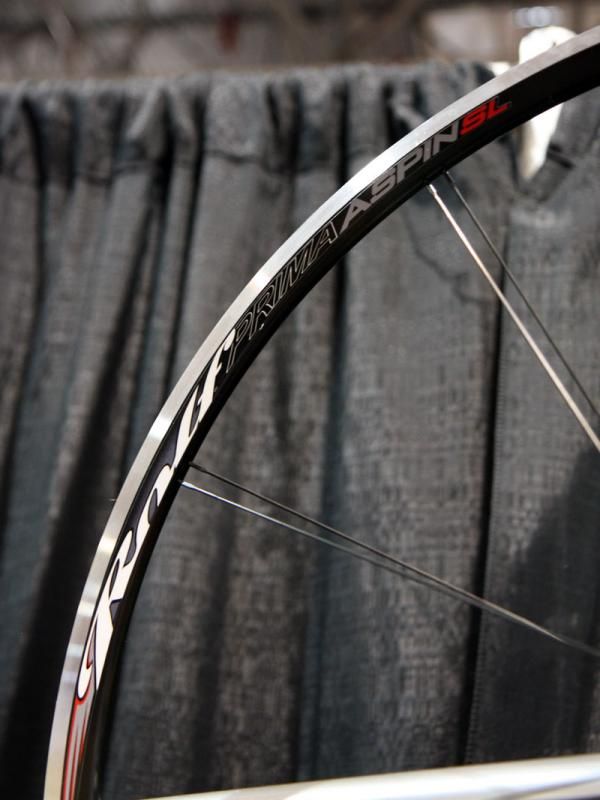

Image 7 of 49

Rolf Prima's Aspin SLuses paired-spoke lacing, weighs just 1,495g for the set, and costs a reasonable US$699.

Rolf Prima's Aspin SLuses paired-spoke lacing, weighs just 1,495g for the set, and costs a reasonable US$699.
(Image credit: James Huang)

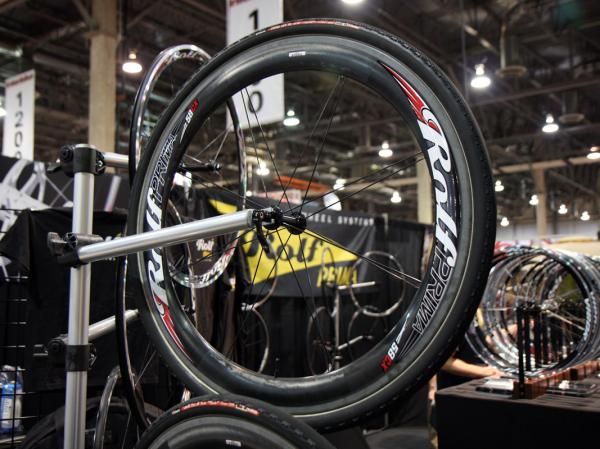

Image 8 of 49

Carbon fiber construction helps Rolf Prima keep its 58mm-deep 58CX down to a claimed 1,440g per pair.

Carbon fiber construction helps Rolf Prima keep its 58mm-deep 58CX down to a claimed 1,440g per pair.
(Image credit: James Huang)
Image 9 of 49

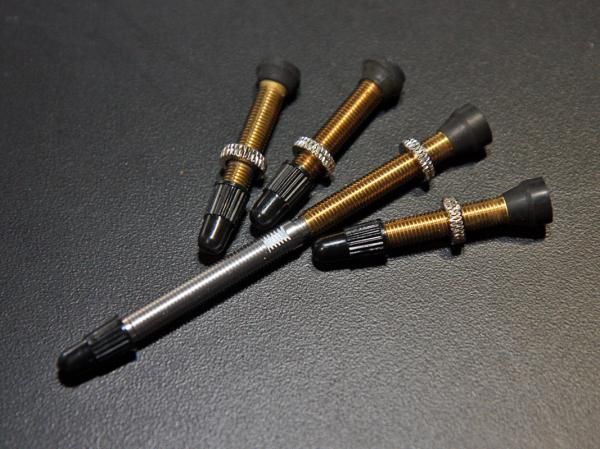

NoTubes' new universal valve stems (third and fourth from left) supposedly now work for nearly all rims and are less likely to pull through than the old Olympic ones. New fully threaded extensions allow for easier conversions on deep-section road rims, too.

NoTubes' new universal valve stems (third and fourth from left) supposedly now work for nearly all rims and are less likely to pull through than the old Olympic ones. New fully threaded extensions allow for easier conversions on deep-section road rims, too.
(Image credit: James Huang)
Image 10 of 49

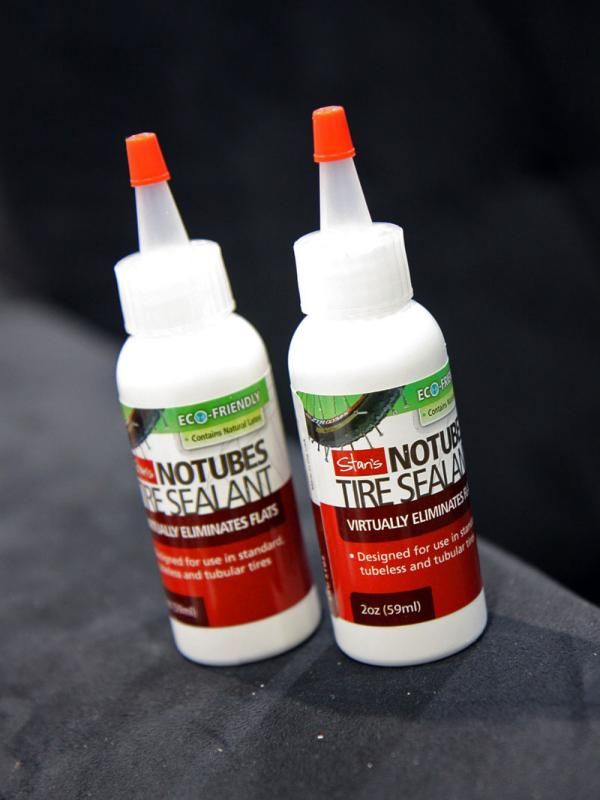

NoTubes' handy 2oz size is easy to stuff into your hydration pack.

NoTubes' handy 2oz size is easy to stuff into your hydration pack.
(Image credit: James Huang)
Image 11 of 49

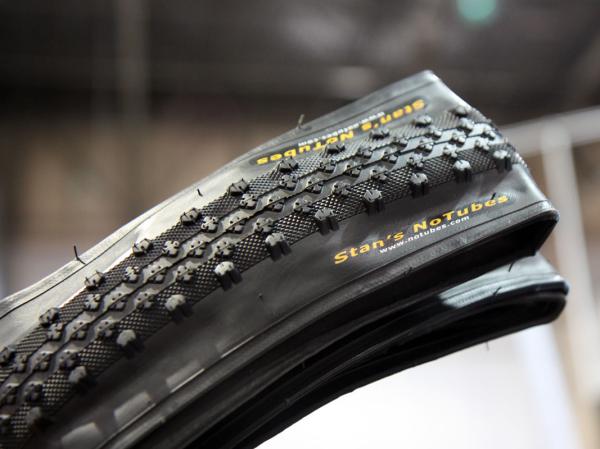

NoTubes claims its 700x35c Raven 'cross tire can be run as low as 20psi.

NoTubes claims its 700x35c Raven 'cross tire can be run as low as 20psi.
(Image credit: James Huang)
Image 12 of 49

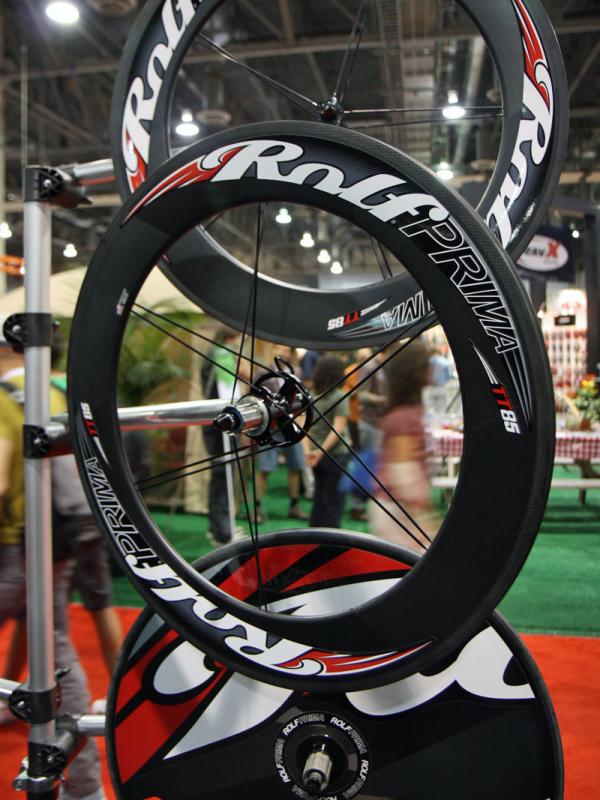

The Rolf Prima TT85 shares its rear wheel with the TDF85 but drops down to a paltry 10-spoke count up front.

The Rolf Prima TT85 shares its rear wheel with the TDF85 but drops down to a paltry 10-spoke count up front.
(Image credit: James Huang)

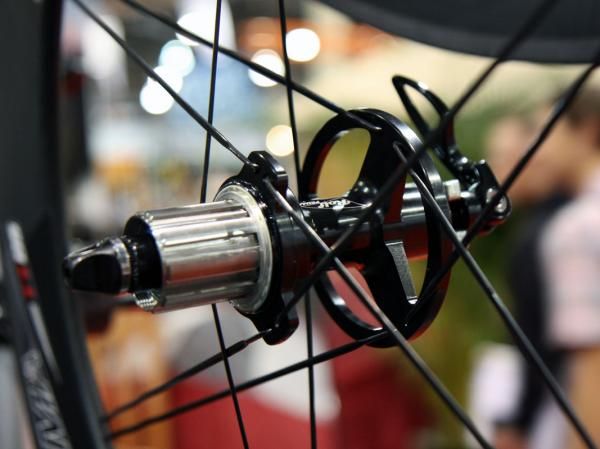

Image 13 of 49

Just twelve spokes are used on the rear Rolf Prima TDF85 wheels.

Just twelve spokes are used on the rear Rolf Prima TDF85 wheels.
(Image credit: James Huang)

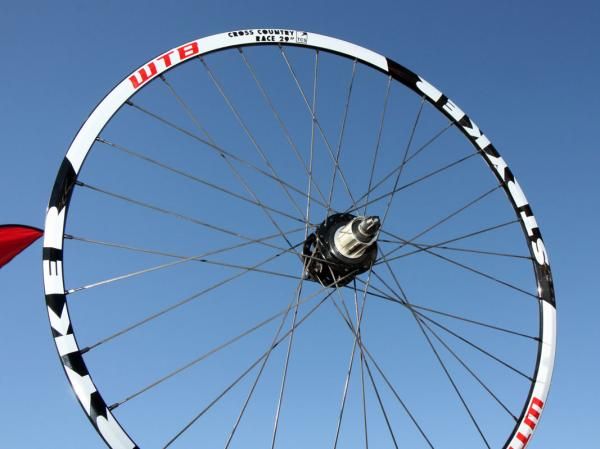

Image 14 of 49

WTB's new Stryker range of mountain bike wheels offer easy and secure fitment of both UST and tubeless-ready tires.

WTB's new Stryker range of mountain bike wheels offer easy and secure fitment of both UST and tubeless-ready tires.
(Image credit: James Huang)
Image 15 of 49

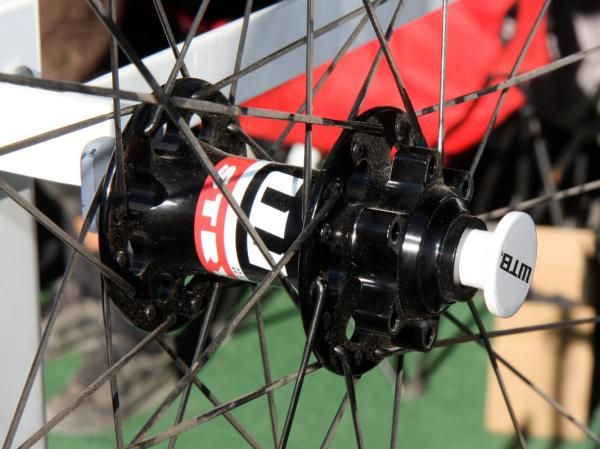

WTB uses dedicated - rather than interchangeable - front axle fitments to keep the weight down as much as possible.

WTB uses dedicated - rather than interchangeable - front axle fitments to keep the weight down as much as possible.
(Image credit: James Huang)
Image 16 of 49

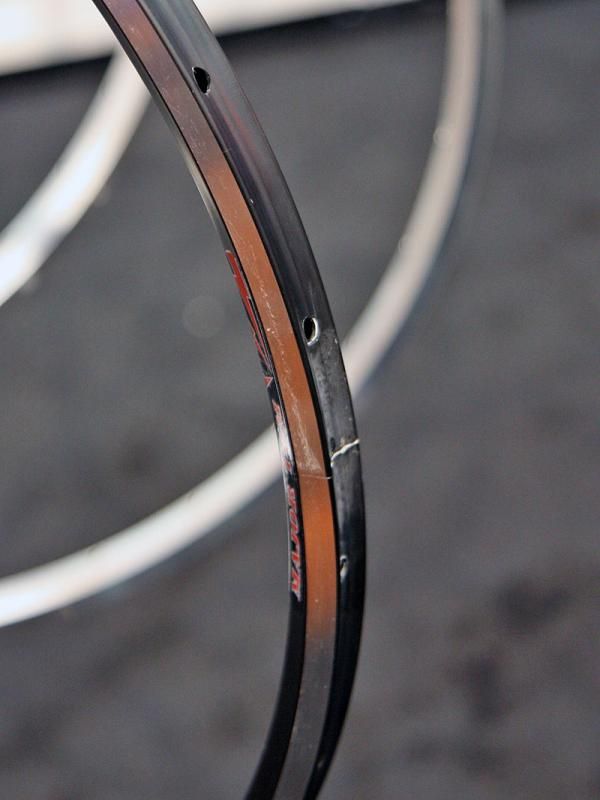

New from Velocity is the Major Tom, a wide-profile aluminum tubular rim that should be perfect for 'cross riders.

New from Velocity is the Major Tom, a wide-profile aluminum tubular rim that should be perfect for 'cross riders.
(Image credit: James Huang)
Image 17 of 49

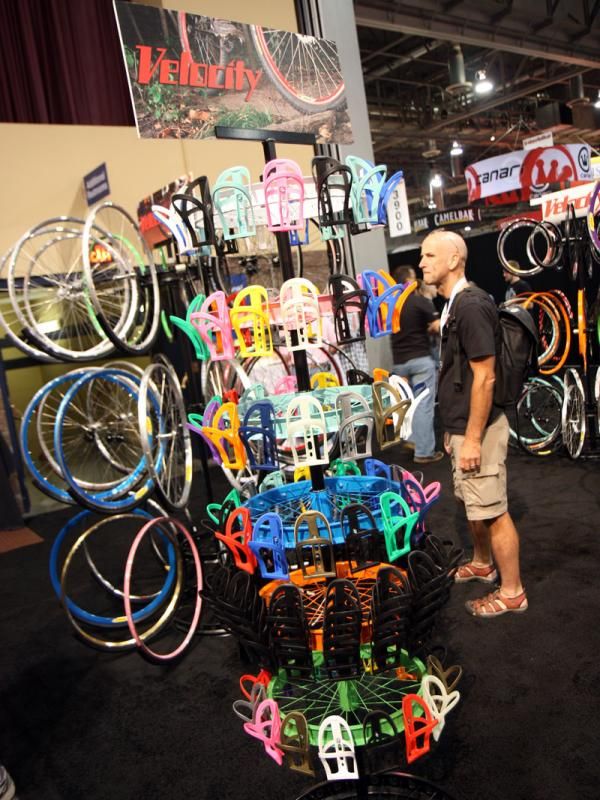

Velocity also showed off a mountain of colors for its new high-value nylon bottle cage.

Velocity also showed off a mountain of colors for its new high-value nylon bottle cage.
(Image credit: James Huang)
Image 18 of 49

(Image credit: James Huang)

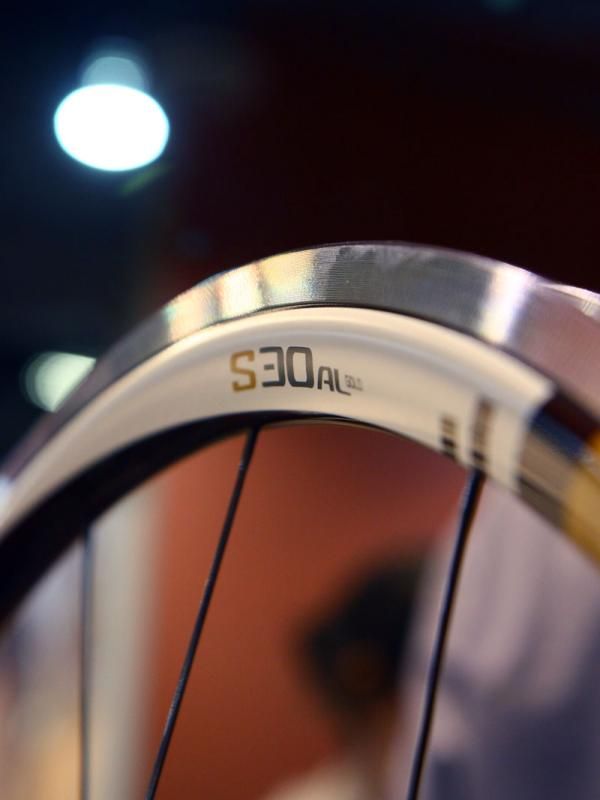

Image 19 of 49

The new SRAM S30AL Gold rims feature a hybrid toroidal profile.

The new SRAM S30AL Gold rims feature a hybrid toroidal profile.
(Image credit: James Huang)
Image 20 of 49

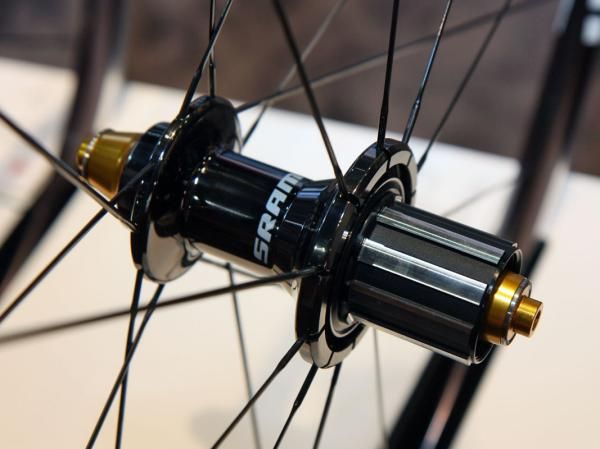

CeramicSpeed hybrid ceramic cartridge bearings are fitted throughout the new SRAM S30AL Gold hubs.

CeramicSpeed hybrid ceramic cartridge bearings are fitted throughout the new SRAM S30AL Gold hubs.
(Image credit: James Huang)
Image 21 of 49

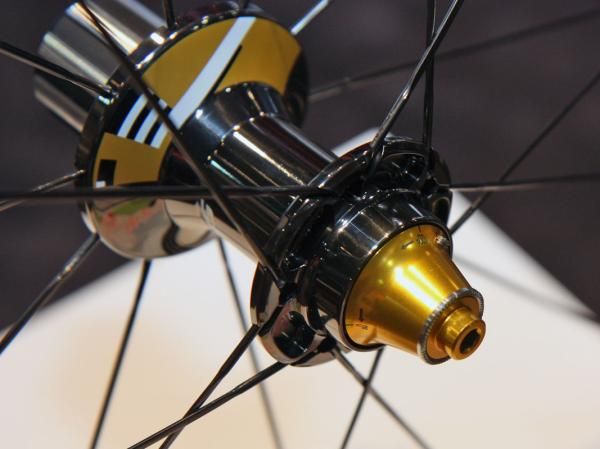

The rear hub on the SRAM S30AL Gold wheels include handy markings to help properly adjust bearing preload.

The rear hub on the SRAM S30AL Gold wheels include handy markings to help properly adjust bearing preload.
(Image credit: James Huang)
Image 22 of 49

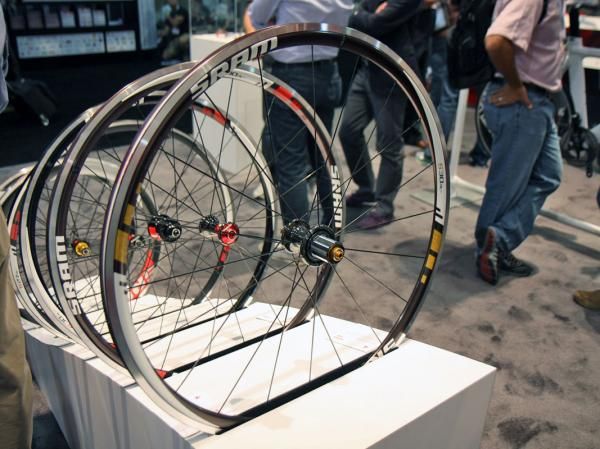

SRAM has added a new flagship model to its alloy road wheel range called the S30AL Gold.

SRAM has added a new flagship model to its alloy road wheel range called the S30AL Gold.
(Image credit: James Huang)

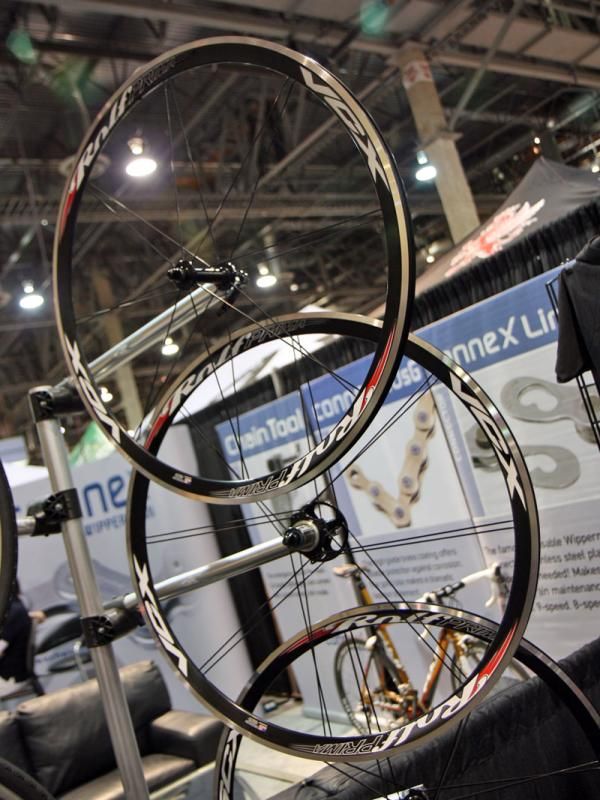

Image 23 of 49

Rolf Prima's VCX alloy tubular wheelset is aimed at 'cross riders.

Rolf Prima's VCX alloy tubular wheelset is aimed at 'cross riders.
(Image credit: James Huang)

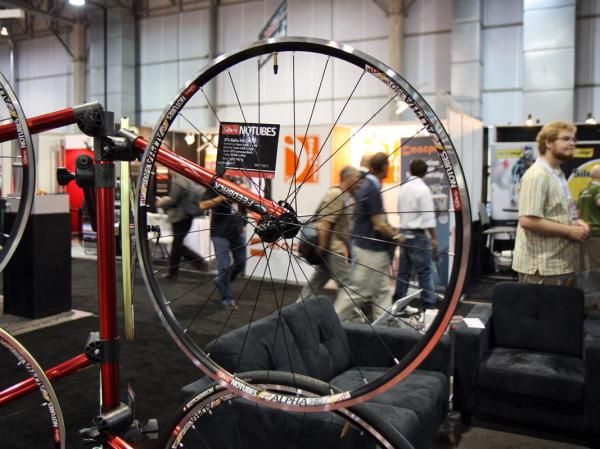

Image 24 of 49

NoTubes offers its new Alpha 340 as a bare rim or pre-built into one of three road wheelsets. As with the company's off-road rims, tubeless tire inflation is remarkably simple with only a floor pump.

NoTubes offers its new Alpha 340 as a bare rim or pre-built into one of three road wheelsets. As with the company's off-road rims, tubeless tire inflation is remarkably simple with only a floor pump.
(Image credit: James Huang)

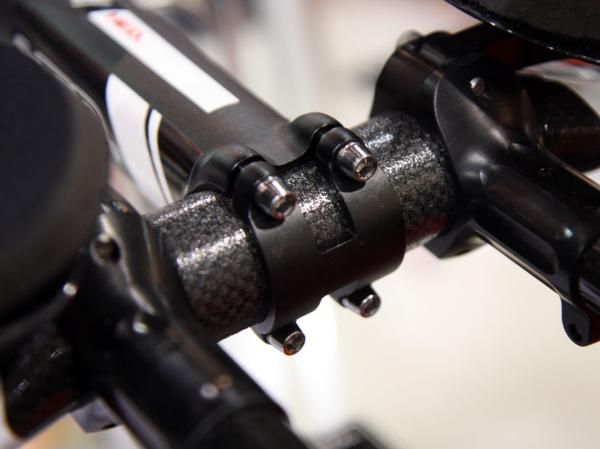

Image 25 of 49

A four-bolt faceplate is included for a solid purchase on carbon bars.

A four-bolt faceplate is included for a solid purchase on carbon bars.
(Image credit: James Huang)
Image 26 of 49

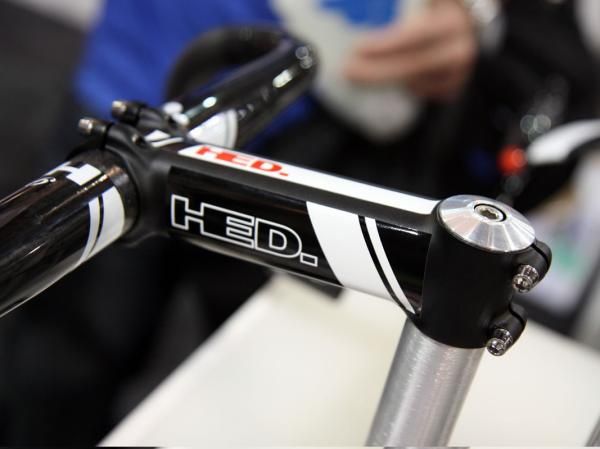

HED has added an aluminum stem to its 2011 collection.

HED has added an aluminum stem to its 2011 collection.
(Image credit: James Huang)

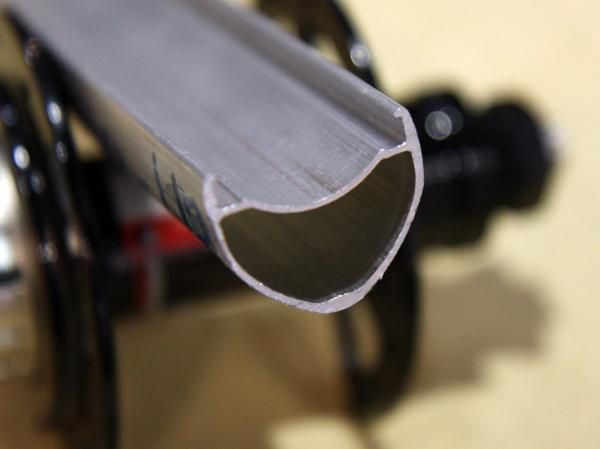

Image 27 of 49

See the little ridges on either side of the tire well? Those help keep the tire bead locked firmly in place for better security at low pressures.

See the little ridges on either side of the tire well? Those help keep the tire bead locked firmly in place for better security at low pressures.
(Image credit: James Huang)
Image 28 of 49

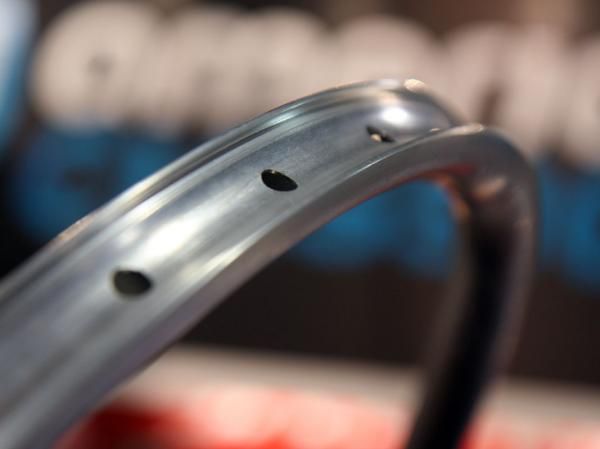

American Classic's new all-mountain rim is 28mm wide (outside-to-outside) and yet supposedly weighs just 390g in 26" form. Complete wheels will weigh as little as 1,546g per pair.

American Classic's new all-mountain rim is 28mm wide (outside-to-outside) and yet supposedly weighs just 390g in 26" form. Complete wheels will weigh as little as 1,546g per pair.
(Image credit: James Huang)

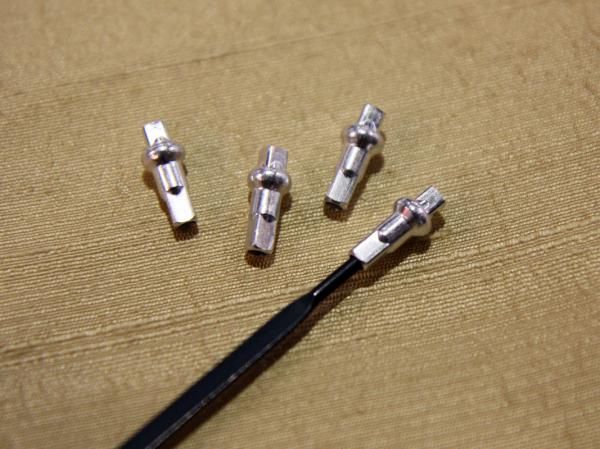

Image 29 of 49

It's the small things that make a difference - American Classic founder Bill Shook designed his own alloy nipples with a deeper counterbore and a matching extension out the back. By extending the spoke through the head, the head is now loaded in shear instead of tension and is far less likely to snap off.

It's the small things that make a difference - American Classic founder Bill Shook designed his own alloy nipples with a deeper counterbore and a matching extension out the back. By extending the spoke through the head, the head is now loaded in shear instead of tension and is far less likely to snap off.
(Image credit: James Huang)

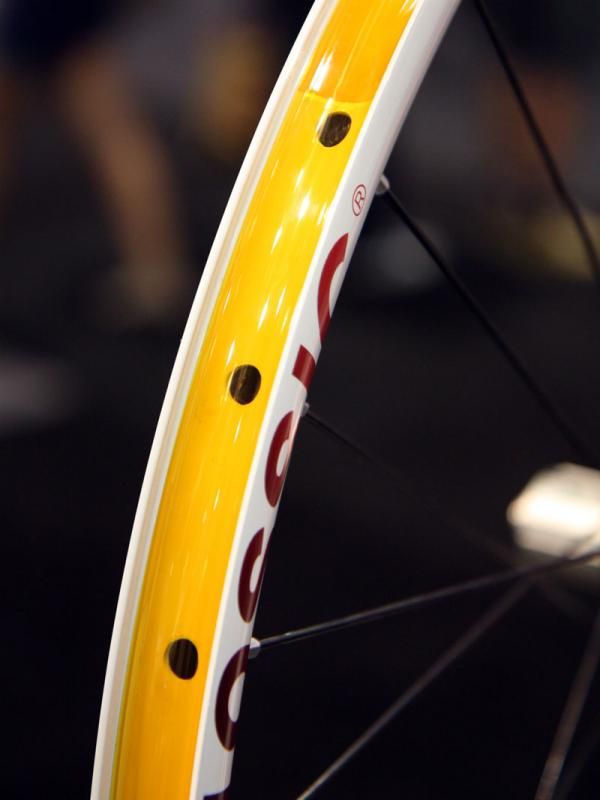

Image 30 of 49

The American Classic MTB 26 Disc Tubeless rim offers easy tubeless compatibility with the proper rim strip and valve stem.

The American Classic MTB 26 Disc Tubeless rim offers easy tubeless compatibility with the proper rim strip and valve stem.
(Image credit: James Huang)

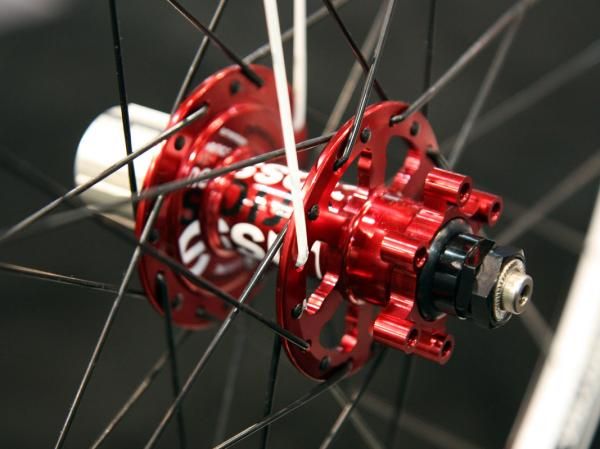

Image 31 of 49

American Classic's Disc 225 rear hub is among the lightest available that still maintains a reasonable price.

American Classic's Disc 225 rear hub is among the lightest available that still maintains a reasonable price.
(Image credit: James Huang)

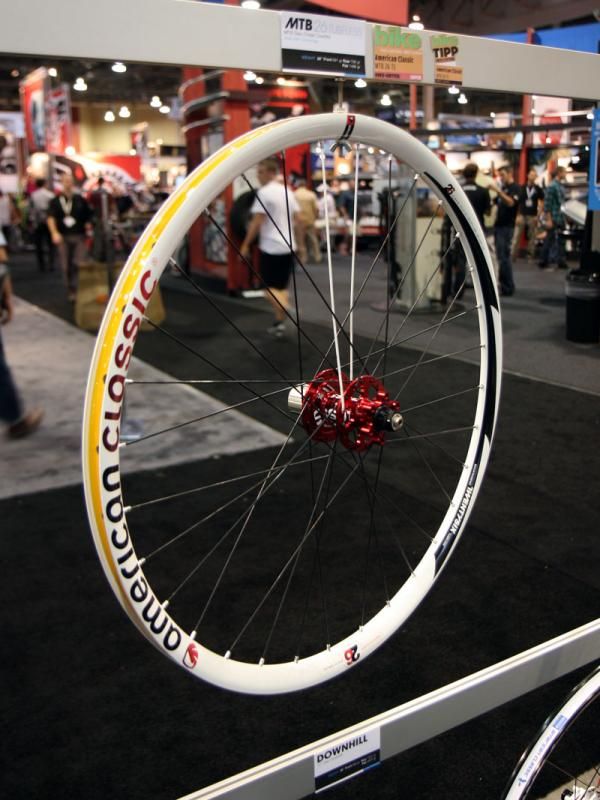

Image 32 of 49

American Classic's 26" cross-country disc wheelset uses wider rims than most, offers easy tubeless compatibility, and yet is still light at under 1,500g for the pair.

American Classic's 26" cross-country disc wheelset uses wider rims than most, offers easy tubeless compatibility, and yet is still light at under 1,500g for the pair.
(Image credit: James Huang)

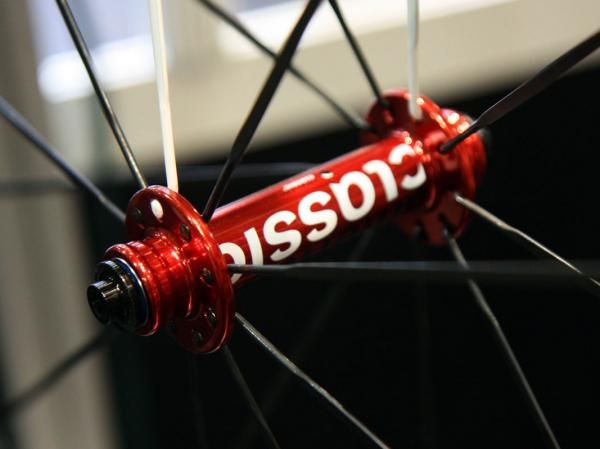

Image 33 of 49

American Classic founder Bill Shook says the ultralight Micro 58 hub has been redesigned for better bearing durability and reduced friction.

American Classic founder Bill Shook says the ultralight Micro 58 hub has been redesigned for better bearing durability and reduced friction.
(Image credit: James Huang)

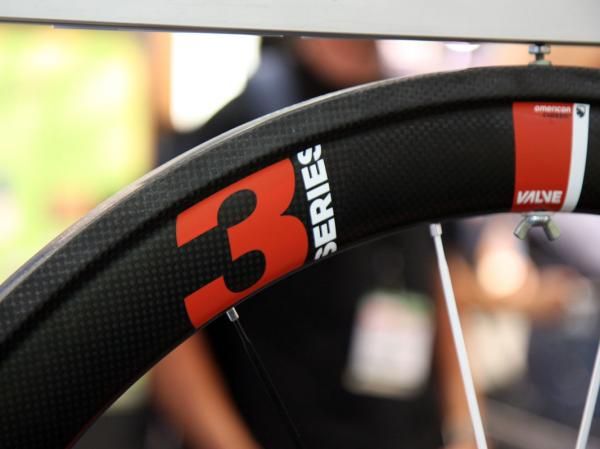

Image 34 of 49

Bill Shook of American Classic readily admits he uses an open mold from Carbotec but says he's added a few key revisions to the internal structure that allow for better nipple alignment, lighter weights, and reduced spoke pull-through than usual.

Bill Shook of American Classic readily admits he uses an open mold from Carbotec but says he's added a few key revisions to the internal structure that allow for better nipple alignment, lighter weights, and reduced spoke pull-through than usual.
(Image credit: James Huang)
Image 35 of 49

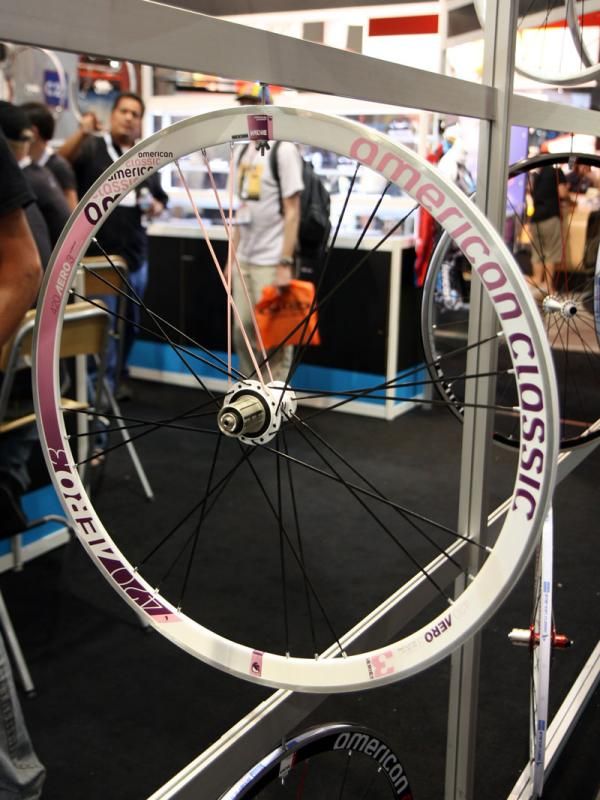

American Classic's popular 420 road wheelset are available in this fetching pink and purple hue.

American Classic's popular 420 road wheelset are available in this fetching pink and purple hue.
(Image credit: James Huang)
Image 36 of 49

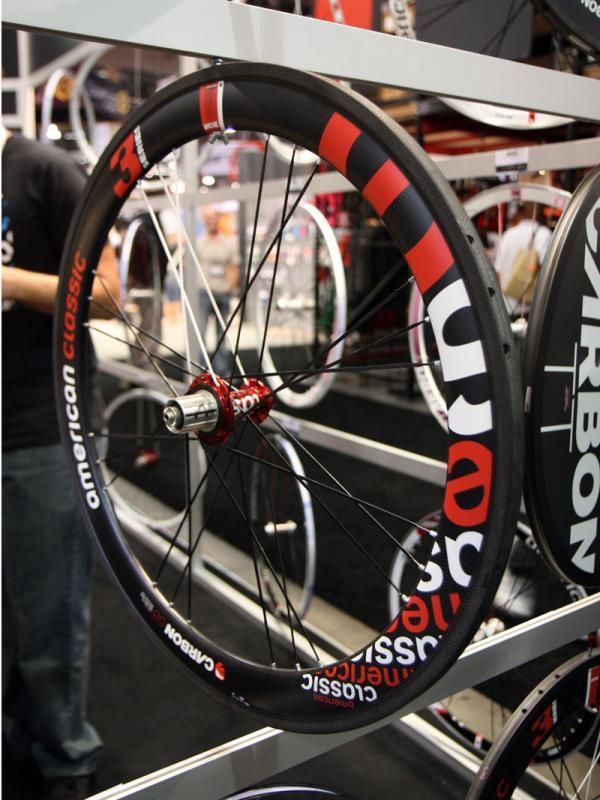

American Classic has moved away from Zipp-sourced carbon rims to ones from Carbotec in Asia.

American Classic has moved away from Zipp-sourced carbon rims to ones from Carbotec in Asia.
(Image credit: James Huang)
Image 37 of 49

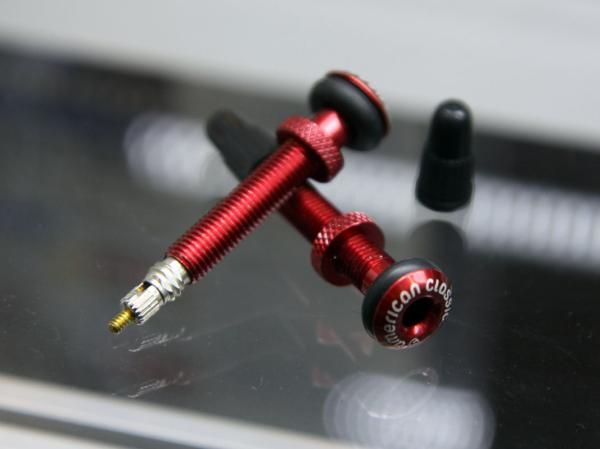

American Classic's own aluminum tubeless valve stems sport a red anodized finish and removable cores to easily add sealant.

American Classic's own aluminum tubeless valve stems sport a red anodized finish and removable cores to easily add sealant.
(Image credit: James Huang)

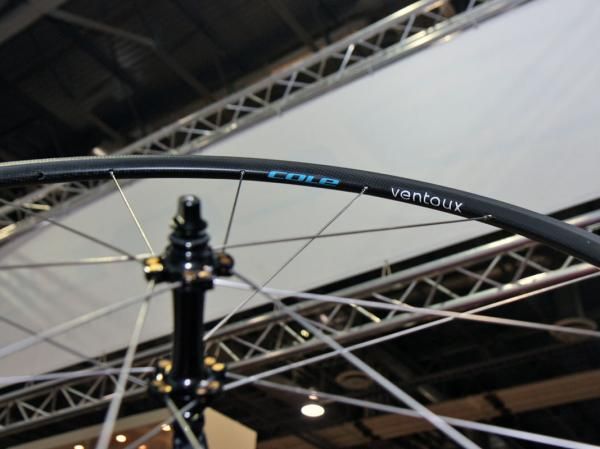

Image 38 of 49

Cole's new T20 Ventoux Lite reportedly weighs just 1,210g and yet costs a relatively reasonable US$1,395.

Cole's new T20 Ventoux Lite reportedly weighs just 1,210g and yet costs a relatively reasonable US$1,395.
(Image credit: James Huang)
Image 39 of 49

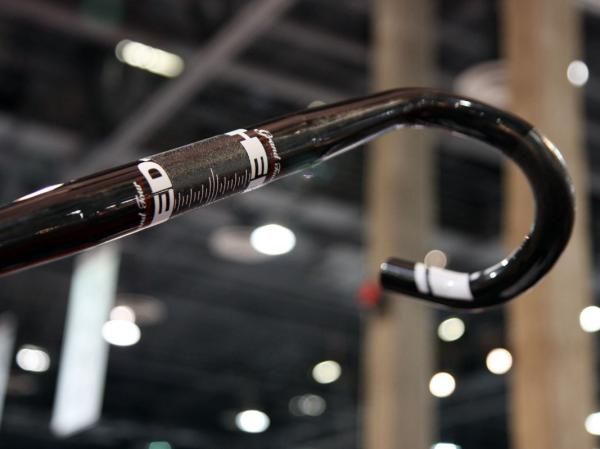

New for 2011 from HED is a range of carbon fiber and aluminum road handlebars.

New for 2011 from HED is a range of carbon fiber and aluminum road handlebars.
(Image credit: James Huang)

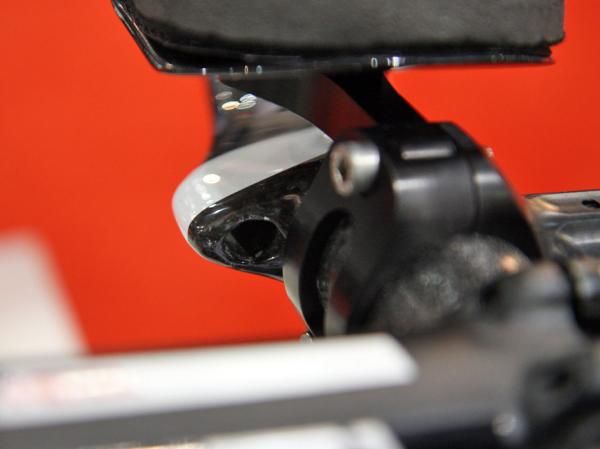

Image 40 of 49

Cable ports on the HED Corsair E are big enough to accommodate Shimano Dura-Ace Di2 connectors.

Cable ports on the HED Corsair E are big enough to accommodate Shimano Dura-Ace Di2 connectors.
(Image credit: James Huang)
Image 41 of 49

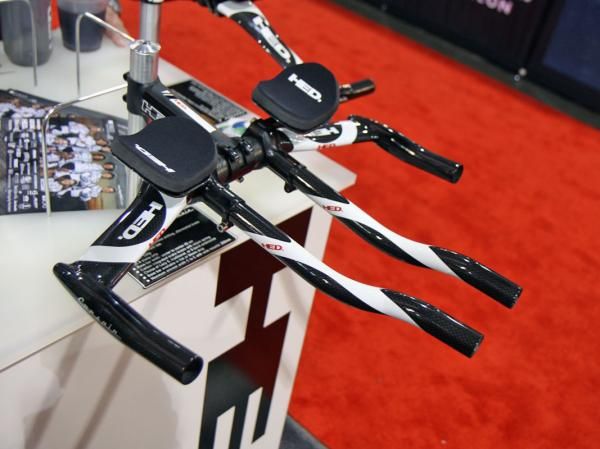

The new HED Corsair E aero bar is designed for track riders or Shimano Dura-Ace Di2 users who don't need or want integrated brake levers.

The new HED Corsair E aero bar is designed for track riders or Shimano Dura-Ace Di2 users who don't need or want integrated brake levers.
(Image credit: James Huang)

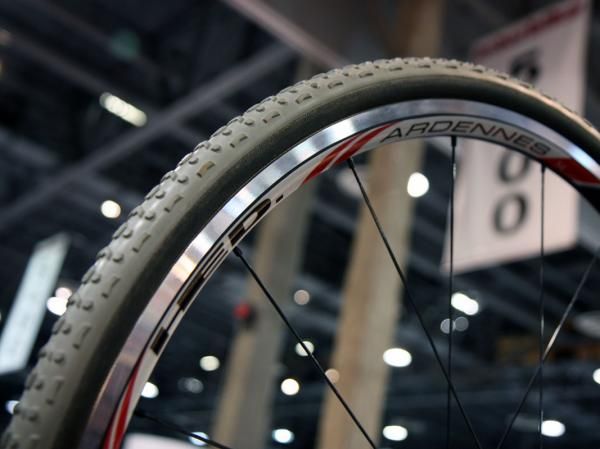

Image 42 of 49

Woo hoo! HED's wide-rimmed Ardennes clincher has now spawned a tubular variant. Unfortunately, most consumers will have to wait until December to get a set, though.

Woo hoo! HED's wide-rimmed Ardennes clincher has now spawned a tubular variant. Unfortunately, most consumers will have to wait until December to get a set, though.
(Image credit: James Huang)
Image 43 of 49

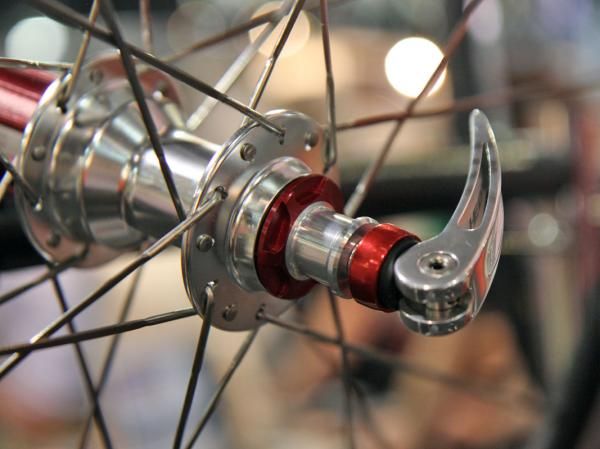

All 2011 HED rear wheels are now laced 2x/2x for better cope with today's stiffer frames.

All 2011 HED rear wheels are now laced 2x/2x for better cope with today's stiffer frames.
(Image credit: James Huang)

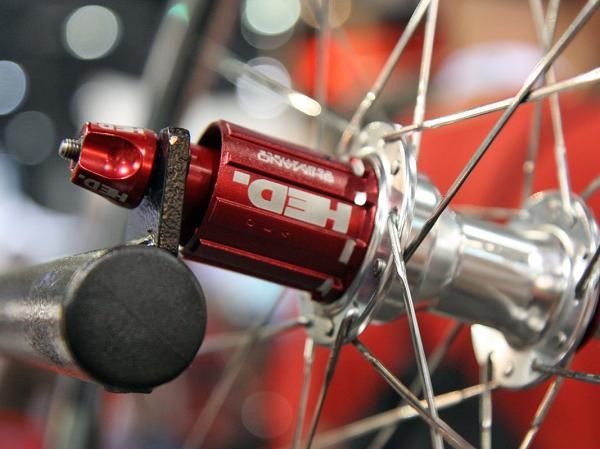

Image 44 of 49

2011 Hed Flamme Rouge hubs get red anodized details plus etched-on compatibility details.

2011 Hed Flamme Rouge hubs get red anodized details plus etched-on compatibility details.
(Image credit: James Huang)

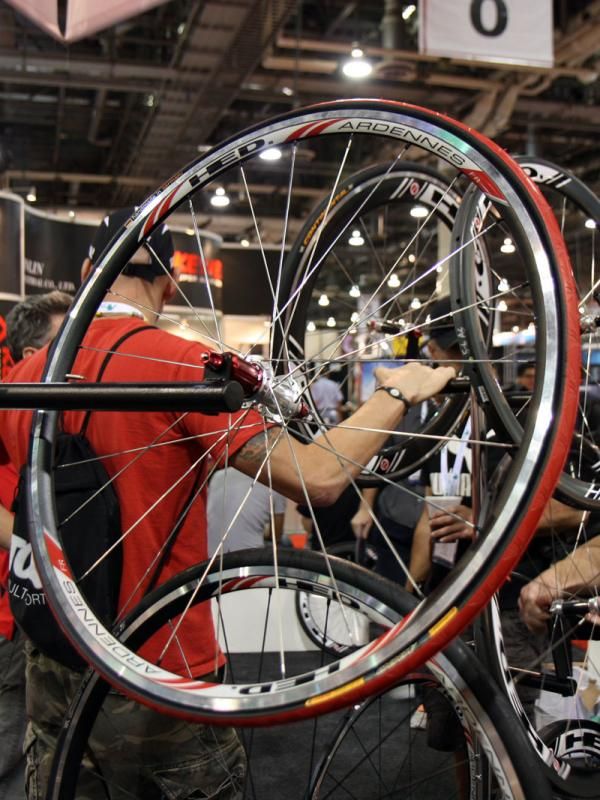

Image 45 of 49

HED's Ardennes FR is unchanged from last year aside from the different name.

HED's Ardennes FR is unchanged from last year aside from the different name.
(Image credit: James Huang)
Image 46 of 49

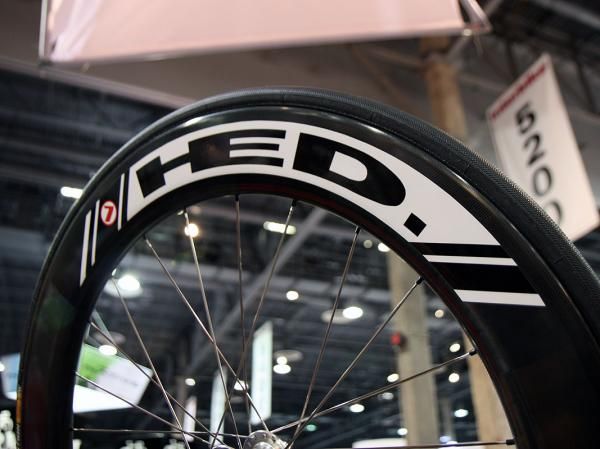

The new HED Stinger 7 is aimed at sprinters looking for especially stiff wheels.

The new HED Stinger 7 is aimed at sprinters looking for especially stiff wheels.
(Image credit: James Huang)
Image 47 of 49

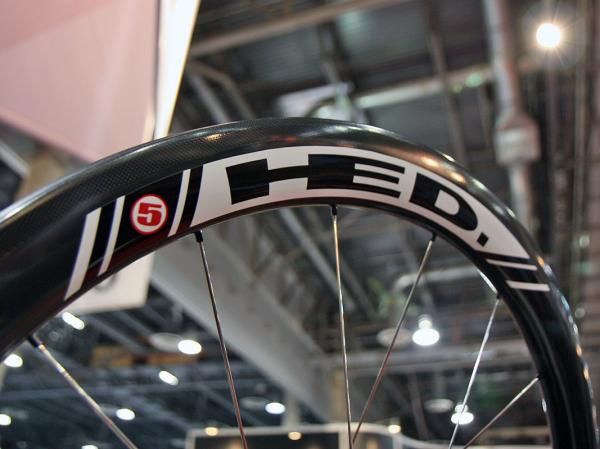

HED's new Stinger 5 is specifically built for tires measuring 25mm or wider and includes extra plies of carbon for durability - anything else thinking 'cross?

HED's new Stinger 5 is specifically built for tires measuring 25mm or wider and includes extra plies of carbon for durability - anything else thinking 'cross?
(Image credit: James Huang)

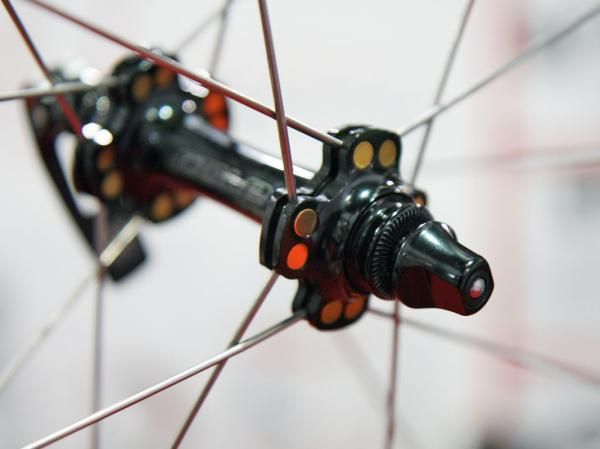

Image 48 of 49

The T20 Ventoux Lite uses Cole's Dynamic Spoke Alignment system, which the company claims allows for higher spoke tensions.

The T20 Ventoux Lite uses Cole's Dynamic Spoke Alignment system, which the company claims allows for higher spoke tensions.
(Image credit: James Huang)
Image 49 of 49

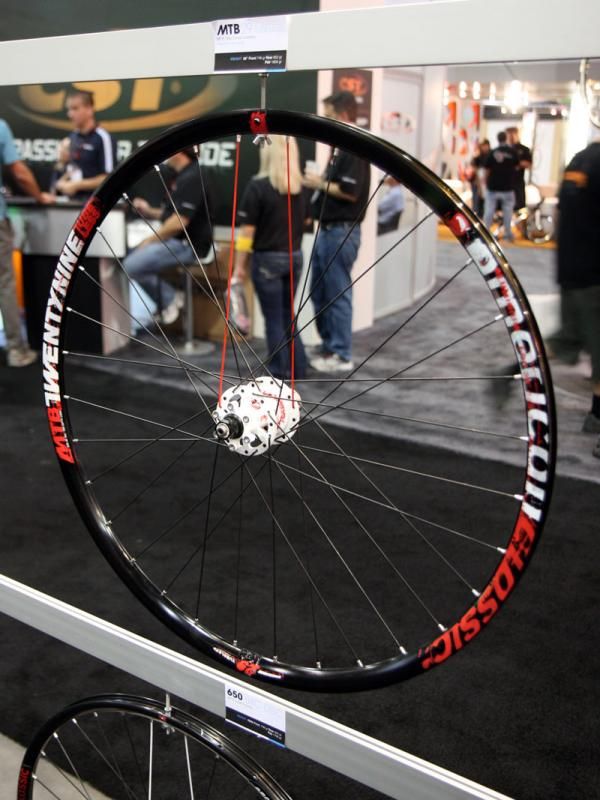

American Classic says its 29" disc wheelset weighs just over 1,600g.

American Classic says its 29" disc wheelset weighs just over 1,600g.
(Image credit: James Huang)

Normally aero-focused wheel outfit HED is putting a greater emphasis on the grittier segments of the sport with two new carbon and one new alloy model for 2011.

While still cutting a wide aerodynamic swath, the new Stinger 5's fat tubular tire bed and reinforced carbon fiber rim construction is primarily aimed at the cobbled classics and 'cross riders, both of whom need toughness above all else as well as additional rim support for bigger casing sizes.

Sprinters on the other hand can instead opt for the deeper Stinger 7 carbon tubular wheelset, which is specifically built with extra-stiff sidewalls for more responsiveness when it comes time to dash for the line.

New for HED's superb Ardennes wide-profile aluminum wheel family is a new lightweight tubular, again using a 23mm-wide cross-section that's ideally suited for either higher-volume road rubber or – cue the cowbells here, please – cyclo-cross tires that would benefit even greater from the additional casing support given their typically lower pressures. Moreover, the alloy rim is also easier to glue securely and offers more predictable braking performance in the wet. Unfortunately, though, consumers won't be able to get their hands on them until December.

2011 HED Flamme Rouge rear hubs also gain upgraded seals and grease ports and all rear wheels will now be built with stiffer two-cross/two-cross lacing.

American Classic has made some changes to its road lineup as well, making a move away from Zipp-sourced rims to Carbotec ones made in Asia for both its 58mm- and 38mm-deep models. Company founder Bill Shook says it's not a downgrade, though, nor are the new rims simply off-the-shelf items.

While he does readily admit the two outer molds are shared with Carbotec's other offerings, Shook says he designed his own inner mold with a separate pre-cured carbon fiber nipple bed. Ultimately, he claims this yields more consistent nipple seats, increases the pull-through strength, and also allows for a thinner spoke bed that lets the nipple flats poke out further for easier truing and building.

Even the alloy nipples themselves are trick, boasting a 2mm extension past the head and a matching 2mm-deeper counterbore where the spoke is inserted. When matched with a 2mm-longer spoke, this simple change ingeniously switches the nipple head loading from tension to shear and significantly reduces the likelihood that they'll pop off when stressed.

Some riders may notice the subtle reshaping of American Classic's feathery Micro 58 front hub shell and axle ends but the more significant improvements are hidden inside. Shook acknowledges that his Micro 58 hasn't always been the more reliable of his creations but says upgraded bearings and a much more precisely machined axle has alleviated the problem. We'll find out for ourselves, too, as we suffered issues with the Micro 58 hub on our Stan's NoTubes Alpha 340 Pro road wheels and will soon be installing the bits once we get back to the office.

On the off-road side, Shook also showed us a prototype of an upcoming all-mountain alloy rim design built with a generous 28mm external width and impressive 390g claimed weight. The special interior shape is designed to allow easy tubeless compatibility when paired with the dedicated rim tape, too, while pronounced ridges help lock the tire in place even when deflated.

Shook estimates complete 26" wheelsets will weigh 1,546g per pair while 29" versions will still be refreshingly light at 1,680g a set.

Rolf Prima, on the other hand, has decided to stick with Zipp as its carbon rim supplier for much of its range – including the new ultralight 1,105g TDF38 SL and 'cross-approved CX58 tubulars – but still struck out on its own for the new 85mm-deep TT85 and TDF85 models. Both feature an 85mm-deep carbon tubular rim with a wider 23mm tire bed, Rolf Prima's trademark paired-spoke lacing, and White Industries-built hubs with titanium freehub bodies.

The TT85 goes with a minimal 10/12 front/rear spoke count, though, while the TDF85 opts for a more versatile 12/12 setup. Claimed weight for both models is just under 1,700g for the pair.

Mountain bike equipment icon WTB will release a new Stryker TCS wheel range for 2011 in both standard cross-country and more supportive all-mountain rim widths. As part of a growing trend we noticed at both the Interbike and Eurobike trade shows, both of the rims sport a NoTubes-like inner profile that is intended to be run with sealant and designed to mate perfectly with WTB's tubeless-ready TCS (Tubeless Compatible System) tires.

The Stryker TCS Cross Country wheels will be offered in both 26" and 29" varieties with either 9mm quick-release or 15mm thru-axle non-interchangeable front hubs. The all-mountain version will be available in 26" only but with a broader collection of axle fitments: 15mm or 20mm thru-axle front, and 135x10mm quick-release or 142x12mm thru-axle.

Weights are appropriately light at just 1,467g for a pair of quick-release 26" Cross Country wheels, 1,578g for the 29ers, and 1,714g for the All Mountain set.

Tubeless conversion pioneer NoTubes offers mostly subtle revisions for 2011 after the debut of its new road wheelsets earlier this year. One key update is the new universal valve stem, which replaces the trio of variants with a single model that NoTubes says allows for easier tire mounting and is more resistant to pull-through than before. A fully threaded extender accommodates tubeless conversions on deep-section rims, too.

Still want more?

SRAM's aluminum road wheel range is now topped by the S30AL Gold, which uses the same hybrid toroidal rim shape and hub components as last year's top S30 model but with trick CeramicSpeed hybrid ceramic cartridge bearings and a flashy gold anodized finish.

And finally, climbers have a new high-value ascending option with Cole's shallow-section Ventoux carbon tubulars (1,210g claimed weight, US$1,395 retail price) while cyclo-crossers can build up their own wheels with Velocity's broad Major Tom alloy tubular rim.
