Image 1 of 20

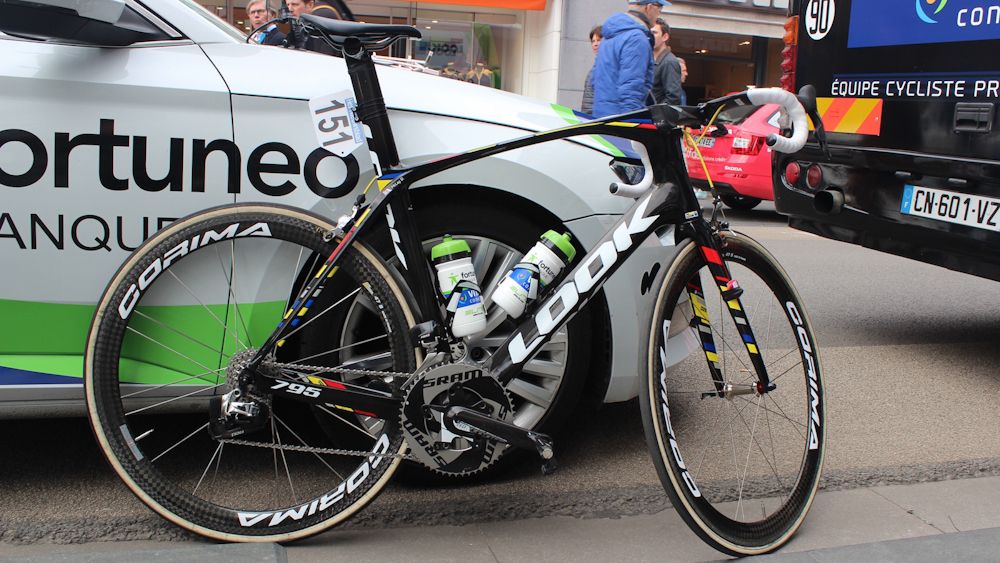

Dan McLay's Look 795

Dan McLay's Look 795
(Image credit: Josh Evans / Immediate Media)
Image 2 of 20

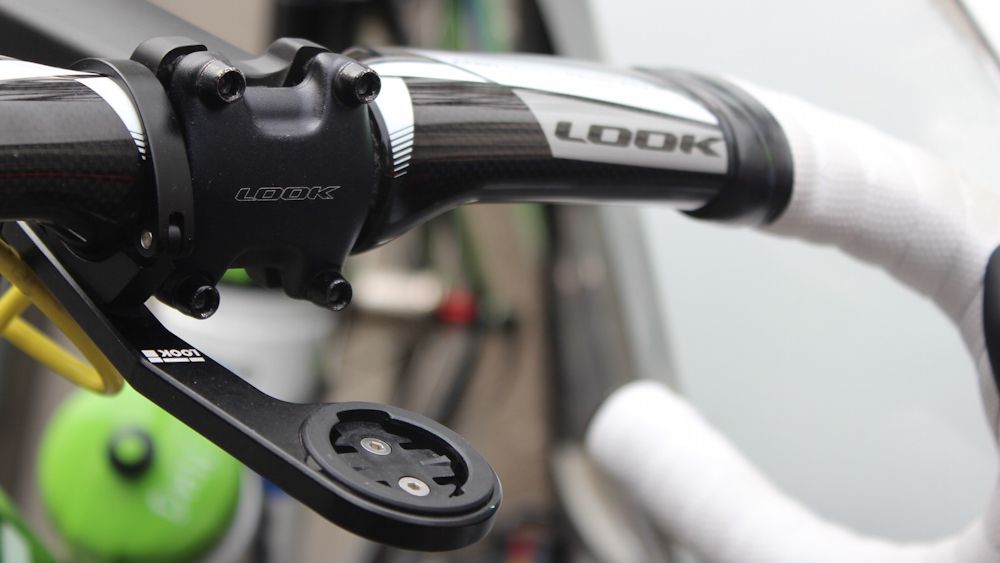

An out-front Look Garmin mount

An out-front Look Garmin mount
(Image credit: Josh Evans / Immediate Media)
Image 3 of 20

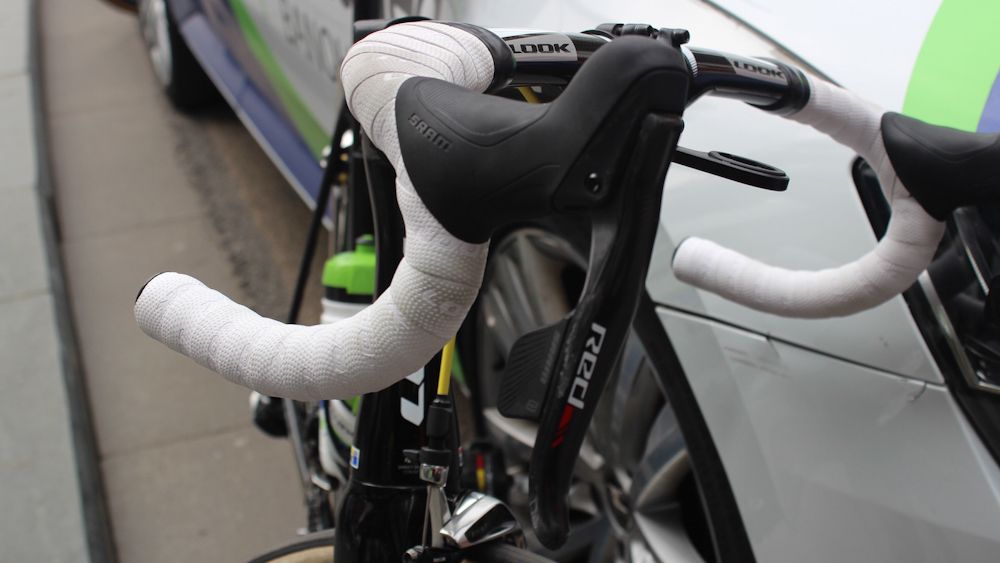

The wireless SRAM groupset offers a clean cockpit with only the brake cables coming away from the levers

The wireless SRAM groupset offers a clean cockpit with only the brake cables coming away from the levers
(Image credit: Josh Evans / Immediate Media)
Image 4 of 20

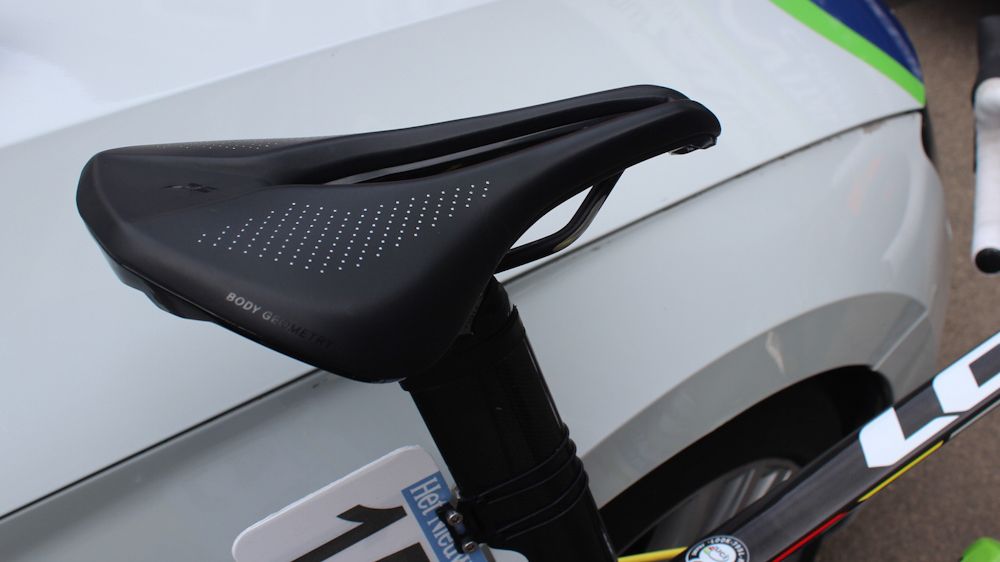

McLay opts for a Specialized Power Pro saddle

McLay opts for a Specialized Power Pro saddle
(Image credit: Josh Evans / Immediate Media)

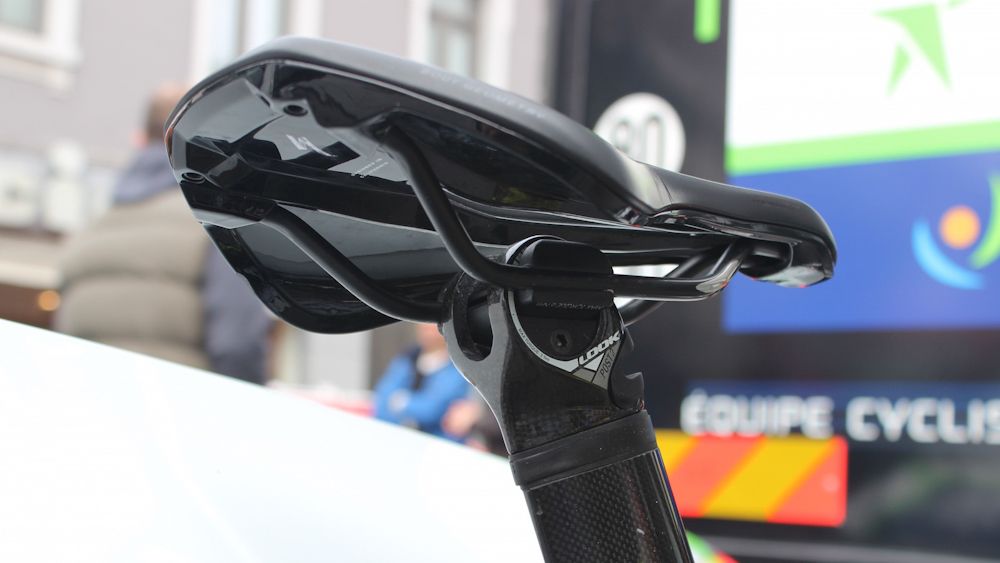

Image 5 of 20

A closer look at the saddle and seat mast

A closer look at the saddle and seat mast
(Image credit: Josh Evans / Immediate Media)
Image 6 of 20

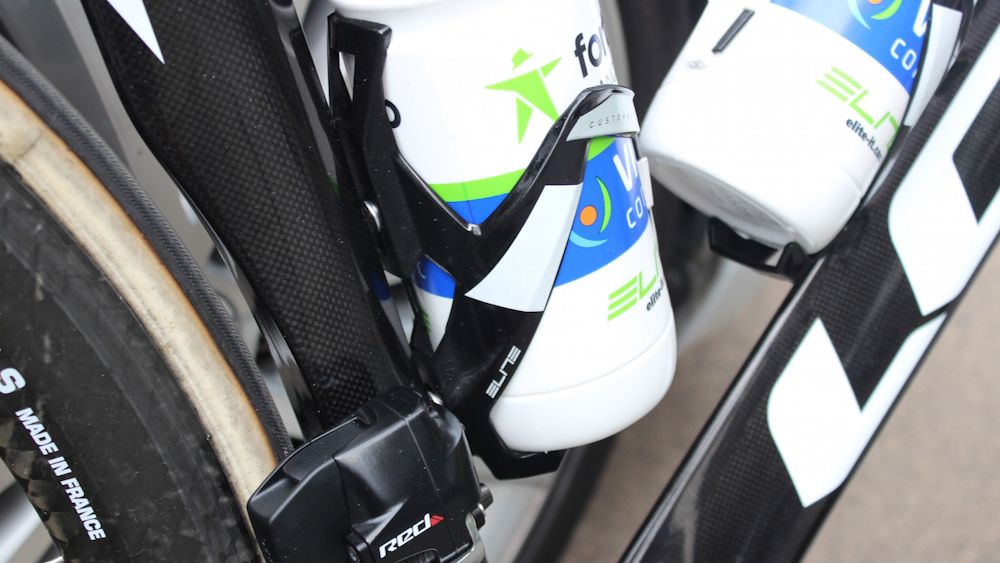

Elite Custom Race Plus bottle cages

Elite Custom Race Plus bottle cages
(Image credit: Josh Evans / Immediate Media)

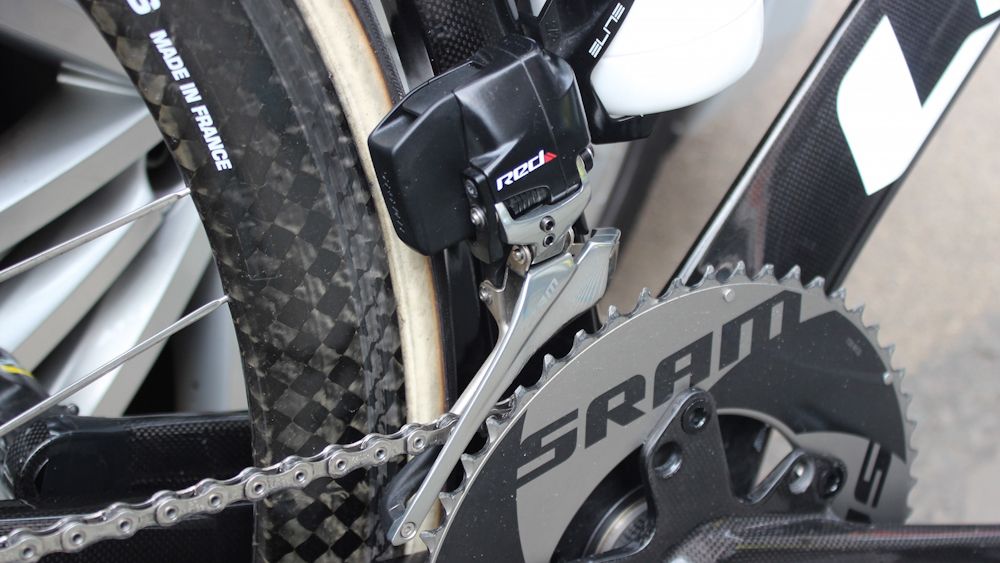

Image 7 of 20

The batteries on the front and rear SRAM Red eTap derailleurs are interchangeable should you run out of battery on one of the derailleurs

The batteries on the front and rear SRAM Red eTap derailleurs are interchangeable should you run out of battery on one of the derailleurs
(Image credit: Josh Evans / Immediate Media)
Image 8 of 20

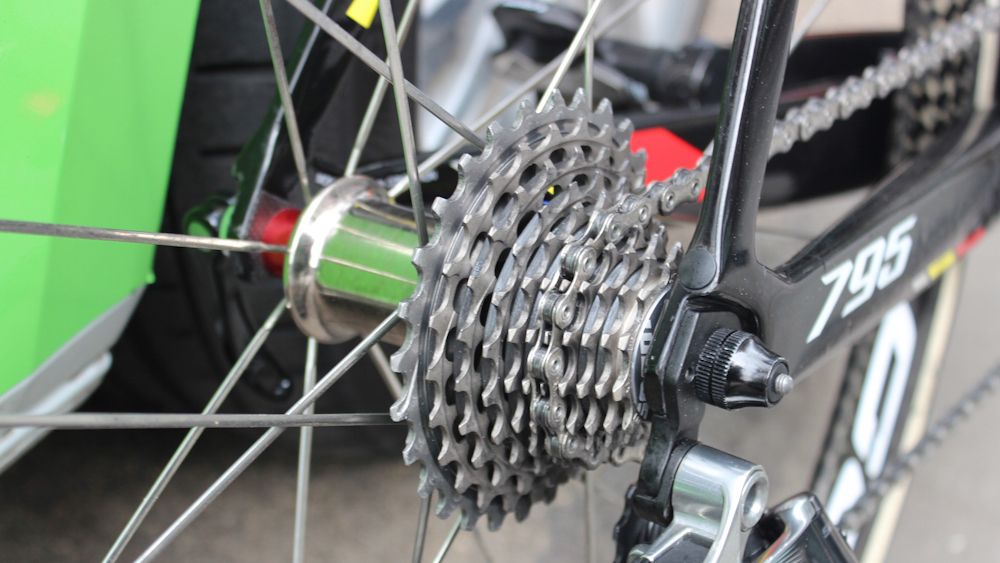

The SRAM Red cassette is milled from largely a single piece of steel

The SRAM Red cassette is milled from largely a single piece of steel
(Image credit: Josh Evans / Immediate Media)
Image 9 of 20

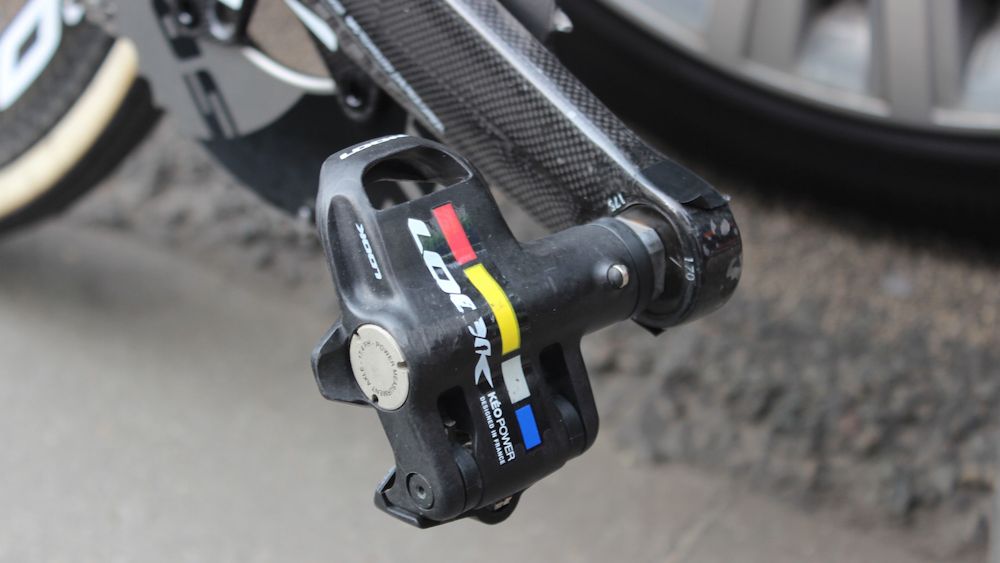

Look Keo Power powermeter pedals that look like they've seen better days

Look Keo Power powermeter pedals that look like they've seen better days
(Image credit: Josh Evans / Immediate Media)

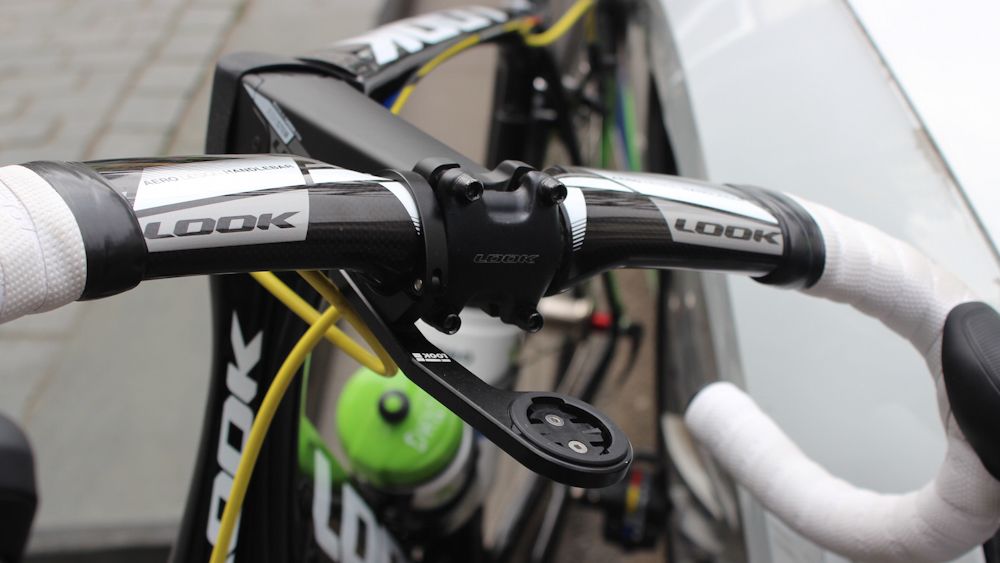

Image 10 of 20

The stem was paired with Look aero handlebars

The stem was paired with Look aero handlebars
(Image credit: Josh Evans / Immediate Media)
Image 11 of 20

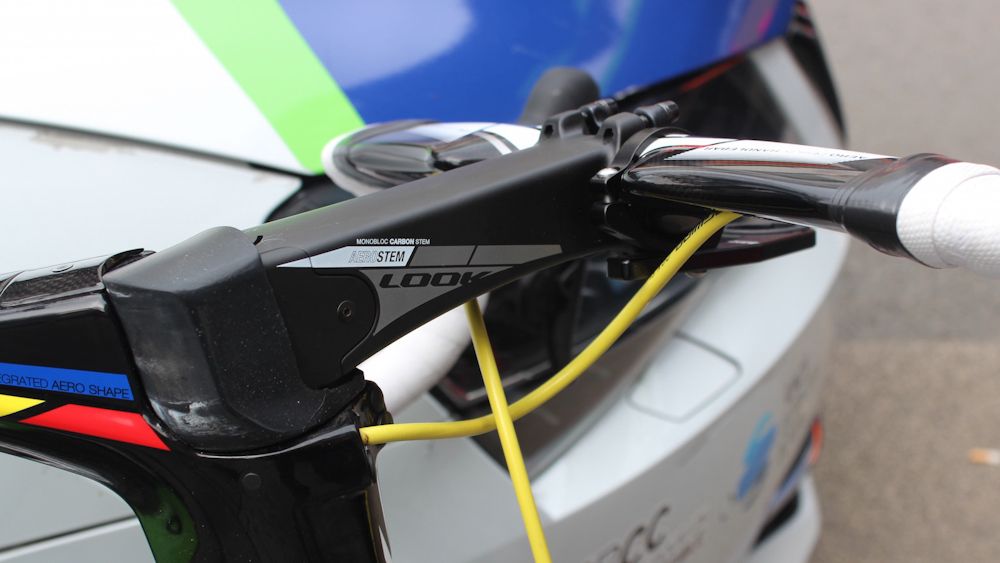

The integrated stem angle can be adjusted from negative 13 degress to positive 17 degrees

The integrated stem angle can be adjusted from negative 13 degress to positive 17 degrees
(Image credit: Josh Evans / Immediate Media)
Image 12 of 20

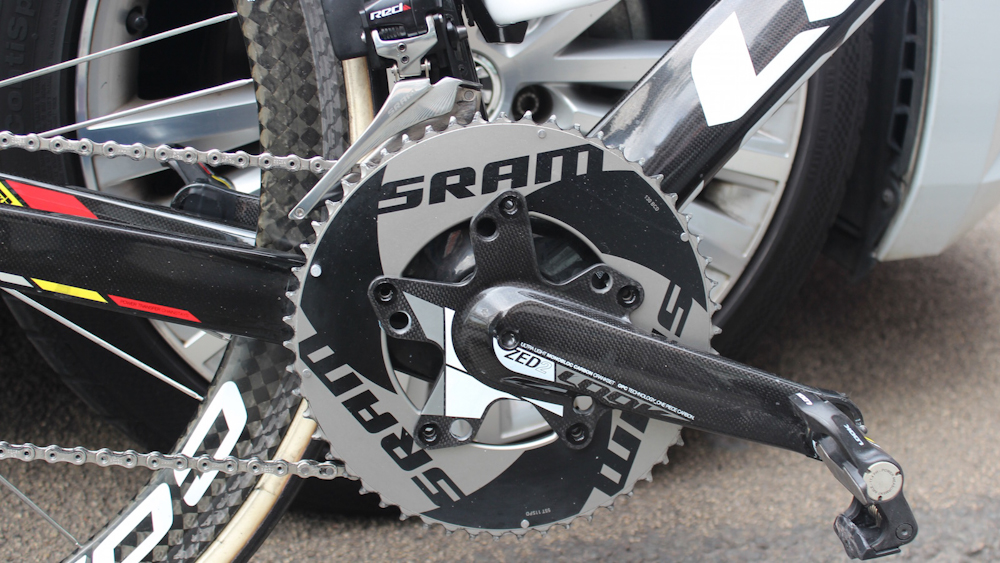

The crankset is a combination of Look Zed2 cranks and a massive 55T SRAM chainset

The crankset is a combination of Look Zed2 cranks and a massive 55T SRAM chainset
(Image credit: Josh Evans / Immediate Media)

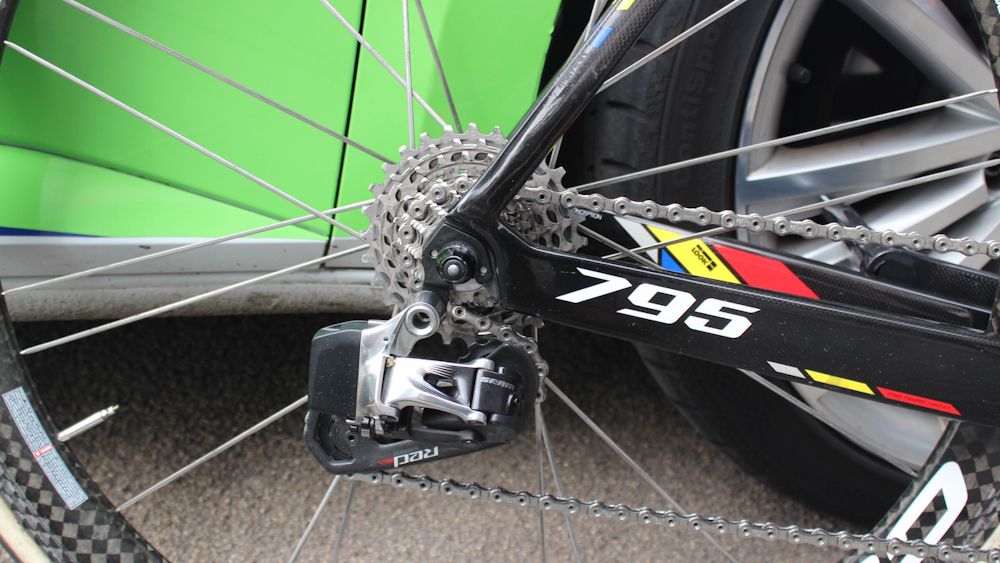

Image 13 of 20

The SRAM Red eTap derailleurs are wireless

The SRAM Red eTap derailleurs are wireless
(Image credit: Josh Evans / Immediate Media)
Image 14 of 20

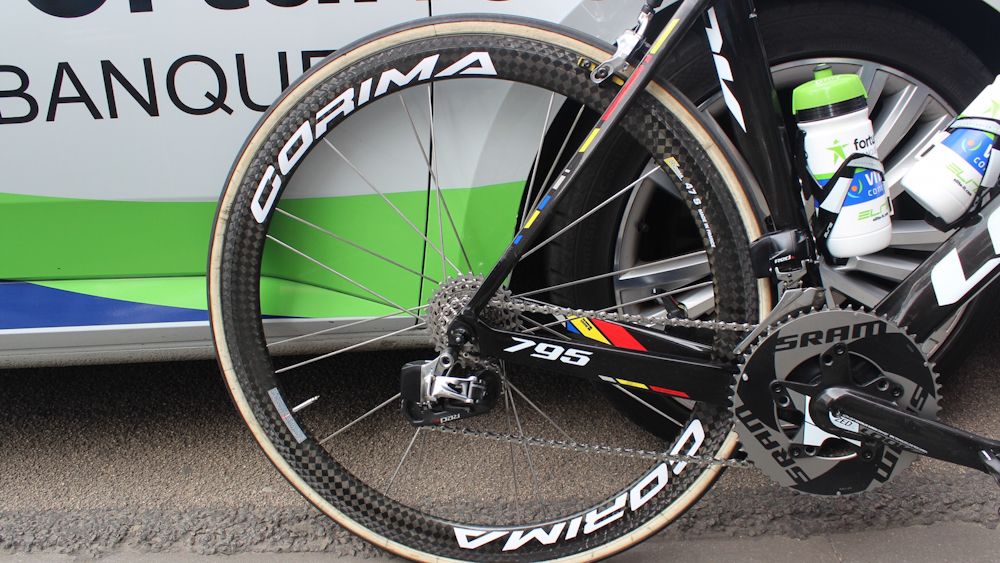

Corima 47mm tubular wheels for McLay

Corima 47mm tubular wheels for McLay
(Image credit: Josh Evans / Immediate Media)
Image 15 of 20

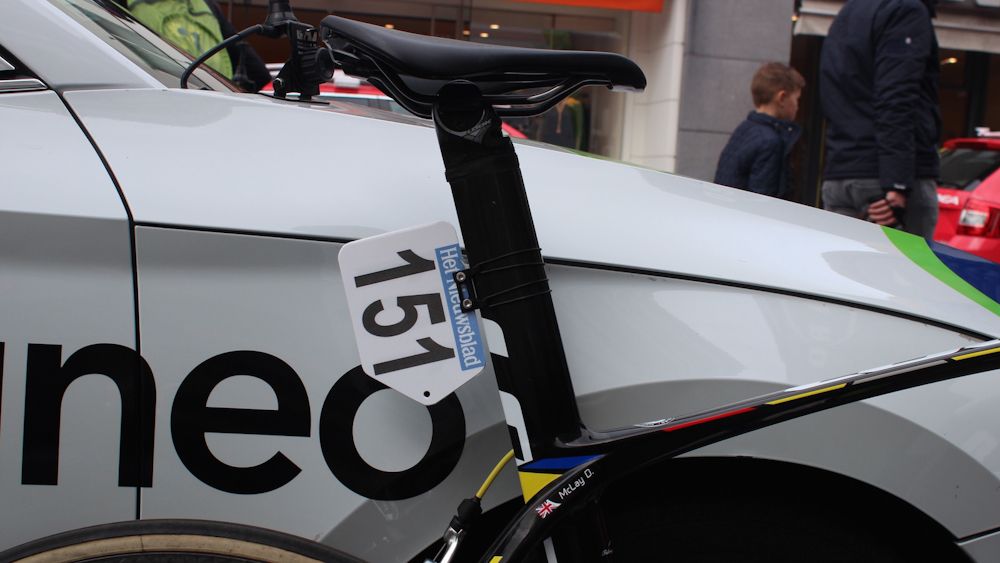

The integrated seat mast is a blade profile for added aerodynamic performance

The integrated seat mast is a blade profile for added aerodynamic performance
(Image credit: Josh Evans / Immediate Media)
Image 16 of 20

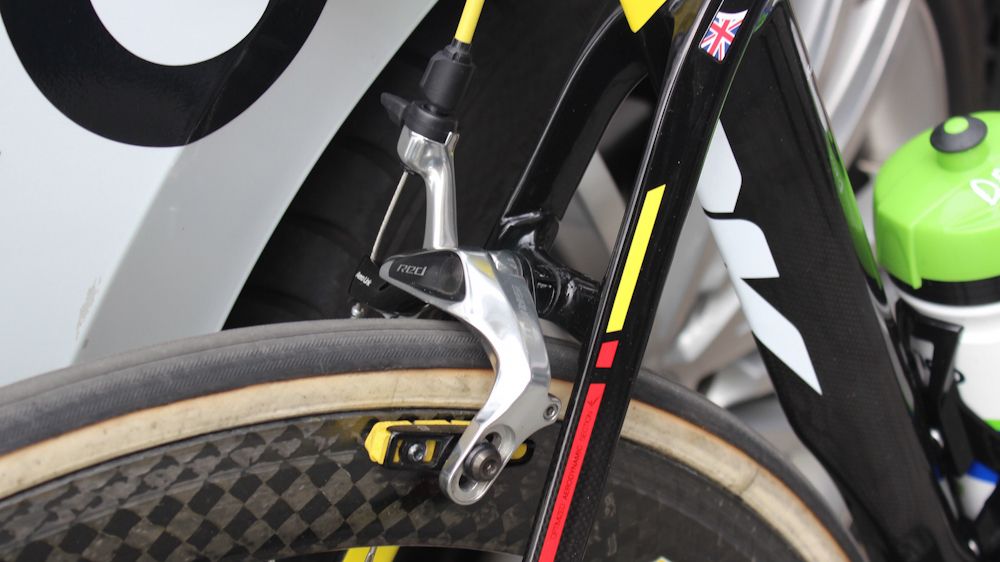

SRAM Red brakes front and rear

SRAM Red brakes front and rear
(Image credit: Josh Evans / Immediate Media)
Image 17 of 20

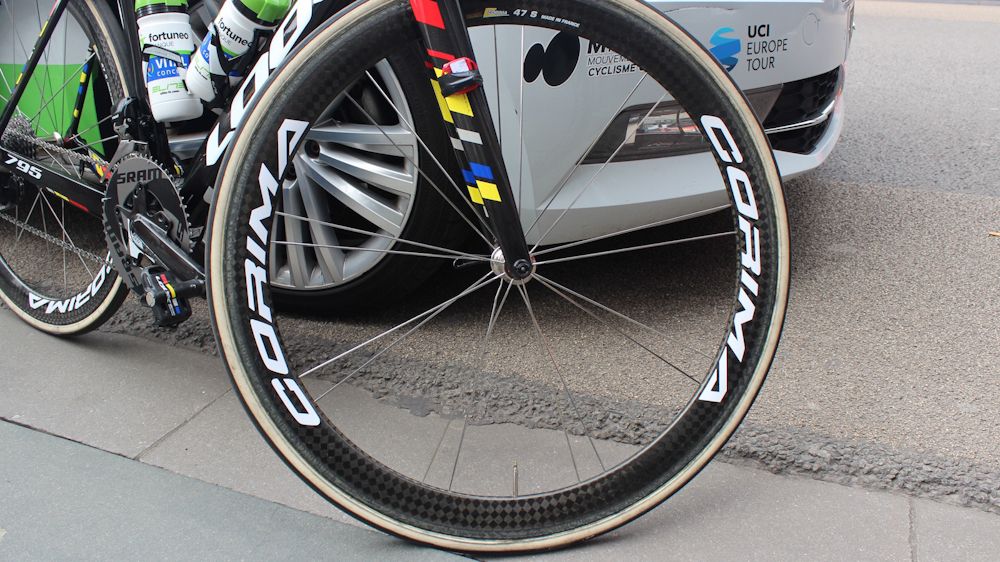

A look at the front Corima wheel, also 47mm

A look at the front Corima wheel, also 47mm
(Image credit: Josh Evans / Immediate Media)
Image 18 of 20

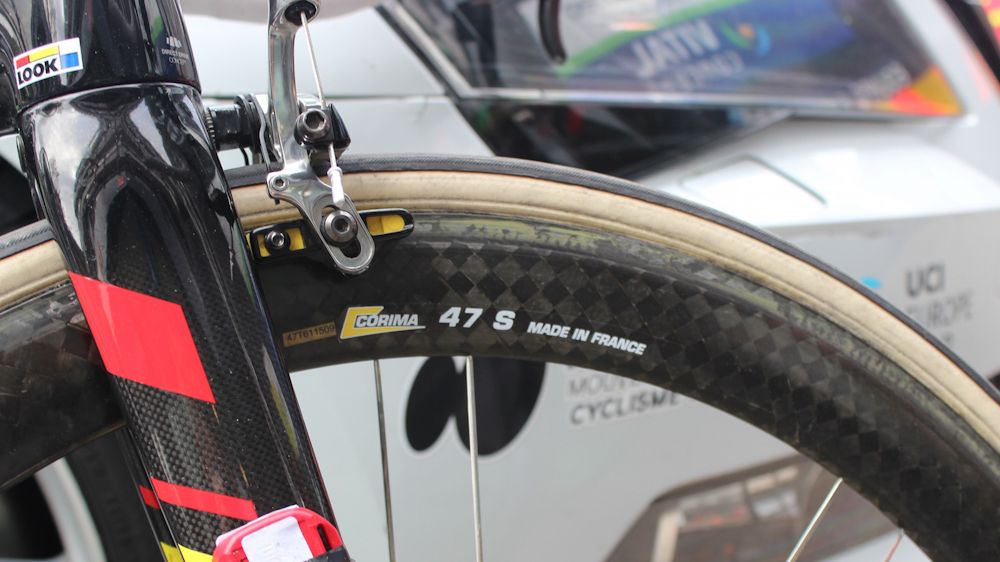

The brake track and tubulars were both showing visible signs of wear and tear

The brake track and tubulars were both showing visible signs of wear and tear
(Image credit: Josh Evans / Immediate Media)
Image 19 of 20

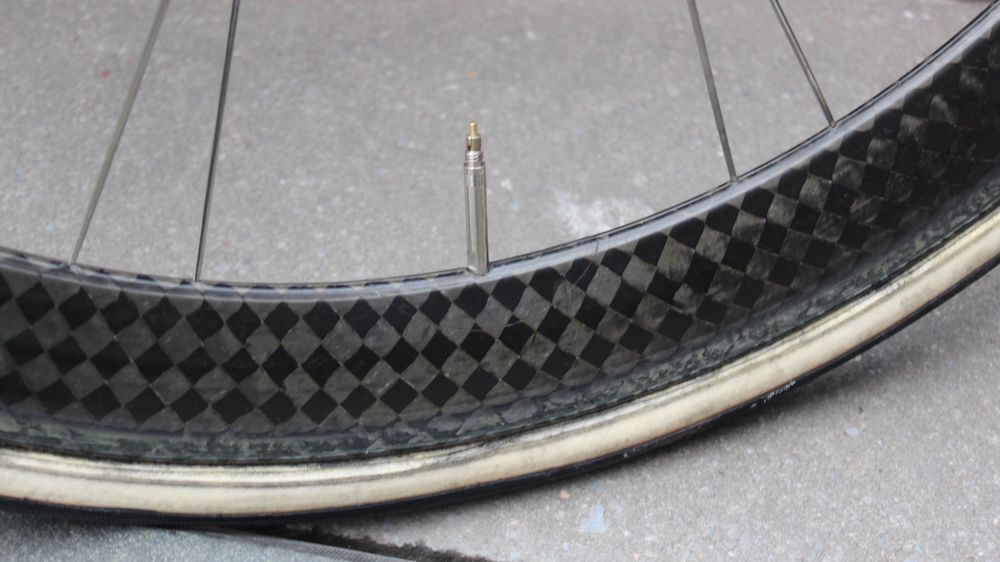

A close look at the carbon weave construction of the wheels

A close look at the carbon weave construction of the wheels
(Image credit: Josh Evans / Immediate Media)
Image 20 of 20

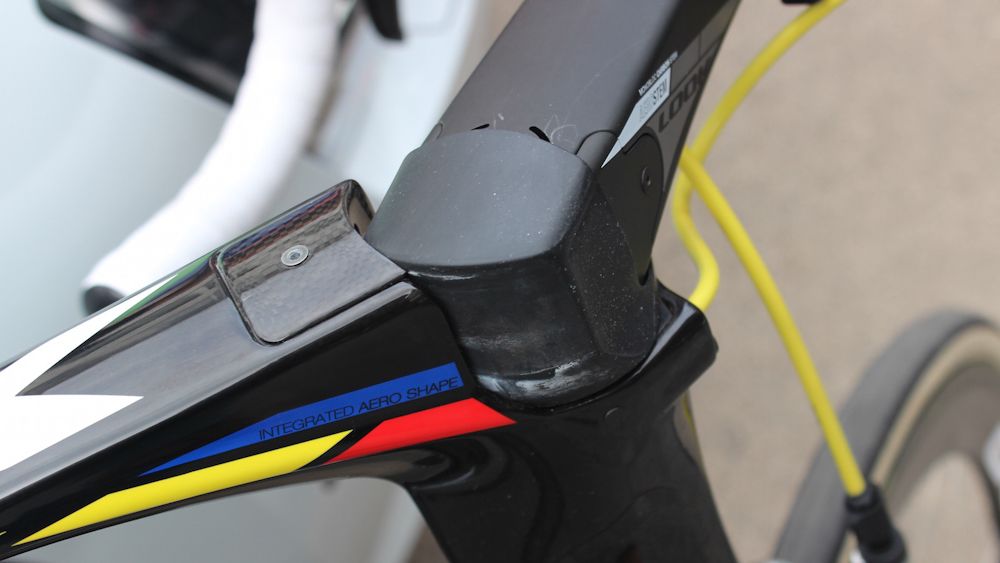

A closer look at the stem/head tube junction

A closer look at the stem/head tube junction
(Image credit: Josh Evans / Immediate Media)

Dan McLay’s four top 10 results at his debut Tour de France last year turned a few heads, and the 25-year-old Briton continued the form with a further four top 10s at the Tour of Britain. The Fortuneo-Vital Concept rider was subsequently selected for the British squad at the UCI Road World Championships in Doha.

McLay rides a Look 795 aero frame with a combination of SRAM Red eTap components and Corima wheels. Cyclingnews photographed the sprinter's bike ahead of the 2017 Scheldeprijs.

The integrated stem on the aero frame measured a lengthy 170mm and is combined with 400mm Look ADH aero hanflebar. The also-integrated seat mast is paired with a carbon Look E-Post, which slots into the mast and is topped with a Specialized Power Pro saddle.

McLay opted for a large 55T outer chainring for the flat Scheldeprijs race, while the inner 39T chainring and 11-28 cassette were more standard fare.

The 47mm carbon Corima wheels were wrapped with unmarked gumwall tubulars, although the team is usually equipped with Challenge tubular tyres. Both of the components were visibly worn, as is generally the case with Pro Continental and Continental teams whom have far smaller budgets than the WorldTour teams.

Complete bike specifications
Frame: Look 795
Fork: Look HSC8
Headset: CeramicSpeed
Stem: Aerostem carbon adjustable, 160mm
Handlebar: Look ADH aero handlebar, 400mm
Tape: Look
Front brake: SRAM Red
Rear brake: SRAM Red
Brake/Shift levers: SRAM Red eTap
Front derailleur: SRAM Red eTap
Rear derailleur: SRAM Red eTap
Cassette: SRAM Red, 11-28
Crankset: Look Zed2 with SRAM 55/39 chainrings
Pedals: Look Keo Power
Wheelset: Corima 47S
Saddle: Specialized Power Pro
Seatpost: Integrated seat mast with Look E-Post2
Bottle cages: Elite Custom Race Plus

Critical measurements

Rider's height: 1.85m
Rider's weight: 72kg
Saddle height from bottom bracket: 785mm
Centre of saddle to centre of bar: 730mm
