A detailed look at Geraint Thomas' Pinarello Dogma F at the Tour de France

Tour de France Geraint Thomas Pinarello Dogma F
(Image credit: Future)

Geraint Thomas and the rest of the Ineos Grenadiers team have been riding the Pinarello Dogma F in the Tour de France since the road stages began on Stage 2 and they relinquished their new model Bolide F time trial bikes. We've got a detailed gallery of Adam Yates' Bolide F as ridden on Stage 1.

The team's switch to disc brakes and the reasons for this were widely understood as down to the added weight that discs provide. We've not weighed Thomas' bike - covid rules prevented us from touching the bike at all - but we'd expect that unlike its predecessor, the Dogma F12, this new model can get much closer to the UCI's 6.8kg weight limit.

Ineos Grenadiers continue to take steps to keep their bikes light though, including having them painted by Silverstone Paint Technology, who specialises in lightweight paint for Formula One cars. With a standard paint job adding between 50g and 100g to a bike's weight there's a marginal gain to be made here.

Thomas continues to run the older, 11-speed Shimano Dura-Ace R9100 groupset rather than the new 12-speed Dura-Ace R9200 version, but he's kitted out with a 54/46T chainrings rather than the 53/39T that was the usual pro-level option with that groupset. They're marked 11S.

As with the switch to disc brakes, pros can be slow to change what works for them. We'd be surprised if Thomas didn't have a 12-speed option available to him, but it could also just as easily be due to stock shortages, which are still affecting the industry.

Thomas and Ineos Grenadiers have abandoned the pros' favourite tubular tyres in favour of Dura-Ace C50 tubeless-ready clincher wheels shod with Continental Grand Prix 5000 S TR tyres. They're fitted with valves from Muc-Off, also a team sponsor.

The trend to tubeless tyres is one that we highlighted in our review of Tour de France bikes ahead of the Grand Départ and we've spotted them on other teams' bikes, including Tadej Pogacar's Colnago Prototipo

In previous years, Ineos Grenadiers have switched out to sponsor-incorrect wheels for mountain stages, but Thomas appears to be riding Shimano wheelsets throughout the Tour this year, and was seen using the lighter Dura-Ace C36 (again, tubeless) on stage 11 in the Alps.

The lightweight extras continue with the team's 17g-a-piece Elite Leggero Carbon bottle cages and Elite Fly waterbottles. Even the Most Superlight bar tape on the Most Talon Ultra Fast integrated bar/stem is claimed to save a few grams at 50g a set.

Tour de France Geraint Thomas Pinarello Dogma F

Pinarello has never got into Pressfit and the Dogma F continues the brand's threaded bottom bracket interface. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Thomas is still on 11-speed Dura-Ace R9100 rather than the new R9200 12-speed groupset. He's running 172.5mm cranks. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

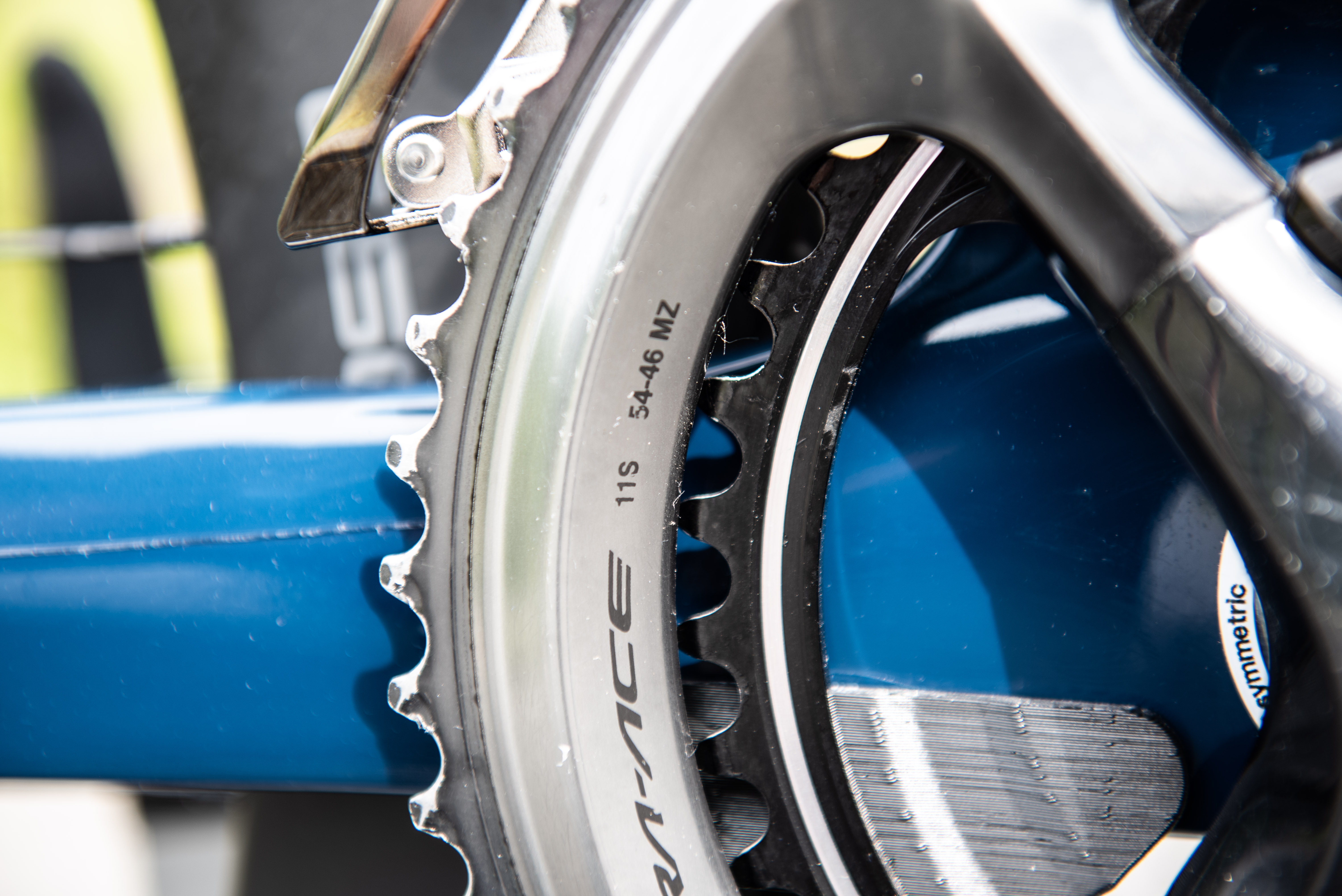

Thomas has Shimano's latest 54/46 tooth chainrings, as introduced with the R9200 groupset, but in this case it's an 11-speed version. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Clincher wheels are progressively taking over the pro peloton and Thomas is no exception, here riding the latest generation Dura-Ace C50 wheels shod with Continental Grand Prix 5000 S TR tubeless tyres. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Muc-Off is a sponsor of Ineos Grenadiers and supplies the team's tubeless valves, lubricants, cleaning products and we'd guess the sealant too. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

The Ineos Grenadiers were the last WorldTour pro team to switch to disc brakes but the Dogma F dropped system weight sufficiently that a disc brake bike is closer to the UCI 6.8kg weight limit. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

The Dogma F uses the Flatback aero tube profiles which Pinarello first introduced with the Dogma F8. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Fork Flaps have been a feature of Pinarello's bikes since the Dogma F10 and are designed to smooth the airflow over the junction between the fork and the axle. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Pinarello and Grenadiers logos on the tapering top tube of Thomas' Dogma F bike. The bike's paint job is by Silverstone Paint Technology, which specialises in lightweight paints for Formula One cars. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

The Most integrated bar/stem sits on a headset top cap that's recessed into the Dogma F frame and turns on 1.5in bearings top and bottom. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Most's Talon Ultra Fast bar/stem combo provides fully internal cable routing. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Even the rear of the Most Talon Ultra Fast stem has an aero profile. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Thomas' Garmin Edge 830 computer sits on a custom out-front mount for the Most Talon Ultra Fast bars. (Image credit: Future)

Tour de France Geraint Thomas Pinarello Dogma F

Thomas' bike is kitted out with a pair of the 17g Elite Leggero Carbon bottle cages. Like many pro teams, Ineos Grenadiers use the lightweight Elite Fly water bottles. (Image credit: Future)

Geraint Thomas' Pinarello Dogma F Specifications
FramePinarello Dogma F
GroupsetShimano Dura-Ace Di2 R9100 11-speed
BrakesShimano Dura-Ace R9100
WheelsetShimano Dura-Ace C50 tubeless ready
TyresContinental Grand Prix 5000 S TR
HandlebarMost Talon Ultra Fast one-piece cockpit
StemMost Talon Ultra Fast one-piece cockpit
ChainsetShimano Dura-Ace R9100 54/46
Power meterShimano Dura-Ace R9100
PedalsShimano Dura-Ace R9100
SaddleFizik Arione
Bottle cagesElite Leggero Carbon
BottlesElite Fly Ineos Grenadiers
Bar tapeMost Superlight
ComputerGarmin Edge 830
