Tour de France bikes: Tom Dumoulin's Giant TCR – Gallery

Image 1 of 27

Tom Dumoulin's Giant TCR for the 2018 Tour de France

Tom Dumoulin's Giant TCR for the 2018 Tour de France (Image credit: Josh Evans/Immediate Media)
Image 2 of 27

Giant also produce the bottle cages and bidons for the Team Sunweb bikes

Giant also produce the bottle cages and bidons for the Team Sunweb bikes (Image credit: Josh Evans/Immediate Media)
Image 3 of 27

Shimano Dura-Ace R9100 rim brakes provides Dumoulin with stopping power

Shimano Dura-Ace R9100 rim brakes provides Dumoulin with stopping power (Image credit: Josh Evans/Immediate Media)
Image 4 of 27

The Giant TCR has an integrated seat mast as opposed to a traditional seat post and seat post clamp

The Giant TCR has an integrated seat mast as opposed to a traditional seat post and seat post clamp (Image credit: Josh Evans/Immediate Media)
Image 5 of 27

The Giant TCR seat mast is topped with a clamp to secure the saddle

The Giant TCR seat mast is topped with a clamp to secure the saddle (Image credit: Josh Evans/Immediate Media)
Image 6 of 27

The Giant decals on the carbon wheels have been replaced by Team Sunweb's hashtag #Overachieve

The Giant decals on the carbon wheels have been replaced by Team Sunweb's hashtag #Overachieve (Image credit: Josh Evans/Immediate Media)
Image 7 of 27

A look at the non-drive side of Dumoulin's Giant TCR

A look at the non-drive side of Dumoulin's Giant TCR (Image credit: Josh Evans/Immediate Media)
Image 8 of 27

The internal cable routing for the rear brake exits the frame at the rear of the top tube

The internal cable routing for the rear brake exits the frame at the rear of the top tube (Image credit: Josh Evans/Immediate Media)
Image 9 of 27

Dumoulin uses an unbranded saddle, it shares the same shape of a Giant Contact SLR carbon-railed saddle although looks to have more padding

Dumoulin uses an unbranded saddle, it shares the same shape of a Giant Contact SLR carbon-railed saddle although looks to have more padding (Image credit: Josh Evans/Immediate Media)
Image 10 of 27

A wide bottom bracket area will improve power transfer

A wide bottom bracket area will improve power transfer (Image credit: Josh Evans/Immediate Media)
Image 11 of 27

A look at the front end of Dumoulin's Giant

A look at the front end of Dumoulin's Giant (Image credit: Josh Evans/Immediate Media)
Image 12 of 27

The integrated cockpit features a proprietary out-front computer mount

The integrated cockpit features a proprietary out-front computer mount (Image credit: Josh Evans/Immediate Media)
Image 13 of 27

Shrink-wrapped cables result in a neat looking front end

Shrink-wrapped cables result in a neat looking front end (Image credit: Josh Evans/Immediate Media)
Image 14 of 27

Minimal cabling to the Shimano Dura-Ace R9150 rear derailleur results in a tidy looking rear mech

Minimal cabling to the Shimano Dura-Ace R9150 rear derailleur results in a tidy looking rear mech (Image credit: Josh Evans/Immediate Media)
Image 15 of 27

A closer look at the Shimano Dura-Ace R9150 front derailleur

A closer look at the Shimano Dura-Ace R9150 front derailleur (Image credit: Josh Evans/Immediate Media)
Image 16 of 27

Dumoulin's bike is equipped with a full Shimano Dura-Ace R9150-P groupset

Dumoulin's bike is equipped with a full Shimano Dura-Ace R9150-P groupset (Image credit: Josh Evans/Immediate Media)
Image 17 of 27

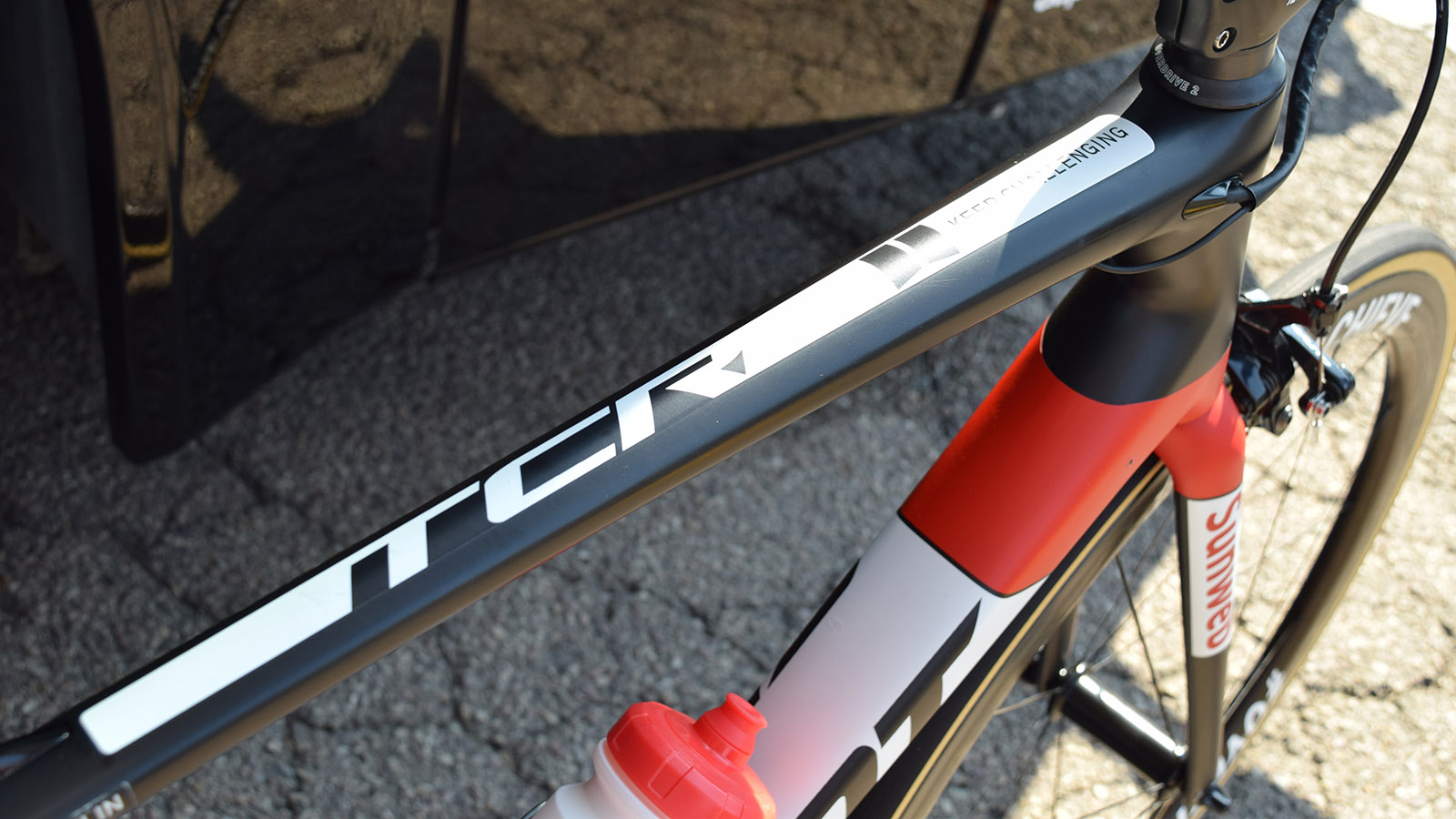

TCR decals adorn the top tube of Dumoulin's bike

TCR decals adorn the top tube of Dumoulin's bike (Image credit: Josh Evans/Immediate Media)
Image 18 of 27

A look at Dumoulin's cockpit

A look at Dumoulin's cockpit (Image credit: Josh Evans/Immediate Media)
Image 19 of 27

Dumoulin runs around 10mm of spacers underneath his stem

Dumoulin runs around 10mm of spacers underneath his stem (Image credit: Josh Evans/Immediate Media)
Image 20 of 27

A look at the front brake on Dumoulin's Giant TCR

A look at the front brake on Dumoulin's Giant TCR (Image credit: Josh Evans/Immediate Media)
Image 21 of 27

Dumoulin's front wheel looks to be a 42mm Giant SLR 0, while the rear appears to be a deeper 55mm version

Dumoulin's front wheel looks to be a 42mm Giant SLR 0, while the rear appears to be a deeper 55mm version (Image credit: Josh Evans/Immediate Media)
Image 22 of 27

Shimano Dura-Ace R9150 levers controls the braking and shifting on Dumoulin's bike

Shimano Dura-Ace R9150 levers controls the braking and shifting on Dumoulin's bike (Image credit: Josh Evans/Immediate Media)
Image 23 of 27

Team Sunweb have been using the Sigma Sport Rox 12.0 computers during the Tour de France

Team Sunweb have been using the Sigma Sport Rox 12.0 computers during the Tour de France (Image credit: Josh Evans/Immediate Media)
Image 24 of 27

Team Sunweb's hashtag #Overachieve is marked on various components on Dumoulin's bike

Team Sunweb's hashtag #Overachieve is marked on various components on Dumoulin's bike (Image credit: Josh Evans/Immediate Media)
Image 25 of 27

Dumoulin runs 175mm cranks

Dumoulin runs 175mm cranks (Image credit: Josh Evans/Immediate Media)
Image 26 of 27

Giant produce proprietary SpeedSense sensors on the chain stay of the Giant TCR

Giant produce proprietary SpeedSense sensors on the chain stay of the Giant TCR (Image credit: Josh Evans/Immediate Media)
Image 27 of 27

The rear of Dumoulin's bike was equipped with a 55mm Giant SLR 0 wheel

The rear of Dumoulin's bike was equipped with a 55mm Giant SLR 0 wheel (Image credit: Josh Evans/Immediate Media)

This article first appeared on BikeRadar.

Tom Dumoulin arrived at the Tour de France as Team Sunweb's general classification hopeful after finishing second at the Giro d'Italia earlier in the year. With three stages left to race, Dumoulin currently sits in second place and is a strong contender to retain a podium position by the time the race reaches Paris.

Opting to race aboard a Giant TCR for each stage, as opposed to the more aero-focused Giant Propel frameset, Dumoulin's bike is made up almost exclusively with Giant or Shimano components, excluding only the computer and tyres.

The full-carbon frameset is equipped with a Shimano Dura-Ace R9150 groupset, featuring the Shimano Dura-Ace R9100-P power meter. Dumoulin opts for a standard gearing combination of 53/39 chainrings and an 11-28 cassette, with the 1.85-metre-tall Dutchman unsurprisingly running 175mm cranks.

Dumoulin's front wheel looks to be a 42mm Giant SLR 0, while the rear appears to be a deeper 55mm version

Giant provides Team Sunweb with its SLR 0 wheels and, like Movistar's Nairo Quintana, Dumoulin appears to be running a deeper rear wheel and shallower front wheel with 55mm and 42mm carbon rims, respectively. The front wheel's Giant decals have also been replaced with Team Sunweb's hashtag #Overachieve.

Dumoulin also runs a Giant OverDrive 2 integrated carbon cockpit and appears to be using a Giant Contact SLR saddle – although with no branding on the saddle, it's likely that it's a custom or prototype version specifically designed for Dumoulin.

Team Sunweb uses Sigma Sport's Rox 12.0 computers, while Giant also produces the handlebar tape, bottle cages and bidons.

Click or swipe through the gallery above for a closer look at Tom Dumoulin's Giant TCR for the 2018 Tour de France.

Frameset: Giant TCR
Front brake: Shimano Dura-Ace R9100
Rear brake: Shimano Dura-Ace R9100
Brake/shift levers: Shimano Dura-Ace R9150
Front derailleur: Shimano Dura-Ace R9150
Rear derailleur: Shimano Dura-Ace R9150
Cassette: Shimano Dura-Ace R9100, 11-28
Crankset: Shimano Dura-Ace R9100-P, 53/39 chainrings, 175mm cranks
Rear wheel: Giant SLR 0, 55mm
Front wheel: Giant SLR 0, 42mm with custom decals for Team Sunweb
Tyres: Vittoria Corsa, 25mm tubular
Handlebars/stem: Giant OverDrive 2, 420mm width at levers, 130mm stem
Tape/grips: Giant
Pedals: Shimano Dura-Ace R9100
Saddle: Unbranded
Seatpost: Giant TCR integrated seat mast
Bottle cages: Giant AirWay Pro
Computer: Sigma Sport Rox 12.0
Critical measurements

Rider height: 1.85m
Seat height from bottom bracket (centre to top): 800mm
Saddle nose to handlebars at stem: 595mm
