Pro bike: Nairo Quintana’s Pinarello Dogma 65.1 Think 2

Image 1 of 22

Nairo Quintana (Movistar) is riding a 6.89kg Pinarello Dogma 65.1 Think 2 built with a Campagnolo Record 11 EPS groupset

Nairo Quintana (Movistar) is riding a 6.89kg Pinarello Dogma 65.1 Think 2 built with a Campagnolo Record 11 EPS groupset (Image credit: Sam Dansie)
Image 2 of 22

The 125mm FSA stem is a carbon wrapped alloy OS 99 model.

The 125mm FSA stem is a carbon wrapped alloy OS 99 model. (Image credit: Sam Dansie)
Image 3 of 22

Quintana’s bike has a neat, minimalist cockpit with Pinarello tape bringing a flash of brightness to the muted colours. Only the SRM PowerControl is missing

Quintana’s bike has a neat, minimalist cockpit with Pinarello tape bringing a flash of brightness to the muted colours. Only the SRM PowerControl is missing (Image credit: Sam Dansie)
Image 4 of 22

Quintana’s Ergonomic Record 11 EPS shifters are attached to narrow 40cm c-t-c handlebars

Quintana’s Ergonomic Record 11 EPS shifters are attached to narrow 40cm c-t-c handlebars (Image credit: Sam Dansie)
Image 5 of 22

Quintana’s FSA K-Force bars have a fairly shallow drop

Quintana’s FSA K-Force bars have a fairly shallow drop (Image credit: Sam Dansie)
Image 6 of 22

The all-important UCI compliance sticker on the frame.

The all-important UCI compliance sticker on the frame. (Image credit: Sam Dansie)
Image 7 of 22

The Movistar rider’s saddle of choice in Selle Italia’s SLR Team Edition

The Movistar rider’s saddle of choice in Selle Italia’s SLR Team Edition (Image credit: Sam Dansie)
Image 8 of 22

The Record EPS battery is mounted on the down tube and is due an update in the next couple of months

The Record EPS battery is mounted on the down tube and is due an update in the next couple of months (Image credit: Sam Dansie)
Image 9 of 22

Pinarello’s Think 2 system provides neat ports to house electronic gear cabling

Pinarello’s Think 2 system provides neat ports to house electronic gear cabling (Image credit: Sam Dansie)
Image 10 of 22

The Campagnolo Bora 35 hubs use ceramic hub bearings

The Campagnolo Bora 35 hubs use ceramic hub bearings (Image credit: Sam Dansie)
Image 11 of 22

Pinarello provide a house brand headset for the Dogma frameset-Onda fork combination

Pinarello provide a house brand headset for the Dogma frameset-Onda fork combination (Image credit: Sam Dansie)
Image 12 of 22

Forged Campagnolo Record 11 Skeleton brakes with carbon specific brake pads provide the stopping power

Forged Campagnolo Record 11 Skeleton brakes with carbon specific brake pads provide the stopping power (Image credit: Sam Dansie)
Image 13 of 22

The Colombian is riding new Campagnolo Bora Ultra 35 wheels – technology borrowed and badged from its sister company Fulcrum.

The Colombian is riding new Campagnolo Bora Ultra 35 wheels – technology borrowed and badged from its sister company Fulcrum. (Image credit: Sam Dansie)
Image 14 of 22

The Bora 35s use a triplicate 24 spoke lacing system in the back wheel and 18 in the front

The Bora 35s use a triplicate 24 spoke lacing system in the back wheel and 18 in the front (Image credit: Sam Dansie)
Image 15 of 22

The wheels are shod with Vittoria Corsa CX tubular tyres

The wheels are shod with Vittoria Corsa CX tubular tyres (Image credit: Sam Dansie)
Image 16 of 22

Campagnolo Record 11 EPS is used throughout the bike

Campagnolo Record 11 EPS is used throughout the bike (Image credit: Sam Dansie)
Image 17 of 22

The only concession to today’s climbs over the Col de Pailhéres and the punchy Category 1 Ax-3-Domaines is a 27-11 cassette

The only concession to today’s climbs over the Col de Pailhéres and the punchy Category 1 Ax-3-Domaines is a 27-11 cassette (Image credit: Sam Dansie)
Image 18 of 22

The Campagnolo equipment is carried right down to the Record 11 chain

The Campagnolo equipment is carried right down to the Record 11 chain (Image credit: Sam Dansie)
Image 19 of 22

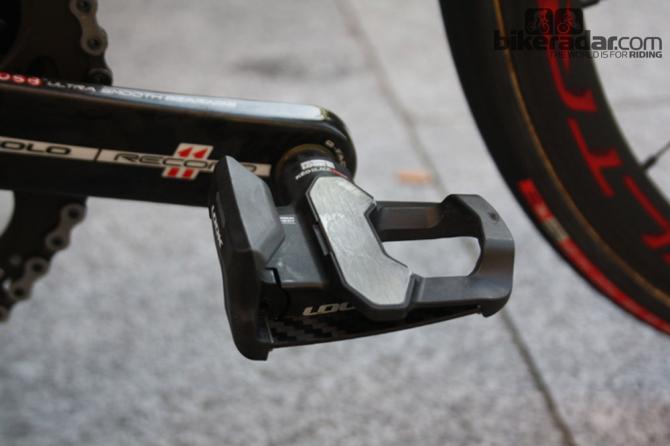

Quintana uses Look Kéo Blade Carbon pedals

Quintana uses Look Kéo Blade Carbon pedals (Image credit: Sam Dansie)
Image 20 of 22

On the front, Quintana goes for a standard 53-39 chainring configuration

On the front, Quintana goes for a standard 53-39 chainring configuration (Image credit: Sam Dansie)
Image 21 of 22

Two Elite Custom Race bottle cages are fixed to the bike

Two Elite Custom Race bottle cages are fixed to the bike (Image credit: Sam Dansie)
Image 22 of 22

The sculpted seat stays are a characteristic feature of the Dogma

The sculpted seat stays are a characteristic feature of the Dogma (Image credit: Sam Dansie)

This article originally published on BikeRadar

Movistar’s Nairo Quintana today started the first mountain stage of the 2013 Tour de France 25 seconds in arrears of the maillot jaune Daryl Impey (Orica-GreenEdge). And on the slopes of the hors catégorie-rated Col de Pailhères ascent the 23-year-old Colombian climbing specialist attacked. He’s a dangerous rider and fancied to cause some upsets after winning a tough stage in last year’s Critérium du Dauphiné plus the overall in this year's Vuelta al Pais Vasco.

With about 36km to go on stage 8, Quintana attacked out of the elite group of favorites and quickly plowed through a few riders who were off the front and crossed the Col de Pailhères summit alone. Climbing up the finishing climb to Ax 3 Domaines, Quintana battled to hold off the world's best climbers but was caught at about 5km to go by stage winner Chris Froome and Richie Porte of Team Sky. Quintana crossed the line with Alberto Contador and Roman Kreuziger of Saxo Bank, 1:45 down on Froome.

Quintana is now eighth overall at the Tour and is the new leader of the young rider classification.

BikeRadar checked out the Tour debutant’s bike on the eve of the first mountain stage in Albi. While the set-up was stock Movistar kit, the bike was running on new Campagnolo Bora Ultra 35 wheels, launched earlier this year.

The versatile but light wheelset and the small 44cm frame mean the bike – without the SRM PowerControl 7 computer tipped our scales at 6.89kg – less than 10g over the UCI minimum weight requirement.

Even with an EPS battery, Quinatna's bike weighs 6.89kg/15.12lb

Complete bike specifications

Frame: Pinarello Dogma 60.1 Think 2 44cm
Fork: Onda Carbon
Headset: Pinarello 1 1/8in to 1 1/2in integral system
Stem: FSA OS 99, 125mm (c-t-c)
Handlebars:, FSA K-Force Compact, 40cm (c-t-c)
Tape/grips: Pinarello
Front brake: Campagnolo Record D Skeleton
Rear brake: Campagnolo Record D Skeleton
Brake levers: Campagnolo Ergopower Ultra-Shift
Front derailleur: Campagnolo Record EPS Front Derailleur
Rear derailleur: Campagnolo Record EPS Rear Derailleur
Shift levers: Campagnolo Ergopower Ultra-Shift
Cassette: Campagnolo Record 11 11-27
Chain: Campagnolo Record 11spd
Crankset: Campagnolo 11spd Crankset 53/39
Bottom bracket: Pinarello Most Croxover
Pedals: Look Keo Blade
Wheelset: Campagnolo Bora Ultra 35
Front tire: Vittoria Corsa CX 23-28
Rear tire: Vittoria Corsa CX 23-28
Saddle: Selle Italia SLR Team Edition
Seat post: Pinarello Dogma 60.1
Bottle cages: Elite Custom Race (2)
Computer: SRM PowerControl 7 (not shown)
Other accessories: SRM speed sensor

Critical measurements

Rider's height: 1.66m (5ft 3in)
Rider's weight: 57.3kg (126lb)
Saddle height: 695mm
Saddle setback: 50mm
Seat tube length, c-t: 455mm
Seat tube length, c-c: 440mm
Tip of saddle nose to c of bars: 534mm
Saddle-to-bar drop (vertical): 110mm
Head tube length: 110mm
Top tube length: 490mm
Total bicycle weight: 6.89kg (15.19lb) w/o computer
