On show: Eurobike 2009 Part 5

Image 1 of 17

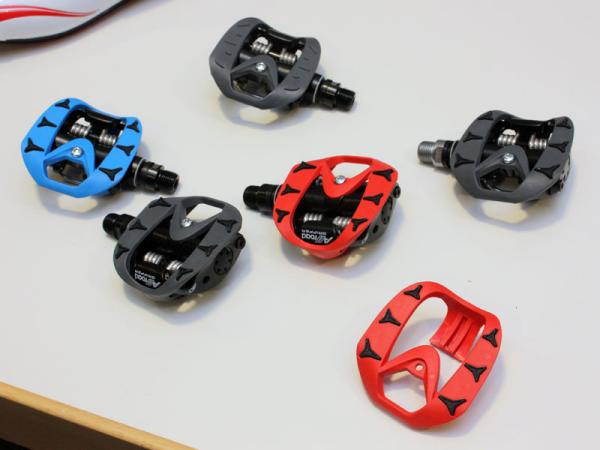

Time is aiming its new Allroad pedal design towards more casual riders with a grippy replaceable platform on one side and a modified ATAC clipless system on the other.

Time is aiming its new Allroad pedal design towards more casual riders with a grippy replaceable platform on one side and a modified ATAC clipless system on the other. (Image credit: Emily Wren/www.emilywren.com)
Image 2 of 17

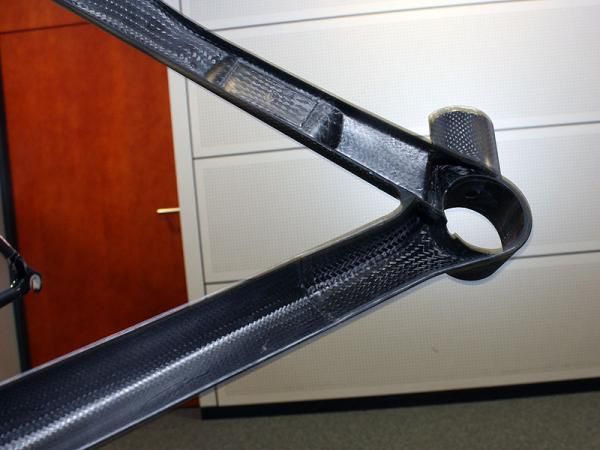

Hard wax internal mandrels (that are later melted out of the frame) yield a more consistent surface finish than traditional inflatable bladders.

Hard wax internal mandrels (that are later melted out of the frame) yield a more consistent surface finish than traditional inflatable bladders. (Image credit: Emily Wren/www.emilywren.com)
Image 3 of 17

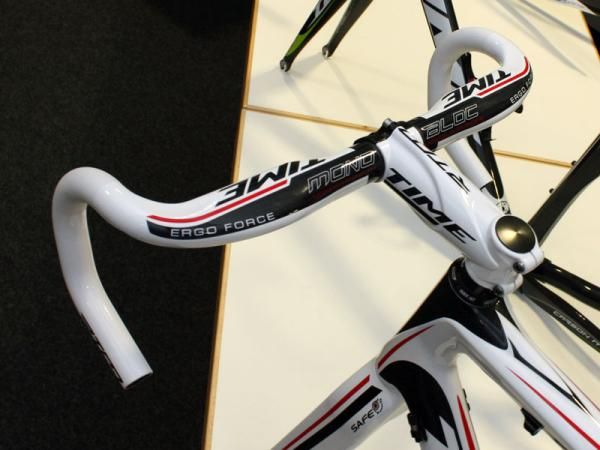

Time's Ergo Force carbon road bar features an ergonomic section up top for a more natural grip.

Time's Ergo Force carbon road bar features an ergonomic section up top for a more natural grip. (Image credit: Emily Wren/www.emilywren.com)
Image 4 of 17

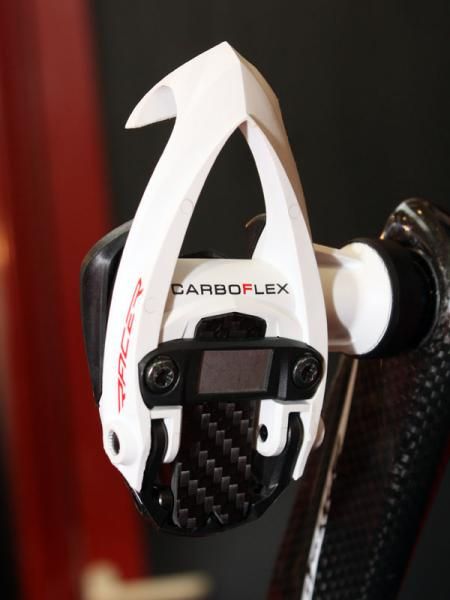

The new Time iClic pedal design trades in the usual coil spring for a lighter carbon fiber 'blade'.

The new Time iClic pedal design trades in the usual coil spring for a lighter carbon fiber 'blade'. (Image credit: Emily Wren/www.emilywren.com)
Image 5 of 17

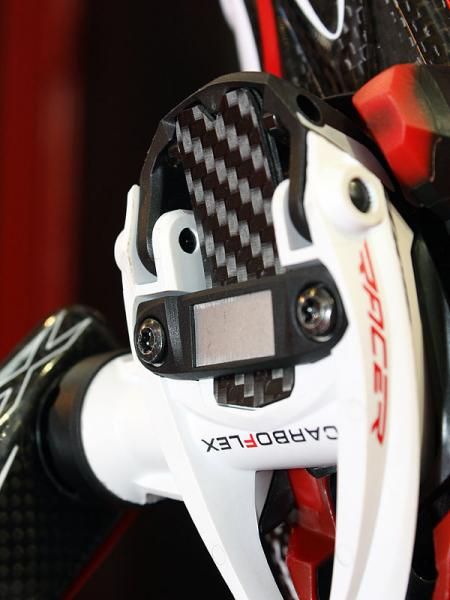

The carbon blade flexes as the rear latch opens.

The carbon blade flexes as the rear latch opens. (Image credit: Emily Wren/www.emilywren.com)
Image 6 of 17

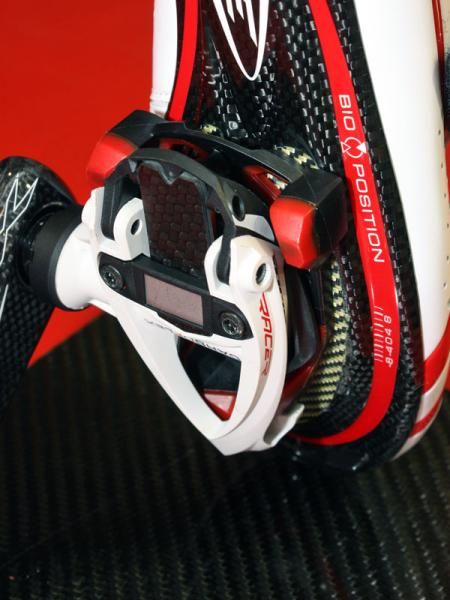

The new pedal retains Time's usual lateral and rotational float.

The new pedal retains Time's usual lateral and rotational float. (Image credit: Emily Wren/www.emilywren.com)
Image 7 of 17

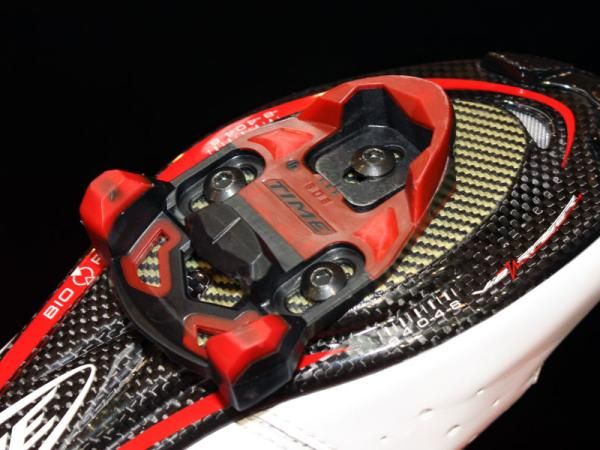

The brass cam of the RXS pedal design is gone, too, making the cleat substantially lighter than before. Generous amounts of softer materials on the bottom should make for easy walking.

The brass cam of the RXS pedal design is gone, too, making the cleat substantially lighter than before. Generous amounts of softer materials on the bottom should make for easy walking. (Image credit: Emily Wren/www.emilywren.com)
Image 8 of 17

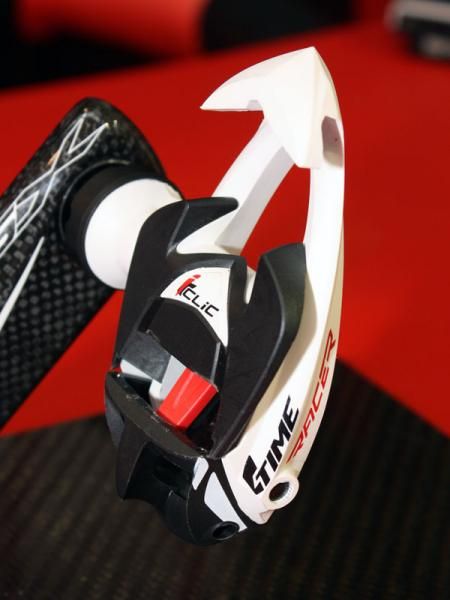

The broad platform up top should make for good cleat stability.

The broad platform up top should make for good cleat stability. (Image credit: Emily Wren/www.emilywren.com)
Image 9 of 17

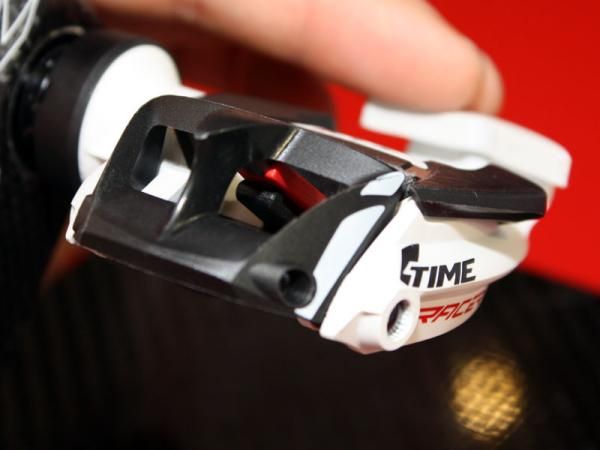

The red bit in the middle is the 'trigger' that holds the rear latch partially open when the cleat is disengaged, thus making for far easier entry than usual.

The red bit in the middle is the 'trigger' that holds the rear latch partially open when the cleat is disengaged, thus making for far easier entry than usual. (Image credit: Emily Wren/www.emilywren.com)
Image 10 of 17

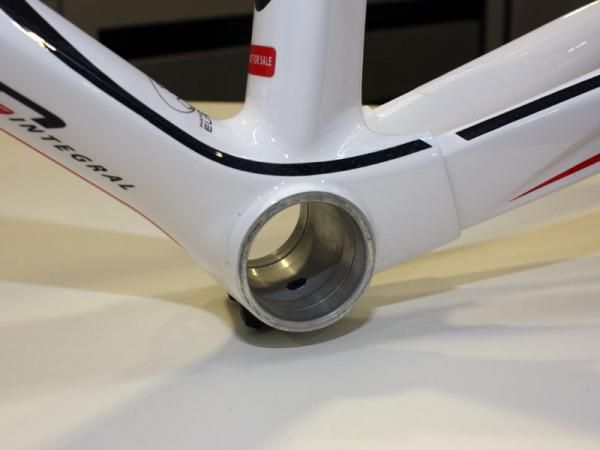

The NXR Instinct features a BB30-compatible bottom bracket shell.

The NXR Instinct features a BB30-compatible bottom bracket shell. (Image credit: Emily Wren/www.emilywren.com)
Image 11 of 17

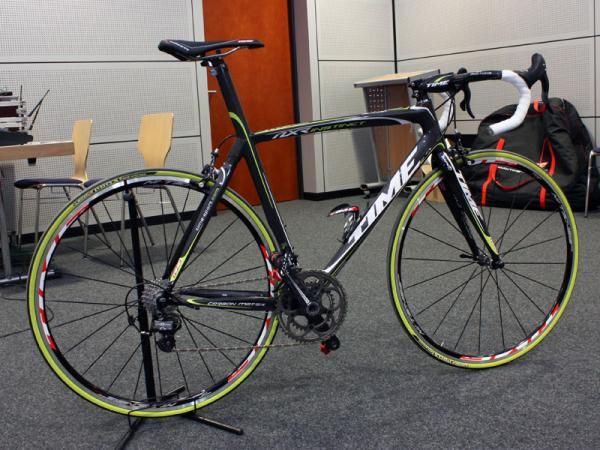

The new Time NXR Instinct will be offered in this keen looking black and green color scheme

The new Time NXR Instinct will be offered in this keen looking black and green color scheme (Image credit: Emily Wren/www.emilywren.com)
Image 12 of 17

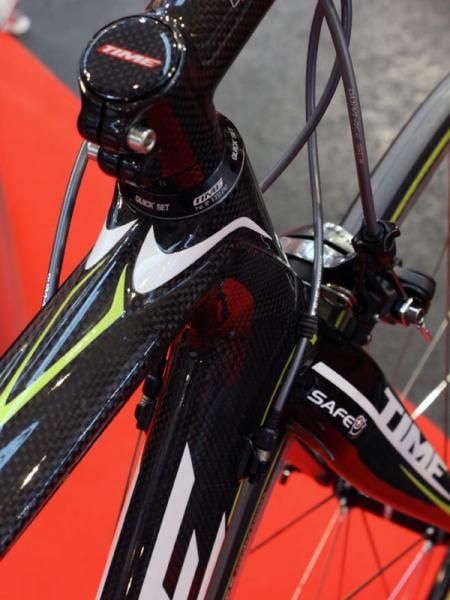

Extra width is added to the head tube to improve front triangle torsional stiffness.

Extra width is added to the head tube to improve front triangle torsional stiffness. (Image credit: Emily Wren/www.emilywren.com)
Image 13 of 17

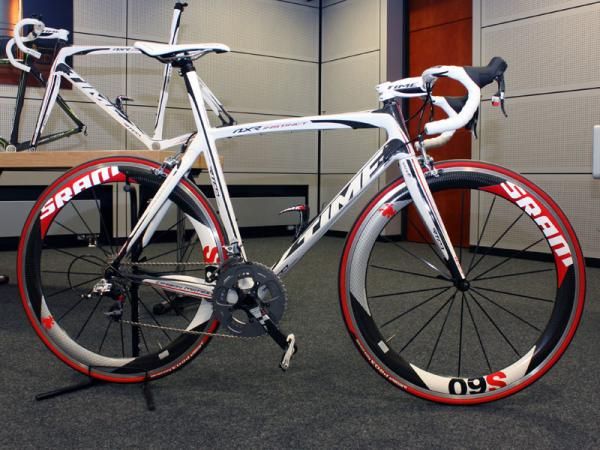

…or this more traditional white.

…or this more traditional white. (Image credit: Emily Wren/www.emilywren.com)
Image 14 of 17

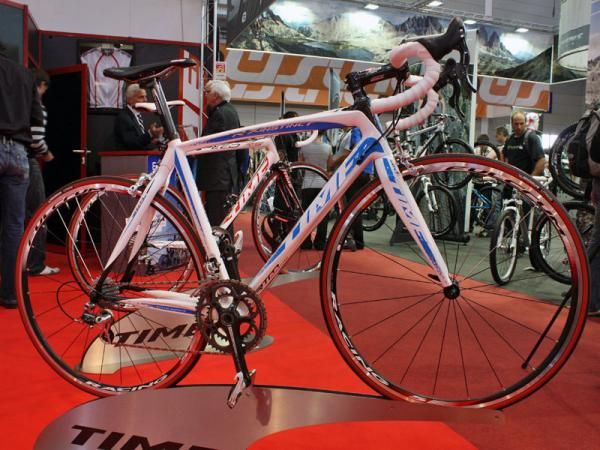

The less expensive Time RX Instinct shares the NXR's Integral RTM construction method but does without its integrated seatmast and nanotube-enhanced resins.

The less expensive Time RX Instinct shares the NXR's Integral RTM construction method but does without its integrated seatmast and nanotube-enhanced resins. (Image credit: Emily Wren/www.emilywren.com)
Image 15 of 17

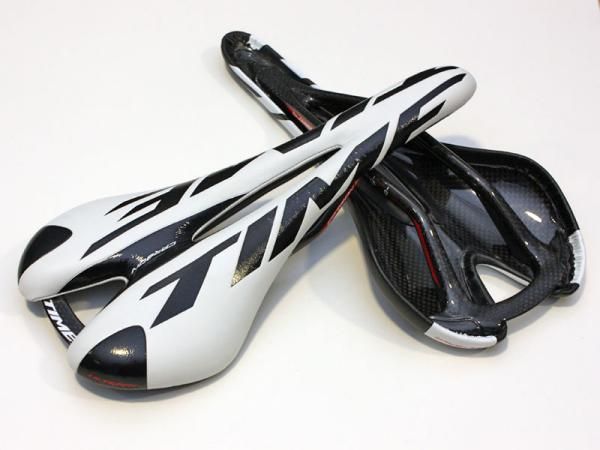

New saddles are also coming from Time with true carbon fiber shells and central cutouts to help relieve pressure on soft tissue.

New saddles are also coming from Time with true carbon fiber shells and central cutouts to help relieve pressure on soft tissue. (Image credit: Emily Wren/www.emilywren.com)
Image 16 of 17

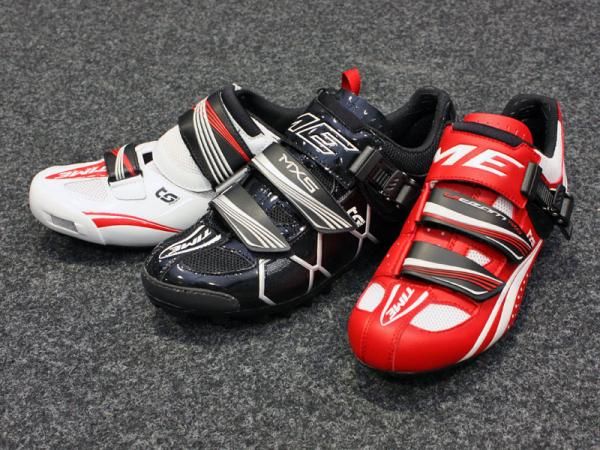

Several Time shoes will also include heat moldable upper materials for 2010.

Several Time shoes will also include heat moldable upper materials for 2010. (Image credit: Emily Wren/www.emilywren.com)
Image 17 of 17

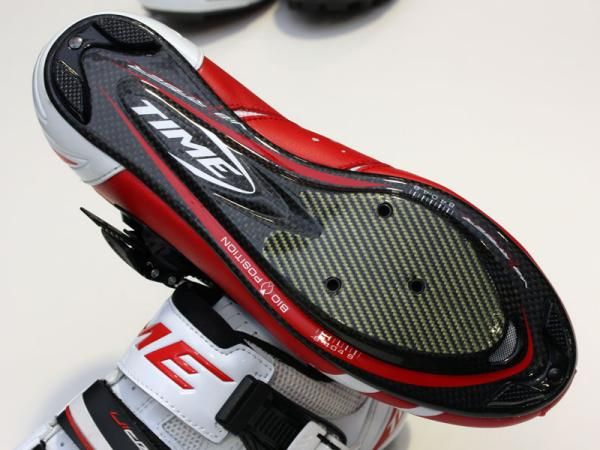

Time's vibration damping Vibraser fiber blend is now incorporated into the new shoes, supposedly making for a more comfortable ride with less numbness.

Time's vibration damping Vibraser fiber blend is now incorporated into the new shoes, supposedly making for a more comfortable ride with less numbness. (Image credit: Emily Wren/www.emilywren.com)

Time's new iClic road pedal line features an innovative rear latch mechanism that retains the company's trademark security but now with an incredibly low entry effort, too – the only real weakness of the current RXS system, which can sometimes be difficult to click into.

The key is an admirably clever 'trigger' mechanism that holds the rear latch mostly open after you've unclipped. When re-entering, the cleat barely has to work against the spring at all – plus there is also only minimal friction between the cleat and pedal ramps – and the cleat virtually falls into place with what is easily the lowest entry effort of any mechanical pedal system currently on the market. In the apparently unlikely event of a misfire, users can still clip in as usual, albeit with more required force.

That's not the iClic's only trick, however, as it also boasts an exceptionally light weight, a wide platform for better power transmission, Time's trademark lateral and rotational float, and a carbon fiber 'blade' that subs in for the usual wound coil spring. Even the proprietary iClic cleats are lighter than the RXS, too, as the old brass rear cam has finally been traded in for an integrated composite bit molded in with the rest of the walkable café cleat.

Claimed weight for the top-end iClic Titan Carbon is just 179g per pair with its carbon body and titanium axle, the mid-range iClic Carbon creeps up to 235g per pair with its hollow steel axle, and the 260g iClic Racer subs in a less expensive composite body. There will also be an entry-level iClic model that trades in the carbon spring for a cheaper fiber composite bit though it will still weigh in at just 260g per pair.

Retail costs for the iClic are still being finalized but delivery should begin in November. RXS owners never fear: Time will continue to carry three models of its long running road model, too.

Time will also launch a second new clipless pedal design for 2010, though this one is aimed more at recreational riders. The new AllRoad series incorporates a modified ATAC clipless system on one side but a street shoe-friendly plastic platform on the other. Three versions will be offered, all at 400g per pair. The top-end AllRoad Gripper+ will use a chromoly spindle and additional co-molded elastomer studs on the platform, the mid-range AllRoad Gripper will swap in a steel axle, and the entry-level AllRoad makes do with a simple single-compound non-replaceable platform.

Shoes to match

Time pedals no longer require proprietary cleat bolt patterns but the company's tradition of offering its own shoes will carry on into 2010 with three new flagship models, all with heat moldable uppers for a more customized fit.

The Ulteam RS Carbon road shoe uses moldable materials throughout the entire perimeter along with a Vectran-infused Vibraser carbon fiber sole plate that Time claims absorbs vibrations better than a pure carbon fiber plate for increase comfort and reduced numbness. One main buckled strap and two forefoot Velcro strap hold the foot in place.

The MXS Carbon mountain bike shoe uses a nearly identical upper but its carbon sole does without the Vibraser feature and sports an aggressive lugged tread. Triathletes get the Ulteam Tri Carbon shoe with the same Vibraser sole plate as the Ulteam RS Carbon but with a simpler open two-strap upper and moldable materials limited to the middle and front of the foot.

Two new frames hit the road

Time will also introduce two new road frames for 2010: the NXR Instinct and the RX Instinct, both using the company's novel Resin Transfer Molding process but now in combination with a modular monocoque construction (other RTM Time frames are tube-and-lug).

The higher-end NXR Instinct features a more comfort-oriented Vibraser fiber blend than on Time's full-blown race bikes, nanotube-enhanced resins, a tapered 1 1/8"-to-1 1/4" front end, and a BB30 bottom bracket shell, all mated to the flagship RXR Ulteam's rear end and fork (with alloy tips instead of the RXR's carbon ones) plus an integrated seatmast.

Claimed weight for the frame, fork, headset and seatmast head is 1.7kg – a competitive though not superlight figure, though Time insists its performance criteria still prioritizes ride quality and handling over absolute stiffness and weight.

The second-tier RX Instinct is nearly identical to the NXR version but substitutes a standard seatpost for the integrated mast and does without the nanotube-enhanced resins. Both frames will be offered in six sloping sizes.
