Aston Martin launches One-77 Superbike

Image 1 of 43

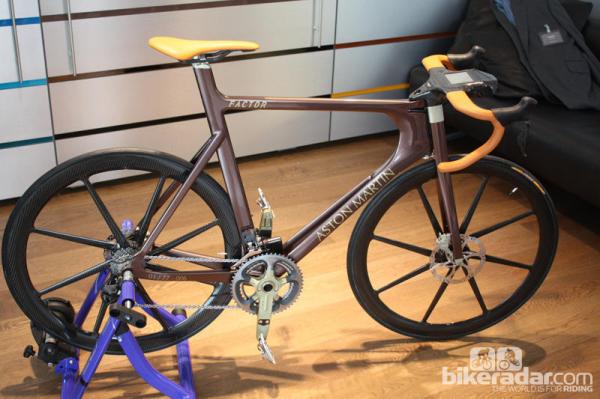

Aston Martin One-77

Aston Martin One-77 (Image credit: Oli Woodman/BikeRadar)
Image 2 of 43

7 colour options are available

7 colour options are available (Image credit: Oli Woodman/BikeRadar)
Image 3 of 43

7 colour options are available

7 colour options are available (Image credit: Oli Woodman/BikeRadar)
Image 4 of 43

Seven different colour options are available

Seven different colour options are available (Image credit: Oli Woodman/BikeRadar)
Image 5 of 43

The leatherwork was courtesy of I.M kelly, the same people that trim the One-77 supercar

The leatherwork was courtesy of I.M kelly, the same people that trim the One-77 supercar (Image credit: Oli Woodman/BikeRadar)
Image 6 of 43

The leatherwork was courtesy of I.M kelly, the same people that trim the One-77 supercar

The leatherwork was courtesy of I.M kelly, the same people that trim the One-77 supercar (Image credit: Oli Woodman/BikeRadar)
Image 7 of 43

Custom headset uses a combination of taper and roller bearings and an internal fork stop is used to protect the frame

Custom headset uses a combination of taper and roller bearings and an internal fork stop is used to protect the frame (Image credit: Oli Woodman/BikeRadar)
Image 8 of 43

Hydraulic disc brakes were used to provide controllable modulation and savage power

Hydraulic disc brakes were used to provide controllable modulation and savage power (Image credit: Oli Woodman/BikeRadar)
Image 9 of 43

The finish is as good as you'd expect

The finish is as good as you'd expect (Image credit: Oli Woodman/BikeRadar)
Image 10 of 43

7 colour options are available

7 colour options are available (Image credit: Oli Woodman/BikeRadar)
Image 11 of 43

7 colour options are available

7 colour options are available (Image credit: Oli Woodman/BikeRadar)
Image 12 of 43

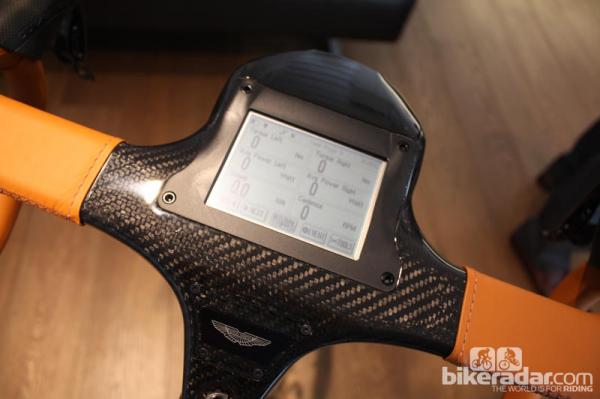

The head unit is a back lit touch screen system

The head unit is a back lit touch screen system (Image credit: Oli Woodman/BikeRadar)
Image 13 of 43

Bike porn alert

Bike porn alert (Image credit: Oli Woodman/BikeRadar)
Image 14 of 43

Bike porn alert

Bike porn alert (Image credit: Oli Woodman/BikeRadar)
Image 15 of 43

Stitching and leatherwork provided by I.M Kelly, the guys behind the interiors of Aston Martin cars

Stitching and leatherwork provided by I.M Kelly, the guys behind the interiors of Aston Martin cars (Image credit: Oli Woodman/BikeRadar)
Image 16 of 43

Standard Dura-Ace kit is no bad thing

Standard Dura-Ace kit is no bad thing (Image credit: Oli Woodman/BikeRadar)
Image 17 of 43

The wheels alone are a work of art

The wheels alone are a work of art (Image credit: Oli Woodman/BikeRadar)
Image 18 of 43

The twin vane downtube is a seriously striking design

The twin vane downtube is a seriously striking design (Image credit: Oli Woodman/BikeRadar)
Image 19 of 43

The Factor001 used an ISIS BB, whereas the One-77 uses a superior press-fit design

The Factor001 used an ISIS BB, whereas the One-77 uses a superior press-fit design (Image credit: Oli Woodman/BikeRadar)
Image 20 of 43

The cranks are charged via the two round contacts you see here

The cranks are charged via the two round contacts you see here (Image credit: Oli Woodman/BikeRadar)
Image 21 of 43

More information than ever seen before on any handlebar?

More information than ever seen before on any handlebar? (Image credit: Oli Woodman/BikeRadar)
Image 22 of 43

One off carbon wheelset wrapped in Continental GP4000 tubular rubber

One off carbon wheelset wrapped in Continental GP4000 tubular rubber (Image credit: Oli Woodman/BikeRadar)
Image 23 of 43

Hoses, what hoses?

Hoses, what hoses? (Image credit: Oli Woodman/BikeRadar)
Image 24 of 43

Front lights are integrated into the cockpit assembly and are activated via buttons on the hoods

Front lights are integrated into the cockpit assembly and are activated via buttons on the hoods (Image credit: Oli Woodman/BikeRadar)
Image 25 of 43

Rear lights are integrated into the seat tube and activated via the handlebar

Rear lights are integrated into the seat tube and activated via the handlebar (Image credit: Oli Woodman/BikeRadar)
Image 26 of 43

The Dura-Ace Di2 battery is kept low and central, and contained in carbon fibre of course

The Dura-Ace Di2 battery is kept low and central, and contained in carbon fibre of course (Image credit: Oli Woodman/BikeRadar)
Image 27 of 43

One piece cockpit houses the all-important head unit plus both hydraulic resevoirs for the brakes

One piece cockpit houses the all-important head unit plus both hydraulic resevoirs for the brakes (Image credit: Oli Woodman/BikeRadar)
Image 28 of 43

You won't forget what you are riding, but just in case you do...

You won't forget what you are riding, but just in case you do... (Image credit: Oli Woodman/BikeRadar)
Image 29 of 43

Neat dual master cylinder system from Hope allows use of Di2 shift levers

Neat dual master cylinder system from Hope allows use of Di2 shift levers (Image credit: Oli Woodman/BikeRadar)
Image 30 of 43

Each of the hydraulic discs are on different sides

Each of the hydraulic discs are on different sides (Image credit: Oli Woodman/BikeRadar)
Image 31 of 43

Frame number 003

Frame number 003 (Image credit: Oli Woodman/BikeRadar)
Image 32 of 43

Factor wheels and discs mean this is an entirely custom affair

Factor wheels and discs mean this is an entirely custom affair (Image credit: Oli Woodman/BikeRadar)
Image 33 of 43

Lines are kept super clean by integrating the brake fixings into the caliper mounts

Lines are kept super clean by integrating the brake fixings into the caliper mounts (Image credit: Oli Woodman/BikeRadar)
Image 34 of 43

The Shimano Di2 front derailleur almost looks old school on this bike

The Shimano Di2 front derailleur almost looks old school on this bike (Image credit: Oli Woodman/BikeRadar)
Image 35 of 43

Aston Martin One-77 supercar

Aston Martin One-77 supercar (Image credit: Oli Woodman/BikeRadar)
Image 36 of 43

The inspiration behind the bike - The Aston Martin One-77 supercar

The inspiration behind the bike - The Aston Martin One-77 supercar (Image credit: Oli Woodman/BikeRadar)
Image 37 of 43

The inspiration behind the bike - The Aston Martin One-77 supercar

The inspiration behind the bike - The Aston Martin One-77 supercar (Image credit: Oli Woodman/BikeRadar)
Image 38 of 43

The inspiration behind the bike - The Aston Martin One-77 supercar

The inspiration behind the bike - The Aston Martin One-77 supercar (Image credit: Oli Woodman/BikeRadar)
Image 39 of 43

The inspiration behind the bike - The Aston Martin One-77 supercar

The inspiration behind the bike - The Aston Martin One-77 supercar (Image credit: Oli Woodman/BikeRadar)
Image 40 of 43

Aston logo

Aston logo (Image credit: Oli Woodman/BikeRadar)
Image 41 of 43

The cranks are capable of transmitting torque and power data in real time

The cranks are capable of transmitting torque and power data in real time (Image credit: Oli Woodman/BikeRadar)
Image 42 of 43

Shimano Di2 rear

Shimano Di2 rear (Image credit: Oli Woodman/BikeRadar)
Image 43 of 43

The One-77 is almost entirely carbon fibre

The One-77 is almost entirely carbon fibre (Image credit: Oli Woodman/BikeRadar)

This article originally published on BikeRadar

Legendary car manufacturer Aston Martin has thrown its hat into the bicycle ring with the launch of the One-77 superbike, which we reckon features enough gadgetry to persuade James Bond to switch to two wheels.

The limited edition model which is now on sale may look familiar; it borrows some of the technology used in the Factor001 - hailed as the most advanced bike ever made. This model is a refined version of that bike and re-badged with the heavyweight branding of Aston Martin.

The One-77 bike has had some major revisions when compared to the Factor001. The one-off hydraulic disc brakes are now activated using Shimano Dura-Ace shift levers. This has been made possible by using a dual master cylinder system - The V-Twin, provided by Hope and now available for cyclocross bikes. All hydraulic brake lines are housed internally within the frame and fork and even the hydraulic connections to each caliper are tucked away within the brake mounts.

The handlebar/stem assembly has been modified from the original Factor001 design and the crankset has moved from an ISIS to a press-fit bottom bracket system. LED lights are integrated into both the seat tube and handlebar areas and are controlled via hood mounted buttons.

Like the Factor001, Aston Martin's bike features a 'motorsport-derived data logging system'. This primarily comes via performance feedback which gives over 100 channels of data including speed, temperature, rate of climb and power, plus more advanced data such as accelerometers to measure lean, and biometric data such as ECG, respiration rate and core body temperature. The fully revised cranks now communicate to the handlebar mounted head unit via the ANT+ wireless protocol and are able to offer real time data on a riders torque and power delivery. The head unit also sports a Bluetooth connection to connect with and share data to smartphones and other devices.

Over 100 channels of data are accessible from the head unit

Each One-77 bike has been built in Norfolk, England and every example takes seven staff a full two weeks of work to complete. The company behind the technology and manufacturing, Factorbikes, is a subsidiary of a firm - bf1 systems - which provides products to the motorsport industry.

All this is going to cost you a cool £25,000. For your money you get a full carbon frame, Shimano Dura-Ace Di2 7970 groupset, disc brakes, full carbon 8-spoke wheels and handlebars complete with both paintwork and leather bar tape that echoes options available for the One-77 supercar, the vehicle Aston Martin say inspired the bike.

You'll need to move fast should you want one - only 77 will be available worldwide and we know that at least five of those have already been purchased - but we've yet to confirm if Mr Bond will make this his commuting weapon of choice.

Frame: High modulus carbon fibre. Embedded electric and hydraulic lines. 7075 CNC machined replaceable rear derailleur hanger
Fork: Double crown carbon fibre forks with integrated hydraulic line and calliper mounting made from high strength and high modulus carbon fibre. 7075 CNC machined inserts.
Handlebar: One piece carbon fibre handlebars and integrated stem with internal hydraulic and wire routing made from high strength and high modulus carbon fibre. Stem 85mm, Bars 150mm drop x 77mm reach, 40-42-44-46cm wide.
Headset: Factor, combined needle roller/angular contact ball bearing
Shifters: Shimano Dura-Ace 7970 Di2 STI, 20 speed
Front Derailleur: Shimano Dura-Ace Di2 braze on
Rear Derailleur: Shimano Dura-Ace Di2 SS short cage
Crankset: Factor, 7075 CNC machined 167.5mm, 170mm, 172.5mm, 175mm, 177.5mm, 180mm
Chainwheel: Shimano Dura-Ace, 53/39T
Bottom Bracket: Factor, Titanium shaft, ceramic bearings, 90mm width
Chain: Shimano Dura-Ace 7900 10-speed
Freewheel: Shimano Dura-Ace 7900 cassette, 12-27T
Brake Levers: Shimano Dura-Ace 7970 Di2 STI
Brakes: Steel hydraulic disc, front - 180mm, rear -140m
Electric System: Embedded wiring system, Factor re-chargeable battery pack
Lighting: High intensity front LED integrated into handlebars. Red rear LEDs integrated into seat tube. Operated from switches on control lever housings
Hydraulic System: Shimano levers connected to Hope V-Twin remote master cylinder mounted in handlebar assembly
Saddle: Fizik Antares braided rails
Saddle Mount: Factor, shim height adjustable
Wheelset: 700C Factor front and rear wheelset. Factor hubs, ceramic bearings and preload adjustment
Tyres: Continental GP4000 Tubular 700C-22mm
Finish: Seven options and customisable option
Weight: 9.5 kg/ 20.94lb
