Zipp dives into tubeless with new 30 Course Disc alloy road wheels

Image 1 of 12

Zipp's new wide-profile 30 Course aluminium disc-brake wheels are aimed at a wide range of applications including road, gravel, cyclocross, and adventure

Zipp's new wide-profile 30 Course aluminium disc-brake wheels are aimed at a wide range of applications including road, gravel, cyclocross, and adventure (Image credit: James Huang/BikeRadar)
Image 2 of 12

Zipp says the new front hub weighs 145g in quick-release guise while the matching rear is 265g. Switching to thru-axles drops 5g each

Zipp says the new front hub weighs 145g in quick-release guise while the matching rear is 265g. Switching to thru-axles drops 5g each (Image credit: James Huang/BikeRadar)
Image 3 of 12

The conventional three-pawl driver mechanism boasts a ten-degree engagement speed. Freehub bodies will be available to fit SRAM, Shimano, Campagnolo, and even SRAM XD cassettes

The conventional three-pawl driver mechanism boasts a ten-degree engagement speed. Freehub bodies will be available to fit SRAM, Shimano, Campagnolo, and even SRAM XD cassettes (Image credit: James Huang/BikeRadar)
Image 4 of 12

The new hubs feature factory preset bearing preload, six-bolt rotor compatibility, interchangeable end caps for quick-release or thru-axle applications, and oversized 17mm-diameter aluminium axles. The quick-release skewers have also been revamped with wider levers and cylindrical cams

The new hubs feature factory preset bearing preload, six-bolt rotor compatibility, interchangeable end caps for quick-release or thru-axle applications, and oversized 17mm-diameter aluminium axles. The quick-release skewers have also been revamped with wider levers and cylindrical cams (Image credit: James Huang/BikeRadar)
Image 5 of 12

Zipp will use the same 77-177D hubset on the new 30 Course disc wheelsets as it recently announced for the revamped 202 Firecrest Disc and 303 Firecrest Disc

Zipp will use the same 77-177D hubset on the new 30 Course disc wheelsets as it recently announced for the revamped 202 Firecrest Disc and 303 Firecrest Disc (Image credit: James Huang/BikeRadar)
Image 6 of 12

The relatively large-diameter tyre bed radius on the new Zipp 30 Course tubular rim looks to be a good match for higher-volume cyclocross tyres

The relatively large-diameter tyre bed radius on the new Zipp 30 Course tubular rim looks to be a good match for higher-volume cyclocross tyres (Image credit: James Huang/BikeRadar)
Image 7 of 12

Zipp says the 30 Course tubeless-ready clincher's 21mm internal depth is designed for 23mm-wide tyres and up. The UST profile should ideally be matched to dedicated tubeless or tubeless-ready tyres, however, and not converted setups

Zipp says the 30 Course tubeless-ready clincher's 21mm internal depth is designed for 23mm-wide tyres and up. The UST profile should ideally be matched to dedicated tubeless or tubeless-ready tyres, however, and not converted setups (Image credit: James Huang/BikeRadar)
Image 8 of 12

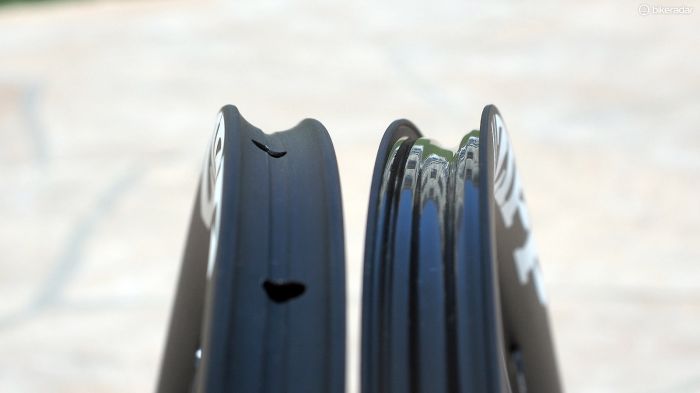

Zipp will offer the new 30 Course in both tubular and tubeless-ready clincher versions. Both rims measure 25mm wide (external width) and 26mm deep. Internal width on the clinchers is a generous 21mm between the bead hooks

Zipp will offer the new 30 Course in both tubular and tubeless-ready clincher versions. Both rims measure 25mm wide (external width) and 26mm deep. Internal width on the clinchers is a generous 21mm between the bead hooks (Image credit: James Huang/BikeRadar)
Image 9 of 12

The new 30 Course marks Zipp's first tubeless-ready clincher road wheel. Rims will come pre-taped and the wheels will also include tubeless valve stems

The new 30 Course marks Zipp's first tubeless-ready clincher road wheel. Rims will come pre-taped and the wheels will also include tubeless valve stems (Image credit: James Huang/BikeRadar)
Image 10 of 12

According to Zipp, the 30 Course rim's blunt and wide rim shape makes it even easier to handle in crosswinds than a traditional box-section wheel

According to Zipp, the 30 Course rim's blunt and wide rim shape makes it even easier to handle in crosswinds than a traditional box-section wheel (Image credit: James Huang/BikeRadar)
Image 11 of 12

The 26mm depth is modeled after Zipp's carbon fibre 202 Firecrest. Reducing drag was an obvious goal but equally important was crosswind stability, according to Zipp

The 26mm depth is modeled after Zipp's carbon fibre 202 Firecrest. Reducing drag was an obvious goal but equally important was crosswind stability, according to Zipp (Image credit: James Huang/BikeRadar)
Image 12 of 12

Zipp wheels haven't exactly always been considered a go-to option for riding like this but the company is hoping its versatile new 30 Course Disc will help change that

Zipp wheels haven't exactly always been considered a go-to option for riding like this but the company is hoping its versatile new 30 Course Disc will help change that (Image credit: James Huang/BikeRadar)

This article originally appeared on BikeRadar

Zipp's new 30 Course Disc wheelset family marks several key milestones: it's the company's first tubeless-compatible road wheel, its first disc-only wheelset, and the first aluminium tubular option Zipp has ever offered. They're also very wide, seemingly stout, and somewhat reasonably priced (at least for Zipp), which should expand their appeal far beyond the traditional road and cyclocross racing segments.

Zipp 30 Course Disc wheelset key features:

  • 1,650g (tubeless clinchers, pair); 1,615g (tubulars, pair)
  • 26mm rim depth
  • 21mm internal/25mm external rim width (clinchers); 25mm external rim width (tubulars)
  • 24-hole spoke count
  • Sapim CX-Ray bladed stainless steel spokes with Secure-lock alloy nipples
  • 77/177D quick-release or thru-axle compatible hubset
  • Interchangeable hub end caps for quick-release or thru-axle fitments (12x100mm, 15x100mm, 12x135mm, and 12x142mm)
  • Shimano, Campagnolo, SRAM, and SRAM XD freehub compatibility
  • Retail availability: May 2015 (clinchers); July 2015 (tubulars)
  • Retail price: US$1000 / €1045 / £800 / AU$TBC

The new Course 30 Disc will be offered in both tubular and tubeless clincher versions - the first time Zipp has done a tubular wheelset in aluminium

Zipp is no stranger to aluminium road wheelsets but its alloy offerings have still always focused tightly on the high-performance road market. This time around, the brand that most cyclists associate with aerodynamics and speed is going after wide appeal across multiple segments of the cycling community.

At over 1,600g – and with hefty rim weights between 460g and 500g – the 30 Course Disc isn't light enough to be billed as a climbing wheel. Similarly, the rims' 26mm-deep and 25mm-wide external rim profile is roughly comparable to the much more expensive 202 carbon wheels in terms of drag and crosswind stability but we don't expect that the majority of users will go with the narrow 23mm-wide road tyres that would be required to fully extract that aero efficiency.

In either tubular or clincher form, the new Zipp 30 Course Disc rim is generously wide

Instead, the 30 Course Disc's main appeal seems to lie in its versatility. Basically, if your bike uses 700c-diameter wheels and disc brakes, the 30 Course Disc will work – almost regardless of the tyre and drivetrain configuration.

For example, the clincher's extra-generous 21mm internal width (and the tubular version's 25mm-wide tyre bed) should provide plenty of casing support for tyres up to 42mm wide. Moreover, the clincher rim's tubeless compatibility should be especially appealing for cyclocross, gravel, and adventure applications where riders should be able to run lower pressures with less fear of flatting.

Riders can even opt to go tube-free on the clinchers if they want – although with its rather traditional UST internal rim profile, it'd be best to stick to tyres specifically designed to be run tubeless as compared to a converted tube-type tyre.

The 77/177D hubs feature 10-degree engagement speed, interchangeable end caps for QR or thru-axle use, and a very broad range of driver body options

Likewise, the new 77/177D hubset (the same one used on Zipp's recently announced 202/303 Firecrest Disc wheels) will let riders choose from just about any cassette type, including not just the usual SRAM, Shimano, and Campagnolo spline patterns but even an XD driver for use with SRAM's ultrawide-range 10-42T 11-speed cassettes. Interchangeable end caps will work on quick-release and all commonly used thru-axle fitments, too, so the 30 Course Disc wheels will even fit on nearly anything.

Got a disc road bike? The 30 Course Disc will do the job. Cyclocross with tubulars? Check. Building up a thru-axle monstercross bike with 40mm-wide tyres and a 10-42T cassette? You get the point. About the only thing missing is compatibility with Shimano Centerlock disc rotors, although Zipp says even that's being considered for future development.

First impressions

We rode the 30 Course Disc clinchers for a few hours around California's hilly central coast region on a wide range of road surfaces that included coarse chip seal, old and decidedly broken pavement, and squishy dirt roads that had recently been inundated with heavy rains. Wrapped around the rims were semi-slick Hutchinson Piranha tyres set up tubeless and run at about 50psi.

While it was difficult to determine how quick the wheels felt – those tyres aren't especially fast or light, after all – it didn't take long for us to appreciate the wheels' surprisingly good stiffness as we bombed down washed-out descents littered with deep rain ruts, sharp rocks, and wet sandy soil that more closely resembled creamy peanut butter than anything remotely firm. We felt the rims bottom at least twice, too, with no ill effects to note once we rolled back to camp.

Zipp isn't exactly the first name that comes to mind when you think about mixed-terrain riding but the new 30 Course Disc aluminium wheelset may change that

As promised, crosswind stability was very good with just the slightest tug on the bars despite the occasionally blustery conditions. The rear hub's 36-tooth ratchet also yields a reasonably quick engagement speed that was handy on a few steeper sections of road.

That all said, time will tell to whom exactly these wheels will appeal. While noticeably stiff, apparently durable, and unquestionably versatile, they're also a little heavy for the price or conversely, a bit expensive for the weight (particularly given the hefty rims). The lack of a Centerlock-compatible version will also preclude folks from using Shimano's best-performing 140mm-diameter road rotors, which are only offered in a splined pattern.

There's never anything wrong with a product that simply does what it's supposed to do and apparently won't fall apart in the process. The question, however, is whether being competent and wearing a Zipp logo will be a convincing argument. We've got a set inbound so we'll find out soon enough.
