Pro bike: Ben Berden's Raleigh RXC Pro Disc

Image 1 of 12

This is the Belgian's second season of racing in the United States, and his first aboard a Raleigh

This is the Belgian's second season of racing in the United States, and his first aboard a Raleigh (Image credit: Josh Patterson/Future Publishing)
Image 2 of 12

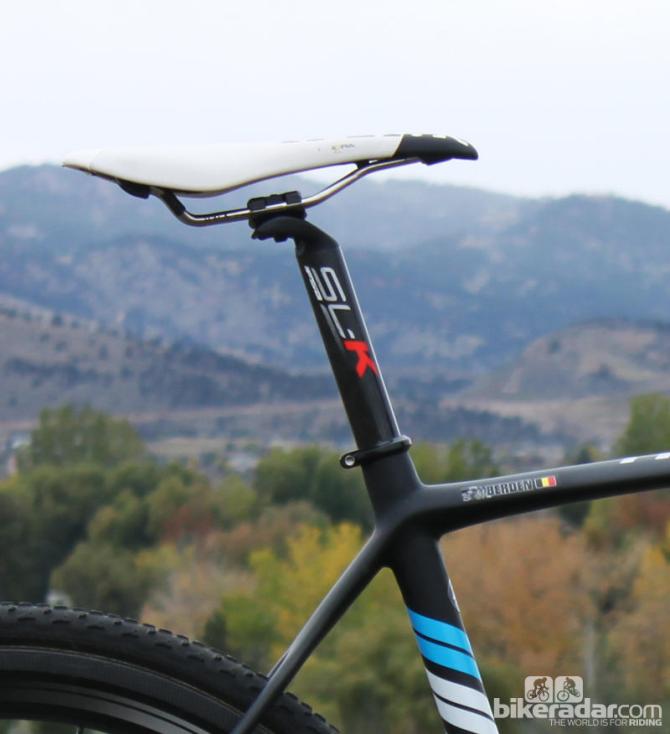

It's not the camera angle or a mechanic's mistake – Berden really does run his saddle nose-up

It's not the camera angle or a mechanic's mistake – Berden really does run his saddle nose-up (Image credit: Josh Patterson/Future Publishing)
Image 3 of 12

Berden was running Clement PDX tires on the front and rear for the muddy course BikeRadar watched him go round. He often pairs a front PDX with the fast-rolling LAS file tread in the rear for dry courses

Berden was running Clement PDX tires on the front and rear for the muddy course BikeRadar watched him go round. He often pairs a front PDX with the fast-rolling LAS file tread in the rear for dry courses (Image credit: Josh Patterson/Future Publishing)
Image 4 of 12

Note the lower stack height of this pre-production Parabox; it appears to be half as tall as the current version

Note the lower stack height of this pre-production Parabox; it appears to be half as tall as the current version (Image credit: Josh Patterson/Future Publishing)
Image 5 of 12

The Ben Berden cockpit setup consists of a 44cm-wide carbon FSA SL-K compact handlebar with a 110mm FSA SL-K stem

The Ben Berden cockpit setup consists of a 44cm-wide carbon FSA SL-K compact handlebar with a 110mm FSA SL-K stem (Image credit: Josh Patterson/Future Publishing)
Image 6 of 12

An 11-28T Dura-Ace cassette and chain mated to an Ultegra Di2 derailleur round out Berden's drivetrain

An 11-28T Dura-Ace cassette and chain mated to an Ultegra Di2 derailleur round out Berden's drivetrain (Image credit: Josh Patterson/Future Publishing)
Image 7 of 12

A Wheels Manufacturing adapter is used to mate the 24mm Shimano spindle to the frame's PF30 bottom bracket shell

A Wheels Manufacturing adapter is used to mate the 24mm Shimano spindle to the frame's PF30 bottom bracket shell (Image credit: Josh Patterson/Future Publishing)
Image 8 of 12

Up front, Berden runs a single 42-tooth FSA chainring on Dura-Ace 172.5mm crankarms

Up front, Berden runs a single 42-tooth FSA chainring on Dura-Ace 172.5mm crankarms (Image credit: Josh Patterson/Future Publishing)
Image 9 of 12

Chain retention is handled by a K-Edge Chain Keeper and Cross Ring Guard

Chain retention is handled by a K-Edge Chain Keeper and Cross Ring Guard (Image credit: Josh Patterson/Future Publishing)
Image 10 of 12

Berden runs a prototype of the next generation TRP Parabox system on the rear. In addition to being lighter, Parabox R routes the hydraulic line on the inboard side of the brake caliper, rather than the outside. Berden frequently clipped his heel on the outboard-mounted line on the current Parabox caliper, hence the switch

Berden runs a prototype of the next generation TRP Parabox system on the rear. In addition to being lighter, Parabox R routes the hydraulic line on the inboard side of the brake caliper, rather than the outside. Berden frequently clipped his heel on the outboard-mounted line on the current Parabox caliper, hence the switch (Image credit: Josh Patterson/Future Publishing)
Image 11 of 12

To save weight, Berden only runs three titanium rotor bolts on the 160mm front and rear rotors

To save weight, Berden only runs three titanium rotor bolts on the 160mm front and rear rotors (Image credit: Josh Patterson/Future Publishing)
Image 12 of 12

Berden races a stock 55cm Raleigh RXC Pro Disc with a very personalized parts package

Berden races a stock 55cm Raleigh RXC Pro Disc with a very personalized parts package (Image credit: Josh Patterson/Future Publishing)

This article originally published on BikeRadar

Last year, veteran Belgian cyclo-cross racer Ben Berden crossed the pond for his first full season of racing in the United States. He's returned for the 2012/2013 season with the support of Raleigh Bicycles and Clement tires.

BikeRadar caught up with him in Fort Collins, Colorado, at the second stop on this year's US Gran Prix of Cyclocross. He finished third and fifth, respectively, in Saturday and Sunday's elite men's races, aboard his Raleigh RXC Pro Disc.

New brakes, old numbers

As a Raleigh-sponsored rider, Berden can opt to race the disc or cantilever version bike. He counts himself among the growing number of elite racers who are fully embracing disc brakes for cyclo-cross.

At a time when many North American cyclo-cross rigs are trending lower and, sometimes, slacker, Raleigh's cyclo-cross line bucks the trend, sticking to more traditional, old world geometry: a 72-degree head tube and high bottom bracket with a scant 55mm of drop.

This stock geometry appears to suit the Belgian, who rides a stock 55cm RXC Pro Disc frame.

Custom additions

Berden's setup is a mix of the Ultegra Di2 kit that comes standard on the RXC Pro Disc, along with some special finishing touches. Like the man himself, the bike has a lot of personality.

The most notable addition is the TRP Parabox hybrid hydraulic brake system. The version Berden runs is a blend of the production line and prototype pieces of a lighter, more refined model that, according to TRP, should be available to the public by January 2013. Dubbed Parabox R, the new system shaves grams by using titanium hardware and composite pistons. It also takes advantage of a shorter mounting collar to decrease its stack height.

Berden's RXC Pro Disc spins on custom-drilled, 24-hole White Industries hubs laced to pair of 50mm-deep FSA SL-K carbon tubular rims. He alternates between Clement's PDX and LAS tires, depending on course conditions.

"Ben really likes to run the PDX in the front and the LAS in the rear – he finds this to be a great combo," noted Jordan Schware, head mechanic for the Raleigh-Clement cyclo-cross team.

As for tire pressure, Berden keeps that to himself. "He's an old-school Belgian – he does it by feel. We start his bikes and his spare wheels at 30psi and he drops it from there," said Schware.

Berden is a fan of the simplicity, reliability and the mud-worthiness of a 1x10 drivetrain. His single-ring setup consists of a Dura-Ace crankset mated to a 42-tooth FSA chainring.

K-Edge handles chain retention, with an outer Cross Ring Guard and inner chain catcher in place of the front derailleur. An 11-28t Dura-Ace cassette gives the Belgian all the range he needs to keep up with his American competitors.

Note the lower stack height of this pre-production Parabox; it appears to be half as tall as the current version

Complete bike specification

Frame: Raleigh RXC Pro 55cm (stock sizing)
Fork: ENVE CX DISC, 1.125in to 1.5in tapered steerer
Headset: FSA Integrated
Stem: FSA SL-K 110mm, -6 degrees
Handlebar: FSA SL-K Compact 44cm
Tape/grips: FSA cork handlebar tape, white
Front brake: TRP Parabox with 160mm TRP rotor
Rear brake: TRP Parabox R (prototype) with 160mm TRP rotor
Brake levers: Ultegra Di2
Front derailleur: K-Edge braze-on mounted Chain Keeper paired with K-Edge Cross Ring Guard
Rear derailleur: Shimano Ultegra Di2
Shifters: Shimano Ultegra Di2
Cassette: Shimano Dura-Ace 11-28T
Chain: Shimano Dura-Ace
Crankset: Shimano Dura-Ace (172.5mm crankarms) with single 42-tooth FSA chainring
Bottom bracket: FSA
Pedals: Shimano XTR
Wheelset: FSA SL-K carbon rims laced to custom 24-hole White Industries hubs
Front tire: Clement PDX tubular, 700x33c
Rear tire: Clement PDX tubular, 700x33c
Saddle: Fizik Tundra
Seatpost: FSA SL-K, 31.6mm diameter

Critical measurements

Rider height: 1.78m / 5'10"
Rider weight: 68kg / 150lb
Saddle height: 755mm
Saddle setback: 20mm
Tip of saddle nose to center of bar: 550mm
Saddle to bar drop: 110mm
Seat tube length, c-t: 540mm
Seat tube length, c-c: 530mm
Head tube length: 130mm
Top tube length: 540mm (horizontal)
Head angle: 72 degrees
Seat tube angle: 73.5 degrees
Wheelbase: 1005mm
Chainstay length: 425mm
Fork offset: 45mm
BB drop: 55mm
Total bike weight: 7.94kg / 17.5lb
