Peter Sagan's Specialized S-Works Shiv TT – Gallery

Image 1 of 22

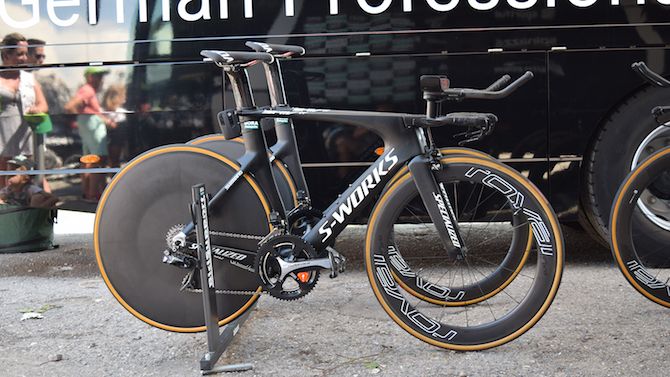

Peter Sagan's S-Works Shiv TT

Peter Sagan's S-Works Shiv TT
(Image credit: Josh Evans / Immediate Media)
Image 2 of 22

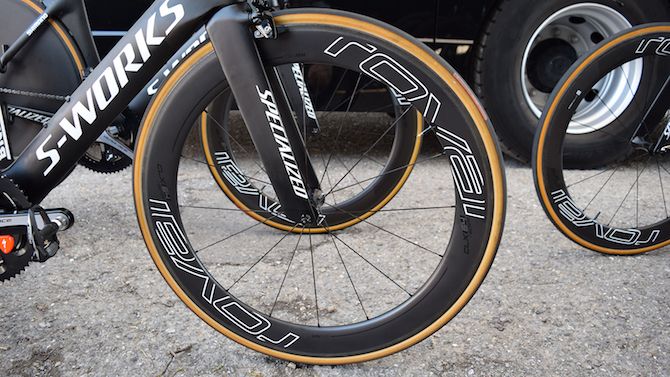

Specialized's wheel brand Roval provides Sagan with a CLX 64 deep-rimmed carbon front wheel

Specialized's wheel brand Roval provides Sagan with a CLX 64 deep-rimmed carbon front wheel
(Image credit: Josh Evans / Immediate Media)
Image 3 of 22

Teams will label up their Velon data transmitters for ease of location

Teams will label up their Velon data transmitters for ease of location
(Image credit: Josh Evans / Immediate Media)
Image 4 of 22

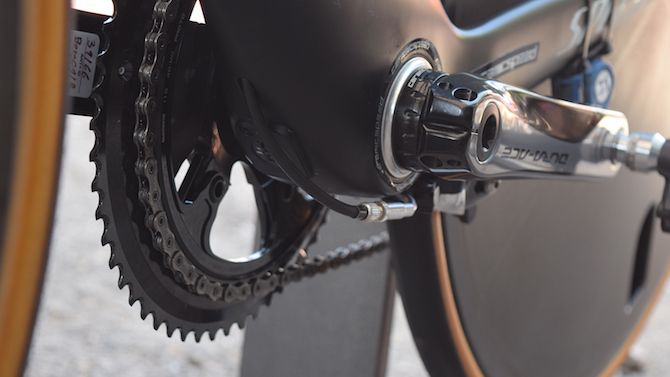

The bottom brake is located on the underside of the bottom bracket to keep it out of the wind

The bottom brake is located on the underside of the bottom bracket to keep it out of the wind
(Image credit: Josh Evans / Immediate Media)
Image 5 of 22

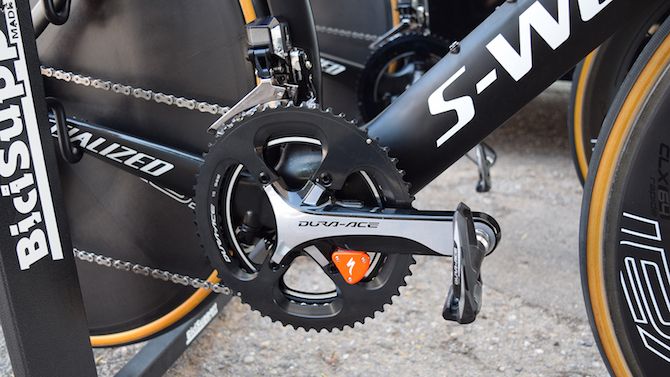

The Dura-Ace 9000 series crankset is equipped with a Specialized power meter and paired with special pro-only R9100 series chainrings

The Dura-Ace 9000 series crankset is equipped with a Specialized power meter and paired with special pro-only R9100 series chainrings
(Image credit: Josh Evans / Immediate Media)
Image 6 of 22

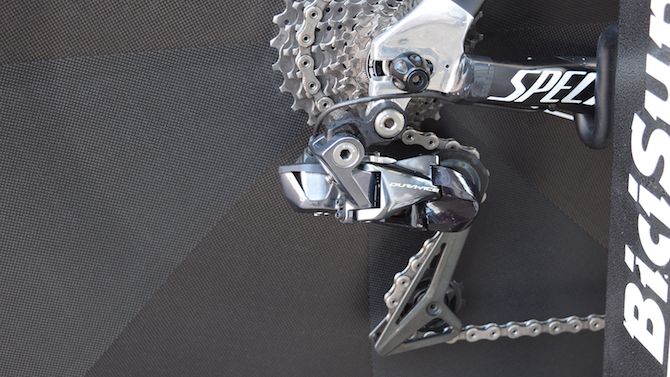

A closer look at the Shimano Dura-Ace R9150 rear derailleur

A closer look at the Shimano Dura-Ace R9150 rear derailleur
(Image credit: Josh Evans / Immediate Media)
Image 7 of 22

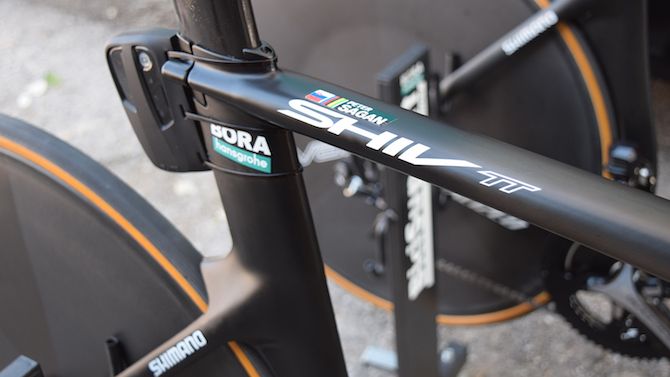

Peter Sagan's name and Slovakian flag adorns the top tube of the bike

Peter Sagan's name and Slovakian flag adorns the top tube of the bike
(Image credit: Josh Evans / Immediate Media)
Image 8 of 22

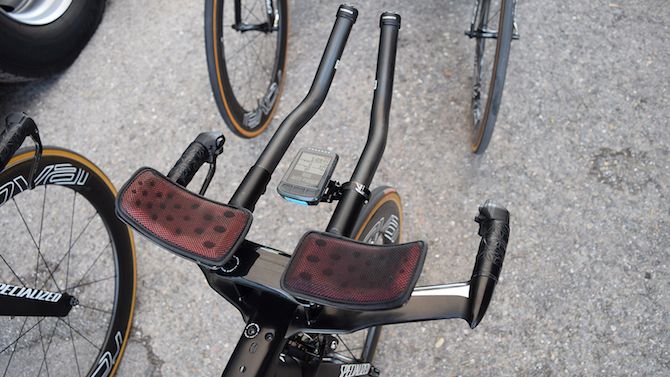

Sagan's cockpit from above

Sagan's cockpit from above
(Image credit: Josh Evans / Immediate Media)
Image 9 of 22

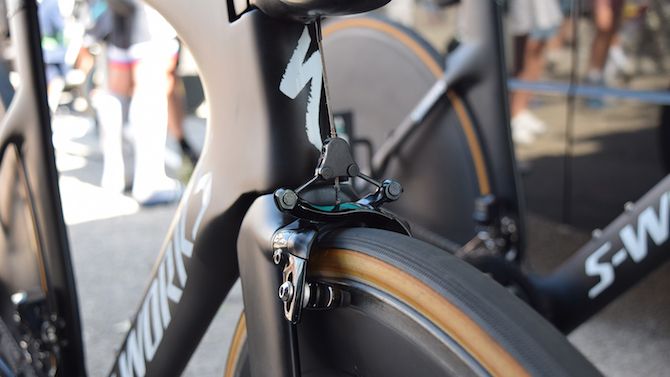

The S-Works Shiv TT features a centre-pull, direct-mount front brake

The S-Works Shiv TT features a centre-pull, direct-mount front brake
(Image credit: Josh Evans / Immediate Media)
Image 10 of 22

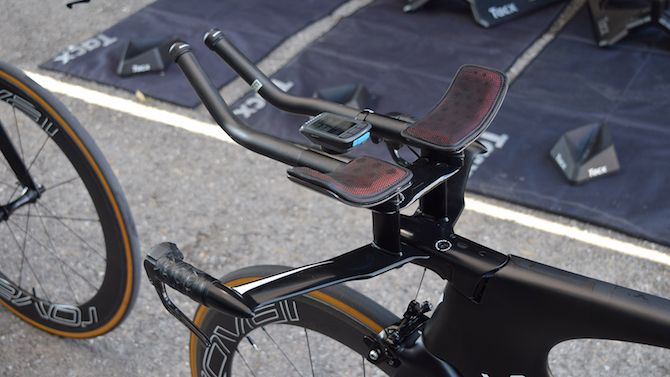

Sagan chooses not to have any handlebar tape or grip tape on his handlebar extensions

Sagan chooses not to have any handlebar tape or grip tape on his handlebar extensions
(Image credit: Josh Evans / Immediate Media)
Image 11 of 22

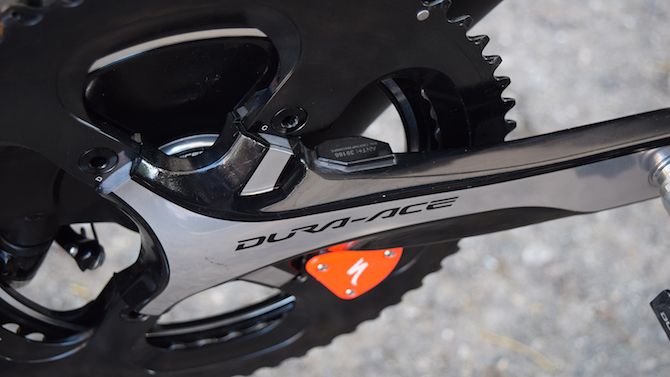

A close up look at the Specialized power meter. A few other pro bikes have also been seen with a fluoro orange hardware cover

A close up look at the Specialized power meter. A few other pro bikes have also been seen with a fluoro orange hardware cover
(Image credit: Josh Evans / Immediate Media)
Image 12 of 22

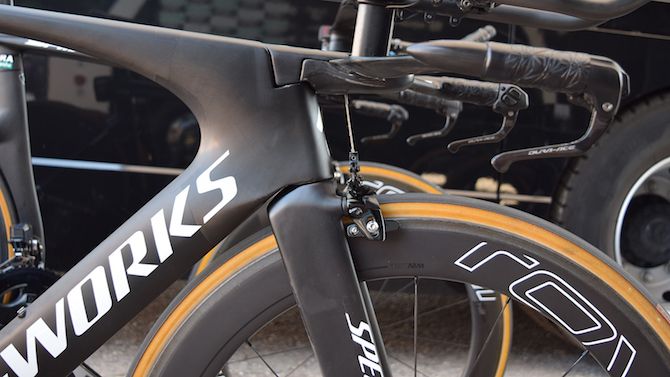

The S-Works Shiv features an integrated stem that conceals any cabling

The S-Works Shiv features an integrated stem that conceals any cabling
(Image credit: Josh Evans / Immediate Media)
Image 13 of 22

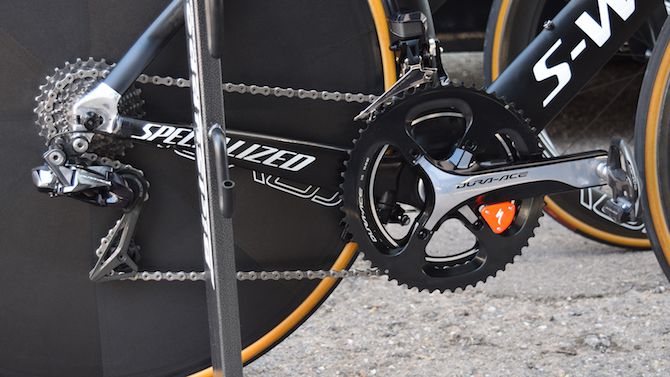

The bike's drivetrain uses a mix of Shimano Dura-Ace 9000 and R9100 series components

The bike's drivetrain uses a mix of Shimano Dura-Ace 9000 and R9100 series components
(Image credit: Josh Evans / Immediate Media)
Image 14 of 22

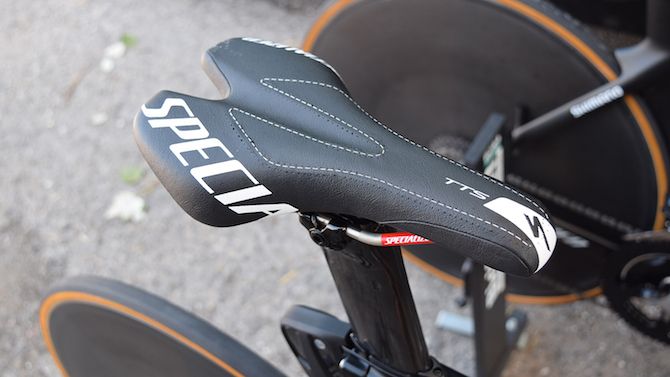

Sagan runs a Specialized TTS saddle on the time trial-specific bike

Sagan runs a Specialized TTS saddle on the time trial-specific bike
(Image credit: Josh Evans / Immediate Media)
Image 15 of 22

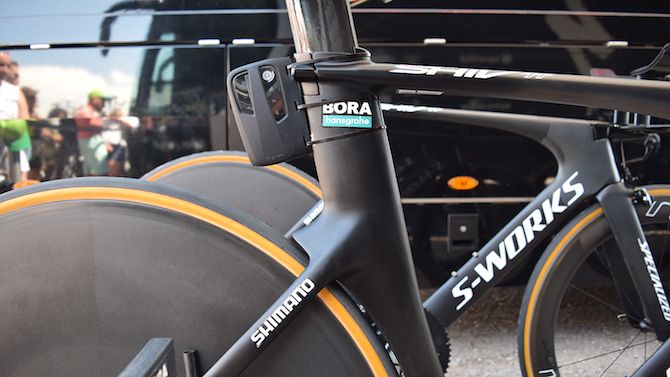

More and more races are offering live data-tracking for riders, mainly through Velon

More and more races are offering live data-tracking for riders, mainly through Velon
(Image credit: Josh Evans / Immediate Media)
Image 16 of 22

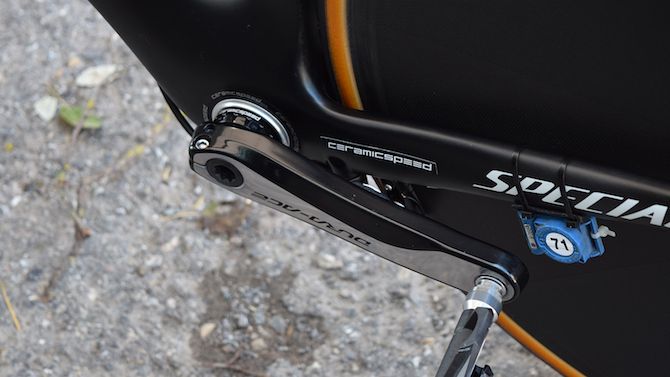

Ceramic bearings specialists CeramicSpeed provide bearings upgrades for Bora-Hansgrohe's bottom bracket, wheels and headsets

Ceramic bearings specialists CeramicSpeed provide bearings upgrades for Bora-Hansgrohe's bottom bracket, wheels and headsets
(Image credit: Josh Evans / Immediate Media)
Image 17 of 22

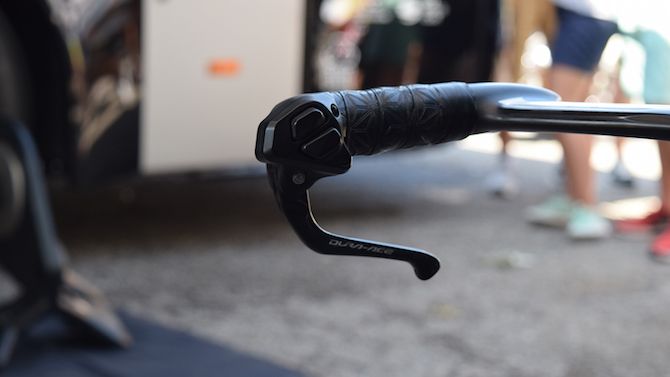

Di2 gear-change buttons are located on the inside of the gear/brake shifters on the base bars

Di2 gear-change buttons are located on the inside of the gear/brake shifters on the base bars
(Image credit: Josh Evans / Immediate Media)
Image 18 of 22

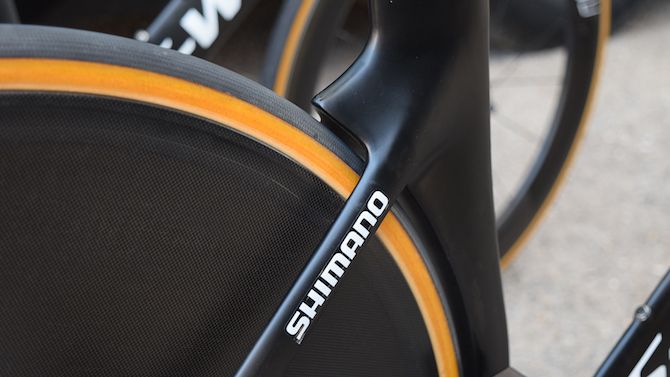

The Shiv's seat tube hugs the shape of the rear wheel to reduce wind turbulance

The Shiv's seat tube hugs the shape of the rear wheel to reduce wind turbulance
(Image credit: Josh Evans / Immediate Media)
Image 19 of 22

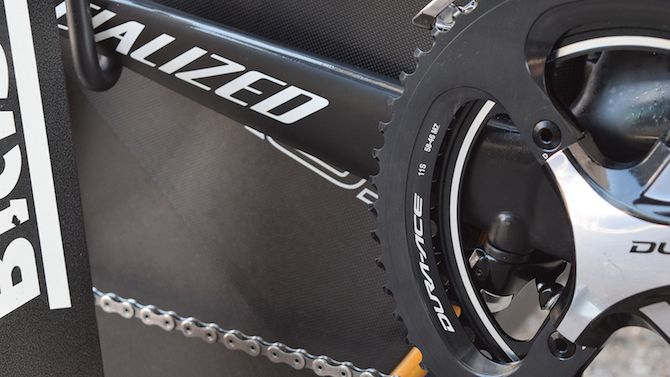

Sagan opted for a whopping 58t outer chainring for the team time trial at the Tour de Suisse

Sagan opted for a whopping 58t outer chainring for the team time trial at the Tour de Suisse
(Image credit: Josh Evans / Immediate Media)
Image 20 of 22

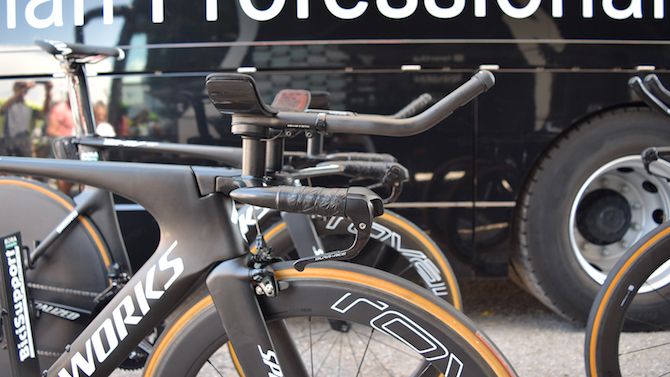

Sagan runs a fairly standard cockpit set-up

Sagan runs a fairly standard cockpit set-up
(Image credit: Josh Evans / Immediate Media)
Image 21 of 22

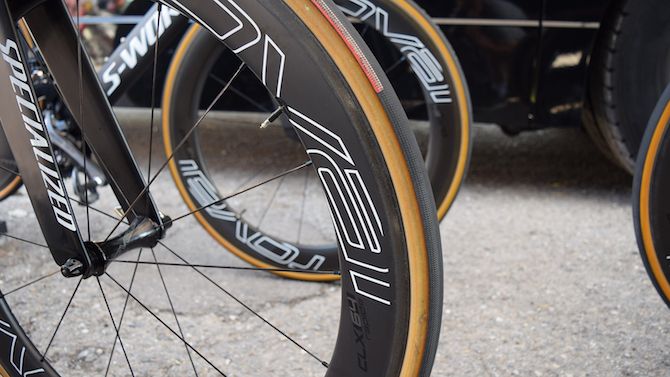

Bora-Hansgrohe use the same S-Works Turbo tyres on their time trial bikes as they do on the road

Bora-Hansgrohe use the same S-Works Turbo tyres on their time trial bikes as they do on the road
(Image credit: Josh Evans / Immediate Media)
Image 22 of 22

Peter Sagan of Slovakia and Team Bora - Hansgrohe in the Black Points Jersey

Peter Sagan of Slovakia and Team Bora - Hansgrohe in the Black Points Jersey
(Image credit: Getty Images)

Despite more than 100 victories for Peter Sagan (Bora-Hansgrohe), the Slovakian's time trial victories are few and far between.

The three-time road world champion's last time trial victory was back in 2015, when he won the Slovakian time trial national championships. But with an eye on a stint in the yellow jersey at this year's Tour de France, Sagan will need to put in a strong performance on the stage 3 team time trial of the race to stay in contention for the race lead during the opening stages of the race – assuming he doesn't take yellow in either of the opening two stages.

Sagan's unpainted S-Works Shiv TT uses the same mix of Specialized, Shimano and Roval components as the Bora-Hansgrohe road bikes.

While the majority of the drivetrain and shifting comes courtesy of Shimano Dura-Ace R9150 components, Sagan's cranks are an older Dura-Ace 9000 series model, equipped with Specialized's power meter, which was released earlier this year.

Paired with the cranks are a massive duo of 58/46 professional-only-issue chainrings, which he used for the relatively flat but fast team time trial course at the Tour de Suisse, and it is likely Sagan will run a similar set-up on the Tour's team time trial on stage 3.

Sagan's Bora-Hansgrohe team uses wheels from Specialized's sister-brand Roval, opting for a CLX 64 front wheel and the new 321 Disc rear wheel.

Click or swipe through the gallery above for a closer look at Peter Sagan's time trial set-up.

Full specification

Frame: Specialized S-Works Shiv TT
Fork: Specialized Shiv FACT Carbon, full monocoque

Front brake: Specialized Shiv
Rear brake: Specialized Shiv
Brake/shift levers: Shimano Dura-Ace R9180
Front derailleur: Shimano Dura-Ace R9150
Rear derailleur: Shimano Dura-Ace R9150
Cassette: Shimano Dura-Ace R9100
Chain: Shimano Dura-Ace R9100
Crankset: Shimano Dura-Ace 9000 series cranks with Specialized power meter, 58/46 chainrings
Bottom bracket: CeramicSpeed
Rear wheel: Roval 321 Disc
Front wheel: Roval CLX 64
Tyres: Specialized S-Works Turbo
Handlebars: Specialized carbon aero bar
Stem: S-Works Shiv aero stem
Pedals: Shimano Dura-Ace 9000
Saddle: Specialized TTS
Seat post: Specialized Shiv
Bottle cages: N/A
Computer: Wahoo Elemnt Bolt
Other accessories: K-Edge computer mount
