On show: Interbike 2009 Part 5

Image 1 of 20

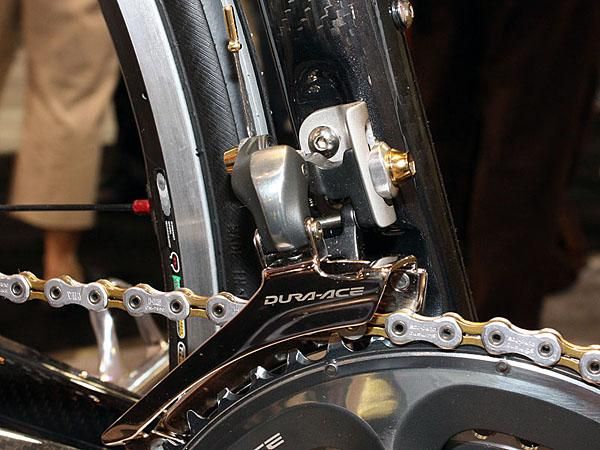

The Yumeya treatment now gets a Dura-Ace version complete with a gold-finish chain and hardware.

The Yumeya treatment now gets a Dura-Ace version complete with a gold-finish chain and hardware. (Image credit: Emily Wren/www.emilywren.com)
Image 2 of 20

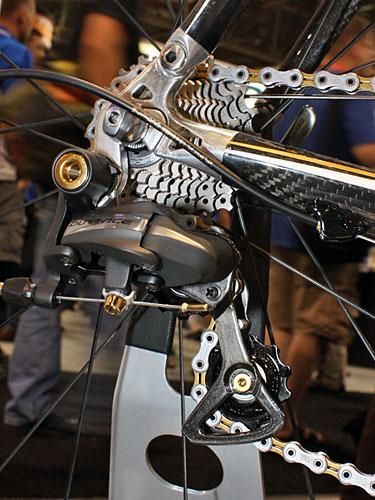

Gold-anodized Yumeya bits are available for the rear derailleur, too.

Gold-anodized Yumeya bits are available for the rear derailleur, too. (Image credit: Emily Wren/www.emilywren.com)
Image 3 of 20

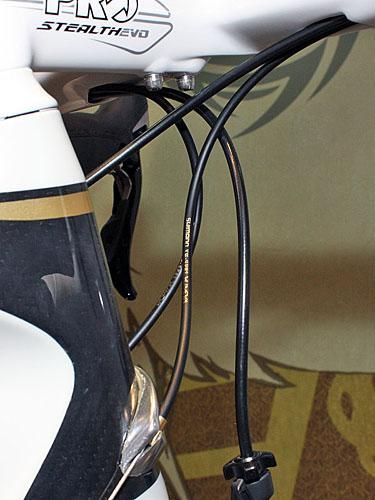

Aluminum wires inside the housings make the Yumeya housings a bit lighter than the stock Dura-Ace pieces.

Aluminum wires inside the housings make the Yumeya housings a bit lighter than the stock Dura-Ace pieces. (Image credit: Emily Wren/www.emilywren.com)
Image 4 of 20

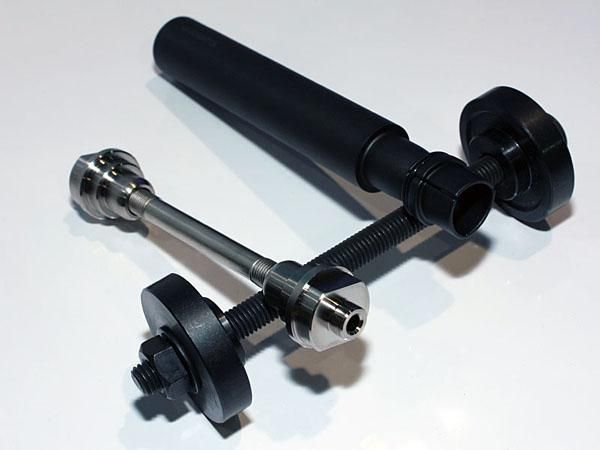

Shimano now supplements its press-fit bottom bracket offerings with corresponding tools for installation and removal. Likewise, there's a truing adapter for 15mm thru-axle hubs and wheels, too.

Shimano now supplements its press-fit bottom bracket offerings with corresponding tools for installation and removal. Likewise, there's a truing adapter for 15mm thru-axle hubs and wheels, too. (Image credit: Emily Wren/www.emilywren.com)
Image 5 of 20

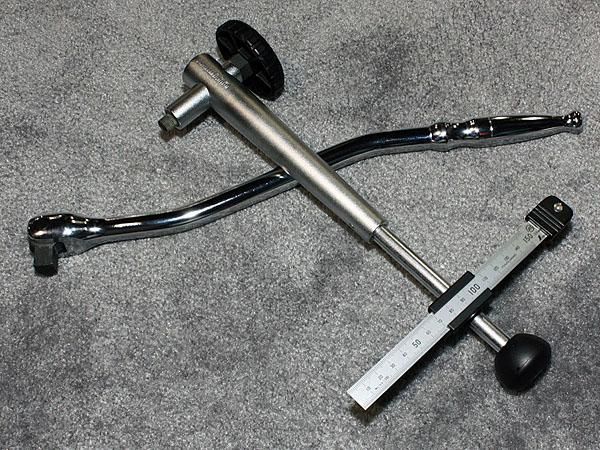

The revised derailleur hanger tool is easier to use than before while a new breaker bar should help put an end to pesky seized bottom bracket cups.

The revised derailleur hanger tool is easier to use than before while a new breaker bar should help put an end to pesky seized bottom bracket cups. (Image credit: Emily Wren/www.emilywren.com)
Image 6 of 20

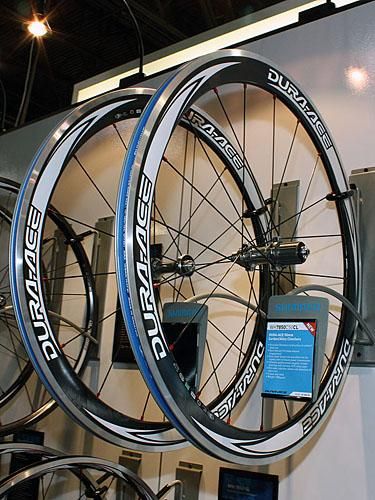

The workhorse Dura-Ace WH-7850-C50-CL carbon clinchers come back for '10 with a new welded and machined aluminum extrusion.

The workhorse Dura-Ace WH-7850-C50-CL carbon clinchers come back for '10 with a new welded and machined aluminum extrusion. (Image credit: Emily Wren/www.emilywren.com)
Image 7 of 20

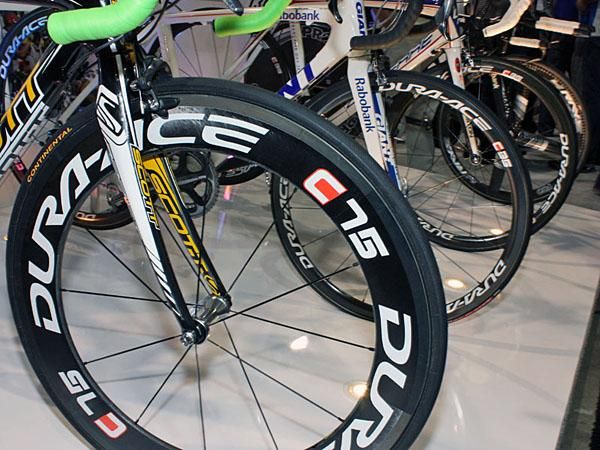

The 35mm and 75mm-deep Dura-Ace carbon tubulars we've seen on team bikes this year are still in the development phase but we'd expect to see them added to the production lineup for '11 at the latest.

The 35mm and 75mm-deep Dura-Ace carbon tubulars we've seen on team bikes this year are still in the development phase but we'd expect to see them added to the production lineup for '11 at the latest. (Image credit: Emily Wren/www.emilywren.com)
Image 8 of 20

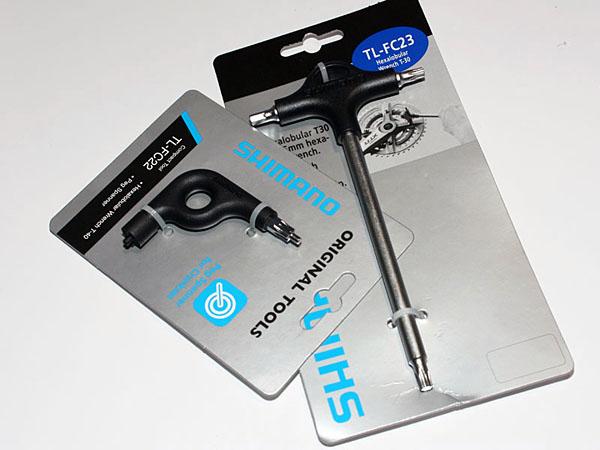

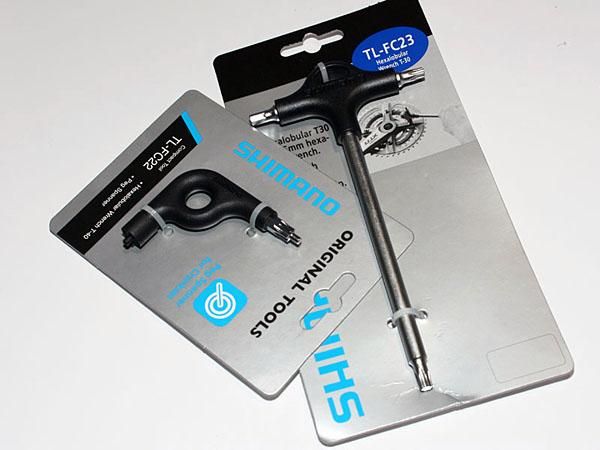

New chainring tools include hex, Torx and two-pin ends for use on most of Shimano's newer cranksets.

New chainring tools include hex, Torx and two-pin ends for use on most of Shimano's newer cranksets. (Image credit: Emily Wren/www.emilywren.com)
Image 9 of 20

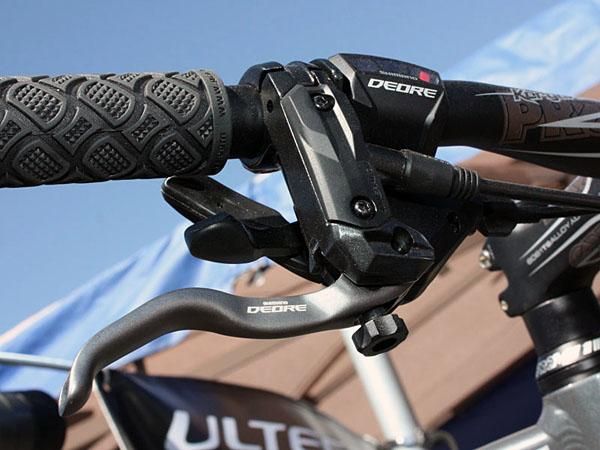

The new Deore brake lever features a radial master cylinder and tool-free reach adjust.

The new Deore brake lever features a radial master cylinder and tool-free reach adjust. (Image credit: Emily Wren/www.emilywren.com)
Image 10 of 20

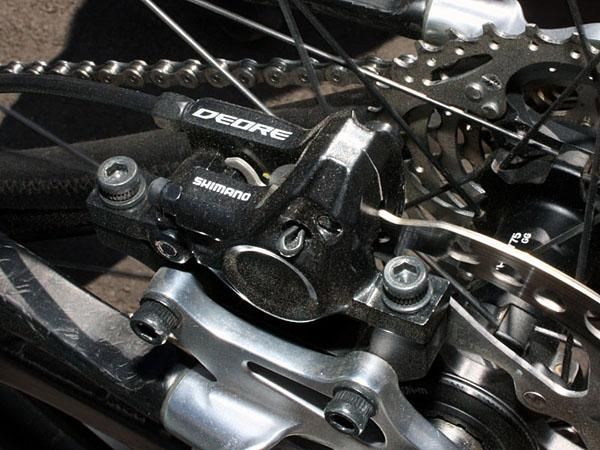

The twin-piston aluminum caliper uses two-piece construction.

The twin-piston aluminum caliper uses two-piece construction. (Image credit: Emily Wren/www.emilywren.com)
Image 11 of 20

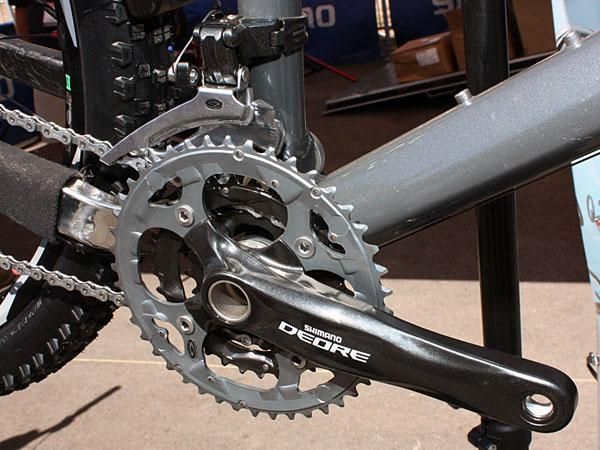

The new crankarms are solid-forged with an integrated spider.

The new crankarms are solid-forged with an integrated spider. (Image credit: Emily Wren/www.emilywren.com)
Image 12 of 20

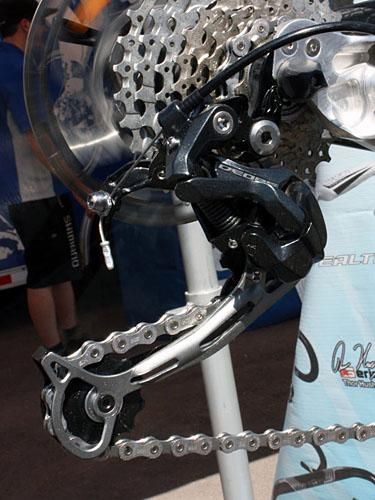

The Shadow-style Deore rear derailleur should add some protection against rock impacts.

The Shadow-style Deore rear derailleur should add some protection against rock impacts. (Image credit: Emily Wren/www.emilywren.com)
Image 13 of 20

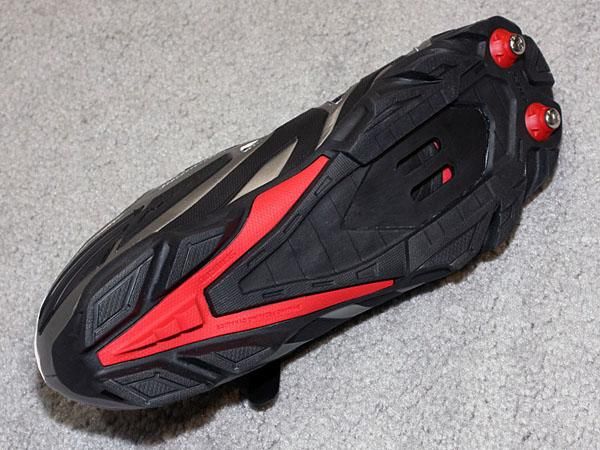

The fully rubber-coated outsole should provide ample traction either on the ground or if you miss a pedal.

The fully rubber-coated outsole should provide ample traction either on the ground or if you miss a pedal. (Image credit: Emily Wren/www.emilywren.com)
Image 14 of 20

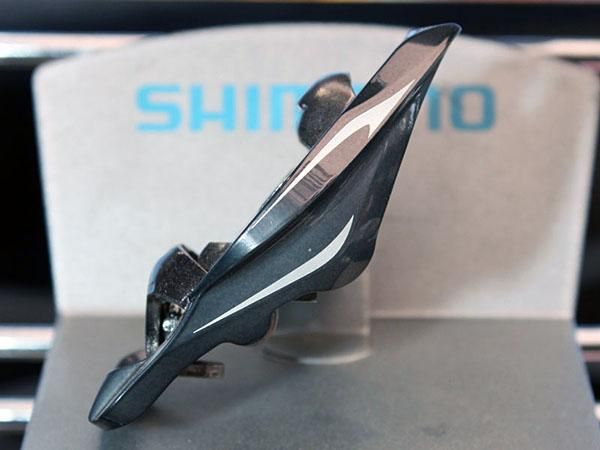

The low-profile aluminum body looks to have plenty of cornering clearance.

The low-profile aluminum body looks to have plenty of cornering clearance. (Image credit: Emily Wren/www.emilywren.com)
Image 15 of 20

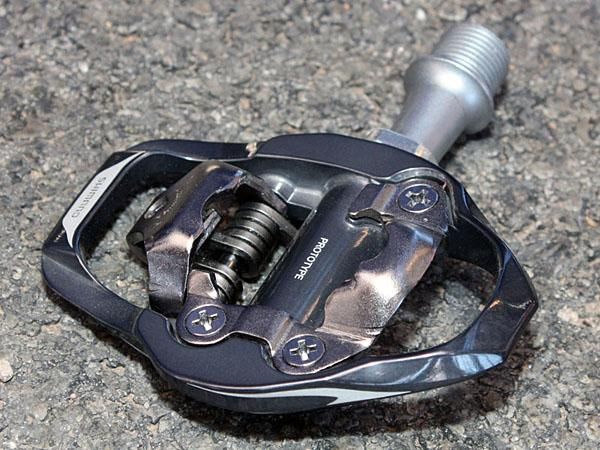

Shimano introduces a new PD-A600 single-sided Ultegra-level SPD pedal for '10 complete with a wide, supportive body and light 285g/pair weight.

Shimano introduces a new PD-A600 single-sided Ultegra-level SPD pedal for '10 complete with a wide, supportive body and light 285g/pair weight. (Image credit: Emily Wren/www.emilywren.com)
Image 16 of 20

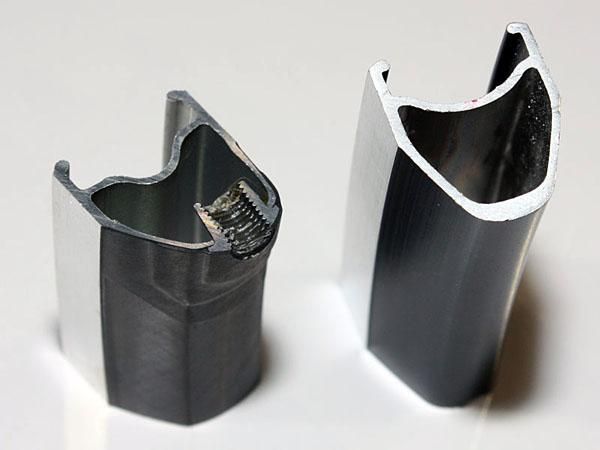

The Dura-Ace carbon-and-aluminum clincher rims (left) use a thin-walled aluminum extrusion plus layers of reinforcing carbon fibre.

The Dura-Ace carbon-and-aluminum clincher rims (left) use a thin-walled aluminum extrusion plus layers of reinforcing carbon fibre. (Image credit: Emily Wren/www.emilywren.com)
Image 17 of 20

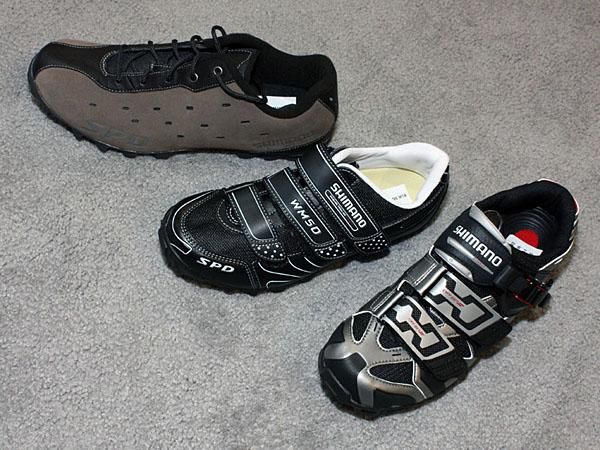

New for '10 from Shimano are updated casual SPD-compatible shoes, additional women's model, plus a mid-range M160 mountain bike shoe for general trail riders looking for a high-value option.

New for '10 from Shimano are updated casual SPD-compatible shoes, additional women's model, plus a mid-range M160 mountain bike shoe for general trail riders looking for a high-value option. (Image credit: Emily Wren/www.emilywren.com)
Image 18 of 20

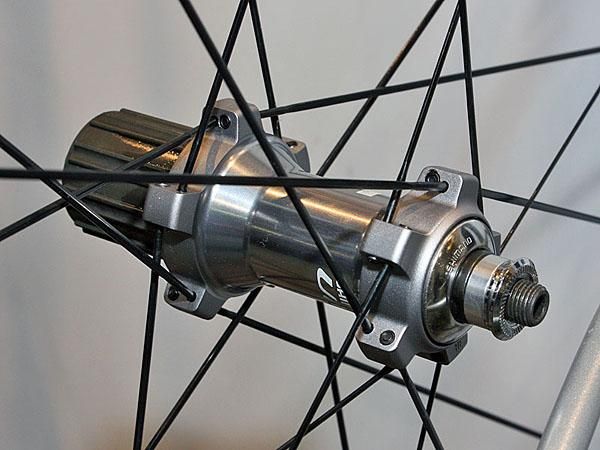

The Ultegra hub will use a steel freehub body instead of the titanium one of Dura-Ace. Bearings are still loose packed, adjustable, and angular contact for high lateral load capacity and easy servicing.

The Ultegra hub will use a steel freehub body instead of the titanium one of Dura-Ace. Bearings are still loose packed, adjustable, and angular contact for high lateral load capacity and easy servicing. (Image credit: Emily Wren/www.emilywren.com)
Image 19 of 20

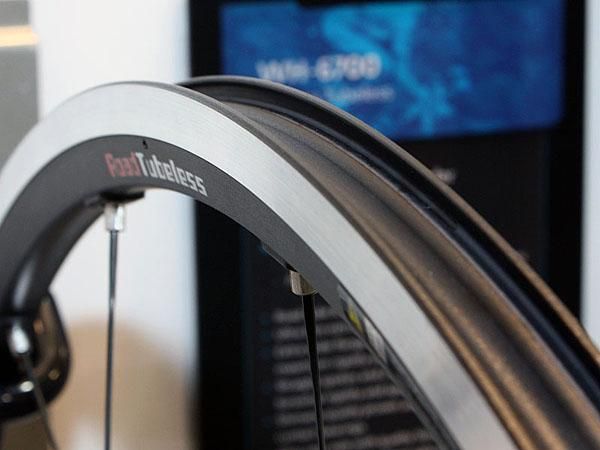

The solid outer rim wall of the new Ultegra wheels make for easy tubeless compatibility.

The solid outer rim wall of the new Ultegra wheels make for easy tubeless compatibility. (Image credit: Emily Wren/www.emilywren.com)
Image 20 of 20

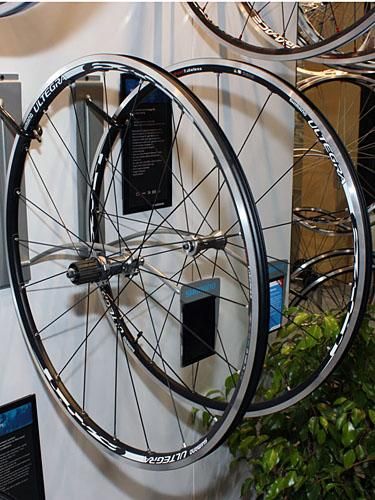

Shimano adds an Ultegra-level Road Tubeless-compatible wheel to the lineup for 2010.

Shimano adds an Ultegra-level Road Tubeless-compatible wheel to the lineup for 2010. (Image credit: Emily Wren/www.emilywren.com)

Shimano's new M160 mountain bike shoe aims at core users with its reasonable US$150 price tag and plentiful helping of trickle-down features.

Though there are no heat moldable panels as on the more premium models, the M160 upper still boasts Shimano's proven ratcheting main strap (with ample padding and a two-position buckle), offset forefoot straps for a secure, pressure point-free fit, and generous helpings of mesh for ventilation.

In addition, the interior of the shoe sports a surprisingly stout dual-material insole for more arch support and the entire reinforced nylon outsole is rubber coated for secure footing on tricky terrain.

Also on hand is the new SH-WM50 women's-specific mountain bike shoe with an understated black finish, a traditional three-strap upper, a reinforced nylon sole and a narrower heel and lower-volume last for a proper fit.

Matching up to either shoe - or any SPD-compatible shoe for that matter - is Shimano's new PD-A600 pedal. The single-sided SPD falls roughly at the Ultegra level with a wide aluminum body to prevent rocking, an adjustable chromoly cartridge-type spindle for longevity, and a mechanism borrowed from Shimano's XT model. Actual weight is 285g per pair and though it's likely best suited for the road, Shimano says some of its testers have been successfully running them on 'cross bikes, too.

Road Tubeless fans will be happy to note the arrival of a compatible Ultegra-level wheel for 2010. The new WH-6700 will retail for a reasonable US$649.99 yet a pair is still just 1,492g - only about 120g heavier than the much pricier Dura-Ace version. According to Shimano, the WH6700 even uses the same extrusion as Dura-Ace - only in aluminum, not scandium - and uses the same clever brazed-on spoke nipple anchors that leave a solid outer rim wall, too.

On the Dura-Ace side, Shimano has also brought back the 50mm-deep WH-7850-C50-CL carbon clinchers for riders that want something reasonably aerodynamic but also with the predictable braking surface and easy maintenance of aluminum. Suggested retail price is US$1,899.99 and claimed weight is 1,580g for the pair.

Sadly though, Shimano isn't yet ready to release the all-carbon C75 and C35 Dura-Ace carbon tubulars we've seen on team bikes all year, nor the carbon Dura-Ace SPD-SL pedals. According to Shimano press officer Devin Walton, all of those items are still in the final testing phases, meaning we'll likely see them available in 2011.

What you can get right now, though, are Shimano's new tools, including a very handy looking chainring wrench with a T-40 Torx bit on one end and a two-pin spanner on the other, a beefier three-way hex-and-Torx wrench for particularly stubborn bolts, an updated derailleur alignment gauge, and pressers and pullers for the new press-fit bottom bracket cups.

In addition, there's also a truing adapter for 15mm thru-axle front hubs and wheels and an especially burly breaker bar - complete with a cleverly offset handle, pivoting head and highly polished finish.

Also coming soon is a Dura-Ace version of Shimano ultra-premium Yumeya hop-up kit with gold-anodized hardware and aluminum-core housings plus an all-new Deore mountain bike group, complete with a low-profile Shadow rear derailleur and new hydraulic disc brakes with a radial master cylinder and tool-free reach adjustment.
