Ag2r-La Mondiale's Kuota Kalibur time trial bike. (Image credit: Jonny Irick)
Image 2 of 89
Tidy internal cable routing on Liquigas-Cannondale's Cannondale Slice time trial bikes. (Image credit: Jonny Irick)
Image 3 of 89
Omega Pharma-QuickStep rider Bert Grabsch prefers an extra-low handlebar position so Specialized had to make a special batch just for him. (Image credit: Jonny Irick)
Image 4 of 89
Tony Martin's (Omega Pharma-QuickStep) bars look to be particularly grippy. (Image credit: Jonny Irick)
Image 5 of 89
Tony Martin's (Omega Pharma-QuickStep) Specialized S-Works Shiv sits on the work stand a few hours before his start in the 2012 Tour de France prologue. (Image credit: Jonny Irick)
Image 6 of 89
The threaded bit on the bottom of Tony Martin's (Omega Pharma-QuickStep) Specialized S-Works Shiv stem acts as a barrel adjuster, pushing a piece of housing that's embedded inside. (Image credit: Jonny Irick)
Image 7 of 89
Tony Martin (Omega Pharma-QuickStep) had a fleet of Zipp aero clincher wheels at his disposal for the prologue, including these carbon-rimmed flat clincher discs - which aren't even listed on Zipp's web site. (Image credit: Jonny Irick)
Image 8 of 89
A digital clock lets all of the Rabobank riders keep track of time while warming up. (Image credit: Jonny Irick)
Image 9 of 89
Rabobank brought its own misting machine to help keep riders from overheating during warm-up. (Image credit: Jonny Irick)
Image 10 of 89
Rabobank's Giant Trinity Advanced SL handlebars debuted four years ago but they still look modern. (Image credit: Jonny Irick)
Image 11 of 89
Giant's rear-mounted front brake was a novel idea when they were introduced but we expect the next generation to be better integrated. (Image credit: Jonny Irick)
Image 12 of 89
Team Movistar's Pinarello Graal time trial bike. (Image credit: Jonny Irick)
Image 13 of 89
Lotto-Belisol's Deda Elementi time trial cockpits. (Image credit: Jonny Irick)
Image 14 of 89
Vincenzo Nibali's (Liquigas-Cannondale) Cannondale Slice had a standard Mavic Cosmic Carbone 80 front wheel fitted instead of the newer Cosmic CXR 80. (Image credit: Jonny Irick)
Image 15 of 89
Lotto-Belisol's Andre Greipel sported the new Campagnolo Bora Ultra aero cranks on his Ridley Dean. (Image credit: Jonny Irick)
Image 16 of 89
The non-driveside Campagnolo Bora Ultra aero crankarm is notably deep. (Image credit: Jonny Irick)
Image 17 of 89
Lotto-Belisol captain Jurgen van den Broeck had a new Campagnolo disc wheel fitted to his Ridley Dean today. We don't have specific details on it at the moment but the full carbon construction is certainly lighter than the antiquated model Campagnolo currently offers and the freehub body is finally properly sized for an 11-speed cassette. (Image credit: Jonny Irick)
Image 18 of 89
The split-blade fork on Lotto-Belisol's Ridley Dean time trial bikes is said to pull air out away from the wheel. (Image credit: Jonny Irick)
Image 19 of 89
Lotto-Belisol's Ridley Dean time trial bike. (Image credit: Jonny Irick)
Image 20 of 89
Lotto-Belisol riders were using a new Lazer time trial helmet during today's prologue. In keeping with current trends, there are no forward-facing vents at all (likely for better aerodynamics). Two lateral ridges on the top are presumably there based on wind tunnel testing. (Image credit: Jonny Irick)
Image 21 of 89
Campagnolo's new EPS time trial shifters were installed on the Lotto-Belisol team bikes. (Image credit: Jonny Irick)
Image 22 of 89
The UCI has apparently taken issue with this sort of tape. (Image credit: Jonny Irick)
Image 23 of 89
Rabobank's Giant Trinity Advanced SL time trial bike. (Image credit: Jonny Irick)
Image 24 of 89
Saddles took a slight tilt upward on many bikes to help riders maintain their positions while tucked. The UCI recently decided that add-on friction material wasn't allowed unless it was built into the saddle. (Image credit: Jonny Irick)
Image 25 of 89
Saur-Sojasun mechanics resorted to lots of electrical tape and zip-ties for this SRM PowerControl 7 computer head. (Image credit: Jonny Irick)
Image 26 of 89
The Look Ergostem on this Saur-Sojasun time trial bike was noticeably unlabeled. The team's bike sponsor is Time. (Image credit: Jonny Irick)
Image 27 of 89
Panaracer tubulars on the Saur-Sojasun time trial bikes. (Image credit: Jonny Irick)
Image 28 of 89
The paint job on this Saur-Sojasun time trial bike was so convincing that we didn't even notice at first that it's actually a Trek Speed Concept, not a Time RXR. Saur-Sojasun had at least two of them in its pit area today. (Image credit: Jonny Irick)
Image 29 of 89
Several Saxo Bank-Tinkoff Bank Specialized S-Works Shiv time trial bikes had down tube water bottle holes that were never drilled through. (Image credit: Jonny Irick)
Image 30 of 89
Saxo Bank-Tinkoff Bank's Specialized S-Works Shiv time trial bike. (Image credit: Jonny Irick)
Image 31 of 89
Castelli's Steve Smith checks in on the Saxo Bank-Tinkoff Bank's new skinsuits. (Image credit: Jonny Irick)
Image 32 of 89
The handlebar setup of Vacansoleil-DCM's Bianchi Pico Carbon time trial bikes. (Image credit: Jonny Irick)
Image 33 of 89
Bianchi claims the chain stay port on Vacansoleil-DCM's Pico Carbon time trial bikes improves stiffness. (Image credit: Jonny Irick)
Image 34 of 89
It's funny how things that were once touted as aero are looking downright dated today. (Image credit: Jonny Irick)
Image 35 of 89
Saur-Sojasun riders were mostly aboard the Time RXR for Saturday's prologue. (Image credit: Jonny Irick)
Image 36 of 89
This Rabobank rear wheel was unlabeled but it looks like a HED disc to us. (Image credit: Jonny Irick)
Image 37 of 89
There's a lot going on around the bottom bracket of Radioshack-Nissan's Trek Speed Concept time trial bikes, including a battery mount, hidden rear brake, and a wireless speed and cadence sensor. (Image credit: Jonny Irick)
Image 38 of 89
This giant decal covers up the carbon 'spokes' of a Lightweight disc wheel. (Image credit: Jonny Irick)
Image 39 of 89
The ultra-clean front end of Radioshack-Nissan's Trek Speed Concept. (Image credit: Jonny Irick)
Image 40 of 89
Fabian Cancellara (Radioshack-Nissan) rode a Trek Speed Concept similar to this one to a victory in today's prologue. (Image credit: Jonny Irick)
Image 41 of 89
The distinctly squared-off trailing edges of Radioshack-Nissan's Trek Speed Concept time trial bike. (Image credit: Jonny Irick)
Image 42 of 89
Radioshack-Nissan runs seatposts that are slightly shallower than what's sold on consumer bikes. (Image credit: Jonny Irick)
Image 43 of 89
The UCI doesn't allow Radioshack-Nissan to run the rear cover on the Speed Concept (saying it's a fairing) so team bikes make do with slightly exposed cabling. (Image credit: Jonny Irick)
Image 44 of 89
Saur-Sojasun's Vision time trial bars. (Image credit: Jonny Irick)
The seat stays of the Cannondale Slice hug the rear wheel until just above the dropouts while the chain stays and noticeably angled top-to-bottom. (Image credit: Jonny Irick)
Image 47 of 89

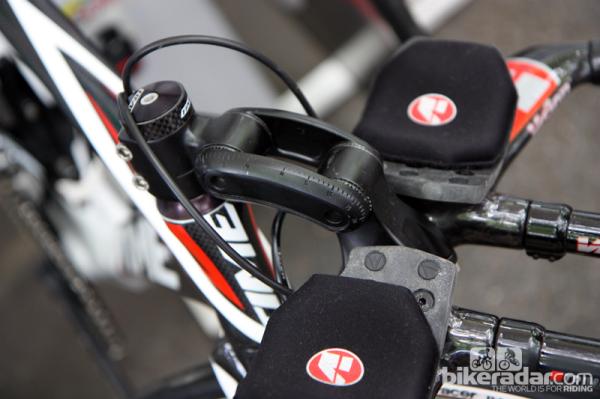

This Ag2r-La Mondiale rider needs a hinged stem to get low enough on his Kuota Kalibur time trial machine. (Image credit: Jonny Irick)
Image 48 of 89
2011 Tour de France winner Cadel Evans (BMC) runs an ultra-low handlebar position on his time trial bike. (Image credit: Jonny Irick)
Image 49 of 89
BMC's TimeMachine TM01 time trial bikes enjoy a bake in the sun before the start of the 2012 Tour de France prologue. (Image credit: Jonny Irick)
Image 50 of 89

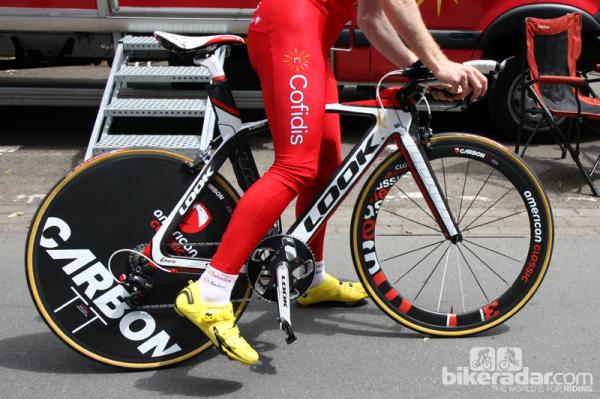

The Look 596 of French team Cofidis. (Image credit: Jonny Irick)
The UCI has recently decreed that stick-on grip tape isn't allowed. We saw lots of upturned saddles and saddles with residual adhesive from patches that had been hastily removed. (Image credit: Jonny Irick)
Image 53 of 89
Europcar's riders used a mix of the new Colnago K.Zero and old Flight time trial bikes for Saturday's prologue. (Image credit: Jonny Irick)
Image 54 of 89
The new Colnago K.Zero of team Europcar features integrated brakes front and rear. (Image credit: Jonny Irick)
Image 55 of 89
The integrated rear brakes allow for a sleek seat stay setup on Europcar's new Colnago K.Zeros. (Image credit: Jonny Irick)
Vittoria Corsa EVO SC tubular tires for Marcel Kittel's (Argos-Shimano) Felt DA. (Image credit: Jonny Irick)
Image 58 of 89

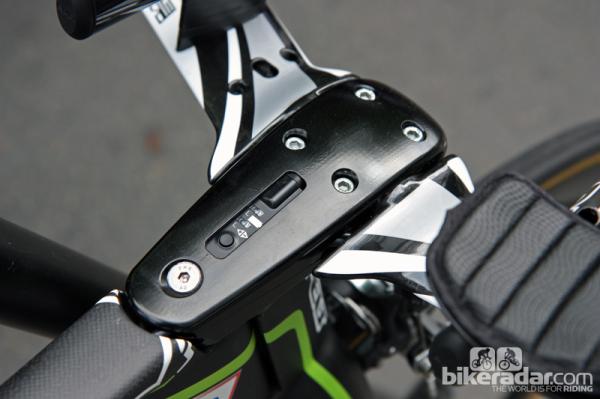

The aluminum stem on Argos-Shimano's Felt DA time trial bikes features a cutout for the Shimano Dura-Ace Di2 control box. (Image credit: Jonny Irick)
Image 59 of 89
Ag2r-La Mondiale riders used Reynolds' ultralight RZR 92 wheelsets for the opening prologue. (Image credit: Jonny Irick)
Image 60 of 89
Sleek PRO Missile Evo integrated aero bars on the front end of Marcel Kittel's (Argos-Shimano) Felt DA. (Image credit: Jonny Irick)
Image 61 of 89

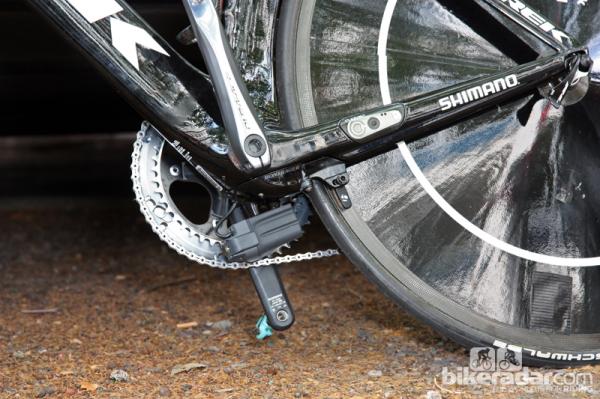

Felt builds a battery mount into the bottom of the down tube on Argos-Shimano's DA time trial bikes but the team puts them up behind the seatpost. (Image credit: Jonny Irick)
Image 62 of 89
Shimano Di2-equipped teams ran a wide range of battery mounts. Argos-Shimano places them behind the seatpost but others put them beneath the down tube, underneath the chain stay, or inside the frame. (Image credit: Jonny Irick)
Image 63 of 89
The integrated rear brake on Argos-Shimano's Felt DA. (Image credit: Jonny Irick)
Image 64 of 89
Marcel Kittel's (Argos-Shimano) Felt DA before the prologue of the 2012 Tour de France. (Image credit: Jonny Irick)
Image 65 of 89
Marcel Kittel (Argos-Shimano) runs a clipped Selle Italia SLR Team Edition saddle on his Felt DA. (Image credit: Jonny Irick)
Image 66 of 89
The sleek seat stay-seat tube junction on Argos-Shimano's Felt DA time trial bikes. (Image credit: Jonny Irick)
Image 67 of 89
Europcar team mechanics seem to be using the trainer quick-release to both hold the bike in the trainer and the wheel in the frame - which doesn't seem like a good idea to us. (Image credit: Jonny Irick)
Image 68 of 89

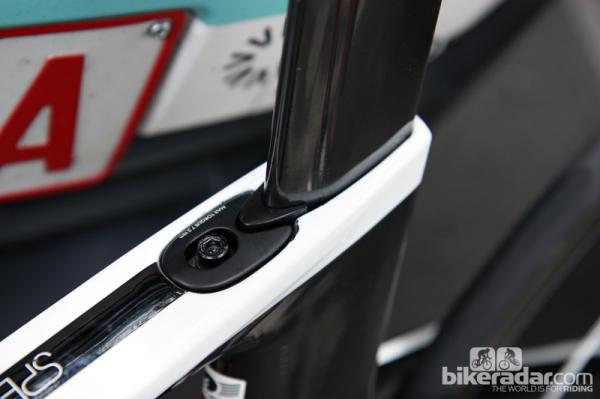

The seatpost clamp on Europcar's new Colnago K.Zero time trial frames comprises just a slight bump to the top tube section. (Image credit: Jonny Irick)
Image 69 of 89
Integrated brakes front and rear on the Wilier Triestina TwinFoil leave the seat stays nice and clean. (Image credit: Jonny Irick)
Image 70 of 89
Vision carbon fiber aero bars on the front end of Vincenzo Nibali's (Liquigas-Cannondale) Cannondale Slice. (Image credit: Jonny Irick)
Image 71 of 89
The integrated brakes on Liquigas-Cannondale's Cannondale Slice time trial bikes are essentially just mini V-brakes. (Image credit: Jonny Irick)
Image 72 of 89
The integrated rear brake on the Liquigas-Cannondale Cannondale Slice time trial bike fits neatly underneath the chain stays. (Image credit: Jonny Irick)
Image 73 of 89
Campagnolo marketing and communications director Lorenzo Taxis (left) and company president Valentino Campagnolo pay a visit to their old friends at Liquigas-Cannondale. (Image credit: Jonny Irick)
Image 74 of 89
Cannondale's Si Aero crankset features a solid chainring spider whose shape flows cleanly around the crankarm. (Image credit: Jonny Irick)
Image 75 of 89
The fork on Liquigas-Cannondale's Cannondale Slice features an external steerer and an integrated front brake. (Image credit: Jonny Irick)
Vincenzo Nibali's (Liquigas-Cannondale) Cannondale Slice is still fitted with previous-generation SRAM Red. (Image credit: Jonny Irick)
Image 78 of 89
Lampre-ISD's Wilier Triestina TwinFoil time trial bikes are certainly hard to miss what with their incredibly loud paint jobs. (Image credit: Jonny Irick)
Image 79 of 89
The unique split fork of Lampre-ISD's Wilier Triestina TwinFoil time trial bikes. (Image credit: Jonny Irick)
Image 80 of 89
The integrated brake gives the new Colnago K.Zero bikes of team Europcar a sleek and clean look. (Image credit: Jonny Irick)
Image 81 of 89

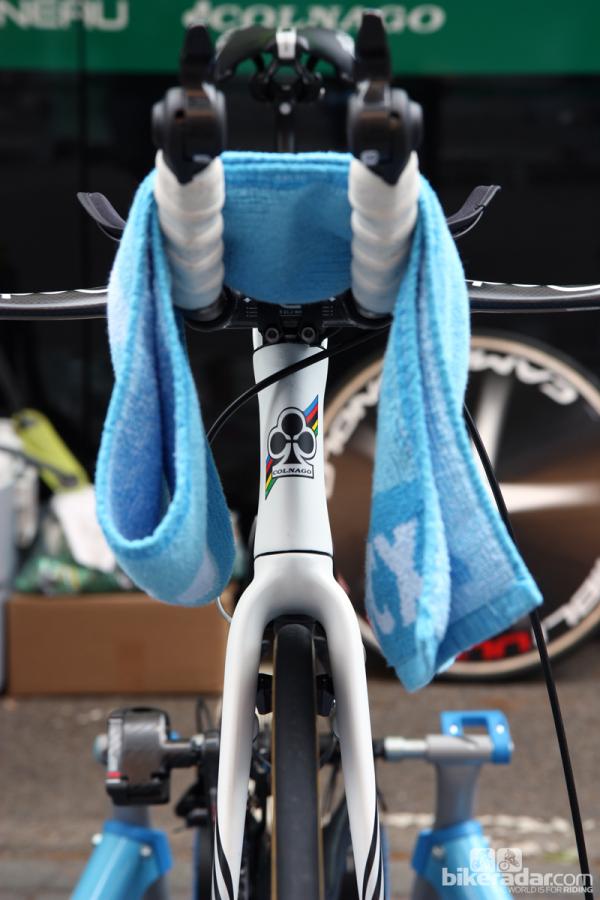

Colnago offers the new K.Zero with an integrated cockpit but Europcar bikes were equipped with Deda bars. (Image credit: Jonny Irick)
Image 82 of 89
PRO Missile Evo integrated aero bars on the front end of FDJ-BigMat's Lapierre Aerostorm time trial bikes. (Image credit: Jonny Irick)
Image 83 of 89
The Lapierre Aerostorm time trial bikes of FDJ-BigMat. (Image credit: Jonny Irick)
Image 84 of 89
Garmin-Sharp riders were almost entirely on new Cervélo P5 machines for Saturday's opening prologue. 2012 Giro d'Italia winner Ryder Hesjedal's machine is in the foreground. (Image credit: Jonny Irick)
Image 85 of 89
_V6O6764 - Abbas Saeiditanha of Azad make a break away (Image credit: Jonny Irick)
Image 86 of 89
_V6O6764 - Abbas Saeiditanha of Azad make a break away (Image credit: Jonny Irick)
Image 87 of 89
Orica-GreenEdge's Scott Plasma 3 time trial bikes before the opening prologue. (Image credit: Jonny Irick)
Image 88 of 89
The ultra-sleek Canyon Speedmax CF of Katusha rider Denis Menchov. (Image credit: Jonny Irick)
Image 89 of 89
The sculpted stays on Liquigas-Cannondale's Cannondale Slice time trial bike. (Image credit: Jonny Irick)
This year's Tour de France began with a 6.4km-long prologue around the urban streets of Liege, Belgium – a pan flat, blitzingly fast course that Fabian Cancellara (Radioshack-Nissan) completed with an average speed of 53.21km/h (33.06mph). Bike choice today was all about aerodynamics and efficiency, not weight.
Most of the gear today was rather standard stuff but a recent UCI technical ruling factored in yet again. This time around, the sport's governing body has decided that add-on friction material (i.e. grip tape) on saddles and handlebars was not permitted if it wasn't originally built into the product itself.
In other words, components with integrated friction features like TT-specific saddles from Prologo, Bontrager, and others are ok but even bicycle-specific accessories like fi'zi:k's grip strip are not. We haven't heard back from the UCI yet so how conventional bar tape fits into this scheme is currently unclear.
Riders still occasionally have a hard time maintaining their positions on the saddle, though, and now have to resort to other measures. Without the ability to increase friction, riders are now tilting the saddle noses upward slightly, maxing out the 3° variance currently allowed by the UCI.
There were a few new bits in the team pit areas, too. Lotto-Belisol captain Jurgen van den Broeck's Ridley Dean was fitted with what we're told is a new disc wheel from Campagnolo, which will likely replace the ancient Ghibli. We have no confirmed technical information at present but the full-carbon construction is guaranteed to be heaps lighter than the Ghibli with its aluminum tire bed and heavy sides. Van den Broeck's disc wheel was also equipped with an 11-speed cassette, which won't fit on a Ghibli.
Lotto-Belisol riders also sported new Lazer aero helmets for today's prologue. In keeping with recent trends, the new lid has no forward-facing vents in an effort to improve aerodynamics, plus a gigantic shield to divert air around the face. Also visible were two ridges running left-to-right – perhaps an offshoot of similar features used on the team's time trial bikes intended to keep air 'stuck' to the surface.
We didn't see any new items in the Saur-Sojasun team area but we did still spot one peculiarity. Time is the team's official bike sponsor but two camouflaged Trek Speed Concepts were hidden amongst the sponsor-correct RXR aero bikes. Interesting indeed.
