Vincenzo Nibali's Merida Scultura - Gallery

Image 1 of 19

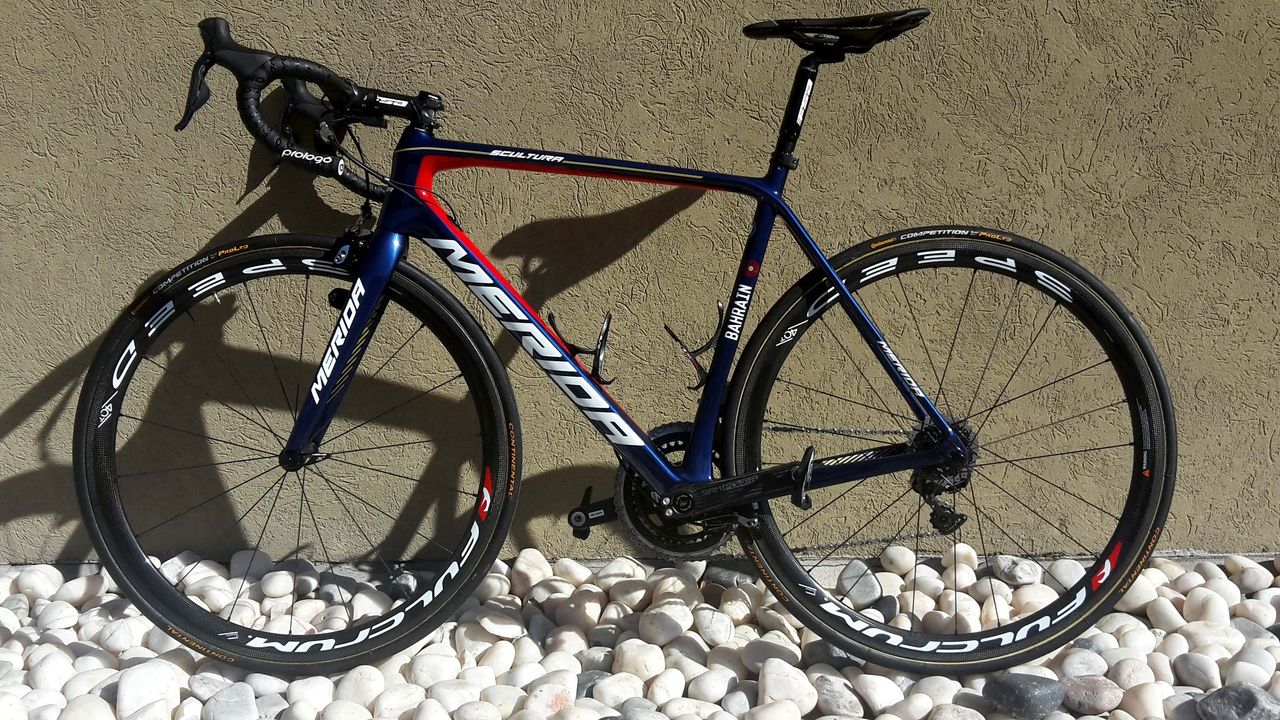

Vincenzo Nibali's Merida Scultura for the 2017 season

Vincenzo Nibali's Merida Scultura for the 2017 season (Image credit: Patrick Fletcher)
Image 2 of 19

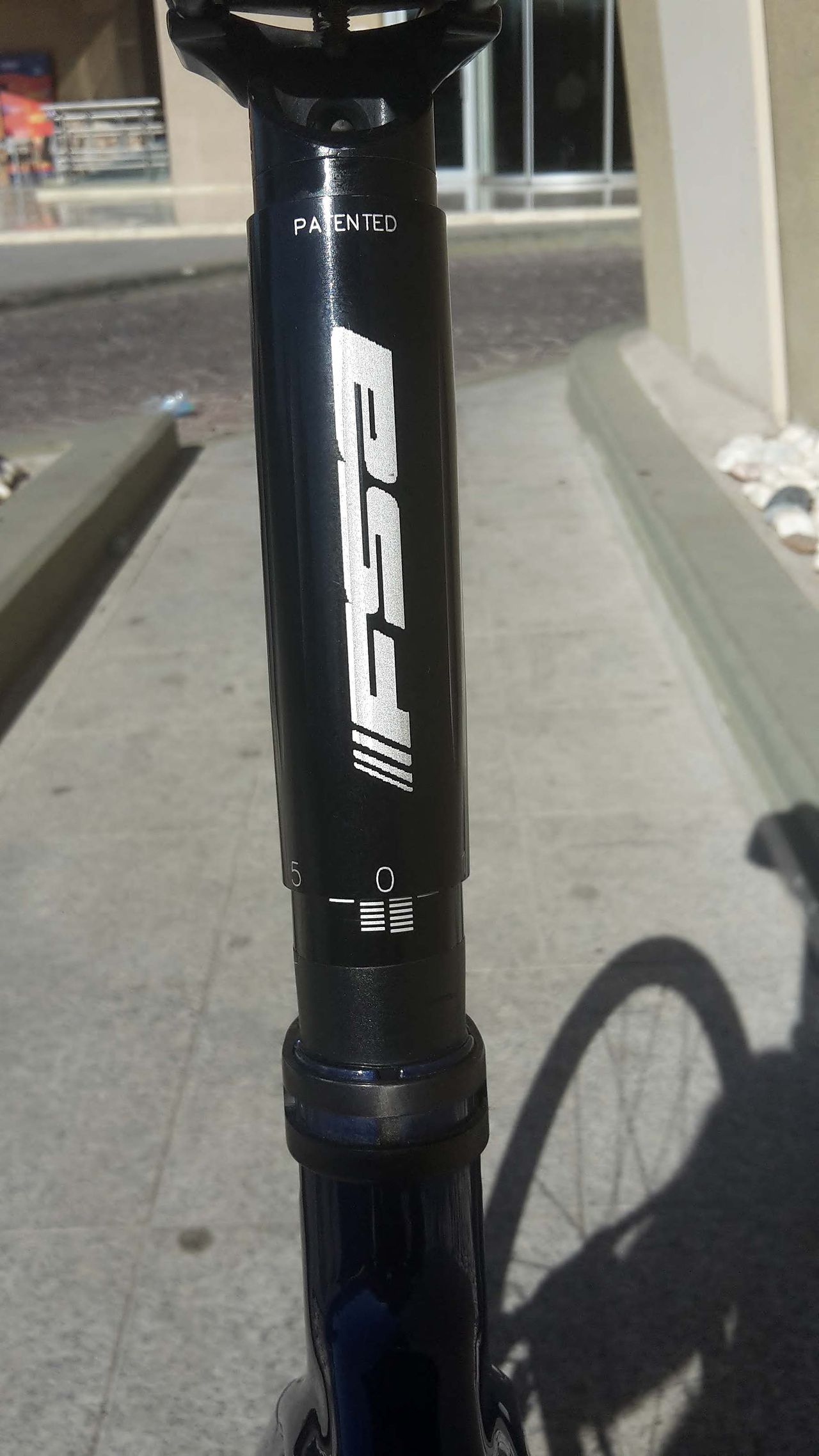

Vincenzo Nibali's saddle is supported by an FSA seatpost

Vincenzo Nibali's saddle is supported by an FSA seatpost (Image credit: Patrick Fletcher)
Image 3 of 19

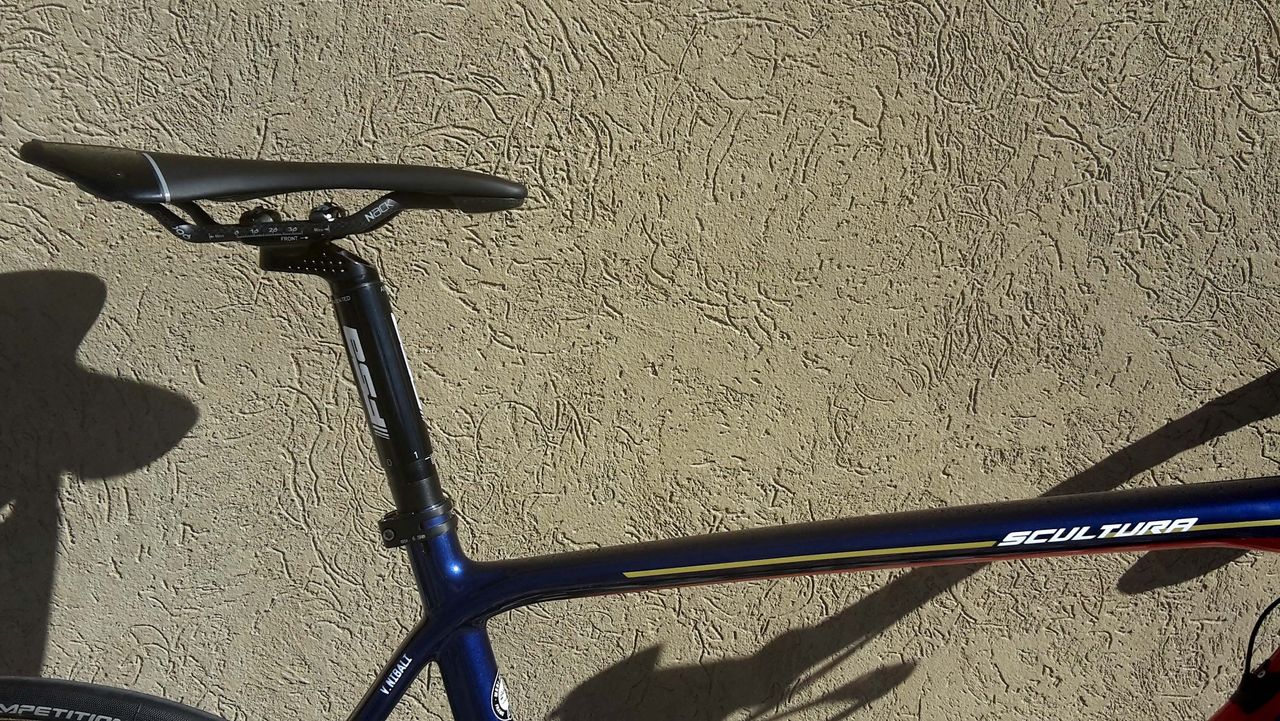

Nibali can twist his seatpost while riding

Nibali can twist his seatpost while riding (Image credit: Patrick Fletcher)
Image 4 of 19

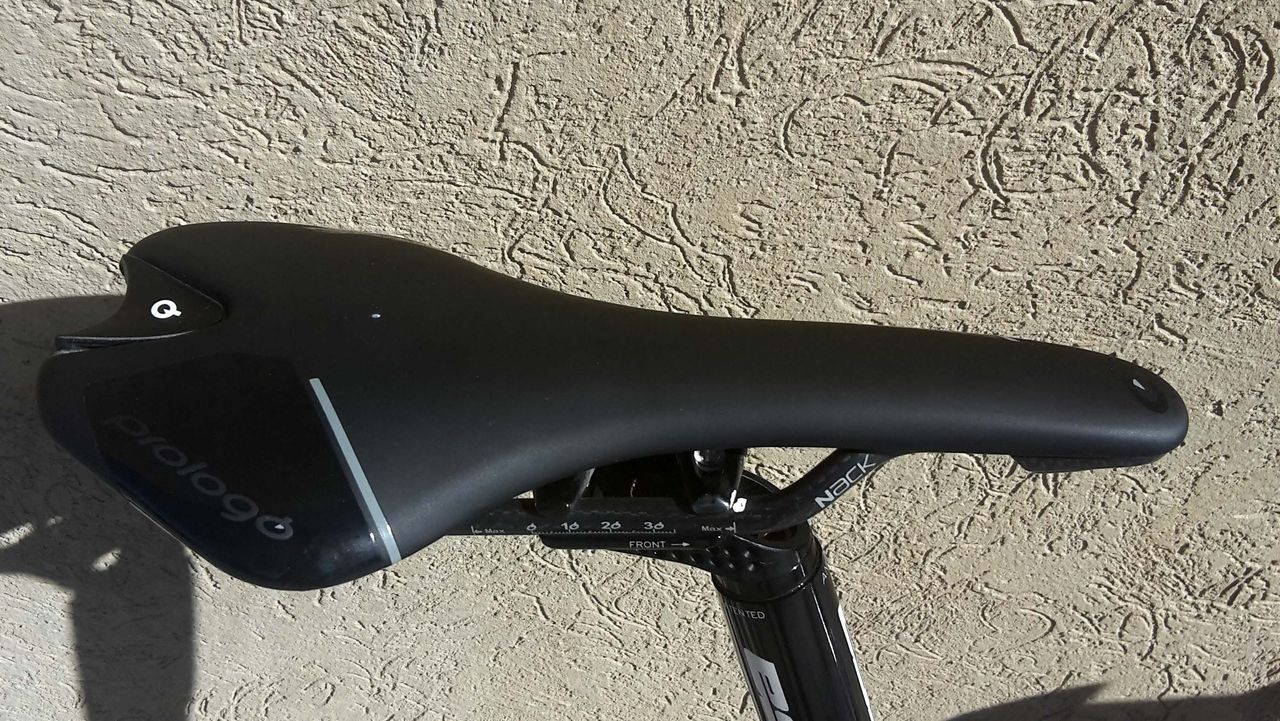

A Prologo Nago C3 saddle for Vincenzo Nibali

A Prologo Nago C3 saddle for Vincenzo Nibali (Image credit: Patrick Fletcher)
Image 5 of 19

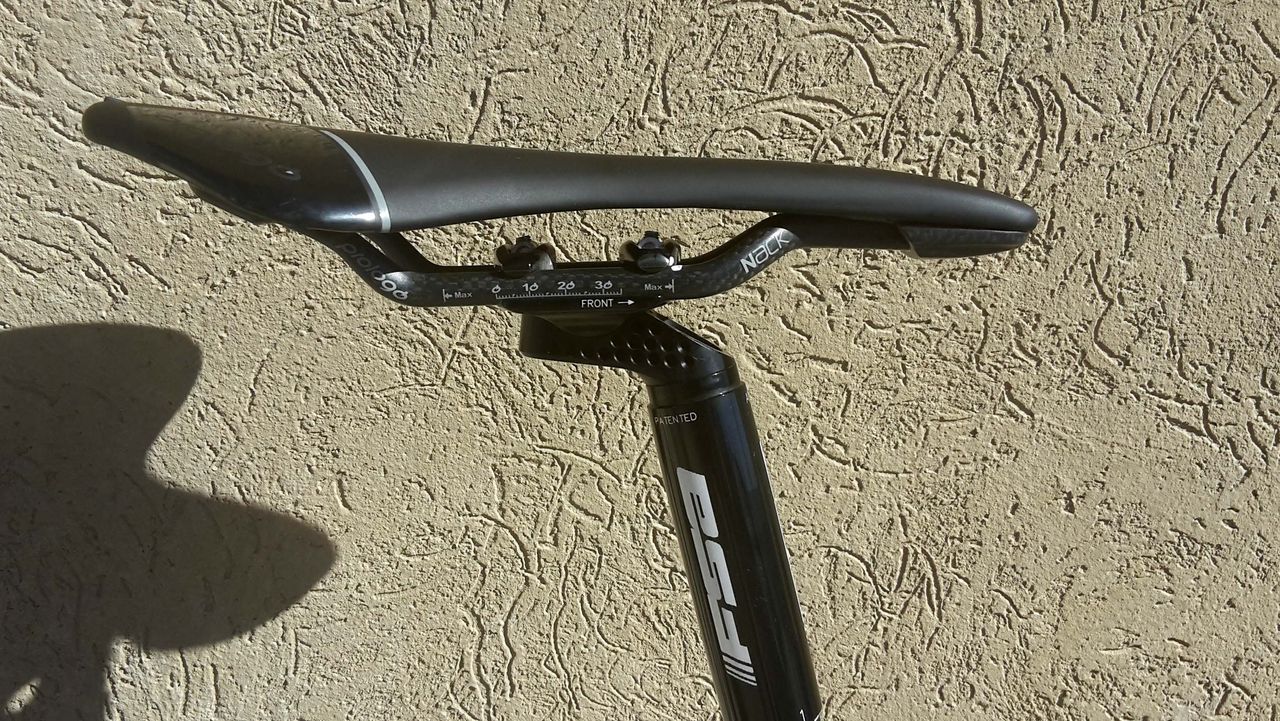

Nibali's saddle is pushed back as far as it can go

Nibali's saddle is pushed back as far as it can go (Image credit: Patrick Fletcher)
Image 6 of 19

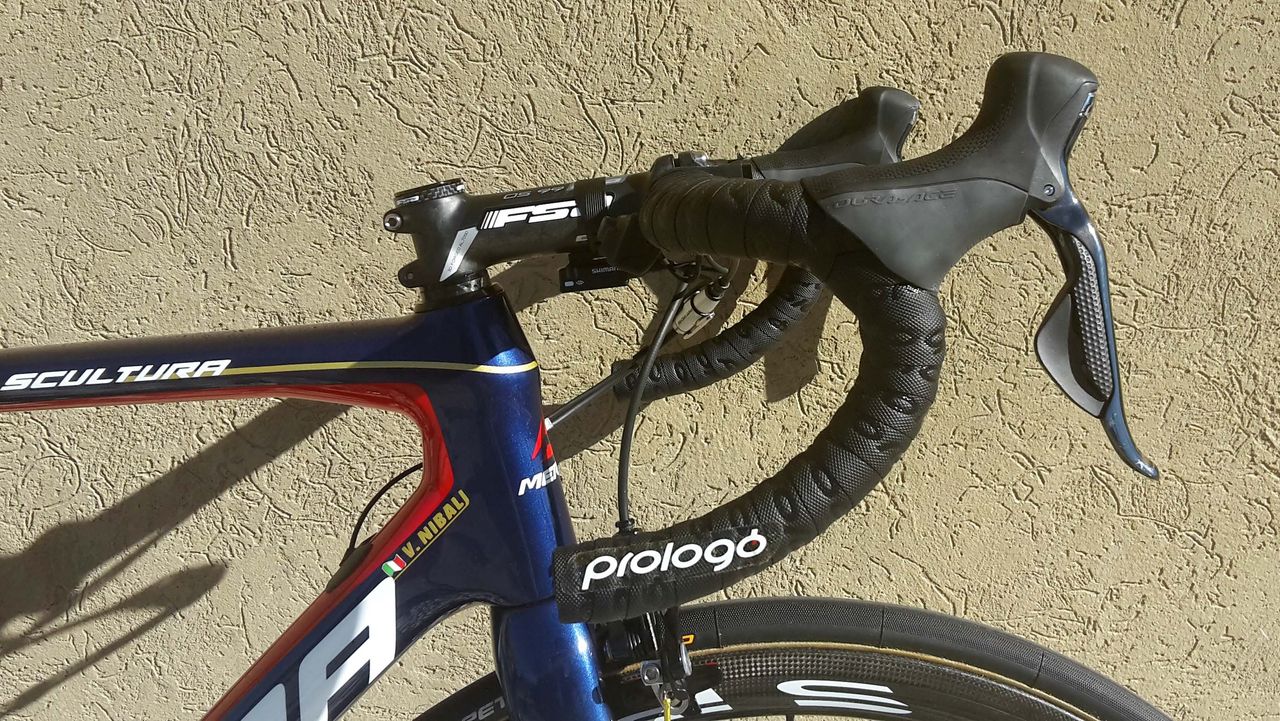

Prologo OneTouch handlebar tape for Vincenzo Nibali and his teammates

Prologo OneTouch handlebar tape for Vincenzo Nibali and his teammates (Image credit: Patrick Fletcher)
Image 7 of 19

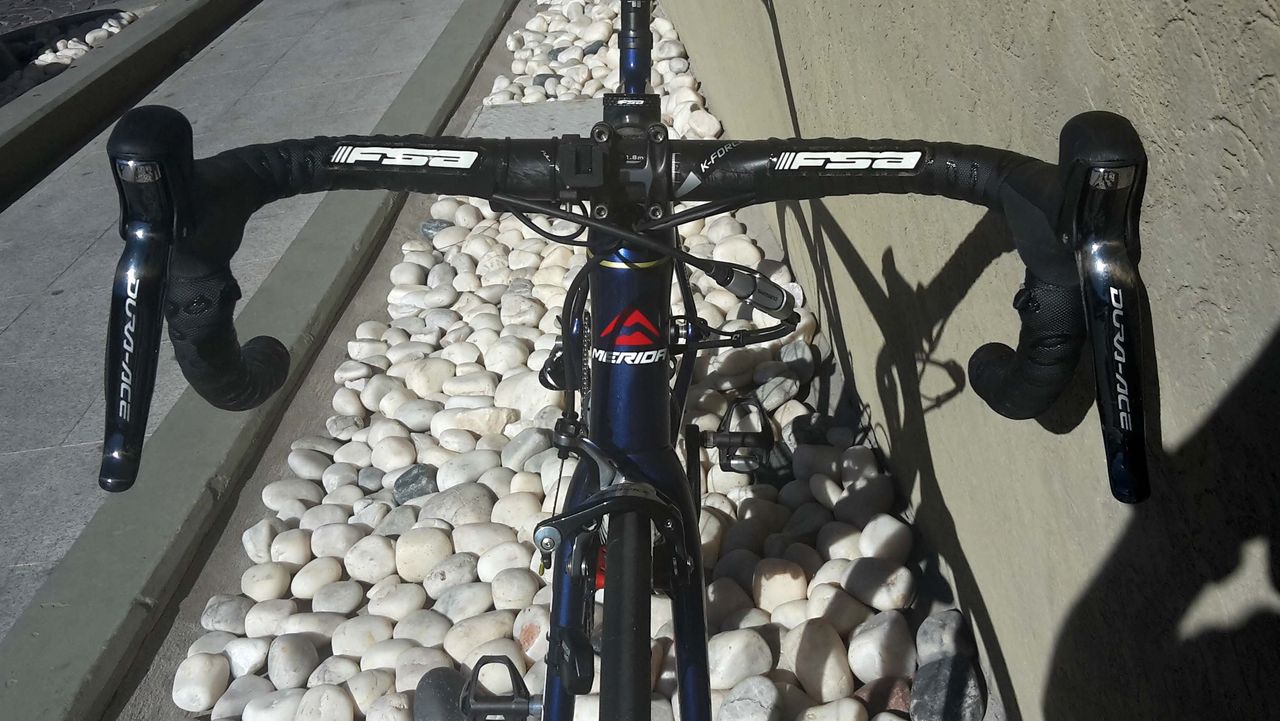

Nibali rides a Compact 42 handlebar

Nibali rides a Compact 42 handlebar (Image credit: Patrick Fletcher)
Image 8 of 19

Caliper braking for Vincenzo Nibali

Caliper braking for Vincenzo Nibali (Image credit: Patrick Fletcher)
Image 9 of 19

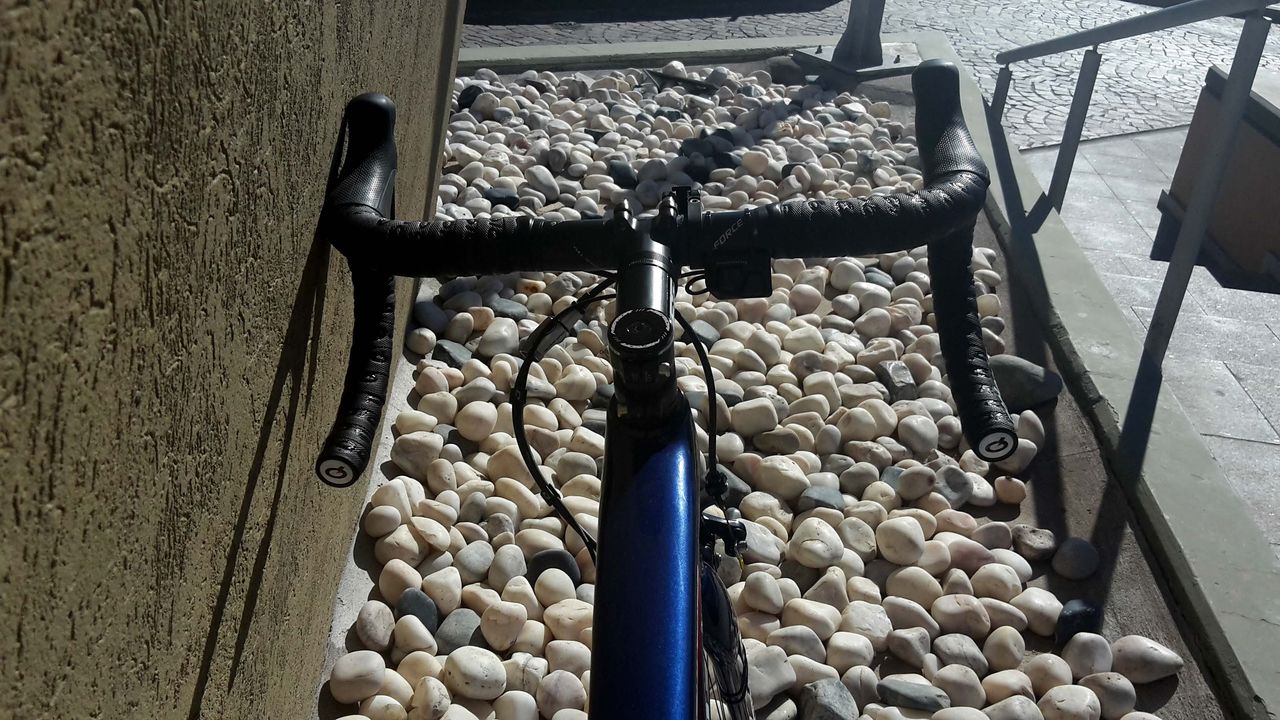

A Nibali-eye view of the front of the bike

A Nibali-eye view of the front of the bike (Image credit: Patrick Fletcher)
Image 10 of 19

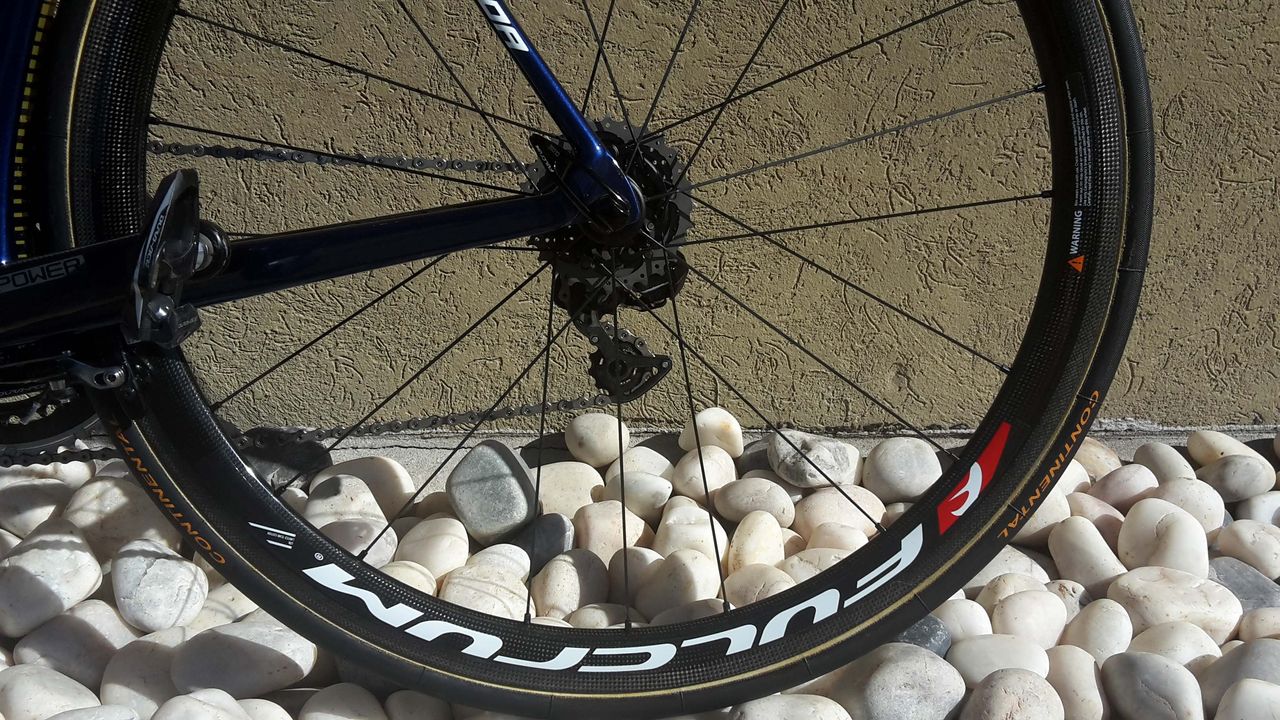

Vincenzo Nibali and the other Bahrain-Merida riders use Fulcrum Speed 40 tubular wheels

Vincenzo Nibali and the other Bahrain-Merida riders use Fulcrum Speed 40 tubular wheels (Image credit: Patrick Fletcher)
Image 11 of 19

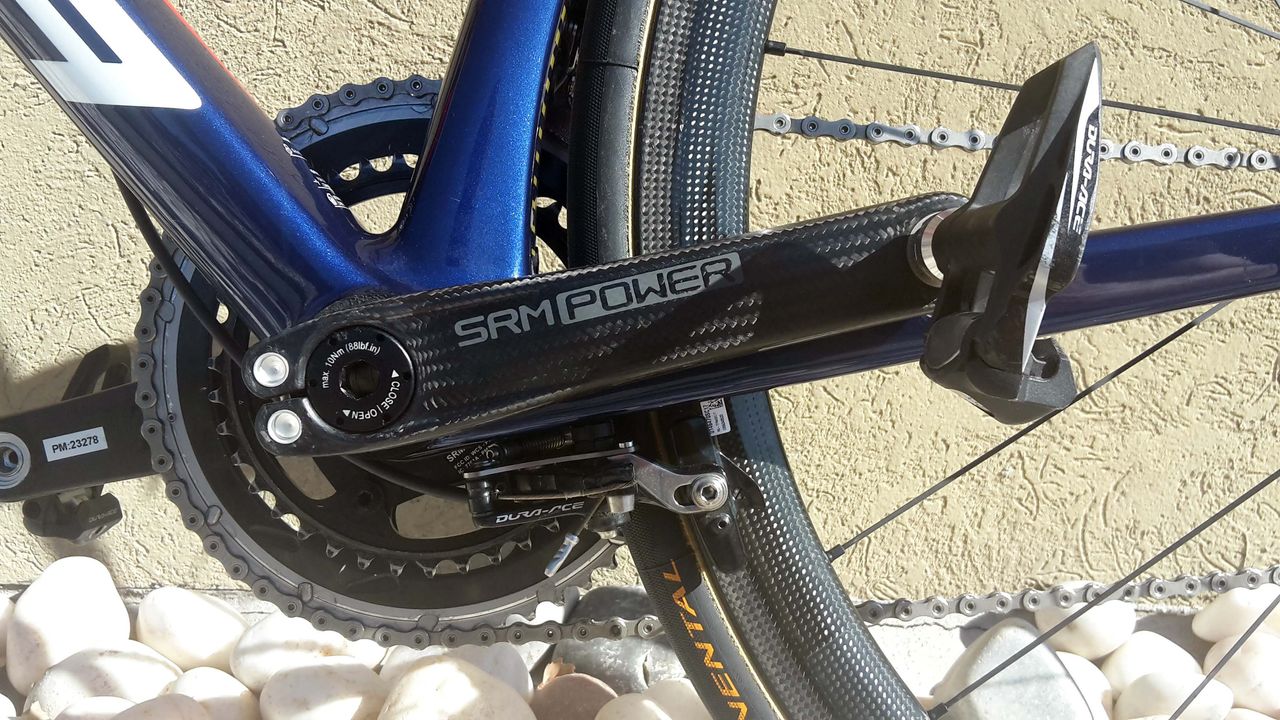

The team uses SRM power meters

The team uses SRM power meters (Image credit: Patrick Fletcher)
Image 12 of 19

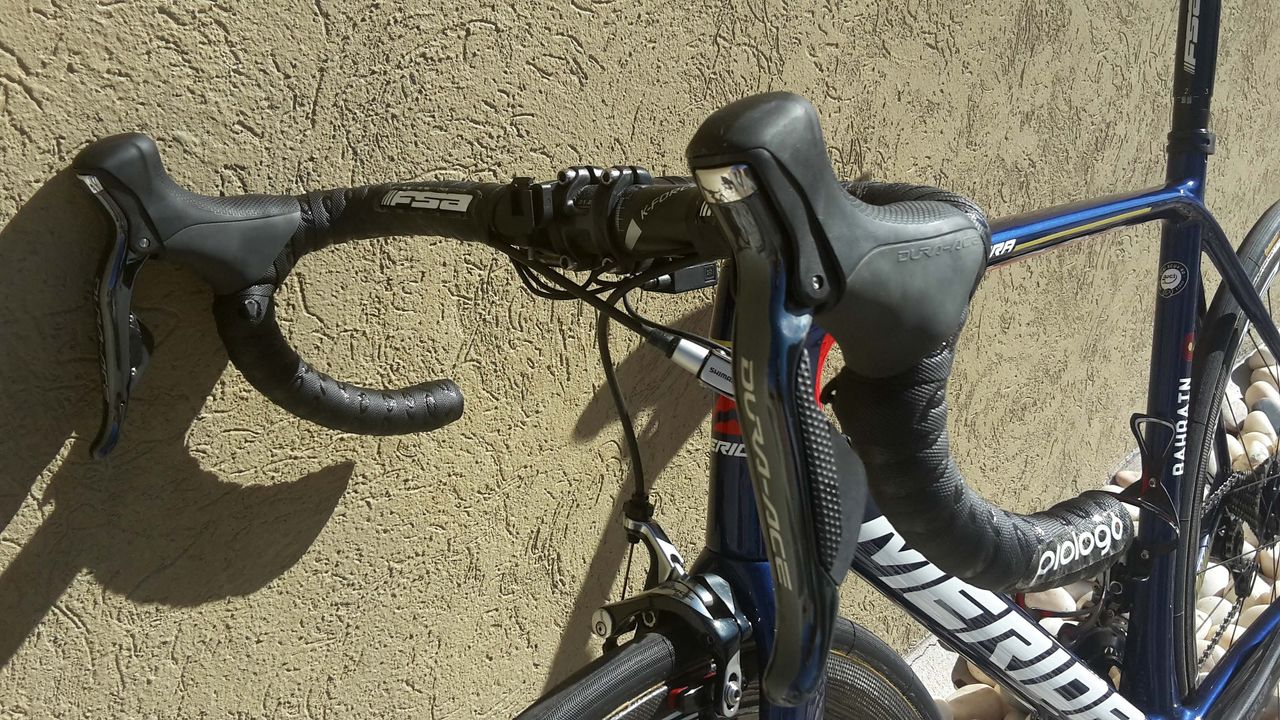

The bike is fitted with Dura-Ace Di2 groupset

The bike is fitted with Dura-Ace Di2 groupset (Image credit: Patrick Fletcher)
Image 13 of 19

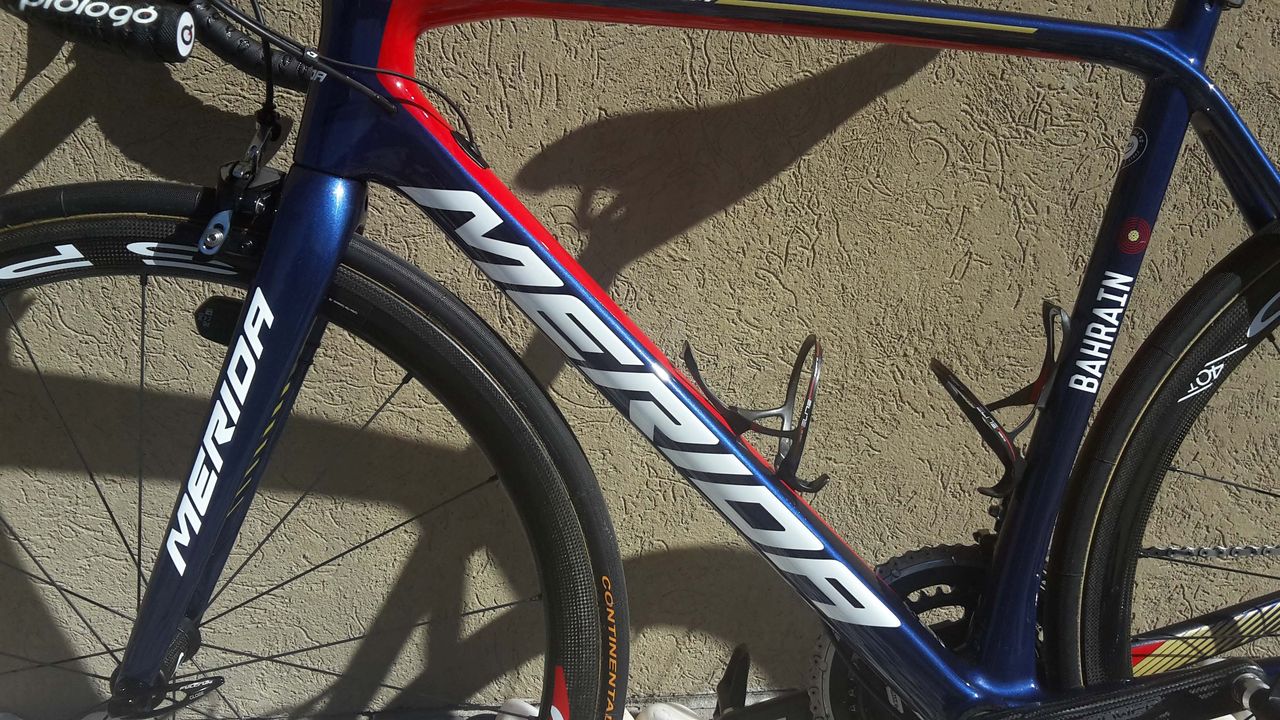

Vinceno Nibali's leightweight Merida Scultura

Vinceno Nibali's leightweight Merida Scultura (Image credit: Patrick Fletcher)
Image 14 of 19

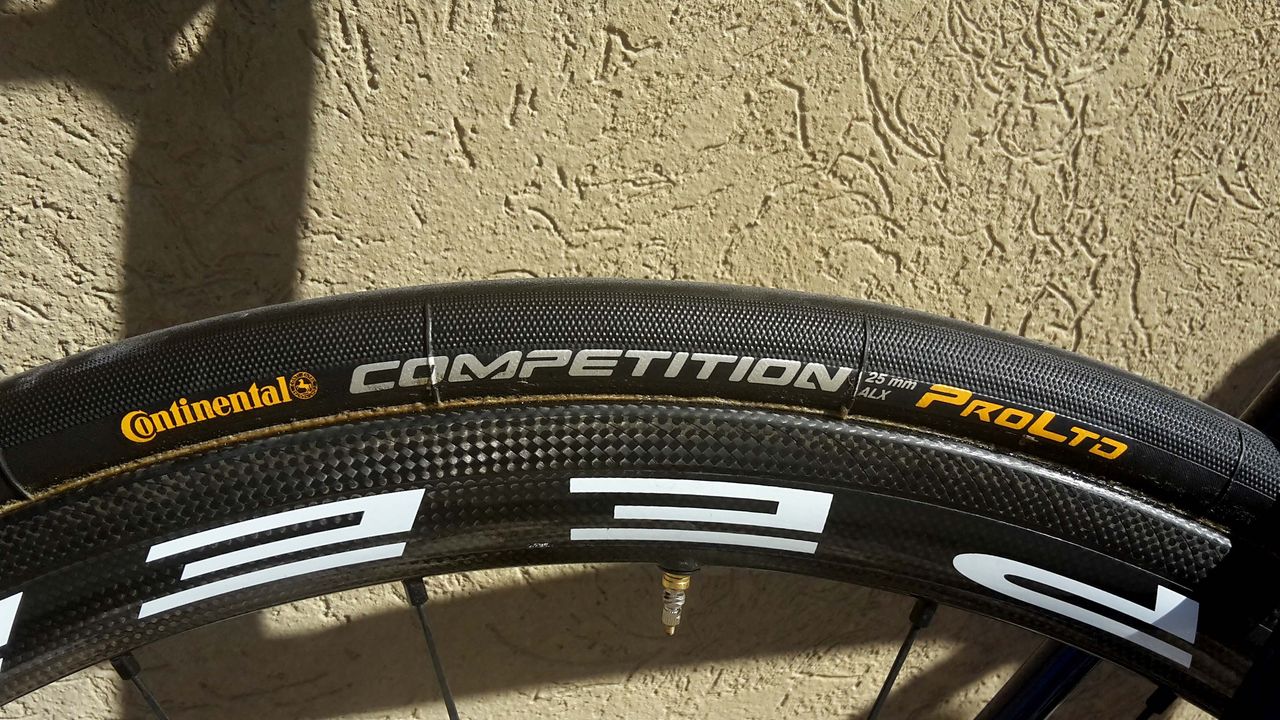

25mm Continental tyres

25mm Continental tyres (Image credit: Patrick Fletcher)
Image 15 of 19

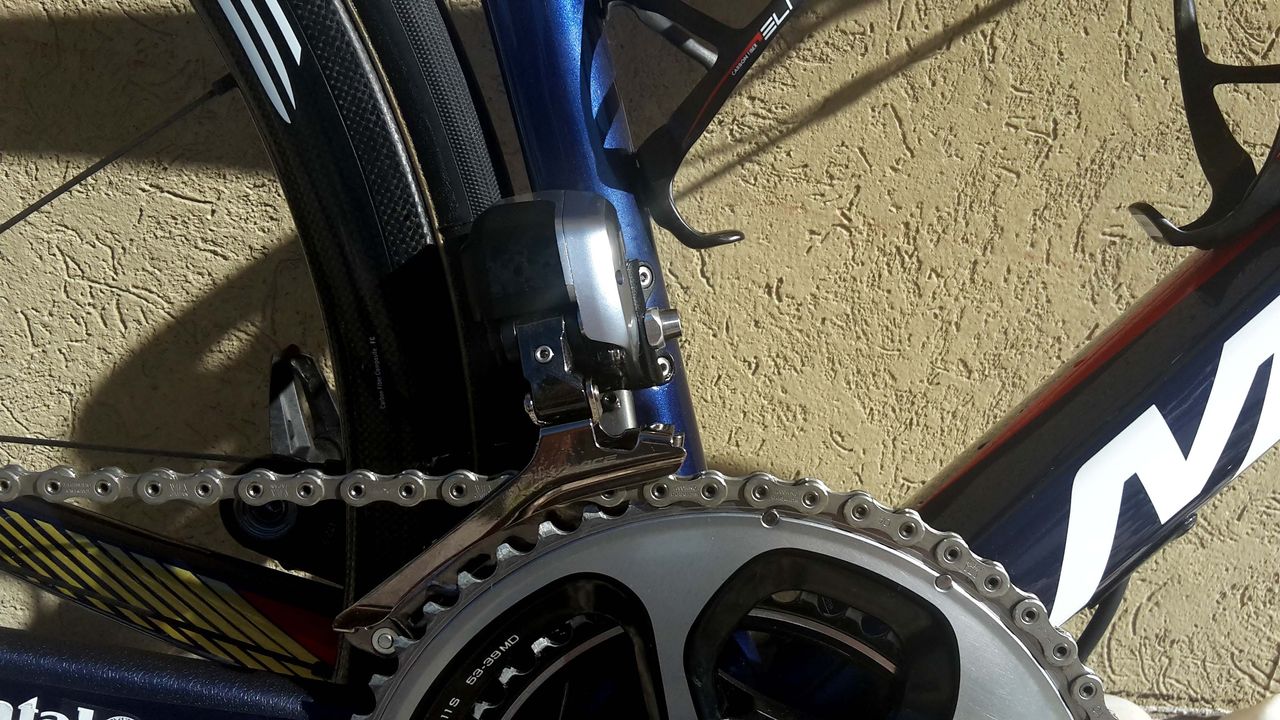

Shimano Dura-Ace Di2 groupset

Shimano Dura-Ace Di2 groupset (Image credit: Patrick Fletcher)
Image 16 of 19

(Image credit: Patrick Fletcher)
Image 17 of 19

(Image credit: Patrick Fletcher)
Image 18 of 19

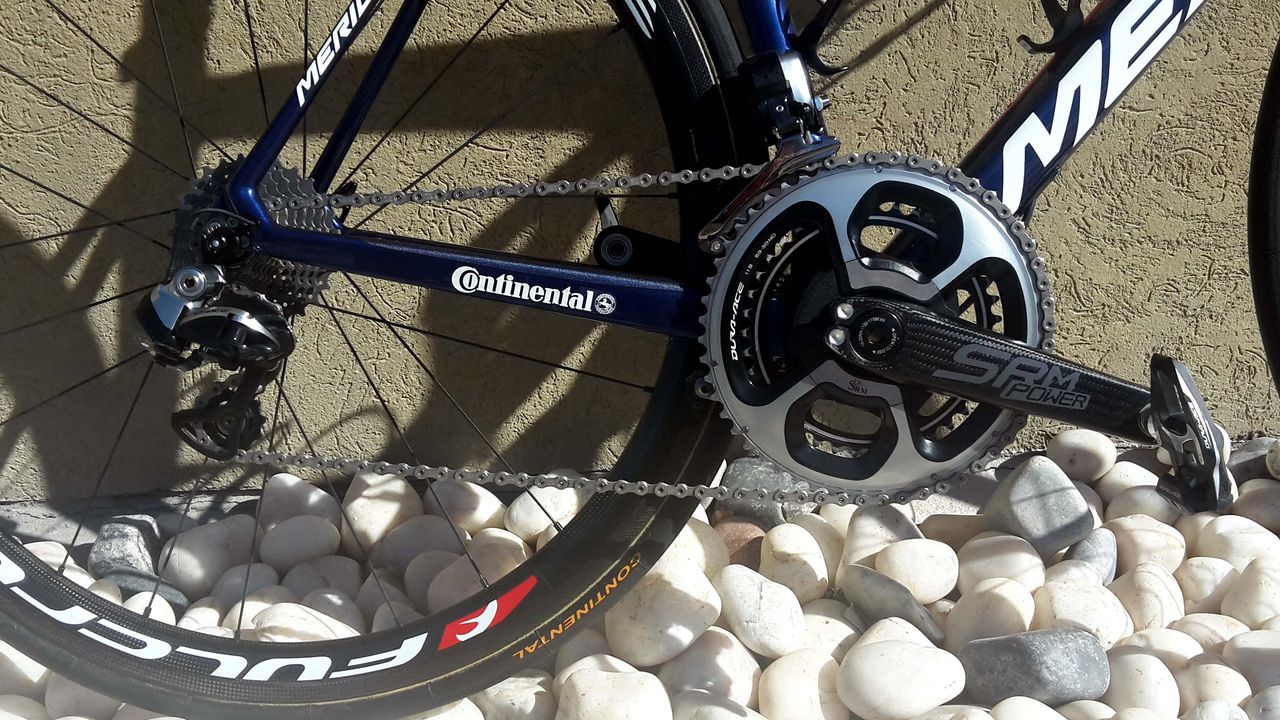

The bikes are fitted with SRM cranks

The bikes are fitted with SRM cranks (Image credit: Patrick Fletcher)
Image 19 of 19

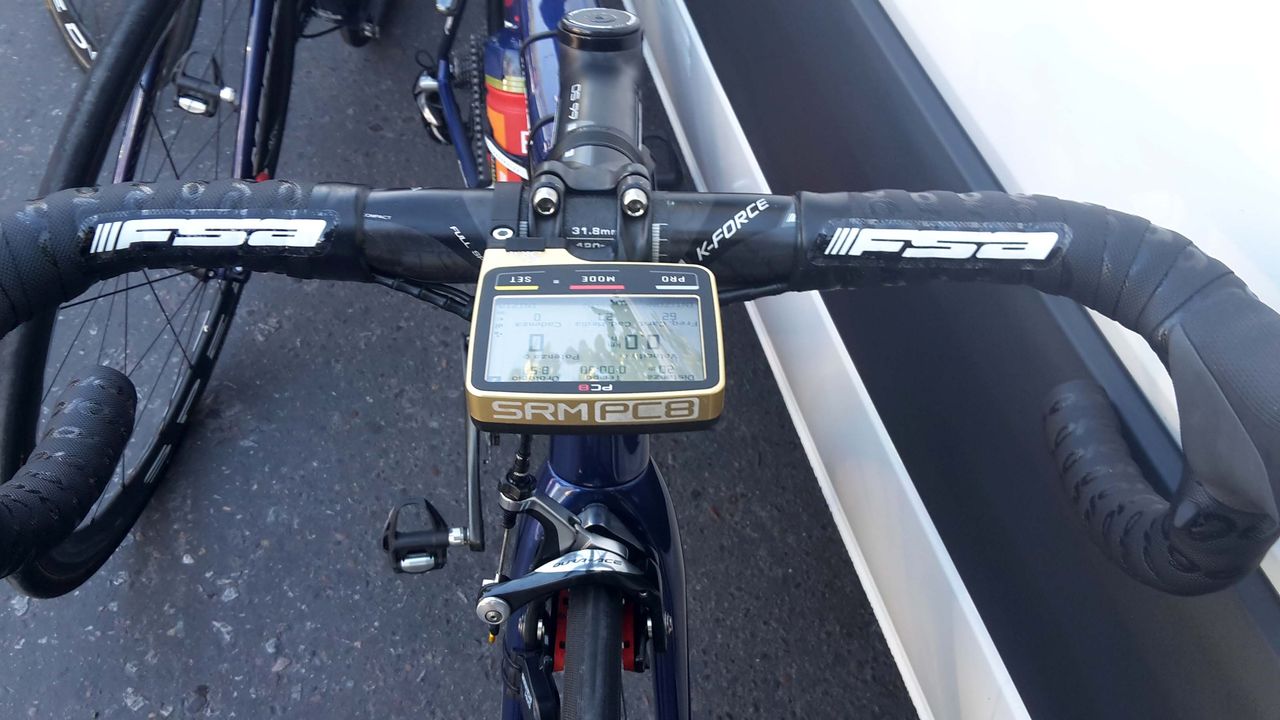

Vincenzo Nibali's bike is set up with a SRM PC-8

Vincenzo Nibali's bike is set up with a SRM PC-8 (Image credit: Patrick Fletcher)

Vincenzo Nibali's move from Astana to Bahrain-Merida for this season came with a new bike set up, with the Taiwanese brand Merida now supplying the Giro d'Italia champion's bikes, rather than Specialized. Cyclingnews caught up with Nibali at his first race of the season, the Vuelta a San Juan, to take a look at his new steed.

The Merida sponsorship gives riders a choice between the Scultura and Reacto frames. Nibali rides the Scultura, the ultra-light model that pushes the UCI's weight limit of 6.8kg.

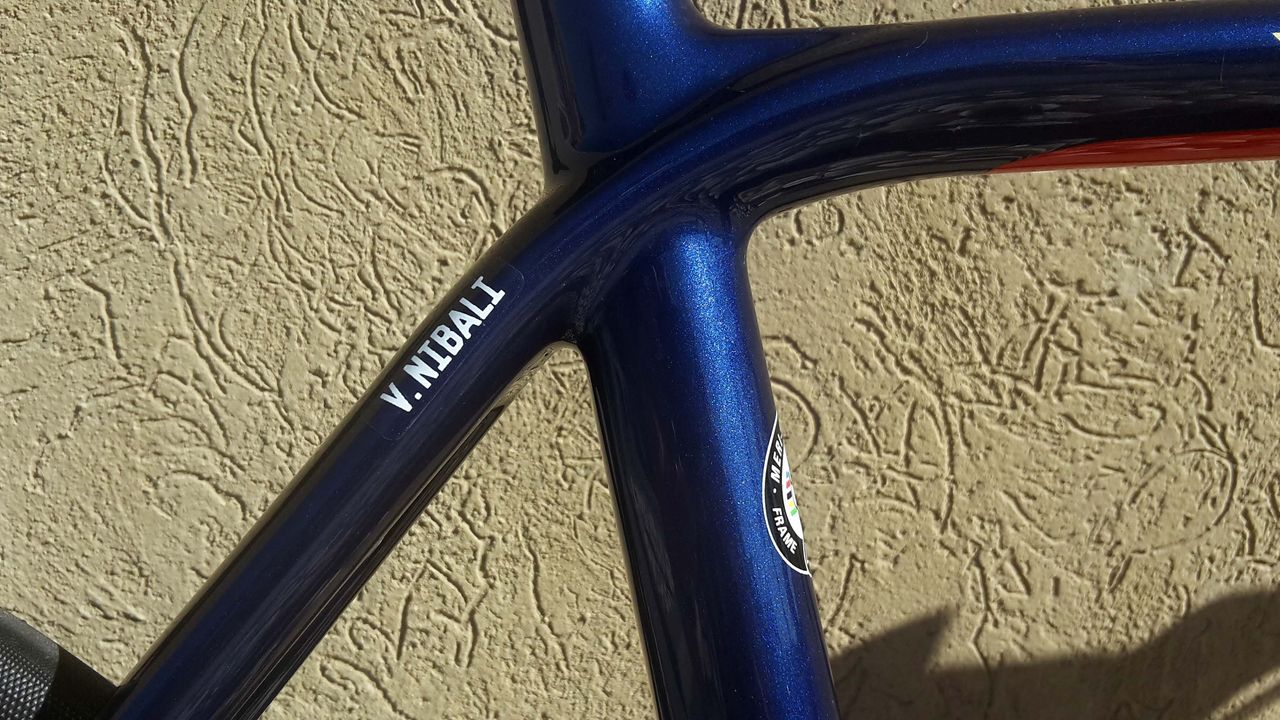

The blue, red and gold colours of the team form the main design for the frame, with Nibali's name the only personalisation after a series of flamboyant, shark-themed designs during his time at Astana.

SRM supplies the team's powermeters, and issued each rider with a special gold coloured SRM PC-8 head unit. As well as the head unit, SRM supplies the eye-catching cranks, developed from existing THM Clavicula cranks and newly branded as SRM.

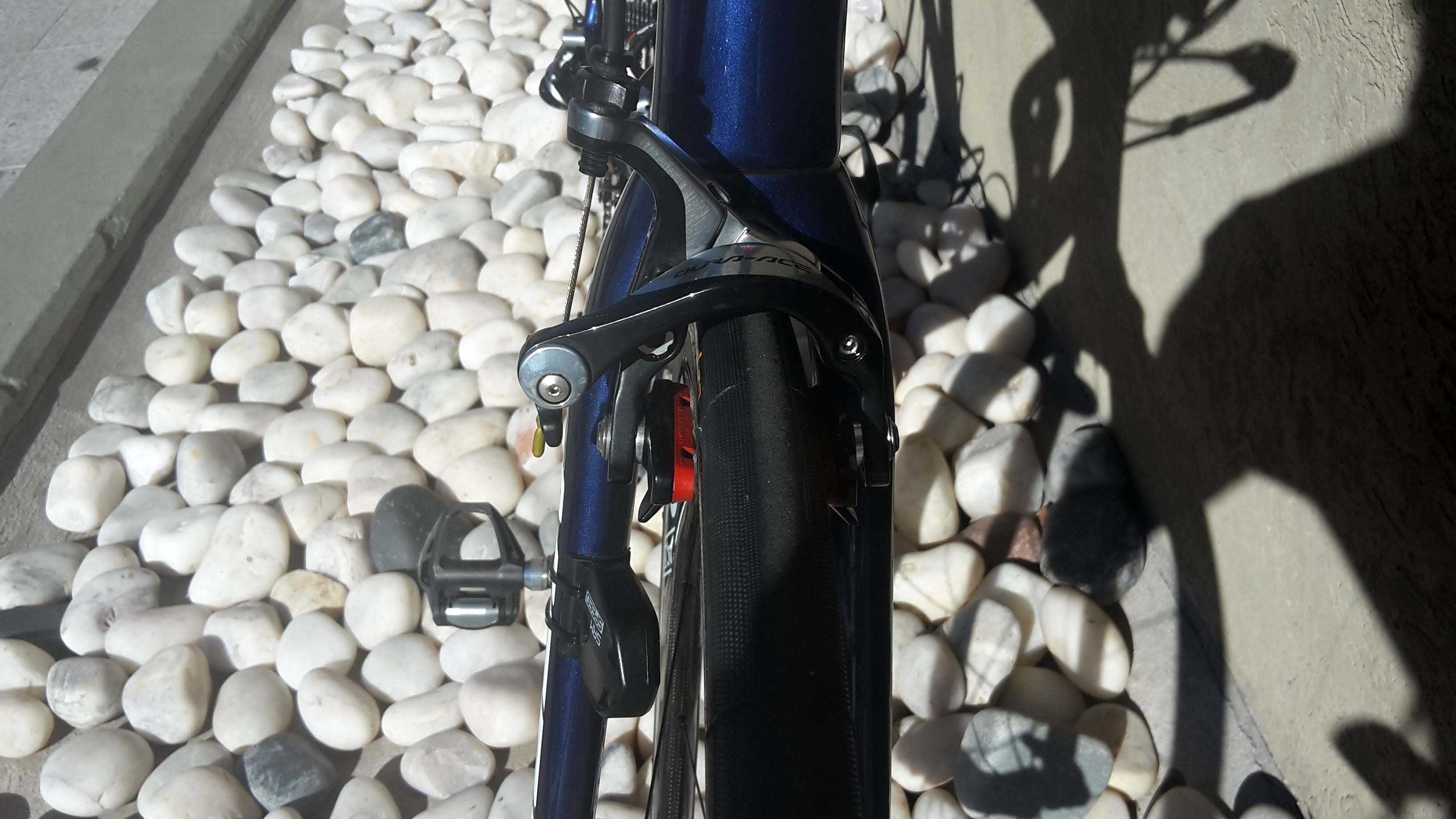

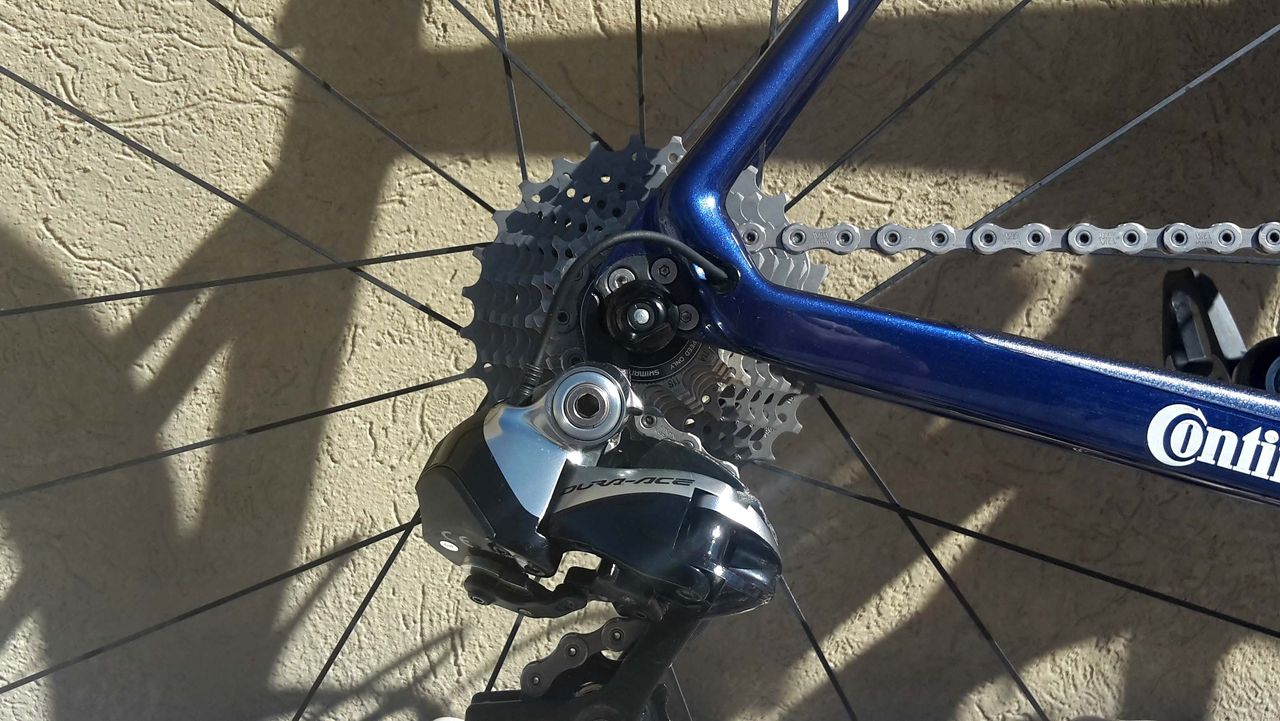

Shimano supplies the chainrings, brakes and shifting, with all riders running the Dura-Ace Di2 groupset with electronic shifting. The rear break is not in the traditional position but tucked away behind the bottom bracket.

Other components come from FSA and Prologo, with one point of interest being Nibali's adjustable FSA seatpost. The relatively new technology allows the rider to twist the seatpost while riding, which will raise or lower the saddle by a milimetre at a time. Nibali's mechanic noted that he'd set the seatpost at '0' but when he got the bike back to wash it was on '2', proving that the pros often like to tinker with their set-ups.

FSA also supplies the handlebars, with Nibali on Compact 42, while Prologo accounts for contact-point comfort with a Nago C3 saddle and OneTouch handlebar tape.

Nibali and the other Bahrain-Merida riders use Fulcrum Speed 40 tubular wheels - usually switching to 50 on flat stages - paired with Continental Competition 25mm tubular tyres.

The Fulcrum wheels are equipped with CULT bearings. Developed by Campagnolo, CULT bearings' tests claim that when spun to 500rpm, the wheels will continue to spin for nine times longer than wheels with standard bearings.

Frame: Merida Scultura, M/L (56)
Fork: Merida Road Carbon Race
Stem: FSA OS, 120
Handlebar: FSA Compact 42
Front brake: Shimano Dura-Ace
Rear brake: Shimano Dura-Ace
Front derailleur: Shimano Dura-Ace Di2
Rear derailleur: Shimano Dura-Ace Di2
Cassette: Shimano Dura-Ace 11-28T
Chain: Shimano Dura-Ace 11-speed
Crankset: SRM, 172.5mm, 53/39T
Pedals: Shimano Dura Ace
Wheelset: Fulcrum Speed 40 tubular
Tyres: Continental Competition tubular, 25mm
Saddle: Prologo Nago C3
Seatpost: FSA Non-series Adjustable
Bottle cages: Elite Custom Race Plus

Critical Measurements

Rider’s height: 181cm
Rider’s weight: 65kg
Saddle height from Bottom bracket: 756mm
Total weight: 6.8kg
