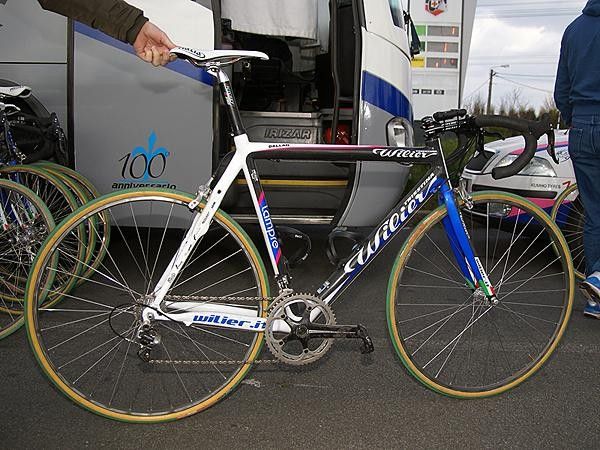

Alessandro Ballan (Lampre) is set to race Paris-Roubaix with a special machine created just for the cobbles.

Alessandro Ballan (Lampre) is set to race Paris-Roubaix with a special machine created just for the cobbles. (Image credit: James Huang/Cyclingnews.com)
Image 9 of 34

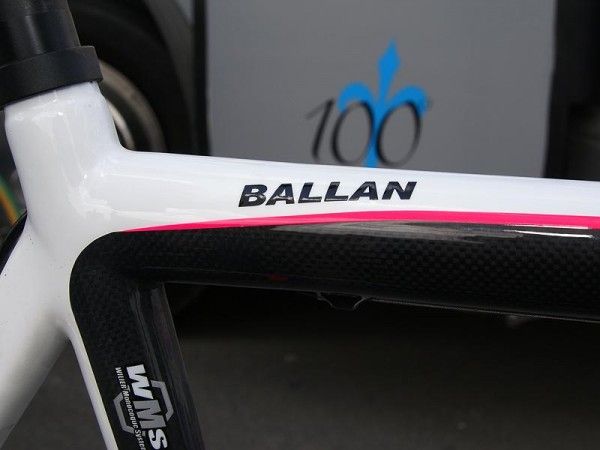

Ballan has only been a professional since 2004 but is already a favorite to win.

Ballan has only been a professional since 2004 but is already a favorite to win. (Image credit: James Huang/Cyclingnews.com)
Image 10 of 34

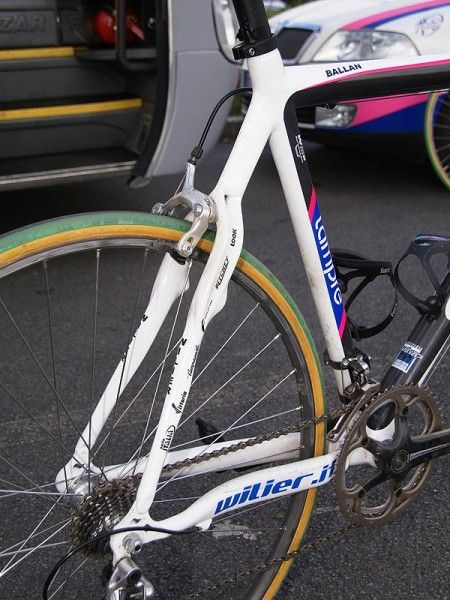

Ballan's frame bears no model designation and its construction is indeed unique from any frame in Wilier Triestina's catalog.

Ballan's frame bears no model designation and its construction is indeed unique from any frame in Wilier Triestina's catalog. (Image credit: James Huang/Cyclingnews.com)
Image 11 of 34

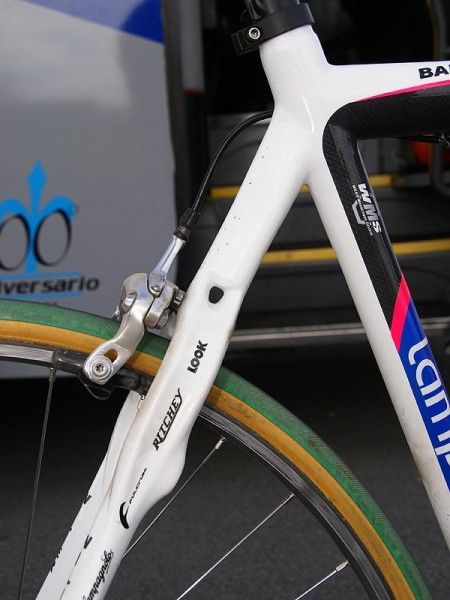

The rear wishbone includes a novel see-through section.

The rear wishbone includes a novel see-through section. (Image credit: James Huang/Cyclingnews.com)
Image 12 of 34

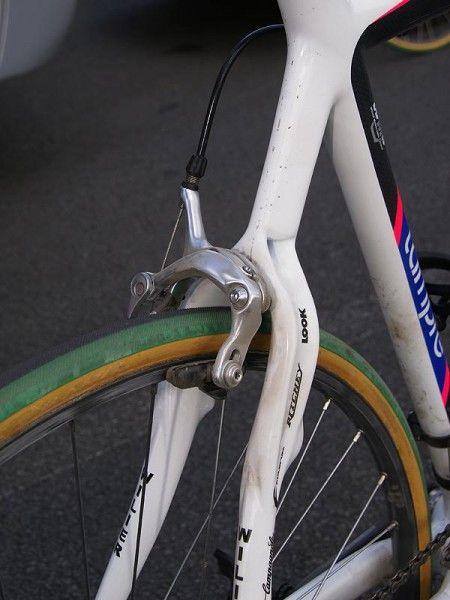

The increased rear tire clearance requires the use of a long-reach Shimano brake caliper.

The increased rear tire clearance requires the use of a long-reach Shimano brake caliper. (Image credit: James Huang/Cyclingnews.com)
Image 13 of 34

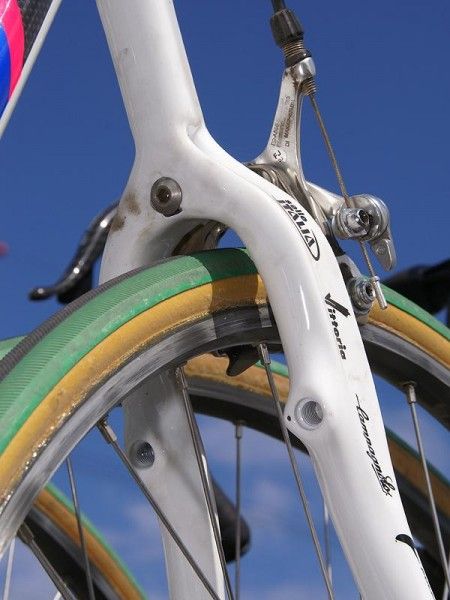

The seat stay assembly was clearly borrowed from a 'cross bike, but turned around and fitted with an eyelet to mount the rear brake caliper.

The seat stay assembly was clearly borrowed from a 'cross bike, but turned around and fitted with an eyelet to mount the rear brake caliper. (Image credit: James Huang/Cyclingnews.com)
Image 14 of 34

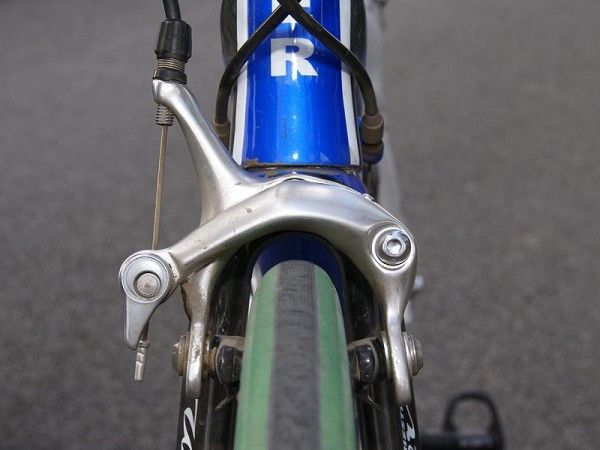

The fork crown is also equipped with a bit of extra clearance.

The fork crown is also equipped with a bit of extra clearance. (Image credit: James Huang/Cyclingnews.com)
Image 15 of 34

This looks like a careless mistake, but the one-off dropouts are actually fitted with a bit of extra material to provide more tire clearance at the crown without resorting to new fork blades.

This looks like a careless mistake, but the one-off dropouts are actually fitted with a bit of extra material to provide more tire clearance at the crown without resorting to new fork blades. (Image credit: James Huang/Cyclingnews.com)
Image 16 of 34

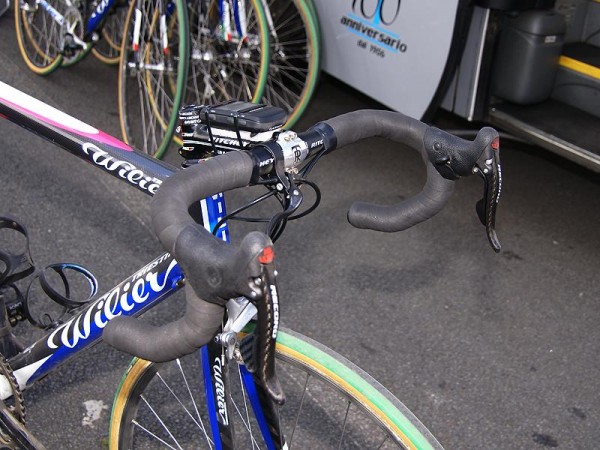

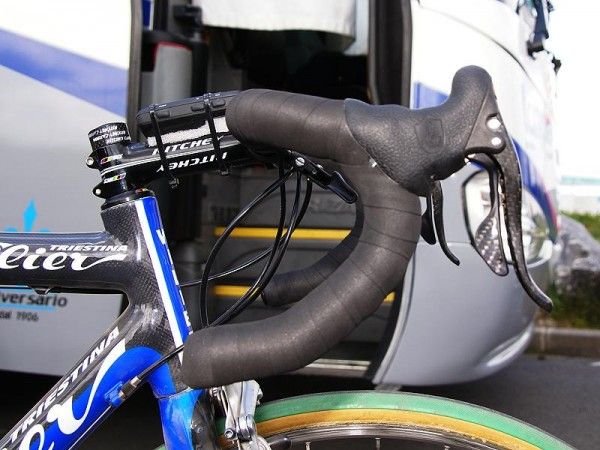

Like most of the riders in Sunday's peloton, Ballan will run with double-wrapped tape.

Like most of the riders in Sunday's peloton, Ballan will run with double-wrapped tape. (Image credit: James Huang/Cyclingnews.com)
Image 17 of 34

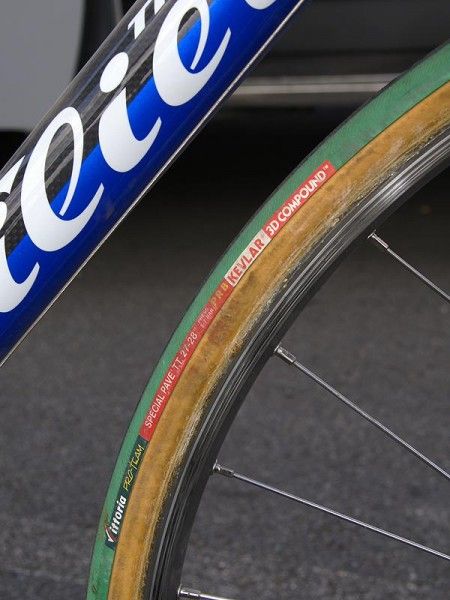

Vittoria provides Ballan with 27mm-wide tubulars specially made to handle the cobbles.

Vittoria provides Ballan with 27mm-wide tubulars specially made to handle the cobbles. (Image credit: James Huang/Cyclingnews.com)
Image 18 of 34

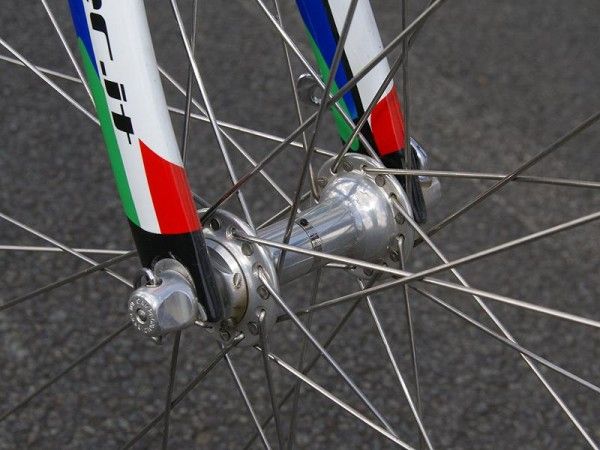

There are no fancy 'wheel systems' to be found here ; just good old-fashioned 32-hole hand-built wheels with box-section aluminum tubular rims.

There are no fancy 'wheel systems' to be found here ; just good old-fashioned 32-hole hand-built wheels with box-section aluminum tubular rims. (Image credit: James Huang/Cyclingnews.com)
Image 19 of 34

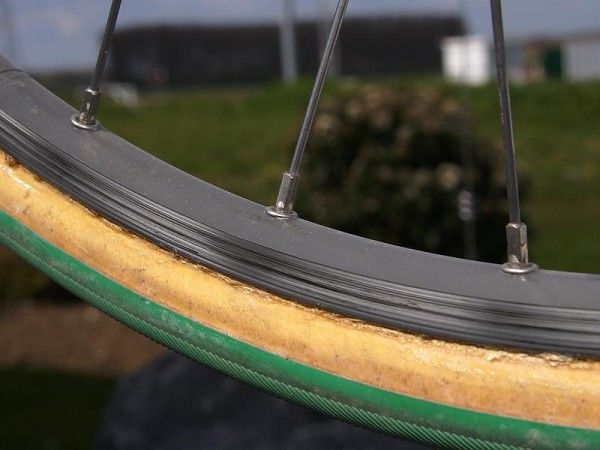

Not even alloy nipples make the cut here. These wheels are laced with more reliable brass nipples.

Not even alloy nipples make the cut here. These wheels are laced with more reliable brass nipples. (Image credit: James Huang/Cyclingnews.com)
Image 20 of 34

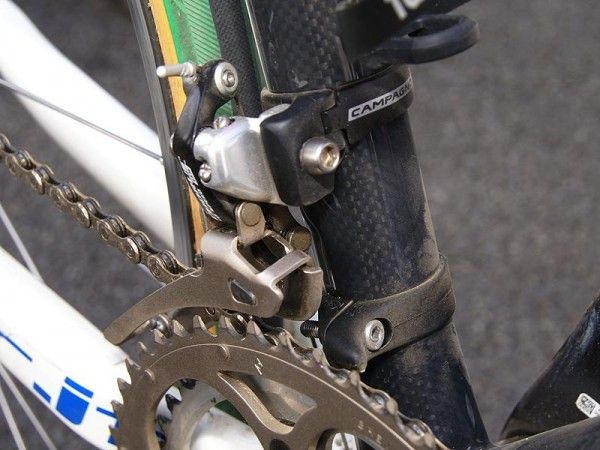

A little bit of insurance goes a long way as a dropped chain can mean the difference between glory and regret.

A little bit of insurance goes a long way as a dropped chain can mean the difference between glory and regret. (Image credit: James Huang/Cyclingnews.com)
Image 21 of 34

Ballan's bike is otherwise fairly standard fare, including the team-only 'red' edition of Campagnolo's Record Ergopower levers.

Ballan's bike is otherwise fairly standard fare, including the team-only 'red' edition of Campagnolo's Record Ergopower levers. (Image credit: James Huang/Cyclingnews.com)
Image 22 of 34

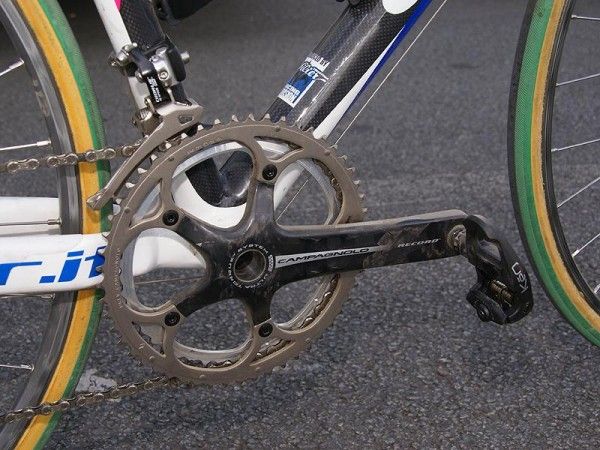

Ballan's bike is also equipped with his usual Campagnolo Record Ultra-Torque crankset…

Ballan's bike is also equipped with his usual Campagnolo Record Ultra-Torque crankset… (Image credit: James Huang/Cyclingnews.com)
Image 23 of 34

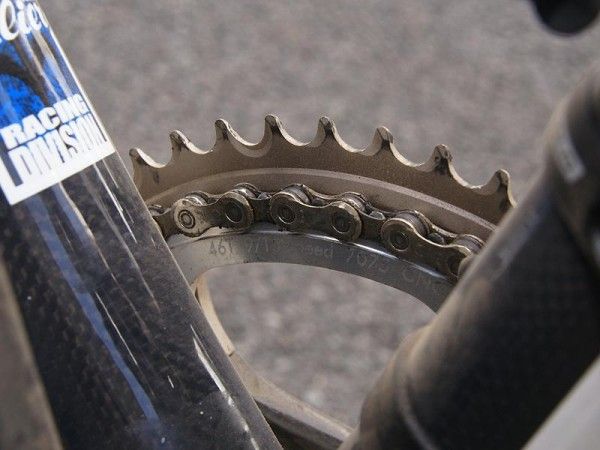

…although here a 46T inner ring replaces the usual 39T or 42T.

…although here a 46T inner ring replaces the usual 39T or 42T. (Image credit: James Huang/Cyclingnews.com)
Image 24 of 34

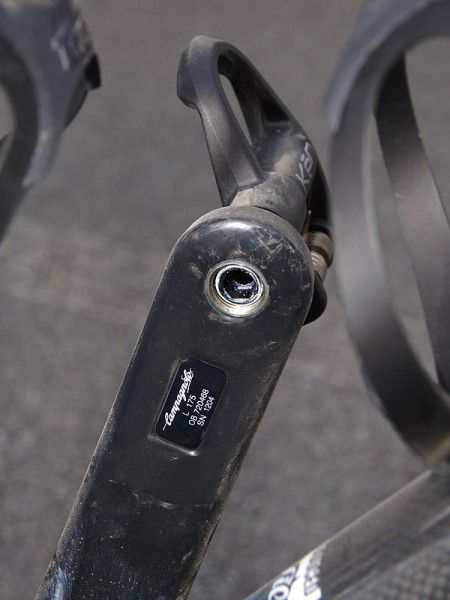

Ballan is surprisingly tall at 1.9m and thus runs 175mm-long crankarms.

Ballan is surprisingly tall at 1.9m and thus runs 175mm-long crankarms. (Image credit: James Huang/Cyclingnews.com)
Image 25 of 34

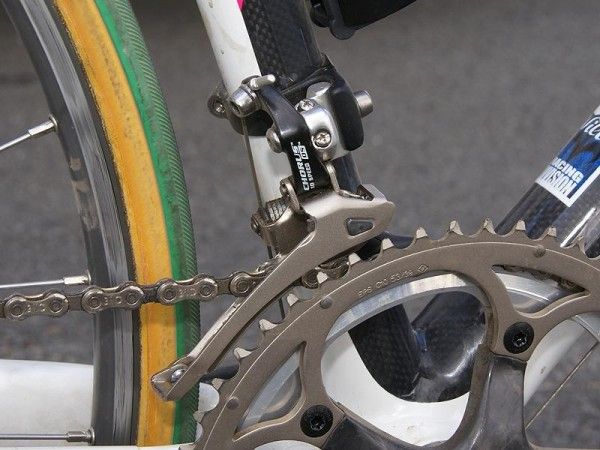

A Chorus front derailleur is used here instead of Record.

A Chorus front derailleur is used here instead of Record. (Image credit: James Huang/Cyclingnews.com)
Image 26 of 34

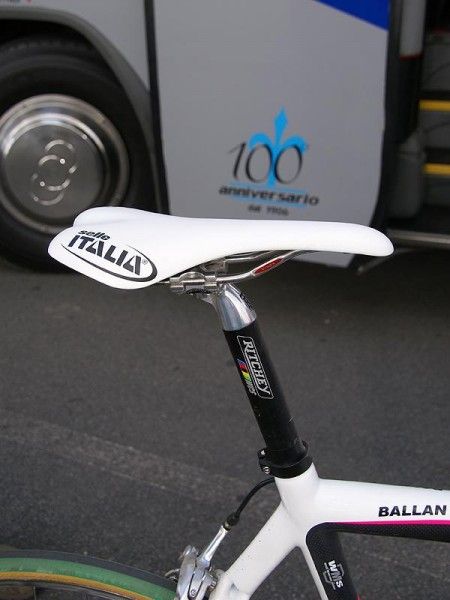

Ballan foregoes carbon in favor of aluminum for his Paris-Roubaix seatpost.

Ballan foregoes carbon in favor of aluminum for his Paris-Roubaix seatpost. (Image credit: James Huang/Cyclingnews.com)
Image 27 of 34

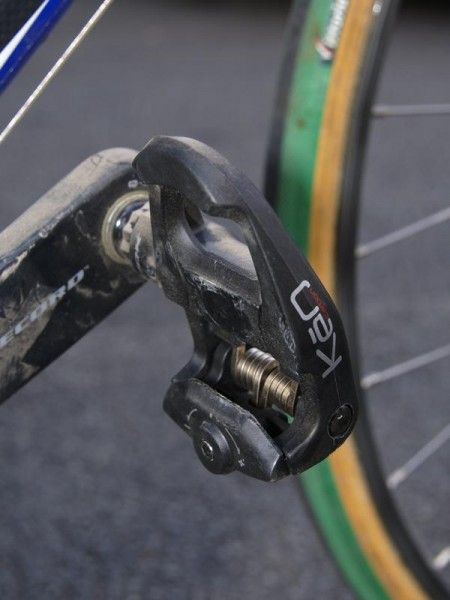

The usual Look KeO Carbon pedals will help Ballan power along the pavé.

The usual Look KeO Carbon pedals will help Ballan power along the pavé. (Image credit: James Huang/Cyclingnews.com)
Image 28 of 34

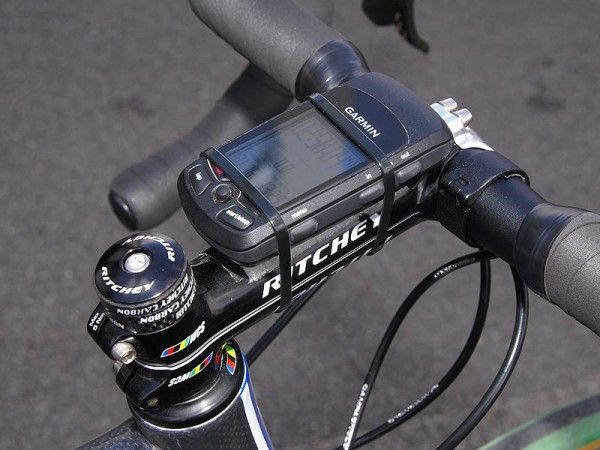

Garmin GPS computers are suddenly everywhere in the pro peloton, presumably to help remind the riders of important upcoming sections.

Garmin GPS computers are suddenly everywhere in the pro peloton, presumably to help remind the riders of important upcoming sections. (Image credit: James Huang/Cyclingnews.com)
Image 29 of 34

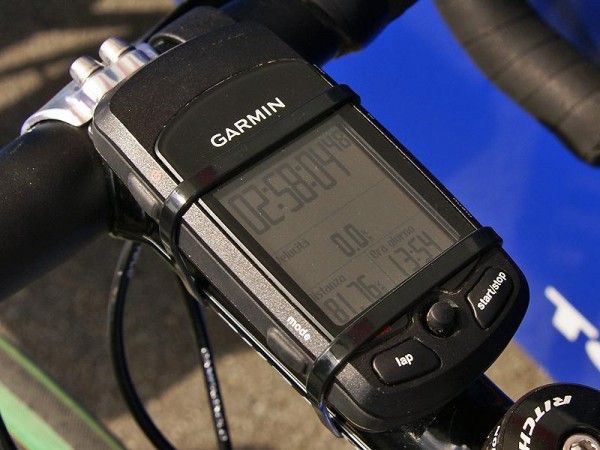

And yes, the Garmin Edge can even be configured to display in Italian!

And yes, the Garmin Edge can even be configured to display in Italian! (Image credit: James Huang/Cyclingnews.com)
Image 30 of 34

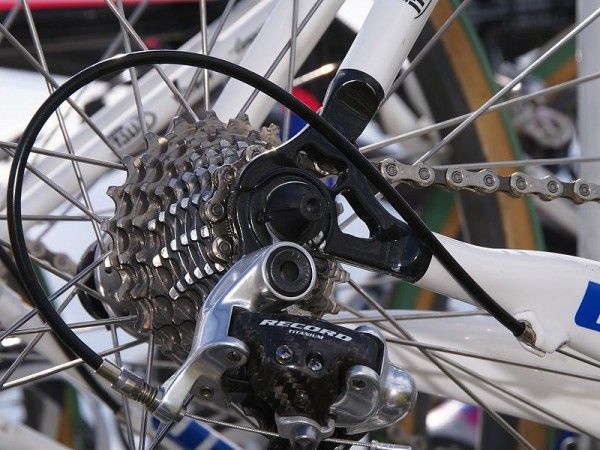

Ballan's spare bike differs in construction but is presumably similar in fit and handling.

Ballan's spare bike differs in construction but is presumably similar in fit and handling. (Image credit: James Huang/Cyclingnews.com)
Image 31 of 34

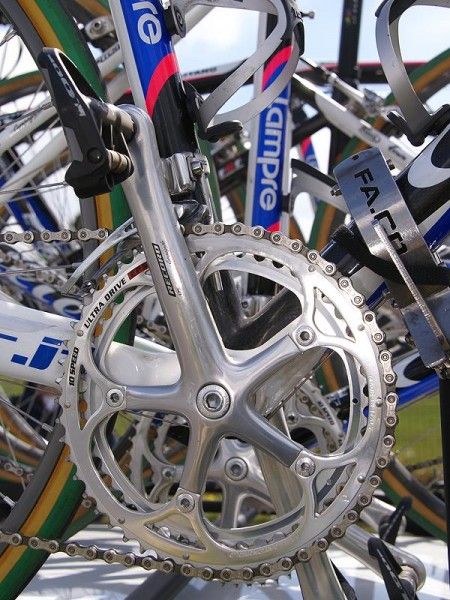

The spare bike is also equipped with an alloy Record crank instead of the new carbon iteration.

The spare bike is also equipped with an alloy Record crank instead of the new carbon iteration. (Image credit: James Huang/Cyclingnews.com)
Image 32 of 34

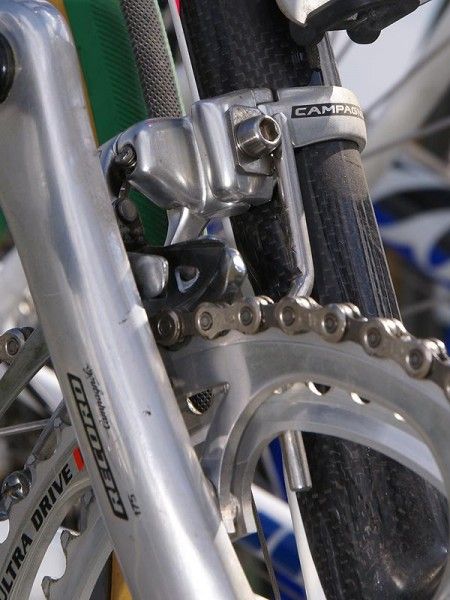

The spare bike's front derailleur includes a custom chain watcher.

The spare bike's front derailleur includes a custom chain watcher. (Image credit: James Huang/Cyclingnews.com)
Image 33 of 34

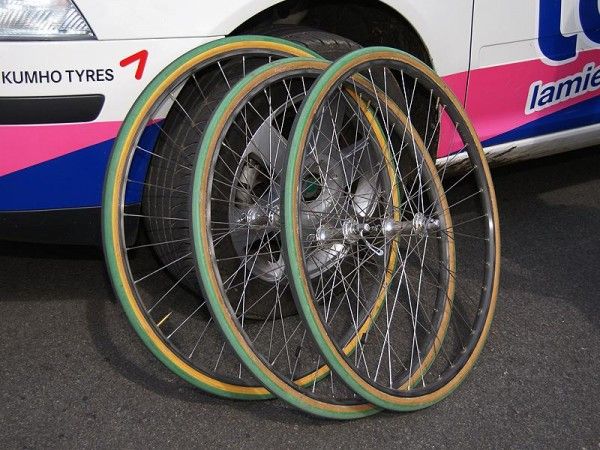

You can never have too many spare wheels when it comes to Paris-Roubaix.

You can never have too many spare wheels when it comes to Paris-Roubaix. (Image credit: James Huang/Cyclingnews.com)
Image 34 of 34

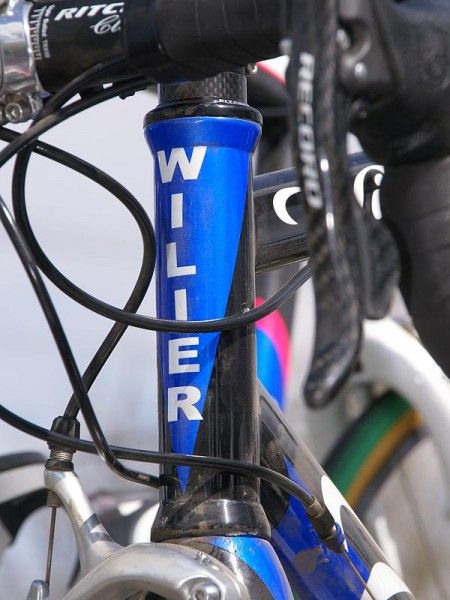

Some Lampre riders, such as Massimiliano Mori, will tackle Paris-Roubaix on steel bikes.

Some Lampre riders, such as Massimiliano Mori, will tackle Paris-Roubaix on steel bikes. (Image credit: James Huang/Cyclingnews.com)

Pro bikes, April 12, 2008

Alessandro Ballan's Lampre Wilier Triestina Paris-Roubaix Special
